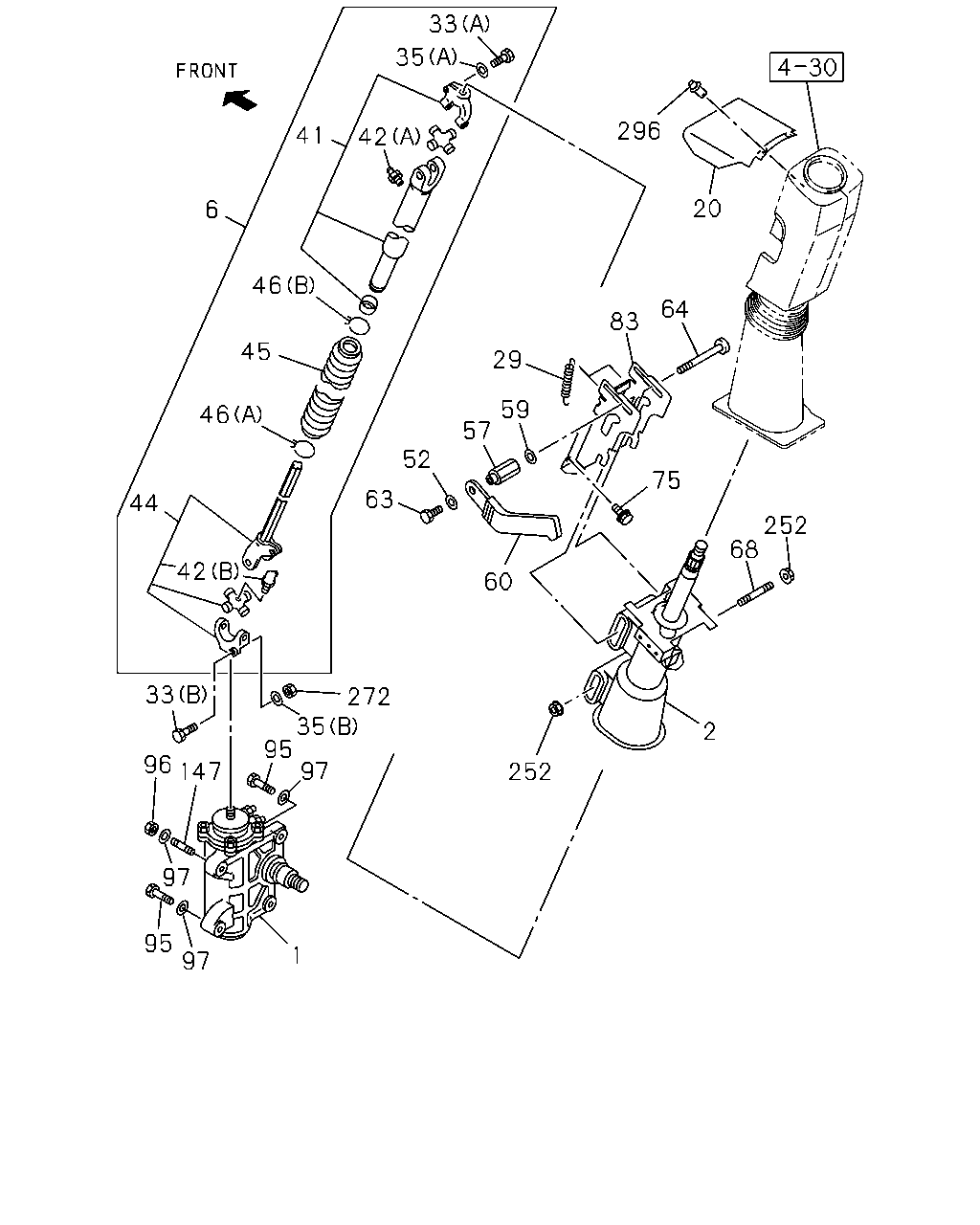

4-31 — STEERING COLUMN AND SHAFT (#7708) — 178 parça

33 35 296 41 42 20 6 46 64 83 45 29 59 46 57 52 75 63 44 252 68 42 60 33 272 35 95 97 2 96 147 252 97 95 1 97

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	1-44000-861-2	01	1	9902-	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	1-44000-863-1	01	1	0004-		●
2	SHAFT ASM; STRG	1-44130-689-0	01	1	9902-9904	●
2	SHAFT ASM; STRG EXC. AIR BAG(TFQ)	1-44130-689-0	01	1	9905-0003	●
2	SHAFT ASM; STRG EXC. AIR BAG(TFQ)	1-44130-689-0	01	1	0004-	●
2	SHAFT ASM; STRG	1-44130-689-0	01	1	0004-		●
2	SHAFT ASM; STRG AIR BAG(TFQ)	1-44130-740-0	01	1	9902-	●
6	SHAFT; STRG LWR AIR BAG(TFQ)	1-44135-315-0	01	1	9905-	●
20	COVER; STRG SHAFT	1-72438-121-2	01	1	9902-0003	●
20	COVER; STRG SHAFT	1-72438-121-3	01	1	0004-	●	●
29	SPRING; COLUMN AIR BAG(TFQ)	1-44227-136-0	02	1	9905-	●
33	BOLT; STRG SHAFT TO UNIT (B) M10X50	1-09000-489-0	01	1	9902-0003	●
33	BOLT; STRG SHAFT TO UNIT (B) M10X50	1-09000-489-0	01	1	0004-	●	●
33	BOLT; STRG SHAFT TO UNIT (A)	1-44139-153-0	01	1	9902-9904	●
33	BOLT; STRG SHAFT TO UNIT EXC. AIR BAG(TFQ) (A)	1-44139-153-0	01	1	9905-0003	●
33	BOLT; STRG SHAFT TO UNIT EXC. AIR BAG(TFQ) (A)	1-44139-153-0	01	1	0004-	●
33	BOLT; STRG SHAFT TO UNIT (A)	1-44139-153-0	01	1	0004-		●
33	BOLT; STRG SHAFT TO UNIT AIR BAG(TFQ) (A)	1-44139-141-0	01	1	9905-	●
35	WASHER; LK,STRG SHAFT (B)	1-44139-154-0	01	1	9902-9904	●
35	WASHER; LK,STRG SHAFT EXC. AIR BAG(TFQ) (B)	1-44139-154-0	01	1	9905-0003	●
35	WASHER; LK,STRG SHAFT EXC. AIR BAG(TFQ) (B)	1-44139-154-0	01	1	0004-	●
35	WASHER; LK,STRG SHAFT (B)	1-44139-154-0	01	1	0004-		●
35	WASHER; LK,STRG SHAFT (A) ID=10.2	9-09150-810-0	01	1	9902-0003	●
35	WASHER; LK,STRG SHAFT (A) ID=10.2	9-09150-810-0	01	1	0004-	●	●
35	WASHER; LK,STRG SHAFT AIR BAG(TFQ) (B)	1-44139-142-0	01	1	9905-	●
41	YOKE; SLEEVE,STRG AIR BAG(TFQ)	1-44135-304-0	01	1	9905-	●
42	NIPPLE; GREASE,SLEEVE YOKE AIR BAG(TFQ) (A) M6 STRAIGHT	9-09031-006-0	01	1	9905-	●
42	NIPPLE; GREASE,SLEEVE YOKE AIR BAG(TFQ) (B) PT1/8 ELBOW	9-09031-210-0	01	1	9905-	●
44	SHAFT; SPLINE,STRG AIR BAG(TFQ)	1-44135-316-0	01	1	9905-	●
45	BOOT; STRG SHAFT	1-44139-155-0	01	1	9902-9904	●
45	BOOT; STRG SHAFT EXC. AIR BAG(TFQ)	1-44139-155-0	01	1	9905-0003	●
45	BOOT; STRG SHAFT EXC. AIR BAG(TFQ)	1-44139-155-0	01	1	0004-	●
45	BOOT; STRG SHAFT	1-44139-155-0	01	1	0004-		●
45	BOOT; STRG SHAFT AIR BAG(TFQ)	1-44139-138-0	01	1	9905-	●
46	CLIP; BOOT	1-44139-156-0	02	1	9902-9904	●
46	CLIP; BOOT EXC. AIR BAG(TFQ)	1-44139-156-0	02	1	9905-0003	●
46	CLIP; BOOT EXC. AIR BAG(TFQ)	1-44139-156-0	02	1	0004-	●
46	CLIP; BOOT	1-44139-156-0	02	1	0004-		●
46	CLIP; BOOT AIR BAG(TFQ) (A)	1-44139-139-0	01	1	9905-	●
46	CLIP; BOOT AIR BAG(TFQ) (B)	1-44139-140-0	01	1	9905-	●
52	WASHER; PL,ADJ LEVER AIR BAG(TFQ)	1-44227-154-0	01	1	9905-	●
57	NUT; ADJ BOLT	1-44227-151-0	01	1	9902-9904	●
57	NUT; ADJ BOLT EXC. AIR BAG(TFQ)	1-44227-151-0	01	1	9905-0003	●
57	NUT; ADJ BOLT EXC. AIR BAG(TFQ)	1-44227-151-0	01	1	0004-	●
57	NUT; ADJ BOLT	1-44227-151-0	01	1	0004-		●
57	NUT; ADJ BOLT AIR BAG(TFQ)	1-44227-159-0	01	1	9905-	●
59	COLLAR; DIST,ADJ BOLT AIR BAG(TFQ)	1-44227-127-0	01	1	9905-	●
60	LEVER; ADJ,STRG COLUMN	1-44227-144-0	01	1	9902-9904	●
60	LEVER; ADJ,STRG COLUMN EXC. AIR BAG(TFQ)	1-44227-144-0	01	1	9905-0003	●
60	LEVER; ADJ,STRG COLUMN EXC. AIR BAG(TFQ)	1-44227-144-0	01	1	0004-	●
60	LEVER; ADJ,STRG COLUMN	1-44227-144-0	01	1	0004-		●
60	LEVER; ADJ,STRG COLUMN AIR BAG(TFQ)	1-44227-155-0	01	1	9905-	●
63	BOLT; ADJ LEVER,TILT STRG (A)	1-44227-145-0	01	1	9902-9904	●
63	BOLT; ADJ LEVER,TILT STRG EXC. AIR BAG(TFQ) (A)	1-44227-145-0	01	1	9905-0003	●
63	BOLT; ADJ LEVER,TILT STRG EXC. AIR BAG(TFQ) (A)	1-44227-145-0	01	1	0004-	●
63	BOLT; ADJ LEVER,TILT STRG (A)	1-44227-145-0	01	1	0004-		●
63	BOLT; ADJ LEVER,TILT STRG (B)	1-44227-149-0	01	1	9902-9904	●
63	BOLT; ADJ LEVER,TILT STRG EXC. AIR BAG(TFQ) (B)	1-44227-149-0	01	1	9905-0003	●
63	BOLT; ADJ LEVER,TILT STRG EXC. AIR BAG(TFQ) (B)	1-44227-149-0	01	1	0004-	●
63	BOLT; ADJ LEVER,TILT STRG (B)	1-44227-149-0	01	1	0004-		●
63	BOLT; ADJ LEVER,TILT STRG AIR BAG(TFQ)	1-44227-126-0	01	1	9905-	●
64	BOLT; ADJ,PROTECTOR AIR BAG(TFQ)	1-44227-156-0	01	1	9905-	●
68	PIN; TILT CENTER AIR BAG(TFQ)	1-44227-158-0	01	1	9905-	●
75	BOLT; STRG COLUMN M8X20 FLANGE	0-28680-820-0	04	1	9902-0003	●
75	BOLT; STRG COLUMN M8X20 FLANGE	0-28680-820-0	04	1	0004-	●	●
83	BRACKET; TILT STRG UPR AIR BAG(TFQ)	1-44227-157-0	01	1	9905-	●
95	BOLT; STRG UNIT M18X65	1-09000-583-0	03	1	9902-0003	●
95	BOLT; STRG UNIT M18X65	1-09000-583-0	03	1	0004-	●	●
96	NUT; STRG UNIT M18	9-99110-518-0	01	1	9902-0003	●
96	NUT; STRG UNIT M18	9-99110-518-0	01	1	0004-	●	●
97	WASHER; PL,STRG UNIT ID=18	9-09851-862-0	04	1	9902-0003	●
97	WASHER; PL,STRG UNIT ID=18	9-09851-862-0	04	1	0004-	●	●
147	STUD; STRG UNIT M18X49 L=76	1-09300-107-0	01	1	9902-0003	●
147	STUD; STRG UNIT M18X49 L=76	1-09300-107-0	01	1	0004-	●	●
252	NUT; TILT CENTER BOLT AIR BAG(TFQ)	1-44227-135-0	02	1	9905-	●
272	NUT; SHAFT TO YOKE M10	9-09110-510-0	01	1	9902-0003	●
272	NUT; SHAFT TO YOKE M10	9-09110-510-0	01	1	0004-	●	●
296	CLIP; COVER D6X12.5	8-94146-425-0	02	1	9902-0003	●
296	CLIP; COVER D6X12.5	8-94146-425-0	02	1	0004-	●	●

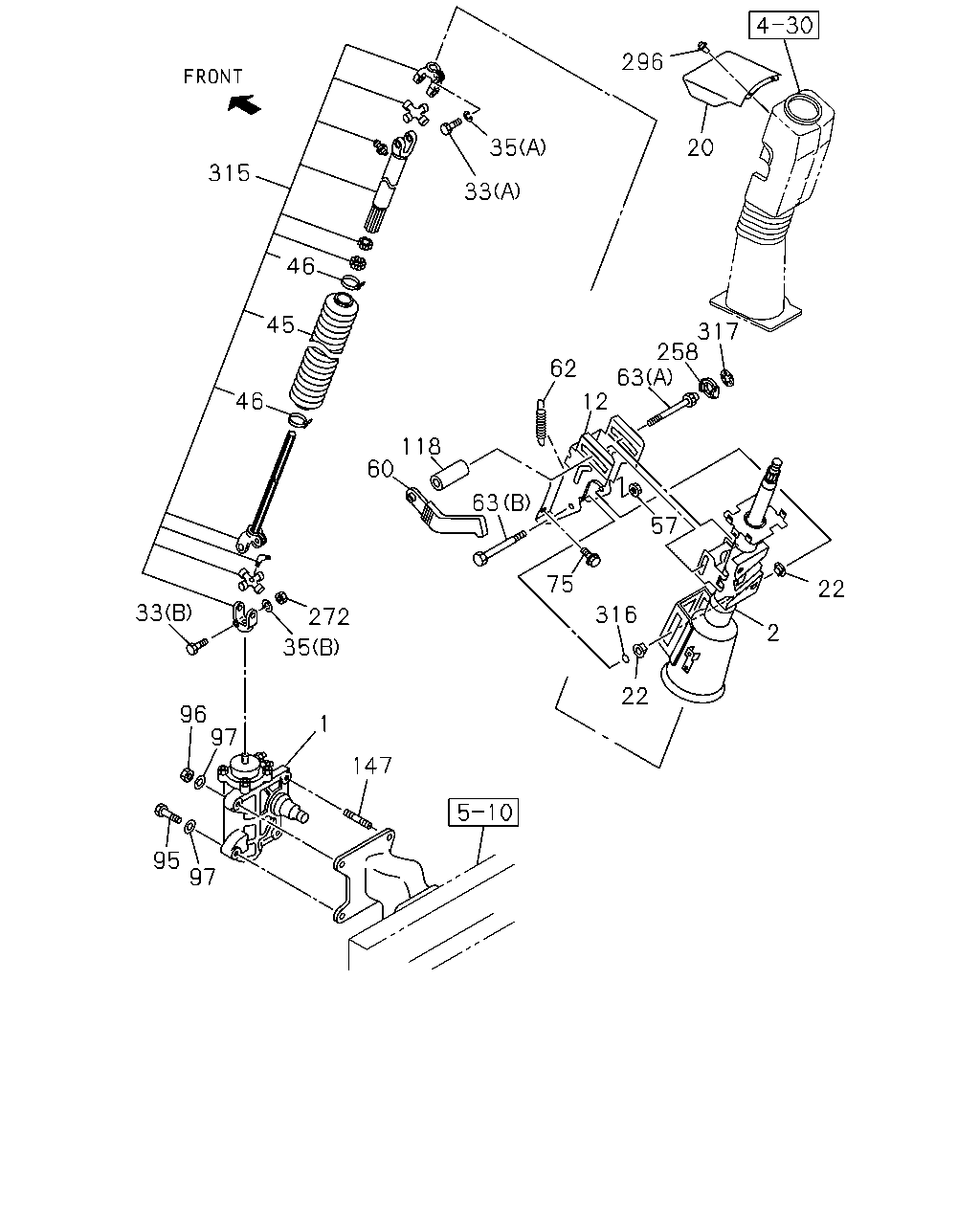

296 35 20 315 33 46 317 258 63 12 45 62 46 118 60 63 57 75 22 33 316 272 2 35 22 96 97 1 147 95 97

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	1-44000-861-2	01	1	9902-	●
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	1-44000-863-1	01	1	0004-		●
2	SHAFT ASM; STRG	1-44130-689-0	01	1	9902-9904	●
2	SHAFT ASM; STRG EXC. AIR BAG(TFQ)	1-44130-689-0	01	1	9905-0003	●
2	SHAFT ASM; STRG EXC. AIR BAG(TFQ)	1-44130-689-0	01	1	0004-	●
2	SHAFT ASM; STRG	1-44130-689-0	01	1	0004-		●
2	SHAFT ASM; STRG AIR BAG(TFQ)	1-44130-740-0	01	1	9902-	●
12	BRACKET; LWR,STRG COLUMN	1-44227-143-0	01	1	9902-9904	●
12	BRACKET; LWR,STRG COLUMN EXC. AIR BAG(TFQ)	1-44227-143-0	01	1	9905-0003	●
12	BRACKET; LWR,STRG COLUMN EXC. AIR BAG(TFQ)	1-44227-143-0	01	1	0004-	●
12	BRACKET; LWR,STRG COLUMN	1-44227-143-0	01	1	0004-		●
20	COVER; STRG SHAFT	1-72438-121-2	01	1	9902-0003	●
20	COVER; STRG SHAFT	1-72438-121-3	01	1	0004-	●	●
22	BUSHING; STRG COLUMN	1-44227-150-0	02	1	9902-9904	●
22	BUSHING; STRG COLUMN EXC. AIR BAG(TFQ)	1-44227-150-0	02	1	9905-0003	●
22	BUSHING; STRG COLUMN EXC. AIR BAG(TFQ)	1-44227-150-0	02	1	0004-	●
22	BUSHING; STRG COLUMN	1-44227-150-0	02	1	0004-		●
33	BOLT; STRG SHAFT TO UNIT (B) M10X50	1-09000-489-0	01	1	9902-0003	●
33	BOLT; STRG SHAFT TO UNIT (B) M10X50	1-09000-489-0	01	1	0004-	●	●
33	BOLT; STRG SHAFT TO UNIT (A)	1-44139-153-0	01	1	9902-9904	●
33	BOLT; STRG SHAFT TO UNIT EXC. AIR BAG(TFQ) (A)	1-44139-153-0	01	1	9905-0003	●
33	BOLT; STRG SHAFT TO UNIT EXC. AIR BAG(TFQ) (A)	1-44139-153-0	01	1	0004-	●
33	BOLT; STRG SHAFT TO UNIT (A)	1-44139-153-0	01	1	0004-		●
33	BOLT; STRG SHAFT TO UNIT AIR BAG(TFQ) (A)	1-44139-141-0	01	1	9905-	●
35	WASHER; LK,STRG SHAFT (B)	1-44139-154-0	01	1	9902-9904	●
35	WASHER; LK,STRG SHAFT EXC. AIR BAG(TFQ) (B)	1-44139-154-0	01	1	9905-0003	●
35	WASHER; LK,STRG SHAFT EXC. AIR BAG(TFQ) (B)	1-44139-154-0	01	1	0004-	●
35	WASHER; LK,STRG SHAFT (B)	1-44139-154-0	01	1	0004-		●
35	WASHER; LK,STRG SHAFT (A) ID=10.2	9-09150-810-0	01	1	9902-0003	●
35	WASHER; LK,STRG SHAFT (A) ID=10.2	9-09150-810-0	01	1	0004-	●	●
35	WASHER; LK,STRG SHAFT AIR BAG(TFQ) (B)	1-44139-142-0	01	1	9905-	●
45	BOOT; STRG SHAFT	1-44139-155-0	01	1	9902-9904	●
45	BOOT; STRG SHAFT EXC. AIR BAG(TFQ)	1-44139-155-0	01	1	9905-0003	●
45	BOOT; STRG SHAFT EXC. AIR BAG(TFQ)	1-44139-155-0	01	1	0004-	●
45	BOOT; STRG SHAFT	1-44139-155-0	01	1	0004-		●
45	BOOT; STRG SHAFT AIR BAG(TFQ)	1-44139-138-0	01	1	9905-	●
46	CLIP; BOOT	1-44139-156-0	02	1	9902-9904	●
46	CLIP; BOOT EXC. AIR BAG(TFQ)	1-44139-156-0	02	1	9905-0003	●
46	CLIP; BOOT EXC. AIR BAG(TFQ)	1-44139-156-0	02	1	0004-	●
46	CLIP; BOOT	1-44139-156-0	02	1	0004-		●
46	CLIP; BOOT AIR BAG(TFQ) (A)	1-44139-139-0	01	1	9905-	●
46	CLIP; BOOT AIR BAG(TFQ) (B)	1-44139-140-0	01	1	9905-	●
57	NUT; ADJ BOLT	1-44227-151-0	01	1	9902-9904	●
57	NUT; ADJ BOLT EXC. AIR BAG(TFQ)	1-44227-151-0	01	1	9905-0003	●
57	NUT; ADJ BOLT EXC. AIR BAG(TFQ)	1-44227-151-0	01	1	0004-	●
57	NUT; ADJ BOLT	1-44227-151-0	01	1	0004-		●
57	NUT; ADJ BOLT AIR BAG(TFQ)	1-44227-159-0	01	1	9905-	●
60	LEVER; ADJ,STRG COLUMN	1-44227-144-0	01	1	9902-9904	●
60	LEVER; ADJ,STRG COLUMN EXC. AIR BAG(TFQ)	1-44227-144-0	01	1	9905-0003	●
60	LEVER; ADJ,STRG COLUMN EXC. AIR BAG(TFQ)	1-44227-144-0	01	1	0004-	●
60	LEVER; ADJ,STRG COLUMN	1-44227-144-0	01	1	0004-		●
60	LEVER; ADJ,STRG COLUMN AIR BAG(TFQ)	1-44227-155-0	01	1	9905-	●
62	SPRING; LK,LEVER	1-44227-153-0	02	1	9902-9904	●
62	SPRING; LK,LEVER EXC. AIR BAG(TFQ)	1-44227-153-0	02	1	9905-0003	●
62	SPRING; LK,LEVER EXC. AIR BAG(TFQ)	1-44227-153-0	02	1	0004-	●
62	SPRING; LK,LEVER	1-44227-153-0	02	1	0004-		●
63	BOLT; ADJ LEVER,TILT STRG (A)	1-44227-145-0	01	1	9902-9904	●
63	BOLT; ADJ LEVER,TILT STRG EXC. AIR BAG(TFQ) (A)	1-44227-145-0	01	1	9905-0003	●
63	BOLT; ADJ LEVER,TILT STRG EXC. AIR BAG(TFQ) (A)	1-44227-145-0	01	1	0004-	●
63	BOLT; ADJ LEVER,TILT STRG (A)	1-44227-145-0	01	1	0004-		●
63	BOLT; ADJ LEVER,TILT STRG (B)	1-44227-149-0	01	1	9902-9904	●
63	BOLT; ADJ LEVER,TILT STRG EXC. AIR BAG(TFQ) (B)	1-44227-149-0	01	1	9905-0003	●
63	BOLT; ADJ LEVER,TILT STRG EXC. AIR BAG(TFQ) (B)	1-44227-149-0	01	1	0004-	●
63	BOLT; ADJ LEVER,TILT STRG (B)	1-44227-149-0	01	1	0004-		●
63	BOLT; ADJ LEVER,TILT STRG AIR BAG(TFQ)	1-44227-126-0	01	1	9905-	●
75	BOLT; STRG COLUMN M8X20 FLANGE	0-28680-820-0	04	1	9902-0003	●
75	BOLT; STRG COLUMN M8X20 FLANGE	0-28680-820-0	04	1	0004-	●	●
95	BOLT; STRG UNIT M18X65	1-09000-583-0	03	1	9902-0003	●
95	BOLT; STRG UNIT M18X65	1-09000-583-0	03	1	0004-	●	●
96	NUT; STRG UNIT M18	9-99110-518-0	01	1	9902-0003	●
96	NUT; STRG UNIT M18	9-99110-518-0	01	1	0004-	●	●
97	WASHER; PL,STRG UNIT ID=18	9-09851-862-0	04	1	9902-0003	●
97	WASHER; PL,STRG UNIT ID=18	9-09851-862-0	04	1	0004-	●	●
118	NUT; LEVER,TILT BOLT	1-44227-146-0	01	1	9902-9904	●
118	NUT; LEVER,TILT BOLT EXC. AIR BAG(TFQ)	1-44227-146-0	01	1	9905-0003	●
118	NUT; LEVER,TILT BOLT EXC. AIR BAG(TFQ)	1-44227-146-0	01	1	0004-	●
118	NUT; LEVER,TILT BOLT	1-44227-146-0	01	1	0004-		●
147	STUD; STRG UNIT M18X49 L=76	1-09300-107-0	01	1	9902-0003	●
147	STUD; STRG UNIT M18X49 L=76	1-09300-107-0	01	1	0004-	●	●
258	STOPPER; STRG COLUMN,TILT & TELESCOPIC	1-44227-147-0	01	1	9902-9904	●
258	STOPPER; STRG COLUMN,TILT & TELESCOPIC EXC. AIR BAG(TFQ)	1-44227-147-0	01	1	9905-0003	●
258	STOPPER; STRG COLUMN,TILT & TELESCOPIC EXC. AIR BAG(TFQ)	1-44227-147-0	01	1	0004-	●
258	STOPPER; STRG COLUMN,TILT & TELESCOPIC	1-44227-147-0	01	1	0004-		●
272	NUT; SHAFT TO YOKE M10	9-09110-510-0	01	1	9902-0003	●
272	NUT; SHAFT TO YOKE M10	9-09110-510-0	01	1	0004-	●	●
296	CLIP; COVER D6X12.5	8-94146-425-0	02	1	9902-0003	●
296	CLIP; COVER D6X12.5	8-94146-425-0	02	1	0004-	●	●
315	JOINT; SPLINE	1-44135-345-0	01	1	9902-9904	●
315	JOINT; SPLINE EXC. AIR BAG(TFQ)	1-44135-345-0	01	1	9905-0003	●
315	JOINT; SPLINE EXC. AIR BAG(TFQ)	1-44135-345-0	01	1	0004-	●
315	JOINT; SPLINE	1-44135-345-0	01	1	0004-		●
316	RING	1-44227-152-0	01	1	9902-9904	●
316	RING EXC. AIR BAG(TFQ)	1-44227-152-0	01	1	9905-0003	●
316	RING EXC. AIR BAG(TFQ)	1-44227-152-0	01	1	0004-	●
316	RING	1-44227-152-0	01	1	0004-		●
317	NUT; PUSH	1-44227-148-0	01	1	9902-9904	●
317	NUT; PUSH EXC. AIR BAG(TFQ)	1-44227-148-0	01	1	9905-0003	●
317	NUT; PUSH EXC. AIR BAG(TFQ)	1-44227-148-0	01	1	0004-	●
317	NUT; PUSH	1-44227-148-0	01	1	0004-		●
