◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51194 - TFR/TFS-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-76 - FLOOR EQUIPMENT AND SEALING ▶
6-76 — FLOOR EQUIPMENT AND SEALING (#77079) — 26 parça

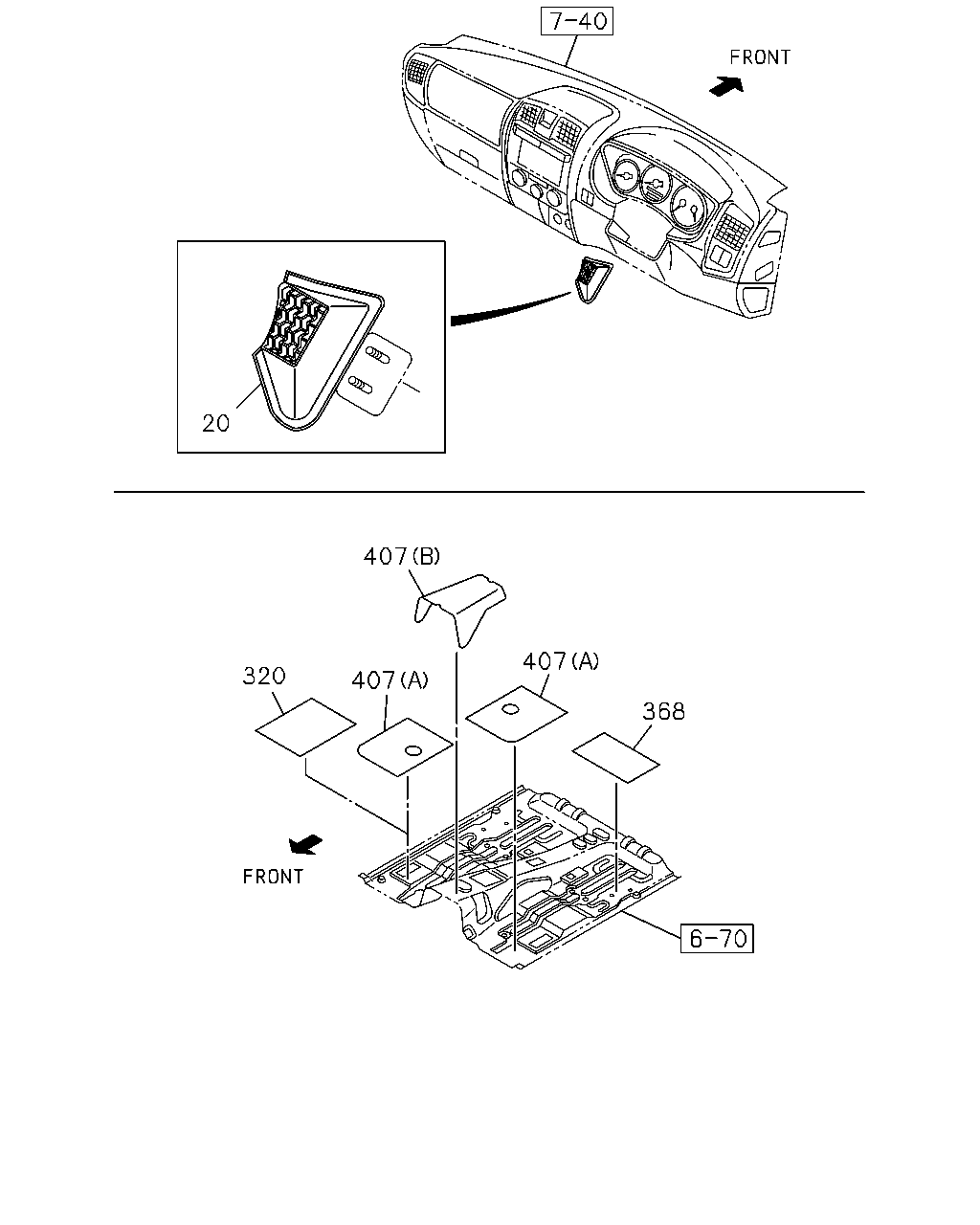

çizim 186193
20 407 407 320 407 368
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
20 16.547 REST; FOOT
M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> 		8-97236-450-1 01 1 0808-0809 ● ● ● ● ●
20 16.547 REST; FOOT
DRIVER SIDE FOOT REST<7NU> PARKING BRAKE FLOOR<7XW> 		8-97236-450-1 01 1 0810-1211 ● ● ● ● ● ● ●
20 16.547 REST; FOOT
PARKING BRAKE FLOOR<7XW> 		8-97236-450-1 01 1 1212- ● ● ● ● ● ● ●
20 16.547 REST; FOOT
4JJ1-TCX ENG(LS0) EXC. PARKING BRAKE FLOOR<7XW> 		8-97365-724-0 01 1 0808-0809 ● ●
20 16.547 REST; FOOT
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) EXC. PARKING BRAKE FLOOR<7XW> 		8-97365-724-0 01 1 0808-0809 ●
20 16.547 REST; FOOT
4X4 CREW CAB LONG(TFS*WF) 4JJ1-TCX ENG(LS0) EXC. PARKING BRAKE FLOOR<7XW> 		8-97365-724-0 01 1 0808-0809 ●
20 16.547 REST; FOOT
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) DRIVER SIDE FOOT REST<7NU> EXC. PARKING BRAKE FLOOR<7XW> 		8-97365-724-0 01 1 0810-1007 ● ● ● ● ● ● ●
20 16.547 REST; FOOT
EXC. PARKING BRAKE FLOOR<7XW> 		8-97365-724-0 01 1 1008- ● ● ● ● ●
20 16.547 REST; FOOT
4X4 EXTEND CAB LONG(TFS*CF) EXC. PARKING BRAKE FLOOR<7XW> 		8-97365-724-0 01 1 1008- ●
20 16.547 REST; FOOT
4X4 CREW CAB LONG(TFS*WF) EXC. PARKING BRAKE FLOOR<7XW> 		8-97365-724-0 01 1 1008- ●
320 16.549 INSULATOR; FLOOR,FRT
4JJ1-TCX ENG(LS0) 		8-97329-088-1 01 1 0808-0809 ● ● ●
320 16.549 INSULATOR; FLOOR,FRT
EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) 		8-97329-088-1 01 1 0808-0809 ●
320 16.549 INSULATOR; FLOOR,FRT
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) 		8-97329-088-1 01 1 0808-0809 ●
320 16.549 INSULATOR; FLOOR,FRT
C24SE ENG(LG1) 		8-97329-088-1 01 1 0810- ● ● ● ●
320 16.549 INSULATOR; FLOOR,FRT
4JJ1-TCX ENG(LS0) EURO4 SPECIFICATION<NT4> 		8-97329-088-1 01 1 0810- ● ● ● ● ●
368 16.549 INSULATOR; FLOOR,RR
C24SE ENG(LG1) 		8-97329-089-1 01 1 0810- ● ●
407 16.850 DEADENER; FLOOR PANEL
4JJ1-TCX ENG(LS0) (A) 		8-97349-432-0 02 1 0808-0809 ● ● ●
407 16.850 DEADENER; FLOOR PANEL
EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) (A) 		8-97349-432-0 02 1 0808-0809 ●
407 16.850 DEADENER; FLOOR PANEL
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) (A) 		8-97349-432-0 02 1 0808-0809 ●
407 16.850 DEADENER; FLOOR PANEL
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) (A) 		8-97349-432-0 02 1 0810-1007 ● ● ● ● ● ● ●
407 16.850 DEADENER; FLOOR PANEL
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (A) 		8-97349-432-0 02 1 1008- ● ● ● ● ● ● ●
407 16.850 DEADENER; FLOOR PANEL
4JJ1-TCX ENG(LS0) (B) 		8-97349-445-0 01 1 0808-0809 ● ● ●
407 16.850 DEADENER; FLOOR PANEL
EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) (B) 		8-97349-445-0 01 1 0808-0809 ●
407 16.850 DEADENER; FLOOR PANEL
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) (B) 		8-97349-445-0 01 1 0808-0809 ●
407 16.850 DEADENER; FLOOR PANEL
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) (B) 		8-97349-445-0 01 1 0810-1007 ● ● ● ● ● ● ●
407 16.850 DEADENER; FLOOR PANEL
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (B) 		8-97349-445-0 01 1 1008- ● ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
