◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51194 - TFR/TFS-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-60 - ROOF PANEL ▶
6-60 — ROOF PANEL (#77075) — 181 parça

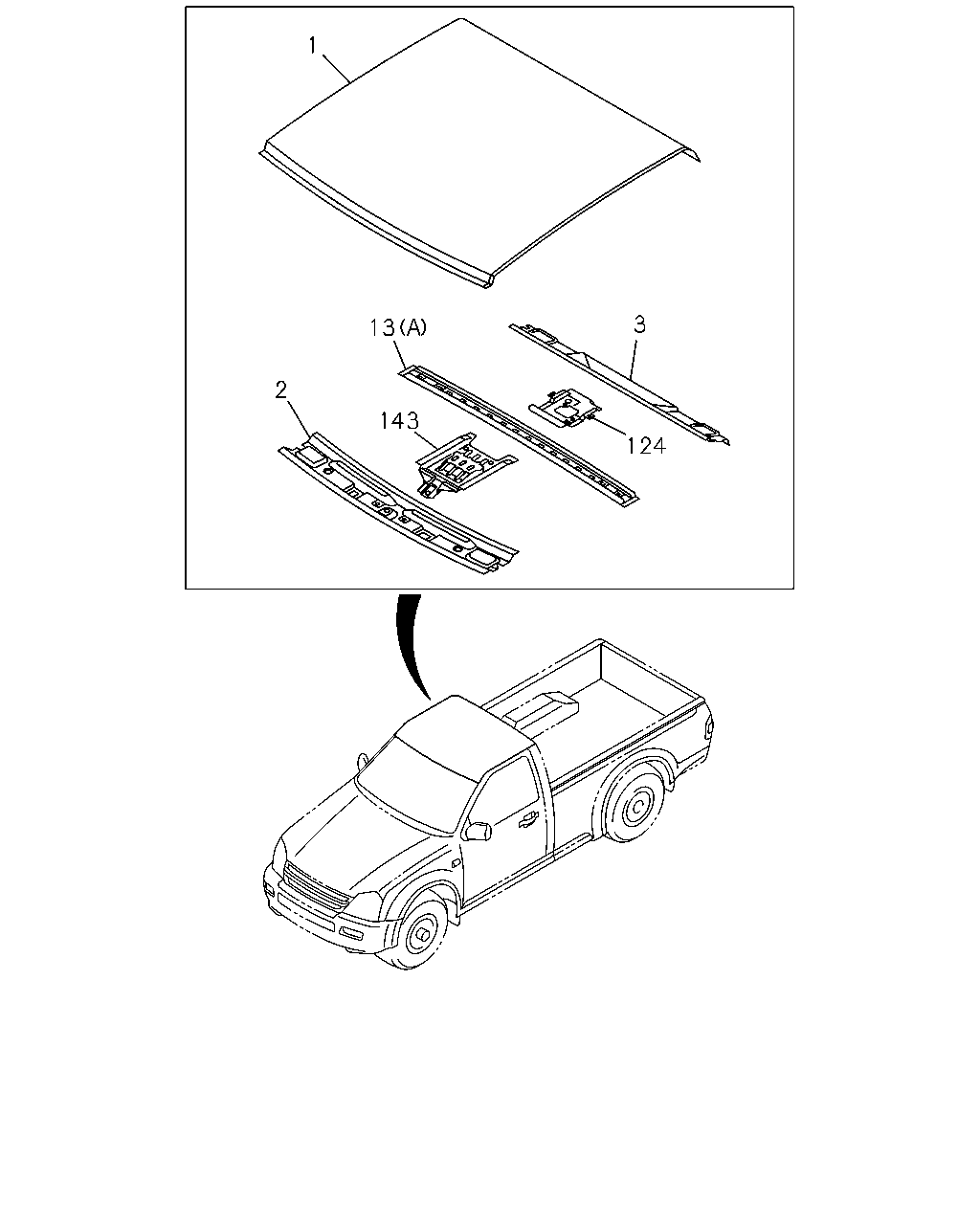

çizim 131270
1 3 13 2 143 124
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 16.585 PANEL; ROOF
EXC. HEADER CONSOLE<DK6> 		8-97235-330-3 01 1 0809-0809 ●
1 16.585 PANEL; ROOF
4X4 REGULAR CAB EXTRA LONG(TFS*SK) EXC. HEADER CONSOLE<DK6> 		8-97235-330-3 01 1 0809-0809 ●
1 16.585 PANEL; ROOF
HIGH MOUNT STOP LAMP<TS6> EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97235-330-3 01 1 0810- ● ●
1 16.585 PANEL; ROOF
HIGH MOUNT STOP LAMP<TS6> PLANT - ISUZU,THAILAND<8KX> EXC. HEADER CONSOLE<DK6> 		8-97235-330-3 01 1 0810- ● ●
1 16.585 PANEL; ROOF 8-97235-330-3 01 1 0810- ●
1 16.585 PANEL; ROOF
HIGH MOUNT STOP LAMP<TS6> ROOF RADIO ANTENNA<U71> 		8-98051-830-0 01 1 0810- ● ●
1 16.585 PANEL; ROOF
ROOF RADIO ANTENNA<U71> EXC. HIGH MOUNT STOP LAMP<TS6>, PLANT- ISUZU,THAILAND<8KX> 		8-98051-831-0 01 1 0810- ● ●
1 16.585 PANEL; ROOF
EXC. HIGH MOUNT STOP LAMP<TS6>,ROOF RADIO ANTENNA<U71>,PLANT - ISUZU, THAILAND<8KX> 		8-97233-913-3 01 1 0810- ● ●
1 16.585 PANEL; ROOF
EXC. HIGH MOUNT STOP LAMP<TS6>, PLANT- ISUZU,THAILAND<8KX> 		8-97235-326-3 01 1 0810- ● ●
1 16.585 PANEL; ROOF
PLANT - ISUZU,THAILAND<8KX> EXC. HEADER CONSOLE<DK6>,HIGH MOUNT STOP LAMP<TS6> 		8-97235-326-3 01 1 0810- ● ●
1 16.585 PANEL; ROOF
ROOF RADIO ANTENNA<U71> EXC. HIGH MOUNT STOP LAMP<TS6>, PLANT- ISUZU,THAILAND<8KX> 		8-98051-827-0 01 1 0810- ● ●
1 16.585 PANEL; ROOF
EXC. HIGH MOUNT STOP LAMP<TS6>,ROOF RADIO ANTENNA<U71>,PLANT - ISUZU, THAILAND<8KX> 		8-93298-720-1 01 1 0810- ● ●
1 16.585 PANEL; ROOF
ROOF RADIO ANTENNA<U71> 		8-98051-828-0 01 1 0808-0809 ●
1 16.585 PANEL; ROOF
4X4 CREW CAB LONG(TFS*WF) ROOF RADIO ANTENNA<U71> 		8-98051-828-0 01 1 0808-0809 ●
1 16.585 PANEL; ROOF
HIGH MOUNT STOP LAMP<TS6> ROOF RADIO ANTENNA<U71> 		8-98051-828-0 01 1 0810- ● ●
1 16.585 PANEL; ROOF
EXC. ROOF RADIO ANTENNA<U71> 		8-93290-859-1 01 1 0808-0809 ●
1 16.585 PANEL; ROOF
4X4 CREW CAB LONG(TFS*WF) EXC. ROOF RADIO ANTENNA<U71> 		8-93290-859-1 01 1 0808-0809 ●
1 16.585 PANEL; ROOF
CREW CAB EXTRA LONG(TF**WK) 		8-93290-859-1 01 1 0808-0809 ●
1 16.585 PANEL; ROOF
HIGH MOUNT STOP LAMP<TS6> EXC. ROOF RADIO ANTENNA<U71> 		8-93290-859-1 01 1 0810- ● ●
1 16.585 PANEL; ROOF
EXTEND CAB EXTRA LONG(TF**CK) 		8-97235-107-3 01 1 0808-0809 ●
1 16.585 PANEL; ROOF
HIGH MOUNT STOP LAMP<TS6> EXC. ROOF RADIO ANTENNA<U71> 		8-97235-107-3 01 1 0810- ● ●
2 16.585 PANEL; ROOF,CENTER 8-98050-942-0 01 1 0808-0808 ● ●
2 16.585 PANEL; ROOF,CENTER
EXTEND CAB EXTRA LONG(TF**CK) 		8-98050-942-0 01 1 0808-0808 ●
2 16.585 PANEL; ROOF,CENTER
EXC. HEADER CONSOLE<DK6> 		8-98050-942-0 01 1 0809-0809 ●
2 16.585 PANEL; ROOF,CENTER 8-98050-942-0 01 1 0809-0809 ● ●
2 16.585 PANEL; ROOF,CENTER
EXTEND CAB EXTRA LONG(TF**CK) 		8-98050-942-0 01 1 0809-0809 ●
2 16.585 PANEL; ROOF,CENTER
4X4 REGULAR CAB EXTRA LONG(TFS*SK) EXC. HEADER CONSOLE<DK6> 		8-98050-942-0 01 1 0809-0809 ●
2 16.585 PANEL; ROOF,CENTER
EXC. PLANT - ISUZU,THAILAND<8KX> 		8-98050-942-0 01 1 0810- ● ● ● ● ● ● ●
2 16.585 PANEL; ROOF,CENTER
HIGH MOUNT STOP LAMP<TS6> PLANT - ISUZU,THAILAND<8KX> 		8-98050-942-0 01 1 0810- ● ● ● ● ● ● ●
2 16.585 PANEL; ROOF,CENTER
PLANT - ISUZU,THAILAND<8KX> EXC. HEADER CONSOLE<DK6> 		8-98050-942-0 01 1 0810- ● ● ●
3 16.585 PANEL; ROOF,RR 8-97235-282-3 01 1 0808-0808 ● ●
3 16.585 PANEL; ROOF,RR
EXTEND CAB EXTRA LONG(TF**CK) 		8-97235-282-3 01 1 0808-0808 ●
3 16.585 PANEL; ROOF,RR
EXC. HEADER CONSOLE<DK6> 		8-97235-282-3 01 1 0809-0809 ●
3 16.585 PANEL; ROOF,RR 8-97235-282-3 01 1 0809-0809 ● ●
3 16.585 PANEL; ROOF,RR
EXTEND CAB EXTRA LONG(TF**CK) 		8-97235-282-3 01 1 0809-0809 ●
3 16.585 PANEL; ROOF,RR
4X4 REGULAR CAB EXTRA LONG(TFS*SK) EXC. HEADER CONSOLE<DK6> 		8-97235-282-3 01 1 0809-0809 ●
3 16.585 PANEL; ROOF,RR
EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97235-282-3 01 1 0810- ● ● ● ● ● ● ●
3 16.585 PANEL; ROOF,RR
HIGH MOUNT STOP LAMP<TS6> PLANT - ISUZU,THAILAND<8KX> 		8-97235-282-3 01 1 0810- ● ● ● ●
3 16.585 PANEL; ROOF,RR
PLANT - ISUZU,THAILAND<8KX> EXC. HEADER CONSOLE<DK6> 		8-97235-282-3 01 1 0810- ● ● ●
13 16.585 PANEL; ROOF SUPPORT
(A) 		8-97235-279-3 01 1 0808-0808 ● ●
13 16.585 PANEL; ROOF SUPPORT
EXTEND CAB EXTRA LONG(TF**CK) (A) 		8-97235-279-3 01 1 0808-0808 ●
13 16.585 PANEL; ROOF SUPPORT
EXC. HEADER CONSOLE<DK6> (A) 		8-97235-279-3 01 1 0809-0809 ●
13 16.585 PANEL; ROOF SUPPORT
(A) 		8-97235-279-3 01 1 0809-0809 ● ●
13 16.585 PANEL; ROOF SUPPORT
EXTEND CAB EXTRA LONG(TF**CK) (A) 		8-97235-279-3 01 1 0809-0809 ●
13 16.585 PANEL; ROOF SUPPORT
4X4 REGULAR CAB EXTRA LONG(TFS*SK) EXC. HEADER CONSOLE<DK6> (A) 		8-97235-279-3 01 1 0809-0809 ●
13 16.585 PANEL; ROOF SUPPORT
EXC. PLANT - ISUZU,THAILAND<8KX> (A) 		8-97235-279-3 01 1 0810- ● ● ● ● ● ● ●
13 16.585 PANEL; ROOF SUPPORT
HIGH MOUNT STOP LAMP<TS6> PLANT - ISUZU,THAILAND<8KX> (A) 		8-97235-279-3 01 1 0810- ● ● ● ● ● ● ●
13 16.585 PANEL; ROOF SUPPORT
PLANT - ISUZU,THAILAND<8KX> EXC. HEADER CONSOLE<DK6> (A) 		8-97235-279-3 01 1 0810- ● ● ●
13 16.585 PANEL; ROOF SUPPORT
(B) 		8-97235-281-3 01 1 0808-0809 ● ●
13 16.585 PANEL; ROOF SUPPORT
EXTEND CAB EXTRA LONG(TF**CK) (B) 		8-97235-281-3 01 1 0808-0809 ●
13 16.585 PANEL; ROOF SUPPORT
EXC. PLANT - ISUZU,THAILAND<8KX> (B) 		8-97235-281-3 01 1 0810- ● ● ● ●
13 16.585 PANEL; ROOF SUPPORT
HIGH MOUNT STOP LAMP<TS6> PLANT - ISUZU,THAILAND<8KX> (B) 		8-97235-281-3 01 1 0810- ● ● ● ●
13 16.585 PANEL; ROOF SUPPORT
(C) 		8-93291-041-1 01 1 0808-0809 ● ●
13 16.585 PANEL; ROOF SUPPORT
EXC. PLANT - ISUZU,THAILAND<8KX> (C) 		8-93291-041-1 01 1 0810- ● ●
13 16.585 PANEL; ROOF SUPPORT
HIGH MOUNT STOP LAMP<TS6> PLANT - ISUZU,THAILAND<8KX> (C) 		8-93291-041-1 01 1 0810- ● ●
124 16.585 BRACKET; ROOM LAMP
EXC. HEADER CONSOLE<DK6> 		8-97235-999-1 01 1 0809-0809 ●
124 16.585 BRACKET; ROOM LAMP
4X4 REGULAR CAB EXTRA LONG(TFS*SK) EXC. HEADER CONSOLE<DK6> 		8-97235-999-1 01 1 0809-0809 ●
124 16.585 BRACKET; ROOM LAMP
EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97235-999-1 01 1 0810- ● ● ●
124 16.585 BRACKET; ROOM LAMP
PLANT - ISUZU,THAILAND<8KX> EXC. HEADER CONSOLE<DK6> 		8-97235-999-1 01 1 0810- ● ● ●
143 16.584 BRACKET; CONSOLE
HEADER CONSOLE<DK6> 		8-98050-943-0 01 1 0808-0809 ● ●
143 16.584 BRACKET; CONSOLE
EXTEND CAB EXTRA LONG(TF**CK) HEADER CONSOLE<DK6> 		8-98050-943-0 01 1 0808-0809 ●
143 16.584 BRACKET; CONSOLE
HEADER CONSOLE<DK6> EXC. PLANT - ISUZU,THAILAND<8KX> 		8-98050-943-0 01 1 0810- ● ● ● ● ● ● ●
143 16.584 BRACKET; CONSOLE
HEADER CONSOLE<DK6> HIGH MOUNT STOP LAMP<TS6> PLANT - ISUZU,THAILAND<8KX> 		8-98050-943-0 01 1 0810- ● ● ● ●

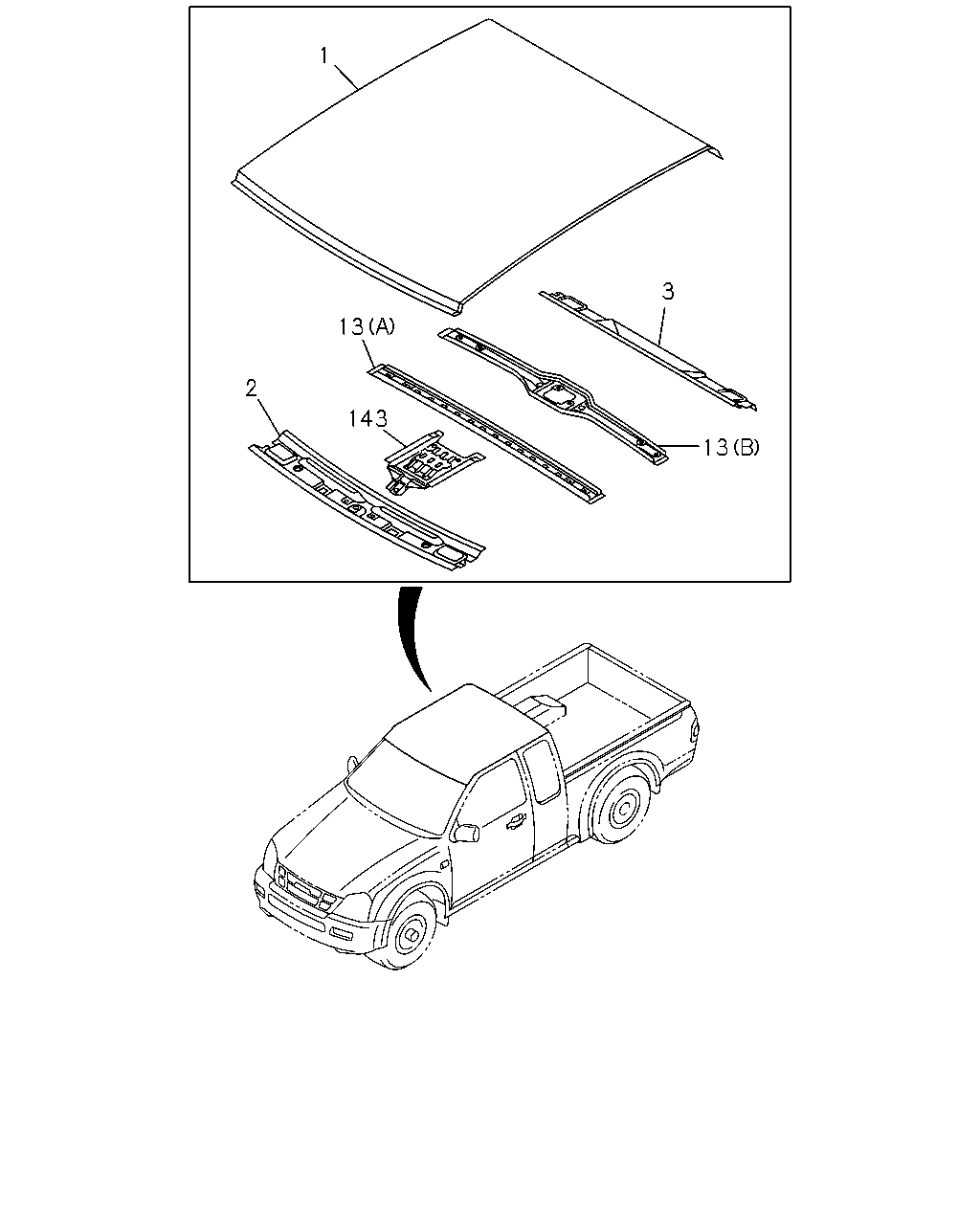

çizim 186189
1 3 13 2 143 13
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 16.585 PANEL; ROOF
EXC. HEADER CONSOLE<DK6> 		8-97235-330-3 01 1 0809-0809 ●
1 16.585 PANEL; ROOF
4X4 REGULAR CAB EXTRA LONG(TFS*SK) EXC. HEADER CONSOLE<DK6> 		8-97235-330-3 01 1 0809-0809 ●
1 16.585 PANEL; ROOF
HIGH MOUNT STOP LAMP<TS6> EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97235-330-3 01 1 0810- ● ●
1 16.585 PANEL; ROOF
HIGH MOUNT STOP LAMP<TS6> PLANT - ISUZU,THAILAND<8KX> EXC. HEADER CONSOLE<DK6> 		8-97235-330-3 01 1 0810- ● ●
1 16.585 PANEL; ROOF 8-97235-330-3 01 1 0810- ●
1 16.585 PANEL; ROOF
HIGH MOUNT STOP LAMP<TS6> ROOF RADIO ANTENNA<U71> 		8-98051-830-0 01 1 0810- ● ●
1 16.585 PANEL; ROOF
ROOF RADIO ANTENNA<U71> EXC. HIGH MOUNT STOP LAMP<TS6>, PLANT- ISUZU,THAILAND<8KX> 		8-98051-831-0 01 1 0810- ● ●
1 16.585 PANEL; ROOF
EXC. HIGH MOUNT STOP LAMP<TS6>,ROOF RADIO ANTENNA<U71>,PLANT - ISUZU, THAILAND<8KX> 		8-97233-913-3 01 1 0810- ● ●
1 16.585 PANEL; ROOF
EXC. HIGH MOUNT STOP LAMP<TS6>, PLANT- ISUZU,THAILAND<8KX> 		8-97235-326-3 01 1 0810- ● ●
1 16.585 PANEL; ROOF
PLANT - ISUZU,THAILAND<8KX> EXC. HEADER CONSOLE<DK6>,HIGH MOUNT STOP LAMP<TS6> 		8-97235-326-3 01 1 0810- ● ●
1 16.585 PANEL; ROOF
ROOF RADIO ANTENNA<U71> EXC. HIGH MOUNT STOP LAMP<TS6>, PLANT- ISUZU,THAILAND<8KX> 		8-98051-827-0 01 1 0810- ● ●
1 16.585 PANEL; ROOF
EXC. HIGH MOUNT STOP LAMP<TS6>,ROOF RADIO ANTENNA<U71>,PLANT - ISUZU, THAILAND<8KX> 		8-93298-720-1 01 1 0810- ● ●
1 16.585 PANEL; ROOF
ROOF RADIO ANTENNA<U71> 		8-98051-828-0 01 1 0808-0809 ●
1 16.585 PANEL; ROOF
4X4 CREW CAB LONG(TFS*WF) ROOF RADIO ANTENNA<U71> 		8-98051-828-0 01 1 0808-0809 ●
1 16.585 PANEL; ROOF
HIGH MOUNT STOP LAMP<TS6> ROOF RADIO ANTENNA<U71> 		8-98051-828-0 01 1 0810- ● ●
1 16.585 PANEL; ROOF
EXC. ROOF RADIO ANTENNA<U71> 		8-93290-859-1 01 1 0808-0809 ●
1 16.585 PANEL; ROOF
4X4 CREW CAB LONG(TFS*WF) EXC. ROOF RADIO ANTENNA<U71> 		8-93290-859-1 01 1 0808-0809 ●
1 16.585 PANEL; ROOF
CREW CAB EXTRA LONG(TF**WK) 		8-93290-859-1 01 1 0808-0809 ●
1 16.585 PANEL; ROOF
HIGH MOUNT STOP LAMP<TS6> EXC. ROOF RADIO ANTENNA<U71> 		8-93290-859-1 01 1 0810- ● ●
1 16.585 PANEL; ROOF
EXTEND CAB EXTRA LONG(TF**CK) 		8-97235-107-3 01 1 0808-0809 ●
1 16.585 PANEL; ROOF
HIGH MOUNT STOP LAMP<TS6> EXC. ROOF RADIO ANTENNA<U71> 		8-97235-107-3 01 1 0810- ● ●
2 16.585 PANEL; ROOF,CENTER 8-98050-942-0 01 1 0808-0808 ● ●
2 16.585 PANEL; ROOF,CENTER
EXTEND CAB EXTRA LONG(TF**CK) 		8-98050-942-0 01 1 0808-0808 ●
2 16.585 PANEL; ROOF,CENTER
EXC. HEADER CONSOLE<DK6> 		8-98050-942-0 01 1 0809-0809 ●
2 16.585 PANEL; ROOF,CENTER 8-98050-942-0 01 1 0809-0809 ● ●
2 16.585 PANEL; ROOF,CENTER
EXTEND CAB EXTRA LONG(TF**CK) 		8-98050-942-0 01 1 0809-0809 ●
2 16.585 PANEL; ROOF,CENTER
4X4 REGULAR CAB EXTRA LONG(TFS*SK) EXC. HEADER CONSOLE<DK6> 		8-98050-942-0 01 1 0809-0809 ●
2 16.585 PANEL; ROOF,CENTER
EXC. PLANT - ISUZU,THAILAND<8KX> 		8-98050-942-0 01 1 0810- ● ● ● ● ● ● ●
2 16.585 PANEL; ROOF,CENTER
HIGH MOUNT STOP LAMP<TS6> PLANT - ISUZU,THAILAND<8KX> 		8-98050-942-0 01 1 0810- ● ● ● ● ● ● ●
2 16.585 PANEL; ROOF,CENTER
PLANT - ISUZU,THAILAND<8KX> EXC. HEADER CONSOLE<DK6> 		8-98050-942-0 01 1 0810- ● ● ●
3 16.585 PANEL; ROOF,RR 8-97235-282-3 01 1 0808-0808 ● ●
3 16.585 PANEL; ROOF,RR
EXTEND CAB EXTRA LONG(TF**CK) 		8-97235-282-3 01 1 0808-0808 ●
3 16.585 PANEL; ROOF,RR
EXC. HEADER CONSOLE<DK6> 		8-97235-282-3 01 1 0809-0809 ●
3 16.585 PANEL; ROOF,RR 8-97235-282-3 01 1 0809-0809 ● ●
3 16.585 PANEL; ROOF,RR
EXTEND CAB EXTRA LONG(TF**CK) 		8-97235-282-3 01 1 0809-0809 ●
3 16.585 PANEL; ROOF,RR
4X4 REGULAR CAB EXTRA LONG(TFS*SK) EXC. HEADER CONSOLE<DK6> 		8-97235-282-3 01 1 0809-0809 ●
3 16.585 PANEL; ROOF,RR
EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97235-282-3 01 1 0810- ● ● ● ● ● ● ●
3 16.585 PANEL; ROOF,RR
HIGH MOUNT STOP LAMP<TS6> PLANT - ISUZU,THAILAND<8KX> 		8-97235-282-3 01 1 0810- ● ● ● ●
3 16.585 PANEL; ROOF,RR
PLANT - ISUZU,THAILAND<8KX> EXC. HEADER CONSOLE<DK6> 		8-97235-282-3 01 1 0810- ● ● ●
13 16.585 PANEL; ROOF SUPPORT
(A) 		8-97235-279-3 01 1 0808-0808 ● ●
13 16.585 PANEL; ROOF SUPPORT
EXTEND CAB EXTRA LONG(TF**CK) (A) 		8-97235-279-3 01 1 0808-0808 ●
13 16.585 PANEL; ROOF SUPPORT
EXC. HEADER CONSOLE<DK6> (A) 		8-97235-279-3 01 1 0809-0809 ●
13 16.585 PANEL; ROOF SUPPORT
(A) 		8-97235-279-3 01 1 0809-0809 ● ●
13 16.585 PANEL; ROOF SUPPORT
EXTEND CAB EXTRA LONG(TF**CK) (A) 		8-97235-279-3 01 1 0809-0809 ●
13 16.585 PANEL; ROOF SUPPORT
4X4 REGULAR CAB EXTRA LONG(TFS*SK) EXC. HEADER CONSOLE<DK6> (A) 		8-97235-279-3 01 1 0809-0809 ●
13 16.585 PANEL; ROOF SUPPORT
EXC. PLANT - ISUZU,THAILAND<8KX> (A) 		8-97235-279-3 01 1 0810- ● ● ● ● ● ● ●
13 16.585 PANEL; ROOF SUPPORT
HIGH MOUNT STOP LAMP<TS6> PLANT - ISUZU,THAILAND<8KX> (A) 		8-97235-279-3 01 1 0810- ● ● ● ● ● ● ●
13 16.585 PANEL; ROOF SUPPORT
PLANT - ISUZU,THAILAND<8KX> EXC. HEADER CONSOLE<DK6> (A) 		8-97235-279-3 01 1 0810- ● ● ●
13 16.585 PANEL; ROOF SUPPORT
(B) 		8-97235-281-3 01 1 0808-0809 ● ●
13 16.585 PANEL; ROOF SUPPORT
EXTEND CAB EXTRA LONG(TF**CK) (B) 		8-97235-281-3 01 1 0808-0809 ●
13 16.585 PANEL; ROOF SUPPORT
EXC. PLANT - ISUZU,THAILAND<8KX> (B) 		8-97235-281-3 01 1 0810- ● ● ● ●
13 16.585 PANEL; ROOF SUPPORT
HIGH MOUNT STOP LAMP<TS6> PLANT - ISUZU,THAILAND<8KX> (B) 		8-97235-281-3 01 1 0810- ● ● ● ●
13 16.585 PANEL; ROOF SUPPORT
(C) 		8-93291-041-1 01 1 0808-0809 ● ●
13 16.585 PANEL; ROOF SUPPORT
EXC. PLANT - ISUZU,THAILAND<8KX> (C) 		8-93291-041-1 01 1 0810- ● ●
13 16.585 PANEL; ROOF SUPPORT
HIGH MOUNT STOP LAMP<TS6> PLANT - ISUZU,THAILAND<8KX> (C) 		8-93291-041-1 01 1 0810- ● ●
143 16.584 BRACKET; CONSOLE
HEADER CONSOLE<DK6> 		8-98050-943-0 01 1 0808-0809 ● ●
143 16.584 BRACKET; CONSOLE
EXTEND CAB EXTRA LONG(TF**CK) HEADER CONSOLE<DK6> 		8-98050-943-0 01 1 0808-0809 ●
143 16.584 BRACKET; CONSOLE
HEADER CONSOLE<DK6> EXC. PLANT - ISUZU,THAILAND<8KX> 		8-98050-943-0 01 1 0810- ● ● ● ● ● ● ●
143 16.584 BRACKET; CONSOLE
HEADER CONSOLE<DK6> HIGH MOUNT STOP LAMP<TS6> PLANT - ISUZU,THAILAND<8KX> 		8-98050-943-0 01 1 0810- ● ● ● ●

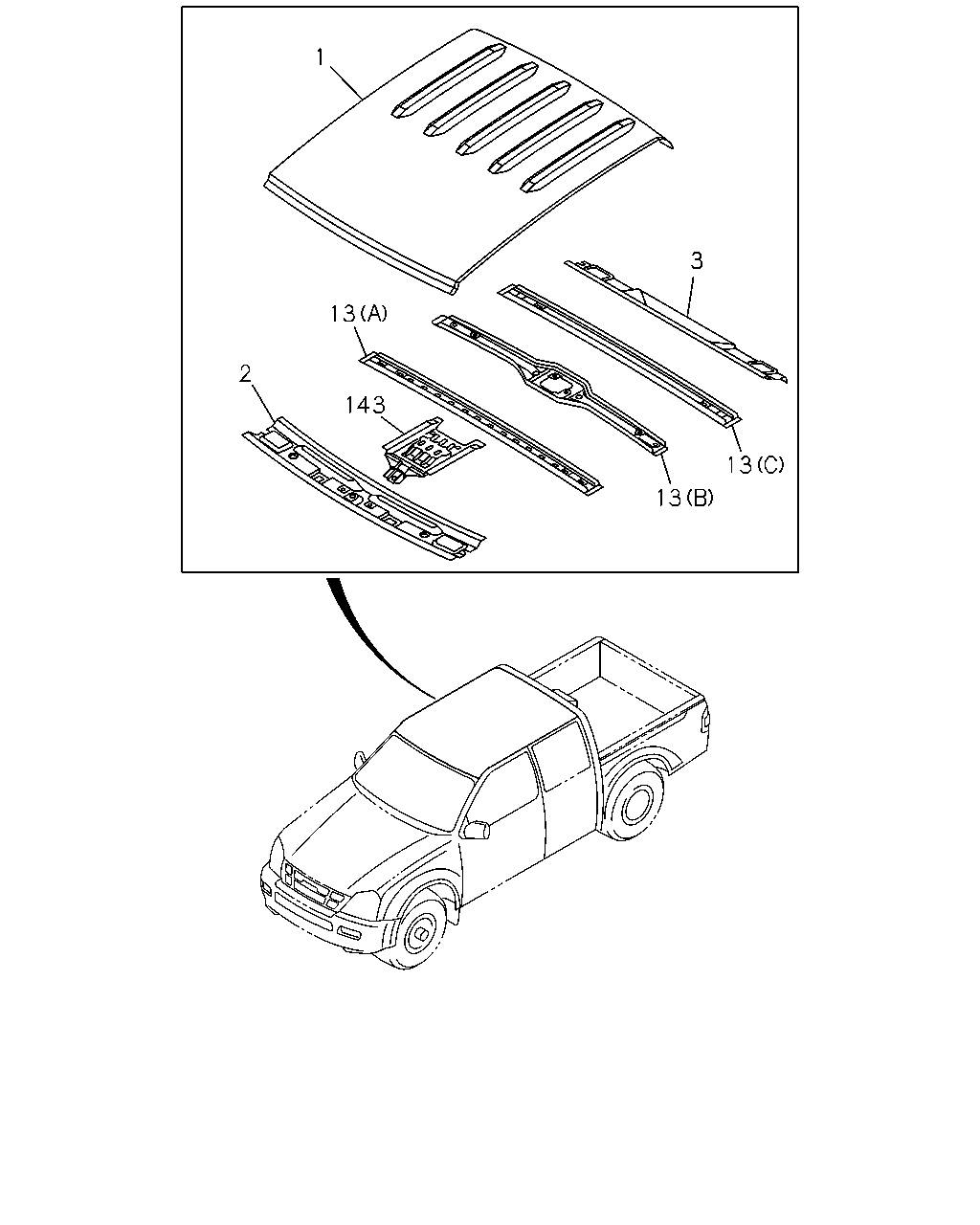

çizim 186284
1 3 13 2 143 13 13
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 16.585 PANEL; ROOF
EXC. HEADER CONSOLE<DK6> 		8-97235-330-3 01 1 0809-0809 ●
1 16.585 PANEL; ROOF
4X4 REGULAR CAB EXTRA LONG(TFS*SK) EXC. HEADER CONSOLE<DK6> 		8-97235-330-3 01 1 0809-0809 ●
1 16.585 PANEL; ROOF
HIGH MOUNT STOP LAMP<TS6> EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97235-330-3 01 1 0810- ● ●
1 16.585 PANEL; ROOF
HIGH MOUNT STOP LAMP<TS6> PLANT - ISUZU,THAILAND<8KX> EXC. HEADER CONSOLE<DK6> 		8-97235-330-3 01 1 0810- ● ●
1 16.585 PANEL; ROOF 8-97235-330-3 01 1 0810- ●
1 16.585 PANEL; ROOF
HIGH MOUNT STOP LAMP<TS6> ROOF RADIO ANTENNA<U71> 		8-98051-830-0 01 1 0810- ● ●
1 16.585 PANEL; ROOF
ROOF RADIO ANTENNA<U71> EXC. HIGH MOUNT STOP LAMP<TS6>, PLANT- ISUZU,THAILAND<8KX> 		8-98051-831-0 01 1 0810- ● ●
1 16.585 PANEL; ROOF
EXC. HIGH MOUNT STOP LAMP<TS6>,ROOF RADIO ANTENNA<U71>,PLANT - ISUZU, THAILAND<8KX> 		8-97233-913-3 01 1 0810- ● ●
1 16.585 PANEL; ROOF
EXC. HIGH MOUNT STOP LAMP<TS6>, PLANT- ISUZU,THAILAND<8KX> 		8-97235-326-3 01 1 0810- ● ●
1 16.585 PANEL; ROOF
PLANT - ISUZU,THAILAND<8KX> EXC. HEADER CONSOLE<DK6>,HIGH MOUNT STOP LAMP<TS6> 		8-97235-326-3 01 1 0810- ● ●
1 16.585 PANEL; ROOF
ROOF RADIO ANTENNA<U71> EXC. HIGH MOUNT STOP LAMP<TS6>, PLANT- ISUZU,THAILAND<8KX> 		8-98051-827-0 01 1 0810- ● ●
1 16.585 PANEL; ROOF
EXC. HIGH MOUNT STOP LAMP<TS6>,ROOF RADIO ANTENNA<U71>,PLANT - ISUZU, THAILAND<8KX> 		8-93298-720-1 01 1 0810- ● ●
1 16.585 PANEL; ROOF
ROOF RADIO ANTENNA<U71> 		8-98051-828-0 01 1 0808-0809 ●
1 16.585 PANEL; ROOF
4X4 CREW CAB LONG(TFS*WF) ROOF RADIO ANTENNA<U71> 		8-98051-828-0 01 1 0808-0809 ●
1 16.585 PANEL; ROOF
HIGH MOUNT STOP LAMP<TS6> ROOF RADIO ANTENNA<U71> 		8-98051-828-0 01 1 0810- ● ●
1 16.585 PANEL; ROOF
EXC. ROOF RADIO ANTENNA<U71> 		8-93290-859-1 01 1 0808-0809 ●
1 16.585 PANEL; ROOF
4X4 CREW CAB LONG(TFS*WF) EXC. ROOF RADIO ANTENNA<U71> 		8-93290-859-1 01 1 0808-0809 ●
1 16.585 PANEL; ROOF
CREW CAB EXTRA LONG(TF**WK) 		8-93290-859-1 01 1 0808-0809 ●
1 16.585 PANEL; ROOF
HIGH MOUNT STOP LAMP<TS6> EXC. ROOF RADIO ANTENNA<U71> 		8-93290-859-1 01 1 0810- ● ●
1 16.585 PANEL; ROOF
EXTEND CAB EXTRA LONG(TF**CK) 		8-97235-107-3 01 1 0808-0809 ●
1 16.585 PANEL; ROOF
HIGH MOUNT STOP LAMP<TS6> EXC. ROOF RADIO ANTENNA<U71> 		8-97235-107-3 01 1 0810- ● ●
2 16.585 PANEL; ROOF,CENTER 8-98050-942-0 01 1 0808-0808 ● ●
2 16.585 PANEL; ROOF,CENTER
EXTEND CAB EXTRA LONG(TF**CK) 		8-98050-942-0 01 1 0808-0808 ●
2 16.585 PANEL; ROOF,CENTER
EXC. HEADER CONSOLE<DK6> 		8-98050-942-0 01 1 0809-0809 ●
2 16.585 PANEL; ROOF,CENTER 8-98050-942-0 01 1 0809-0809 ● ●
2 16.585 PANEL; ROOF,CENTER
EXTEND CAB EXTRA LONG(TF**CK) 		8-98050-942-0 01 1 0809-0809 ●
2 16.585 PANEL; ROOF,CENTER
4X4 REGULAR CAB EXTRA LONG(TFS*SK) EXC. HEADER CONSOLE<DK6> 		8-98050-942-0 01 1 0809-0809 ●
2 16.585 PANEL; ROOF,CENTER
EXC. PLANT - ISUZU,THAILAND<8KX> 		8-98050-942-0 01 1 0810- ● ● ● ● ● ● ●
2 16.585 PANEL; ROOF,CENTER
HIGH MOUNT STOP LAMP<TS6> PLANT - ISUZU,THAILAND<8KX> 		8-98050-942-0 01 1 0810- ● ● ● ● ● ● ●
2 16.585 PANEL; ROOF,CENTER
PLANT - ISUZU,THAILAND<8KX> EXC. HEADER CONSOLE<DK6> 		8-98050-942-0 01 1 0810- ● ● ●
3 16.585 PANEL; ROOF,RR 8-97235-282-3 01 1 0808-0808 ● ●
3 16.585 PANEL; ROOF,RR
EXTEND CAB EXTRA LONG(TF**CK) 		8-97235-282-3 01 1 0808-0808 ●
3 16.585 PANEL; ROOF,RR
EXC. HEADER CONSOLE<DK6> 		8-97235-282-3 01 1 0809-0809 ●
3 16.585 PANEL; ROOF,RR 8-97235-282-3 01 1 0809-0809 ● ●
3 16.585 PANEL; ROOF,RR
EXTEND CAB EXTRA LONG(TF**CK) 		8-97235-282-3 01 1 0809-0809 ●
3 16.585 PANEL; ROOF,RR
4X4 REGULAR CAB EXTRA LONG(TFS*SK) EXC. HEADER CONSOLE<DK6> 		8-97235-282-3 01 1 0809-0809 ●
3 16.585 PANEL; ROOF,RR
EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97235-282-3 01 1 0810- ● ● ● ● ● ● ●
3 16.585 PANEL; ROOF,RR
HIGH MOUNT STOP LAMP<TS6> PLANT - ISUZU,THAILAND<8KX> 		8-97235-282-3 01 1 0810- ● ● ● ●
3 16.585 PANEL; ROOF,RR
PLANT - ISUZU,THAILAND<8KX> EXC. HEADER CONSOLE<DK6> 		8-97235-282-3 01 1 0810- ● ● ●
13 16.585 PANEL; ROOF SUPPORT
(A) 		8-97235-279-3 01 1 0808-0808 ● ●
13 16.585 PANEL; ROOF SUPPORT
EXTEND CAB EXTRA LONG(TF**CK) (A) 		8-97235-279-3 01 1 0808-0808 ●
13 16.585 PANEL; ROOF SUPPORT
EXC. HEADER CONSOLE<DK6> (A) 		8-97235-279-3 01 1 0809-0809 ●
13 16.585 PANEL; ROOF SUPPORT
(A) 		8-97235-279-3 01 1 0809-0809 ● ●
13 16.585 PANEL; ROOF SUPPORT
EXTEND CAB EXTRA LONG(TF**CK) (A) 		8-97235-279-3 01 1 0809-0809 ●
13 16.585 PANEL; ROOF SUPPORT
4X4 REGULAR CAB EXTRA LONG(TFS*SK) EXC. HEADER CONSOLE<DK6> (A) 		8-97235-279-3 01 1 0809-0809 ●
13 16.585 PANEL; ROOF SUPPORT
EXC. PLANT - ISUZU,THAILAND<8KX> (A) 		8-97235-279-3 01 1 0810- ● ● ● ● ● ● ●
13 16.585 PANEL; ROOF SUPPORT
HIGH MOUNT STOP LAMP<TS6> PLANT - ISUZU,THAILAND<8KX> (A) 		8-97235-279-3 01 1 0810- ● ● ● ● ● ● ●
13 16.585 PANEL; ROOF SUPPORT
PLANT - ISUZU,THAILAND<8KX> EXC. HEADER CONSOLE<DK6> (A) 		8-97235-279-3 01 1 0810- ● ● ●
13 16.585 PANEL; ROOF SUPPORT
(B) 		8-97235-281-3 01 1 0808-0809 ● ●
13 16.585 PANEL; ROOF SUPPORT
EXTEND CAB EXTRA LONG(TF**CK) (B) 		8-97235-281-3 01 1 0808-0809 ●
13 16.585 PANEL; ROOF SUPPORT
EXC. PLANT - ISUZU,THAILAND<8KX> (B) 		8-97235-281-3 01 1 0810- ● ● ● ●
13 16.585 PANEL; ROOF SUPPORT
HIGH MOUNT STOP LAMP<TS6> PLANT - ISUZU,THAILAND<8KX> (B) 		8-97235-281-3 01 1 0810- ● ● ● ●
13 16.585 PANEL; ROOF SUPPORT
(C) 		8-93291-041-1 01 1 0808-0809 ● ●
13 16.585 PANEL; ROOF SUPPORT
EXC. PLANT - ISUZU,THAILAND<8KX> (C) 		8-93291-041-1 01 1 0810- ● ●
13 16.585 PANEL; ROOF SUPPORT
HIGH MOUNT STOP LAMP<TS6> PLANT - ISUZU,THAILAND<8KX> (C) 		8-93291-041-1 01 1 0810- ● ●
143 16.584 BRACKET; CONSOLE
HEADER CONSOLE<DK6> 		8-98050-943-0 01 1 0808-0809 ● ●
143 16.584 BRACKET; CONSOLE
EXTEND CAB EXTRA LONG(TF**CK) HEADER CONSOLE<DK6> 		8-98050-943-0 01 1 0808-0809 ●
143 16.584 BRACKET; CONSOLE
HEADER CONSOLE<DK6> EXC. PLANT - ISUZU,THAILAND<8KX> 		8-98050-943-0 01 1 0810- ● ● ● ● ● ● ●
143 16.584 BRACKET; CONSOLE
HEADER CONSOLE<DK6> HIGH MOUNT STOP LAMP<TS6> PLANT - ISUZU,THAILAND<8KX> 		8-98050-943-0 01 1 0810- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
