◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51194 - TFR/TFS-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-55 - REAR DOOR TRIM ▶
6-55 — REAR DOOR TRIM (#77074) — 49 parça

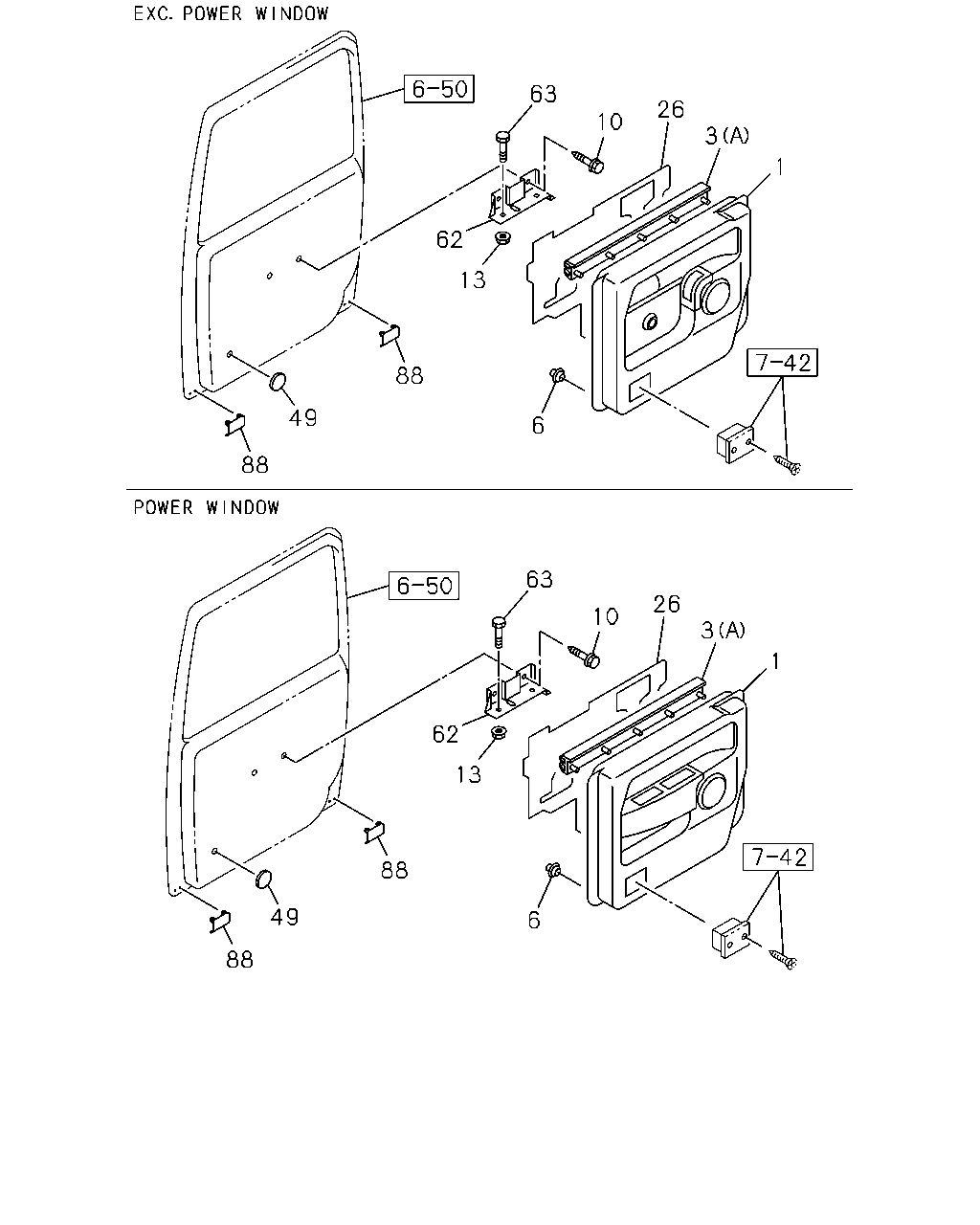

çizim 131180
63 26 10 3 1 62 13 88 49 6 88 63 26 10 3 1 62 13 88 49 6 88
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.165 PAD; TRIM,RR DOOR
VINYL TRIM<8LJ> EXC. POWER WINDOW FRT&REAR DOOR<A31> DARK GRAY 		8-97403-922-3 01 1 0810- ● ●
1 16.165 PAD; TRIM,RR DOOR
VINYL TRIM<8LJ> EXC. POWER WINDOW FRT&REAR DOOR<A31> DARK GRAY 		8-97403-924-3 01 1 0810- ● ●
1 16.165 PAD; TRIM,RR DOOR
CLOTH TRIM STANDARD, VAR 1<8LK> EXC. POWER WINDOW FRT&REAR DOOR<A31> GRAY 		8-97404-930-0 01 1 0810- ● ●
1 16.165 PAD; TRIM,RR DOOR
CLOTH TRIM STANDARD, VAR 1<8LK> EXC. POWER WINDOW FRT&REAR DOOR<A31> GRAY 		8-97404-931-0 01 1 0810- ● ●
1 16.165 PAD; TRIM,RR DOOR
CLOTH TRIM SUPER DELUXE, VAR 1<8LM> EXC. POWER WINDOW FRT&REAR DOOR<A31> DARK GRAY 		8-97404-928-0 01 1 0810- ● ●
1 16.165 PAD; TRIM,RR DOOR
CLOTH TRIM SUPER DELUXE, VAR 1<8LM> EXC. POWER WINDOW FRT&REAR DOOR<A31> DARK GRAY 		8-97404-929-0 01 1 0810- ● ●
1 16.165 PAD; TRIM,RR DOOR
CLOTH TRIM STANDARD, VAR 1<8LK> GRAY 		8-97404-932-0 01 1 0808-0809 ● ●
1 16.165 PAD; TRIM,RR DOOR
CLOTH TRIM STANDARD, VAR 1<8LK> POWER WINDOW FRT&REAR DOOR<A31> GRAY 		8-97404-932-0 01 1 0810- ● ●
1 16.165 PAD; TRIM,RR DOOR
CLOTH TRIM STANDARD, VAR 1<8LK> GRAY 		8-97404-933-0 01 1 0808-0809 ● ●
1 16.165 PAD; TRIM,RR DOOR
CLOTH TRIM STANDARD, VAR 1<8LK> POWER WINDOW FRT&REAR DOOR<A31> GRAY 		8-97404-933-0 01 1 0810- ● ●
1 16.165 PAD; TRIM,RR DOOR
CLOTH TRIM SUPER DELUXE, VAR 1<8LM> DARK GRAY 		8-97404-937-0 01 1 0808-0809 ●
1 16.165 PAD; TRIM,RR DOOR
4X4 CREW CAB LONG(TFS*WF) CLOTH TRIM SUPER DELUXE, VAR 1<8LM> DARK GRAY 		8-97404-937-0 01 1 0808-0809 ●
1 16.165 PAD; TRIM,RR DOOR
CLOTH TRIM SUPER DELUXE, VAR 1<8LM> DARK GRAY 		8-97404-937-0 01 1 0810- ● ●
1 16.165 PAD; TRIM,RR DOOR
CLOTH TRIM SUPER DELUXE, VAR 1<8LM> DARK GRAY 		8-97404-939-0 01 1 0808-0809 ●
1 16.165 PAD; TRIM,RR DOOR
4X4 CREW CAB LONG(TFS*WF) CLOTH TRIM SUPER DELUXE, VAR 1<8LM> DARK GRAY 		8-97404-939-0 01 1 0808-0809 ●
1 16.165 PAD; TRIM,RR DOOR
CLOTH TRIM SUPER DELUXE, VAR 1<8LM> DARK GRAY 		8-97404-939-0 01 1 0810- ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(A) 		8-97364-724-0 01 1 0808- ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(A) 		8-97364-725-0 01 1 0808- ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(B) DARK GRAY 		8-97403-594-0 01 1 0808- ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(B) DARK GRAY 		8-97403-596-0 01 1 0808- ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(C) 		8-98004-227-0 01 1 0808- ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(C) 		8-98004-228-0 01 1 0808- ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(D) 		8-98004-233-0 01 1 0808- ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(D) 		8-98004-234-0 01 1 0808- ● ●
6 16.165 CLIP; DOOR PAD
H=16.7 		8-97022-017-0 14 1 0808- ● ●
10 16.155 SCREW; ARM REST
12.182 M5X14 		8-94152-495-0 04 1 0808- ● ●
13 16.165 GROMMET; SCREW,ARM REST
10.565 		8-94152-494-0 04 1 0808- ● ●
26 16.165 SEAL; WAIST,RR DOOR INNER 8-97360-889-0 01 1 0808- ● ●
26 16.165 SEAL; WAIST,RR DOOR INNER 8-97360-890-0 01 1 0808- ● ●
49 16.165 SEAL; DOOR
EXC. AUTO DOOR LOCK<AU4> OD=25 BLACK 		1-76798-019-0 02 1 0810- ● ●
62 16.165 BRACKET 8-93358-284-2 01 1 0808- ● ●
62 16.165 BRACKET 8-93358-285-2 01 1 0808- ● ●
63 16.165 BOLT
EXC. POWER WINDOW FRT&REAR DOOR<A31> 12.182 M5X14 		8-94152-495-0 04 1 0810- ●
63 16.165 BOLT
4X4 CREW CAB LONG(TFS*WF) EXC. POWER WINDOW FRT&REAR DOOR<A31> 12.182 M5X14 		8-94152-495-0 04 1 0810- ●
88 16.270 PLUG; DOOR
16.155 		8-98009-500-0 04 1 0808- ● ●
çizim 186187
3 3 3 45
BalonParca AdiParca NoAdetTipApplied Date A B
3 16.225 WEATHERSTRIP; RR DOOR
(A) 		8-97364-724-0 01 1 0808- ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(A) 		8-97364-725-0 01 1 0808- ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(B) DARK GRAY 		8-97403-594-0 01 1 0808- ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(B) DARK GRAY 		8-97403-596-0 01 1 0808- ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(C) 		8-98004-227-0 01 1 0808- ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(C) 		8-98004-228-0 01 1 0808- ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(D) 		8-98004-233-0 01 1 0808- ● ●
3 16.225 WEATHERSTRIP; RR DOOR
(D) 		8-98004-234-0 01 1 0808- ● ●
45 16.183 FINISHER; RR DOOR
BODY SIDE MOLDING CHROME<8NL> 		8-98152-891-0 01 1 1102- ● ●
45 16.183 FINISHER; RR DOOR
BODY SIDE MOLDING CHROME<8NL> 		8-98152-892-0 01 1 1102- ● ●
45 16.183 FINISHER; RR DOOR 8-98004-223-0 01 1 0808-1101 ● ●
45 16.183 FINISHER; RR DOOR
EXC. BODY SIDE MOLDING CHROME<8NL> 		8-98004-223-0 01 1 1102- ● ●
45 16.183 FINISHER; RR DOOR 8-98004-224-0 01 1 0808-1101 ● ●
45 16.183 FINISHER; RR DOOR
EXC. BODY SIDE MOLDING CHROME<8NL> 		8-98004-224-0 01 1 1102- ● ●
