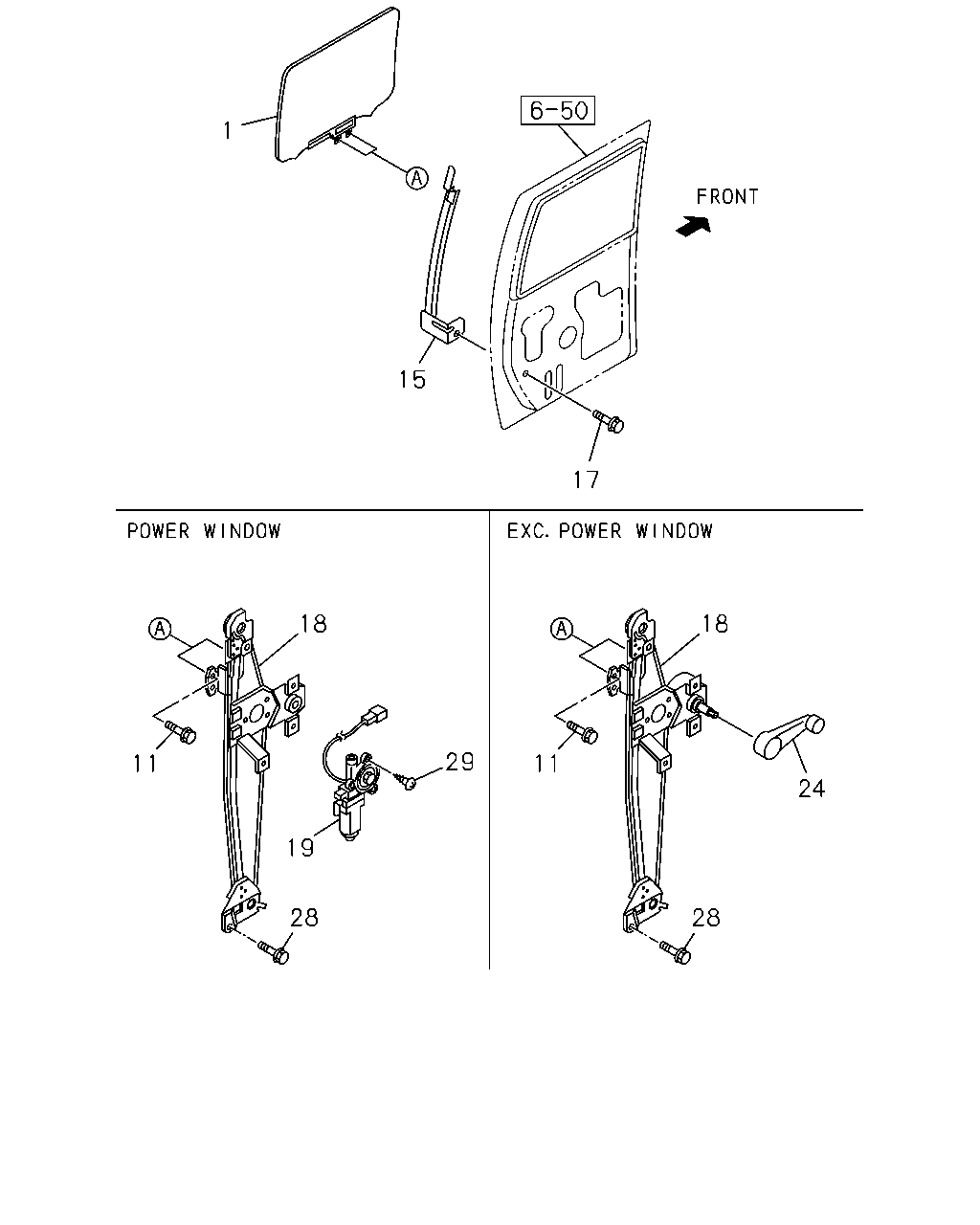

6-51 — REAR DOOR GLASS AND REGULATOR (#77072) — 62 parça

1 15 17 18 18 29 11 11 24 19 28 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	16.180 GLASS; RR DOOR	8-98002-757-0	01	1	0808-0808	●	●
1	16.180 GLASS; RR DOOR	8-98130-014-0	01	1	0809-	●	●
1	16.180 GLASS; RR DOOR	8-98002-758-0	01	1	0808-0808	●	●
1	16.180 GLASS; RR DOOR	8-98130-015-0	01	1	0809-	●	●
11	16.183 BOLT; GLASS 02.343 M6X16 FLANGE	0-28650-616-0	04	1	0808-	●	●
15	16.190 RAIL; RR GUIDE,RR DOOR	8-93298-412-0	01	1	0808-	●	●
15	16.190 RAIL; RR GUIDE,RR DOOR	8-93298-413-0	01	1	0808-	●	●
17	10.765 BOLT; RR GUIDE RAIL M6X8 FLANGE	8-98048-996-0	02	1	0808-	●	●
18	16.260 REGULATOR; WINDOW,RR DOOR EXC. POWER WINDOW FRT&REAR DOOR<A31>	8-98005-168-3	01	1	0810-0906	●
18	16.260 REGULATOR; WINDOW,RR DOOR 4X4 CREW CAB LONG(TFS*WF) EXC. POWER WINDOW FRT&REAR DOOR<A31>	8-98005-168-3	01	1	0810-0906		●
18	16.260 REGULATOR; WINDOW,RR DOOR EXC. POWER WINDOW FRT&REAR DOOR<A31>	8-98150-521-0	01	1	0907-	●
18	16.260 REGULATOR; WINDOW,RR DOOR 4X4 CREW CAB LONG(TFS*WF) EXC. POWER WINDOW FRT&REAR DOOR<A31>	8-98150-521-0	01	1	0907-		●
18	16.260 REGULATOR; WINDOW,RR DOOR EXC. POWER WINDOW FRT&REAR DOOR<A31>	8-98005-169-3	01	1	0810-0906	●
18	16.260 REGULATOR; WINDOW,RR DOOR 4X4 CREW CAB LONG(TFS*WF) EXC. POWER WINDOW FRT&REAR DOOR<A31>	8-98005-169-3	01	1	0810-0906		●
18	16.260 REGULATOR; WINDOW,RR DOOR EXC. POWER WINDOW FRT&REAR DOOR<A31>	8-98150-522-0	01	1	0907-	●
18	16.260 REGULATOR; WINDOW,RR DOOR 4X4 CREW CAB LONG(TFS*WF) EXC. POWER WINDOW FRT&REAR DOOR<A31>	8-98150-522-0	01	1	0907-		●
18	16.260 REGULATOR; WINDOW,RR DOOR	8-98009-812-0	01	1	0808-0809	●	●
18	16.260 REGULATOR; WINDOW,RR DOOR POWER WINDOW FRT&REAR DOOR<A31>	8-98009-812-0	01	1	0810-0908	●
18	16.260 REGULATOR; WINDOW,RR DOOR 4X4 CREW CAB LONG(TFS*WF) POWER WINDOW FRT&REAR DOOR<A31>	8-98009-812-0	01	1	0810-0908		●
18	16.260 REGULATOR; WINDOW,RR DOOR CREW CAB EXTRA LONG(TF**WK)	8-98009-812-0	01	1	0810-0908		●
18	16.260 REGULATOR; WINDOW,RR DOOR POWER WINDOW FRT&REAR DOOR<A31>	8-98150-525-0	01	1	0909-	●
18	16.260 REGULATOR; WINDOW,RR DOOR 4X4 CREW CAB LONG(TFS*WF) POWER WINDOW FRT&REAR DOOR<A31>	8-98150-525-0	01	1	0909-		●
18	16.260 REGULATOR; WINDOW,RR DOOR CREW CAB EXTRA LONG(TF**WK)	8-98150-525-0	01	1	0909-		●
18	16.260 REGULATOR; WINDOW,RR DOOR	8-98009-813-0	01	1	0808-0809	●	●
18	16.260 REGULATOR; WINDOW,RR DOOR POWER WINDOW FRT&REAR DOOR<A31>	8-98009-813-0	01	1	0810-0908	●
18	16.260 REGULATOR; WINDOW,RR DOOR 4X4 CREW CAB LONG(TFS*WF) POWER WINDOW FRT&REAR DOOR<A31>	8-98009-813-0	01	1	0810-0908		●
18	16.260 REGULATOR; WINDOW,RR DOOR CREW CAB EXTRA LONG(TF**WK)	8-98009-813-0	01	1	0810-0908		●
18	16.260 REGULATOR; WINDOW,RR DOOR POWER WINDOW FRT&REAR DOOR<A31>	8-98150-526-0	01	1	0909-	●
18	16.260 REGULATOR; WINDOW,RR DOOR 4X4 CREW CAB LONG(TFS*WF) POWER WINDOW FRT&REAR DOOR<A31>	8-98150-526-0	01	1	0909-		●
18	16.260 REGULATOR; WINDOW,RR DOOR CREW CAB EXTRA LONG(TF**WK)	8-98150-526-0	01	1	0909-		●
19	16.263 MOTOR; POWER WINDOW REG,RR DOOR	8-98009-803-0	01	1	0808-0809	●	●
19	16.263 MOTOR; POWER WINDOW REG,RR DOOR POWER WINDOW FRT&REAR DOOR<A31>	8-98009-803-0	01	1	0810-0908	●
19	16.263 MOTOR; POWER WINDOW REG,RR DOOR 4X4 CREW CAB LONG(TFS*WF) POWER WINDOW FRT&REAR DOOR<A31>	8-98009-803-0	01	1	0810-0908		●
19	16.263 MOTOR; POWER WINDOW REG,RR DOOR CREW CAB EXTRA LONG(TF**WK)	8-98009-803-0	01	1	0810-0908		●
19	16.263 MOTOR; POWER WINDOW REG,RR DOOR POWER WINDOW FRT&REAR DOOR<A31>	8-98151-593-0	01	1	0909-1107	●
19	16.263 MOTOR; POWER WINDOW REG,RR DOOR 4X4 CREW CAB LONG(TFS*WF) POWER WINDOW FRT&REAR DOOR<A31>	8-98151-593-0	01	1	0909-1107		●
19	16.263 MOTOR; POWER WINDOW REG,RR DOOR CREW CAB EXTRA LONG(TF**WK)	8-98151-593-0	01	1	0909-1107		●
19	16.263 MOTOR; POWER WINDOW REG,RR DOOR POWER WINDOW FRT&REAR DOOR<A31>	8-98196-061-0	01	1	1108-	●
19	16.263 MOTOR; POWER WINDOW REG,RR DOOR 4X4 CREW CAB LONG(TFS*WF) POWER WINDOW FRT&REAR DOOR<A31>	8-98196-061-0	01	1	1108-		●
19	16.263 MOTOR; POWER WINDOW REG,RR DOOR CREW CAB EXTRA LONG(TF**WK)	8-98196-061-0	01	1	1108-		●
19	16.263 MOTOR; POWER WINDOW REG,RR DOOR	8-98009-804-0	01	1	0808-0809	●	●
19	16.263 MOTOR; POWER WINDOW REG,RR DOOR POWER WINDOW FRT&REAR DOOR<A31>	8-98009-804-0	01	1	0810-0908	●
19	16.263 MOTOR; POWER WINDOW REG,RR DOOR 4X4 CREW CAB LONG(TFS*WF) POWER WINDOW FRT&REAR DOOR<A31>	8-98009-804-0	01	1	0810-0908		●
19	16.263 MOTOR; POWER WINDOW REG,RR DOOR CREW CAB EXTRA LONG(TF**WK)	8-98009-804-0	01	1	0810-0908		●
19	16.263 MOTOR; POWER WINDOW REG,RR DOOR POWER WINDOW FRT&REAR DOOR<A31>	8-98151-594-0	01	1	0909-1107	●
19	16.263 MOTOR; POWER WINDOW REG,RR DOOR 4X4 CREW CAB LONG(TFS*WF) POWER WINDOW FRT&REAR DOOR<A31>	8-98151-594-0	01	1	0909-1107		●
19	16.263 MOTOR; POWER WINDOW REG,RR DOOR CREW CAB EXTRA LONG(TF**WK)	8-98151-594-0	01	1	0909-1107		●
19	16.263 MOTOR; POWER WINDOW REG,RR DOOR POWER WINDOW FRT&REAR DOOR<A31>	8-98196-062-0	01	1	1108-	●
19	16.263 MOTOR; POWER WINDOW REG,RR DOOR 4X4 CREW CAB LONG(TFS*WF) POWER WINDOW FRT&REAR DOOR<A31>	8-98196-062-0	01	1	1108-		●
19	16.263 MOTOR; POWER WINDOW REG,RR DOOR CREW CAB EXTRA LONG(TF**WK)	8-98196-062-0	01	1	1108-		●
24	16.270 HANDLE; WINDOW REG,RR DOOR EXC. POWER WINDOW FRT&REAR DOOR<A31> DARK GRAY	8-97408-066-0	02	1	0810-	●
24	16.270 HANDLE; WINDOW REG,RR DOOR 4X4 CREW CAB LONG(TFS*WF) EXC. POWER WINDOW FRT&REAR DOOR<A31> DARK GRAY	8-97408-066-0	02	1	0810-		●
28	16.181 BOLT; WINDOW REG EXC. POWER WINDOW FRT&REAR DOOR<A31> 10.765 M6X8 FLANGE	8-98048-996-0	08	1	0810-	●
28	16.181 BOLT; WINDOW REG 4X4 CREW CAB LONG(TFS*WF) EXC. POWER WINDOW FRT&REAR DOOR<A31> 10.765 M6X8 FLANGE	8-98048-996-0	08	1	0810-		●
28	16.181 BOLT; WINDOW REG 10.765 M6X8 FLANGE	8-98048-996-0	06	1	0808-0809	●	●
28	16.181 BOLT; WINDOW REG POWER WINDOW FRT&REAR DOOR<A31> 10.765 M6X8 FLANGE	8-98048-996-0	06	1	0810-	●
28	16.181 BOLT; WINDOW REG 4X4 CREW CAB LONG(TFS*WF) POWER WINDOW FRT&REAR DOOR<A31> 10.765 M6X8 FLANGE	8-98048-996-0	06	1	0810-		●
28	16.181 BOLT; WINDOW REG CREW CAB EXTRA LONG(TF**WK) 10.765 M6X8 FLANGE	8-98048-996-0	06	1	0810-		●
29	16.270 SCREW; WINDOW REG	8-98009-809-0	06	1	0808-0809	●	●
29	16.270 SCREW; WINDOW REG POWER WINDOW FRT&REAR DOOR<A31>	8-98009-809-0	06	1	0810-	●
29	16.270 SCREW; WINDOW REG 4X4 CREW CAB LONG(TFS*WF) POWER WINDOW FRT&REAR DOOR<A31>	8-98009-809-0	06	1	0810-		●
29	16.270 SCREW; WINDOW REG CREW CAB EXTRA LONG(TF**WK)	8-98009-809-0	06	1	0810-		●
