6-41 — SIDE WINDOW GLASS AND WEATHERSTRIP (#77067) — 20 parça

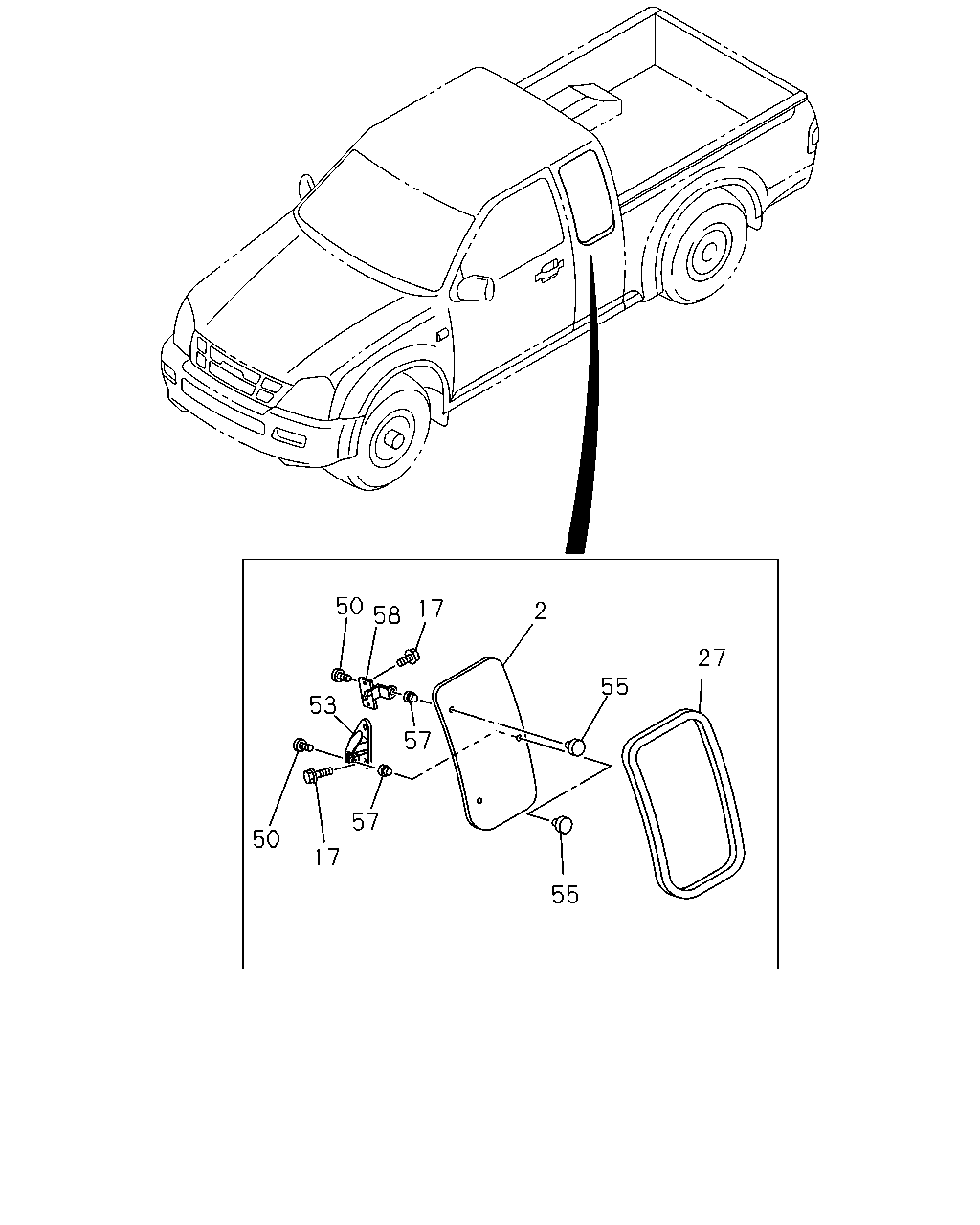

çizim 130831
50 17 2 58 27 55 53 57 57 50 17 55
BalonParca AdiParca NoAdetTipApplied Date A B
2 16.460 GLASS; RR QUARTER
EXTEND CAB EXTRA LONG(TF**CK) 		8-97252-931-0 01 1 0808-0808 ●
2 16.460 GLASS; RR QUARTER 8-98134-039-0 01 1 0809-0809 ●
2 16.460 GLASS; RR QUARTER 8-98134-039-0 01 1 0810- ● ●
2 16.460 GLASS; RR QUARTER
EXTEND CAB EXTRA LONG(TF**CK) 		8-97252-932-0 01 1 0808-0808 ●
2 16.460 GLASS; RR QUARTER 8-98134-040-0 01 1 0809-0809 ●
2 16.460 GLASS; RR QUARTER 8-98134-040-0 01 1 0810- ● ●
17 16.263 SCREW; SIDE WINDOW LOCK
M6X19 W/WASHER 		8-98062-136-0 14 1 0808-0809 ●
17 16.263 SCREW; SIDE WINDOW LOCK
M6X19 W/WASHER 		8-98062-136-0 14 1 0810- ● ●
27 16.470 WEATHERSTRIP; RR QUARTER 8-98023-144-0 02 1 0808-0809 ●
27 16.470 WEATHERSTRIP; RR QUARTER 8-98023-144-1 02 1 0810- ● ●
50 16.155 SCREW; HINGE
EXTEND CAB EXTRA LONG(TF**CK) 11.010 M5X10 		9-03810-510-0 06 1 0808-0809 ●
50 16.155 SCREW; HINGE
11.010 M5X10 		9-03810-510-0 06 1 0810- ● ●
53 16.190 FASTENER; RR QUARTER
EXTEND CAB EXTRA LONG(TF**CK) DARK GRAY 		8-97408-834-0 02 1 0808-0809 ●
53 16.190 FASTENER; RR QUARTER
DARK GRAY 		8-97408-834-0 02 1 0810- ● ●
55 16.152 NUT; SPECIAL,HINGE
EXTEND CAB EXTRA LONG(TF**CK) 		8-97305-953-1 06 1 0808-0809 ●
55 16.152 NUT; SPECIAL,HINGE 8-97305-953-1 06 1 0810- ● ●
57 16.152 GROMMET; HINGE
EXTEND CAB EXTRA LONG(TF**CK) 		8-94480-192-0 04 1 0808-0809 ●
57 16.152 GROMMET; HINGE 8-94480-192-0 04 1 0810- ● ●
58 16.152 HINGE; RR QUARTER WINDOW
EXTEND CAB EXTRA LONG(TF**CK) 		8-97252-936-1 04 1 0808-0809 ●
58 16.152 HINGE; RR QUARTER WINDOW 8-97252-936-1 04 1 0810- ● ●
