6-30 — FRONT DOOR AND HINGE (#77063) — 70 parça

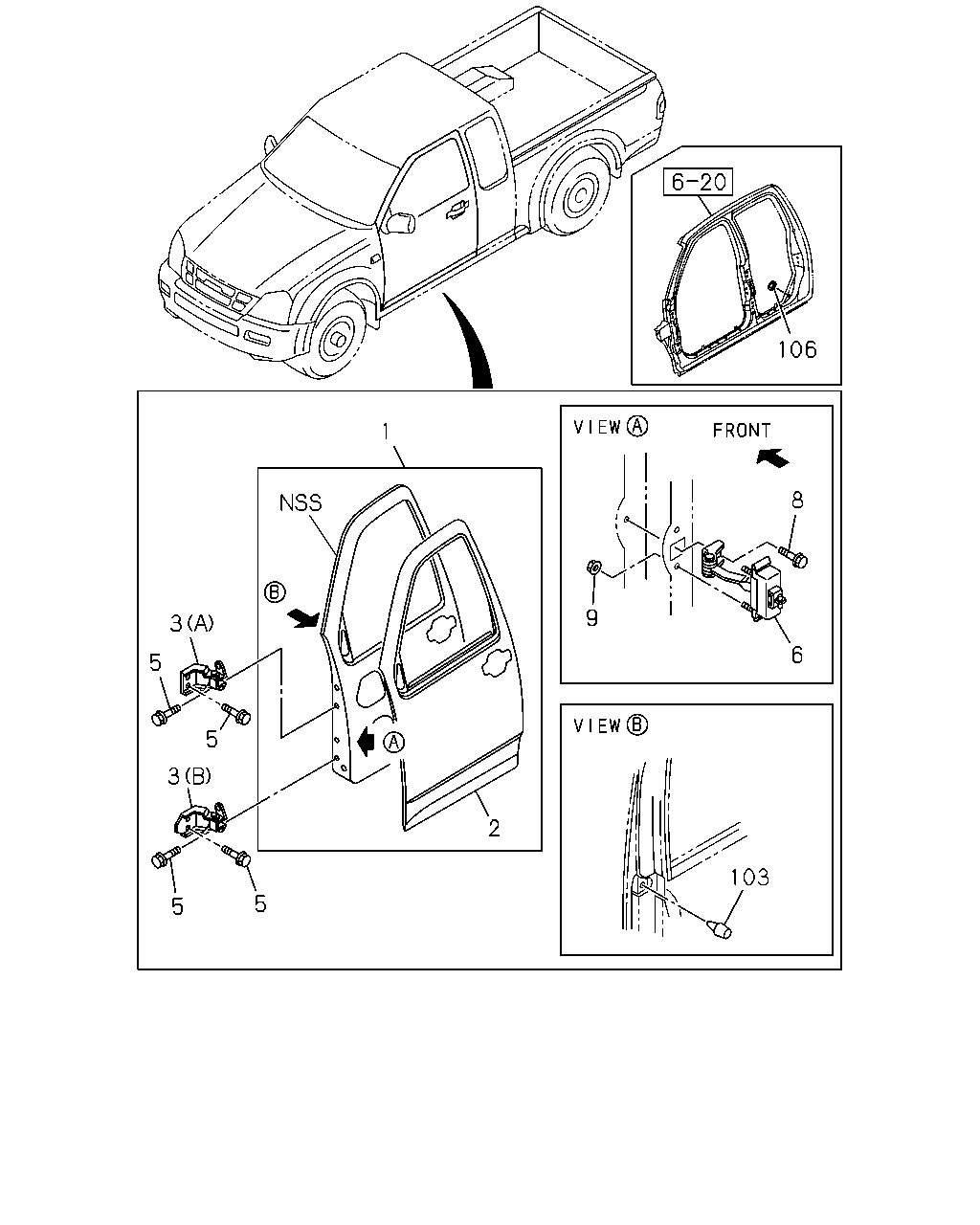

çizim 186185
106 1 8 9 3 6 5 5 3 2 103 5 5
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 16.150 DOOR ASM; FRT,WO/TRIM
BODY SIDE MOLDING(B84) 		8-98043-241-0 01 1 0808-0809 ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXTEND CAB EXTRA LONG(TF**CK) BODY SIDE MOLDING(B84) 		8-98043-241-0 01 1 0808-0809 ●
1 16.150 DOOR ASM; FRT,WO/TRIM
4X4 REGULAR CAB EXTRA LONG(TFS*SK) BODY SIDE MOLDING(B84) 		8-98043-241-0 01 1 0808-0809 ●
1 16.150 DOOR ASM; FRT,WO/TRIM
BODY SIDE MOLDING(B84) 		8-98043-241-0 01 1 0810- ● ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
BODY SIDE MOLDING(B84) 		8-98043-242-0 01 1 0808-0809 ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXTEND CAB EXTRA LONG(TF**CK) BODY SIDE MOLDING(B84) 		8-98043-242-0 01 1 0808-0809 ●
1 16.150 DOOR ASM; FRT,WO/TRIM
4X4 REGULAR CAB EXTRA LONG(TFS*SK) BODY SIDE MOLDING(B84) 		8-98043-242-0 01 1 0808-0809 ●
1 16.150 DOOR ASM; FRT,WO/TRIM
BODY SIDE MOLDING(B84) 		8-98043-242-0 01 1 0810- ● ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. BODY SIDE MOLDING(B84) 		8-98043-237-0 01 1 0808-0809 ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXTEND CAB EXTRA LONG(TF**CK) EXC. BODY SIDE MOLDING(B84) 		8-98043-237-0 01 1 0808-0809 ●
1 16.150 DOOR ASM; FRT,WO/TRIM
4X4 REGULAR CAB EXTRA LONG(TFS*SK) EXC. BODY SIDE MOLDING(B84) 		8-98043-237-0 01 1 0808-0809 ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. BODY SIDE MOLDING(B84) 		8-98043-237-0 01 1 0810- ● ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. BODY SIDE MOLDING(B84) 		8-98043-238-0 01 1 0808-0809 ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXTEND CAB EXTRA LONG(TF**CK) EXC. BODY SIDE MOLDING(B84) 		8-98043-238-0 01 1 0808-0809 ●
1 16.150 DOOR ASM; FRT,WO/TRIM
4X4 REGULAR CAB EXTRA LONG(TFS*SK) EXC. BODY SIDE MOLDING(B84) 		8-98043-238-0 01 1 0808-0809 ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. BODY SIDE MOLDING(B84) 		8-98043-238-0 01 1 0810- ● ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
BODY SIDE MOLDING(B84) 		8-98043-243-0 01 1 0808- ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
BODY SIDE MOLDING(B84) 		8-98043-244-0 01 1 0808- ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. BODY SIDE MOLDING(B84) 		8-98043-239-0 01 1 0808- ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. BODY SIDE MOLDING(B84) 		8-98043-240-0 01 1 0808- ● ●
2 16.152 PANEL; FRT DOOR OUTER
BODY SIDE MOLDING(B84) 		8-97365-988-0 01 1 0808-0809 ●
2 16.152 PANEL; FRT DOOR OUTER
EXTEND CAB EXTRA LONG(TF**CK) BODY SIDE MOLDING(B84) 		8-97365-988-0 01 1 0808-0809 ●
2 16.152 PANEL; FRT DOOR OUTER
4X4 REGULAR CAB EXTRA LONG(TFS*SK) BODY SIDE MOLDING(B84) 		8-97365-988-0 01 1 0808-0809 ●
2 16.152 PANEL; FRT DOOR OUTER
BODY SIDE MOLDING(B84) 		8-97365-988-0 01 1 0810- ● ● ● ● ●
2 16.152 PANEL; FRT DOOR OUTER
BODY SIDE MOLDING(B84) 		8-97365-989-0 01 1 0808-0809 ●
2 16.152 PANEL; FRT DOOR OUTER
EXTEND CAB EXTRA LONG(TF**CK) BODY SIDE MOLDING(B84) 		8-97365-989-0 01 1 0808-0809 ●
2 16.152 PANEL; FRT DOOR OUTER
4X4 REGULAR CAB EXTRA LONG(TFS*SK) BODY SIDE MOLDING(B84) 		8-97365-989-0 01 1 0808-0809 ●
2 16.152 PANEL; FRT DOOR OUTER
BODY SIDE MOLDING(B84) 		8-97365-989-0 01 1 0810- ● ● ● ● ●
2 16.152 PANEL; FRT DOOR OUTER
EXC. BODY SIDE MOLDING(B84) 		8-97365-984-0 01 1 0808-0809 ●
2 16.152 PANEL; FRT DOOR OUTER
EXTEND CAB EXTRA LONG(TF**CK) EXC. BODY SIDE MOLDING(B84) 		8-97365-984-0 01 1 0808-0809 ●
2 16.152 PANEL; FRT DOOR OUTER
4X4 REGULAR CAB EXTRA LONG(TFS*SK) EXC. BODY SIDE MOLDING(B84) 		8-97365-984-0 01 1 0808-0809 ●
2 16.152 PANEL; FRT DOOR OUTER
EXC. BODY SIDE MOLDING(B84) 		8-97365-984-0 01 1 0810- ● ● ● ● ●
2 16.152 PANEL; FRT DOOR OUTER
EXC. BODY SIDE MOLDING(B84) 		8-97365-985-0 01 1 0808-0809 ●
2 16.152 PANEL; FRT DOOR OUTER
EXTEND CAB EXTRA LONG(TF**CK) EXC. BODY SIDE MOLDING(B84) 		8-97365-985-0 01 1 0808-0809 ●
2 16.152 PANEL; FRT DOOR OUTER
4X4 REGULAR CAB EXTRA LONG(TFS*SK) EXC. BODY SIDE MOLDING(B84) 		8-97365-985-0 01 1 0808-0809 ●
2 16.152 PANEL; FRT DOOR OUTER
EXC. BODY SIDE MOLDING(B84) 		8-97365-985-0 01 1 0810- ● ● ● ● ●
2 16.152 PANEL; FRT DOOR OUTER
BODY SIDE MOLDING(B84) 		8-97365-990-0 01 1 0808- ● ●
2 16.152 PANEL; FRT DOOR OUTER
BODY SIDE MOLDING(B84) 		8-97365-991-0 01 1 0808- ● ●
2 16.152 PANEL; FRT DOOR OUTER
EXC. BODY SIDE MOLDING(B84) 		8-97365-986-0 01 1 0808- ● ●
2 16.152 PANEL; FRT DOOR OUTER
EXC. BODY SIDE MOLDING(B84) 		8-97365-987-0 01 1 0808- ● ●
3 16.320 HINGE; DOOR FRT
(A) 		8-98057-546-0 01 1 0808-0809 ● ● ●
3 16.320 HINGE; DOOR FRT
EXTEND CAB EXTRA LONG(TF**CK) (A) 		8-98057-546-0 01 1 0808-0809 ●
3 16.320 HINGE; DOOR FRT
4X4 REGULAR CAB EXTRA LONG(TFS*SK) (A) 		8-98057-546-0 01 1 0808-0809 ●
3 16.320 HINGE; DOOR FRT
(A) 		8-98057-546-0 01 1 0810- ● ● ● ● ● ● ●
3 16.320 HINGE; DOOR FRT
(A) 		8-98057-547-0 01 1 0808-0809 ● ● ●
3 16.320 HINGE; DOOR FRT
EXTEND CAB EXTRA LONG(TF**CK) (A) 		8-98057-547-0 01 1 0808-0809 ●
3 16.320 HINGE; DOOR FRT
4X4 REGULAR CAB EXTRA LONG(TFS*SK) (A) 		8-98057-547-0 01 1 0808-0809 ●
3 16.320 HINGE; DOOR FRT
(A) 		8-98057-547-0 01 1 0810- ● ● ● ● ● ● ●
3 16.320 HINGE; DOOR FRT
(B) 		8-98057-548-0 01 1 0808-0809 ● ● ●
3 16.320 HINGE; DOOR FRT
EXTEND CAB EXTRA LONG(TF**CK) (B) 		8-98057-548-0 01 1 0808-0809 ●
3 16.320 HINGE; DOOR FRT
4X4 REGULAR CAB EXTRA LONG(TFS*SK) (B) 		8-98057-548-0 01 1 0808-0809 ●
3 16.320 HINGE; DOOR FRT
(B) 		8-98057-548-0 01 1 0810- ● ● ● ● ● ● ●
3 16.320 HINGE; DOOR FRT
(B) 		8-98057-549-0 01 1 0808-0809 ● ● ●
3 16.320 HINGE; DOOR FRT
EXTEND CAB EXTRA LONG(TF**CK) (B) 		8-98057-549-0 01 1 0808-0809 ●
3 16.320 HINGE; DOOR FRT
4X4 REGULAR CAB EXTRA LONG(TFS*SK) (B) 		8-98057-549-0 01 1 0808-0809 ●
3 16.320 HINGE; DOOR FRT
(B) 		8-98057-549-0 01 1 0810- ● ● ● ● ● ● ●
5 16.320 BOLT; HINGE
09.171 M8X23 FLANGE 		8-98005-842-0 16 1 0808-0809 ● ● ● ● ●
5 16.320 BOLT; HINGE
09.171 M8X23 FLANGE 		8-98005-842-0 16 1 0810-1007 ● ● ● ● ● ● ●
5 16.320 BOLT; HINGE
09.171 M8X23 FLANGE 		8-98005-842-0 08 1 1008- ● ● ● ● ● ● ●
5 16.320 BOLT; HINGE
09.171 M8X23 FLANGE 		8-98005-842-0 08 1 1008- ● ● ● ● ● ● ●
6 16.320 ARM; CHECK,FRT DOOR 8-97369-016-0 02 1 0808-0809 ● ● ● ● ●
6 16.320 ARM; CHECK,FRT DOOR 8-97369-016-0 02 1 0810- ● ● ● ● ● ● ●
8 16.320 BOLT; CHECK ARM
M8X23 		8-98062-206-0 02 1 0808-0809 ● ● ● ● ●
8 16.320 BOLT; CHECK ARM
M8X23 		8-98062-206-0 02 1 0810-1110 ● ● ● ● ● ● ●
8 16.320 BOLT; CHECK ARM
M8X23 		8-98166-694-0 02 1 1111- ● ● ● ● ● ● ●
9 16.320 NUT; CHECK ARM
M6 FLANGE 		8-98049-362-0 04 1 0808-0809 ● ● ● ● ●
9 16.320 NUT; CHECK ARM
M6 FLANGE 		8-98049-362-0 04 1 0810- ● ● ● ● ● ● ●
103 16.165 PROTECTOR; FRT DOOR 8-97301-795-1 02 1 0808-0809 ● ● ● ● ●
103 16.165 PROTECTOR; FRT DOOR 8-97301-795-1 02 1 0810- ● ● ● ● ● ● ●
106 16.165 GROMMET; PROTECTOR
16.570 		8-94279-724-0 02 1 0808- ● ●
