Sayfa 4-25 - Isuzu EPC

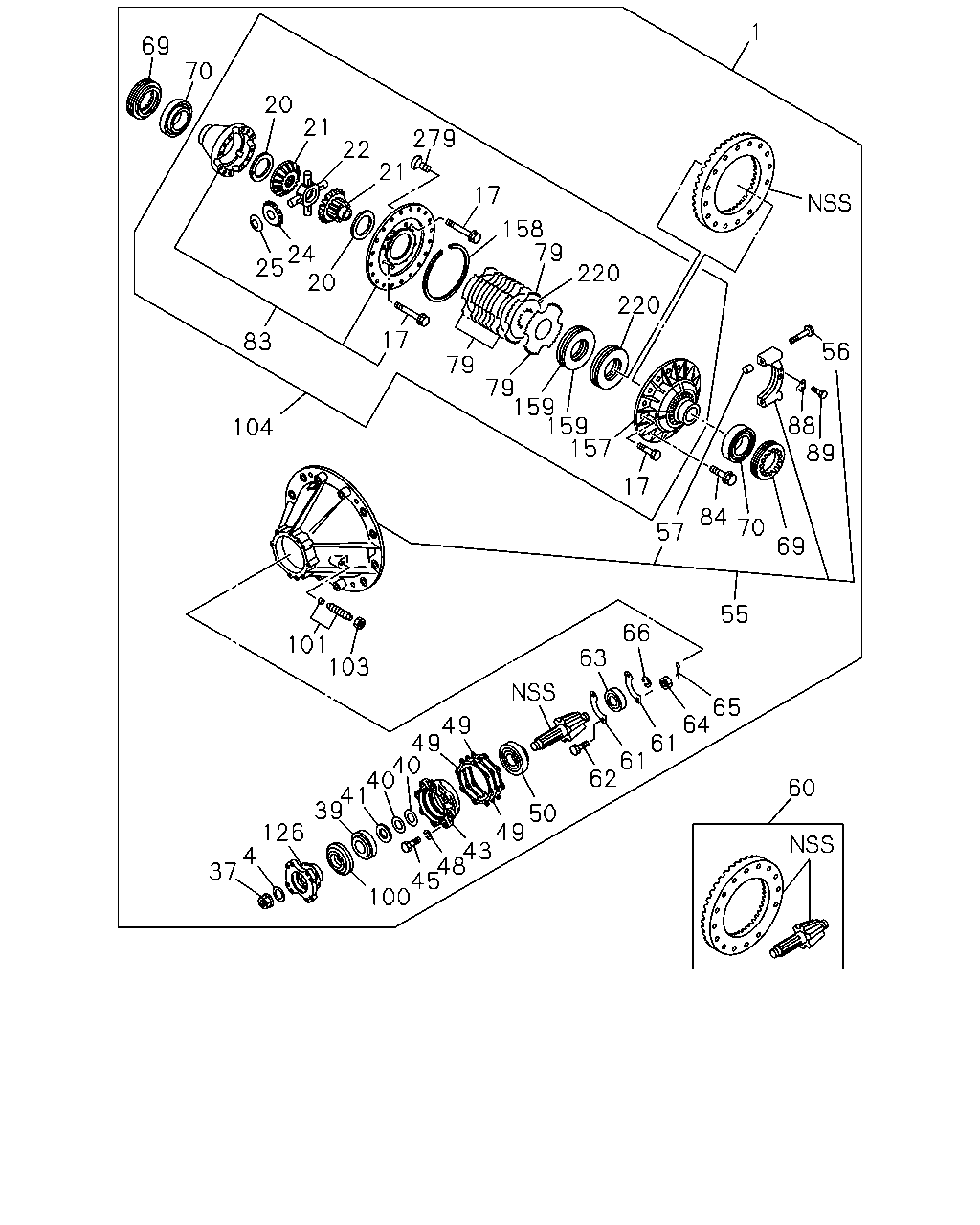

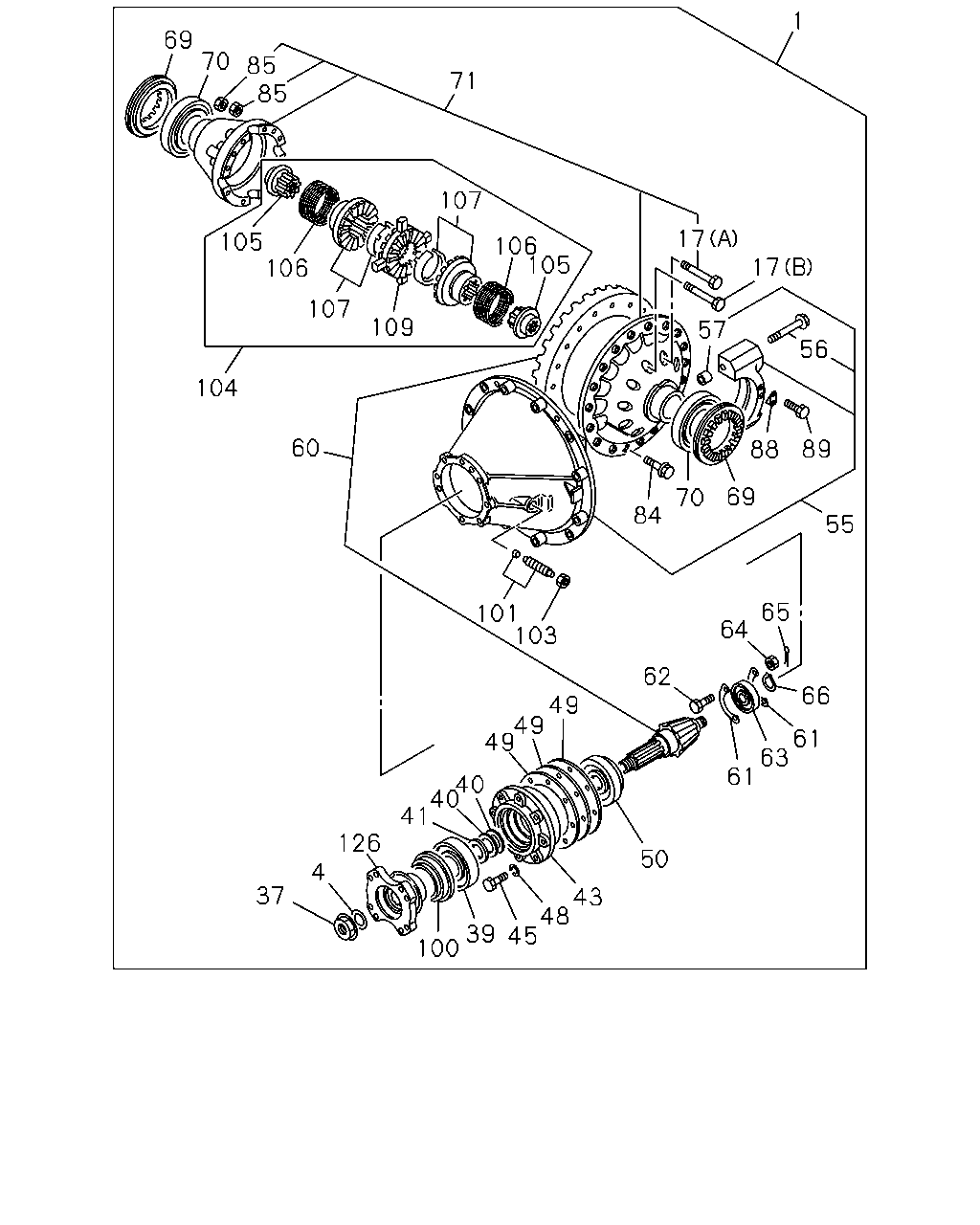

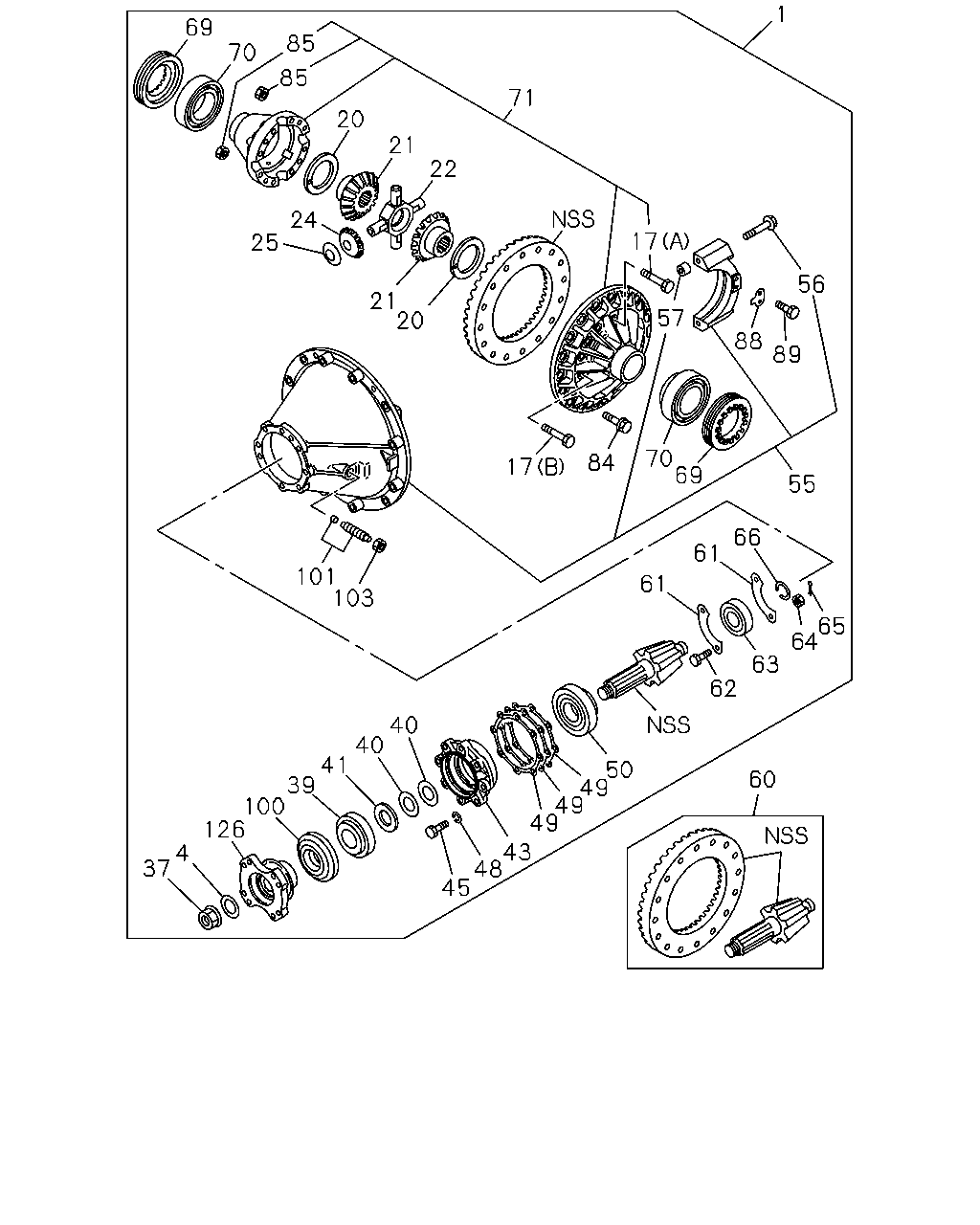

4-25 — REAR FINAL DRIVE (#7706) — 474 parça

1 69 85 70 85 71 20 21 22 24 17 25 56 21 20 57 88 89 70 69 84 17 55 66 61 101 103 61 65 64 63 62 40 40 41 39 100 126 50 49 49 49 60 43 48 45 4 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER<RE2> LIMITED SLIP DIFF VAR1(G85) 39/8	1-41002-197-0	01	1	9902-	●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER<RE2> EXC. LIMITED SLIP DIFF VAR1(G85) 39/8	1-41002-186-0	01	1	9902-	●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR 2(G86) 39/8	1-41002-158-0	01	1	9902-	●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR1(G85) EXC. BRAKE SYSTEM RETARDER<RE2> 39/8	1-41001-449-0	01	1	9902-	●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR1(G85),BRAKE SYSTEM RETARDER<RE2> 39/8	1-41001-447-0	01	1	9902-	●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR 2(G86) 39/8	1-41001-447-0	01	1	9902-	●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER<RE2> EXC. LIMITED SLIP DIFF VAR1(G85) 38/7	1-41002-184-0	01	1	9905-		●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR 2(G86) 38/7	1-41002-340-0	01	1	9902-		●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR1(G85) BRAKE SYSTEM RETARDER<RE2> 38/7	1-41002-195-0	01	1	9905-		●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR1(G85) EXC. BRAKE SYSTEM RETARDER<RE2> 38/7	1-41001-590-0	01	1	9902-		●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR1(G85),BRAKE SYSTEM RETARDER<RE2> 38/7	1-41001-489-0	01	1	9902-		●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR 2(G86) 38/7	1-41001-489-0	01	1	9902-		●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR 2(G86) 37/6	1-41001-847-0	01	1	9902-			●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR1(G85) 37/6	1-41002-341-0	01	1	9902-			●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR1(G85) 37/6	1-41001-953-0	01	1	9902-			●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR 2(G86) 37/6	1-41001-953-0	01	1	9902-			●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER<RE2> EXC. LIMITED SLIP DIFF VAR1(G85) 41/8	1-41002-185-0	01	1	9902-				●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR 2(G86) 41/8	1-41001-819-0	01	1	9902-				●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR1(G85) BRAKE SYSTEM RETARDER<RE2> 41/8	1-41002-196-0	01	1	9902-				●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR1(G85) EXC. BRAKE SYSTEM RETARDER<RE2> 41/8	1-41001-475-0	01	1	9902-				●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR1(G85),BRAKE SYSTEM RETARDER<RE2> 41/8	1-41001-474-0	01	1	9902-				●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR 2(G86) 41/8	1-41001-474-0	01	1	9902-				●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER<RE2> EXC. LIMITED SLIP DIFF VAR1(G85) 41/9	1-41002-187-0	01	1	9902-					●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR 2(G86) 41/9	1-41002-339-0	01	1	9902-					●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR1(G85) BRAKE SYSTEM RETARDER<RE2> 41/9	1-41002-198-0	01	1	9902-					●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR1(G85) EXC. BRAKE SYSTEM RETARDER<RE2> 41/9	1-41001-574-0	01	1	9902-					●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR1(G85),BRAKE SYSTEM RETARDER<RE2> 41/9	1-41001-448-0	01	1	9902-					●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR 2(G86) 41/9	1-41001-448-0	01	1	9902-					●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR 2(G86) 41/7	1-41001-820-0	01	1	9902-						●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR1(G85) EXC. BRAKE SYSTEM RETARDER<RE2> 41/7	1-41001-589-0	01	1	9902-						●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR1(G85),BRAKE SYSTEM RETARDER<RE2> 41/7	1-41001-588-0	01	1	9902-						●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR 2(G86) 41/7	1-41001-588-0	01	1	9902-						●
1	DRIVE ASM; FINAL,RR SHORT CHASSIS&RHD(EXR5MC) INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. BRAKE SYSTEM RETARDER<RE2> 41/10	1-41001-672-0	01	1	9902-9904							●
1	DRIVE ASM; FINAL,RR SHORT CHASSIS&LHD(EXR6MC) EXC. LIMITED SLIP DIFF VAR1(G85),BRAKE SYSTEM RETARDER<RE2> 41/10	1-41001-672-0	01	1	9902-9904							●
1	DRIVE ASM; FINAL,RR SHORT CHASSIS&LHD(EXR6MC) EXC. LIMITED SLIP DIFF VAR1(G85),BRAKE SYSTEM RETARDER<RE2> 41/10	1-41001-672-0	01	1	9905-0003							●
1	DRIVE ASM; FINAL,RR SHORT CHASSIS&RHD(EXR5MC) INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. BRAKE SYSTEM RETARDER<RE2> 41/10	1-41001-672-0	01	1	0004-							●
1	DRIVE ASM; FINAL,RR SHORT CHASSIS&LHD(EXR6MC) EXC. LIMITED SLIP DIFF VAR1(G85),BRAKE SYSTEM RETARDER<RE2> 41/10	1-41001-672-0	01	1	0004-							●
1	DRIVE ASM; FINAL,RR SHORT CHASSIS&LHD(EXR6MC) BRAKE SYSTEM RETARDER<RE2> EXC. LIMITED SLIP DIFF VAR1(G85) 41/10	1-41002-193-0	01	1	9902-9904							●
1	DRIVE ASM; FINAL,RR SHORT CHASSIS&RHD(EXR5MC) INTERNATIONAL STANDARD ISO 10STUD<B3V> BRAKE SYSTEM RETARDER<RE2> 41/10	1-41002-193-0	01	1	9905-							●
1	DRIVE ASM; FINAL,RR SHORT CHASSIS&LHD(EXR6MC) BRAKE SYSTEM RETARDER<RE2> EXC. LIMITED SLIP DIFF VAR1(G85) 41/10	1-41002-193-0	01	1	9905-							●
1	DRIVE ASM; FINAL,RR SHORT CHASSIS&LHD(EXR6MC) BRAKE SYSTEM RETARDER<RE2> EXC. LIMITED SLIP DIFF VAR1(G85) 39/9	1-41002-192-0	01	1	9902-9906								●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER<RE2> EXC. LIMITED SLIP DIFF VAR1(G85) 39/9	1-41002-192-0	01	1	9907-0003								●
1	DRIVE ASM; FINAL,RR SHORT CHASSIS&RHD(EXR5MC) INTERNATIONAL STANDARD ISO 10STUD<B3V> BRAKE SYSTEM RETARDER<RE2> 39/9	1-41002-192-0	01	1	0004-								●
1	DRIVE ASM; FINAL,RR SHORT CHASSIS&LHD(EXR6MC) BRAKE SYSTEM RETARDER<RE2> EXC. LIMITED SLIP DIFF VAR1(G85) 39/9	1-41002-192-0	01	1	0004-								●
1	DRIVE ASM; FINAL,RR SHORT CHASSIS&LHD(EXR6MC) LIMITED SLIP DIFF VAR 2(G86) 39/9	1-41002-338-0	01	1	9902-								●
1	DRIVE ASM; FINAL,RR SHORT CHASSIS&LHD(EXR6MC) LIMITED SLIP DIFF VAR1(G85) BRAKE SYSTEM RETARDER<RE2> 39/9	1-41002-203-0	01	1	9902-								●
1	DRIVE ASM; FINAL,RR SHORT CHASSIS&LHD(EXR6MC) LIMITED SLIP DIFF VAR1(G85) EXC. BRAKE SYSTEM RETARDER<RE2> 39/9	1-41001-575-0	01	1	9902-								●
1	DRIVE ASM; FINAL,RR SHORT CHASSIS&LHD(EXR6MC) EXC. LIMITED SLIP DIFF VAR1(G85),BRAKE SYSTEM RETARDER<RE2> 39/9	1-41001-371-0	01	1	9902-0003								●
1	DRIVE ASM; FINAL,RR SHORT CHASSIS&LHD(EXR6MC) EXC. LIMITED SLIP DIFF VAR 2(G86) 39/9	1-41001-371-0	01	1	9902-0003								●
1	DRIVE ASM; FINAL,RR SHORT CHASSIS&RHD(EXR5MC) INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. BRAKE SYSTEM RETARDER<RE2> 39/9	1-41001-371-0	01	1	0004-								●
1	DRIVE ASM; FINAL,RR SHORT CHASSIS&LHD(EXR6MC) EXC. LIMITED SLIP DIFF VAR1(G85),BRAKE SYSTEM RETARDER<RE2> 39/9	1-41001-371-0	01	1	0004-								●
4	GASKET; FLANGE,FINAL PINION ID=57	1-09623-386-0	01	1	9902-	●	●	●	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING LIMITED SLIP DIFF VAR1(G85) M16X100 FLANGE	1-09070-047-0	12	1	9902-	●	●	●	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF VAR1(G85) (A) M16X141 FLANGE	1-09070-013-0	08	1	9902-	●	●	●	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF VAR1(G85) (B) M16X105 FLANGE	1-09070-014-0	04	1	9902-	●	●	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF VAR1(G85) T=2.8	1-41562-206-0	AR	1	9902-	●	●	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF VAR1(G85) T=2.9	1-41562-207-0	AR	1	9902-	●	●	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF VAR1(G85) T=3.0	1-41562-208-0	AR	1	9902-	●	●	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF VAR1(G85) T=3.1	1-41562-209-0	AR	1	9902-	●	●	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF VAR1(G85) T=3.2	1-41562-210-0	AR	1	9902-	●	●	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF VAR1(G85) T=3.3	1-41562-211-0	AR	1	9902-	●	●	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF VAR1(G85) T=3.4	1-41562-212-0	AR	1	9902-	●	●	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR1(G85),LIMITED SLIP DIFF VAR 2(G86) T=2.8	1-41562-270-1	AR	1	9902-	●	●	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR1(G85),LIMITED SLIP DIFF VAR 2(G86) T=2.9	1-41562-271-1	AR	1	9902-	●	●	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR1(G85),LIMITED SLIP DIFF VAR 2(G86) T=3.0	1-41562-272-1	AR	1	9902-	●	●	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR1(G85),LIMITED SLIP DIFF VAR 2(G86) T=3.1	1-41562-273-1	AR	1	9902-	●	●	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR1(G85),LIMITED SLIP DIFF VAR 2(G86) T=3.2	1-41562-274-1	AR	1	9902-	●	●	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR1(G85),LIMITED SLIP DIFF VAR 2(G86) T=3.3	1-41562-275-1	AR	1	9902-	●	●	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR1(G85),LIMITED SLIP DIFF VAR 2(G86) T=3.4	1-41562-276-1	AR	1	9902-	●	●	●	●	●	●	●	●
21	GEAR; SIDE,DIFF LIMITED SLIP DIFF VAR1(G85) Z=16	1-41561-112-0	01	1	9902-	●	●	●	●	●	●	●	●
21	GEAR; SIDE,DIFF LIMITED SLIP DIFF VAR1(G85) Z=16	1-41561-114-0	01	1	9902-	●	●	●	●	●	●	●	●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF VAR1(G85),LIMITED SLIP DIFF VAR 2(G86) Z=16	1-41561-114-0	02	1	9902-	●	●	●	●	●	●	●	●
22	SPIDER; DIFF PINION LIMITED SLIP DIFF VAR1(G85)	1-41521-053-0	01	1	9902-	●	●	●	●	●	●	●	●
22	SPIDER; DIFF PINION EXC. LIMITED SLIP DIFF VAR1(G85),LIMITED SLIP DIFF VAR 2(G86) OD=35	1-41521-052-0	01	1	9902-	●	●	●	●	●	●	●	●
24	GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF VAR1(G85),LIMITED SLIP DIFF VAR 2(G86) Z=10	1-41551-034-0	04	1	9902-	●	●	●	●	●	●	●	●
24	GEAR; PINION,DIFF LIMITED SLIP DIFF VAR1(G85) Z=10	1-41551-034-0	04	1	9902-	●	●	●	●	●	●
24	GEAR; PINION,DIFF SHORT CHASSIS&LHD(EXR6MC) LIMITED SLIP DIFF VAR1(G85) Z=10	1-41551-034-0	04	1	9902-							●	●
25	WASHER; THRUST,PINION LIMITED SLIP DIFF VAR1(G85) T=1.6	1-41552-003-0	04	1	9902-	●	●	●	●	●	●
25	WASHER; THRUST,PINION SHORT CHASSIS&LHD(EXR6MC) LIMITED SLIP DIFF VAR1(G85) T=1.6	1-41552-003-0	04	1	9902-							●	●
25	WASHER; THRUST,PINION EXC. LIMITED SLIP DIFF VAR1(G85),LIMITED SLIP DIFF VAR 2(G86) T=1.6	1-41552-003-0	04	1	9902-	●	●	●	●	●	●	●	●
37	NUT; DRIVING PINION M46 FLANGE	1-09449-071-0	01	1	9902-	●	●	●	●	●	●	●	●
39	BEARING; FINAL PINION NSK	1-09812-075-0	01	1	9902-	●	●	●	●	●	●	●	●
39	BEARING; FINAL PINION KOYO	1-09812-076-0	01	1	9902-	●	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.25	1-41229-245-0	AR	1	9902-	●	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.26	1-41229-246-0	AR	1	9902-	●	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.27	1-41229-247-0	AR	1	9902-	●	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.28	1-41229-248-0	AR	1	9902-	●	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.29	1-41229-249-0	AR	1	9902-	●	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.30	1-41229-250-0	AR	1	9902-	●	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.31	1-41229-251-0	AR	1	9902-	●	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.32	1-41229-252-0	AR	1	9902-	●	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.33	1-41229-253-0	AR	1	9902-	●	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.34	1-41229-254-0	AR	1	9902-	●	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.35	1-41229-255-0	AR	1	9902-	●	●	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.60	1-41229-237-0	AR	1	9902-	●	●	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.80	1-41229-238-0	AR	1	9902-	●	●	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.00	1-41229-239-0	AR	1	9902-	●	●	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.20	1-41229-240-0	AR	1	9902-	●	●	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.40	1-41229-241-0	AR	1	9902-	●	●	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.60	1-41229-242-0	AR	1	9902-	●	●	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.80	1-41229-243-0	AR	1	9902-	●	●	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=9.00	1-41229-244-0	AR	1	9902-	●	●	●	●	●	●	●	●
43	CAGE; FINAL PINION BRAKE SYSTEM RETARDER<RE2>	1-41151-087-0	01	1	9902-	●	●	●	●	●	●	●	●
43	CAGE; FINAL PINION EXC. BRAKE SYSTEM RETARDER<RE2> T=82	1-41151-057-0	01	1	9902-	●	●	●	●	●	●	●	●
45	BOLT; FINAL PINION CAGE M16X55	0-16806-655-0	08	1	9902-	●	●	●	●	●	●	●	●
48	WASHER; LK,FINAL PINION ID=16.2	9-09150-516-0	08	1	9902-	●	●	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-077-0	AR	1	9902-	●	●	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=1.000	1-41154-078-0	AR	1	9902-	●	●	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-079-0	AR	1	9902-	●	●	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-080-0	AR	1	9902-	●	●	●	●	●	●	●	●
50	BEARING; FINAL PINION NSK	1-09812-073-1	01	1	9902-	●	●	●	●	●	●	●	●
50	BEARING; FINAL PINION KOYO	1-09812-074-1	01	1	9902-	●	●	●	●	●	●	●	●
55	CARRIER; DIFF	1-41110-102-0	01	1	9902-	●	●	●	●	●	●	●	●
56	BOLT; BRG CAP M20X125 FLANGE	1-09070-015-0	04	1	9902-	●	●	●	●	●	●	●	●
57	DOWEL; BRG CAP	9-41119-033-1	04	1	9902-	●	●	●	●	●	●	●	●
60	GEAR SET; FINAL DRIVE,RR BRAKE SYSTEM RETARDER<RE2> 39/8	1-41210-487-1	01	1	9902-	●
60	GEAR SET; FINAL DRIVE,RR EXC. BRAKE SYSTEM RETARDER<RE2> 39/8	1-41210-618-0	01	1	9902-	●
60	GEAR SET; FINAL DRIVE,RR BRAKE SYSTEM RETARDER<RE2> 38/7	1-41210-456-1	01	1	9905-		●
60	GEAR SET; FINAL DRIVE,RR EXC. BRAKE SYSTEM RETARDER<RE2> 38/7	1-41210-616-0	01	1	9902-		●
60	GEAR SET; FINAL DRIVE,RR 37/6	1-41210-614-0	01	1	9902-			●
60	GEAR SET; FINAL DRIVE,RR EXC. BRAKE SYSTEM RETARDER<RE2> 41/8	1-41210-617-0	01	1	9902-				●
60	GEAR SET; FINAL DRIVE,RR BRAKE SYSTEM RETARDER<RE2> 41/8	1-41210-486-1	01	1	9902-				●
60	GEAR SET; FINAL DRIVE,RR EXC. BRAKE SYSTEM RETARDER<RE2> 41/9	1-41210-619-0	01	1	9902-					●
60	GEAR SET; FINAL DRIVE,RR BRAKE SYSTEM RETARDER<RE2> 41/9	1-41210-488-1	01	1	9902-					●
60	GEAR SET; FINAL DRIVE,RR SHORT CHASSIS&RHD(EXR5MC) INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. BRAKE SYSTEM RETARDER<RE2> 41/10	1-41210-621-0	01	1	9902-9904							●
60	GEAR SET; FINAL DRIVE,RR SHORT CHASSIS&LHD(EXR6MC) EXC. LIMITED SLIP DIFF VAR1(G85),BRAKE SYSTEM RETARDER<RE2> 41/10	1-41210-621-0	01	1	9902-9904							●
60	GEAR SET; FINAL DRIVE,RR SHORT CHASSIS&LHD(EXR6MC) EXC. LIMITED SLIP DIFF VAR1(G85),BRAKE SYSTEM RETARDER<RE2> 41/10	1-41210-621-0	01	1	9905-0003							●
60	GEAR SET; FINAL DRIVE,RR SHORT CHASSIS&RHD(EXR5MC) INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. BRAKE SYSTEM RETARDER<RE2> 41/10	1-41210-621-0	01	1	0004-							●
60	GEAR SET; FINAL DRIVE,RR SHORT CHASSIS&LHD(EXR6MC) EXC. LIMITED SLIP DIFF VAR1(G85),BRAKE SYSTEM RETARDER<RE2> 41/10	1-41210-621-0	01	1	0004-							●
60	GEAR SET; FINAL DRIVE,RR 41/7	1-41210-615-0	01	1	9902-						●
60	GEAR SET; FINAL DRIVE,RR SHORT CHASSIS&LHD(EXR6MC) EXC. BRAKE SYSTEM RETARDER<RE2> 39/9	1-41210-620-0	01	1	9902-0003								●
60	GEAR SET; FINAL DRIVE,RR EXC. BRAKE SYSTEM RETARDER<RE2> 39/9	1-41210-620-0	01	1	0004-								●
60	GEAR SET; FINAL DRIVE,RR BRAKE SYSTEM RETARDER<RE2> EXC. LIMITED SLIP DIFF VAR1(G85) 41/10	1-41210-448-0	01	1	9902-9904							●
60	GEAR SET; FINAL DRIVE,RR SHORT CHASSIS&RHD(EXR5MC) INTERNATIONAL STANDARD ISO 10STUD<B3V> BRAKE SYSTEM RETARDER<RE2> 41/10	1-41210-448-0	01	1	9905-							●
60	GEAR SET; FINAL DRIVE,RR SHORT CHASSIS&LHD(EXR6MC) BRAKE SYSTEM RETARDER<RE2> EXC. LIMITED SLIP DIFF VAR1(G85) 41/10	1-41210-448-0	01	1	9905-							●
60	GEAR SET; FINAL DRIVE,RR SHORT CHASSIS&LHD(EXR6MC) BRAKE SYSTEM RETARDER<RE2> 39/9	1-41210-489-1	01	1	9902-0003								●
60	GEAR SET; FINAL DRIVE,RR BRAKE SYSTEM RETARDER<RE2> 39/9	1-41210-489-1	01	1	0004-								●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-008-0	02	1	9902-	●	●	●	●	●	●	●	●
62	BOLT; RET M8X42 W/PIN HOLE	1-09042-037-0	02	1	9902-	●	●	●	●	●	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-152-0	01	1	9902-	●	●	●	●	●	●	●	●
63	BEARING; PINION PILOT KOYO	1-09810-153-0	01	1	9902-	●	●	●	●	●	●	●	●
64	NUT; RET M8 SLOTTED	9-09117-508-0	02	1	9902-	●	●	●	●	●	●	●	●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	9902-	●	●	●	●	●	●	●	●
66	RING; SNAP,PILOT BRG OD=45.9	1-09588-061-0	01	1	9902-	●	●	●	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-004-0	01	1	9902-	●	●	●	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-003-2	01	1	9902-	●	●	●	●	●	●	●	●
70	BEARING; DIFF CAGE NSK ID=101 OD=168 T=41.3	9-00093-119-0	01	1	9902-	●	●	●	●	●	●	●	●
70	BEARING; DIFF CAGE NSK ID=100 OD=157 T=36.5	9-00093-120-0	01	1	9902-	●	●	●	●	●	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF VAR1(G85)	1-41510-255-0	01	1	9902-9912	●	●	●	●		●
71	CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF VAR1(G85)	1-41510-277-0	01	1	0001-	●	●	●	●		●
71	CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF VAR1(G85)	1-41510-257-0	01	1	9902-9912					●		●	●
71	CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF VAR1(G85)	1-41510-279-0	01	1	0001-					●		●	●
84	BOLT; FINAL DRIVE GEAR LIMITED SLIP DIFF VAR1(G85) M18X42	1-09009-092-0	18	1	9902-	●	●	●	●	●	●	●	●
84	BOLT; FINAL DRIVE GEAR EXC. LIMITED SLIP DIFF VAR1(G85) M18X38 FLANGE	1-09009-049-1	18	1	9902-	●	●	●	●	●	●	●	●
85	NUT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF VAR1(G85) M16	9-99110-516-0	12	1	9902-	●	●	●	●	●	●	●	●
88	PLATE; LK,ADJ NUT	9-41124-013-0	02	1	9902-	●	●	●	●	●	●	●	●
89	BOLT; LK PLATE M10X20 FLANGE	0-28781-020-0	04	1	9902-	●	●	●	●	●	●	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-322-0	01	1	9902-	●	●	●	●	●	●	●	●
101	BOLT; ADJ,DRIVEN GEAR THRUST M24X104	9-41127-006-0	01	1	9902-	●	●	●	●	●	●	●	●
103	NUT; ADJ BOLT M28	9-09842-003-0	01	1	9902-	●	●	●	●	●	●	●	●
126	COUPLING; DRIVING PINION EXC. BRAKE SYSTEM RETARDER<RE2>	1-37245-267-2	01	1	9902-	●	●	●	●	●	●	●	●

1 69 70 20 21 279 22 21 17 158 79 24 25 20 220 220 17 83 56 79 79 159 159 157 88 89 104 17 84 70 57 69 55 66 101 103 63 65 64 61 61 62 49 49 40 40 41 39 60 50 49 43 48 45 100 126 4 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER<RE2> LIMITED SLIP DIFF VAR1(G85) 39/8	1-41002-197-0	01	1	9902-	●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER<RE2> EXC. LIMITED SLIP DIFF VAR1(G85) 39/8	1-41002-186-0	01	1	9902-	●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR 2(G86) 39/8	1-41002-158-0	01	1	9902-	●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR1(G85) EXC. BRAKE SYSTEM RETARDER<RE2> 39/8	1-41001-449-0	01	1	9902-	●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR1(G85),BRAKE SYSTEM RETARDER<RE2> 39/8	1-41001-447-0	01	1	9902-	●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR 2(G86) 39/8	1-41001-447-0	01	1	9902-	●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER<RE2> EXC. LIMITED SLIP DIFF VAR1(G85) 38/7	1-41002-184-0	01	1	9905-		●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR 2(G86) 38/7	1-41002-340-0	01	1	9902-		●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR1(G85) BRAKE SYSTEM RETARDER<RE2> 38/7	1-41002-195-0	01	1	9905-		●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR1(G85) EXC. BRAKE SYSTEM RETARDER<RE2> 38/7	1-41001-590-0	01	1	9902-		●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR1(G85),BRAKE SYSTEM RETARDER<RE2> 38/7	1-41001-489-0	01	1	9902-		●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR 2(G86) 38/7	1-41001-489-0	01	1	9902-		●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR 2(G86) 37/6	1-41001-847-0	01	1	9902-			●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR1(G85) 37/6	1-41002-341-0	01	1	9902-			●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR1(G85) 37/6	1-41001-953-0	01	1	9902-			●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR 2(G86) 37/6	1-41001-953-0	01	1	9902-			●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER<RE2> EXC. LIMITED SLIP DIFF VAR1(G85) 41/8	1-41002-185-0	01	1	9902-				●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR 2(G86) 41/8	1-41001-819-0	01	1	9902-				●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR1(G85) BRAKE SYSTEM RETARDER<RE2> 41/8	1-41002-196-0	01	1	9902-				●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR1(G85) EXC. BRAKE SYSTEM RETARDER<RE2> 41/8	1-41001-475-0	01	1	9902-				●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR1(G85),BRAKE SYSTEM RETARDER<RE2> 41/8	1-41001-474-0	01	1	9902-				●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR 2(G86) 41/8	1-41001-474-0	01	1	9902-				●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER<RE2> EXC. LIMITED SLIP DIFF VAR1(G85) 41/9	1-41002-187-0	01	1	9902-					●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR 2(G86) 41/9	1-41002-339-0	01	1	9902-					●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR1(G85) BRAKE SYSTEM RETARDER<RE2> 41/9	1-41002-198-0	01	1	9902-					●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR1(G85) EXC. BRAKE SYSTEM RETARDER<RE2> 41/9	1-41001-574-0	01	1	9902-					●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR1(G85),BRAKE SYSTEM RETARDER<RE2> 41/9	1-41001-448-0	01	1	9902-					●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR 2(G86) 41/9	1-41001-448-0	01	1	9902-					●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR 2(G86) 41/7	1-41001-820-0	01	1	9902-						●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR1(G85) EXC. BRAKE SYSTEM RETARDER<RE2> 41/7	1-41001-589-0	01	1	9902-						●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR1(G85),BRAKE SYSTEM RETARDER<RE2> 41/7	1-41001-588-0	01	1	9902-						●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR 2(G86) 41/7	1-41001-588-0	01	1	9902-						●
1	DRIVE ASM; FINAL,RR SHORT CHASSIS&RHD(EXR5MC) INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. BRAKE SYSTEM RETARDER<RE2> 41/10	1-41001-672-0	01	1	9902-9904							●
1	DRIVE ASM; FINAL,RR SHORT CHASSIS&LHD(EXR6MC) EXC. LIMITED SLIP DIFF VAR1(G85),BRAKE SYSTEM RETARDER<RE2> 41/10	1-41001-672-0	01	1	9902-9904							●
1	DRIVE ASM; FINAL,RR SHORT CHASSIS&LHD(EXR6MC) EXC. LIMITED SLIP DIFF VAR1(G85),BRAKE SYSTEM RETARDER<RE2> 41/10	1-41001-672-0	01	1	9905-0003							●
1	DRIVE ASM; FINAL,RR SHORT CHASSIS&RHD(EXR5MC) INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. BRAKE SYSTEM RETARDER<RE2> 41/10	1-41001-672-0	01	1	0004-							●
1	DRIVE ASM; FINAL,RR SHORT CHASSIS&LHD(EXR6MC) EXC. LIMITED SLIP DIFF VAR1(G85),BRAKE SYSTEM RETARDER<RE2> 41/10	1-41001-672-0	01	1	0004-							●
1	DRIVE ASM; FINAL,RR SHORT CHASSIS&LHD(EXR6MC) BRAKE SYSTEM RETARDER<RE2> EXC. LIMITED SLIP DIFF VAR1(G85) 41/10	1-41002-193-0	01	1	9902-9904							●
1	DRIVE ASM; FINAL,RR SHORT CHASSIS&RHD(EXR5MC) INTERNATIONAL STANDARD ISO 10STUD<B3V> BRAKE SYSTEM RETARDER<RE2> 41/10	1-41002-193-0	01	1	9905-							●
1	DRIVE ASM; FINAL,RR SHORT CHASSIS&LHD(EXR6MC) BRAKE SYSTEM RETARDER<RE2> EXC. LIMITED SLIP DIFF VAR1(G85) 41/10	1-41002-193-0	01	1	9905-							●
1	DRIVE ASM; FINAL,RR SHORT CHASSIS&LHD(EXR6MC) BRAKE SYSTEM RETARDER<RE2> EXC. LIMITED SLIP DIFF VAR1(G85) 39/9	1-41002-192-0	01	1	9902-9906								●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER<RE2> EXC. LIMITED SLIP DIFF VAR1(G85) 39/9	1-41002-192-0	01	1	9907-0003								●
1	DRIVE ASM; FINAL,RR SHORT CHASSIS&RHD(EXR5MC) INTERNATIONAL STANDARD ISO 10STUD<B3V> BRAKE SYSTEM RETARDER<RE2> 39/9	1-41002-192-0	01	1	0004-								●
1	DRIVE ASM; FINAL,RR SHORT CHASSIS&LHD(EXR6MC) BRAKE SYSTEM RETARDER<RE2> EXC. LIMITED SLIP DIFF VAR1(G85) 39/9	1-41002-192-0	01	1	0004-								●
1	DRIVE ASM; FINAL,RR SHORT CHASSIS&LHD(EXR6MC) LIMITED SLIP DIFF VAR 2(G86) 39/9	1-41002-338-0	01	1	9902-								●
1	DRIVE ASM; FINAL,RR SHORT CHASSIS&LHD(EXR6MC) LIMITED SLIP DIFF VAR1(G85) BRAKE SYSTEM RETARDER<RE2> 39/9	1-41002-203-0	01	1	9902-								●
1	DRIVE ASM; FINAL,RR SHORT CHASSIS&LHD(EXR6MC) LIMITED SLIP DIFF VAR1(G85) EXC. BRAKE SYSTEM RETARDER<RE2> 39/9	1-41001-575-0	01	1	9902-								●
1	DRIVE ASM; FINAL,RR SHORT CHASSIS&LHD(EXR6MC) EXC. LIMITED SLIP DIFF VAR1(G85),BRAKE SYSTEM RETARDER<RE2> 39/9	1-41001-371-0	01	1	9902-0003								●
1	DRIVE ASM; FINAL,RR SHORT CHASSIS&LHD(EXR6MC) EXC. LIMITED SLIP DIFF VAR 2(G86) 39/9	1-41001-371-0	01	1	9902-0003								●
1	DRIVE ASM; FINAL,RR SHORT CHASSIS&RHD(EXR5MC) INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. BRAKE SYSTEM RETARDER<RE2> 39/9	1-41001-371-0	01	1	0004-								●
1	DRIVE ASM; FINAL,RR SHORT CHASSIS&LHD(EXR6MC) EXC. LIMITED SLIP DIFF VAR1(G85),BRAKE SYSTEM RETARDER<RE2> 39/9	1-41001-371-0	01	1	0004-								●
4	GASKET; FLANGE,FINAL PINION ID=57	1-09623-386-0	01	1	9902-	●	●	●	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING LIMITED SLIP DIFF VAR1(G85) M16X100 FLANGE	1-09070-047-0	12	1	9902-	●	●	●	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF VAR1(G85) (A) M16X141 FLANGE	1-09070-013-0	08	1	9902-	●	●	●	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF VAR1(G85) (B) M16X105 FLANGE	1-09070-014-0	04	1	9902-	●	●	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF VAR1(G85) T=2.8	1-41562-206-0	AR	1	9902-	●	●	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF VAR1(G85) T=2.9	1-41562-207-0	AR	1	9902-	●	●	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF VAR1(G85) T=3.0	1-41562-208-0	AR	1	9902-	●	●	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF VAR1(G85) T=3.1	1-41562-209-0	AR	1	9902-	●	●	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF VAR1(G85) T=3.2	1-41562-210-0	AR	1	9902-	●	●	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF VAR1(G85) T=3.3	1-41562-211-0	AR	1	9902-	●	●	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF VAR1(G85) T=3.4	1-41562-212-0	AR	1	9902-	●	●	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR1(G85),LIMITED SLIP DIFF VAR 2(G86) T=2.8	1-41562-270-1	AR	1	9902-	●	●	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR1(G85),LIMITED SLIP DIFF VAR 2(G86) T=2.9	1-41562-271-1	AR	1	9902-	●	●	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR1(G85),LIMITED SLIP DIFF VAR 2(G86) T=3.0	1-41562-272-1	AR	1	9902-	●	●	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR1(G85),LIMITED SLIP DIFF VAR 2(G86) T=3.1	1-41562-273-1	AR	1	9902-	●	●	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR1(G85),LIMITED SLIP DIFF VAR 2(G86) T=3.2	1-41562-274-1	AR	1	9902-	●	●	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR1(G85),LIMITED SLIP DIFF VAR 2(G86) T=3.3	1-41562-275-1	AR	1	9902-	●	●	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR1(G85),LIMITED SLIP DIFF VAR 2(G86) T=3.4	1-41562-276-1	AR	1	9902-	●	●	●	●	●	●	●	●
21	GEAR; SIDE,DIFF LIMITED SLIP DIFF VAR1(G85) Z=16	1-41561-112-0	01	1	9902-	●	●	●	●	●	●	●	●
21	GEAR; SIDE,DIFF LIMITED SLIP DIFF VAR1(G85) Z=16	1-41561-114-0	01	1	9902-	●	●	●	●	●	●	●	●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF VAR1(G85),LIMITED SLIP DIFF VAR 2(G86) Z=16	1-41561-114-0	02	1	9902-	●	●	●	●	●	●	●	●
22	SPIDER; DIFF PINION LIMITED SLIP DIFF VAR1(G85)	1-41521-053-0	01	1	9902-	●	●	●	●	●	●	●	●
22	SPIDER; DIFF PINION EXC. LIMITED SLIP DIFF VAR1(G85),LIMITED SLIP DIFF VAR 2(G86) OD=35	1-41521-052-0	01	1	9902-	●	●	●	●	●	●	●	●
24	GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF VAR1(G85),LIMITED SLIP DIFF VAR 2(G86) Z=10	1-41551-034-0	04	1	9902-	●	●	●	●	●	●	●	●
24	GEAR; PINION,DIFF LIMITED SLIP DIFF VAR1(G85) Z=10	1-41551-034-0	04	1	9902-	●	●	●	●	●	●
24	GEAR; PINION,DIFF SHORT CHASSIS&LHD(EXR6MC) LIMITED SLIP DIFF VAR1(G85) Z=10	1-41551-034-0	04	1	9902-							●	●
25	WASHER; THRUST,PINION LIMITED SLIP DIFF VAR1(G85) T=1.6	1-41552-003-0	04	1	9902-	●	●	●	●	●	●
25	WASHER; THRUST,PINION SHORT CHASSIS&LHD(EXR6MC) LIMITED SLIP DIFF VAR1(G85) T=1.6	1-41552-003-0	04	1	9902-							●	●
25	WASHER; THRUST,PINION EXC. LIMITED SLIP DIFF VAR1(G85),LIMITED SLIP DIFF VAR 2(G86) T=1.6	1-41552-003-0	04	1	9902-	●	●	●	●	●	●	●	●
37	NUT; DRIVING PINION M46 FLANGE	1-09449-071-0	01	1	9902-	●	●	●	●	●	●	●	●
39	BEARING; FINAL PINION NSK	1-09812-075-0	01	1	9902-	●	●	●	●	●	●	●	●
39	BEARING; FINAL PINION KOYO	1-09812-076-0	01	1	9902-	●	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.25	1-41229-245-0	AR	1	9902-	●	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.26	1-41229-246-0	AR	1	9902-	●	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.27	1-41229-247-0	AR	1	9902-	●	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.28	1-41229-248-0	AR	1	9902-	●	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.29	1-41229-249-0	AR	1	9902-	●	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.30	1-41229-250-0	AR	1	9902-	●	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.31	1-41229-251-0	AR	1	9902-	●	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.32	1-41229-252-0	AR	1	9902-	●	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.33	1-41229-253-0	AR	1	9902-	●	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.34	1-41229-254-0	AR	1	9902-	●	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.35	1-41229-255-0	AR	1	9902-	●	●	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.60	1-41229-237-0	AR	1	9902-	●	●	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.80	1-41229-238-0	AR	1	9902-	●	●	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.00	1-41229-239-0	AR	1	9902-	●	●	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.20	1-41229-240-0	AR	1	9902-	●	●	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.40	1-41229-241-0	AR	1	9902-	●	●	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.60	1-41229-242-0	AR	1	9902-	●	●	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.80	1-41229-243-0	AR	1	9902-	●	●	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=9.00	1-41229-244-0	AR	1	9902-	●	●	●	●	●	●	●	●
43	CAGE; FINAL PINION BRAKE SYSTEM RETARDER<RE2>	1-41151-087-0	01	1	9902-	●	●	●	●	●	●	●	●
43	CAGE; FINAL PINION EXC. BRAKE SYSTEM RETARDER<RE2> T=82	1-41151-057-0	01	1	9902-	●	●	●	●	●	●	●	●
45	BOLT; FINAL PINION CAGE M16X55	0-16806-655-0	08	1	9902-	●	●	●	●	●	●	●	●
48	WASHER; LK,FINAL PINION ID=16.2	9-09150-516-0	08	1	9902-	●	●	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-077-0	AR	1	9902-	●	●	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=1.000	1-41154-078-0	AR	1	9902-	●	●	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-079-0	AR	1	9902-	●	●	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-080-0	AR	1	9902-	●	●	●	●	●	●	●	●
50	BEARING; FINAL PINION NSK	1-09812-073-1	01	1	9902-	●	●	●	●	●	●	●	●
50	BEARING; FINAL PINION KOYO	1-09812-074-1	01	1	9902-	●	●	●	●	●	●	●	●
55	CARRIER; DIFF	1-41110-102-0	01	1	9902-	●	●	●	●	●	●	●	●
56	BOLT; BRG CAP M20X125 FLANGE	1-09070-015-0	04	1	9902-	●	●	●	●	●	●	●	●
57	DOWEL; BRG CAP	9-41119-033-1	04	1	9902-	●	●	●	●	●	●	●	●
60	GEAR SET; FINAL DRIVE,RR BRAKE SYSTEM RETARDER<RE2> 39/8	1-41210-487-1	01	1	9902-	●
60	GEAR SET; FINAL DRIVE,RR EXC. BRAKE SYSTEM RETARDER<RE2> 39/8	1-41210-618-0	01	1	9902-	●
60	GEAR SET; FINAL DRIVE,RR BRAKE SYSTEM RETARDER<RE2> 38/7	1-41210-456-1	01	1	9905-		●
60	GEAR SET; FINAL DRIVE,RR EXC. BRAKE SYSTEM RETARDER<RE2> 38/7	1-41210-616-0	01	1	9902-		●
60	GEAR SET; FINAL DRIVE,RR 37/6	1-41210-614-0	01	1	9902-			●
60	GEAR SET; FINAL DRIVE,RR EXC. BRAKE SYSTEM RETARDER<RE2> 41/8	1-41210-617-0	01	1	9902-				●
60	GEAR SET; FINAL DRIVE,RR BRAKE SYSTEM RETARDER<RE2> 41/8	1-41210-486-1	01	1	9902-				●
60	GEAR SET; FINAL DRIVE,RR EXC. BRAKE SYSTEM RETARDER<RE2> 41/9	1-41210-619-0	01	1	9902-					●
60	GEAR SET; FINAL DRIVE,RR BRAKE SYSTEM RETARDER<RE2> 41/9	1-41210-488-1	01	1	9902-					●
60	GEAR SET; FINAL DRIVE,RR SHORT CHASSIS&RHD(EXR5MC) INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. BRAKE SYSTEM RETARDER<RE2> 41/10	1-41210-621-0	01	1	9902-9904							●
60	GEAR SET; FINAL DRIVE,RR SHORT CHASSIS&LHD(EXR6MC) EXC. LIMITED SLIP DIFF VAR1(G85),BRAKE SYSTEM RETARDER<RE2> 41/10	1-41210-621-0	01	1	9902-9904							●
60	GEAR SET; FINAL DRIVE,RR SHORT CHASSIS&LHD(EXR6MC) EXC. LIMITED SLIP DIFF VAR1(G85),BRAKE SYSTEM RETARDER<RE2> 41/10	1-41210-621-0	01	1	9905-0003							●
60	GEAR SET; FINAL DRIVE,RR SHORT CHASSIS&RHD(EXR5MC) INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. BRAKE SYSTEM RETARDER<RE2> 41/10	1-41210-621-0	01	1	0004-							●
60	GEAR SET; FINAL DRIVE,RR SHORT CHASSIS&LHD(EXR6MC) EXC. LIMITED SLIP DIFF VAR1(G85),BRAKE SYSTEM RETARDER<RE2> 41/10	1-41210-621-0	01	1	0004-							●
60	GEAR SET; FINAL DRIVE,RR 41/7	1-41210-615-0	01	1	9902-						●
60	GEAR SET; FINAL DRIVE,RR SHORT CHASSIS&LHD(EXR6MC) EXC. BRAKE SYSTEM RETARDER<RE2> 39/9	1-41210-620-0	01	1	9902-0003								●
60	GEAR SET; FINAL DRIVE,RR EXC. BRAKE SYSTEM RETARDER<RE2> 39/9	1-41210-620-0	01	1	0004-								●
60	GEAR SET; FINAL DRIVE,RR BRAKE SYSTEM RETARDER<RE2> EXC. LIMITED SLIP DIFF VAR1(G85) 41/10	1-41210-448-0	01	1	9902-9904							●
60	GEAR SET; FINAL DRIVE,RR SHORT CHASSIS&RHD(EXR5MC) INTERNATIONAL STANDARD ISO 10STUD<B3V> BRAKE SYSTEM RETARDER<RE2> 41/10	1-41210-448-0	01	1	9905-							●
60	GEAR SET; FINAL DRIVE,RR SHORT CHASSIS&LHD(EXR6MC) BRAKE SYSTEM RETARDER<RE2> EXC. LIMITED SLIP DIFF VAR1(G85) 41/10	1-41210-448-0	01	1	9905-							●
60	GEAR SET; FINAL DRIVE,RR SHORT CHASSIS&LHD(EXR6MC) BRAKE SYSTEM RETARDER<RE2> 39/9	1-41210-489-1	01	1	9902-0003								●
60	GEAR SET; FINAL DRIVE,RR BRAKE SYSTEM RETARDER<RE2> 39/9	1-41210-489-1	01	1	0004-								●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-008-0	02	1	9902-	●	●	●	●	●	●	●	●
62	BOLT; RET M8X42 W/PIN HOLE	1-09042-037-0	02	1	9902-	●	●	●	●	●	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-152-0	01	1	9902-	●	●	●	●	●	●	●	●
63	BEARING; PINION PILOT KOYO	1-09810-153-0	01	1	9902-	●	●	●	●	●	●	●	●
64	NUT; RET M8 SLOTTED	9-09117-508-0	02	1	9902-	●	●	●	●	●	●	●	●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	9902-	●	●	●	●	●	●	●	●
66	RING; SNAP,PILOT BRG OD=45.9	1-09588-061-0	01	1	9902-	●	●	●	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-004-0	01	1	9902-	●	●	●	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-003-2	01	1	9902-	●	●	●	●	●	●	●	●
70	BEARING; DIFF CAGE NSK ID=101 OD=168 T=41.3	9-00093-119-0	01	1	9902-	●	●	●	●	●	●	●	●
70	BEARING; DIFF CAGE NSK ID=100 OD=157 T=36.5	9-00093-120-0	01	1	9902-	●	●	●	●	●	●	●	●
79	PLATE; FRICTION LIMITED SLIP DIFF VAR1(G85) T=2.0 OD=247	1-41564-011-1	09	1	9902-	●	●	●	●	●	●	●	●
79	PLATE; FRICTION LIMITED SLIP DIFF VAR1(G85) T=4.0 OD=247	1-41564-012-1	02	1	9902-	●	●	●	●	●	●	●	●
79	PLATE; FRICTION LIMITED SLIP DIFF VAR1(G85) T=2.0 OD=180	1-41564-013-1	10	1	9902-	●	●	●	●	●	●	●	●
83	CAGE ASM; DIFF LIMITED SLIP DIFF VAR1(G85)	1-41510-259-0	01	1	9902-	●	●	●	●		●
83	CAGE ASM; DIFF LIMITED SLIP DIFF VAR1(G85)	1-41510-260-0	01	1	9902-					●			●
84	BOLT; FINAL DRIVE GEAR LIMITED SLIP DIFF VAR1(G85) M18X42	1-09009-092-0	18	1	9902-	●	●	●	●	●	●	●	●
84	BOLT; FINAL DRIVE GEAR EXC. LIMITED SLIP DIFF VAR1(G85) M18X38 FLANGE	1-09009-049-1	18	1	9902-	●	●	●	●	●	●	●	●
88	PLATE; LK,ADJ NUT	9-41124-013-0	02	1	9902-	●	●	●	●	●	●	●	●
89	BOLT; LK PLATE M10X20 FLANGE	0-28781-020-0	04	1	9902-	●	●	●	●	●	●	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-322-0	01	1	9902-	●	●	●	●	●	●	●	●
101	BOLT; ADJ,DRIVEN GEAR THRUST M24X104	9-41127-006-0	01	1	9902-	●	●	●	●	●	●	●	●
103	NUT; ADJ BOLT M28	9-09842-003-0	01	1	9902-	●	●	●	●	●	●	●	●
104	DIFF ASM; NO SPIN LIMITED SLIP DIFF VAR 2(G86)	1-41530-047-0	01	1	9902-	●	●	●	●	●	●		●
104	DIFF ASM; NO SPIN LIMITED SLIP DIFF VAR1(G85)	1-41530-043-3	01	1	9902-	●	●	●	●		●
104	DIFF ASM; NO SPIN LIMITED SLIP DIFF VAR1(G85)	1-41530-045-3	01	1	9902-					●			●
126	COUPLING; DRIVING PINION EXC. BRAKE SYSTEM RETARDER<RE2>	1-37245-267-2	01	1	9902-	●	●	●	●	●	●	●	●
157	CASE; DIFF,LSD LIMITED SLIP DIFF VAR1(G85)	1-41514-013-2	01	1	9902-	●	●	●	●		●
157	CASE; DIFF,LSD LIMITED SLIP DIFF VAR1(G85)	1-41514-018-1	01	1	9902-					●			●
158	RING; SNAP LIMITED SLIP DIFF VAR1(G85)	1-09587-066-0	01	1	9902-	●	●	●	●	●	●	●	●
159	WASHER; DIST LIMITED SLIP DIFF VAR1(G85)	1-41562-268-0	02	1	9902-	●	●	●	●	●	●	●	●
220	SPRING; DISH LIMITED SLIP DIFF VAR1(G85)	1-41519-030-0	06	1	9902-	●	●	●	●	●	●	●	●
279	SCREW; COVER LIMITED SLIP DIFF VAR1(G85) M8X16 CK-HEAD	9-03090-816-0	04	1	9902-	●	●	●	●	●	●	●	●

1 69 70 85 85 71 107 17 105 106 106 105 17 107 109 57 56 104 60 89 88 69 70 84 55 65 101 103 64 62 66 49 49 49 61 63 61 40 40 41 126 50 4 37 43 48 45 39 100

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER<RE2> LIMITED SLIP DIFF VAR1(G85) 39/8	1-41002-197-0	01	1	9902-	●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER<RE2> EXC. LIMITED SLIP DIFF VAR1(G85) 39/8	1-41002-186-0	01	1	9902-	●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR 2(G86) 39/8	1-41002-158-0	01	1	9902-	●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR1(G85) EXC. BRAKE SYSTEM RETARDER<RE2> 39/8	1-41001-449-0	01	1	9902-	●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR1(G85),BRAKE SYSTEM RETARDER<RE2> 39/8	1-41001-447-0	01	1	9902-	●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR 2(G86) 39/8	1-41001-447-0	01	1	9902-	●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER<RE2> EXC. LIMITED SLIP DIFF VAR1(G85) 38/7	1-41002-184-0	01	1	9905-		●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR 2(G86) 38/7	1-41002-340-0	01	1	9902-		●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR1(G85) BRAKE SYSTEM RETARDER<RE2> 38/7	1-41002-195-0	01	1	9905-		●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR1(G85) EXC. BRAKE SYSTEM RETARDER<RE2> 38/7	1-41001-590-0	01	1	9902-		●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR1(G85),BRAKE SYSTEM RETARDER<RE2> 38/7	1-41001-489-0	01	1	9902-		●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR 2(G86) 38/7	1-41001-489-0	01	1	9902-		●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR 2(G86) 37/6	1-41001-847-0	01	1	9902-			●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR1(G85) 37/6	1-41002-341-0	01	1	9902-			●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR1(G85) 37/6	1-41001-953-0	01	1	9902-			●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR 2(G86) 37/6	1-41001-953-0	01	1	9902-			●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER<RE2> EXC. LIMITED SLIP DIFF VAR1(G85) 41/8	1-41002-185-0	01	1	9902-				●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR 2(G86) 41/8	1-41001-819-0	01	1	9902-				●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR1(G85) BRAKE SYSTEM RETARDER<RE2> 41/8	1-41002-196-0	01	1	9902-				●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR1(G85) EXC. BRAKE SYSTEM RETARDER<RE2> 41/8	1-41001-475-0	01	1	9902-				●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR1(G85),BRAKE SYSTEM RETARDER<RE2> 41/8	1-41001-474-0	01	1	9902-				●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR 2(G86) 41/8	1-41001-474-0	01	1	9902-				●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER<RE2> EXC. LIMITED SLIP DIFF VAR1(G85) 41/9	1-41002-187-0	01	1	9902-					●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR 2(G86) 41/9	1-41002-339-0	01	1	9902-					●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR1(G85) BRAKE SYSTEM RETARDER<RE2> 41/9	1-41002-198-0	01	1	9902-					●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR1(G85) EXC. BRAKE SYSTEM RETARDER<RE2> 41/9	1-41001-574-0	01	1	9902-					●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR1(G85),BRAKE SYSTEM RETARDER<RE2> 41/9	1-41001-448-0	01	1	9902-					●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR 2(G86) 41/9	1-41001-448-0	01	1	9902-					●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR 2(G86) 41/7	1-41001-820-0	01	1	9902-						●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR1(G85) EXC. BRAKE SYSTEM RETARDER<RE2> 41/7	1-41001-589-0	01	1	9902-						●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR1(G85),BRAKE SYSTEM RETARDER<RE2> 41/7	1-41001-588-0	01	1	9902-						●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR 2(G86) 41/7	1-41001-588-0	01	1	9902-						●
1	DRIVE ASM; FINAL,RR SHORT CHASSIS&RHD(EXR5MC) INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. BRAKE SYSTEM RETARDER<RE2> 41/10	1-41001-672-0	01	1	9902-9904							●
1	DRIVE ASM; FINAL,RR SHORT CHASSIS&LHD(EXR6MC) EXC. LIMITED SLIP DIFF VAR1(G85),BRAKE SYSTEM RETARDER<RE2> 41/10	1-41001-672-0	01	1	9902-9904							●
1	DRIVE ASM; FINAL,RR SHORT CHASSIS&LHD(EXR6MC) EXC. LIMITED SLIP DIFF VAR1(G85),BRAKE SYSTEM RETARDER<RE2> 41/10	1-41001-672-0	01	1	9905-0003							●
1	DRIVE ASM; FINAL,RR SHORT CHASSIS&RHD(EXR5MC) INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. BRAKE SYSTEM RETARDER<RE2> 41/10	1-41001-672-0	01	1	0004-							●
1	DRIVE ASM; FINAL,RR SHORT CHASSIS&LHD(EXR6MC) EXC. LIMITED SLIP DIFF VAR1(G85),BRAKE SYSTEM RETARDER<RE2> 41/10	1-41001-672-0	01	1	0004-							●
1	DRIVE ASM; FINAL,RR SHORT CHASSIS&LHD(EXR6MC) BRAKE SYSTEM RETARDER<RE2> EXC. LIMITED SLIP DIFF VAR1(G85) 41/10	1-41002-193-0	01	1	9902-9904							●
1	DRIVE ASM; FINAL,RR SHORT CHASSIS&RHD(EXR5MC) INTERNATIONAL STANDARD ISO 10STUD<B3V> BRAKE SYSTEM RETARDER<RE2> 41/10	1-41002-193-0	01	1	9905-							●
1	DRIVE ASM; FINAL,RR SHORT CHASSIS&LHD(EXR6MC) BRAKE SYSTEM RETARDER<RE2> EXC. LIMITED SLIP DIFF VAR1(G85) 41/10	1-41002-193-0	01	1	9905-							●
1	DRIVE ASM; FINAL,RR SHORT CHASSIS&LHD(EXR6MC) BRAKE SYSTEM RETARDER<RE2> EXC. LIMITED SLIP DIFF VAR1(G85) 39/9	1-41002-192-0	01	1	9902-9906								●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER<RE2> EXC. LIMITED SLIP DIFF VAR1(G85) 39/9	1-41002-192-0	01	1	9907-0003								●
1	DRIVE ASM; FINAL,RR SHORT CHASSIS&RHD(EXR5MC) INTERNATIONAL STANDARD ISO 10STUD<B3V> BRAKE SYSTEM RETARDER<RE2> 39/9	1-41002-192-0	01	1	0004-								●
1	DRIVE ASM; FINAL,RR SHORT CHASSIS&LHD(EXR6MC) BRAKE SYSTEM RETARDER<RE2> EXC. LIMITED SLIP DIFF VAR1(G85) 39/9	1-41002-192-0	01	1	0004-								●
1	DRIVE ASM; FINAL,RR SHORT CHASSIS&LHD(EXR6MC) LIMITED SLIP DIFF VAR 2(G86) 39/9	1-41002-338-0	01	1	9902-								●
1	DRIVE ASM; FINAL,RR SHORT CHASSIS&LHD(EXR6MC) LIMITED SLIP DIFF VAR1(G85) BRAKE SYSTEM RETARDER<RE2> 39/9	1-41002-203-0	01	1	9902-								●
1	DRIVE ASM; FINAL,RR SHORT CHASSIS&LHD(EXR6MC) LIMITED SLIP DIFF VAR1(G85) EXC. BRAKE SYSTEM RETARDER<RE2> 39/9	1-41001-575-0	01	1	9902-								●
1	DRIVE ASM; FINAL,RR SHORT CHASSIS&LHD(EXR6MC) EXC. LIMITED SLIP DIFF VAR1(G85),BRAKE SYSTEM RETARDER<RE2> 39/9	1-41001-371-0	01	1	9902-0003								●
1	DRIVE ASM; FINAL,RR SHORT CHASSIS&LHD(EXR6MC) EXC. LIMITED SLIP DIFF VAR 2(G86) 39/9	1-41001-371-0	01	1	9902-0003								●
1	DRIVE ASM; FINAL,RR SHORT CHASSIS&RHD(EXR5MC) INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. BRAKE SYSTEM RETARDER<RE2> 39/9	1-41001-371-0	01	1	0004-								●
1	DRIVE ASM; FINAL,RR SHORT CHASSIS&LHD(EXR6MC) EXC. LIMITED SLIP DIFF VAR1(G85),BRAKE SYSTEM RETARDER<RE2> 39/9	1-41001-371-0	01	1	0004-								●
4	GASKET; FLANGE,FINAL PINION ID=57	1-09623-386-0	01	1	9902-	●	●	●	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING LIMITED SLIP DIFF VAR1(G85) M16X100 FLANGE	1-09070-047-0	12	1	9902-	●	●	●	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF VAR1(G85) (A) M16X141 FLANGE	1-09070-013-0	08	1	9902-	●	●	●	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF VAR1(G85) (B) M16X105 FLANGE	1-09070-014-0	04	1	9902-	●	●	●	●	●	●	●	●
37	NUT; DRIVING PINION M46 FLANGE	1-09449-071-0	01	1	9902-	●	●	●	●	●	●	●	●
39	BEARING; FINAL PINION NSK	1-09812-075-0	01	1	9902-	●	●	●	●	●	●	●	●
39	BEARING; FINAL PINION KOYO	1-09812-076-0	01	1	9902-	●	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.25	1-41229-245-0	AR	1	9902-	●	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.26	1-41229-246-0	AR	1	9902-	●	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.27	1-41229-247-0	AR	1	9902-	●	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.28	1-41229-248-0	AR	1	9902-	●	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.29	1-41229-249-0	AR	1	9902-	●	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.30	1-41229-250-0	AR	1	9902-	●	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.31	1-41229-251-0	AR	1	9902-	●	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.32	1-41229-252-0	AR	1	9902-	●	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.33	1-41229-253-0	AR	1	9902-	●	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.34	1-41229-254-0	AR	1	9902-	●	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.35	1-41229-255-0	AR	1	9902-	●	●	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.60	1-41229-237-0	AR	1	9902-	●	●	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.80	1-41229-238-0	AR	1	9902-	●	●	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.00	1-41229-239-0	AR	1	9902-	●	●	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.20	1-41229-240-0	AR	1	9902-	●	●	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.40	1-41229-241-0	AR	1	9902-	●	●	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.60	1-41229-242-0	AR	1	9902-	●	●	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.80	1-41229-243-0	AR	1	9902-	●	●	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=9.00	1-41229-244-0	AR	1	9902-	●	●	●	●	●	●	●	●
43	CAGE; FINAL PINION BRAKE SYSTEM RETARDER<RE2>	1-41151-087-0	01	1	9902-	●	●	●	●	●	●	●	●
43	CAGE; FINAL PINION EXC. BRAKE SYSTEM RETARDER<RE2> T=82	1-41151-057-0	01	1	9902-	●	●	●	●	●	●	●	●
45	BOLT; FINAL PINION CAGE M16X55	0-16806-655-0	08	1	9902-	●	●	●	●	●	●	●	●
48	WASHER; LK,FINAL PINION ID=16.2	9-09150-516-0	08	1	9902-	●	●	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-077-0	AR	1	9902-	●	●	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=1.000	1-41154-078-0	AR	1	9902-	●	●	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-079-0	AR	1	9902-	●	●	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-080-0	AR	1	9902-	●	●	●	●	●	●	●	●
50	BEARING; FINAL PINION NSK	1-09812-073-1	01	1	9902-	●	●	●	●	●	●	●	●
50	BEARING; FINAL PINION KOYO	1-09812-074-1	01	1	9902-	●	●	●	●	●	●	●	●
55	CARRIER; DIFF	1-41110-102-0	01	1	9902-	●	●	●	●	●	●	●	●
56	BOLT; BRG CAP M20X125 FLANGE	1-09070-015-0	04	1	9902-	●	●	●	●	●	●	●	●
57	DOWEL; BRG CAP	9-41119-033-1	04	1	9902-	●	●	●	●	●	●	●	●
60	GEAR SET; FINAL DRIVE,RR BRAKE SYSTEM RETARDER<RE2> 39/8	1-41210-487-1	01	1	9902-	●
60	GEAR SET; FINAL DRIVE,RR EXC. BRAKE SYSTEM RETARDER<RE2> 39/8	1-41210-618-0	01	1	9902-	●
60	GEAR SET; FINAL DRIVE,RR BRAKE SYSTEM RETARDER<RE2> 38/7	1-41210-456-1	01	1	9905-		●
60	GEAR SET; FINAL DRIVE,RR EXC. BRAKE SYSTEM RETARDER<RE2> 38/7	1-41210-616-0	01	1	9902-		●
60	GEAR SET; FINAL DRIVE,RR 37/6	1-41210-614-0	01	1	9902-			●
60	GEAR SET; FINAL DRIVE,RR EXC. BRAKE SYSTEM RETARDER<RE2> 41/8	1-41210-617-0	01	1	9902-				●
60	GEAR SET; FINAL DRIVE,RR BRAKE SYSTEM RETARDER<RE2> 41/8	1-41210-486-1	01	1	9902-				●
60	GEAR SET; FINAL DRIVE,RR EXC. BRAKE SYSTEM RETARDER<RE2> 41/9	1-41210-619-0	01	1	9902-					●
60	GEAR SET; FINAL DRIVE,RR BRAKE SYSTEM RETARDER<RE2> 41/9	1-41210-488-1	01	1	9902-					●
60	GEAR SET; FINAL DRIVE,RR SHORT CHASSIS&RHD(EXR5MC) INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. BRAKE SYSTEM RETARDER<RE2> 41/10	1-41210-621-0	01	1	9902-9904							●
60	GEAR SET; FINAL DRIVE,RR SHORT CHASSIS&LHD(EXR6MC) EXC. LIMITED SLIP DIFF VAR1(G85),BRAKE SYSTEM RETARDER<RE2> 41/10	1-41210-621-0	01	1	9902-9904							●
60	GEAR SET; FINAL DRIVE,RR SHORT CHASSIS&LHD(EXR6MC) EXC. LIMITED SLIP DIFF VAR1(G85),BRAKE SYSTEM RETARDER<RE2> 41/10	1-41210-621-0	01	1	9905-0003							●
60	GEAR SET; FINAL DRIVE,RR SHORT CHASSIS&RHD(EXR5MC) INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. BRAKE SYSTEM RETARDER<RE2> 41/10	1-41210-621-0	01	1	0004-							●
60	GEAR SET; FINAL DRIVE,RR SHORT CHASSIS&LHD(EXR6MC) EXC. LIMITED SLIP DIFF VAR1(G85),BRAKE SYSTEM RETARDER<RE2> 41/10	1-41210-621-0	01	1	0004-							●
60	GEAR SET; FINAL DRIVE,RR 41/7	1-41210-615-0	01	1	9902-						●
60	GEAR SET; FINAL DRIVE,RR SHORT CHASSIS&LHD(EXR6MC) EXC. BRAKE SYSTEM RETARDER<RE2> 39/9	1-41210-620-0	01	1	9902-0003								●
60	GEAR SET; FINAL DRIVE,RR EXC. BRAKE SYSTEM RETARDER<RE2> 39/9	1-41210-620-0	01	1	0004-								●
60	GEAR SET; FINAL DRIVE,RR BRAKE SYSTEM RETARDER<RE2> EXC. LIMITED SLIP DIFF VAR1(G85) 41/10	1-41210-448-0	01	1	9902-9904							●
60	GEAR SET; FINAL DRIVE,RR SHORT CHASSIS&RHD(EXR5MC) INTERNATIONAL STANDARD ISO 10STUD<B3V> BRAKE SYSTEM RETARDER<RE2> 41/10	1-41210-448-0	01	1	9905-							●
60	GEAR SET; FINAL DRIVE,RR SHORT CHASSIS&LHD(EXR6MC) BRAKE SYSTEM RETARDER<RE2> EXC. LIMITED SLIP DIFF VAR1(G85) 41/10	1-41210-448-0	01	1	9905-							●
60	GEAR SET; FINAL DRIVE,RR SHORT CHASSIS&LHD(EXR6MC) BRAKE SYSTEM RETARDER<RE2> 39/9	1-41210-489-1	01	1	9902-0003								●
60	GEAR SET; FINAL DRIVE,RR BRAKE SYSTEM RETARDER<RE2> 39/9	1-41210-489-1	01	1	0004-								●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-008-0	02	1	9902-	●	●	●	●	●	●	●	●
62	BOLT; RET M8X42 W/PIN HOLE	1-09042-037-0	02	1	9902-	●	●	●	●	●	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-152-0	01	1	9902-	●	●	●	●	●	●	●	●
63	BEARING; PINION PILOT KOYO	1-09810-153-0	01	1	9902-	●	●	●	●	●	●	●	●
64	NUT; RET M8 SLOTTED	9-09117-508-0	02	1	9902-	●	●	●	●	●	●	●	●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	9902-	●	●	●	●	●	●	●	●
66	RING; SNAP,PILOT BRG OD=45.9	1-09588-061-0	01	1	9902-	●	●	●	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-004-0	01	1	9902-	●	●	●	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-003-2	01	1	9902-	●	●	●	●	●	●	●	●
70	BEARING; DIFF CAGE NSK ID=101 OD=168 T=41.3	9-00093-119-0	01	1	9902-	●	●	●	●	●	●	●	●
70	BEARING; DIFF CAGE NSK ID=100 OD=157 T=36.5	9-00093-120-0	01	1	9902-	●	●	●	●	●	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF VAR1(G85)	1-41510-255-0	01	1	9902-9912	●	●	●	●		●
71	CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF VAR1(G85)	1-41510-277-0	01	1	0001-	●	●	●	●		●
71	CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF VAR1(G85)	1-41510-257-0	01	1	9902-9912					●		●	●
71	CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF VAR1(G85)	1-41510-279-0	01	1	0001-					●		●	●
84	BOLT; FINAL DRIVE GEAR LIMITED SLIP DIFF VAR1(G85) M18X42	1-09009-092-0	18	1	9902-	●	●	●	●	●	●	●	●
84	BOLT; FINAL DRIVE GEAR EXC. LIMITED SLIP DIFF VAR1(G85) M18X38 FLANGE	1-09009-049-1	18	1	9902-	●	●	●	●	●	●	●	●
85	NUT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF VAR1(G85) M16	9-99110-516-0	12	1	9902-	●	●	●	●	●	●	●	●
88	PLATE; LK,ADJ NUT	9-41124-013-0	02	1	9902-	●	●	●	●	●	●	●	●
89	BOLT; LK PLATE M10X20 FLANGE	0-28781-020-0	04	1	9902-	●	●	●	●	●	●	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-322-0	01	1	9902-	●	●	●	●	●	●	●	●
101	BOLT; ADJ,DRIVEN GEAR THRUST M24X104	9-41127-006-0	01	1	9902-	●	●	●	●	●	●	●	●
103	NUT; ADJ BOLT M28	9-09842-003-0	01	1	9902-	●	●	●	●	●	●	●	●
104	DIFF ASM; NO SPIN LIMITED SLIP DIFF VAR 2(G86)	1-41530-047-0	01	1	9902-	●	●	●	●	●	●		●
104	DIFF ASM; NO SPIN LIMITED SLIP DIFF VAR1(G85)	1-41530-043-3	01	1	9902-	●	●	●	●		●
104	DIFF ASM; NO SPIN LIMITED SLIP DIFF VAR1(G85)	1-41530-045-3	01	1	9902-					●			●
105	GEAR; SIDE LIMITED SLIP DIFF VAR 2(G86)	1-41539-040-0	02	1	9902-	●	●	●	●	●	●		●
106	SPRING; NO SPIN DIFF LIMITED SLIP DIFF VAR 2(G86)	1-41535-004-0	02	1	9902-	●	●	●	●	●	●		●
107	CLUTCH; DRIVEN LIMITED SLIP DIFF VAR 2(G86)	1-41532-014-0	02	1	9902-	●	●	●	●	●	●		●
109	SPIDER; DIFF LIMITED SLIP DIFF VAR 2(G86)	1-41539-023-0	01	1	9902-	●	●	●	●	●	●		●
126	COUPLING; DRIVING PINION EXC. BRAKE SYSTEM RETARDER<RE2>	1-37245-267-2	01	1	9902-	●	●	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
