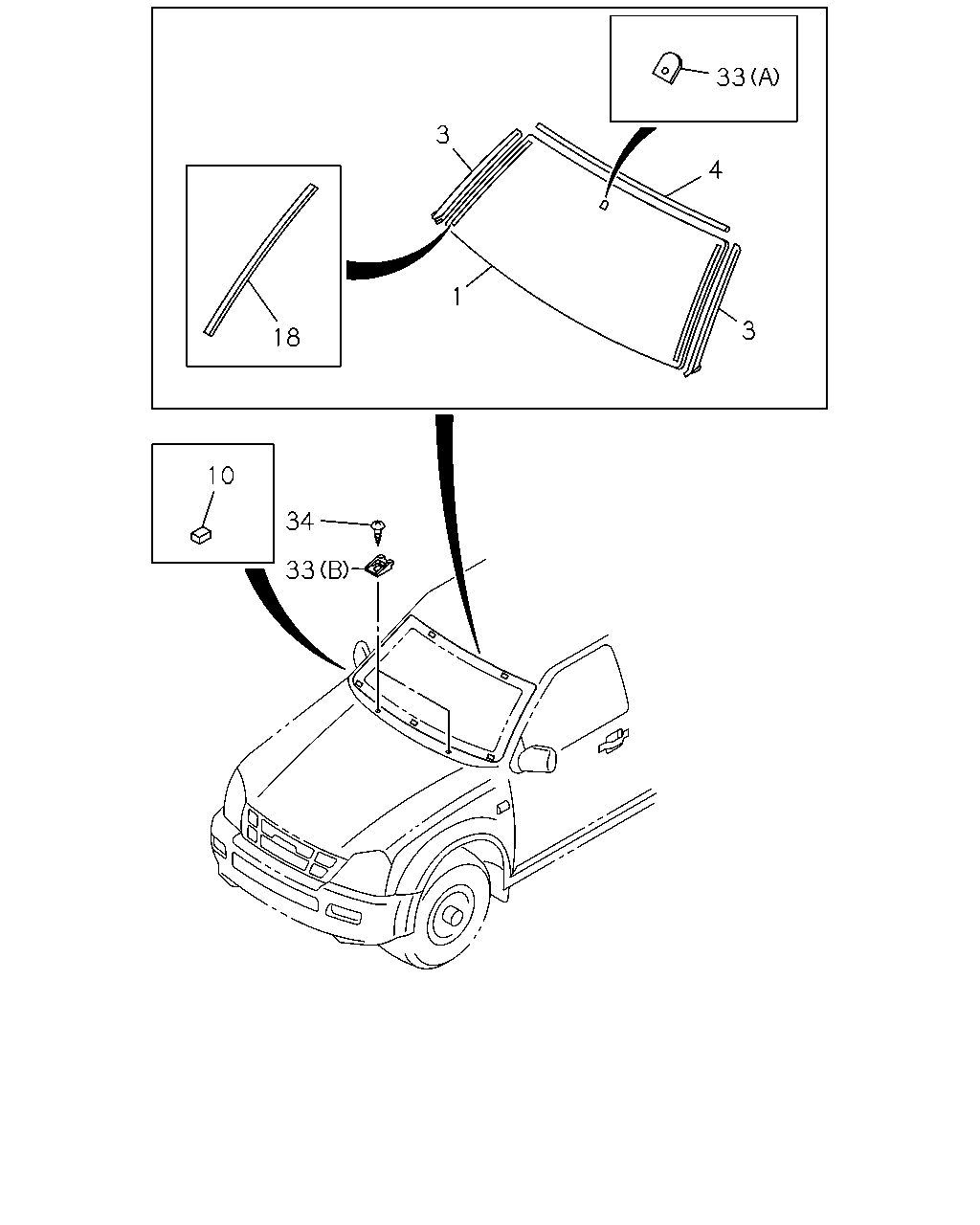

6-07 — FRONT WINDOW GLASS AND WEATHERSTRIP (#77059) — 49 parça

33 3 4 1 3 18 10 34 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	16.005 GLASS; WINDSHIELD	8-97331-593-1	01	1	0808-0808	●
1	16.005 GLASS; WINDSHIELD RR VIEW MIRROR DAY & NIGHT<D31>	8-97331-593-1	01	1	0808-0808		●
1	16.005 GLASS; WINDSHIELD EXTEND CAB EXTRA LONG(TF**CK)	8-97331-593-1	01	1	0808-0808			●
1	16.005 GLASS; WINDSHIELD 4X4 REGULAR CAB EXTRA LONG(TFS*SK)	8-97331-593-1	01	1	0808-0808				●
1	16.005 GLASS; WINDSHIELD 4X4 CREW CAB LONG(TFS*WF) RR VIEW MIRROR DAY & NIGHT<D31>	8-97331-593-1	01	1	0808-0808					●
1	16.005 GLASS; WINDSHIELD CREW CAB EXTRA LONG(TF**WK)	8-97331-593-1	01	1	0808-0808					●
1	16.005 GLASS; WINDSHIELD	8-98134-276-0	01	1	0809-0809	●
1	16.005 GLASS; WINDSHIELD RR VIEW MIRROR DAY & NIGHT<D31>	8-98134-276-0	01	1	0809-0809		●
1	16.005 GLASS; WINDSHIELD EXTEND CAB EXTRA LONG(TF**CK)	8-98134-276-0	01	1	0809-0809			●
1	16.005 GLASS; WINDSHIELD 4X4 REGULAR CAB EXTRA LONG(TFS*SK)	8-98134-276-0	01	1	0809-0809				●
1	16.005 GLASS; WINDSHIELD 4X4 CREW CAB LONG(TFS*WF) RR VIEW MIRROR DAY & NIGHT<D31>	8-98134-276-0	01	1	0809-0809					●
1	16.005 GLASS; WINDSHIELD CREW CAB EXTRA LONG(TF**WK)	8-98134-276-0	01	1	0809-0809					●
1	16.005 GLASS; WINDSHIELD RR VIEW MIRROR DAY & NIGHT<D31>	8-98134-276-0	01	1	0810-		●	●	●	●	●	●
1	16.005 GLASS; WINDSHIELD	8-98134-276-0	01	1	0810-	●
1	16.005 GLASS; WINDSHIELD EXC. RR VIEW MIRROR DAY & NIGHT<D31>	8-97331-594-1	01	1	0808-0808		●
1	16.005 GLASS; WINDSHIELD 4X4 CREW CAB LONG(TFS*WF) EXC. RR VIEW MIRROR DAY & NIGHT<D31>	8-97331-594-1	01	1	0808-0808					●
1	16.005 GLASS; WINDSHIELD EXC. RR VIEW MIRROR DAY & NIGHT<D31>	8-98134-277-0	01	1	0809-0809		●
1	16.005 GLASS; WINDSHIELD 4X4 CREW CAB LONG(TFS*WF) EXC. RR VIEW MIRROR DAY & NIGHT<D31>	8-98134-277-0	01	1	0809-0809					●
1	16.005 GLASS; WINDSHIELD EXC. RR VIEW MIRROR DAY & NIGHT<D31>	8-98134-277-0	01	1	0810-		●	●	●	●	●	●
3	16.470 MOLDING; WINDSHIELD	8-98030-883-0	01	1	0808-0809	●	●	●	●	●
3	16.470 MOLDING; WINDSHIELD	8-98030-883-0	01	1	0810-	●	●	●	●	●	●	●
3	16.470 MOLDING; WINDSHIELD	8-98030-884-0	01	1	0808-0809	●	●	●	●	●
3	16.470 MOLDING; WINDSHIELD	8-98030-884-0	01	1	0810-	●	●	●	●	●	●	●
4	16.475 MOLDING; WINDSHIELD,UPR	8-97239-342-0	01	1	0808-0809	●	●			●
4	16.475 MOLDING; WINDSHIELD,UPR EXTEND CAB EXTRA LONG(TF**CK)	8-97239-342-0	01	1	0808-0809			●
4	16.475 MOLDING; WINDSHIELD,UPR 4X4 REGULAR CAB EXTRA LONG(TFS*SK)	8-97239-342-0	01	1	0808-0809				●
4	16.475 MOLDING; WINDSHIELD,UPR	8-97239-342-0	01	1	0810-	●	●	●	●	●	●	●
10	08.160 SPACER; WINDSHIELD GLASS 12.180	8-94434-770-0	05	1	0808-0809	●	●	●	●	●
10	08.160 SPACER; WINDSHIELD GLASS 12.180	8-94434-770-0	05	1	0810-	●	●	●	●	●	●	●
18	16.041 SEAL; WINDSHIELD	8-97367-390-0	02	1	0808-0809	●	●			●
18	16.041 SEAL; WINDSHIELD EXTEND CAB EXTRA LONG(TF**CK)	8-97367-390-0	02	1	0808-0809			●
18	16.041 SEAL; WINDSHIELD 4X4 REGULAR CAB EXTRA LONG(TFS*SK)	8-97367-390-0	02	1	0808-0809				●
18	16.041 SEAL; WINDSHIELD	8-97367-390-0	02	1	0810-	●	●	●	●	●	●	●
33	08.133 SUPPORT; WINDSHIELD,LWR (A)	8-15954-649-0	01	1	0808-0809	●
33	08.133 SUPPORT; WINDSHIELD,LWR RR VIEW MIRROR DAY & NIGHT<D31> (A)	8-15954-649-0	01	1	0808-0809		●
33	08.133 SUPPORT; WINDSHIELD,LWR EXTEND CAB EXTRA LONG(TF**CK) (A)	8-15954-649-0	01	1	0808-0809			●
33	08.133 SUPPORT; WINDSHIELD,LWR 4X4 REGULAR CAB EXTRA LONG(TFS*SK) (A)	8-15954-649-0	01	1	0808-0809				●
33	08.133 SUPPORT; WINDSHIELD,LWR 4X4 CREW CAB LONG(TFS*WF) RR VIEW MIRROR DAY & NIGHT<D31> (A)	8-15954-649-0	01	1	0808-0809					●
33	08.133 SUPPORT; WINDSHIELD,LWR CREW CAB EXTRA LONG(TF**WK) (A)	8-15954-649-0	01	1	0808-0809					●
33	08.133 SUPPORT; WINDSHIELD,LWR RR VIEW MIRROR DAY & NIGHT<D31> (A)	8-15954-649-0	01	1	0810-		●	●	●	●	●	●
33	08.133 SUPPORT; WINDSHIELD,LWR (A)	8-15954-649-0	01	1	0810-	●
33	08.133 SUPPORT; WINDSHIELD,LWR (B)	8-94434-771-0	02	1	0808-0809	●	●	●	●	●
33	08.133 SUPPORT; WINDSHIELD,LWR (B)	8-94434-771-0	02	1	0810-	●	●	●	●	●	●	●
33	08.133 SUPPORT; WINDSHIELD,LWR EXC. RR VIEW MIRROR DAY & NIGHT<D31> (A)	8-97331-592-0	01	1	0808-0809		●
33	08.133 SUPPORT; WINDSHIELD,LWR 4X4 CREW CAB LONG(TFS*WF) EXC. RR VIEW MIRROR DAY & NIGHT<D31> (A)	8-97331-592-0	01	1	0808-0809					●
33	08.133 SUPPORT; WINDSHIELD,LWR EXC. RR VIEW MIRROR DAY & NIGHT<D31> (A)	8-97331-592-0	01	1	0810-		●	●	●	●	●	●
34	08.133 SCREW; SUPPORT TO BRKT M6X10	8-98062-143-0	02	1	0808-0809	●	●	●	●	●
34	08.133 SCREW; SUPPORT TO BRKT M6X10	8-98062-143-0	02	1	0810-1003	●	●	●	●	●	●	●
34	08.133 SCREW; SUPPORT TO BRKT M6X10	8-98167-450-0	02	1	1004-	●	●	●	●	●	●	●
