Sayfa 6-03 - Isuzu EPC

6-03 — RADIATOR GRILLE (#77057) — 191 parça

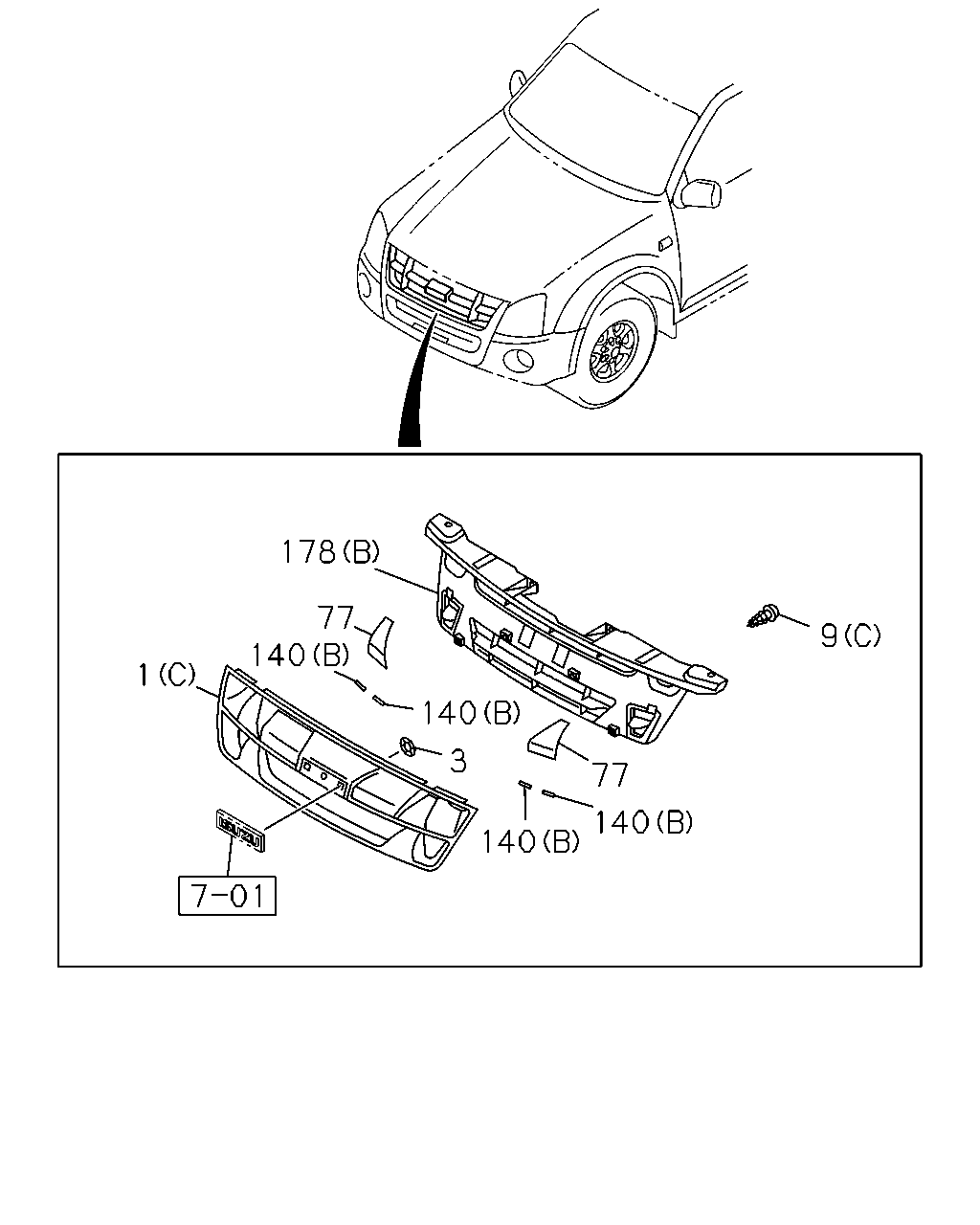

178 77 140 9 1 140 3 77 140 140

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	01.266 GRILLE; RAD CHEVROLET BRAND<RWE> BASE VEHICLE GRILLE<VWX> (B)	8-98012-516-2	01	1	0810-	●	●	●	●	●	●
1	01.266 GRILLE; RAD BASE VEHICLE GRILLE<VWX> ISUZU BRAND<7WL> (A)	8-98012-479-1	01	1	0808-	●	●	●	●	●	●
1	01.266 GRILLE; RAD (A)	8-98012-479-1	01	1	0808-							●
1	01.266 GRILLE; RAD BRIGHT RAD GRILLE<V22> (A) PLATED	8-98012-482-1	01	1	0808-0809	●	●	●	●	●	●
1	01.266 GRILLE; RAD BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (A) PLATED	8-98012-482-1	01	1	0810-0910	●	●	●	●	●	●
1	01.266 GRILLE; RAD BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (A) PLATED	8-98012-482-1	01	1	0911-1003	●	●		●	●
1	01.266 GRILLE; RAD BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. MALAYSIA EQUIPMENT(B10) (A) PLATED	8-98012-482-1	01	1	0911-1003			●			●
1	01.266 GRILLE; RAD GRADE LX(RBB),GRADE LT/LS(RBD) MALAYSIA EQUIPMENT(B10) BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (C) PLATED	8-98109-369-1	01	1	0911-0911			●			●
1	01.266 GRILLE; RAD GRADE LX(RBB),GRADE LT/LS(RBD) MALAYSIA EQUIPMENT(B10) BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (C) PLATED	8-98159-148-0	01	1	0912-1003			●			●
1	01.266 GRILLE; RAD BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (C) PLATED	8-98159-148-0	01	1	1004-	●	●	●	●	●	●
3	01.269 CLIP; GRILLE	8-97182-223-0	02	1	0808-0809			●			●	●
3	01.269 CLIP; GRILLE EXTEND CAB EXTRA LONG(TF**CK)	8-97182-223-0	02	1	0808-0809				●
3	01.269 CLIP; GRILLE 4X4 REGULAR CAB EXTRA LONG(TFS*SK)	8-97182-223-0	02	1	0808-0809					●
3	01.269 CLIP; GRILLE ISUZU BRAND<7WL>	8-97182-223-0	02	1	0810-	●	●	●	●	●	●
3	01.269 CLIP; GRILLE	8-97182-223-0	02	1	0810-							●
9	01.269 SCREW; RAD GRILLE ISUZU BRAND<7WL> (C)	8-98070-852-0	17	1	0911-1003	●	●	●	●	●	●
9	01.269 SCREW; RAD GRILLE (C)	8-98070-852-0	17	1	0911-1003							●
9	01.269 SCREW; RAD GRILLE BASE VEHICLE GRILLE<VWX> ISUZU BRAND<7WL> (C)	8-98070-852-0	17	1	1004-	●	●	●	●	●	●
9	01.269 SCREW; RAD GRILLE (C)	8-98070-852-0	17	1	1004-							●
9	01.269 SCREW; RAD GRILLE (C)	8-98070-852-0	17	1	0808-0809			●			●	●
9	01.269 SCREW; RAD GRILLE EXTEND CAB EXTRA LONG(TF**CK) (C)	8-98070-852-0	17	1	0808-0809				●
9	01.269 SCREW; RAD GRILLE 4X4 REGULAR CAB EXTRA LONG(TFS*SK) (C)	8-98070-852-0	17	1	0808-0809					●
9	01.269 SCREW; RAD GRILLE ISUZU BRAND<7WL> (C)	8-98070-852-0	17	1	0810-0910	●	●	●	●	●	●
9	01.269 SCREW; RAD GRILLE (C)	8-98070-852-0	17	1	0810-0910							●
9	01.269 SCREW; RAD GRILLE GRADE LX(RBB),GRADE LT/LS(RBD) MALAYSIA EQUIPMENT(B10) BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (C)	8-98070-852-0	13	1	0911-1003			●			●
9	01.269 SCREW; RAD GRILLE BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (C)	8-98070-852-0	13	1	1004-	●	●	●	●	●	●
9	01.269 SCREW; RAD GRILLE (B)	8-98049-358-0	02	1	0808-0809			●	●	●	●	●
9	01.269 SCREW; RAD GRILLE (B)	8-98049-358-0	02	1	0810-	●	●	●	●	●	●	●
9	01.269 SCREW; RAD GRILLE (A) M5X16	8-98073-081-0	03	1	0808-0809			●	●	●	●	●
9	01.269 SCREW; RAD GRILLE (A) M5X16	8-98073-081-0	03	1	0810-1003	●	●	●	●	●	●	●
9	01.269 SCREW; RAD GRILLE (A) M5X16	8-98167-352-0	03	1	1004-	●	●	●	●	●	●	●
77	01.266 TAPE; PROTECTIVE,RAD GRILLE BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL>	8-98139-020-0	01	1	1004-1007		●	●		●	●
77	01.266 TAPE; PROTECTIVE,RAD GRILLE AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL>	8-98139-020-0	01	1	1008-		●	●		●	●
77	01.266 TAPE; PROTECTIVE,RAD GRILLE BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL>	8-98139-116-0	01	1	1004-1007		●	●		●	●
77	01.266 TAPE; PROTECTIVE,RAD GRILLE AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL>	8-98139-116-0	01	1	1008-		●	●		●	●
140	01.266 SEAL; RAD GRILLE GRADE LX(RBB),GRADE LT/LS(RBD) MALAYSIA EQUIPMENT(B10) BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (B)	8-98130-916-0	04	1	0911-1003			●			●
140	01.266 SEAL; RAD GRILLE BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (B)	8-98130-916-0	04	1	1004-	●	●	●	●	●	●
140	01.266 SEAL; RAD GRILLE (A)	8-98070-854-0	01	1	0808-0809			●			●	●
140	01.266 SEAL; RAD GRILLE EXTEND CAB EXTRA LONG(TF**CK) (A)	8-98070-854-0	01	1	0808-0809				●
140	01.266 SEAL; RAD GRILLE 4X4 REGULAR CAB EXTRA LONG(TFS*SK) (A)	8-98070-854-0	01	1	0808-0809					●
140	01.266 SEAL; RAD GRILLE ISUZU BRAND<7WL> (A)	8-98070-854-0	01	1	0810-1003	●	●	●	●	●	●
140	01.266 SEAL; RAD GRILLE (A)	8-98070-854-0	01	1	0810-1003							●
140	01.266 SEAL; RAD GRILLE BASE VEHICLE GRILLE<VWX> ISUZU BRAND<7WL> (A)	8-98070-854-0	01	1	1004-	●	●	●	●	●	●
140	01.266 SEAL; RAD GRILLE (A)	8-98070-854-0	01	1	1004-							●
178	01.269 GRILLE; INNER,RAD GRADE LX(RBB),GRADE LT/LS(RBD) MALAYSIA EQUIPMENT(B10) BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (B)	8-98109-370-1	01	1	0911-1003			●			●
178	01.269 GRILLE; INNER,RAD BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (B)	8-98109-370-1	01	1	1004-	●	●	●	●	●	●
178	01.269 GRILLE; INNER,RAD (A)	8-98012-483-2	01	1	0808-0809			●			●	●
178	01.269 GRILLE; INNER,RAD EXTEND CAB EXTRA LONG(TF**CK) (A)	8-98012-483-2	01	1	0808-0809				●
178	01.269 GRILLE; INNER,RAD 4X4 REGULAR CAB EXTRA LONG(TFS*SK) (A)	8-98012-483-2	01	1	0808-0809					●
178	01.269 GRILLE; INNER,RAD ISUZU BRAND<7WL> (A)	8-98012-483-2	01	1	0810-1003	●	●	●	●	●	●
178	01.269 GRILLE; INNER,RAD (A)	8-98012-483-2	01	1	0810-1003							●
178	01.269 GRILLE; INNER,RAD BASE VEHICLE GRILLE<VWX> ISUZU BRAND<7WL> (A)	8-98012-483-2	01	1	1004-	●	●	●	●	●	●
178	01.269 GRILLE; INNER,RAD (A)	8-98012-483-2	01	1	1004-							●

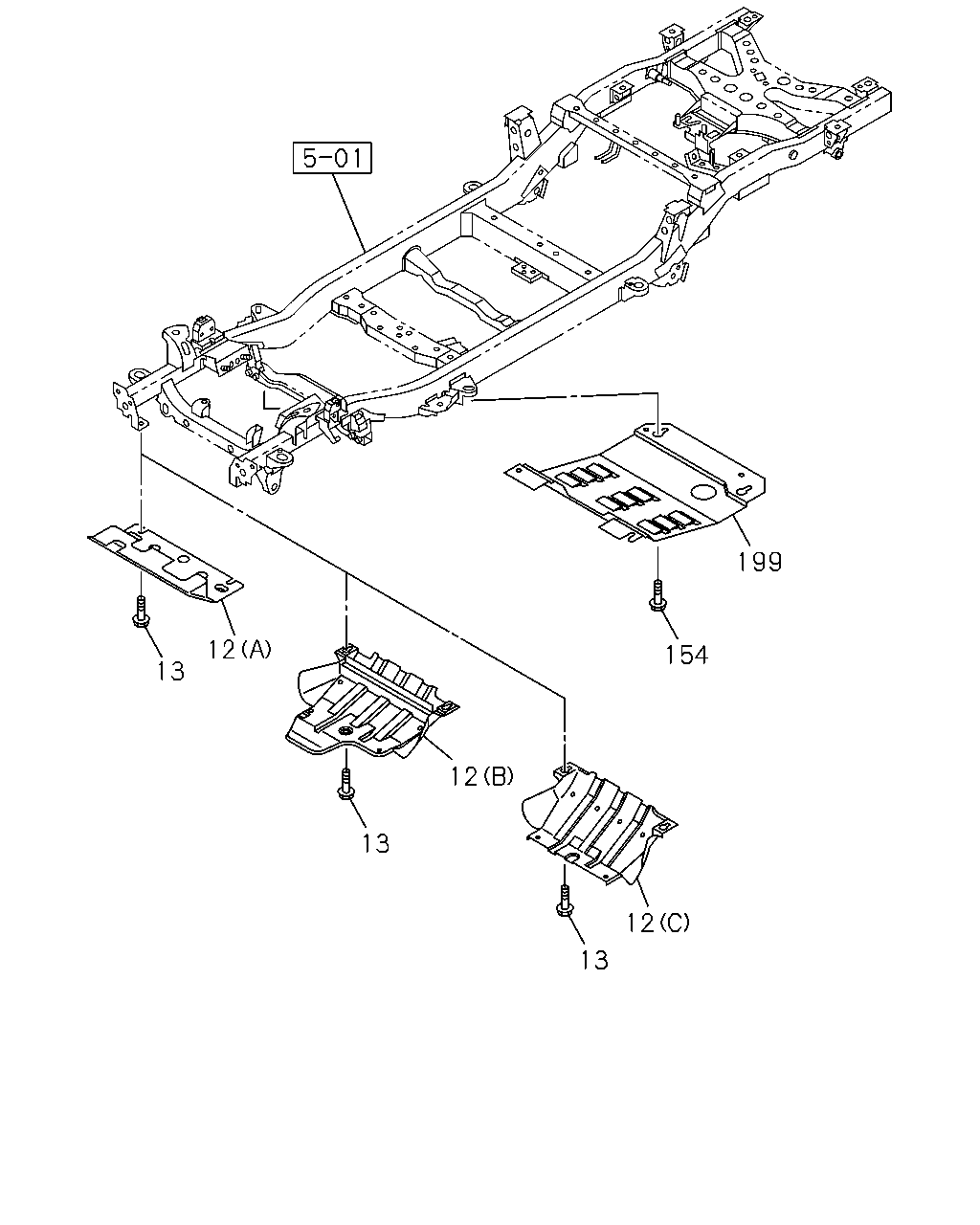

199 154 12 13 12 13 13 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
12	01.274 PLATE; SKID,RAD 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0) SKID PLATE<7WE> HIGH RIDE SUSPENSION(7YC) (B)	8-97943-919-0	01	1	0810-1007	●	●	●
12	01.274 PLATE; SKID,RAD 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0) (B)	8-97943-919-0	01	1	0810-1007				●	●	●
12	01.274 PLATE; SKID,RAD 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0) SKID PLATE<7WE> HIGH RIDE SUSPENSION(7YC) (B)	8-97943-919-0	01	1	1008-	●	●	●
12	01.274 PLATE; SKID,RAD 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0) (B)	8-97943-919-0	01	1	1008-				●	●	●
12	01.274 PLATE; SKID,RAD C24SE ENG(LG1),4JA1-T ENG(LP0) SKID PLATE<7WE> EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-97942-919-0	01	1	0810-	●	●	●
12	01.274 PLATE; SKID,RAD 4JJ1-TCX ENG(LS0) (C)	8-97944-848-1	01	1	0808-0809							●
12	01.274 PLATE; SKID,RAD 4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) (C)	8-97944-848-1	01	1	0808-0809			●
12	01.274 PLATE; SKID,RAD 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) (C)	8-97944-848-1	01	1	0810-1007	●	●	●				●
12	01.274 PLATE; SKID,RAD 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0) SKID PLATE<7WE> HIGH RIDE SUSPENSION(7YC) (C)	8-97944-848-1	01	1	1008-	●	●	●
12	01.274 PLATE; SKID,RAD 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0) (C)	8-97944-848-1	01	1	1008-				●	●	●
12	01.274 PLATE; SKID,RAD 4JJ1-TCX ENG(LS0) SKID PLATE<7WE> HIGH RIDE SUSPENSION(7YC) (B)	8-97945-193-0	01	1	0808-0809			●
12	01.274 PLATE; SKID,RAD EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) (B)	8-97945-193-0	01	1	0808-0809				●
12	01.274 PLATE; SKID,RAD 4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) (B)	8-97945-193-0	01	1	0808-0809					●
12	01.274 PLATE; SKID,RAD 4JJ1-TCX ENG(LS0) (B)	8-97945-193-0	01	1	0808-0809						●
12	01.274 PLATE; SKID,RAD 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) SKID PLATE<7WE> HIGH RIDE SUSPENSION(7YC) (B)	8-97945-193-0	01	1	0810-		●	●
12	01.274 PLATE; SKID,RAD 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) SKID PLATE<7WE> (B)	8-97945-193-0	01	1	0810-				●	●	●
13	01.267 BOLT; RAD SKID PLATE 4JJ1-TCX ENG(LS0) M10X28 W/LK&PL WASHER	8-97945-706-0	04	1	0808-0809							●
13	01.267 BOLT; RAD SKID PLATE 4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) M10X28 W/LK&PL WASHER	8-97945-706-0	04	1	0808-0809			●
13	01.267 BOLT; RAD SKID PLATE SKID PLATE<7WE> HIGH RIDE SUSPENSION(7YC) M10X28 W/LK&PL WASHER	8-97945-706-0	04	1	0808-0809			●
13	01.267 BOLT; RAD SKID PLATE EXTEND CAB EXTRA LONG(TF**CK) M10X28 W/LK&PL WASHER	8-97945-706-0	04	1	0808-0809				●
13	01.267 BOLT; RAD SKID PLATE 4X4 REGULAR CAB EXTRA LONG(TFS*SK) M10X28 W/LK&PL WASHER	8-97945-706-0	04	1	0808-0809					●
13	01.267 BOLT; RAD SKID PLATE M10X28 W/LK&PL WASHER	8-97945-706-0	04	1	0808-0809						●
13	01.267 BOLT; RAD SKID PLATE 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) M10X28 W/LK&PL WASHER	8-97945-706-0	04	1	0810-1007	●	●	●				●
13	01.267 BOLT; RAD SKID PLATE SKID PLATE<7WE> HIGH RIDE SUSPENSION(7YC) M10X28 W/LK&PL WASHER	8-97945-706-0	04	1	0810-1007	●	●	●
13	01.267 BOLT; RAD SKID PLATE SKID PLATE<7WE> M10X28 W/LK&PL WASHER	8-97945-706-0	04	1	0810-1007				●	●	●
13	01.267 BOLT; RAD SKID PLATE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) M10X28 W/LK&PL WASHER	8-97945-706-0	04	1	1008-	●	●	●				●
13	01.267 BOLT; RAD SKID PLATE SKID PLATE<7WE> HIGH RIDE SUSPENSION(7YC) M10X28 W/LK&PL WASHER	8-97945-706-0	04	1	1008-	●	●	●
13	01.267 BOLT; RAD SKID PLATE M10X28 W/LK&PL WASHER	8-97945-706-0	04	1	1008-				●	●	●
13	01.267 BOLT; RAD SKID PLATE SKID PLATE<7WE> EXC. HIGH RIDE SUSPENSION(7YC) M10X28 W/LK&PL WASHER	8-97945-706-0	02	1	0808-0809			●
13	01.267 BOLT; RAD SKID PLATE SKID PLATE<7WE> EXC. HIGH RIDE SUSPENSION(7YC) M10X28 W/LK&PL WASHER	8-97945-706-0	02	1	0810-	●	●	●
154	01.267 BOLT; COVER 4JJ1-TCX ENG(LS0) M10X28 W/LK&PL WASHER	8-97945-706-0	02	1	0808-0809				●	●	●
154	01.267 BOLT; COVER 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) ISUZU BRAND<7WL> EXC. MALAYSIA EQUIPMENT(B10),KENYA EQUIPMENT(CL1) M10X28 W/LK&PL WASHER	8-97945-706-0	02	1	0810-0910				●	●	●
154	01.267 BOLT; COVER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) ISUZU BRAND<7WL> EXC. MALAYSIA EQUIPMENT(B10),KENYA EQUIPMENT(CL1) M10X28 W/LK&PL WASHER	8-97945-706-0	02	1	0911-0911				●	●	●
154	01.267 BOLT; COVER 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) ISUZU BRAND<7WL> EXC. MALAYSIA EQUIPMENT(B10),KENYA EQUIPMENT(CL1) M10X28 W/LK&PL WASHER	8-97945-706-0	02	1	0911-1003				●	●	●
154	01.267 BOLT; COVER 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) ISUZU BRAND<7WL> EXC. MALAYSIA EQUIPMENT(B10) M10X28 W/LK&PL WASHER	8-97945-706-0	02	1	1004-1007				●	●	●
154	01.267 BOLT; COVER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) ISUZU BRAND<7WL> EXC. MALAYSIA EQUIPMENT(B10),KENYA EQUIPMENT(CL1) M10X28 W/LK&PL WASHER	8-97945-706-0	02	1	1008-				●	●	●
199	01.274 PLATE; OIL PAN 4JJ1-TCX ENG(LS0) 01.426	8-98116-061-0	01	1	0808-0809				●	●	●
199	01.274 PLATE; OIL PAN 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) ISUZU BRAND<7WL> EXC. MALAYSIA EQUIPMENT(B10),KENYA EQUIPMENT(CL1) 01.426	8-98116-061-0	01	1	0810-0910				●	●	●
199	01.274 PLATE; OIL PAN 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) ISUZU BRAND<7WL> EXC. MALAYSIA EQUIPMENT(B10),KENYA EQUIPMENT(CL1) 01.426	8-98116-061-0	01	1	0911-0911				●	●	●
199	01.274 PLATE; OIL PAN 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) ISUZU BRAND<7WL> EXC. MALAYSIA EQUIPMENT(B10),KENYA EQUIPMENT(CL1) 01.426	8-98116-061-0	01	1	0911-1003				●	●	●
199	01.274 PLATE; OIL PAN 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) ISUZU BRAND<7WL> EXC. MALAYSIA EQUIPMENT(B10) 01.426	8-98116-061-0	01	1	1004-1007				●	●	●
199	01.274 PLATE; OIL PAN 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) ISUZU BRAND<7WL> EXC. MALAYSIA EQUIPMENT(B10),KENYA EQUIPMENT(CL1) 01.426	8-98116-061-0	01	1	1008-				●	●	●

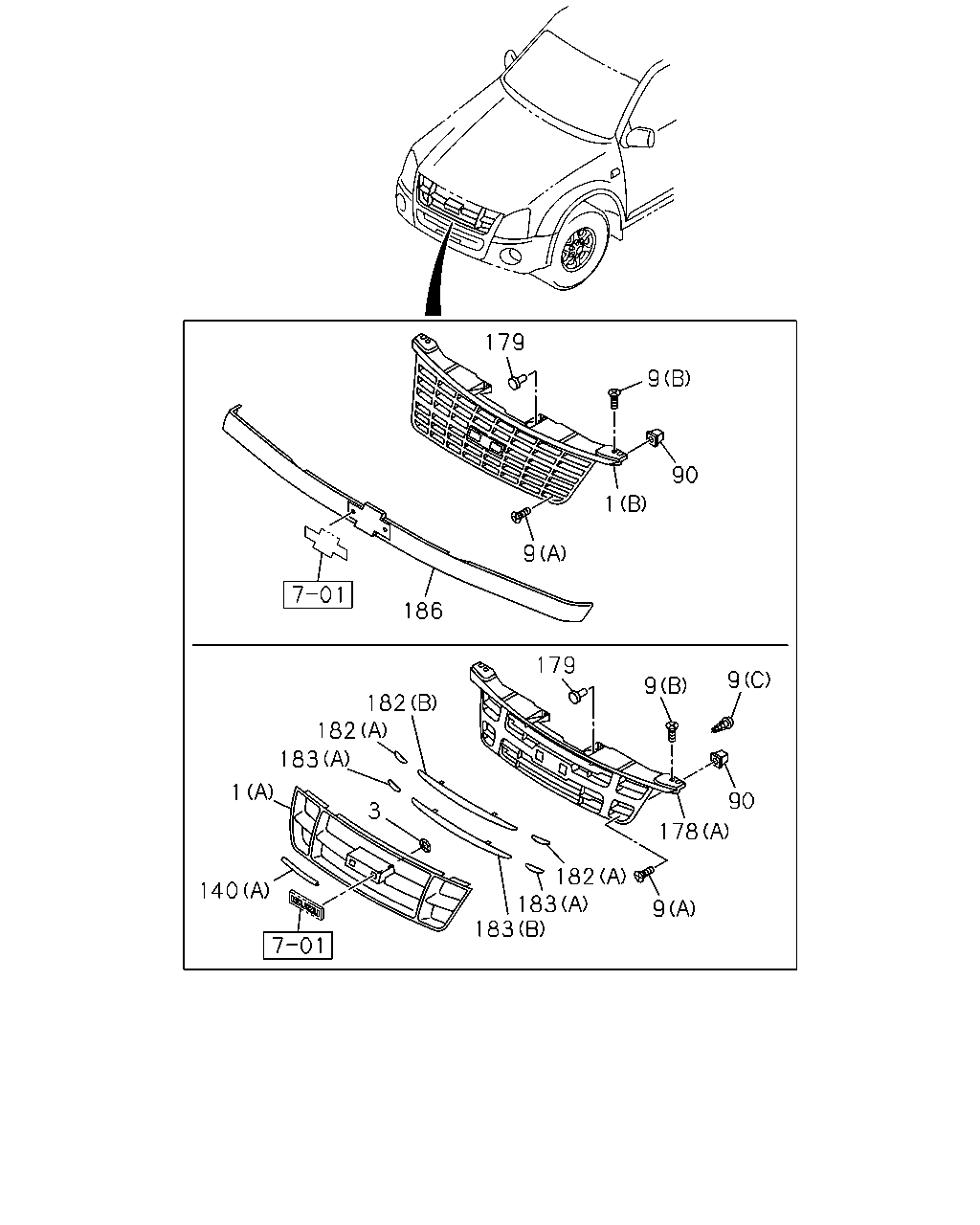

179 9 90 1 9 186 179 9 9 182 182 183 1 90 3 178 182 183 183 140 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	01.266 GRILLE; RAD CHEVROLET BRAND<RWE> BASE VEHICLE GRILLE<VWX> (B)	8-98012-516-2	01	1	0810-	●	●	●	●	●	●
1	01.266 GRILLE; RAD BASE VEHICLE GRILLE<VWX> ISUZU BRAND<7WL> (A)	8-98012-479-1	01	1	0808-	●	●	●	●	●	●
1	01.266 GRILLE; RAD (A)	8-98012-479-1	01	1	0808-							●
1	01.266 GRILLE; RAD BRIGHT RAD GRILLE<V22> (A) PLATED	8-98012-482-1	01	1	0808-0809	●	●	●	●	●	●
1	01.266 GRILLE; RAD BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (A) PLATED	8-98012-482-1	01	1	0810-0910	●	●	●	●	●	●
1	01.266 GRILLE; RAD BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (A) PLATED	8-98012-482-1	01	1	0911-1003	●	●		●	●
1	01.266 GRILLE; RAD BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. MALAYSIA EQUIPMENT(B10) (A) PLATED	8-98012-482-1	01	1	0911-1003			●			●
1	01.266 GRILLE; RAD GRADE LX(RBB),GRADE LT/LS(RBD) MALAYSIA EQUIPMENT(B10) BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (C) PLATED	8-98109-369-1	01	1	0911-0911			●			●
1	01.266 GRILLE; RAD GRADE LX(RBB),GRADE LT/LS(RBD) MALAYSIA EQUIPMENT(B10) BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (C) PLATED	8-98159-148-0	01	1	0912-1003			●			●
1	01.266 GRILLE; RAD BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (C) PLATED	8-98159-148-0	01	1	1004-	●	●	●	●	●	●
3	01.269 CLIP; GRILLE	8-97182-223-0	02	1	0808-0809			●			●	●
3	01.269 CLIP; GRILLE EXTEND CAB EXTRA LONG(TF**CK)	8-97182-223-0	02	1	0808-0809				●
3	01.269 CLIP; GRILLE 4X4 REGULAR CAB EXTRA LONG(TFS*SK)	8-97182-223-0	02	1	0808-0809					●
3	01.269 CLIP; GRILLE ISUZU BRAND<7WL>	8-97182-223-0	02	1	0810-	●	●	●	●	●	●
3	01.269 CLIP; GRILLE	8-97182-223-0	02	1	0810-							●
9	01.269 SCREW; RAD GRILLE ISUZU BRAND<7WL> (C)	8-98070-852-0	17	1	0911-1003	●	●	●	●	●	●
9	01.269 SCREW; RAD GRILLE (C)	8-98070-852-0	17	1	0911-1003							●
9	01.269 SCREW; RAD GRILLE BASE VEHICLE GRILLE<VWX> ISUZU BRAND<7WL> (C)	8-98070-852-0	17	1	1004-	●	●	●	●	●	●
9	01.269 SCREW; RAD GRILLE (C)	8-98070-852-0	17	1	1004-							●
9	01.269 SCREW; RAD GRILLE (C)	8-98070-852-0	17	1	0808-0809			●			●	●
9	01.269 SCREW; RAD GRILLE EXTEND CAB EXTRA LONG(TF**CK) (C)	8-98070-852-0	17	1	0808-0809				●
9	01.269 SCREW; RAD GRILLE 4X4 REGULAR CAB EXTRA LONG(TFS*SK) (C)	8-98070-852-0	17	1	0808-0809					●
9	01.269 SCREW; RAD GRILLE ISUZU BRAND<7WL> (C)	8-98070-852-0	17	1	0810-0910	●	●	●	●	●	●
9	01.269 SCREW; RAD GRILLE (C)	8-98070-852-0	17	1	0810-0910							●
9	01.269 SCREW; RAD GRILLE GRADE LX(RBB),GRADE LT/LS(RBD) MALAYSIA EQUIPMENT(B10) BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (C)	8-98070-852-0	13	1	0911-1003			●			●
9	01.269 SCREW; RAD GRILLE BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (C)	8-98070-852-0	13	1	1004-	●	●	●	●	●	●
9	01.269 SCREW; RAD GRILLE (B)	8-98049-358-0	02	1	0808-0809			●	●	●	●	●
9	01.269 SCREW; RAD GRILLE (B)	8-98049-358-0	02	1	0810-	●	●	●	●	●	●	●
9	01.269 SCREW; RAD GRILLE (A) M5X16	8-98073-081-0	03	1	0808-0809			●	●	●	●	●
9	01.269 SCREW; RAD GRILLE (A) M5X16	8-98073-081-0	03	1	0810-1003	●	●	●	●	●	●	●
9	01.269 SCREW; RAD GRILLE (A) M5X16	8-98167-352-0	03	1	1004-	●	●	●	●	●	●	●
90	01.269 NUT; RAD GRILLE 02.726 D=7X7 L=7.5	8-94291-927-0	03	1	0808-0809			●	●	●	●	●
90	01.269 NUT; RAD GRILLE 02.726 D=7X7 L=7.5	8-94291-927-0	03	1	0810-	●	●	●	●	●	●	●
140	01.266 SEAL; RAD GRILLE GRADE LX(RBB),GRADE LT/LS(RBD) MALAYSIA EQUIPMENT(B10) BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (B)	8-98130-916-0	04	1	0911-1003			●			●
140	01.266 SEAL; RAD GRILLE BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (B)	8-98130-916-0	04	1	1004-	●	●	●	●	●	●
140	01.266 SEAL; RAD GRILLE (A)	8-98070-854-0	01	1	0808-0809			●			●	●
140	01.266 SEAL; RAD GRILLE EXTEND CAB EXTRA LONG(TF**CK) (A)	8-98070-854-0	01	1	0808-0809				●
140	01.266 SEAL; RAD GRILLE 4X4 REGULAR CAB EXTRA LONG(TFS*SK) (A)	8-98070-854-0	01	1	0808-0809					●
140	01.266 SEAL; RAD GRILLE ISUZU BRAND<7WL> (A)	8-98070-854-0	01	1	0810-1003	●	●	●	●	●	●
140	01.266 SEAL; RAD GRILLE (A)	8-98070-854-0	01	1	0810-1003							●
140	01.266 SEAL; RAD GRILLE BASE VEHICLE GRILLE<VWX> ISUZU BRAND<7WL> (A)	8-98070-854-0	01	1	1004-	●	●	●	●	●	●
140	01.266 SEAL; RAD GRILLE (A)	8-98070-854-0	01	1	1004-							●
178	01.269 GRILLE; INNER,RAD GRADE LX(RBB),GRADE LT/LS(RBD) MALAYSIA EQUIPMENT(B10) BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (B)	8-98109-370-1	01	1	0911-1003			●			●
178	01.269 GRILLE; INNER,RAD BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (B)	8-98109-370-1	01	1	1004-	●	●	●	●	●	●
178	01.269 GRILLE; INNER,RAD (A)	8-98012-483-2	01	1	0808-0809			●			●	●
178	01.269 GRILLE; INNER,RAD EXTEND CAB EXTRA LONG(TF**CK) (A)	8-98012-483-2	01	1	0808-0809				●
178	01.269 GRILLE; INNER,RAD 4X4 REGULAR CAB EXTRA LONG(TFS*SK) (A)	8-98012-483-2	01	1	0808-0809					●
178	01.269 GRILLE; INNER,RAD ISUZU BRAND<7WL> (A)	8-98012-483-2	01	1	0810-1003	●	●	●	●	●	●
178	01.269 GRILLE; INNER,RAD (A)	8-98012-483-2	01	1	0810-1003							●
178	01.269 GRILLE; INNER,RAD BASE VEHICLE GRILLE<VWX> ISUZU BRAND<7WL> (A)	8-98012-483-2	01	1	1004-	●	●	●	●	●	●
178	01.269 GRILLE; INNER,RAD (A)	8-98012-483-2	01	1	1004-							●
179	01.269 RETAINER; GRILLE,RAD 07.832	8-97301-188-0	02	1	0808-0809			●	●	●	●	●
179	01.269 RETAINER; GRILLE,RAD 07.832	8-97301-188-0	02	1	0810-	●	●	●	●	●	●	●
182	01.266 MOLDING; RAD GRILLE,UPR BASE VEHICLE GRILLE<VWX> ISUZU BRAND<7WL> (B)	8-98012-484-0	01	1	0808-	●	●	●	●	●	●
182	01.266 MOLDING; RAD GRILLE,UPR (B)	8-98012-484-0	01	1	0808-							●
182	01.266 MOLDING; RAD GRILLE,UPR BASE VEHICLE GRILLE<VWX> ISUZU BRAND<7WL> (A)	8-98012-485-0	01	1	0808-	●	●	●	●	●	●
182	01.266 MOLDING; RAD GRILLE,UPR (A)	8-98012-485-0	01	1	0808-							●
182	01.266 MOLDING; RAD GRILLE,UPR BASE VEHICLE GRILLE<VWX> ISUZU BRAND<7WL> (A)	8-98012-486-0	01	1	0808-	●	●	●	●	●	●
182	01.266 MOLDING; RAD GRILLE,UPR (A)	8-98012-486-0	01	1	0808-							●
182	01.266 MOLDING; RAD GRILLE,UPR BRIGHT RAD GRILLE<V22> (B)	8-98012-491-0	01	1	0808-0809			●
182	01.266 MOLDING; RAD GRILLE,UPR 4X4 CREW CAB LONG(TFS*WF) BRIGHT RAD GRILLE<V22> (B)	8-98012-491-0	01	1	0808-0809						●
182	01.266 MOLDING; RAD GRILLE,UPR BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (B)	8-98012-491-0	01	1	0810-0910	●	●	●	●	●	●
182	01.266 MOLDING; RAD GRILLE,UPR BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (B)	8-98012-491-0	01	1	0911-1003	●	●		●	●
182	01.266 MOLDING; RAD GRILLE,UPR BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. MALAYSIA EQUIPMENT(B10) (B)	8-98012-491-0	01	1	0911-1003			●			●
182	01.266 MOLDING; RAD GRILLE,UPR BRIGHT RAD GRILLE<V22> (A)	8-98012-492-0	01	1	0808-0809			●
182	01.266 MOLDING; RAD GRILLE,UPR 4X4 CREW CAB LONG(TFS*WF) BRIGHT RAD GRILLE<V22> (A)	8-98012-492-0	01	1	0808-0809						●
182	01.266 MOLDING; RAD GRILLE,UPR BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (A)	8-98012-492-0	01	1	0810-0910	●	●	●	●	●	●
182	01.266 MOLDING; RAD GRILLE,UPR BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (A)	8-98012-492-0	01	1	0911-1003	●	●		●	●
182	01.266 MOLDING; RAD GRILLE,UPR BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. MALAYSIA EQUIPMENT(B10) (A)	8-98012-492-0	01	1	0911-1003			●			●
182	01.266 MOLDING; RAD GRILLE,UPR BRIGHT RAD GRILLE<V22> (A)	8-98012-493-0	01	1	0808-0809			●
182	01.266 MOLDING; RAD GRILLE,UPR 4X4 CREW CAB LONG(TFS*WF) BRIGHT RAD GRILLE<V22> (A)	8-98012-493-0	01	1	0808-0809						●
182	01.266 MOLDING; RAD GRILLE,UPR BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (A)	8-98012-493-0	01	1	0810-0910	●	●	●	●	●	●
182	01.266 MOLDING; RAD GRILLE,UPR BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (A)	8-98012-493-0	01	1	0911-1003	●	●		●	●
182	01.266 MOLDING; RAD GRILLE,UPR BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. MALAYSIA EQUIPMENT(B10) (A)	8-98012-493-0	01	1	0911-1003			●			●
183	01.266 MOLDING; RAD GRILLE,LWR BASE VEHICLE GRILLE<VWX> ISUZU BRAND<7WL> (B)	8-98012-487-0	01	1	0808-	●	●	●	●	●	●
183	01.266 MOLDING; RAD GRILLE,LWR (B)	8-98012-487-0	01	1	0808-							●
183	01.266 MOLDING; RAD GRILLE,LWR BASE VEHICLE GRILLE<VWX> ISUZU BRAND<7WL> (A)	8-98012-488-0	01	1	0808-	●	●	●	●	●	●
183	01.266 MOLDING; RAD GRILLE,LWR (A)	8-98012-488-0	01	1	0808-							●
183	01.266 MOLDING; RAD GRILLE,LWR BASE VEHICLE GRILLE<VWX> ISUZU BRAND<7WL> (A)	8-98012-489-0	01	1	0808-	●	●	●	●	●	●
183	01.266 MOLDING; RAD GRILLE,LWR (A)	8-98012-489-0	01	1	0808-							●
183	01.266 MOLDING; RAD GRILLE,LWR BRIGHT RAD GRILLE<V22> (B)	8-98012-494-0	01	1	0808-0809			●
183	01.266 MOLDING; RAD GRILLE,LWR 4X4 CREW CAB LONG(TFS*WF) BRIGHT RAD GRILLE<V22> (B)	8-98012-494-0	01	1	0808-0809						●
183	01.266 MOLDING; RAD GRILLE,LWR BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (B)	8-98012-494-0	01	1	0810-0910	●	●	●	●	●	●
183	01.266 MOLDING; RAD GRILLE,LWR BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (B)	8-98012-494-0	01	1	0911-1003	●	●		●	●
183	01.266 MOLDING; RAD GRILLE,LWR BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. MALAYSIA EQUIPMENT(B10) (B)	8-98012-494-0	01	1	0911-1003			●			●
183	01.266 MOLDING; RAD GRILLE,LWR BRIGHT RAD GRILLE<V22> (A)	8-98012-495-0	01	1	0808-0809			●
183	01.266 MOLDING; RAD GRILLE,LWR 4X4 CREW CAB LONG(TFS*WF) BRIGHT RAD GRILLE<V22> (A)	8-98012-495-0	01	1	0808-0809						●
183	01.266 MOLDING; RAD GRILLE,LWR BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (A)	8-98012-495-0	01	1	0810-0910	●	●	●	●	●	●
183	01.266 MOLDING; RAD GRILLE,LWR BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (A)	8-98012-495-0	01	1	0911-1003	●	●		●	●
183	01.266 MOLDING; RAD GRILLE,LWR BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. MALAYSIA EQUIPMENT(B10) (A)	8-98012-495-0	01	1	0911-1003			●			●
183	01.266 MOLDING; RAD GRILLE,LWR BRIGHT RAD GRILLE<V22> (A)	8-98012-496-0	01	1	0808-0809			●
183	01.266 MOLDING; RAD GRILLE,LWR 4X4 CREW CAB LONG(TFS*WF) BRIGHT RAD GRILLE<V22> (A)	8-98012-496-0	01	1	0808-0809						●
183	01.266 MOLDING; RAD GRILLE,LWR BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (A)	8-98012-496-0	01	1	0810-0910	●	●	●	●	●	●
183	01.266 MOLDING; RAD GRILLE,LWR BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> (A)	8-98012-496-0	01	1	0911-1003	●	●		●	●
183	01.266 MOLDING; RAD GRILLE,LWR BRIGHT RAD GRILLE<V22> ISUZU BRAND<7WL> EXC. MALAYSIA EQUIPMENT(B10) (A)	8-98012-496-0	01	1	0911-1003			●			●
186	01.266 BAR; RAD GRILLE CHEVROLET BRAND<RWE> BASE VEHICLE GRILLE<VWX>	8-98012-651-0	01	1	0810-	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
