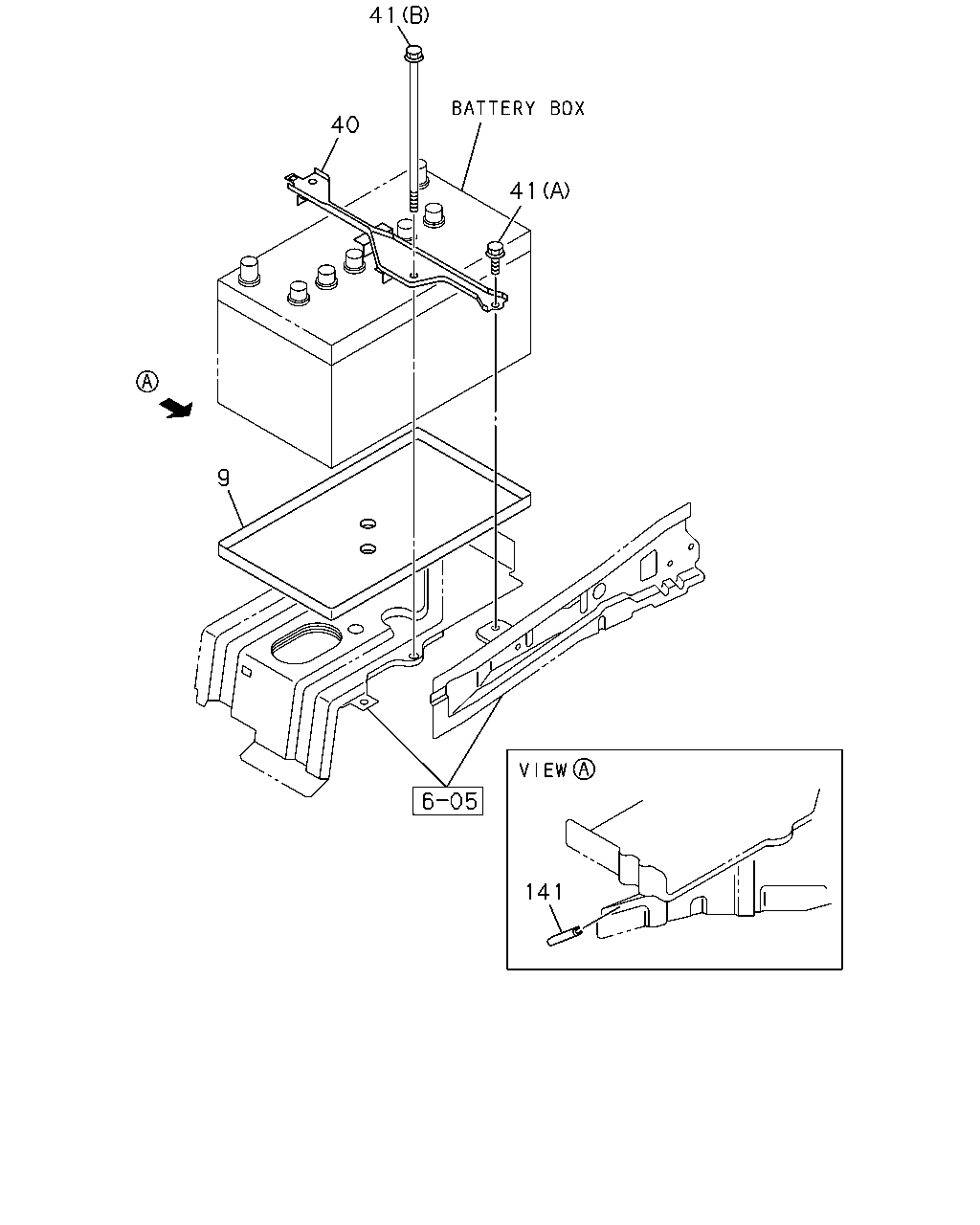

5-20 — BATTERY CARRIER (#77053) — 15 parça

41 40 41 9 141

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
9	02.333 SEAT; BATTERY BATTERY 46B24L(TQ6)	8-97328-059-0	01	1	0810-	●	●	●	●
9	02.333 SEAT; BATTERY BATTERY 80D26L(TM1)	8-97328-060-0	01	1	0808-0809		●	●	●	●	●
9	02.333 SEAT; BATTERY BATTERY 80D26L(TM1)	8-97328-060-0	01	1	0810-	●	●	●	●	●	●	●
9	02.333 SEAT; BATTERY BATTERY 95D31L(TQ8)	8-97318-865-1	01	1	0808-0809		●	●	●	●	●
9	02.333 SEAT; BATTERY BATTERY 95D31L(TQ8)	8-97318-865-1	01	1	0810-	●	●	●	●	●	●	●
40	02.335 CLAMP; BATTERY BATTERY 46B24L(TQ6)	8-97352-945-0	01	1	0810-	●	●	●	●
40	02.335 CLAMP; BATTERY BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8)	8-97357-407-0	01	1	0808-0809		●	●	●	●	●
40	02.335 CLAMP; BATTERY BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8)	8-97357-407-0	01	1	0810-	●	●	●	●	●	●	●
41	02.334 BOLT; CLAMP,BATTERY 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	0808-0809		●	●	●	●	●
41	02.334 BOLT; CLAMP,BATTERY 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	0810-	●	●	●	●	●	●	●
41	02.334 BOLT; CLAMP,BATTERY (B) M8X222 FLANGE	8-97378-041-0	02	1	0808-0809		●	●	●	●	●
41	02.334 BOLT; CLAMP,BATTERY (B) M8X222 FLANGE	8-97378-041-0	02	1	0810-	●	●	●	●	●	●	●
141	02.334 INSULATOR; BAT TRAY 4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> 02.530 L=30	8-94235-856-0	01	1	0808-0809		●	●	●	●	●
141	02.334 INSULATOR; BAT TRAY 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> POWER STEERING<N40> 02.530 L=30	8-94235-856-0	01	1	0810-1007	●	●	●	●	●	●
141	02.334 INSULATOR; BAT TRAY 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> POWER STEERING<N40> 02.530 L=30	8-94235-856-0	01	1	1008-	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
