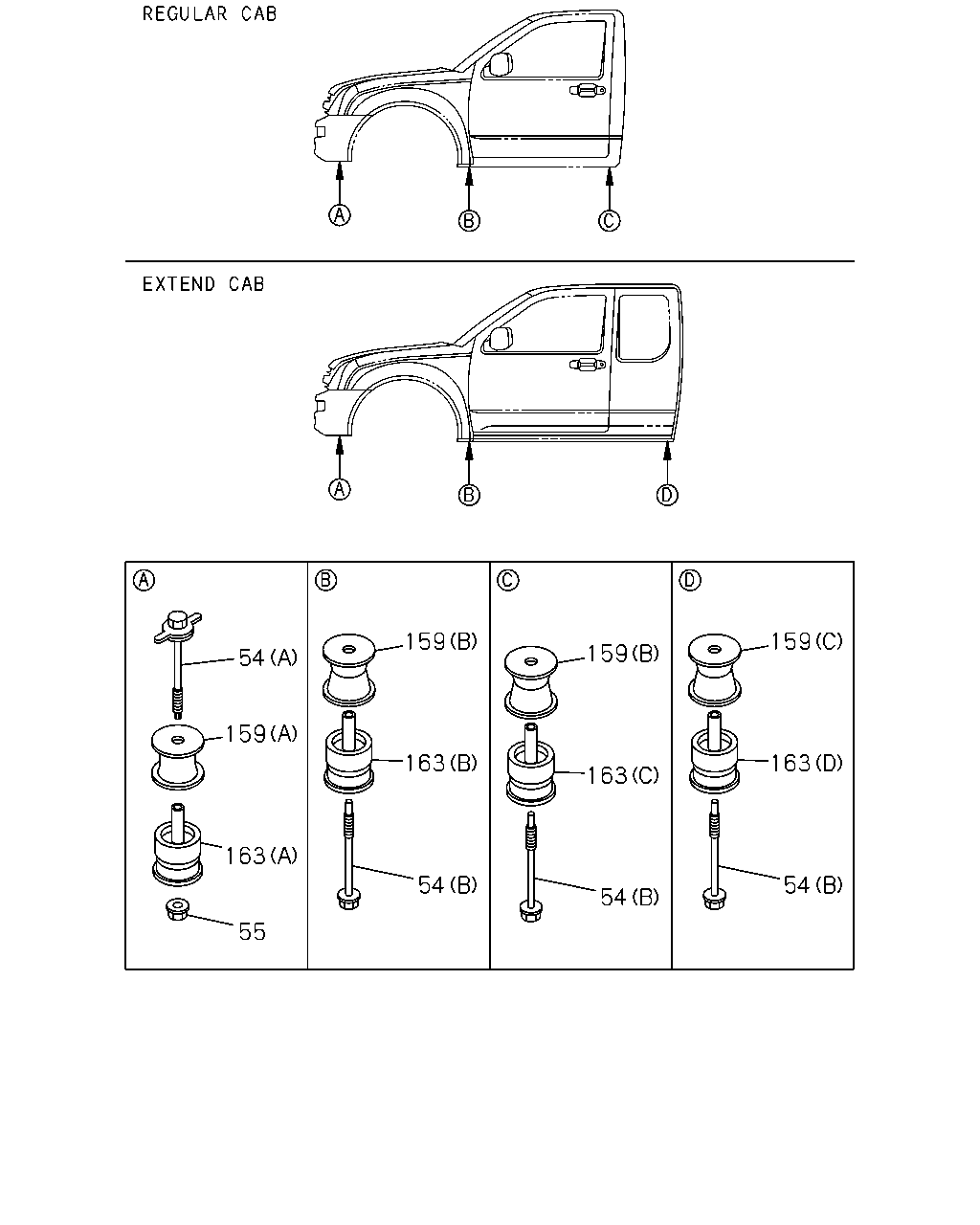

5-10 — CAB MOUNTING; FRAME SIDE (#77052) — 58 parça

54 159 163 55 54 163 159 159 163 54 54 163 159

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
54	09.008 BOLT; RUBBER (A) M10X117.3 FLANGE	8-97365-219-0	02	1	0808-0809	●	●	●	●	●
54	09.008 BOLT; RUBBER (A) M10X117.3 FLANGE	8-97365-219-0	02	1	0810-	●	●	●	●	●	●	●
54	09.008 BOLT; RUBBER (B)	8-97365-220-0	04	1	0808-0809	●	●	●	●	●
54	09.008 BOLT; RUBBER (B)	8-97365-220-0	04	1	0810-1009	●	●	●	●	●	●	●
54	09.008 BOLT; RUBBER (B)	8-98178-536-0	04	1	1010-	●	●	●	●	●	●	●
54	09.008 BOLT; RUBBER (B)	8-97365-220-0	02	1	0808-1009		●			●
54	09.008 BOLT; RUBBER (B)	8-98178-536-0	02	1	1010-		●			●
55	09.008 NUT; RUBBER 06.672 M10 FLANGE	0-91280-210-0	02	1	0808-0809	●	●	●	●	●
55	09.008 NUT; RUBBER 06.672 M10 FLANGE	0-91280-210-0	02	1	0810-	●	●	●	●	●	●	●
159	09.023 RUBBER; CUSHION,CAB MTG (A) STAMP SB	8-97367-285-0	02	1	0808-0809	●	●	●	●	●
159	09.023 RUBBER; CUSHION,CAB MTG (A) STAMP SB	8-97367-285-0	02	1	0810-	●	●	●	●	●	●	●
159	09.023 RUBBER; CUSHION,CAB MTG (B) STAMP W	8-97367-286-0	02	1	0808-0809	●	●	●	●	●
159	09.023 RUBBER; CUSHION,CAB MTG (B) STAMP W	8-97367-286-0	02	1	0808-0809	●	●		●	●
159	09.023 RUBBER; CUSHION,CAB MTG (B) STAMP W	8-97367-286-0	02	1	0808-0809		●			●
159	09.023 RUBBER; CUSHION,CAB MTG (B) STAMP W	8-97367-286-0	02	1	0810-	●	●	●	●	●	●	●
159	09.023 RUBBER; CUSHION,CAB MTG (B) STAMP W	8-97367-286-0	02	1	0810-	●	●		●	●		●
159	09.023 RUBBER; CUSHION,CAB MTG (B) STAMP W	8-97367-286-0	02	1	0810-		●			●
159	09.023 RUBBER; CUSHION,CAB MTG (C) STAMP P	8-97367-287-0	02	1	0808-0809			●
159	09.023 RUBBER; CUSHION,CAB MTG (C) STAMP P	8-97367-287-0	02	1	0810-			●			●
163	09.023 RUBBER; CUSHION,BODY MTG,REBOUND (C) STAMP G	8-98051-328-0	02	1	0808-0809	●	●		●	●
163	09.023 RUBBER; CUSHION,BODY MTG,REBOUND (C) STAMP G	8-98051-328-0	02	1	0808-0809		●			●
163	09.023 RUBBER; CUSHION,BODY MTG,REBOUND (C) STAMP G	8-98051-328-0	02	1	0810-	●	●		●	●		●
163	09.023 RUBBER; CUSHION,BODY MTG,REBOUND (C) STAMP G	8-98051-328-0	02	1	0810-		●			●
163	09.023 RUBBER; CUSHION,BODY MTG,REBOUND (A) STAMP SP	8-98051-326-0	02	1	0808-0809	●	●	●	●	●
163	09.023 RUBBER; CUSHION,BODY MTG,REBOUND (A) STAMP SP	8-98051-326-0	02	1	0810-	●	●	●	●	●	●	●
163	09.023 RUBBER; CUSHION,BODY MTG,REBOUND (B) STAMP Y	8-98051-327-0	02	1	0808-0809	●	●	●	●	●
163	09.023 RUBBER; CUSHION,BODY MTG,REBOUND (B) STAMP Y	8-98051-327-0	02	1	0810-	●	●	●	●	●	●	●
163	09.023 RUBBER; CUSHION,BODY MTG,REBOUND (D) STAMP B	8-98051-329-0	02	1	0808-0809			●
163	09.023 RUBBER; CUSHION,BODY MTG,REBOUND (D) STAMP B	8-98051-329-0	02	1	0810-			●			●

54 159 163 55 54 163 159 159 163 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
54	09.008 BOLT; RUBBER (A) M10X117.3 FLANGE	8-97365-219-0	02	1	0808-0809	●	●	●	●	●
54	09.008 BOLT; RUBBER (A) M10X117.3 FLANGE	8-97365-219-0	02	1	0810-	●	●	●	●	●	●	●
54	09.008 BOLT; RUBBER (B)	8-97365-220-0	04	1	0808-0809	●	●	●	●	●
54	09.008 BOLT; RUBBER (B)	8-97365-220-0	04	1	0810-1009	●	●	●	●	●	●	●
54	09.008 BOLT; RUBBER (B)	8-98178-536-0	04	1	1010-	●	●	●	●	●	●	●
54	09.008 BOLT; RUBBER (B)	8-97365-220-0	02	1	0808-1009		●			●
54	09.008 BOLT; RUBBER (B)	8-98178-536-0	02	1	1010-		●			●
55	09.008 NUT; RUBBER 06.672 M10 FLANGE	0-91280-210-0	02	1	0808-0809	●	●	●	●	●
55	09.008 NUT; RUBBER 06.672 M10 FLANGE	0-91280-210-0	02	1	0810-	●	●	●	●	●	●	●
159	09.023 RUBBER; CUSHION,CAB MTG (A) STAMP SB	8-97367-285-0	02	1	0808-0809	●	●	●	●	●
159	09.023 RUBBER; CUSHION,CAB MTG (A) STAMP SB	8-97367-285-0	02	1	0810-	●	●	●	●	●	●	●
159	09.023 RUBBER; CUSHION,CAB MTG (B) STAMP W	8-97367-286-0	02	1	0808-0809	●	●	●	●	●
159	09.023 RUBBER; CUSHION,CAB MTG (B) STAMP W	8-97367-286-0	02	1	0808-0809	●	●		●	●
159	09.023 RUBBER; CUSHION,CAB MTG (B) STAMP W	8-97367-286-0	02	1	0808-0809		●			●
159	09.023 RUBBER; CUSHION,CAB MTG (B) STAMP W	8-97367-286-0	02	1	0810-	●	●	●	●	●	●	●
159	09.023 RUBBER; CUSHION,CAB MTG (B) STAMP W	8-97367-286-0	02	1	0810-	●	●		●	●		●
159	09.023 RUBBER; CUSHION,CAB MTG (B) STAMP W	8-97367-286-0	02	1	0810-		●			●
159	09.023 RUBBER; CUSHION,CAB MTG (C) STAMP P	8-97367-287-0	02	1	0808-0809			●
159	09.023 RUBBER; CUSHION,CAB MTG (C) STAMP P	8-97367-287-0	02	1	0810-			●			●
163	09.023 RUBBER; CUSHION,BODY MTG,REBOUND (C) STAMP G	8-98051-328-0	02	1	0808-0809	●	●		●	●
163	09.023 RUBBER; CUSHION,BODY MTG,REBOUND (C) STAMP G	8-98051-328-0	02	1	0808-0809		●			●
163	09.023 RUBBER; CUSHION,BODY MTG,REBOUND (C) STAMP G	8-98051-328-0	02	1	0810-	●	●		●	●		●
163	09.023 RUBBER; CUSHION,BODY MTG,REBOUND (C) STAMP G	8-98051-328-0	02	1	0810-		●			●
163	09.023 RUBBER; CUSHION,BODY MTG,REBOUND (A) STAMP SP	8-98051-326-0	02	1	0808-0809	●	●	●	●	●
163	09.023 RUBBER; CUSHION,BODY MTG,REBOUND (A) STAMP SP	8-98051-326-0	02	1	0810-	●	●	●	●	●	●	●
163	09.023 RUBBER; CUSHION,BODY MTG,REBOUND (B) STAMP Y	8-98051-327-0	02	1	0808-0809	●	●	●	●	●
163	09.023 RUBBER; CUSHION,BODY MTG,REBOUND (B) STAMP Y	8-98051-327-0	02	1	0810-	●	●	●	●	●	●	●
163	09.023 RUBBER; CUSHION,BODY MTG,REBOUND (D) STAMP B	8-98051-329-0	02	1	0808-0809			●
163	09.023 RUBBER; CUSHION,BODY MTG,REBOUND (D) STAMP B	8-98051-329-0	02	1	0810-			●			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
