1 |

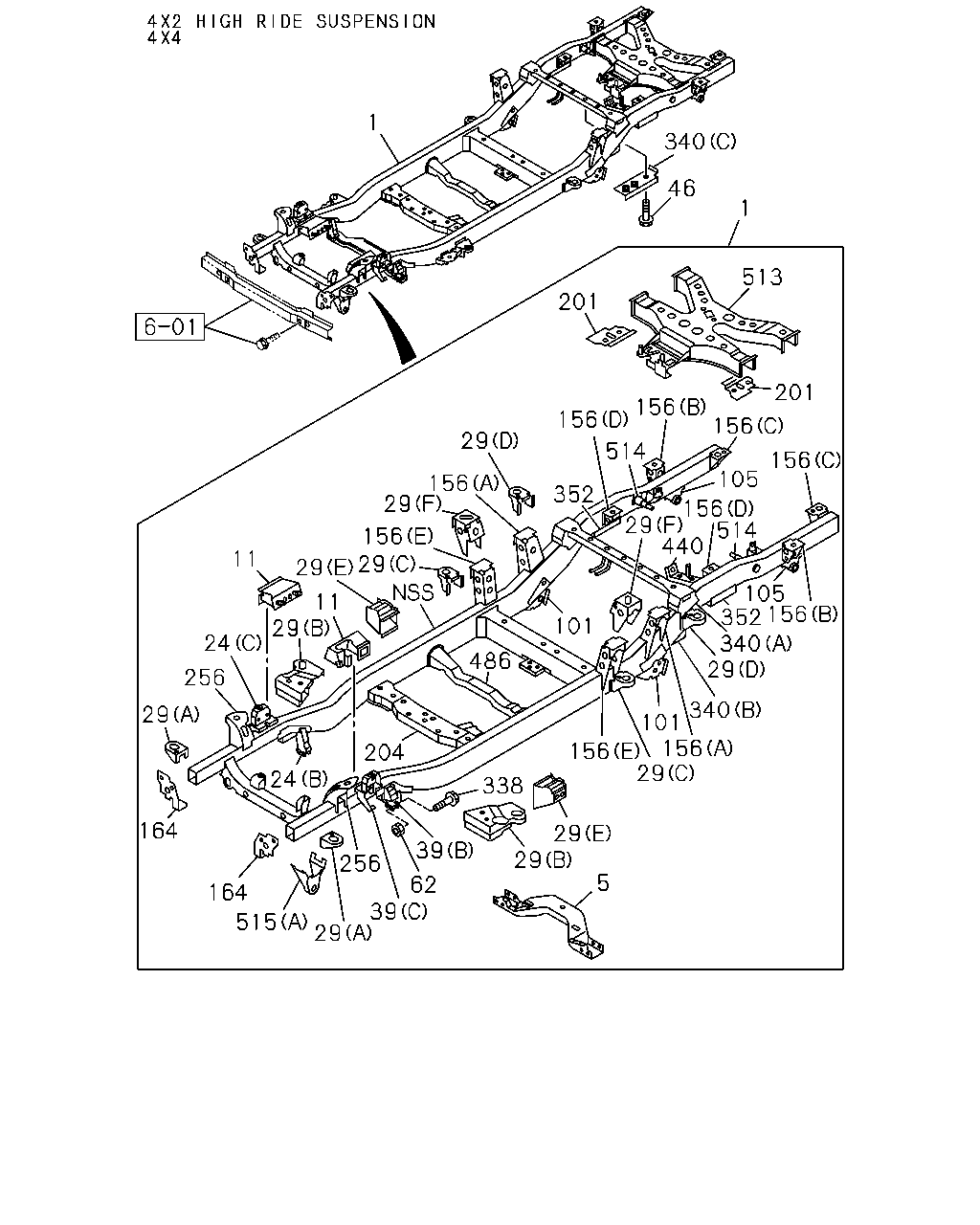

07.003 FRAME ASM
4X4 CREW CAB LONG(TFS*WF)
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0),
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5
SPEED 5G(RSP)
COUNTRY SUSPENSION(V5W)
|
8-98169-548-0 |
01 |
1 |
1006-1007 |
● |
|
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4X4 CREW CAB LONG(TFS*WF)
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0)
M/T MUX 5 SPEED 5S(MZJ)
COUNTRY SUSPENSION(V5W)
|
8-98169-548-0 |
01 |
1 |
1006-1007 |
● |
|
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4X4 CREW CAB LONG(TFS*WF)
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ),
4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),
4JJ1-TCX ENG(LS0)
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5
SPEED 5G(RSP)
COUNTRY SUSPENSION(V5W)
|
8-98169-548-0 |
01 |
1 |
1008- |
● |
|
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4X4 CREW CAB LONG(TFS*WF)
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0)
M/T MUX 5 SPEED 5S(MZJ)
COUNTRY SUSPENSION(V5W)
|
8-98169-548-0 |
01 |
1 |
1008- |
● |
|
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4X4 CREW CAB LONG(TFS*WF)
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0)
A/T AISIN(RMD),A/T 4
SPEED-JATCO(RMK)
COUNTRY SUSPENSION(V5W)
|
8-98169-549-0 |
01 |
1 |
1006- |
● |
|
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0)
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5
SPEED(M75)
HIGH RIDE SUSPENSION(7YC)
|
8-98123-664-0 |
01 |
1 |
0810-1211 |
|
● |
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0)
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5
SPEED(M75),M/T MUA 5 SPEED 5G(RSP)
HIGH RIDE SUSPENSION(7YC)
|
8-98123-664-0 |
01 |
1 |
1212- |
|
● |
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0)
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5
SPEED(M75)

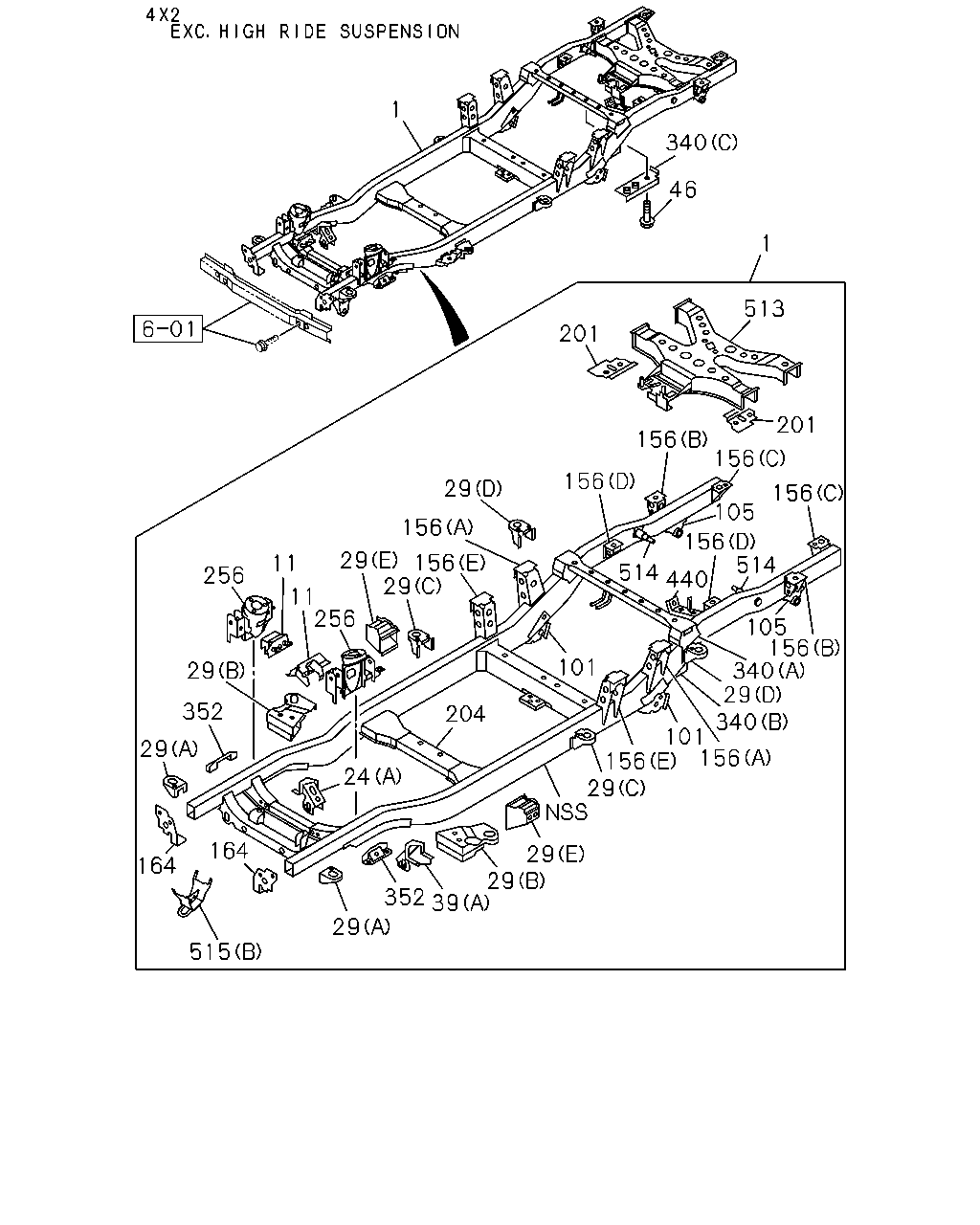

EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98123-658-0 |
01 |
1 |
0810-1211 |
|
● |
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0)
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5
SPEED(M75),M/T MUA 5 SPEED 5G(RSP)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98123-658-0 |
01 |
1 |
1212- |
|
● |
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0),
4JK1-TCX ENG(LR0)
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5
SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T
MUA 5 SPEED 5S(RSQ)
HIGH RIDE SUSPENSION(7YC)
|
8-98123-663-0 |
01 |
1 |
0810-1003 |
|
|
● |
|
|
|
|
| |
1 |
07.003 FRAME ASM
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0),
4JK1-TCX ENG(LR0)
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5
SPEED(M75),M/T MUA 5 SPEED 5G(RSP)
HIGH RIDE SUSPENSION(7YC)
|
8-98123-663-0 |
01 |
1 |
1004-1007 |
|
|
● |
|
|
|
|
| |
1 |
07.003 FRAME ASM
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0),
4JK1-TCX ENG(LR0)
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5
SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T
MUA 5 SPEED 5S(RSQ)
HIGH RIDE SUSPENSION(7YC)
|
8-98123-663-0 |
01 |
1 |
1008- |
|
|
● |
|
|
|
|
| |
1 |
07.003 FRAME ASM
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0),
4JK1-TCX ENG(LR0)
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5
SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T
MUA 5 SPEED 5S(RSQ)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98123-657-0 |
01 |
1 |
0810-1003 |
|
|
● |
|
|
|
|
| |
1 |
07.003 FRAME ASM
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0),
4JK1-TCX ENG(LR0)
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5
SPEED(M75),M/T MUA 5 SPEED 5G(RSP)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98123-657-0 |
01 |
1 |
1004-1007 |
|
|
● |
|
|
|
|
| |
1 |
07.003 FRAME ASM
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0),
4JK1-TCX ENG(LR0)
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5
SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T
MUA 5 SPEED 5S(RSQ)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98123-657-0 |
01 |
1 |
1008- |
|
|
● |
|
|
|
|
| |
1 |
07.003 FRAME ASM
C24SE ENG(LG1)
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5
SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T
MUA 5 SPEED 5S(RSQ)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98123-697-0 |
01 |
1 |
0810-1003 |
|
|
● |
|
|
|
|
| |
1 |
07.003 FRAME ASM
C24SE ENG(LG1)
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5
SPEED(M75),M/T MUA 5 SPEED 5G(RSP)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98123-697-0 |
01 |
1 |
1004-1007 |
|
|
● |
|
|
|
|
| |
1 |
07.003 FRAME ASM
C24SE ENG(LG1)
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5
SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T
MUA 5 SPEED 5S(RSQ)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98123-697-0 |
01 |
1 |
1008- |
|
|
● |
|
|
|
|
| |
1 |
07.003 FRAME ASM
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0),
4JK1-TCX ENG(LR0)
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5
SPEED(M75),M/T MUA 5 SPEED 5G(RSP)
HIGH RIDE SUSPENSION(7YC)
|
8-98123-665-0 |
01 |
1 |
0810-1007 |
|
|
|
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ),
4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5
SPEED(M75),M/T MUA 5 SPEED 5G(RSP)
HIGH RIDE SUSPENSION(7YC)
|
8-98123-665-0 |
01 |
1 |
1008- |
|
|
|
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0),
4JK1-TCX ENG(LR0)
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5
SPEED(M75),M/T MUA 5 SPEED 5G(RSP)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98123-659-0 |
01 |
1 |
0810-1007 |
|
|
|
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ),
4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5
SPEED(M75),M/T MUA 5 SPEED 5G(RSP)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98123-659-0 |
01 |
1 |
1008- |
|
|
|
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0),
4JK1-TCX ENG(LR0)
A/T 4 SPEED-JATCO(RMK)
HIGH RIDE SUSPENSION(7YC)
|
8-98123-666-0 |
01 |
1 |
0810-1007 |
|
|
|
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ),
4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)
A/T 4 SPEED-JATCO(RMK)
HIGH RIDE SUSPENSION(7YC)
|
8-98123-666-0 |
01 |
1 |
1008- |
|
|
|
● |
|
|
|
| |
1 |
07.003 FRAME ASM
C24SE ENG(LG1)
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5
SPEED(M75),M/T MUA 5 SPEED 5G(RSP)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98123-698-0 |
01 |
1 |
0810- |
|
|
|
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4X4 EXTEND CAB LONG(TFS*CF)
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0)
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5
SPEED 5G(RSP)
|
8-98123-670-0 |
01 |
1 |
0810- |
|
|
|
|
● |
|
|
| |
1 |
07.003 FRAME ASM
4X4 REGULAR CAB LONG(TFS*SF)
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0),
4JK1-TCX ENG(LR0)
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5
SPEED 5G(RSP)
|
8-98123-669-0 |
01 |
1 |
0810- |
|
|
|
|
|
● |
|
| |
1 |
07.003 FRAME ASM
4X4 REGULAR CAB LONG(TFS*SF)
C24SE ENG(LG1)
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5
SPEED 5G(RSP)
|
8-98123-707-0 |
01 |
1 |
0810- |
|
|
|
|
|
● |
|
| |
1 |
07.003 FRAME ASM
4X4 CREW CAB LONG(TFS*WF)
C24SE ENG(LG1)
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5
SPEED 5G(RSP)
|
8-98123-708-0 |
01 |
1 |
0810-1003 |
● |
|
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4X4 CREW CAB LONG(TFS*WF)
C24SE ENG(LG1)
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5
SPEED 5G(RSP)
EXC. COUNTRY SUSPENSION(V5W)
|
8-98123-708-0 |
01 |
1 |
1004- |
● |
|
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
CREW CAB EXTRA LONG(TF**WK)
4JJ1-TCX ENG(LS0)
M/T MUX 5 SPEED 5S(MZJ)
|
8-98116-496-0 |
01 |
1 |
0808-0808 |
● |
|
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
CREW CAB EXTRA LONG(TF**WK)
4JJ1-TCX ENG(LS0)
M/T MUX 5 SPEED 5S(MZJ)
|
8-98123-696-0 |
01 |
1 |
0809- |
● |
|
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4JJ1-TCX ENG(LS0)
M/T MUX 5 SPEED 5S(MZJ)
|
8-97944-534-0 |
01 |
1 |
0808-0808 |
|
|
|
|
|
|
● |
| |
1 |
07.003 FRAME ASM
4JJ1-TCX ENG(LS0)
M/T MUX 5 SPEED 5S(MZJ)
|
8-98123-692-0 |
01 |
1 |
0809- |
|
|
|
|
|
|
● |
| |
1 |
07.003 FRAME ASM
4JJ1-TCX ENG(LS0)
M/T MUX 5 SPEED 5S(MZJ)
HIGH RIDE SUSPENSION(7YC)
|
8-97946-293-0 |
01 |
1 |
0808-0808 |
|
|
|
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4JJ1-TCX ENG(LS0)
M/T MUX 5 SPEED 5S(MZJ)
HIGH RIDE SUSPENSION(7YC)
|
8-98123-667-0 |
01 |
1 |
0809- |
|
|
|
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4JJ1-TCX ENG(LS0)
M/T MUX 5 SPEED 5S(MZJ)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97944-530-0 |
01 |
1 |
0808-0808 |
|
|
|
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4JJ1-TCX ENG(LS0)
M/T MUX 5 SPEED 5S(MZJ)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-98123-662-0 |
01 |
1 |
0809- |
|
|
|
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4JJ1-TCX ENG(LS0)
A/T AISIN(RMD)
HIGH RIDE SUSPENSION(7YC)
|
8-97946-294-0 |
01 |
1 |
0808-0808 |
|
|
|
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4JJ1-TCX ENG(LS0)
A/T AISIN(RMD)
HIGH RIDE SUSPENSION(7YC)
|
8-98123-668-0 |
01 |
1 |
0809- |
|
|
|
● |
|
|
|
| |
1 |
07.003 FRAME ASM
4JJ1-TCX ENG(LS0)
|
8-98116-495-0 |
01 |
1 |
0808-0808 |
|
|
|
|
● |
|
|
| |
1 |
07.003 FRAME ASM
EXTEND CAB EXTRA LONG(TF**CK)
4JJ1-TCX ENG(LS0)
M/T MUX 5 SPEED 5S(MZJ)
|
8-98123-695-0 |
01 |
1 |
0809-0910 |
|
|
|
|
● |
|
|
| |
1 |
07.003 FRAME ASM
4JJ1-TCX ENG(LS0)
|
8-98123-695-0 |
01 |
1 |
0911- |
|
|
|
|
● |
|
|
| |
1 |
07.003 FRAME ASM
4X4 REGULAR CAB EXTRA LONG(TFS*SK)
4JJ1-TCX ENG(LS0)
M/T MUX 5 SPEED 5S(MZJ)
|
8-98116-494-0 |
01 |
1 |
0808-0808 |
|
|
|
|
|
● |
|
| |
1 |
07.003 FRAME ASM
4X4 REGULAR CAB EXTRA LONG(TFS*SK)
4JJ1-TCX ENG(LS0)
M/T MUX 5 SPEED 5S(MZJ)
|
8-98123-694-0 |
01 |
1 |
0809- |
|
|
|
|
|
● |
|
| |
1 |
07.003 FRAME ASM
4X4 CREW CAB LONG(TFS*WF)
4JJ1-TCX ENG(LS0)
M/T MUX 5 SPEED 5S(MZJ)
|
8-98116-493-0 |
01 |
1 |
0808-0808 |
● |
|
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4X4 CREW CAB LONG(TFS*WF)
4JJ1-TCX ENG(LS0)
M/T MUX 5 SPEED 5S(MZJ)
|
8-98123-671-0 |
01 |
1 |
0809-0809 |
● |
|
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4X4 CREW CAB LONG(TFS*WF)
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0),
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5
SPEED 5G(RSP)
|
8-98123-671-0 |
01 |
1 |
0810-1003 |
● |
|
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4X4 CREW CAB LONG(TFS*WF)
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0)
M/T MUX 5 SPEED 5S(MZJ)
|
8-98123-671-0 |
01 |
1 |
0810-1003 |
● |
|
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4X4 CREW CAB LONG(TFS*WF)
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0),
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5
SPEED 5G(RSP)
EXC. COUNTRY SUSPENSION(V5W)
|
8-98123-671-0 |
01 |
1 |
1004-1007 |
● |
|
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4X4 CREW CAB LONG(TFS*WF)
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0)
M/T MUX 5 SPEED 5S(MZJ)
EXC. COUNTRY SUSPENSION(V5W)
|
8-98123-671-0 |
01 |
1 |
1004-1007 |
● |
|
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4X4 CREW CAB LONG(TFS*WF)
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ),
4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),
4JJ1-TCX ENG(LS0)
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5
SPEED 5G(RSP)
EXC. COUNTRY SUSPENSION(V5W)
|
8-98123-671-0 |
01 |
1 |
1008- |
● |
|
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4X4 CREW CAB LONG(TFS*WF)
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0)
M/T MUX 5 SPEED 5S(MZJ)
EXC. COUNTRY SUSPENSION(V5W)
|
8-98123-671-0 |
01 |
1 |
1008- |
● |
|
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4JJ1-TCX ENG(LS0)
A/T AISIN(RMD)
|
8-98116-484-0 |
01 |
1 |
0808-0808 |
● |
|
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4JJ1-TCX ENG(LS0)
A/T AISIN(RMD)
|
8-98123-672-0 |
01 |
1 |
0809-0809 |
● |
|
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0)
A/T AISIN(RMD),A/T 4
SPEED-JATCO(RMK)
|
8-98123-672-0 |
01 |
1 |
0810-1003 |
● |
|
|
|
|
|
|
| |
1 |
07.003 FRAME ASM
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0)
A/T AISIN(RMD),A/T 4
SPEED-JATCO(RMK)
EXC. COUNTRY SUSPENSION(V5W)
|
8-98123-672-0 |
01 |
1 |
1004- |
● |
|
|
|
|
|
|
| |
5 |
07.010 MEMBER; CROSS,SUSPENSION
4JJ1-TCX ENG(LS0)
HIGH RIDE SUSPENSION(7YC)
|
8-97942-423-3 |
01 |
1 |
0808-0809 |
|
|
|
● |
|
|
|
| |
5 |
07.010 MEMBER; CROSS,SUSPENSION
HIGH RIDE SUSPENSION(7YC)
|
8-97942-423-3 |
01 |
1 |
0810- |
|
● |
● |
● |
|
|
|
| |
5 |
07.010 MEMBER; CROSS,SUSPENSION
C24SE ENG(LG1)
|
8-97942-423-3 |
01 |
1 |
0810- |
● |
|
|
|
|
● |
|
| |
5 |
07.010 MEMBER; CROSS,SUSPENSION
4JJ1-TCX ENG(LS0)
|
8-98116-196-0 |
01 |
1 |
0808-0809 |
● |
|
|
|
● |
● |
|
| |
5 |
07.010 MEMBER; CROSS,SUSPENSION
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0),
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)
|
8-98116-196-0 |
01 |
1 |
0810-1007 |
● |
|
|
|
● |
● |
|
| |
5 |
07.010 MEMBER; CROSS,SUSPENSION
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ),
4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),
4JJ1-TCX ENG(LS0)
|
8-98116-196-0 |
01 |
1 |
1008- |
● |
|
|
|
● |
● |
|
| |
11 |
00.029 BRACKET; ENG MTG
C24SE ENG(LG1)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97941-776-3 |
01 |
1 |
0810- |
|
|
● |
● |
|
|
|
| |
11 |
00.029 BRACKET; ENG MTG
C24SE ENG(LG1)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97941-782-3 |
01 |
1 |
0810- |
|
|
● |
● |
|
|
|
| |
11 |
00.029 BRACKET; ENG MTG
C24SE ENG(LG1)
|
8-97941-777-3 |
01 |
1 |
0810- |
● |
|
|
|
|
● |
|
| |
11 |
00.029 BRACKET; ENG MTG
C24SE ENG(LG1)
|
8-97941-783-3 |
01 |
1 |
0810- |
● |
|
|
|
|
● |
|
| |
11 |
00.029 BRACKET; ENG MTG
4JJ1-TCX ENG(LS0)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97942-714-2 |
01 |
1 |
0808-0809 |
|
|
|
● |
|
|
● |
| |
11 |
00.029 BRACKET; ENG MTG
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0),
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97942-714-2 |
01 |
1 |
0810-1007 |
|
● |
● |
● |
|
|
● |
| |
11 |
00.029 BRACKET; ENG MTG
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ),
4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),
4JJ1-TCX ENG(LS0)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97942-714-2 |
01 |
1 |
1008- |
|
● |
● |
● |
|
|
● |
| |
11 |
00.029 BRACKET; ENG MTG
4JJ1-TCX ENG(LS0)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97942-715-2 |
01 |
1 |
0808-0809 |
|
|
|
● |
|
|
● |
| |
11 |
00.029 BRACKET; ENG MTG
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0),
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97942-715-2 |
01 |
1 |
0810-1007 |
|
● |
● |
● |
|
|
● |
| |
11 |
00.029 BRACKET; ENG MTG
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ),
4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),
4JJ1-TCX ENG(LS0)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97942-715-2 |
01 |
1 |
1008- |
|
● |
● |
● |
|
|
● |
| |
11 |
00.029 BRACKET; ENG MTG
4JJ1-TCX ENG(LS0)
HIGH RIDE SUSPENSION(7YC)
|
8-97942-345-4 |
01 |
1 |
0808-0809 |
|
|
|
● |
|
|
|
| |
11 |
00.029 BRACKET; ENG MTG
4JJ1-TCX ENG(LS0)
|
8-97942-345-4 |
01 |
1 |
0808-0809 |
● |
|
|
|
● |
● |
|
| |
11 |
00.029 BRACKET; ENG MTG
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0),
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)
HIGH RIDE SUSPENSION(7YC)
|
8-97942-345-4 |
01 |
1 |
0810-1007 |
|
● |
● |
● |
|
|
|
| |
11 |
00.029 BRACKET; ENG MTG
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0),
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)
|
8-97942-345-4 |
01 |
1 |
0810-1007 |
● |
|
|
|
● |
● |
|
| |
11 |
00.029 BRACKET; ENG MTG
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ),
4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),
4JJ1-TCX ENG(LS0)
HIGH RIDE SUSPENSION(7YC)
|
8-97942-345-4 |
01 |
1 |
1008- |
|
● |
● |
● |
|
|
|
| |
11 |
00.029 BRACKET; ENG MTG
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ),
4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),
4JJ1-TCX ENG(LS0)
|
8-97942-345-4 |
01 |
1 |
1008- |
● |
|
|
|
● |
● |
|
| |
11 |
00.029 BRACKET; ENG MTG
4JJ1-TCX ENG(LS0)
HIGH RIDE SUSPENSION(7YC)
|
8-97943-947-0 |
01 |
1 |
0808-0809 |
|
|
|
● |
|
|
|
| |
11 |
00.029 BRACKET; ENG MTG
4JJ1-TCX ENG(LS0)
|
8-97943-947-0 |
01 |
1 |
0808-0809 |
● |
|
|
|
● |
● |
|
| |
11 |
00.029 BRACKET; ENG MTG
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0),
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)
HIGH RIDE SUSPENSION(7YC)
|
8-97943-947-0 |
01 |
1 |
0810-1007 |
|
● |
● |
● |
|
|
|
| |
11 |
00.029 BRACKET; ENG MTG
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0),
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)
|
8-97943-947-0 |
01 |
1 |
0810-1007 |
● |
|
|
|
● |
● |
|
| |
11 |
00.029 BRACKET; ENG MTG
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ),
4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),
4JJ1-TCX ENG(LS0)
HIGH RIDE SUSPENSION(7YC)
|
8-97943-947-0 |
01 |
1 |
1008- |
|
● |
● |
● |
|
|
|
| |
11 |
00.029 BRACKET; ENG MTG
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ),
4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),
4JJ1-TCX ENG(LS0)
|
8-97943-947-0 |
01 |
1 |
1008- |
● |
|
|
|
● |
● |
|
| |
24 |
07.105 BRACKET; FRT SPR,FRT
4JJ1-TCX ENG(LS0)
EXC. HIGH RIDE SUSPENSION(7YC)
(A)
|
8-97942-354-4 |
01 |
1 |
0808-0809 |
|
|
|
● |
|
|
● |
| |
24 |
07.105 BRACKET; FRT SPR,FRT
EXC. HIGH RIDE SUSPENSION(7YC)
(A)
|
8-97942-354-4 |
01 |
1 |
0810- |
|
● |
● |
● |
|
|
● |
| |
24 |
07.105 BRACKET; FRT SPR,FRT
4JJ1-TCX ENG(LS0)
HIGH RIDE SUSPENSION(7YC)
(B)
|
8-97946-328-0 |
01 |
1 |
0808-0809 |
|
|
|
● |
|
|
|
| |
24 |
07.105 BRACKET; FRT SPR,FRT
HIGH RIDE SUSPENSION(7YC)
(B)
|
8-97946-328-0 |
01 |
1 |
0810- |
|
● |
● |
● |
|
|
|
| |
24 |
07.105 BRACKET; FRT SPR,FRT
4JJ1-TCX ENG(LS0)
HIGH RIDE SUSPENSION(7YC)
(C)
|
8-97942-356-3 |
01 |
1 |
0808-0809 |
|
|
|
● |
|
|
|
| |
24 |
07.105 BRACKET; FRT SPR,FRT
4JJ1-TCX ENG(LS0)
(C)
|
8-97942-356-3 |
01 |
1 |
0808-0809 |
● |
|
|
|
● |
● |
|
| |
24 |
07.105 BRACKET; FRT SPR,FRT
HIGH RIDE SUSPENSION(7YC)
(C)
|
8-97942-356-3 |
01 |
1 |
0810-1003 |
|
● |
● |
● |
|
|
|
| |
24 |
07.105 BRACKET; FRT SPR,FRT
(C)
|
8-97942-356-3 |
01 |
1 |
0810-1003 |
● |
|
|
|
● |
● |
|
| |
24 |
07.105 BRACKET; FRT SPR,FRT
HIGH RIDE SUSPENSION(7YC)
(C)
|
8-97942-356-3 |
01 |
1 |
1004-1005 |
|
● |
● |
● |
|
|
|
| |
24 |
07.105 BRACKET; FRT SPR,FRT
EXC. COUNTRY SUSPENSION(V5W)
(C)
|
8-97942-356-3 |
01 |
1 |
1004-1005 |
● |
|
|
|
● |
● |
|
| |
24 |
07.105 BRACKET; FRT SPR,FRT
HIGH RIDE SUSPENSION(7YC)
(C)
|
8-97942-356-3 |
01 |
1 |
1006- |
|
● |
● |
● |
|
|
|
| |
24 |
07.105 BRACKET; FRT SPR,FRT
(C)
|
8-97942-356-3 |
01 |
1 |
1006- |
● |
|
|
|
● |
● |
|
| |
24 |
07.105 BRACKET; FRT SPR,FRT
4JJ1-TCX ENG(LS0)
(B)
|
8-97942-352-2 |
01 |
1 |
0808-0809 |
● |
|
|
|
● |
● |
|
| |
24 |
07.105 BRACKET; FRT SPR,FRT
(B)
|
8-97942-352-2 |
01 |
1 |
0810- |
● |
|
|
|
● |
● |
|
| |
29 |
07.330 BRACKET; CAB MTG
CREW CAB EXTRA LONG(TF**WK)
4JJ1-TCX ENG(LS0)
M/T MUX 5 SPEED 5S(MZJ)
(F)
|
8-97942-773-0 |
01 |
1 |
0808- |
● |
|
|
|
|
|
|
| |
29 |
07.330 BRACKET; CAB MTG
CREW CAB EXTRA LONG(TF**WK)
4JJ1-TCX ENG(LS0)
M/T MUX 5 SPEED 5S(MZJ)
(F)
|
8-97942-774-0 |
01 |
1 |
0808- |
● |
|
|
|
|
|
|
| |
29 |
07.330 BRACKET; CAB MTG
(B)
|
8-97941-772-2 |
01 |
1 |
0808-0809 |
● |
|
|
● |
● |
● |
● |
| |
29 |
07.330 BRACKET; CAB MTG
(B)
|
8-97941-772-2 |
01 |
1 |
0810- |
● |
● |
● |
● |
● |
● |
● |
| |
29 |
07.330 BRACKET; CAB MTG
(B)
|
8-97941-773-2 |
01 |
1 |
0808-0809 |
● |
|
|
● |
● |
● |
● |
| |
29 |
07.330 BRACKET; CAB MTG
(B)
|
8-97941-773-2 |
01 |
1 |
0810- |
● |
● |
● |
● |
● |
● |
● |
| |
29 |
07.330 BRACKET; CAB MTG
(E)
|
8-97941-859-2 |
02 |
1 |
0808-0809 |
● |
|
|
● |
● |
● |
● |
| |
29 |
07.330 BRACKET; CAB MTG
(E)
|
8-97941-859-2 |
02 |
1 |
0810- |
● |
● |
● |
● |
● |
● |
● |
| |
29 |
07.330 BRACKET; CAB MTG
(A)
|
8-97942-341-3 |
02 |
1 |
0808-0809 |
● |
|
|
● |
● |
● |
● |
| |
29 |
07.330 BRACKET; CAB MTG
(A)
|
8-97942-341-3 |
02 |
1 |
0810- |
● |
● |
● |
● |
● |
● |
● |
| |
29 |
07.330 BRACKET; CAB MTG
4JJ1-TCX ENG(LS0)
(C)
|
8-97944-956-0 |
02 |
1 |
0808-0809 |
● |
|
|
● |
|
● |
● |
| |
29 |
07.330 BRACKET; CAB MTG
(C)
|
8-97944-956-0 |
02 |
1 |
0810- |
● |
|
● |
● |
|
● |
● |
| |
29 |
07.330 BRACKET; CAB MTG
4JJ1-TCX ENG(LS0)
(D)
|
8-97942-382-4 |
01 |
1 |
0808-0809 |
|
|
|
● |
|
|
|
| |
29 |
07.330 BRACKET; CAB MTG
4X4 CREW CAB LONG(TFS*WF)
4JJ1-TCX ENG(LS0)
(D)
|
8-97942-382-4 |
01 |
1 |
0808-0809 |
● |
|
|
|
|
|
|
| |
29 |
07.330 BRACKET; CAB MTG
(D)
|
8-97942-382-4 |
01 |
1 |
0810- |
|
|
|
● |
|
|
|
| |
29 |
07.330 BRACKET; CAB MTG
4X4 CREW CAB LONG(TFS*WF)
(D)
|
8-97942-382-4 |
01 |
1 |
0810- |
● |
|
|
|
|
|
|
| |
29 |
07.330 BRACKET; CAB MTG
4JJ1-TCX ENG(LS0)
(D)
|
8-97942-383-3 |
01 |
1 |
0808-0809 |
|
|
|
● |
|
|
|
| |
29 |
07.330 BRACKET; CAB MTG
4X4 CREW CAB LONG(TFS*WF)
4JJ1-TCX ENG(LS0)
(D)
|
8-97942-383-3 |
01 |
1 |
0808-0809 |
● |
|
|
|
|
|
|
| |
29 |
07.330 BRACKET; CAB MTG
(D)
|
8-97942-383-3 |
01 |
1 |
0810- |
|
|
|
● |
|
|
|
| |
29 |
07.330 BRACKET; CAB MTG
4X4 CREW CAB LONG(TFS*WF)
(D)
|
8-97942-383-3 |
01 |
1 |
0810- |
● |
|
|
|
|
|
|
| |
29 |
07.330 BRACKET; CAB MTG
4JJ1-TCX ENG(LS0)
(C)
|
8-97944-955-0 |
02 |
1 |
0808-0809 |
|
|
|
|
● |
|
|
| |
29 |
07.330 BRACKET; CAB MTG
(C)
|
8-97944-955-0 |
02 |
1 |
0810- |
|
● |
|
|
● |
|
|
| |
39 |
07.112 BRACKET; FRT SPR,RR
4JJ1-TCX ENG(LS0)
EXC. HIGH RIDE SUSPENSION(7YC)
(A)
|
8-97942-355-4 |
01 |
1 |
0808-0809 |
|
|
|
● |
|
|
● |
| |
39 |
07.112 BRACKET; FRT SPR,RR
EXC. HIGH RIDE SUSPENSION(7YC)
(A)
|
8-97942-355-4 |
01 |
1 |
0810- |
|
● |
● |
● |
|
|
● |
| |
39 |
07.112 BRACKET; FRT SPR,RR
4JJ1-TCX ENG(LS0)
HIGH RIDE SUSPENSION(7YC)
(B)
|
8-97946-329-0 |
01 |
1 |
0808-0809 |
|
|
|
● |
|
|
|
| |
39 |
07.112 BRACKET; FRT SPR,RR
HIGH RIDE SUSPENSION(7YC)
(B)
|
8-97946-329-0 |
01 |
1 |
0810- |
|
● |
● |
● |
|
|
|
| |
39 |
07.112 BRACKET; FRT SPR,RR
4JJ1-TCX ENG(LS0)
HIGH RIDE SUSPENSION(7YC)
(C)
|
8-97942-357-3 |
01 |
1 |
0808-0809 |
|
|
|
● |
|
|
|
| |
39 |
07.112 BRACKET; FRT SPR,RR
4JJ1-TCX ENG(LS0)
(C)
|
8-97942-357-3 |
01 |
1 |
0808-0809 |
● |
|
|
|
● |
● |
|
| |
39 |
07.112 BRACKET; FRT SPR,RR
HIGH RIDE SUSPENSION(7YC)
(C)
|
8-97942-357-3 |
01 |
1 |
0810-1003 |
|
● |
● |
● |
|
|
|
| |
39 |
07.112 BRACKET; FRT SPR,RR
(C)
|
8-97942-357-3 |
01 |
1 |
0810-1003 |
● |
|
|
|
● |
● |
|
| |
39 |
07.112 BRACKET; FRT SPR,RR
HIGH RIDE SUSPENSION(7YC)
(C)
|
8-97942-357-3 |
01 |
1 |
1004-1005 |
|
● |
● |
● |
|
|
|
| |
39 |
07.112 BRACKET; FRT SPR,RR
EXC. COUNTRY SUSPENSION(V5W)
(C)
|
8-97942-357-3 |
01 |
1 |
1004-1005 |
● |
|
|
|
● |
● |
|
| |
39 |
07.112 BRACKET; FRT SPR,RR
HIGH RIDE SUSPENSION(7YC)
(C)
|
8-97942-357-3 |
01 |
1 |
1006- |
|
● |
● |
● |
|
|
|
| |
39 |
07.112 BRACKET; FRT SPR,RR
(C)
|
8-97942-357-3 |
01 |
1 |
1006- |
● |
|
|
|
● |
● |
|
| |
39 |
07.112 BRACKET; FRT SPR,RR
4JJ1-TCX ENG(LS0)
(B)
|
8-97942-353-2 |
01 |
1 |
0808-0809 |
● |
|
|
|
● |
● |
|
| |
39 |
07.112 BRACKET; FRT SPR,RR
(B)
|
8-97942-353-2 |
01 |
1 |
0810- |
● |
|
|
|
● |
● |
|
| |
46 |
07.428 BOLT; BRKT FIX
M14X30 FLANGE
|
0-28661-430-0 |
01 |
1 |
0808- |
● |
|
|
● |
|
|
|
| |
62 |
05.601 NUT; MBR
4JJ1-TCX ENG(LS0)
HIGH RIDE SUSPENSION(7YC)
04.085
M10 FLANGE
|
0-91180-210-0 |
04 |
1 |
0808-0809 |
|
|
|
● |
|
|
|
| |
62 |
05.601 NUT; MBR
4JJ1-TCX ENG(LS0)
04.085
M10 FLANGE
|
0-91180-210-0 |
04 |
1 |
0808-0809 |
● |
|
|
|
● |
● |
|
| |
62 |
05.601 NUT; MBR
HIGH RIDE SUSPENSION(7YC)
04.085
M10 FLANGE
|
0-91180-210-0 |
04 |
1 |
0810-1003 |
|
● |
● |
● |
|
|
|
| |
62 |
05.601 NUT; MBR
04.085
M10 FLANGE
|
0-91180-210-0 |
04 |
1 |
0810-1003 |
● |
|
|
|
● |
● |
|
| |
62 |
05.601 NUT; MBR
HIGH RIDE SUSPENSION(7YC)
04.085
M10 FLANGE
|
0-91180-210-0 |
04 |
1 |
1004-1005 |
|
● |
● |
● |
|
|
|
| |
62 |
05.601 NUT; MBR
EXC. COUNTRY SUSPENSION(V5W)
04.085
M10 FLANGE
|
0-91180-210-0 |
04 |
1 |
1004-1005 |
● |
|
|
|
● |
● |
|
| |
62 |
05.601 NUT; MBR
HIGH RIDE SUSPENSION(7YC)
04.085
M10 FLANGE
|
0-91180-210-0 |
04 |
1 |
1006- |
|
● |
● |
● |
|
|
|
| |
62 |
05.601 NUT; MBR
04.085
M10 FLANGE
|
0-91180-210-0 |
04 |
1 |
1006- |
● |
|
|
|
● |
● |
|
| |
101 |
07.112 BRACKET; RR SPR,FRT
4JJ1-TCX ENG(LS0)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97942-393-5 |
01 |
1 |
0808-0809 |
|
|
|
● |
|
|
● |
| |
101 |
07.112 BRACKET; RR SPR,FRT
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97942-393-5 |
01 |
1 |
0810- |
|
● |
● |
● |
|
|
● |
| |
101 |
07.112 BRACKET; RR SPR,FRT
4JJ1-TCX ENG(LS0)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97942-394-5 |
01 |
1 |
0808-0809 |
|
|
|
● |
|
|
● |
| |
101 |
07.112 BRACKET; RR SPR,FRT
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97942-394-5 |
01 |
1 |
0810- |
|
● |
● |
● |
|
|
● |
| |
101 |
07.112 BRACKET; RR SPR,FRT
4JJ1-TCX ENG(LS0)
HIGH RIDE SUSPENSION(7YC)
|
8-97942-391-6 |
01 |
1 |
0808-0809 |
|
|
|
● |
|
|
|
| |
101 |
07.112 BRACKET; RR SPR,FRT
4JJ1-TCX ENG(LS0)
|
8-97942-391-6 |
01 |
1 |
0808-0809 |
● |
|
|
|
● |
● |
|
| |
101 |
07.112 BRACKET; RR SPR,FRT
HIGH RIDE SUSPENSION(7YC)
|
8-97942-391-6 |
01 |
1 |
0810-1003 |
|
● |
● |
● |
|
|
|
| |
101 |
07.112 BRACKET; RR SPR,FRT
|
8-97942-391-6 |
01 |
1 |
0810-1003 |
● |
|
|
|
● |
● |
|
| |
101 |
07.112 BRACKET; RR SPR,FRT
HIGH RIDE SUSPENSION(7YC)
|
8-97942-391-6 |
01 |
1 |
1004-1005 |
|
● |
● |
● |
|
|
|
| |
101 |
07.112 BRACKET; RR SPR,FRT
EXC. COUNTRY SUSPENSION(V5W)
|
8-97942-391-6 |
01 |
1 |
1004-1005 |
● |
|
|
|
● |
● |
|
| |
101 |
07.112 BRACKET; RR SPR,FRT
HIGH RIDE SUSPENSION(7YC)
|
8-97942-391-6 |
01 |
1 |
1006- |
|
● |
● |
● |
|
|
|
| |
101 |
07.112 BRACKET; RR SPR,FRT
|
8-97942-391-6 |
01 |
1 |
1006- |
● |
|
|
|
● |
● |
|
| |
101 |
07.112 BRACKET; RR SPR,FRT
4JJ1-TCX ENG(LS0)
HIGH RIDE SUSPENSION(7YC)
|
8-97942-392-6 |
01 |
1 |
0808-0809 |
|
|
|
● |
|
|
|
| |
101 |
07.112 BRACKET; RR SPR,FRT
4JJ1-TCX ENG(LS0)
|
8-97942-392-6 |
01 |
1 |
0808-0809 |
● |
|
|
|
● |
● |
|
| |
101 |
07.112 BRACKET; RR SPR,FRT
HIGH RIDE SUSPENSION(7YC)
|
8-97942-392-6 |
01 |
1 |
0810-1003 |
|
● |
● |
● |
|
|
|
| |
101 |
07.112 BRACKET; RR SPR,FRT
|
8-97942-392-6 |
01 |
1 |
0810-1003 |
● |
|
|
|
● |
● |
|
| |
101 |
07.112 BRACKET; RR SPR,FRT
HIGH RIDE SUSPENSION(7YC)
|
8-97942-392-6 |
01 |
1 |
1004-1005 |
|
● |
● |
● |
|
|
|
| |
101 |
07.112 BRACKET; RR SPR,FRT
EXC. COUNTRY SUSPENSION(V5W)
|
8-97942-392-6 |
01 |
1 |
1004-1005 |
● |
|
|
|
● |
● |
|
| |
101 |
07.112 BRACKET; RR SPR,FRT
HIGH RIDE SUSPENSION(7YC)
|
8-97942-392-6 |
01 |
1 |
1006- |
|
● |
● |
● |
|
|
|
| |
101 |
07.112 BRACKET; RR SPR,FRT
|
8-97942-392-6 |
01 |
1 |
1006- |
● |
|
|
|
● |
● |
|
| |
105 |
07.112 BRACKET; RR SPR,RR
|
8-97942-294-0 |
02 |
1 |
0808-0809 |
● |
|
|
● |
● |
● |
● |
| |
105 |
07.112 BRACKET; RR SPR,RR
|
8-97942-294-0 |
02 |
1 |
0810- |
● |
● |
● |
● |
● |
● |
● |
| |
156 |
07.330 BRACKET; RR BODY MTG
(B)
|
8-97942-388-5 |
02 |
1 |
0808-0809 |
● |
|
|
● |
● |
● |
● |
| |
156 |
07.330 BRACKET; RR BODY MTG
(B)
|
8-97942-388-5 |
02 |
1 |
0810- |
● |
● |
● |
● |
● |
● |
● |
| |
156 |
07.330 BRACKET; RR BODY MTG
(D)
|
8-97942-390-6 |
02 |
1 |
0808-0809 |
● |
|
|
● |
● |
● |
● |
| |
156 |
07.330 BRACKET; RR BODY MTG
(D)
|
8-97942-390-6 |
02 |
1 |
0810- |
● |
● |
● |
● |
● |
● |
● |
| |
156 |
07.330 BRACKET; RR BODY MTG
4JJ1-TCX ENG(LS0)
(A)
|
8-97942-384-4 |
01 |
1 |
0808-0809 |
|
|
|
|
● |
● |
● |
| |
156 |
07.330 BRACKET; RR BODY MTG
(A)
|
8-97942-384-4 |
01 |
1 |
0810- |
|
● |
● |
|
● |
● |
● |
| |
156 |
07.330 BRACKET; RR BODY MTG
4JJ1-TCX ENG(LS0)
(A)
|
8-97942-385-4 |
01 |
1 |
0808-0809 |
|
|
|
|
● |
● |
● |
| |
156 |
07.330 BRACKET; RR BODY MTG
(A)
|
8-97942-385-4 |
01 |
1 |
0810- |
|
● |
● |
|
● |
● |
● |
| |
156 |
07.330 BRACKET; RR BODY MTG
4JJ1-TCX ENG(LS0)
(C)
|
8-97942-389-5 |
02 |
1 |
0808-0809 |
|
|
|
|
● |
● |
● |
| |
156 |
07.330 BRACKET; RR BODY MTG
(C)
|
8-97942-389-5 |
02 |
1 |
0810- |
|
● |
● |
|
● |
● |
● |
| |
156 |
07.330 BRACKET; RR BODY MTG
4JJ1-TCX ENG(LS0)
(E)
|
8-97942-374-3 |
01 |
1 |
0808-0809 |
|
|
|
|
|
● |
● |
| |
156 |
07.330 BRACKET; RR BODY MTG
(E)
|
8-97942-374-3 |
01 |
1 |
0810- |
|
|
● |
|
|
● |
● |
| |
156 |
07.330 BRACKET; RR BODY MTG
4JJ1-TCX ENG(LS0)
(E)
|
8-97942-375-4 |
01 |
1 |
0808-0809 |
|
|
|
|
|
● |
● |
| |
156 |
07.330 BRACKET; RR BODY MTG
(E)
|
8-97942-375-4 |
01 |
1 |
0810- |
|
|
● |
|
|
● |
● |
| |
164 |
07.112 PLATE; FRT
|
8-97942-826-1 |
01 |
1 |
0808-0808 |
● |
|
|
● |
● |
● |
● |
| |
164 |
07.112 PLATE; FRT
|
8-98123-934-0 |
01 |
1 |
0809-0809 |
● |
|
|
● |
● |
● |
● |
| |
164 |
07.112 PLATE; FRT
|
8-98123-934-0 |
01 |
1 |
0810- |
● |
● |
● |
● |
● |
● |
● |
| |
164 |
07.112 PLATE; FRT
|
8-97942-827-1 |
01 |
1 |
0808-0808 |
● |
|
|
● |
● |
● |
● |
| |
164 |
07.112 PLATE; FRT
|
8-98123-935-0 |
01 |
1 |
0809-0809 |
● |
|
|
● |
● |
● |
● |
| |
164 |
07.112 PLATE; FRT
|
8-98123-935-0 |
01 |
1 |
0810- |
● |
● |
● |
● |
● |
● |
● |
| |
201 |
07.039 GUSSET; C/MBR
|
8-97942-405-1 |
01 |
1 |
0808-0809 |
● |
|
|
● |
● |
● |
● |
| |
201 |
07.039 GUSSET; C/MBR
|
8-97942-405-1 |
01 |
1 |
0810- |
● |
● |
● |
● |
● |
● |
● |
| |
201 |
07.039 GUSSET; C/MBR
|
8-97942-406-1 |
01 |
1 |
0808-0809 |
● |
|
|
● |
● |
● |
● |
| |
201 |
07.039 GUSSET; C/MBR
|
8-97942-406-1 |
01 |
1 |
0810- |
● |
● |
● |
● |
● |
● |
● |
| |
204 |
07.010 MEMBER; CROSS,TRANS MTG
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0),
4JK1-TCX ENG(LR0)
HIGH RIDE SUSPENSION(7YC)
|
8-97943-832-0 |
01 |
1 |
0810-1007 |
|
● |
● |
● |
|
|
|
| |
204 |
07.010 MEMBER; CROSS,TRANS MTG
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ),
4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)
HIGH RIDE SUSPENSION(7YC)
|
8-97943-832-0 |
01 |
1 |
1008- |
|
● |
● |
● |
|
|
|
| |
204 |
07.010 MEMBER; CROSS,TRANS MTG
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0),
4JK1-TCX ENG(LR0)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97943-829-0 |
01 |
1 |
0810-1007 |
|
● |
● |
● |
|
|
|
| |
204 |
07.010 MEMBER; CROSS,TRANS MTG
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ),
4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97943-829-0 |
01 |
1 |
1008- |
|
● |
● |
● |
|
|
|
| |
204 |
07.010 MEMBER; CROSS,TRANS MTG
C24SE ENG(LG1)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97941-761-1 |
01 |
1 |
0810- |
|
|
● |
● |
|
|
|
| |
204 |
07.010 MEMBER; CROSS,TRANS MTG
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0),
4JK1-TCX ENG(LR0)
A/T 4 SPEED-JATCO(RMK)
HIGH RIDE SUSPENSION(7YC)
|
8-97943-833-2 |
01 |
1 |
0810-1007 |
|
|
|
● |
|
|
|
| |
204 |
07.010 MEMBER; CROSS,TRANS MTG
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ),
4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)
A/T 4 SPEED-JATCO(RMK)
HIGH RIDE SUSPENSION(7YC)
|
8-97943-833-2 |
01 |
1 |
1008- |
|
|
|
● |
|
|
|
| |
204 |
07.010 MEMBER; CROSS,TRANS MTG
C24SE ENG(LG1)
|
8-97942-659-1 |
01 |
1 |
0810- |
● |
|
|
|
|
● |
|
| |
204 |
07.010 MEMBER; CROSS,TRANS MTG
4JJ1-TCX ENG(LS0)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97944-119-0 |
01 |
1 |
0808- |
|
|
|
● |
|
|
● |
| |
204 |
07.010 MEMBER; CROSS,TRANS MTG
4JJ1-TCX ENG(LS0)
M/T MUX 5 SPEED 5S(MZJ)
HIGH RIDE SUSPENSION(7YC)
|
8-97944-122-2 |
01 |
1 |
0808- |
|
|
|
● |
|
|
|
| |
204 |
07.010 MEMBER; CROSS,TRANS MTG
4JJ1-TCX ENG(LS0)
A/T AISIN(RMD)
HIGH RIDE SUSPENSION(7YC)
|
8-97944-123-2 |
01 |
1 |
0808- |
|
|
|
● |
|
|
|
| |
204 |
07.010 MEMBER; CROSS,TRANS MTG
4JJ1-TCX ENG(LS0)
M/T MUX 5 SPEED 5S(MZJ)
|
8-97943-831-1 |
01 |
1 |
0808-0809 |
● |
|
|
|
● |
● |
|
| |
204 |
07.010 MEMBER; CROSS,TRANS MTG
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0),
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5
SPEED 5S(MZJ),M/T MUA 5 SPEED 5G(RSP)
|
8-97943-831-1 |
01 |
1 |
0810-1007 |
● |
|
|
|
● |
● |
|
| |
204 |
07.010 MEMBER; CROSS,TRANS MTG
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ),
4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),
4JJ1-TCX ENG(LS0)
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5
SPEED 5S(MZJ),M/T MUA 5 SPEED 5G(RSP)
|
8-97943-831-1 |
01 |
1 |
1008- |
● |
|
|
|
● |
● |
|
| |
204 |
07.010 MEMBER; CROSS,TRANS MTG
4JJ1-TCX ENG(LS0)
A/T AISIN(RMD)
|
8-97943-830-0 |
01 |
1 |
0808-0809 |
● |
|
|
|
|
|
|
| |
204 |
07.010 MEMBER; CROSS,TRANS MTG
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0)
A/T AISIN(RMD),A/T 4
SPEED-JATCO(RMK)
|
8-97943-830-0 |
01 |
1 |
0810-1003 |
● |
|
|
|
|
|
|
| |
204 |
07.010 MEMBER; CROSS,TRANS MTG
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0)
A/T AISIN(RMD),A/T 4
SPEED-JATCO(RMK)
EXC. COUNTRY SUSPENSION(V5W)
|
8-97943-830-0 |
01 |
1 |
1004-1005 |
● |
|
|
|
|
|
|
| |
204 |
07.010 MEMBER; CROSS,TRANS MTG
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0)
A/T AISIN(RMD),A/T 4
SPEED-JATCO(RMK)
|
8-97943-830-0 |
01 |
1 |
1006- |
● |
|
|
|
|
|
|
| |
256 |
07.395 BRACKET; S/ABS
COUNTRY SUSPENSION(V5W)
|
8-97944-231-0 |
01 |
1 |
1006- |
● |
|
|
|
|
|
|
| |
256 |
07.395 BRACKET; S/ABS
COUNTRY SUSPENSION(V5W)
|
8-97944-232-0 |
01 |
1 |
1006- |
● |
|
|
|
|
|
|
| |
256 |
07.395 BRACKET; S/ABS
4JJ1-TCX ENG(LS0)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97942-350-2 |
01 |
1 |
0808-0809 |
|
|
|
● |
|
|
● |
| |
256 |
07.395 BRACKET; S/ABS
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97942-350-2 |
01 |
1 |
0810- |
|
● |
● |
● |
|
|
● |
| |
256 |
07.395 BRACKET; S/ABS
4JJ1-TCX ENG(LS0)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97942-351-3 |
01 |
1 |
0808-0809 |
|
|
|
● |
|
|
● |
| |
256 |
07.395 BRACKET; S/ABS
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97942-351-3 |
01 |
1 |
0810- |
|
● |
● |
● |
|
|
● |
| |
256 |
07.395 BRACKET; S/ABS
4JJ1-TCX ENG(LS0)
HIGH RIDE SUSPENSION(7YC)
|
8-97944-313-0 |
01 |
1 |
0808-0809 |
|
|
|
● |
|
|
|
| |
256 |
07.395 BRACKET; S/ABS
4JJ1-TCX ENG(LS0)
|
8-97944-313-0 |
01 |
1 |
0808-0809 |
● |
|
|
|
● |
● |
|
| |
256 |
07.395 BRACKET; S/ABS
HIGH RIDE SUSPENSION(7YC)
|
8-97944-313-0 |
01 |
1 |
0810-1003 |
|
● |
● |
● |
|
|
|
| |
256 |
07.395 BRACKET; S/ABS
|
8-97944-313-0 |
01 |
1 |
0810-1003 |
● |
|
|
|
● |
● |
|
| |
256 |
07.395 BRACKET; S/ABS
HIGH RIDE SUSPENSION(7YC)
|
8-97944-313-0 |
01 |
1 |
1004- |
|
● |
● |
● |
|
|
|
| |
256 |
07.395 BRACKET; S/ABS
EXC. COUNTRY SUSPENSION(V5W)
|
8-97944-313-0 |
01 |
1 |
1004- |
● |
|
|
|
● |
● |
|
| |
256 |
07.395 BRACKET; S/ABS
4JJ1-TCX ENG(LS0)
HIGH RIDE SUSPENSION(7YC)
|
8-97944-314-0 |
01 |
1 |
0808-0809 |
|
|
|
● |
|
|
|
| |
256 |
07.395 BRACKET; S/ABS
4JJ1-TCX ENG(LS0)
|
8-97944-314-0 |
01 |
1 |
0808-0809 |
● |
|
|
|
● |
● |
|
| |
256 |
07.395 BRACKET; S/ABS
HIGH RIDE SUSPENSION(7YC)
|
8-97944-314-0 |
01 |
1 |
0810-1003 |
|
● |
● |
● |
|
|
|
| |
256 |
07.395 BRACKET; S/ABS
|
8-97944-314-0 |
01 |
1 |
0810-1003 |
● |
|
|
|
● |
● |
|
| |
256 |
07.395 BRACKET; S/ABS
HIGH RIDE SUSPENSION(7YC)
|
8-97944-314-0 |
01 |
1 |
1004- |
|
● |
● |
● |
|
|
|
| |
256 |
07.395 BRACKET; S/ABS
EXC. COUNTRY SUSPENSION(V5W)
|
8-97944-314-0 |
01 |
1 |
1004- |
● |
|
|
|
● |
● |
|
| |
338 |
04.085 BOLT; C/MBR,SUSPENSION
4JJ1-TCX ENG(LS0)
HIGH RIDE SUSPENSION(7YC)
M10X80 FLANGE
|
8-97943-909-0 |
04 |
1 |
0808-0809 |
|
|
|
● |
|
|
|
| |
338 |
04.085 BOLT; C/MBR,SUSPENSION
4JJ1-TCX ENG(LS0)
M10X80 FLANGE
|
8-97943-909-0 |
04 |
1 |
0808-0809 |
● |
|
|
|
● |
● |
|
| |
338 |
04.085 BOLT; C/MBR,SUSPENSION
HIGH RIDE SUSPENSION(7YC)
M10X80 FLANGE
|
8-97943-909-0 |
04 |
1 |
0810-1003 |
|
● |
● |
● |
|
|
|
| |
338 |
04.085 BOLT; C/MBR,SUSPENSION
M10X80 FLANGE
|
8-97943-909-0 |
04 |
1 |
0810-1003 |
● |
|
|
|
● |
● |
|
| |
338 |
04.085 BOLT; C/MBR,SUSPENSION
HIGH RIDE SUSPENSION(7YC)
M10X80 FLANGE
|
8-97943-909-0 |
04 |
1 |
1004-1005 |
|
● |
● |
● |
|
|
|
| |
338 |
04.085 BOLT; C/MBR,SUSPENSION
EXC. COUNTRY SUSPENSION(V5W)
M10X80 FLANGE
|
8-97943-909-0 |
04 |
1 |
1004-1005 |
● |
|
|
|
● |
● |
|
| |
338 |
04.085 BOLT; C/MBR,SUSPENSION
HIGH RIDE SUSPENSION(7YC)
M10X80 FLANGE
|
8-97943-909-0 |
04 |
1 |
1006- |
|
● |
● |
● |
|
|
|
| |
338 |
04.085 BOLT; C/MBR,SUSPENSION
M10X80 FLANGE
|
8-97943-909-0 |
04 |
1 |
1006- |
● |
|
|
|
● |
● |
|
| |
340 |
07.039 BRACKET; FUEL TANK
CREW CAB EXTRA LONG(TF**WK)
(C)
|
8-97327-267-0 |
01 |
1 |
0808- |
● |
|
|
|
|
|
|
| |
340 |
07.039 BRACKET; FUEL TANK
(A)
|
8-97942-278-3 |
01 |
1 |
0808-0809 |
● |
|
|
● |
● |
● |
● |
| |
340 |
07.039 BRACKET; FUEL TANK
(A)
|
8-97942-278-3 |
01 |
1 |
0810- |
● |
● |
● |
● |
● |
● |
● |
| |
340 |
07.039 BRACKET; FUEL TANK
(B)
|
8-97942-397-3 |
01 |
1 |
0808-0809 |
● |
|
|
● |
● |
● |
● |
| |
340 |
07.039 BRACKET; FUEL TANK
(B)
|
8-97942-397-3 |
01 |
1 |
0810- |
● |
● |
● |
● |
● |
● |
● |
| |
340 |
07.039 BRACKET; FUEL TANK
(C)
|
8-97327-266-0 |
01 |
1 |
0808- |
|
|
|
● |
|
|
|
| |
340 |
07.039 BRACKET; FUEL TANK
4X4 CREW CAB LONG(TFS*WF)
(C)
|
8-97327-266-0 |
01 |
1 |
0808- |
● |
|
|
|
|
|
|
| |
352 |
07.039 BRACKET; BUMPER RUBBER
4JJ1-TCX ENG(LS0)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97942-362-2 |
02 |
1 |
0808-0809 |
|
|
|
● |
|
|
● |
| |
352 |
07.039 BRACKET; BUMPER RUBBER
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97942-362-2 |
02 |
1 |
0810- |
|
● |
● |
● |
|
|
● |
| |
352 |
07.039 BRACKET; BUMPER RUBBER
4JJ1-TCX ENG(LS0)
HIGH RIDE SUSPENSION(7YC)
|
8-97942-398-3 |
02 |
1 |
0808-0809 |
|
|
|
● |
|
|
|
| |
352 |
07.039 BRACKET; BUMPER RUBBER
4JJ1-TCX ENG(LS0)
|
8-97942-398-3 |
02 |
1 |
0808-0809 |
● |
|
|
|
● |
● |
|
| |
352 |
07.039 BRACKET; BUMPER RUBBER
HIGH RIDE SUSPENSION(7YC)
|
8-97942-398-3 |
02 |
1 |
0810-1003 |
|
● |
● |
● |
|
|
|
| |
352 |
07.039 BRACKET; BUMPER RUBBER
|
8-97942-398-3 |
02 |
1 |
0810-1003 |
● |
|
|
|
● |
● |
|
| |
352 |
07.039 BRACKET; BUMPER RUBBER
HIGH RIDE SUSPENSION(7YC)
|
8-97942-398-3 |
02 |
1 |
1004-1005 |
|
● |
● |
● |
|
|
|
| |
352 |
07.039 BRACKET; BUMPER RUBBER
EXC. COUNTRY SUSPENSION(V5W)
|
8-97942-398-3 |
02 |
1 |
1004-1005 |
● |
|
|
|
● |
● |
|
| |
352 |
07.039 BRACKET; BUMPER RUBBER
HIGH RIDE SUSPENSION(7YC)
|
8-97942-398-3 |
02 |
1 |
1006- |
|
● |
● |
● |
|
|
|
| |
352 |
07.039 BRACKET; BUMPER RUBBER
|
8-97942-398-3 |
02 |
1 |
1006- |
● |
|
|
|
● |
● |
|
| |
440 |
07.039 BRACKET; HOSE
4JJ1-TCX ENG(LS0)
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97942-401-3 |
01 |
1 |
0808-0809 |
|
|
|
● |
|
|
● |
| |
440 |
07.039 BRACKET; HOSE
EXC. HIGH RIDE SUSPENSION(7YC)
|
8-97942-401-3 |
01 |
1 |
0810- |
|
● |
● |
● |
|
|
● |
| |
440 |
07.039 BRACKET; HOSE
4JJ1-TCX ENG(LS0)
HIGH RIDE SUSPENSION(7YC)
|
8-97942-400-3 |
01 |
1 |
0808-0809 |
|
|
|
● |
|
|
|
| |
440 |
07.039 BRACKET; HOSE
4JJ1-TCX ENG(LS0)
|
8-97942-400-3 |
01 |
1 |
0808-0809 |
● |
|
|
|
● |
● |
|
| |
440 |
07.039 BRACKET; HOSE
HIGH RIDE SUSPENSION(7YC)
|
8-97942-400-3 |
01 |
1 |
0810-1003 |
|
● |
● |
● |
|
|
|
| |
440 |
07.039 BRACKET; HOSE
|
8-97942-400-3 |
01 |
1 |
0810-1003 |
● |
|
|
|
● |
● |
|
| |
440 |
07.039 BRACKET; HOSE
HIGH RIDE SUSPENSION(7YC)
|
8-97942-400-3 |
01 |
1 |
1004-1005 |
|
● |
● |
● |
|
|
|
| |
440 |
07.039 BRACKET; HOSE
EXC. COUNTRY SUSPENSION(V5W)
|
8-97942-400-3 |
01 |
1 |
1004-1005 |
● |
|
|
|
● |
● |
|
| |
440 |
07.039 BRACKET; HOSE
HIGH RIDE SUSPENSION(7YC)
|
8-97942-400-3 |
01 |
1 |
1006- |
|
● |
● |
● |
|
|
|
| |
440 |
07.039 BRACKET; HOSE
|
8-97942-400-3 |
01 |
1 |
1006- |
● |
|
|
|
● |
● |
|
| |
486 |
07.012 MEMBER; CROSS,HIGHT CONT BRKT
4JJ1-TCX ENG(LS0)
HIGH RIDE SUSPENSION(7YC)
|
8-97942-371-6 |
01 |
1 |
0808-0809 |
|
|
|
● |
|
|
|
| |
486 |
07.012 MEMBER; CROSS,HIGHT CONT BRKT
4JJ1-TCX ENG(LS0)
|
8-97942-371-6 |
01 |
1 |
0808-0809 |
● |
|
|
|
● |
● |
|
| |
486 |
07.012 MEMBER; CROSS,HIGHT CONT BRKT
HIGH RIDE SUSPENSION(7YC)
|
8-97942-371-6 |
01 |
1 |
0810-1003 |
|
● |
● |
● |
|
|
|
| |
486 |
07.012 MEMBER; CROSS,HIGHT CONT BRKT
|
8-97942-371-6 |
01 |
1 |
0810-1003 |
● |
|
|
|
● |
● |
|
| |
486 |
07.012 MEMBER; CROSS,HIGHT CONT BRKT
HIGH RIDE SUSPENSION(7YC)
|
8-97942-371-6 |
01 |
1 |
1004-1005 |
|
● |
● |
● |
|
|
|
| |
486 |
07.012 MEMBER; CROSS,HIGHT CONT BRKT
EXC. COUNTRY SUSPENSION(V5W)
|
8-97942-371-6 |
01 |
1 |
1004-1005 |
● |
|
|
|
● |
● |
|
| |
486 |
07.012 MEMBER; CROSS,HIGHT CONT BRKT
HIGH RIDE SUSPENSION(7YC)
|
8-97942-371-6 |
01 |
1 |
1006- |
|
● |
● |
● |
|
|
|
| |
486 |
07.012 MEMBER; CROSS,HIGHT CONT BRKT
|
8-97942-371-6 |
01 |
1 |
1006- |
● |
|
|
|
● |
● |
|
| |
513 |
07.012 MEMBER; CROSS,SPEAR TIRE
C24SE ENG(LG1)
|
8-97942-647-9 |
01 |
1 |
0810- |
● |
|
● |
● |
|
● |
|
| |
513 |
07.012 MEMBER; CROSS,SPEAR TIRE
|
8-97942-404-9 |
01 |
1 |
0808-0809 |
● |
|
|
● |
● |
● |
● |
| |
513 |
07.012 MEMBER; CROSS,SPEAR TIRE
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0),
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)
|
8-97942-404-9 |
01 |
1 |
0810-1007 |
● |
● |
● |
● |
● |
● |
● |
| |
513 |
07.012 MEMBER; CROSS,SPEAR TIRE
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ),
4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),
4JJ1-TCX ENG(LS0)
|
8-97942-404-9 |
01 |
1 |
1008- |
● |
● |
● |
● |
● |
● |
● |
| |
514 |
07.388 PIN; S/ABS
|
8-97942-395-1 |
02 |
1 |
0808-0809 |
● |
|
|
● |
● |
● |
● |
| |
514 |
07.388 PIN; S/ABS
|
8-97942-395-1 |
02 |
1 |
0810- |
● |
● |
● |
● |
● |
● |
● |
| |
515 |
07.039 HOOK
4JJ1-TCX ENG(LS0)
EXC. HIGH RIDE SUSPENSION(7YC)
(B)
|
8-97945-308-0 |
01 |
1 |
0808-0809 |
|
|
|
● |
|
|
● |
| |
515 |
07.039 HOOK
EXC. HIGH RIDE SUSPENSION(7YC)
(B)
|
8-97945-308-0 |
01 |
1 |
0810- |
|
● |
● |
● |
|
|
● |
| |
515 |
07.039 HOOK
4JJ1-TCX ENG(LS0)
HIGH RIDE SUSPENSION(7YC)
(A)
|
8-97942-363-1 |
01 |
1 |
0808-0809 |
|
|
|
● |
|
|
|
| |
515 |
07.039 HOOK
4JJ1-TCX ENG(LS0)
(A)
|
8-97942-363-1 |
01 |
1 |
0808-0809 |
● |
|
|
|
● |
● |
|
| |
515 |
07.039 HOOK
HIGH RIDE SUSPENSION(7YC)
(A)
|
8-97942-363-1 |
01 |
1 |
0810-1003 |
|
● |
● |
● |
|
|
|
| |
515 |
07.039 HOOK
(A)
|
8-97942-363-1 |
01 |
1 |
0810-1003 |
● |
|
|
|
● |
● |
|
| |
515 |
07.039 HOOK
HIGH RIDE SUSPENSION(7YC)
(A)
|
8-97942-363-1 |
01 |
1 |
1004-1005 |
|
● |
● |
● |
|
|
|
| |
515 |
07.039 HOOK
EXC. COUNTRY SUSPENSION(V5W)
(A)
|
8-97942-363-1 |
01 |
1 |
1004-1005 |
● |
|
|
|
● |
● |
|
| |
515 |
07.039 HOOK
HIGH RIDE SUSPENSION(7YC)
(A)
|
8-97942-363-1 |
01 |
1 |
1006- |
|
● |
● |
● |
|
|
|
| |
515 |
07.039 HOOK
(A)
|
8-97942-363-1 |
01 |
1 |
1006- |
● |
|
|
|
● |
● |
|
