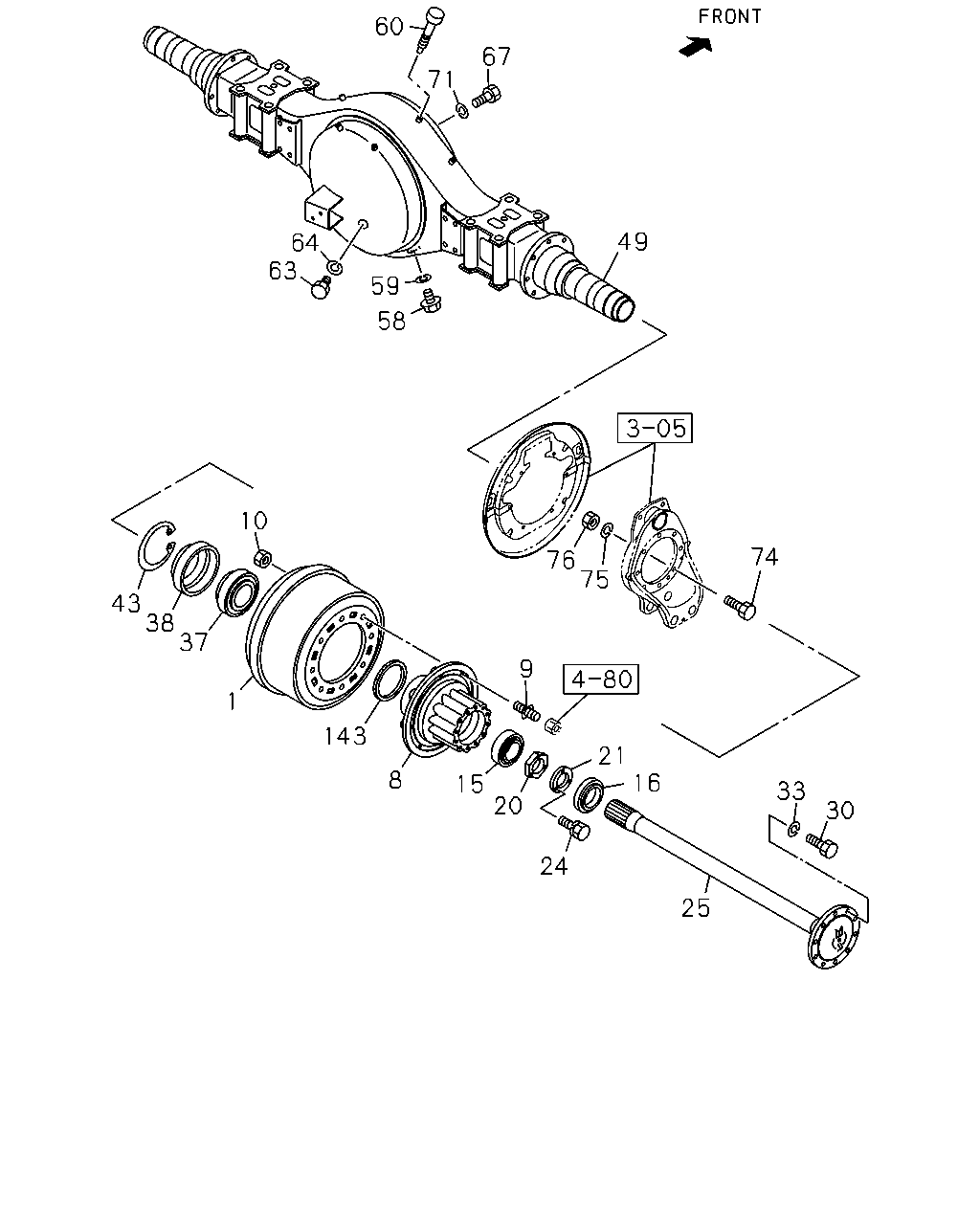

1 |
DRUM; BRK,RR
BRAKE SYSTEM HEAVY DUTY(J55)
|
1-42315-324-0 |
02 |
1 |
9902-9904 |
● |
|
| |
1 |
DRUM; BRK,RR
BRAKE SYSTEM HEAVY DUTY(J55)
EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD
7.50VX20 165-13<Q62>
|
1-42315-324-0 |
02 |
1 |
9905- |
● |
|
| |
1 |
DRUM; BRK,RR
BRAKE SYSTEM HEAVY DUTY(J55)
WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20
165-13<Q62>
|
1-42315-314-2 |
02 |
1 |
9905- |
● |
|
| |
1 |
DRUM; BRK,RR
EXC. BRAKE SYSTEM HEAVY DUTY(J55)
|
1-42315-220-4 |
02 |
1 |
9902-0003 |
● |
|
| |
1 |
DRUM; BRK,RR
EXC. BRAKE SYSTEM HEAVY DUTY(J55)
|
1-42315-220-4 |
02 |
1 |
0004- |
● |
|
| |
1 |
DRUM; BRK,RR
|
1-42315-220-4 |
02 |
1 |
0004- |
|
● |
| |
8 |
HUB; RR AXLE
ANTILOCK BRAKE SYSTEM(BFA)
BRAKE SYSTEM HEAVY DUTY(J55)
WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20
165-13<Q62>
BRAKE SYSTEM RETARDER<RE2>
|
1-42311-105-0 |
02 |
1 |
9905- |
● |
|
| |
8 |
HUB; RR AXLE
ANTILOCK BRAKE SYSTEM(BFA)
BRAKE SYSTEM RETARDER<RE2>
EXC. BRAKE SYSTEM HEAVY DUTY(J55),WHEEL 8.25X22.5
165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62>
|
1-42311-094-0 |
02 |
1 |
9905- |
● |
|
| |
8 |
HUB; RR AXLE
ELECTRONIC GOV RED3(KG5)
GLOW SYSTEM-FAST DIESEL ENGINE<KM6>
ARGENTINE EQUIPMENT(NBQ),TAIWAN EQUIPMENT(WW5)
CORNARING LAMP<TDS>
DELUXE CAB(W14)
|
1-42311-104-0 |
02 |
1 |
9905-9906 |
● |
|
| |
8 |
HUB; RR AXLE
BRAKE SYSTEM HEAVY DUTY(J55)
WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20
165-13<Q62>
EXC. ANTILOCK BRAKE SYSTEM(BFA),INTERNATIONAL
STANDARD ISO 10STUD<B3V>
|
1-42311-104-0 |
02 |
1 |
9907- |
● |
|
| |
8 |
HUB; RR AXLE
INTERNATIONAL STANDARD ISO 10STUD<B3V>
EXC. ANTILOCK BRAKE SYSTEM(BFA),WHEEL 8.25X22.5
165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62>
|
1-42311-085-0 |
02 |
1 |
9902-0003 |
● |
|
| |
8 |
HUB; RR AXLE
INTERNATIONAL STANDARD ISO 10STUD<B3V>
EXC. ANTILOCK BRAKE SYSTEM(BFA),WHEEL 8.25X22.5
165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62>
|
1-42311-085-0 |
02 |
1 |
0004- |
● |
|
| |
8 |
HUB; RR AXLE
|
1-42311-085-0 |
02 |
1 |
0004- |
|
● |
| |
8 |
HUB; RR AXLE
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,BRAKE
SYSTEM HEAVY DUTY(J55),WHEEL 8.25X22.5 165-13<QM6>
,WHEEL 8STUD 7.50VX20 165-13<Q62>
|
1-42331-143-0 |
02 |
1 |
9902- |
● |
|
| |
9 |
PIN; WHEEL,RR AXLE
BRAKE SYSTEM HEAVY DUTY(J55)
DISC WHEEL AL<SDM>
M22X109 RH THREAD
|
1-42337-036-0 |
20 |
1 |
9902-9904 |
● |
|
| |
9 |
PIN; WHEEL,RR AXLE
INTERNATIONAL STANDARD ISO 10STUD<B3V>
BRAKE SYSTEM HEAVY DUTY(J55)
DISC WHEEL AL<SDM>
EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD
7.50VX20 165-13<Q62>
M22X109 RH THREAD
|
1-42337-036-0 |
20 |
1 |
9905- |
● |
|
| |
9 |
PIN; WHEEL,RR AXLE
BRAKE SYSTEM HEAVY DUTY(J55)
EXC. DISC WHEEL AL<SDM>
M22X93 RH THREAD
|
1-42337-030-0 |
20 |
1 |
9902-9904 |
● |
|
| |
9 |
PIN; WHEEL,RR AXLE
BRAKE SYSTEM HEAVY DUTY(J55)
EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD
7.50VX20 165-13<Q62>,DISC WHEEL AL<SDM>
M22X93 RH THREAD
|
1-42337-030-0 |
20 |
1 |
9905- |
● |
|
| |
9 |
PIN; WHEEL,RR AXLE
BRAKE SYSTEM HEAVY DUTY(J55)
WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20
165-13<Q62>
EXC. DISC WHEEL AL<SDM>
M20X34.5,M22X51.5 RH THREAD
|
1-42331-110-0 |
08 |
1 |
9905-0003 |
● |
|
| |
9 |
PIN; WHEEL,RR AXLE
BRAKE SYSTEM HEAVY DUTY(J55)
WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20
165-13<Q62>
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,DISC
WHEEL AL<SDM>
M20X34.5,M22X51.5 RH THREAD
|
1-42331-110-0 |
08 |
1 |
0004- |
● |
|
| |
9 |
PIN; WHEEL,RR AXLE
BRAKE SYSTEM HEAVY DUTY(J55)
WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20
165-13<Q62>
DISC WHEEL AL<SDM>
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>
M20X53.5,M22X51.5 RH THREAD
|
1-42331-119-0 |
08 |
1 |
9905-9906 |
● |
|
| |
9 |
PIN; WHEEL,RR AXLE
BRAKE SYSTEM HEAVY DUTY(J55)
WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20
165-13<Q62>
DISC WHEEL AL<SDM>
M20X53.5,M22X51.5 RH THREAD
|
1-42331-119-0 |
08 |
1 |
9907-0003 |
● |
|
| |
9 |
PIN; WHEEL,RR AXLE
BRAKE SYSTEM HEAVY DUTY(J55)
WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20
165-13<Q62>
DISC WHEEL AL<SDM>
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>
M20X53.5,M22X51.5 RH THREAD
|
1-42331-119-0 |
08 |
1 |
0004- |
● |
|
| |
9 |
PIN; WHEEL,RR AXLE
BRAKE SYSTEM HEAVY DUTY(J55)
WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20
165-13<Q62>
EXC. DISC WHEEL AL<SDM>
M20X34.5 LH THREAD,M22X51.5 RH THREAD
|
1-42332-110-0 |
08 |
1 |
9905-0003 |
● |
|
| |
9 |
PIN; WHEEL,RR AXLE
BRAKE SYSTEM HEAVY DUTY(J55)
WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20
165-13<Q62>
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,DISC
WHEEL AL<SDM>
M20X34.5 LH THREAD,M22X51.5 RH THREAD
|
1-42332-110-0 |
08 |
1 |
0004- |
● |
|
| |
9 |
PIN; WHEEL,RR AXLE
EXC. BRAKE SYSTEM HEAVY DUTY(J55)
M22X57,M22X53.5 RH THREAD
|
1-42337-055-1 |
20 |
1 |
9902-9904 |
● |
|
| |
9 |
PIN; WHEEL,RR AXLE
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,BRAKE
SYSTEM HEAVY DUTY(J55),WHEEL 8.25X22.5 165-13<QM6>
,WHEEL 8STUD 7.50VX20 165-13<Q62>
M22X57,M22X53.5 RH THREAD
|
1-42337-055-1 |
20 |
1 |
9905- |
● |
|
| |
9 |
PIN; WHEEL,RR AXLE
EXC. BRAKE SYSTEM HEAVY DUTY(J55),DISC WHEEL
AL<SDM>
M22X59.8,M22X53.5 RH THREAD
|
1-42337-012-0 |
20 |
1 |
9902-9904 |
● |
|
| |
9 |
PIN; WHEEL,RR AXLE
EXC. BRAKE SYSTEM HEAVY DUTY(J55),WHEEL 8.25X22.5
165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62>,DISC
WHEEL AL<SDM>
M22X59.8,M22X53.5 RH THREAD
|
1-42337-012-0 |
20 |
1 |
9905-0003 |
● |
|
| |
9 |
PIN; WHEEL,RR AXLE
EXC. BRAKE SYSTEM HEAVY DUTY(J55),WHEEL 8.25X22.5
165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62>,DISC
WHEEL AL<SDM>
M22X59.8,M22X53.5 RH THREAD
|
1-42337-012-0 |
20 |
1 |
0004- |
● |
|
| |
9 |
PIN; WHEEL,RR AXLE
M22X59.8,M22X53.5 RH THREAD
|
1-42337-012-0 |
20 |
1 |
0004- |
|
● |
| |
9 |
PIN; WHEEL,RR AXLE
DISC WHEEL AL<SDM>
EXC. BRAKE SYSTEM HEAVY DUTY(J55)
M22X79.8,M22X53.5 RH THREAD
|
1-42337-027-0 |
20 |
1 |
9902-9904 |
● |
|
| |
9 |
PIN; WHEEL,RR AXLE
INTERNATIONAL STANDARD ISO 10STUD<B3V>
DISC WHEEL AL<SDM>
EXC. BRAKE SYSTEM HEAVY DUTY(J55),WHEEL 8.25X22.5
165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62>
M22X79.8,M22X53.5 RH THREAD
|
1-42337-027-0 |
20 |
1 |
9905- |
● |
|
| |
9 |
PIN; WHEEL,RR AXLE
BRAKE SYSTEM HEAVY DUTY(J55)
WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20
165-13<Q62>
DISC WHEEL AL<SDM>
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>
M20X53.5 LH THREAD,M22X51.5 RH THREAD
|
1-42332-119-0 |
08 |
1 |
9905-9906 |
● |
|
| |
9 |
PIN; WHEEL,RR AXLE
BRAKE SYSTEM HEAVY DUTY(J55)
WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20
165-13<Q62>
DISC WHEEL AL<SDM>
M20X53.5 LH THREAD,M22X51.5 RH THREAD
|
1-42332-119-0 |
08 |
1 |
9907-0003 |
● |
|
| |
9 |
PIN; WHEEL,RR AXLE
BRAKE SYSTEM HEAVY DUTY(J55)
WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20
165-13<Q62>
DISC WHEEL AL<SDM>
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>
M20X53.5 LH THREAD,M22X51.5 RH THREAD
|
1-42332-119-0 |
08 |
1 |
0004- |
● |
|
| |
10 |
NUT; WHEEL PIN,RR AXLE
M22
|
1-09400-071-0 |
20 |
1 |
9902-9904 |
● |
|
| |
10 |
NUT; WHEEL PIN,RR AXLE
EXC. BRAKE SYSTEM HEAVY DUTY(J55)
M22
|
1-09400-071-0 |
20 |
1 |
9905-0003 |
● |
|
| |
10 |
NUT; WHEEL PIN,RR AXLE
EXC. BRAKE SYSTEM HEAVY DUTY(J55)
M22
|
1-09400-071-0 |
20 |
1 |
0004- |
● |
|
| |
10 |
NUT; WHEEL PIN,RR AXLE
M22
|
1-09400-071-0 |
20 |
1 |
0004- |
|
● |
| |
10 |
NUT; WHEEL PIN,RR AXLE
BRAKE SYSTEM HEAVY DUTY(J55)
M22 FLANGE
|
1-09440-065-0 |
16 |
1 |
9905- |
● |
|
| |
15 |
BEARING; HUB OUTER,RR AXLE
KOYO
|
1-09812-232-0 |
02 |
1 |
9902-0003 |
● |
|
| |
15 |
BEARING; HUB OUTER,RR AXLE
KOYO
|
1-09812-232-0 |
02 |
1 |
0004- |
● |
● |
| |
16 |
SEAL; OIL,RR HUB,OUTER
NOK
|
1-09625-226-1 |
02 |
1 |
9902-0003 |
● |
|
| |
16 |
SEAL; OIL,RR HUB,OUTER
NOK
|
1-09625-226-1 |
02 |
1 |
0004- |
● |
● |
| |
16 |
SEAL; OIL,RR HUB,OUTER
TKK
|
1-09625-444-0 |
02 |
1 |
9902-0003 |
● |
|
| |
16 |
SEAL; OIL,RR HUB,OUTER
TKK
|
1-09625-444-0 |
02 |
1 |
0004- |
● |
● |
| |
20 |
NUT; BRG,RR HUB
M88
|
9-09843-062-2 |
02 |
1 |
9902-0003 |
● |
|
| |
20 |
NUT; BRG,RR HUB
M88
|
9-09843-062-2 |
02 |
1 |
0004- |
● |
● |
| |
21 |
WASHER; LK,BRG NUT
ID=88
|
9-09854-112-0 |
02 |
1 |
9902-0003 |
● |
|
| |
21 |
WASHER; LK,BRG NUT
ID=88
|
9-09854-112-0 |
02 |
1 |
0004- |
● |
● |
| |
24 |
BOLT; LK WASHER
M6X16 FLANGE
|
0-28680-616-0 |
06 |
1 |
9902-0003 |
● |
|
| |
24 |
BOLT; LK WASHER
M6X16 FLANGE
|
0-28680-616-0 |
06 |
1 |
0004- |
● |
● |
| |
25 |
SHAFT; AXLE,RR
LIMITED SLIP DIFF VAR1(G85)
|
1-42171-390-0 |
01 |
1 |
9902- |
● |
|
| |
25 |
SHAFT; AXLE,RR
LIMITED SLIP DIFF VAR1(G85)
L=1004
|
1-42171-389-0 |
01 |
1 |
9902- |
● |
|
| |
25 |
SHAFT; AXLE,RR
EXC. LIMITED SLIP DIFF VAR1(G85)
L=1054
|
1-42171-355-0 |
02 |
1 |
9902-0003 |
● |
|
| |
25 |
SHAFT; AXLE,RR
EXC. LIMITED SLIP DIFF VAR1(G85)
L=1054
|
1-42171-355-0 |
02 |
1 |
0004- |
● |
|
| |
25 |
SHAFT; AXLE,RR
L=1054
|
1-42171-355-0 |
02 |
1 |
0004- |
|
● |
| |
30 |
BOLT; HUB TO AXLE SHAFT
M14X58
|
1-09000-582-0 |
20 |
1 |
9902-0003 |
● |
|
| |
30 |
BOLT; HUB TO AXLE SHAFT
M14X58
|
1-09000-582-0 |
20 |
1 |
0004- |
● |
● |
| |
33 |
WASHER; AXLE SHAFT
ID=14.2
|
9-09150-814-0 |
20 |
1 |
9902-0003 |
● |
|
| |
33 |
WASHER; AXLE SHAFT
ID=14.2
|
9-09150-814-0 |
20 |
1 |
0004- |
● |
● |
| |
37 |
BEARING; HUB INNER,RR AXLE
KOYO
|
1-09812-233-0 |
02 |
1 |
9902-0003 |
● |
|
| |
37 |
BEARING; HUB INNER,RR AXLE
KOYO
|
1-09812-233-0 |
02 |
1 |
0004- |
● |
● |
| |
38 |
SEAL; OIL,RR HUB,INNER
NOK
|
1-09625-265-0 |
02 |
1 |
9902-0003 |
● |
|
| |
38 |
SEAL; OIL,RR HUB,INNER
NOK
|
1-09625-265-0 |
02 |
1 |
0004- |
● |
● |
| |
38 |
SEAL; OIL,RR HUB,INNER
TKK
|
1-09625-350-0 |
02 |
1 |
9902-0003 |
● |
|
| |
38 |
SEAL; OIL,RR HUB,INNER
TKK
|
1-09625-350-0 |
02 |
1 |
0004- |
● |
● |
| |
43 |
RING; SNAP,HUB SEAL,RR AXLE
OD=179
|
1-09587-057-0 |
02 |
1 |
9902-0003 |
● |
|
| |
43 |
RING; SNAP,HUB SEAL,RR AXLE
OD=179
|
1-09587-057-0 |
02 |
1 |
0004- |
● |
● |
| |
49 |
CASE; RR AXLE
BRAKE SYSTEM HEAVY DUTY(J55)
BRAKE SYSTEM RETARDER<RE2>
|
1-42160-688-2 |
01 |
1 |
9902- |
● |
|
| |
49 |
CASE; RR AXLE
BRAKE SYSTEM HEAVY DUTY(J55)
EXC. BRAKE SYSTEM RETARDER<RE2>
|
1-42160-196-0 |
01 |
1 |
9902- |
● |
|
| |
49 |
CASE; RR AXLE
EXC. BRAKE SYSTEM HEAVY DUTY(J55),BRAKE SYSTEM
RETARDER<RE2>
|
1-42160-149-0 |
01 |
1 |
9902-0003 |
● |
|
| |
49 |
CASE; RR AXLE
EXC. BRAKE SYSTEM HEAVY DUTY(J55),BRAKE SYSTEM
RETARDER<RE2>
|
1-42160-149-0 |
01 |
1 |
0004- |
● |
|
| |
49 |
CASE; RR AXLE
EXC. BRAKE SYSTEM RETARDER<RE2>
|
1-42160-149-0 |
01 |
1 |
0004- |
|
● |
| |
49 |
CASE; RR AXLE
BRAKE SYSTEM RETARDER<RE2>
EXC. BRAKE SYSTEM HEAVY DUTY(J55)
|
1-42160-572-1 |
01 |
1 |
9902-0003 |
● |
|
| |
49 |
CASE; RR AXLE
BRAKE SYSTEM RETARDER<RE2>
EXC. BRAKE SYSTEM HEAVY DUTY(J55)
|
1-42160-572-1 |
01 |
1 |
0004- |
● |
|
| |
49 |
CASE; RR AXLE
BRAKE SYSTEM RETARDER<RE2>
|
1-42160-572-1 |
01 |
1 |
0004- |
|
● |
| |
58 |
PLUG; DRAIN,AXLE CASE
M24X17 FLANGE
|
1-09604-023-0 |
01 |
1 |
9902-0003 |
● |
|
| |
58 |
PLUG; DRAIN,AXLE CASE
M24X17 FLANGE
|
1-09604-023-0 |
01 |
1 |
0004- |
● |
● |
| |
59 |
GASKET; DRAIN PLUG
ID=26.8
|
9-09920-605-0 |
01 |
1 |
9902-0003 |
● |
|
| |
59 |
GASKET; DRAIN PLUG
ID=26.8
|
9-09920-605-0 |
01 |
1 |
0004- |
● |
● |
| |
60 |
BREATHER; RR AXLE CASE
|
1-09893-011-1 |
01 |
1 |
9902-0003 |
● |
|
| |
60 |
BREATHER; RR AXLE CASE
|
1-09893-011-1 |
01 |
1 |
0004- |
● |
● |
| |
63 |
PLUG; OIL FILLER,AXLE CASE
M24X17 FLANGE
|
1-09604-022-0 |
01 |
1 |
9902-0003 |
● |
|
| |
63 |
PLUG; OIL FILLER,AXLE CASE
M24X17 FLANGE
|
1-09604-022-0 |
01 |
1 |
0004- |
● |
● |
| |
64 |
GASKET; OIL FILLER,AXLE CASE
ID=26.8
|
9-09920-605-0 |
01 |
1 |
9902-0003 |
● |
|
| |
64 |
GASKET; OIL FILLER,AXLE CASE
ID=26.8
|
9-09920-605-0 |
01 |
1 |
0004- |
● |
● |
| |
67 |
BOLT; FINAL DRIVE SETTING
M16X70
|
9-91066-670-0 |
04 |
1 |
9902-0003 |
● |
|
| |
67 |
BOLT; FINAL DRIVE SETTING
M16X70
|
9-91066-670-0 |
04 |
1 |
0004- |
● |
● |
| |
67 |
BOLT; FINAL DRIVE SETTING
M16X40
|
9-92061-640-0 |
08 |
1 |
9902-0003 |
● |
|
| |
67 |
BOLT; FINAL DRIVE SETTING
M16X40
|
9-92061-640-0 |
08 |
1 |
0004- |
● |
● |
| |
71 |
WASHER; LK,FINAL DRIVE SETTING
ID=16.2
|
9-09150-816-0 |
12 |
1 |
9902-0003 |
● |
|
| |
71 |
WASHER; LK,FINAL DRIVE SETTING
ID=16.2
|
9-09150-816-0 |
12 |
1 |
0004- |
● |
● |
| |
74 |
BOLT; RR BRK ASM SETTING
BRAKE SYSTEM HEAVY DUTY(J55)
BRAKE SYSTEM RETARDER<RE2>
M14X50
|
1-09040-066-0 |
10 |
1 |
9905-9906 |
● |
|
| |
74 |
BOLT; RR BRK ASM SETTING
ANTILOCK BRAKE SYSTEM(BFA)
BRAKE SYSTEM RETARDER<RE2>
M14X50
|
1-09040-066-0 |
10 |
1 |
9907- |
● |
|
| |
74 |
BOLT; RR BRK ASM SETTING
BRAKE SYSTEM HEAVY DUTY(J55)
BRAKE SYSTEM RETARDER<RE2>
M14X60
|
1-09040-084-0 |
04 |
1 |
9905-9906 |
● |
|
| |
74 |
BOLT; RR BRK ASM SETTING
ANTILOCK BRAKE SYSTEM(BFA)
BRAKE SYSTEM RETARDER<RE2>
M14X60
|
1-09040-084-0 |
04 |
1 |
9907-9909 |
● |
|
| |
74 |
BOLT; RR BRK ASM SETTING
ANTILOCK BRAKE SYSTEM(BFA)
BRAKE SYSTEM RETARDER<RE2>
M14X80
|
9-92621-480-0 |
04 |
1 |
9910- |
● |
|
| |
74 |
BOLT; RR BRK ASM SETTING
EXC. BRAKE SYSTEM HEAVY DUTY(J55)
M14X50
|
1-09040-066-0 |
14 |
1 |
9902-9904 |
● |
|
| |
74 |
BOLT; RR BRK ASM SETTING
EXC. ANTILOCK BRAKE SYSTEM(BFA)
M14X50
|
1-09040-066-0 |
14 |
1 |
9905-0003 |
● |
|
| |
74 |
BOLT; RR BRK ASM SETTING
EXC. ANTILOCK BRAKE SYSTEM(BFA)
M14X50
|
1-09040-066-0 |
14 |
1 |
0004- |
● |
|
| |
74 |
BOLT; RR BRK ASM SETTING
M14X50
|
1-09040-066-0 |
14 |
1 |
0004- |
|
● |
| |
75 |
WASHER; LK,RR BRK ASM SETTING
ID=14.2
|
9-09150-814-0 |
16 |
1 |
9902-0003 |
● |
|
| |
75 |
WASHER; LK,RR BRK ASM SETTING
ID=14.2
|
9-09150-814-0 |
16 |
1 |
0004- |
● |
● |
| |
76 |
NUT; RR BRK ASM SETTING
M14
|
9-99110-514-0 |
16 |
1 |
9902-0003 |
● |
|
| |
76 |
NUT; RR BRK ASM SETTING
M14
|
9-99110-514-0 |
16 |
1 |
0004- |
● |
● |
| |
143 |
RING; EXCITER
ANTILOCK BRAKE SYSTEM(BFA)
|
1-42319-163-0 |
02 |
1 |
9905-9906 |
● |
|
| |
143 |
RING; EXCITER
ANTILOCK BRAKE SYSTEM(BFA)
BRAKE SYSTEM RETARDER<RE2>
|
1-42319-163-0 |
02 |
1 |
9907-0003 |
● |
|
| |
143 |
RING; EXCITER
ANTILOCK BRAKE SYSTEM(BFA)
|
1-42319-163-0 |
02 |
1 |
0004- |
● |
|
