Sayfa 4-65 - Isuzu EPC

4-65 — REAR LEAF SPRING (#77049) — 308 parça

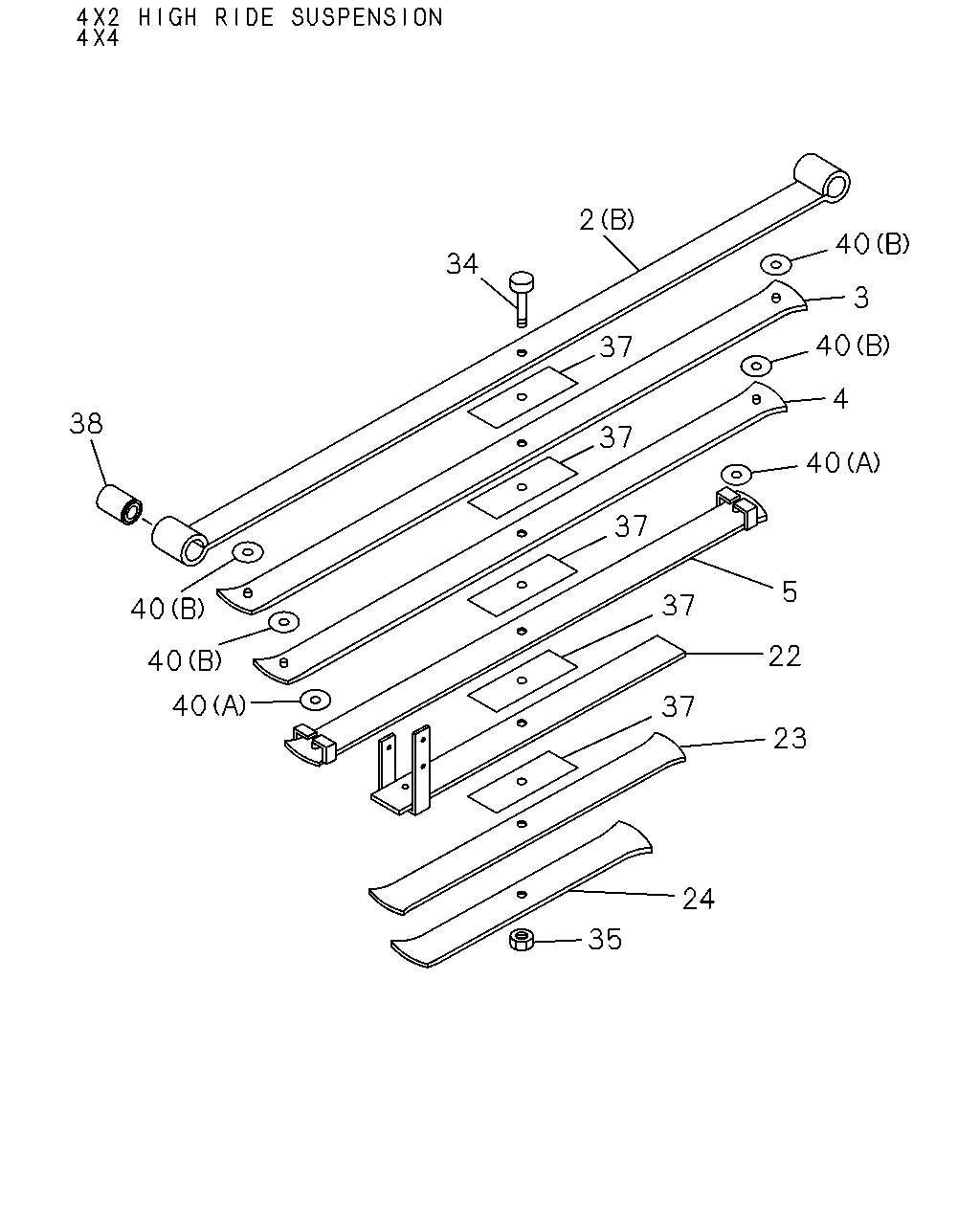

2 40 34 3 40 37 4 38 37 40 37 5 37 40 22 40 40 37 23 24 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	07.505 SPRING; LEAF,NO 1,RR MAIN (D) ASM PART: A = 8-97946-809-0, 97946809	8-97246-604-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN (F) ASM PART: F = 8-97946-820-0, 97946820	8-97361-171-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN (C) ASM PART: G = 8-97946-823-0, 97946823	8-97384-165-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN (F) ASM PART: H = 8-97946-826-0, 97946826	8-97384-175-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN (A) ASM PART: B = 8-97946-810-0, 97946810	8-97385-869-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN (C) ASM PART: D = 8-97946-816-0, 97946816	8-97385-876-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN (E) ASM PART: C = 8-97946-812-0, 97946812	8-97389-235-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN (B) ASM PART: E = 8-97946-818-0, 97946818	8-97389-240-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: A = 8-97946-809-0, 97946809	8-97246-608-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: F = 8-97946-820-0, 97946820	8-97361-172-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: G = 8-97946-823-0, 97946823	8-97384-166-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: H = 8-97946-826-0, 97946826	8-97384-176-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: B = 8-97946-810-0, 97946810	8-97385-870-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: D = 8-97946-816-0, 97946816	8-97385-877-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: C = 8-97946-812-0, 97946812	8-97389-236-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: E = 8-97946-818-0, 97946818	8-97389-241-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: A = 8-97946-809-0, 97946809	8-97246-614-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: F = 8-97946-820-0, 97946820	8-97361-173-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: G = 8-97946-823-0, 97946823	8-97384-167-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: H = 8-97946-826-0, 97946826	8-97384-177-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: B = 8-97946-810-0, 97946810	8-97385-871-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: D = 8-97946-816-0, 97946816	8-97385-878-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: C = 8-97946-812-0, 97946812	8-97389-237-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: E = 8-97946-818-0, 97946818	8-97389-242-0	01	1	-
5	07.505 SPRING; LEAF,NO 4,RR MAIN ASM PART: G = 8-97946-823-0, 97946823	8-97384-168-0	01	1	-
5	07.505 SPRING; LEAF,NO 4,RR MAIN ASM PART: B = 8-97946-810-0, 97946810	8-97385-872-0	01	1	-
5	07.505 SPRING; LEAF,NO 4,RR MAIN ASM PART: D = 8-97946-816-0, 97946816	8-97385-879-0	01	1	-
5	07.505 SPRING; LEAF,NO 4,RR MAIN ASM PART: E = 8-97946-818-0, 97946818	8-97389-243-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: A = 8-97946-809-0, 97946809	8-97368-641-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: F = 8-97946-820-0, 97946820	8-97368-650-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: G = 8-97946-823-0, 97946823	8-97384-169-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: H = 8-97946-826-0, 97946826	8-97384-178-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: B = 8-97946-810-0, 97946810	8-97385-873-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: D = 8-97946-816-0, 97946816	8-97385-880-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: C = 8-97946-812-0, 97946812	8-97389-238-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: E = 8-97946-818-0, 97946818	8-97389-244-0	01	1	-
23	07.505 SPRING; LEAF,NO 2,RR SUB ASM PART: A = 8-97946-809-0, 97946809	8-97368-642-0	01	1	-
23	07.505 SPRING; LEAF,NO 2,RR SUB ASM PART: F = 8-97946-820-0, 97946820	8-97368-651-0	01	1	-
23	07.505 SPRING; LEAF,NO 2,RR SUB ASM PART: H = 8-97946-826-0, 97946826	8-97384-179-0	01	1	-
23	07.505 SPRING; LEAF,NO 2,RR SUB ASM PART: B = 8-97946-810-0, 97946810	8-97385-874-0	01	1	-
23	07.505 SPRING; LEAF,NO 2,RR SUB ASM PART: C = 8-97946-812-0, 97946812	8-97389-239-0	01	1	-
23	07.505 SPRING; LEAF,NO 2,RR SUB ASM PART: E = 8-97946-818-0, 97946818	8-97389-245-0	01	1	-
24	07.505 SPRING; LEAF,NO 3,RR SUB ASM PART: B = 8-97946-810-0, 97946810	8-97385-875-0	01	1	-
24	07.505 SPRING; LEAF,NO 3,RR SUB ASM PART: E = 8-97946-818-0, 97946818	8-97389-246-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M8X56 ASM PART: A = 8-97946-809-0, 97946809, F = 8-97946-820-0, 97946820, H = 8-97946-826-0, 97946826	8-94468-050-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN ASM PART: C = 8-97946-812-0, 97946812, D = 8-97946-816-0, 97946816, G = 8-97946-823-0, 97946823	8-97304-262-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M8X75 ASM PART: B = 8-97946-810-0, 97946810, E = 8-97946-818-0, 97946818	8-97304-264-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR M8 ASM PART: A = 8-97946-809-0, 97946809, B = 8-97946-810-0, 97946810, C = 8-97946-812-0, 97946812, D = 8-97946-816-0, 97946816, E = 8-97946-818-0, 97946818, F = 8-97946-820-0, 97946820, G = 8-97946-823-0, 97946823, H = 8-97946-826-0, 97946826	8-97945-821-0	01	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR ASM PART: F = 8-97946-820-0, 97946820, H = 8-97946-826-0, 97946826	8-94468-305-0	03	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR ASM PART: A = 8-97946-809-0, 97946809, C = 8-97946-812-0, 97946812, D = 8-97946-816-0, 97946816, G = 8-97946-823-0, 97946823	8-94468-305-0	04	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR ASM PART: B = 8-97946-810-0, 97946810, E = 8-97946-818-0, 97946818	8-94468-305-0	05	1	-
38	07.505 BUSHING; LEAF SPR,RR ASM PART: A = 8-97946-809-0, 97946809, B = 8-97946-810-0, 97946810, C = 8-97946-812-0, 97946812, D = 8-97946-816-0, 97946816, E = 8-97946-818-0, 97946818, F = 8-97946-820-0, 97946820, G = 8-97946-823-0, 97946823, H = 8-97946-826-0, 97946826	8-97332-642-0	01	1	-
40	07.506 LINER; LEAF SPR,RR (B) ASM PART: B = 8-97946-810-0, 97946810, D = 8-97946-816-0, 97946816, E = 8-97946-818-0, 97946818, F = 8-97946-820-0, 97946820, G = 8-97946-823-0, 97946823, H = 8-97946-826-0, 97946826	8-97360-245-0	04	1	-
40	07.506 LINER; LEAF SPR,RR (B) ASM PART: A = 8-97946-809-0, 97946809, C = 8-97946-812-0, 97946812	8-97360-245-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (A) ASM PART: A = 8-97946-809-0, 97946809, B = 8-97946-810-0, 97946810, C = 8-97946-812-0, 97946812, D = 8-97946-816-0, 97946816, E = 8-97946-818-0, 97946818, G = 8-97946-823-0, 97946823	8-97360-246-0	02	1	-

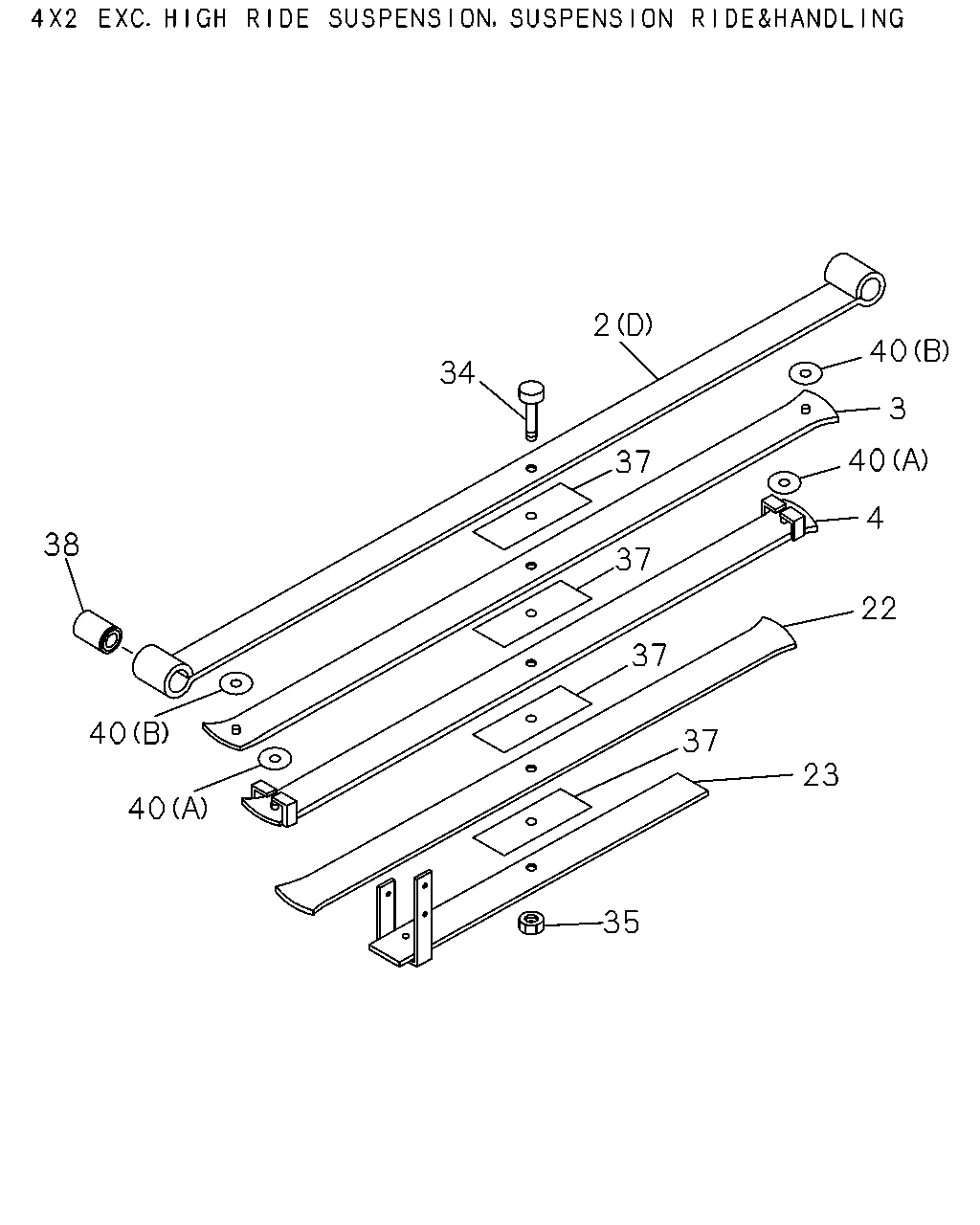

2 40 34 3 40 37 4 38 37 22 37 40 37 23 40 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	07.505 SPRING; LEAF,NO 1,RR MAIN (D) ASM PART: A = 8-97946-809-0, 97946809	8-97246-604-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN (F) ASM PART: F = 8-97946-820-0, 97946820	8-97361-171-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN (C) ASM PART: G = 8-97946-823-0, 97946823	8-97384-165-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN (F) ASM PART: H = 8-97946-826-0, 97946826	8-97384-175-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN (A) ASM PART: B = 8-97946-810-0, 97946810	8-97385-869-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN (C) ASM PART: D = 8-97946-816-0, 97946816	8-97385-876-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN (E) ASM PART: C = 8-97946-812-0, 97946812	8-97389-235-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN (B) ASM PART: E = 8-97946-818-0, 97946818	8-97389-240-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: A = 8-97946-809-0, 97946809	8-97246-608-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: F = 8-97946-820-0, 97946820	8-97361-172-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: G = 8-97946-823-0, 97946823	8-97384-166-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: H = 8-97946-826-0, 97946826	8-97384-176-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: B = 8-97946-810-0, 97946810	8-97385-870-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: D = 8-97946-816-0, 97946816	8-97385-877-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: C = 8-97946-812-0, 97946812	8-97389-236-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: E = 8-97946-818-0, 97946818	8-97389-241-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: A = 8-97946-809-0, 97946809	8-97246-614-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: F = 8-97946-820-0, 97946820	8-97361-173-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: G = 8-97946-823-0, 97946823	8-97384-167-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: H = 8-97946-826-0, 97946826	8-97384-177-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: B = 8-97946-810-0, 97946810	8-97385-871-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: D = 8-97946-816-0, 97946816	8-97385-878-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: C = 8-97946-812-0, 97946812	8-97389-237-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: E = 8-97946-818-0, 97946818	8-97389-242-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: A = 8-97946-809-0, 97946809	8-97368-641-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: F = 8-97946-820-0, 97946820	8-97368-650-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: G = 8-97946-823-0, 97946823	8-97384-169-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: H = 8-97946-826-0, 97946826	8-97384-178-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: B = 8-97946-810-0, 97946810	8-97385-873-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: D = 8-97946-816-0, 97946816	8-97385-880-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: C = 8-97946-812-0, 97946812	8-97389-238-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: E = 8-97946-818-0, 97946818	8-97389-244-0	01	1	-
23	07.505 SPRING; LEAF,NO 2,RR SUB ASM PART: A = 8-97946-809-0, 97946809	8-97368-642-0	01	1	-
23	07.505 SPRING; LEAF,NO 2,RR SUB ASM PART: F = 8-97946-820-0, 97946820	8-97368-651-0	01	1	-
23	07.505 SPRING; LEAF,NO 2,RR SUB ASM PART: H = 8-97946-826-0, 97946826	8-97384-179-0	01	1	-
23	07.505 SPRING; LEAF,NO 2,RR SUB ASM PART: B = 8-97946-810-0, 97946810	8-97385-874-0	01	1	-
23	07.505 SPRING; LEAF,NO 2,RR SUB ASM PART: C = 8-97946-812-0, 97946812	8-97389-239-0	01	1	-
23	07.505 SPRING; LEAF,NO 2,RR SUB ASM PART: E = 8-97946-818-0, 97946818	8-97389-245-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M8X56 ASM PART: A = 8-97946-809-0, 97946809, F = 8-97946-820-0, 97946820, H = 8-97946-826-0, 97946826	8-94468-050-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN ASM PART: C = 8-97946-812-0, 97946812, D = 8-97946-816-0, 97946816, G = 8-97946-823-0, 97946823	8-97304-262-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M8X75 ASM PART: B = 8-97946-810-0, 97946810, E = 8-97946-818-0, 97946818	8-97304-264-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR M8 ASM PART: A = 8-97946-809-0, 97946809, B = 8-97946-810-0, 97946810, C = 8-97946-812-0, 97946812, D = 8-97946-816-0, 97946816, E = 8-97946-818-0, 97946818, F = 8-97946-820-0, 97946820, G = 8-97946-823-0, 97946823, H = 8-97946-826-0, 97946826	8-97945-821-0	01	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR ASM PART: F = 8-97946-820-0, 97946820, H = 8-97946-826-0, 97946826	8-94468-305-0	03	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR ASM PART: A = 8-97946-809-0, 97946809, C = 8-97946-812-0, 97946812, D = 8-97946-816-0, 97946816, G = 8-97946-823-0, 97946823	8-94468-305-0	04	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR ASM PART: B = 8-97946-810-0, 97946810, E = 8-97946-818-0, 97946818	8-94468-305-0	05	1	-
38	07.505 BUSHING; LEAF SPR,RR ASM PART: A = 8-97946-809-0, 97946809, B = 8-97946-810-0, 97946810, C = 8-97946-812-0, 97946812, D = 8-97946-816-0, 97946816, E = 8-97946-818-0, 97946818, F = 8-97946-820-0, 97946820, G = 8-97946-823-0, 97946823, H = 8-97946-826-0, 97946826	8-97332-642-0	01	1	-
40	07.506 LINER; LEAF SPR,RR (B) ASM PART: B = 8-97946-810-0, 97946810, D = 8-97946-816-0, 97946816, E = 8-97946-818-0, 97946818, F = 8-97946-820-0, 97946820, G = 8-97946-823-0, 97946823, H = 8-97946-826-0, 97946826	8-97360-245-0	04	1	-
40	07.506 LINER; LEAF SPR,RR (B) ASM PART: A = 8-97946-809-0, 97946809, C = 8-97946-812-0, 97946812	8-97360-245-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (A) ASM PART: A = 8-97946-809-0, 97946809, B = 8-97946-810-0, 97946810, C = 8-97946-812-0, 97946812, D = 8-97946-816-0, 97946816, E = 8-97946-818-0, 97946818, G = 8-97946-823-0, 97946823	8-97360-246-0	02	1	-

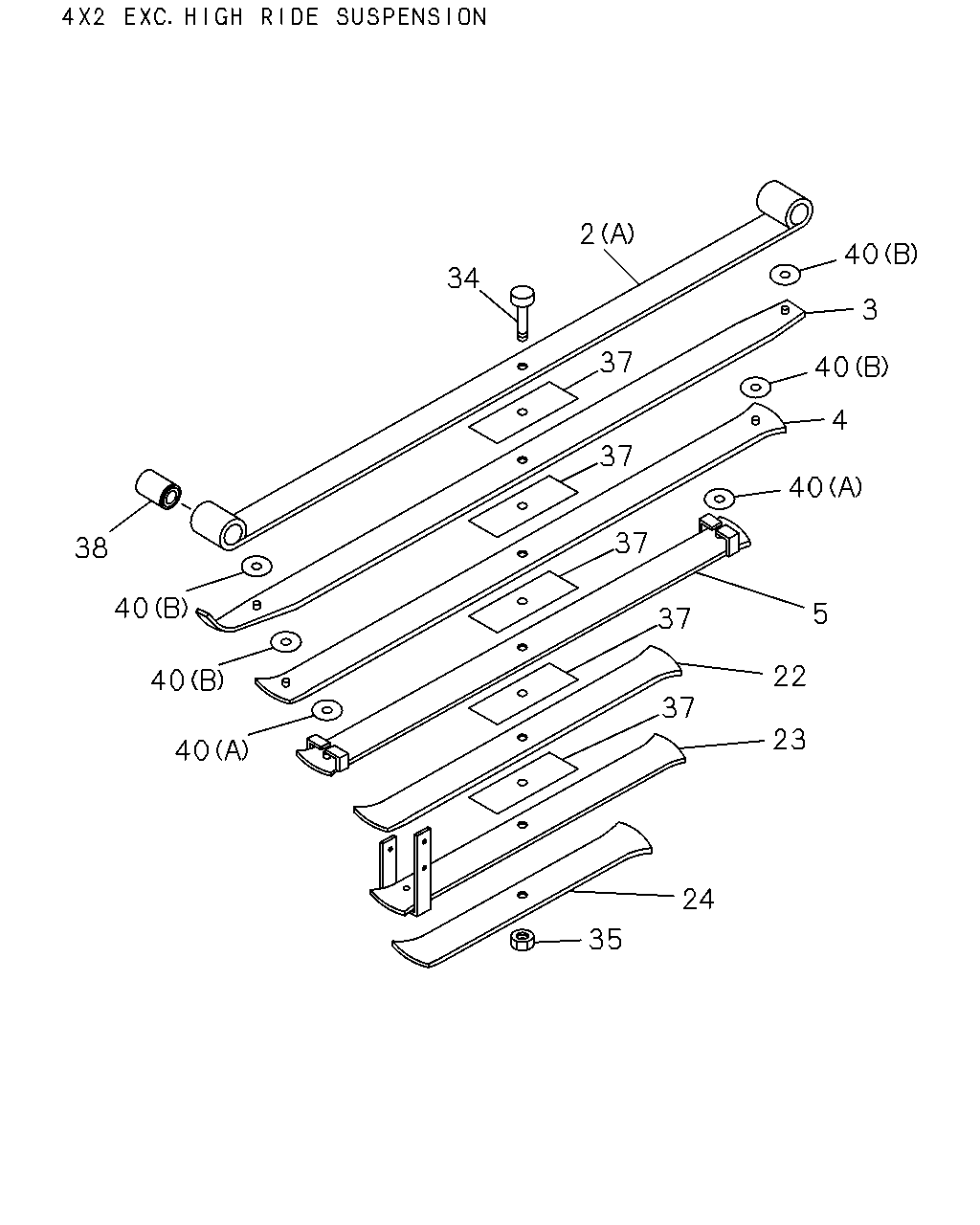

2 40 34 3 37 40 4 37 40 37 38 40 5 37 22 40 37 23 40 24 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	07.505 SPRING; LEAF,NO 1,RR MAIN (D) ASM PART: A = 8-97946-809-0, 97946809	8-97246-604-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN (F) ASM PART: F = 8-97946-820-0, 97946820	8-97361-171-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN (C) ASM PART: G = 8-97946-823-0, 97946823	8-97384-165-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN (F) ASM PART: H = 8-97946-826-0, 97946826	8-97384-175-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN (A) ASM PART: B = 8-97946-810-0, 97946810	8-97385-869-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN (C) ASM PART: D = 8-97946-816-0, 97946816	8-97385-876-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN (E) ASM PART: C = 8-97946-812-0, 97946812	8-97389-235-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN (B) ASM PART: E = 8-97946-818-0, 97946818	8-97389-240-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: A = 8-97946-809-0, 97946809	8-97246-608-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: F = 8-97946-820-0, 97946820	8-97361-172-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: G = 8-97946-823-0, 97946823	8-97384-166-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: H = 8-97946-826-0, 97946826	8-97384-176-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: B = 8-97946-810-0, 97946810	8-97385-870-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: D = 8-97946-816-0, 97946816	8-97385-877-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: C = 8-97946-812-0, 97946812	8-97389-236-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: E = 8-97946-818-0, 97946818	8-97389-241-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: A = 8-97946-809-0, 97946809	8-97246-614-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: F = 8-97946-820-0, 97946820	8-97361-173-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: G = 8-97946-823-0, 97946823	8-97384-167-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: H = 8-97946-826-0, 97946826	8-97384-177-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: B = 8-97946-810-0, 97946810	8-97385-871-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: D = 8-97946-816-0, 97946816	8-97385-878-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: C = 8-97946-812-0, 97946812	8-97389-237-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: E = 8-97946-818-0, 97946818	8-97389-242-0	01	1	-
5	07.505 SPRING; LEAF,NO 4,RR MAIN ASM PART: G = 8-97946-823-0, 97946823	8-97384-168-0	01	1	-
5	07.505 SPRING; LEAF,NO 4,RR MAIN ASM PART: B = 8-97946-810-0, 97946810	8-97385-872-0	01	1	-
5	07.505 SPRING; LEAF,NO 4,RR MAIN ASM PART: D = 8-97946-816-0, 97946816	8-97385-879-0	01	1	-
5	07.505 SPRING; LEAF,NO 4,RR MAIN ASM PART: E = 8-97946-818-0, 97946818	8-97389-243-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: A = 8-97946-809-0, 97946809	8-97368-641-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: F = 8-97946-820-0, 97946820	8-97368-650-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: G = 8-97946-823-0, 97946823	8-97384-169-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: H = 8-97946-826-0, 97946826	8-97384-178-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: B = 8-97946-810-0, 97946810	8-97385-873-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: D = 8-97946-816-0, 97946816	8-97385-880-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: C = 8-97946-812-0, 97946812	8-97389-238-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: E = 8-97946-818-0, 97946818	8-97389-244-0	01	1	-
23	07.505 SPRING; LEAF,NO 2,RR SUB ASM PART: A = 8-97946-809-0, 97946809	8-97368-642-0	01	1	-
23	07.505 SPRING; LEAF,NO 2,RR SUB ASM PART: F = 8-97946-820-0, 97946820	8-97368-651-0	01	1	-
23	07.505 SPRING; LEAF,NO 2,RR SUB ASM PART: H = 8-97946-826-0, 97946826	8-97384-179-0	01	1	-
23	07.505 SPRING; LEAF,NO 2,RR SUB ASM PART: B = 8-97946-810-0, 97946810	8-97385-874-0	01	1	-
23	07.505 SPRING; LEAF,NO 2,RR SUB ASM PART: C = 8-97946-812-0, 97946812	8-97389-239-0	01	1	-
23	07.505 SPRING; LEAF,NO 2,RR SUB ASM PART: E = 8-97946-818-0, 97946818	8-97389-245-0	01	1	-
24	07.505 SPRING; LEAF,NO 3,RR SUB ASM PART: B = 8-97946-810-0, 97946810	8-97385-875-0	01	1	-
24	07.505 SPRING; LEAF,NO 3,RR SUB ASM PART: E = 8-97946-818-0, 97946818	8-97389-246-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M8X56 ASM PART: A = 8-97946-809-0, 97946809, F = 8-97946-820-0, 97946820, H = 8-97946-826-0, 97946826	8-94468-050-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN ASM PART: C = 8-97946-812-0, 97946812, D = 8-97946-816-0, 97946816, G = 8-97946-823-0, 97946823	8-97304-262-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M8X75 ASM PART: B = 8-97946-810-0, 97946810, E = 8-97946-818-0, 97946818	8-97304-264-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR M8 ASM PART: A = 8-97946-809-0, 97946809, B = 8-97946-810-0, 97946810, C = 8-97946-812-0, 97946812, D = 8-97946-816-0, 97946816, E = 8-97946-818-0, 97946818, F = 8-97946-820-0, 97946820, G = 8-97946-823-0, 97946823, H = 8-97946-826-0, 97946826	8-97945-821-0	01	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR ASM PART: F = 8-97946-820-0, 97946820, H = 8-97946-826-0, 97946826	8-94468-305-0	03	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR ASM PART: A = 8-97946-809-0, 97946809, C = 8-97946-812-0, 97946812, D = 8-97946-816-0, 97946816, G = 8-97946-823-0, 97946823	8-94468-305-0	04	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR ASM PART: B = 8-97946-810-0, 97946810, E = 8-97946-818-0, 97946818	8-94468-305-0	05	1	-
38	07.505 BUSHING; LEAF SPR,RR ASM PART: A = 8-97946-809-0, 97946809, B = 8-97946-810-0, 97946810, C = 8-97946-812-0, 97946812, D = 8-97946-816-0, 97946816, E = 8-97946-818-0, 97946818, F = 8-97946-820-0, 97946820, G = 8-97946-823-0, 97946823, H = 8-97946-826-0, 97946826	8-97332-642-0	01	1	-
40	07.506 LINER; LEAF SPR,RR (B) ASM PART: B = 8-97946-810-0, 97946810, D = 8-97946-816-0, 97946816, E = 8-97946-818-0, 97946818, F = 8-97946-820-0, 97946820, G = 8-97946-823-0, 97946823, H = 8-97946-826-0, 97946826	8-97360-245-0	04	1	-
40	07.506 LINER; LEAF SPR,RR (B) ASM PART: A = 8-97946-809-0, 97946809, C = 8-97946-812-0, 97946812	8-97360-245-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (A) ASM PART: A = 8-97946-809-0, 97946809, B = 8-97946-810-0, 97946810, C = 8-97946-812-0, 97946812, D = 8-97946-816-0, 97946816, E = 8-97946-818-0, 97946818, G = 8-97946-823-0, 97946823	8-97360-246-0	02	1	-

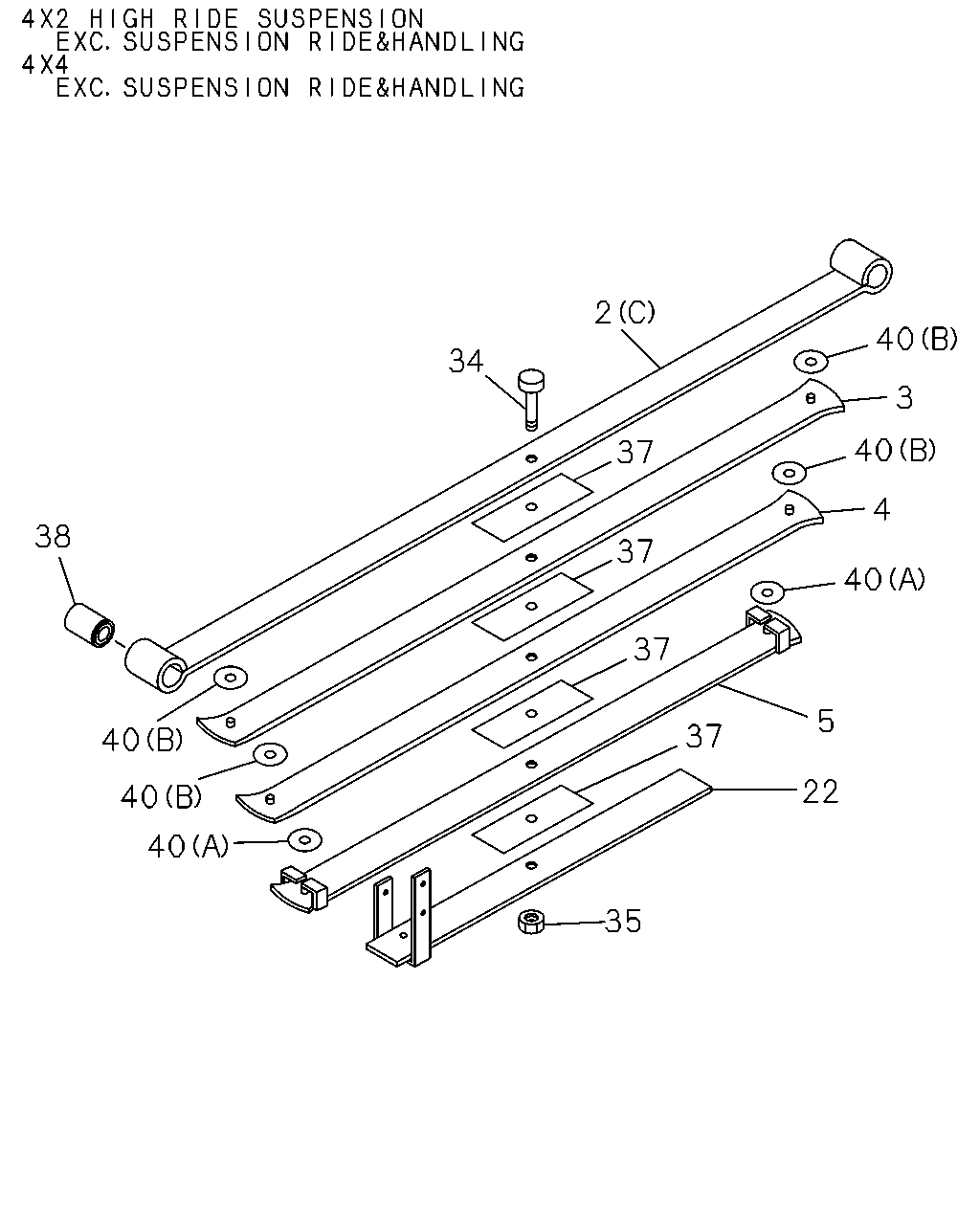

2 40 34 3 40 37 4 38 37 40 37 5 37 40 22 40 40 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	07.505 SPRING; LEAF,NO 1,RR MAIN (D) ASM PART: A = 8-97946-809-0, 97946809	8-97246-604-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN (F) ASM PART: F = 8-97946-820-0, 97946820	8-97361-171-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN (C) ASM PART: G = 8-97946-823-0, 97946823	8-97384-165-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN (F) ASM PART: H = 8-97946-826-0, 97946826	8-97384-175-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN (A) ASM PART: B = 8-97946-810-0, 97946810	8-97385-869-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN (C) ASM PART: D = 8-97946-816-0, 97946816	8-97385-876-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN (E) ASM PART: C = 8-97946-812-0, 97946812	8-97389-235-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN (B) ASM PART: E = 8-97946-818-0, 97946818	8-97389-240-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: A = 8-97946-809-0, 97946809	8-97246-608-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: F = 8-97946-820-0, 97946820	8-97361-172-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: G = 8-97946-823-0, 97946823	8-97384-166-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: H = 8-97946-826-0, 97946826	8-97384-176-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: B = 8-97946-810-0, 97946810	8-97385-870-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: D = 8-97946-816-0, 97946816	8-97385-877-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: C = 8-97946-812-0, 97946812	8-97389-236-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: E = 8-97946-818-0, 97946818	8-97389-241-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: A = 8-97946-809-0, 97946809	8-97246-614-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: F = 8-97946-820-0, 97946820	8-97361-173-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: G = 8-97946-823-0, 97946823	8-97384-167-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: H = 8-97946-826-0, 97946826	8-97384-177-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: B = 8-97946-810-0, 97946810	8-97385-871-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: D = 8-97946-816-0, 97946816	8-97385-878-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: C = 8-97946-812-0, 97946812	8-97389-237-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: E = 8-97946-818-0, 97946818	8-97389-242-0	01	1	-
5	07.505 SPRING; LEAF,NO 4,RR MAIN ASM PART: G = 8-97946-823-0, 97946823	8-97384-168-0	01	1	-
5	07.505 SPRING; LEAF,NO 4,RR MAIN ASM PART: B = 8-97946-810-0, 97946810	8-97385-872-0	01	1	-
5	07.505 SPRING; LEAF,NO 4,RR MAIN ASM PART: D = 8-97946-816-0, 97946816	8-97385-879-0	01	1	-
5	07.505 SPRING; LEAF,NO 4,RR MAIN ASM PART: E = 8-97946-818-0, 97946818	8-97389-243-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: A = 8-97946-809-0, 97946809	8-97368-641-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: F = 8-97946-820-0, 97946820	8-97368-650-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: G = 8-97946-823-0, 97946823	8-97384-169-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: H = 8-97946-826-0, 97946826	8-97384-178-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: B = 8-97946-810-0, 97946810	8-97385-873-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: D = 8-97946-816-0, 97946816	8-97385-880-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: C = 8-97946-812-0, 97946812	8-97389-238-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: E = 8-97946-818-0, 97946818	8-97389-244-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M8X56 ASM PART: A = 8-97946-809-0, 97946809, F = 8-97946-820-0, 97946820, H = 8-97946-826-0, 97946826	8-94468-050-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN ASM PART: C = 8-97946-812-0, 97946812, D = 8-97946-816-0, 97946816, G = 8-97946-823-0, 97946823	8-97304-262-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M8X75 ASM PART: B = 8-97946-810-0, 97946810, E = 8-97946-818-0, 97946818	8-97304-264-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR M8 ASM PART: A = 8-97946-809-0, 97946809, B = 8-97946-810-0, 97946810, C = 8-97946-812-0, 97946812, D = 8-97946-816-0, 97946816, E = 8-97946-818-0, 97946818, F = 8-97946-820-0, 97946820, G = 8-97946-823-0, 97946823, H = 8-97946-826-0, 97946826	8-97945-821-0	01	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR ASM PART: F = 8-97946-820-0, 97946820, H = 8-97946-826-0, 97946826	8-94468-305-0	03	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR ASM PART: A = 8-97946-809-0, 97946809, C = 8-97946-812-0, 97946812, D = 8-97946-816-0, 97946816, G = 8-97946-823-0, 97946823	8-94468-305-0	04	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR ASM PART: B = 8-97946-810-0, 97946810, E = 8-97946-818-0, 97946818	8-94468-305-0	05	1	-
38	07.505 BUSHING; LEAF SPR,RR ASM PART: A = 8-97946-809-0, 97946809, B = 8-97946-810-0, 97946810, C = 8-97946-812-0, 97946812, D = 8-97946-816-0, 97946816, E = 8-97946-818-0, 97946818, F = 8-97946-820-0, 97946820, G = 8-97946-823-0, 97946823, H = 8-97946-826-0, 97946826	8-97332-642-0	01	1	-
40	07.506 LINER; LEAF SPR,RR (B) ASM PART: B = 8-97946-810-0, 97946810, D = 8-97946-816-0, 97946816, E = 8-97946-818-0, 97946818, F = 8-97946-820-0, 97946820, G = 8-97946-823-0, 97946823, H = 8-97946-826-0, 97946826	8-97360-245-0	04	1	-
40	07.506 LINER; LEAF SPR,RR (B) ASM PART: A = 8-97946-809-0, 97946809, C = 8-97946-812-0, 97946812	8-97360-245-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (A) ASM PART: A = 8-97946-809-0, 97946809, B = 8-97946-810-0, 97946810, C = 8-97946-812-0, 97946812, D = 8-97946-816-0, 97946816, E = 8-97946-818-0, 97946818, G = 8-97946-823-0, 97946823	8-97360-246-0	02	1	-

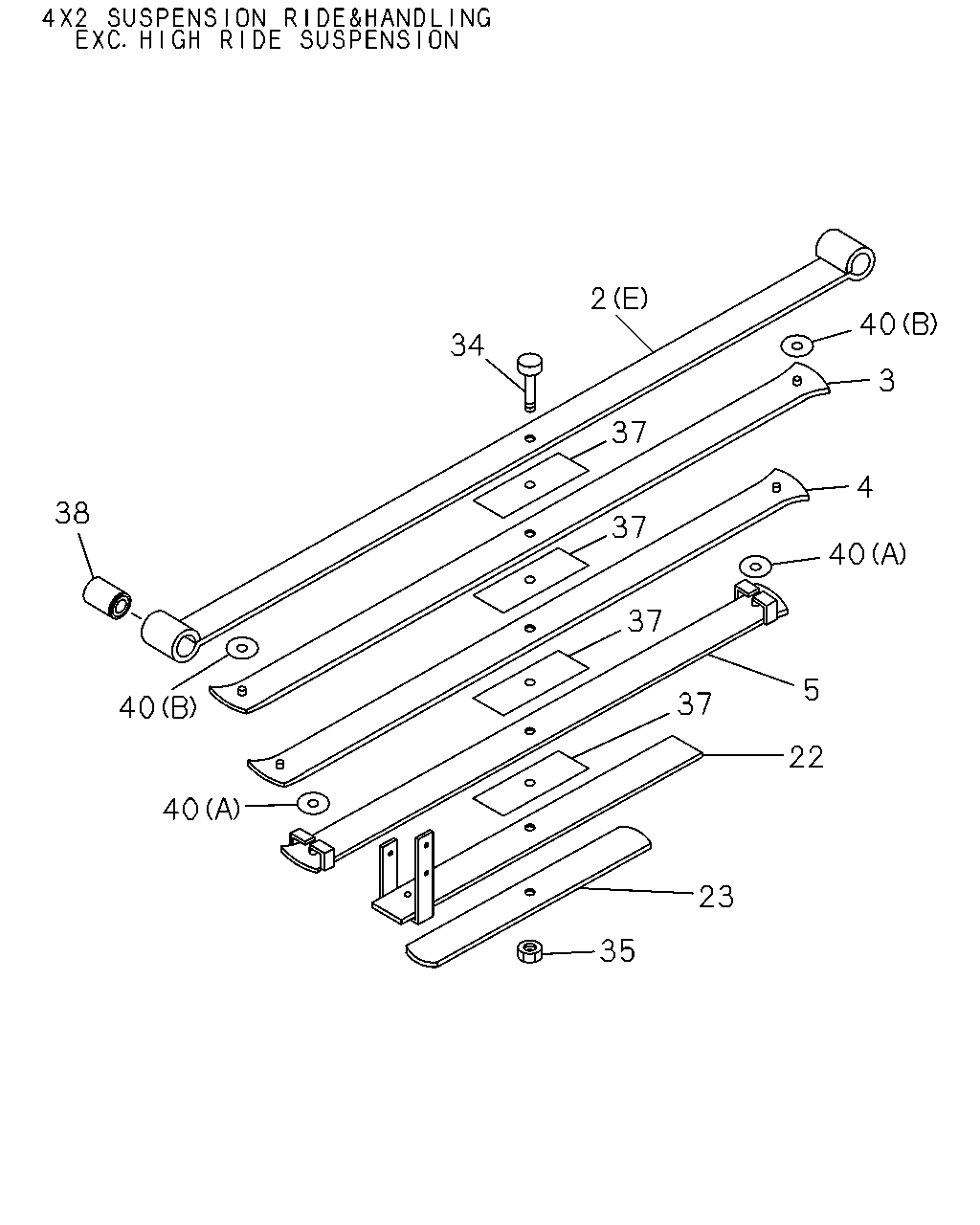

2 40 34 3 37 4 38 37 40 37 5 37 40 22 40 23 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	07.505 SPRING; LEAF,NO 1,RR MAIN (D) ASM PART: A = 8-97946-809-0, 97946809	8-97246-604-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN (F) ASM PART: F = 8-97946-820-0, 97946820	8-97361-171-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN (C) ASM PART: G = 8-97946-823-0, 97946823	8-97384-165-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN (F) ASM PART: H = 8-97946-826-0, 97946826	8-97384-175-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN (A) ASM PART: B = 8-97946-810-0, 97946810	8-97385-869-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN (C) ASM PART: D = 8-97946-816-0, 97946816	8-97385-876-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN (E) ASM PART: C = 8-97946-812-0, 97946812	8-97389-235-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN (B) ASM PART: E = 8-97946-818-0, 97946818	8-97389-240-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: A = 8-97946-809-0, 97946809	8-97246-608-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: F = 8-97946-820-0, 97946820	8-97361-172-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: G = 8-97946-823-0, 97946823	8-97384-166-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: H = 8-97946-826-0, 97946826	8-97384-176-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: B = 8-97946-810-0, 97946810	8-97385-870-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: D = 8-97946-816-0, 97946816	8-97385-877-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: C = 8-97946-812-0, 97946812	8-97389-236-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: E = 8-97946-818-0, 97946818	8-97389-241-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: A = 8-97946-809-0, 97946809	8-97246-614-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: F = 8-97946-820-0, 97946820	8-97361-173-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: G = 8-97946-823-0, 97946823	8-97384-167-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: H = 8-97946-826-0, 97946826	8-97384-177-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: B = 8-97946-810-0, 97946810	8-97385-871-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: D = 8-97946-816-0, 97946816	8-97385-878-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: C = 8-97946-812-0, 97946812	8-97389-237-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: E = 8-97946-818-0, 97946818	8-97389-242-0	01	1	-
5	07.505 SPRING; LEAF,NO 4,RR MAIN ASM PART: G = 8-97946-823-0, 97946823	8-97384-168-0	01	1	-
5	07.505 SPRING; LEAF,NO 4,RR MAIN ASM PART: B = 8-97946-810-0, 97946810	8-97385-872-0	01	1	-
5	07.505 SPRING; LEAF,NO 4,RR MAIN ASM PART: D = 8-97946-816-0, 97946816	8-97385-879-0	01	1	-
5	07.505 SPRING; LEAF,NO 4,RR MAIN ASM PART: E = 8-97946-818-0, 97946818	8-97389-243-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: A = 8-97946-809-0, 97946809	8-97368-641-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: F = 8-97946-820-0, 97946820	8-97368-650-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: G = 8-97946-823-0, 97946823	8-97384-169-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: H = 8-97946-826-0, 97946826	8-97384-178-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: B = 8-97946-810-0, 97946810	8-97385-873-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: D = 8-97946-816-0, 97946816	8-97385-880-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: C = 8-97946-812-0, 97946812	8-97389-238-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: E = 8-97946-818-0, 97946818	8-97389-244-0	01	1	-
23	07.505 SPRING; LEAF,NO 2,RR SUB ASM PART: A = 8-97946-809-0, 97946809	8-97368-642-0	01	1	-
23	07.505 SPRING; LEAF,NO 2,RR SUB ASM PART: F = 8-97946-820-0, 97946820	8-97368-651-0	01	1	-
23	07.505 SPRING; LEAF,NO 2,RR SUB ASM PART: H = 8-97946-826-0, 97946826	8-97384-179-0	01	1	-
23	07.505 SPRING; LEAF,NO 2,RR SUB ASM PART: B = 8-97946-810-0, 97946810	8-97385-874-0	01	1	-
23	07.505 SPRING; LEAF,NO 2,RR SUB ASM PART: C = 8-97946-812-0, 97946812	8-97389-239-0	01	1	-
23	07.505 SPRING; LEAF,NO 2,RR SUB ASM PART: E = 8-97946-818-0, 97946818	8-97389-245-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M8X56 ASM PART: A = 8-97946-809-0, 97946809, F = 8-97946-820-0, 97946820, H = 8-97946-826-0, 97946826	8-94468-050-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN ASM PART: C = 8-97946-812-0, 97946812, D = 8-97946-816-0, 97946816, G = 8-97946-823-0, 97946823	8-97304-262-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M8X75 ASM PART: B = 8-97946-810-0, 97946810, E = 8-97946-818-0, 97946818	8-97304-264-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR M8 ASM PART: A = 8-97946-809-0, 97946809, B = 8-97946-810-0, 97946810, C = 8-97946-812-0, 97946812, D = 8-97946-816-0, 97946816, E = 8-97946-818-0, 97946818, F = 8-97946-820-0, 97946820, G = 8-97946-823-0, 97946823, H = 8-97946-826-0, 97946826	8-97945-821-0	01	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR ASM PART: F = 8-97946-820-0, 97946820, H = 8-97946-826-0, 97946826	8-94468-305-0	03	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR ASM PART: A = 8-97946-809-0, 97946809, C = 8-97946-812-0, 97946812, D = 8-97946-816-0, 97946816, G = 8-97946-823-0, 97946823	8-94468-305-0	04	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR ASM PART: B = 8-97946-810-0, 97946810, E = 8-97946-818-0, 97946818	8-94468-305-0	05	1	-
38	07.505 BUSHING; LEAF SPR,RR ASM PART: A = 8-97946-809-0, 97946809, B = 8-97946-810-0, 97946810, C = 8-97946-812-0, 97946812, D = 8-97946-816-0, 97946816, E = 8-97946-818-0, 97946818, F = 8-97946-820-0, 97946820, G = 8-97946-823-0, 97946823, H = 8-97946-826-0, 97946826	8-97332-642-0	01	1	-
40	07.506 LINER; LEAF SPR,RR (B) ASM PART: B = 8-97946-810-0, 97946810, D = 8-97946-816-0, 97946816, E = 8-97946-818-0, 97946818, F = 8-97946-820-0, 97946820, G = 8-97946-823-0, 97946823, H = 8-97946-826-0, 97946826	8-97360-245-0	04	1	-
40	07.506 LINER; LEAF SPR,RR (B) ASM PART: A = 8-97946-809-0, 97946809, C = 8-97946-812-0, 97946812	8-97360-245-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (A) ASM PART: A = 8-97946-809-0, 97946809, B = 8-97946-810-0, 97946810, C = 8-97946-812-0, 97946812, D = 8-97946-816-0, 97946816, E = 8-97946-818-0, 97946818, G = 8-97946-823-0, 97946823	8-97360-246-0	02	1	-

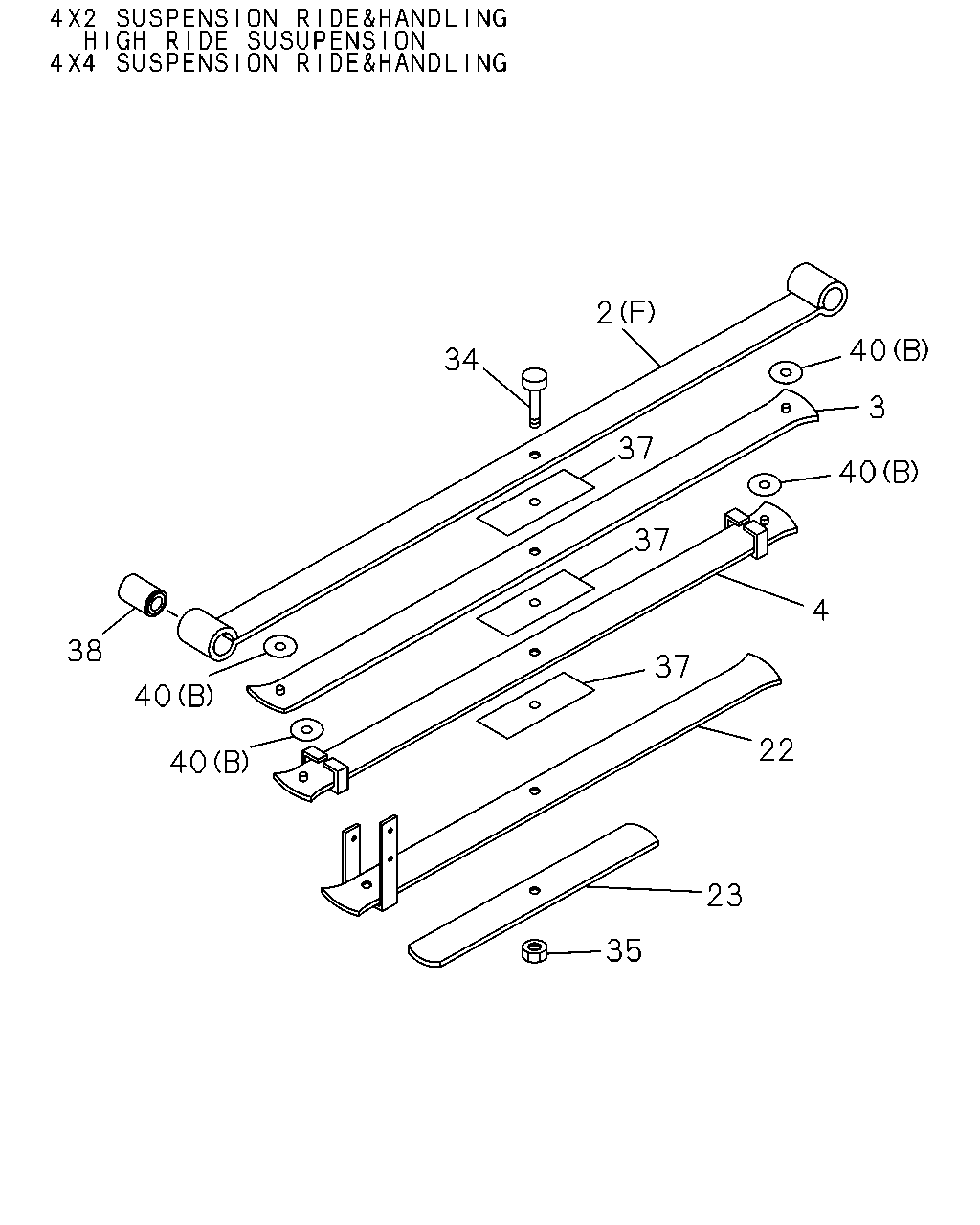

34 2 40 3 40 4 37 37 37 22 23 35 40 40 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	07.505 SPRING; LEAF,NO 1,RR MAIN (D) ASM PART: A = 8-97946-809-0, 97946809	8-97246-604-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN (F) ASM PART: F = 8-97946-820-0, 97946820	8-97361-171-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN (C) ASM PART: G = 8-97946-823-0, 97946823	8-97384-165-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN (F) ASM PART: H = 8-97946-826-0, 97946826	8-97384-175-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN (A) ASM PART: B = 8-97946-810-0, 97946810	8-97385-869-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN (C) ASM PART: D = 8-97946-816-0, 97946816	8-97385-876-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN (E) ASM PART: C = 8-97946-812-0, 97946812	8-97389-235-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN (B) ASM PART: E = 8-97946-818-0, 97946818	8-97389-240-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: A = 8-97946-809-0, 97946809	8-97246-608-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: F = 8-97946-820-0, 97946820	8-97361-172-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: G = 8-97946-823-0, 97946823	8-97384-166-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: H = 8-97946-826-0, 97946826	8-97384-176-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: B = 8-97946-810-0, 97946810	8-97385-870-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: D = 8-97946-816-0, 97946816	8-97385-877-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: C = 8-97946-812-0, 97946812	8-97389-236-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: E = 8-97946-818-0, 97946818	8-97389-241-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: A = 8-97946-809-0, 97946809	8-97246-614-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: F = 8-97946-820-0, 97946820	8-97361-173-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: G = 8-97946-823-0, 97946823	8-97384-167-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: H = 8-97946-826-0, 97946826	8-97384-177-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: B = 8-97946-810-0, 97946810	8-97385-871-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: D = 8-97946-816-0, 97946816	8-97385-878-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: C = 8-97946-812-0, 97946812	8-97389-237-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: E = 8-97946-818-0, 97946818	8-97389-242-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: A = 8-97946-809-0, 97946809	8-97368-641-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: F = 8-97946-820-0, 97946820	8-97368-650-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: G = 8-97946-823-0, 97946823	8-97384-169-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: H = 8-97946-826-0, 97946826	8-97384-178-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: B = 8-97946-810-0, 97946810	8-97385-873-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: D = 8-97946-816-0, 97946816	8-97385-880-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: C = 8-97946-812-0, 97946812	8-97389-238-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: E = 8-97946-818-0, 97946818	8-97389-244-0	01	1	-
23	07.505 SPRING; LEAF,NO 2,RR SUB ASM PART: A = 8-97946-809-0, 97946809	8-97368-642-0	01	1	-
23	07.505 SPRING; LEAF,NO 2,RR SUB ASM PART: F = 8-97946-820-0, 97946820	8-97368-651-0	01	1	-
23	07.505 SPRING; LEAF,NO 2,RR SUB ASM PART: H = 8-97946-826-0, 97946826	8-97384-179-0	01	1	-
23	07.505 SPRING; LEAF,NO 2,RR SUB ASM PART: B = 8-97946-810-0, 97946810	8-97385-874-0	01	1	-
23	07.505 SPRING; LEAF,NO 2,RR SUB ASM PART: C = 8-97946-812-0, 97946812	8-97389-239-0	01	1	-
23	07.505 SPRING; LEAF,NO 2,RR SUB ASM PART: E = 8-97946-818-0, 97946818	8-97389-245-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M8X56 ASM PART: A = 8-97946-809-0, 97946809, F = 8-97946-820-0, 97946820, H = 8-97946-826-0, 97946826	8-94468-050-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN ASM PART: C = 8-97946-812-0, 97946812, D = 8-97946-816-0, 97946816, G = 8-97946-823-0, 97946823	8-97304-262-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M8X75 ASM PART: B = 8-97946-810-0, 97946810, E = 8-97946-818-0, 97946818	8-97304-264-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR M8 ASM PART: A = 8-97946-809-0, 97946809, B = 8-97946-810-0, 97946810, C = 8-97946-812-0, 97946812, D = 8-97946-816-0, 97946816, E = 8-97946-818-0, 97946818, F = 8-97946-820-0, 97946820, G = 8-97946-823-0, 97946823, H = 8-97946-826-0, 97946826	8-97945-821-0	01	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR ASM PART: F = 8-97946-820-0, 97946820, H = 8-97946-826-0, 97946826	8-94468-305-0	03	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR ASM PART: A = 8-97946-809-0, 97946809, C = 8-97946-812-0, 97946812, D = 8-97946-816-0, 97946816, G = 8-97946-823-0, 97946823	8-94468-305-0	04	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR ASM PART: B = 8-97946-810-0, 97946810, E = 8-97946-818-0, 97946818	8-94468-305-0	05	1	-
38	07.505 BUSHING; LEAF SPR,RR ASM PART: A = 8-97946-809-0, 97946809, B = 8-97946-810-0, 97946810, C = 8-97946-812-0, 97946812, D = 8-97946-816-0, 97946816, E = 8-97946-818-0, 97946818, F = 8-97946-820-0, 97946820, G = 8-97946-823-0, 97946823, H = 8-97946-826-0, 97946826	8-97332-642-0	01	1	-
40	07.506 LINER; LEAF SPR,RR (B) ASM PART: B = 8-97946-810-0, 97946810, D = 8-97946-816-0, 97946816, E = 8-97946-818-0, 97946818, F = 8-97946-820-0, 97946820, G = 8-97946-823-0, 97946823, H = 8-97946-826-0, 97946826	8-97360-245-0	04	1	-
40	07.506 LINER; LEAF SPR,RR (B) ASM PART: A = 8-97946-809-0, 97946809, C = 8-97946-812-0, 97946812	8-97360-245-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (A) ASM PART: A = 8-97946-809-0, 97946809, B = 8-97946-810-0, 97946810, C = 8-97946-812-0, 97946812, D = 8-97946-816-0, 97946816, E = 8-97946-818-0, 97946818, G = 8-97946-823-0, 97946823	8-97360-246-0	02	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
