◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51194 - TFR/TFS-RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-61 - SHOCK ABSORBER; REAR SUSPENSION ▶
4-61 — SHOCK ABSORBER; REAR SUSPENSION (#77048) — 42 parça

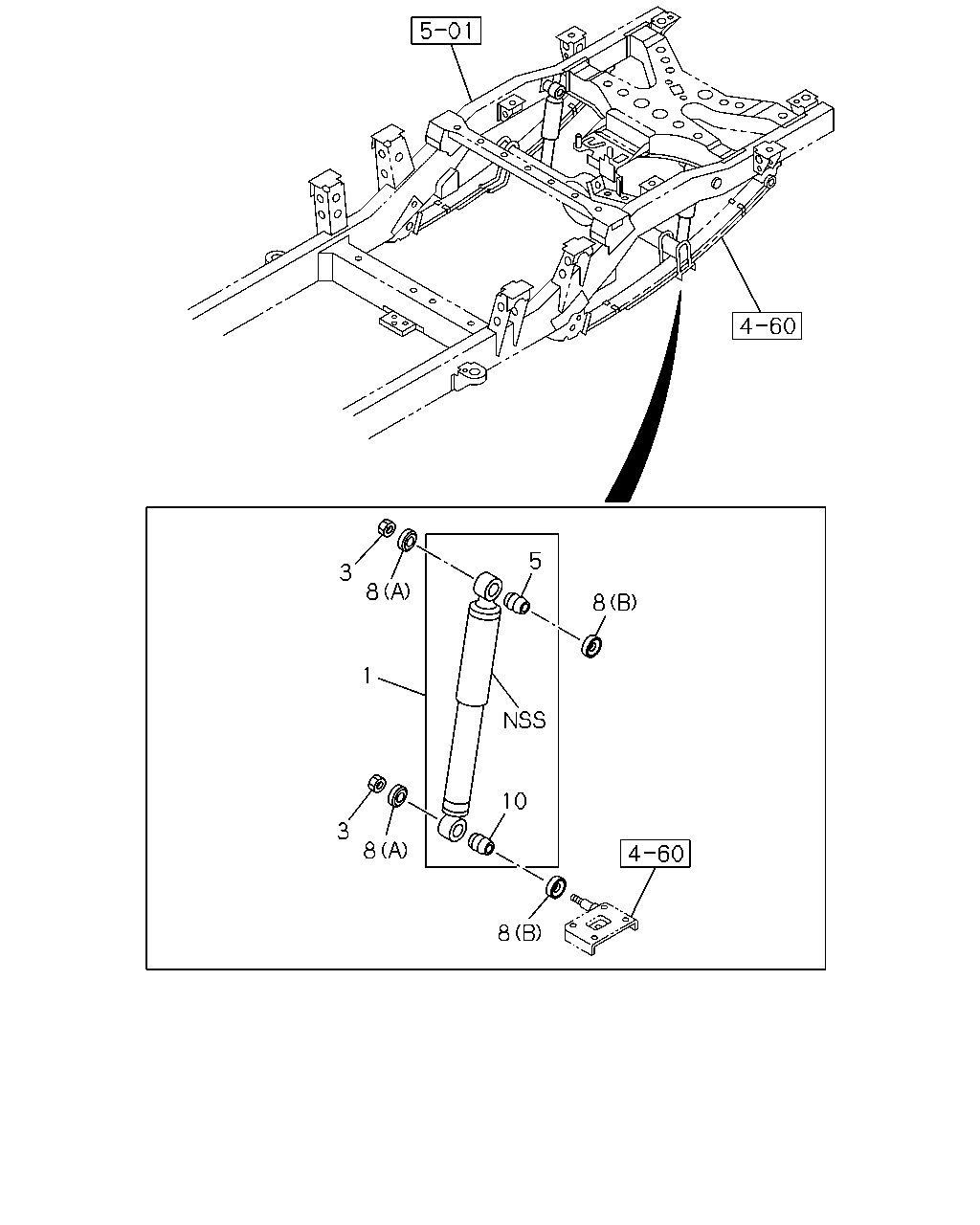

çizim 124741
5 3 8 8 1 10 3 8 8
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 07.395 ABSORBER ASM; SHOCK,RR
SUSPENSION RIDE&HANDLING<FE2> HIGH RIDE SUSPENSION(7YC) 		8-97946-673-0 02 1 0810-0910 ●
1 07.395 ABSORBER ASM; SHOCK,RR
SUSPENSION RIDE&HANDLING<FE2> 		8-97946-673-0 02 1 0810-0910 ●
1 07.395 ABSORBER ASM; SHOCK,RR
SUSPENSION RIDE&HANDLING<FE2> HIGH RIDE SUSPENSION(7YC) 		8-98152-225-0 02 1 0911- ●
1 07.395 ABSORBER ASM; SHOCK,RR
SUSPENSION RIDE&HANDLING<FE2> 		8-98152-225-0 02 1 0911- ●
1 07.395 ABSORBER ASM; SHOCK,RR
SUSPENSION RIDE&HANDLING<FE2> EXC. HIGH RIDE SUSPENSION(7YC) 		8-97946-671-0 02 1 0810-0910 ●
1 07.395 ABSORBER ASM; SHOCK,RR
SUSPENSION RIDE&HANDLING<FE2> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98152-220-0 02 1 0911- ●
1 07.395 ABSORBER ASM; SHOCK,RR
REAR SPRING HEAVY DUTY(G50) 		8-97946-668-0 02 1 0808-0809 ●
1 07.395 ABSORBER ASM; SHOCK,RR
REAR SPRING HEAVY DUTY(G50) EXC. HIGH RIDE SUSPENSION(7YC) 		8-97946-668-0 02 1 0808-0809 ●
1 07.395 ABSORBER ASM; SHOCK,RR
REAR SPRING HEAVY DUTY(G50) EXC. HIGH RIDE SUSPENSION(7YC) 		8-97946-668-0 02 1 0810-0910 ● ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
REAR SPRING HEAVY DUTY(G50) 		8-97946-668-0 02 1 0810-0910 ●
1 07.395 ABSORBER ASM; SHOCK,RR
REAR SPRING HEAVY DUTY(G50) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98152-222-0 02 1 0911- ● ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
REAR SPRING HEAVY DUTY(G50) 		8-98152-222-0 02 1 0911- ●
1 07.395 ABSORBER ASM; SHOCK,RR
EXC. REAR SPRING HEAVY DUTY(G50) 		8-97946-649-0 02 1 0808-0809 ●
1 07.395 ABSORBER ASM; SHOCK,RR
EXC. REAR SPRING HEAVY DUTY(G50), HIGH RIDE SUSPENSION(7YC) 		8-97946-649-0 02 1 0808-0809 ●
1 07.395 ABSORBER ASM; SHOCK,RR
EXC. REAR SPRING HEAVY DUTY(G50), HIGH RIDE SUSPENSION(7YC) 		8-97946-649-0 02 1 0810-0910 ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
EXC. REAR SPRING HEAVY DUTY(G50) 		8-97946-649-0 02 1 0810-0910 ●
1 07.395 ABSORBER ASM; SHOCK,RR
EXC. SUSPENSION RIDE&HANDLING<FE2>, REAR SPRING HEAVY DUTY(G50),HIGH RIDESUSPENSION(7YC) 		8-97946-649-0 02 1 0810-0910 ●
1 07.395 ABSORBER ASM; SHOCK,RR
EXC. REAR SPRING HEAVY DUTY(G50), HIGH RIDE SUSPENSION(7YC) 		8-98152-221-0 02 1 0911- ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
EXC. REAR SPRING HEAVY DUTY(G50) 		8-98152-221-0 02 1 0911- ●
1 07.395 ABSORBER ASM; SHOCK,RR
EXC. SUSPENSION RIDE&HANDLING<FE2>, REAR SPRING HEAVY DUTY(G50),HIGH RIDESUSPENSION(7YC) 		8-98152-221-0 02 1 0911- ●
1 07.395 ABSORBER ASM; SHOCK,RR
REAR SPRING HEAVY DUTY(G50) HIGH RIDE SUSPENSION(7YC) 		8-97946-670-0 02 1 0808-0809 ●
1 07.395 ABSORBER ASM; SHOCK,RR
REAR SPRING HEAVY DUTY(G50) 		8-97946-670-0 02 1 0808-0809 ● ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
REAR SPRING HEAVY DUTY(G50) HIGH RIDE SUSPENSION(7YC) 		8-97946-670-0 02 1 0810-0910 ● ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
REAR SPRING HEAVY DUTY(G50) 		8-97946-670-0 02 1 0810-0910 ● ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
REAR SPRING HEAVY DUTY(G50) HIGH RIDE SUSPENSION(7YC) 		8-98152-228-0 02 1 0911- ● ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
REAR SPRING HEAVY DUTY(G50) 		8-98152-228-0 02 1 0911- ● ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
HIGH RIDE SUSPENSION(7YC) EXC. REAR SPRING HEAVY DUTY(G50) 		8-97946-665-0 02 1 0808-0809 ●
1 07.395 ABSORBER ASM; SHOCK,RR
EXC. REAR SPRING HEAVY DUTY(G50) 		8-97946-665-0 02 1 0808-0809 ● ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
HIGH RIDE SUSPENSION(7YC) EXC. SUSPENSION RIDE&HANDLING<FE2>, REAR SPRING HEAVY DUTY(G50) 		8-97946-665-0 02 1 0810-0910 ● ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
EXC. SUSPENSION RIDE&HANDLING<FE2>, REAR SPRING HEAVY DUTY(G50) 		8-97946-665-0 02 1 0810-0910 ● ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
HIGH RIDE SUSPENSION(7YC) EXC. SUSPENSION RIDE&HANDLING<FE2>, REAR SPRING HEAVY DUTY(G50) 		8-98152-227-0 02 1 0911- ● ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
EXC. SUSPENSION RIDE&HANDLING<FE2>, REAR SPRING HEAVY DUTY(G50) 		8-98152-227-0 02 1 0911- ● ● ●
3 07.347 NUT; S/ABS
M12 FLANGE 		8-97256-670-0 04 1 0808-0809 ● ● ● ● ●
3 07.347 NUT; S/ABS
M12 FLANGE 		8-97256-670-0 04 1 0810- ● ● ● ● ● ● ●
5 07.388 BUSHING; RUBBER,S/ABS,UPR 8-97302-810-0 02 1 0808-0809 ● ● ● ● ●
5 07.388 BUSHING; RUBBER,S/ABS,UPR 8-97302-810-0 02 1 0810- ● ● ● ● ● ● ●
8 07.347 WASHER; S/ABS
(B) ID=12.5 		8-98005-969-0 04 1 0808-0809 ● ● ● ● ●
8 07.347 WASHER; S/ABS
(B) ID=12.5 		8-98005-969-0 04 1 0810- ● ● ● ● ● ● ●
8 07.347 WASHER; S/ABS
(A) ID=16.5 		8-98005-970-0 04 1 0808-0809 ● ● ● ● ●
8 07.347 WASHER; S/ABS
(A) ID=16.5 		8-98005-970-0 04 1 0810- ● ● ● ● ● ● ●
10 07.388 BUSHING; RUBBER,S/ABS 8-97302-810-0 02 1 0808-0809 ● ● ● ● ●
10 07.388 BUSHING; RUBBER,S/ABS 8-97302-810-0 02 1 0810- ● ● ● ● ● ● ●
