Isuzu WW
▶
PICKUP
▶
TFR
▶
51194 - TFR/TFS-RHD
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-40 - STEERING UNIT
▶
4-40 — STEERING UNIT
(#77044) — 39 parça
◀

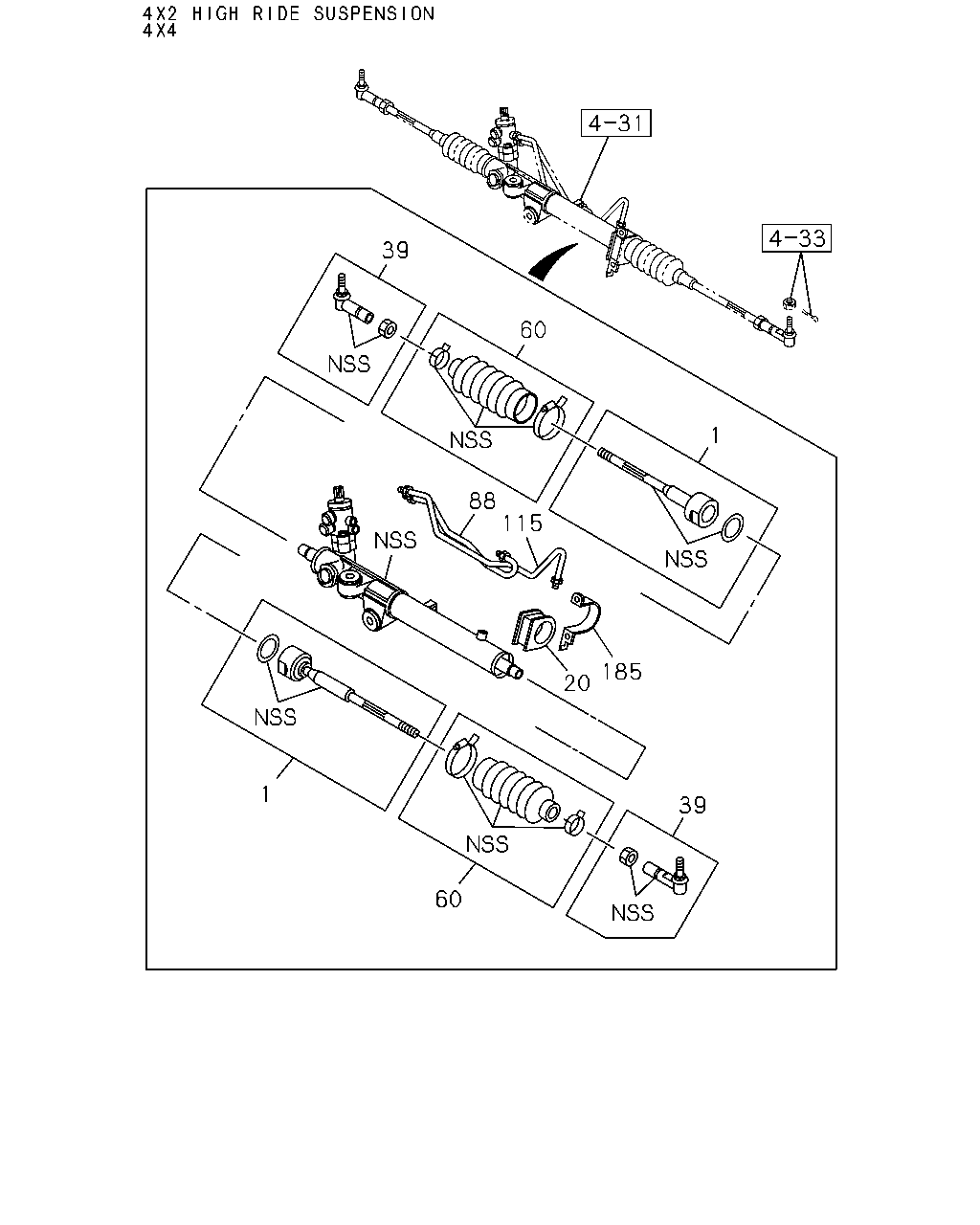

[440A] POWER STEERING(NO.1) (15 parça)

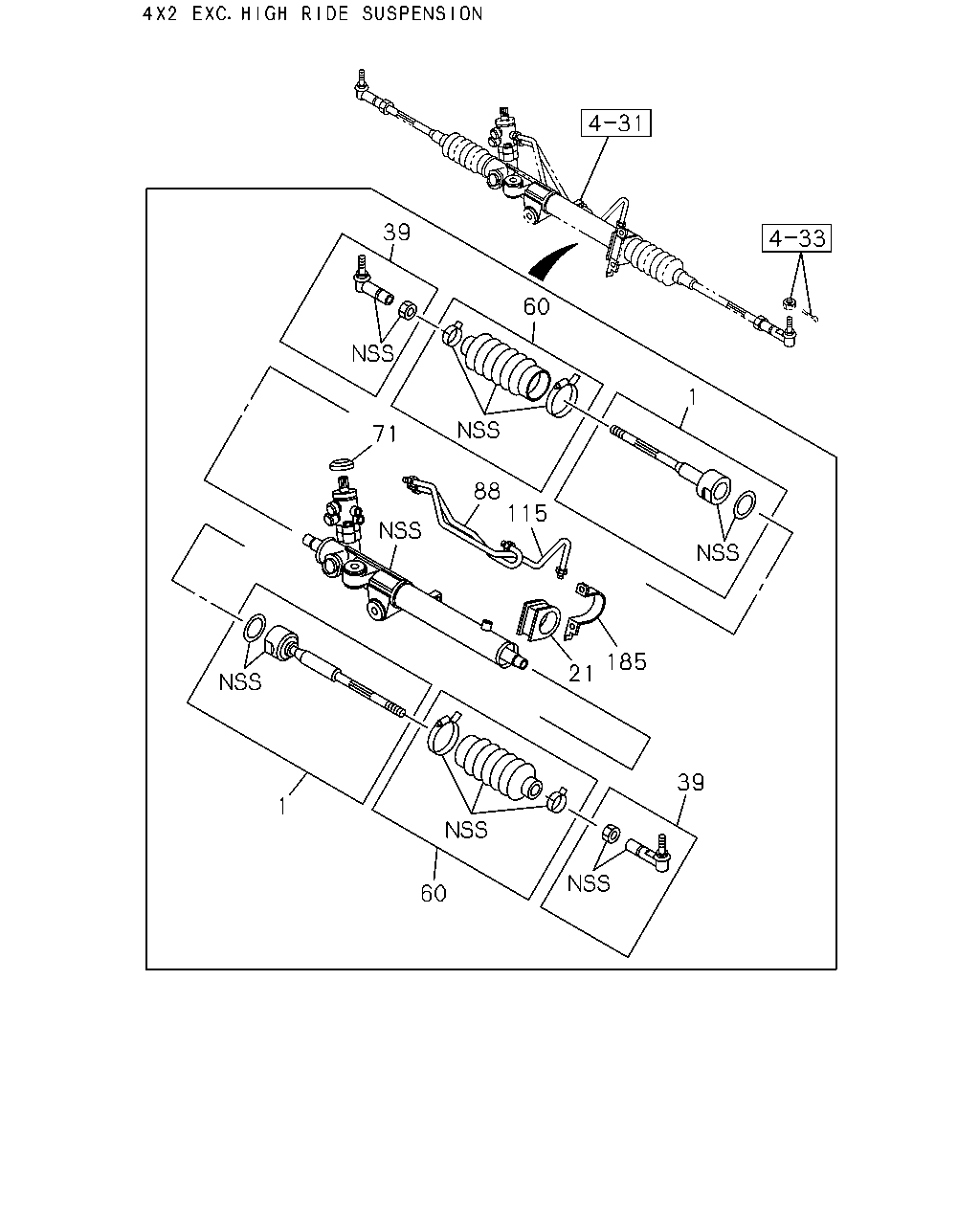

[440A] POWER STEERING(NO.2) (13 parça)

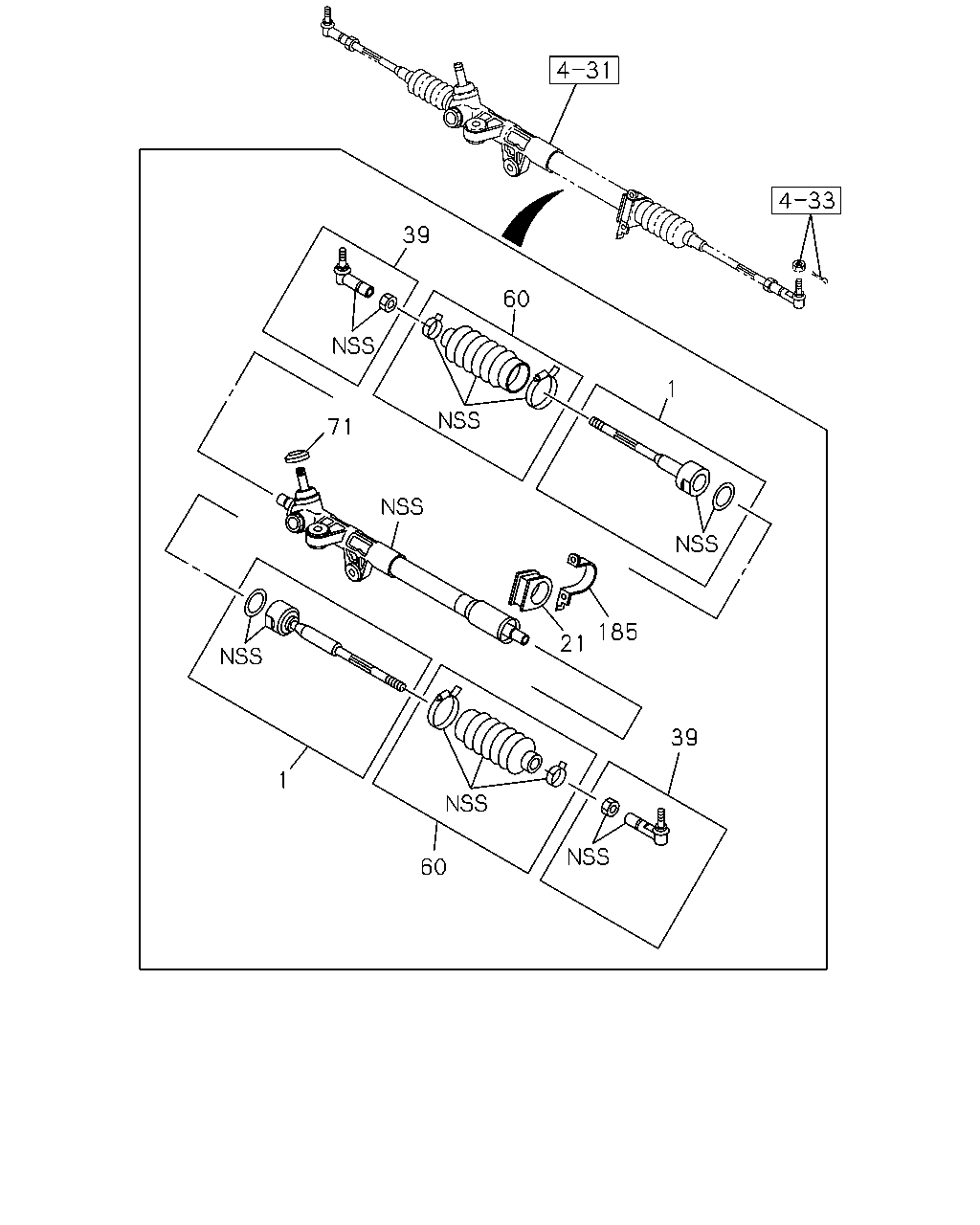

[440A] EXC.POWER STEERING (11 parça)
▶
39
60
1
71
88
115
185
21
39
1
60
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: A = 8-97944-516-0, 97944516, B = 8-97944-520-0, 97944520
8-98055-744-0
02
1
-
1
06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: C = 8-98101-779-0, 98101779
8-98056-550-0
01
1
-
21
06.509 RUBBER; MTG,PINION SIDE
ASM PART: A = 8-97944-516-0, 97944516
8-97304-908-0
01
1
-
21
06.509 RUBBER; MTG,PINION SIDE
ASM PART: B = 8-97944-520-0, 97944520
8-97304-936-0
01
1
-
39
06.233 ROD END ASM; OUTER
ASM PART: A = 8-97944-516-0, 97944516, B = 8-97944-520-0, 97944520
8-98055-746-0
02
1
-
39
06.233 ROD END ASM; OUTER
ASM PART: C = 8-98101-779-0, 98101779
8-98056-551-0
01
1
-
60
06.242 BOOT KIT; STRG HSG
ASM PART: C = 8-98101-779-0, 98101779
8-97945-423-0
02
1
-
60
06.242 BOOT KIT; STRG HSG
ASM PART: A = 8-97944-516-0, 97944516, B = 8-97944-520-0, 97944520
8-98055-745-0
02
1
-
71
06.242 COVER; DUST,STRG UNIT
ASM PART: A = 8-97944-516-0, 97944516, B = 8-97944-520-0, 97944520
8-97304-904-0
01
1
-
88
06.671 PIPE; HSG TO VLV
ASM PART: C = 8-98101-779-0, 98101779
8-97945-428-0
01
1
-
88
06.671 PIPE; HSG TO VLV
ASM PART: A = 8-97944-516-0, 97944516
8-98050-987-0
01
1
-
115
06.671 PIPE; HSG TO VLV
ASM PART: C = 8-98101-779-0, 98101779
8-97945-427-0
01
1
-
115
06.671 PIPE; HSG TO VLV
ASM PART: A = 8-97944-516-0, 97944516
8-98050-997-0
01
1
-
185
06.509 BRACKET; P/S
ASM PART: C = 8-98101-779-0, 98101779
8-97945-425-0
01
1
-
185
06.509 BRACKET; P/S
ASM PART: A = 8-97944-516-0, 97944516, B = 8-97944-520-0, 97944520
8-98051-007-0
01
1
-
39
60
1
88
115
185
20
1
39
60
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: A = 8-97944-516-0, 97944516, B = 8-97944-520-0, 97944520
8-98055-744-0
02
1
-
1
06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: C = 8-98101-779-0, 98101779
8-98056-550-0
01
1
-
20
06.509 RUBBER; MTG
ASM PART: C = 8-98101-779-0, 98101779
8-97945-426-0
01
1
-
39
06.233 ROD END ASM; OUTER
ASM PART: A = 8-97944-516-0, 97944516, B = 8-97944-520-0, 97944520
8-98055-746-0
02
1
-
39
06.233 ROD END ASM; OUTER
ASM PART: C = 8-98101-779-0, 98101779
8-98056-551-0
01
1
-
60
06.242 BOOT KIT; STRG HSG
ASM PART: C = 8-98101-779-0, 98101779
8-97945-423-0
02
1
-
60
06.242 BOOT KIT; STRG HSG
ASM PART: A = 8-97944-516-0, 97944516, B = 8-97944-520-0, 97944520
8-98055-745-0
02
1
-
88
06.671 PIPE; HSG TO VLV
ASM PART: C = 8-98101-779-0, 98101779
8-97945-428-0
01
1
-
88
06.671 PIPE; HSG TO VLV
ASM PART: A = 8-97944-516-0, 97944516
8-98050-987-0
01
1
-
115
06.671 PIPE; HSG TO VLV
ASM PART: C = 8-98101-779-0, 98101779
8-97945-427-0
01
1
-
115
06.671 PIPE; HSG TO VLV
ASM PART: A = 8-97944-516-0, 97944516
8-98050-997-0
01
1
-
185
06.509 BRACKET; P/S
ASM PART: C = 8-98101-779-0, 98101779
8-97945-425-0
01
1
-
185
06.509 BRACKET; P/S
ASM PART: A = 8-97944-516-0, 97944516, B = 8-97944-520-0, 97944520
8-98051-007-0
01
1
-
39
60
1
71
185
21
39
1
60
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: A = 8-97944-516-0, 97944516, B = 8-97944-520-0, 97944520
8-98055-744-0
02
1
-
1
06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: C = 8-98101-779-0, 98101779
8-98056-550-0
01
1
-
21
06.509 RUBBER; MTG,PINION SIDE
ASM PART: A = 8-97944-516-0, 97944516
8-97304-908-0
01
1
-
21
06.509 RUBBER; MTG,PINION SIDE
ASM PART: B = 8-97944-520-0, 97944520
8-97304-936-0
01
1
-
39
06.233 ROD END ASM; OUTER
ASM PART: A = 8-97944-516-0, 97944516, B = 8-97944-520-0, 97944520
8-98055-746-0
02
1
-
39
06.233 ROD END ASM; OUTER
ASM PART: C = 8-98101-779-0, 98101779
8-98056-551-0
01
1
-
60
06.242 BOOT KIT; STRG HSG
ASM PART: C = 8-98101-779-0, 98101779
8-97945-423-0
02
1
-
60
06.242 BOOT KIT; STRG HSG
ASM PART: A = 8-97944-516-0, 97944516, B = 8-97944-520-0, 97944520
8-98055-745-0
02
1
-
71
06.242 COVER; DUST,STRG UNIT
ASM PART: A = 8-97944-516-0, 97944516, B = 8-97944-520-0, 97944520
8-97304-904-0
01
1
-
185
06.509 BRACKET; P/S
ASM PART: C = 8-98101-779-0, 98101779
8-97945-425-0
01
1
-
185
06.509 BRACKET; P/S
ASM PART: A = 8-97944-516-0, 97944516, B = 8-97944-520-0, 97944520
8-98051-007-0
01
1
-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
