Sayfa 4-35 - Isuzu EPC

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#77042) — 304 parça

2 109 1 3 1 23 37 25 109 187 109 361 35 109 233 109 166 41 262 58 33 166 47 54 109 263 58 60 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	06.635 TANK ASM; OIL,P/S	8-97234-350-0	01	1	0808-0809	●	●	●	●	●
1	06.635 TANK ASM; OIL,P/S POWER STEERING<N40>	8-97234-350-0	01	1	0810-		●				●	●
1	06.635 TANK ASM; OIL,P/S	8-97234-350-0	01	1	0810-	●		●	●	●
2	06.672 CAP; OIL TANK,P/S	8-97349-476-0	01	1	0808-0809	●	●	●	●	●
2	06.672 CAP; OIL TANK,P/S POWER STEERING<N40>	8-97349-476-0	01	1	0810-		●				●	●
2	06.672 CAP; OIL TANK,P/S	8-97349-476-0	01	1	0810-	●		●	●	●
3	06.673 GASKET; OIL TANK,P/S	8-97349-477-0	01	1	0808-0809	●	●	●	●	●
3	06.673 GASKET; OIL TANK,P/S POWER STEERING<N40>	8-97349-477-0	01	1	0810-		●				●	●
3	06.673 GASKET; OIL TANK,P/S	8-97349-477-0	01	1	0810-	●		●	●	●
23	06.672 BRACKET; OIL TANK,P/S C24SE ENG(LG1) POWER STEERING<N40>	8-97234-383-0	01	1	0810-		●		●	●		●
23	06.672 BRACKET; OIL TANK,P/S 4JJ1-TCX ENG(LS0)	8-97234-380-1	01	1	0808-0809	●	●	●	●	●
23	06.672 BRACKET; OIL TANK,P/S 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) POWER STEERING<N40>	8-97234-380-1	01	1	0810-1007	●	●	●	●	●	●	●
23	06.672 BRACKET; OIL TANK,P/S 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) POWER STEERING<N40>	8-97234-380-1	01	1	1008-	●	●	●	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT 02.343 M6X16 FLANGE	0-28650-616-0	03	1	0808-0809	●	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT POWER STEERING<N40> 02.343 M6X16 FLANGE	0-28650-616-0	03	1	0810-		●				●	●
25	06.635 BOLT; OIL TANK BRKT 02.343 M6X16 FLANGE	0-28650-616-0	03	1	0810-	●		●	●	●
33	06.672 HOSE; RUBBER,POWER STRG 4JA1-T ENG(LP0) POWER STEERING<N40>	8-97943-682-0	01	1	0810-		●	●	●	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG C24SE ENG(LG1) POWER STEERING<N40>	8-97940-824-0	01	1	0810-		●		●	●		●
33	06.672 HOSE; RUBBER,POWER STRG 4JJ1-TCX ENG(LS0)	8-97943-485-1	01	1	0808-0809	●	●	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) POWER STEERING<N40>	8-97943-485-1	01	1	0810-1007	●	●	●	●	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) POWER STEERING<N40>	8-97943-485-1	01	1	1008-	●	●	●	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK 4JA1-T ENG(LP0) POWER STEERING<N40> PLANT - ISUZU,THAILAND<8KX>	8-97943-971-0	01	1	0810-		●	●	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK C24SE ENG(LG1) POWER STEERING<N40>	8-97234-900-0	01	1	0810-		●		●	●		●
35	06.671 HOSE; RETURN,P/S TANK 4JJ1-TCX ENG(LS0)	8-97234-899-2	01	1	0808-0809	●	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) POWER STEERING<N40>	8-97234-899-2	01	1	0810-1007	●	●	●	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK 4JA1-T ENG(LP0) POWER STEERING<N40> EXC. PLANT - ISUZU,THAILAND<8KX>	8-97234-899-2	01	1	0810-1007		●	●	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) POWER STEERING<N40>	8-97234-899-2	01	1	1008-	●	●	●	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK 4JA1-T ENG(LP0) POWER STEERING<N40> EXC. PLANT - ISUZU,THAILAND<8KX>	8-97234-899-2	01	1	1008-		●	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S ID=16	8-98030-682-0	01	1	0808-0809	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S POWER STEERING<N40> ID=16	8-98030-682-0	01	1	0810-		●				●	●
37	01.762 CLIP; HOSE,P/S ID=16	8-98030-682-0	01	1	0810-	●		●	●	●
41	06.672 CLIP; HOSE,P/S 01.762 ID=16	8-98030-682-0	01	1	0808-0809	●	●	●	●	●
41	06.672 CLIP; HOSE,P/S POWER STEERING<N40> 01.762 ID=16	8-98030-682-0	01	1	0810-		●				●	●
41	06.672 CLIP; HOSE,P/S 01.762 ID=16	8-98030-682-0	01	1	0810-	●		●	●	●
47	06.671 PIPE; RETURN 4JA1-T ENG(LP0) POWER STEERING<N40> HIGH RIDE SUSPENSION(7YC)	8-97944-602-0	01	1	0810-		●				●	●
47	06.671 PIPE; RETURN 4JA1-T ENG(LP0)	8-97944-602-0	01	1	0810-			●	●	●
47	06.671 PIPE; RETURN 4JA1-T ENG(LP0) POWER STEERING<N40> EXC. HIGH RIDE SUSPENSION(7YC)	8-97944-600-0	01	1	0810-		●				●	●
47	06.671 PIPE; RETURN C24SE ENG(LG1) POWER STEERING<N40> HIGH RIDE SUSPENSION(7YC)	8-97944-608-0	01	1	0810-		●					●
47	06.671 PIPE; RETURN C24SE ENG(LG1)	8-97944-608-0	01	1	0810-				●	●
47	06.671 PIPE; RETURN C24SE ENG(LG1) POWER STEERING<N40> EXC. HIGH RIDE SUSPENSION(7YC)	8-97944-606-0	01	1	0810-		●					●
47	06.671 PIPE; RETURN 4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC)	8-97944-596-0	01	1	0808-0809	●	●
47	06.671 PIPE; RETURN 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) POWER STEERING<N40> EXC. HIGH RIDE SUSPENSION(7YC)	8-97944-596-0	01	1	0810-1007	●	●				●	●
47	06.671 PIPE; RETURN 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) POWER STEERING<N40> EXC. HIGH RIDE SUSPENSION(7YC)	8-97944-596-0	01	1	1008-	●	●				●	●
47	06.671 PIPE; RETURN 4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC)	8-97944-598-0	01	1	0808-0809		●
47	06.671 PIPE; RETURN 4JJ1-TCX ENG(LS0)	8-97944-598-0	01	1	0808-0809			●	●	●
47	06.671 PIPE; RETURN 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) POWER STEERING<N40> HIGH RIDE SUSPENSION(7YC)	8-97944-598-0	01	1	0810-1007		●				●	●
47	06.671 PIPE; RETURN 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0)	8-97944-598-0	01	1	0810-1007			●	●	●
47	06.671 PIPE; RETURN 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) POWER STEERING<N40> HIGH RIDE SUSPENSION(7YC)	8-97944-598-0	01	1	1008-		●				●	●
47	06.671 PIPE; RETURN 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97944-598-0	01	1	1008-			●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JA1-T ENG(LP0) POWER STEERING<N40> HIGH RIDE SUSPENSION(7YC)	8-97944-582-0	01	1	0810-		●				●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JA1-T ENG(LP0)	8-97944-582-0	01	1	0810-			●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JA1-T ENG(LP0) POWER STEERING<N40> EXC. HIGH RIDE SUSPENSION(7YC)	8-97944-580-0	01	1	0810-		●				●	●
52	06.673 HOSE; FLEX,P/S CONT VLV C24SE ENG(LG1) POWER STEERING<N40> HIGH RIDE SUSPENSION(7YC)	8-97944-586-0	01	1	0810-		●					●
52	06.673 HOSE; FLEX,P/S CONT VLV C24SE ENG(LG1)	8-97944-586-0	01	1	0810-				●	●
52	06.673 HOSE; FLEX,P/S CONT VLV C24SE ENG(LG1) POWER STEERING<N40> EXC. HIGH RIDE SUSPENSION(7YC)	8-97944-584-0	01	1	0810-		●					●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC)	8-97944-576-0	01	1	0808-0809	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) POWER STEERING<N40> EXC. HIGH RIDE SUSPENSION(7YC)	8-97944-576-0	01	1	0810-1007	●	●				●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) POWER STEERING<N40> EXC. HIGH RIDE SUSPENSION(7YC)	8-97944-576-0	01	1	1008-	●	●				●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC)	8-97944-578-0	01	1	0808-0809		●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JJ1-TCX ENG(LS0)	8-97944-578-0	01	1	0808-0809			●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) POWER STEERING<N40> HIGH RIDE SUSPENSION(7YC)	8-97944-578-0	01	1	0810-1007		●				●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0)	8-97944-578-0	01	1	0810-1007			●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) POWER STEERING<N40> HIGH RIDE SUSPENSION(7YC)	8-97944-578-0	01	1	1008-		●				●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97944-578-0	01	1	1008-			●	●	●
54	06.672 CLIP; OIL PIPE C24SE ENG(LG1),4JA1-T ENG(LP0) POWER STEERING<N40> (A)	8-97026-703-0	01	1	0810-1108		●	●	●	●	●	●
54	06.672 CLIP; OIL PIPE C24SE ENG(LG1),4JA1-T ENG(LP0) POWER STEERING<N40> (A)	8-98177-574-0	01	1	1109-		●	●	●	●	●	●
54	06.672 CLIP; OIL PIPE C24SE ENG(LG1),4JA1-T ENG(LP0) POWER STEERING<N40> (B)	8-97164-013-2	01	1	0810-		●	●	●	●	●	●
54	06.672 CLIP; OIL PIPE 4JJ1-TCX ENG(LS0) (C) ID=11 L=16	0-95235-022-0	01	1	0808-0809	●	●	●	●	●
54	06.672 CLIP; OIL PIPE 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) POWER STEERING<N40> (C) ID=11 L=16	0-95235-022-0	01	1	0810-1007	●	●	●	●	●	●	●
54	06.672 CLIP; OIL PIPE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) POWER STEERING<N40> (C) ID=11 L=16	0-95235-022-0	01	1	1008-	●	●	●	●	●	●	●
58	06.672 BOLT; CLIP 02.343 M6X16 FLANGE	0-28650-616-0	02	1	0808-0809	●	●	●	●	●
58	06.672 BOLT; CLIP POWER STEERING<N40> 02.343 M6X16 FLANGE	0-28650-616-0	02	1	0810-		●				●	●
58	06.672 BOLT; CLIP 02.343 M6X16 FLANGE	0-28650-616-0	02	1	0810-	●		●	●	●
60	06.672 CLAMP; PIPE,RETURN ID=10X2 H=22	8-94252-455-2	01	1	0808-0809	●	●	●	●	●
60	06.672 CLAMP; PIPE,RETURN POWER STEERING<N40> ID=10X2 H=22	8-94252-455-2	01	1	0810-	●	●	●	●	●	●	●
60	06.672 CLAMP; PIPE,RETURN C24SE ENG(LG1),4JA1-T ENG(LP0) POWER STEERING<N40> ID=10X2 H=22	8-94252-455-2	01	1	0810-		●	●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE C24SE ENG(LG1),4JA1-T ENG(LP0) POWER STEERING<N40> (B) ID=17.5 & 21	8-97177-580-0	01	1	0810-		●	●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE 4JJ1-TCX ENG(LS0) (B) ID=17.5 & 21	8-97177-580-0	02	1	0808-0809	●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) POWER STEERING<N40> (B) ID=17.5 & 21	8-97177-580-0	02	1	0810-1007	●	●	●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) POWER STEERING<N40> (B) ID=17.5 & 21	8-97177-580-0	02	1	1008-	●	●	●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE 4JJ1-TCX ENG(LS0) 04.027 (D) ID=21 & 9.8	8-97309-945-0	01	1	0808-0809	●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) POWER STEERING<N40> 04.027 (D) ID=21 & 9.8	8-97309-945-0	01	1	0810-1007	●	●	●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) POWER STEERING<N40> 04.027 (D) ID=21 & 9.8	8-97309-945-0	01	1	1008-	●	●	●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE 08.846 (A) ID=20.8	8-97944-127-0	02	1	0808-0809	●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE POWER STEERING<N40> 08.846 (A) ID=20.8	8-97944-127-0	02	1	0810-		●				●	●
109	06.672 CLIP; RUBBER HOSE 08.846 (A) ID=20.8	8-97944-127-0	02	1	0810-	●		●	●	●
109	06.672 CLIP; RUBBER HOSE 4JJ1-TCX ENG(LS0) (C) ID=24 L=32	8-98006-816-0	01	1	0808-0809	●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) POWER STEERING<N40> (C) ID=24 L=32	8-98006-816-0	01	1	0810-1007	●	●	●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) POWER STEERING<N40> (C) ID=24 L=32	8-98006-816-0	01	1	1008-	●	●	●	●	●	●	●
166	06.672 BOLT; CLIP 4JJ1-TCX ENG(LS0) 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	0808-0809	●	●	●	●	●
166	06.672 BOLT; CLIP 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) POWER STEERING<N40> 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	0810-1007	●	●	●	●	●	●	●
166	06.672 BOLT; CLIP 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) POWER STEERING<N40> 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1008-	●	●	●	●	●	●	●
166	06.672 BOLT; CLIP 4JJ1-TCX ENG(LS0) 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	0808-0809	●	●	●	●	●
166	06.672 BOLT; CLIP 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) POWER STEERING<N40> 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	0810-1007	●	●	●	●	●	●	●
166	06.672 BOLT; CLIP 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) POWER STEERING<N40> 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	1008-	●	●	●	●	●	●	●
187	03.162 CLIP; P/S OIL PIPE C24SE ENG(LG1) POWER STEERING<N40> 06.672 ID=17	8-94382-792-1	02	1	0810-		●		●	●		●
187	03.162 CLIP; P/S OIL PIPE 4JJ1-TCX ENG(LS0) 06.672 ID=17	8-94382-792-1	01	1	0808-0809	●	●	●	●	●
187	03.162 CLIP; P/S OIL PIPE 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) POWER STEERING<N40> 06.672 ID=17	8-94382-792-1	01	1	0810-1007	●	●	●	●	●	●	●
187	03.162 CLIP; P/S OIL PIPE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) POWER STEERING<N40> 06.672 ID=17	8-94382-792-1	01	1	1008-	●	●	●	●	●	●	●
233	06.672 BOLT; PIPE CLIP,P/S 4JJ1-TCX ENG(LS0) 02.343 M6X16 FLANGE	0-28650-616-0	02	1	0808-0809	●	●	●	●	●
233	06.672 BOLT; PIPE CLIP,P/S 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) POWER STEERING<N40> 02.343 M6X16 FLANGE	0-28650-616-0	02	1	0810-1007	●	●	●	●	●	●	●
233	06.672 BOLT; PIPE CLIP,P/S 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) POWER STEERING<N40> 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1008-	●	●	●	●	●	●	●
262	06.672 CLIP; P/S PIPE 4JJ1-TCX ENG(LS0) ID=11 L=50	0-95235-082-0	01	1	0808-0809	●	●	●	●	●
262	06.672 CLIP; P/S PIPE 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) POWER STEERING<N40> ID=11 L=50	0-95235-082-0	01	1	0810-1007	●	●	●	●	●	●	●
262	06.672 CLIP; P/S PIPE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) POWER STEERING<N40> ID=11 L=50	0-95235-082-0	01	1	1008-	●	●	●	●	●	●	●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCX ENG(LS0)	8-97944-610-0	01	1	0808-0809	●	●	●	●	●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) POWER STEERING<N40>	8-97944-610-0	01	1	0810-1007	●	●	●	●	●	●	●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) POWER STEERING<N40>	8-97944-610-0	01	1	1008-	●	●	●	●	●	●	●
361	06.672 RETAINER; P/S 4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9>	8-97943-488-0	01	1	0808-0809	●	●	●	●	●
361	06.672 RETAINER; P/S 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> POWER STEERING<N40>	8-97943-488-0	01	1	0810-1007	●	●	●	●	●		●
361	06.672 RETAINER; P/S 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> POWER STEERING<N40>	8-97943-488-0	01	1	1008-	●	●	●	●	●		●

2 1 25 23 3 1 187 37 35 187 109 205 207 52 109 207 33 41 109 58 60 54 54 58 60 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	06.635 TANK ASM; OIL,P/S	8-97234-350-0	01	1	0808-0809	●	●	●	●	●
1	06.635 TANK ASM; OIL,P/S POWER STEERING<N40>	8-97234-350-0	01	1	0810-		●				●	●
1	06.635 TANK ASM; OIL,P/S	8-97234-350-0	01	1	0810-	●		●	●	●
2	06.672 CAP; OIL TANK,P/S	8-97349-476-0	01	1	0808-0809	●	●	●	●	●
2	06.672 CAP; OIL TANK,P/S POWER STEERING<N40>	8-97349-476-0	01	1	0810-		●				●	●
2	06.672 CAP; OIL TANK,P/S	8-97349-476-0	01	1	0810-	●		●	●	●
3	06.673 GASKET; OIL TANK,P/S	8-97349-477-0	01	1	0808-0809	●	●	●	●	●
3	06.673 GASKET; OIL TANK,P/S POWER STEERING<N40>	8-97349-477-0	01	1	0810-		●				●	●
3	06.673 GASKET; OIL TANK,P/S	8-97349-477-0	01	1	0810-	●		●	●	●
23	06.672 BRACKET; OIL TANK,P/S C24SE ENG(LG1) POWER STEERING<N40>	8-97234-383-0	01	1	0810-		●		●	●		●
23	06.672 BRACKET; OIL TANK,P/S 4JJ1-TCX ENG(LS0)	8-97234-380-1	01	1	0808-0809	●	●	●	●	●
23	06.672 BRACKET; OIL TANK,P/S 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) POWER STEERING<N40>	8-97234-380-1	01	1	0810-1007	●	●	●	●	●	●	●
23	06.672 BRACKET; OIL TANK,P/S 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) POWER STEERING<N40>	8-97234-380-1	01	1	1008-	●	●	●	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT 02.343 M6X16 FLANGE	0-28650-616-0	03	1	0808-0809	●	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT POWER STEERING<N40> 02.343 M6X16 FLANGE	0-28650-616-0	03	1	0810-		●				●	●
25	06.635 BOLT; OIL TANK BRKT 02.343 M6X16 FLANGE	0-28650-616-0	03	1	0810-	●		●	●	●
33	06.672 HOSE; RUBBER,POWER STRG 4JA1-T ENG(LP0) POWER STEERING<N40>	8-97943-682-0	01	1	0810-		●	●	●	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG C24SE ENG(LG1) POWER STEERING<N40>	8-97940-824-0	01	1	0810-		●		●	●		●
33	06.672 HOSE; RUBBER,POWER STRG 4JJ1-TCX ENG(LS0)	8-97943-485-1	01	1	0808-0809	●	●	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) POWER STEERING<N40>	8-97943-485-1	01	1	0810-1007	●	●	●	●	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) POWER STEERING<N40>	8-97943-485-1	01	1	1008-	●	●	●	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK 4JA1-T ENG(LP0) POWER STEERING<N40> PLANT - ISUZU,THAILAND<8KX>	8-97943-971-0	01	1	0810-		●	●	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK C24SE ENG(LG1) POWER STEERING<N40>	8-97234-900-0	01	1	0810-		●		●	●		●
35	06.671 HOSE; RETURN,P/S TANK 4JJ1-TCX ENG(LS0)	8-97234-899-2	01	1	0808-0809	●	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) POWER STEERING<N40>	8-97234-899-2	01	1	0810-1007	●	●	●	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK 4JA1-T ENG(LP0) POWER STEERING<N40> EXC. PLANT - ISUZU,THAILAND<8KX>	8-97234-899-2	01	1	0810-1007		●	●	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) POWER STEERING<N40>	8-97234-899-2	01	1	1008-	●	●	●	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK 4JA1-T ENG(LP0) POWER STEERING<N40> EXC. PLANT - ISUZU,THAILAND<8KX>	8-97234-899-2	01	1	1008-		●	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S ID=16	8-98030-682-0	01	1	0808-0809	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S POWER STEERING<N40> ID=16	8-98030-682-0	01	1	0810-		●				●	●
37	01.762 CLIP; HOSE,P/S ID=16	8-98030-682-0	01	1	0810-	●		●	●	●
41	06.672 CLIP; HOSE,P/S 01.762 ID=16	8-98030-682-0	01	1	0808-0809	●	●	●	●	●
41	06.672 CLIP; HOSE,P/S POWER STEERING<N40> 01.762 ID=16	8-98030-682-0	01	1	0810-		●				●	●
41	06.672 CLIP; HOSE,P/S 01.762 ID=16	8-98030-682-0	01	1	0810-	●		●	●	●
47	06.671 PIPE; RETURN 4JA1-T ENG(LP0) POWER STEERING<N40> HIGH RIDE SUSPENSION(7YC)	8-97944-602-0	01	1	0810-		●				●	●
47	06.671 PIPE; RETURN 4JA1-T ENG(LP0)	8-97944-602-0	01	1	0810-			●	●	●
47	06.671 PIPE; RETURN 4JA1-T ENG(LP0) POWER STEERING<N40> EXC. HIGH RIDE SUSPENSION(7YC)	8-97944-600-0	01	1	0810-		●				●	●
47	06.671 PIPE; RETURN C24SE ENG(LG1) POWER STEERING<N40> HIGH RIDE SUSPENSION(7YC)	8-97944-608-0	01	1	0810-		●					●
47	06.671 PIPE; RETURN C24SE ENG(LG1)	8-97944-608-0	01	1	0810-				●	●
47	06.671 PIPE; RETURN C24SE ENG(LG1) POWER STEERING<N40> EXC. HIGH RIDE SUSPENSION(7YC)	8-97944-606-0	01	1	0810-		●					●
47	06.671 PIPE; RETURN 4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC)	8-97944-596-0	01	1	0808-0809	●	●
47	06.671 PIPE; RETURN 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) POWER STEERING<N40> EXC. HIGH RIDE SUSPENSION(7YC)	8-97944-596-0	01	1	0810-1007	●	●				●	●
47	06.671 PIPE; RETURN 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) POWER STEERING<N40> EXC. HIGH RIDE SUSPENSION(7YC)	8-97944-596-0	01	1	1008-	●	●				●	●
47	06.671 PIPE; RETURN 4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC)	8-97944-598-0	01	1	0808-0809		●
47	06.671 PIPE; RETURN 4JJ1-TCX ENG(LS0)	8-97944-598-0	01	1	0808-0809			●	●	●
47	06.671 PIPE; RETURN 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) POWER STEERING<N40> HIGH RIDE SUSPENSION(7YC)	8-97944-598-0	01	1	0810-1007		●				●	●
47	06.671 PIPE; RETURN 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0)	8-97944-598-0	01	1	0810-1007			●	●	●
47	06.671 PIPE; RETURN 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) POWER STEERING<N40> HIGH RIDE SUSPENSION(7YC)	8-97944-598-0	01	1	1008-		●				●	●
47	06.671 PIPE; RETURN 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97944-598-0	01	1	1008-			●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JA1-T ENG(LP0) POWER STEERING<N40> HIGH RIDE SUSPENSION(7YC)	8-97944-582-0	01	1	0810-		●				●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JA1-T ENG(LP0)	8-97944-582-0	01	1	0810-			●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JA1-T ENG(LP0) POWER STEERING<N40> EXC. HIGH RIDE SUSPENSION(7YC)	8-97944-580-0	01	1	0810-		●				●	●
52	06.673 HOSE; FLEX,P/S CONT VLV C24SE ENG(LG1) POWER STEERING<N40> HIGH RIDE SUSPENSION(7YC)	8-97944-586-0	01	1	0810-		●					●
52	06.673 HOSE; FLEX,P/S CONT VLV C24SE ENG(LG1)	8-97944-586-0	01	1	0810-				●	●
52	06.673 HOSE; FLEX,P/S CONT VLV C24SE ENG(LG1) POWER STEERING<N40> EXC. HIGH RIDE SUSPENSION(7YC)	8-97944-584-0	01	1	0810-		●					●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC)	8-97944-576-0	01	1	0808-0809	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) POWER STEERING<N40> EXC. HIGH RIDE SUSPENSION(7YC)	8-97944-576-0	01	1	0810-1007	●	●				●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) POWER STEERING<N40> EXC. HIGH RIDE SUSPENSION(7YC)	8-97944-576-0	01	1	1008-	●	●				●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC)	8-97944-578-0	01	1	0808-0809		●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JJ1-TCX ENG(LS0)	8-97944-578-0	01	1	0808-0809			●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) POWER STEERING<N40> HIGH RIDE SUSPENSION(7YC)	8-97944-578-0	01	1	0810-1007		●				●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0)	8-97944-578-0	01	1	0810-1007			●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) POWER STEERING<N40> HIGH RIDE SUSPENSION(7YC)	8-97944-578-0	01	1	1008-		●				●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97944-578-0	01	1	1008-			●	●	●
54	06.672 CLIP; OIL PIPE C24SE ENG(LG1),4JA1-T ENG(LP0) POWER STEERING<N40> (A)	8-97026-703-0	01	1	0810-1108		●	●	●	●	●	●
54	06.672 CLIP; OIL PIPE C24SE ENG(LG1),4JA1-T ENG(LP0) POWER STEERING<N40> (A)	8-98177-574-0	01	1	1109-		●	●	●	●	●	●
54	06.672 CLIP; OIL PIPE C24SE ENG(LG1),4JA1-T ENG(LP0) POWER STEERING<N40> (B)	8-97164-013-2	01	1	0810-		●	●	●	●	●	●
54	06.672 CLIP; OIL PIPE 4JJ1-TCX ENG(LS0) (C) ID=11 L=16	0-95235-022-0	01	1	0808-0809	●	●	●	●	●
54	06.672 CLIP; OIL PIPE 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) POWER STEERING<N40> (C) ID=11 L=16	0-95235-022-0	01	1	0810-1007	●	●	●	●	●	●	●
54	06.672 CLIP; OIL PIPE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) POWER STEERING<N40> (C) ID=11 L=16	0-95235-022-0	01	1	1008-	●	●	●	●	●	●	●
58	06.672 BOLT; CLIP 02.343 M6X16 FLANGE	0-28650-616-0	02	1	0808-0809	●	●	●	●	●
58	06.672 BOLT; CLIP POWER STEERING<N40> 02.343 M6X16 FLANGE	0-28650-616-0	02	1	0810-		●				●	●
58	06.672 BOLT; CLIP 02.343 M6X16 FLANGE	0-28650-616-0	02	1	0810-	●		●	●	●
60	06.672 CLAMP; PIPE,RETURN ID=10X2 H=22	8-94252-455-2	01	1	0808-0809	●	●	●	●	●
60	06.672 CLAMP; PIPE,RETURN POWER STEERING<N40> ID=10X2 H=22	8-94252-455-2	01	1	0810-	●	●	●	●	●	●	●
60	06.672 CLAMP; PIPE,RETURN C24SE ENG(LG1),4JA1-T ENG(LP0) POWER STEERING<N40> ID=10X2 H=22	8-94252-455-2	01	1	0810-		●	●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE C24SE ENG(LG1),4JA1-T ENG(LP0) POWER STEERING<N40> (B) ID=17.5 & 21	8-97177-580-0	01	1	0810-		●	●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE 4JJ1-TCX ENG(LS0) (B) ID=17.5 & 21	8-97177-580-0	02	1	0808-0809	●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) POWER STEERING<N40> (B) ID=17.5 & 21	8-97177-580-0	02	1	0810-1007	●	●	●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) POWER STEERING<N40> (B) ID=17.5 & 21	8-97177-580-0	02	1	1008-	●	●	●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE 4JJ1-TCX ENG(LS0) 04.027 (D) ID=21 & 9.8	8-97309-945-0	01	1	0808-0809	●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) POWER STEERING<N40> 04.027 (D) ID=21 & 9.8	8-97309-945-0	01	1	0810-1007	●	●	●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) POWER STEERING<N40> 04.027 (D) ID=21 & 9.8	8-97309-945-0	01	1	1008-	●	●	●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE 08.846 (A) ID=20.8	8-97944-127-0	02	1	0808-0809	●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE POWER STEERING<N40> 08.846 (A) ID=20.8	8-97944-127-0	02	1	0810-		●				●	●
109	06.672 CLIP; RUBBER HOSE 08.846 (A) ID=20.8	8-97944-127-0	02	1	0810-	●		●	●	●
109	06.672 CLIP; RUBBER HOSE 4JJ1-TCX ENG(LS0) (C) ID=24 L=32	8-98006-816-0	01	1	0808-0809	●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) POWER STEERING<N40> (C) ID=24 L=32	8-98006-816-0	01	1	0810-1007	●	●	●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) POWER STEERING<N40> (C) ID=24 L=32	8-98006-816-0	01	1	1008-	●	●	●	●	●	●	●
187	03.162 CLIP; P/S OIL PIPE C24SE ENG(LG1) POWER STEERING<N40> 06.672 ID=17	8-94382-792-1	02	1	0810-		●		●	●		●
187	03.162 CLIP; P/S OIL PIPE 4JJ1-TCX ENG(LS0) 06.672 ID=17	8-94382-792-1	01	1	0808-0809	●	●	●	●	●
187	03.162 CLIP; P/S OIL PIPE 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) POWER STEERING<N40> 06.672 ID=17	8-94382-792-1	01	1	0810-1007	●	●	●	●	●	●	●
187	03.162 CLIP; P/S OIL PIPE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) POWER STEERING<N40> 06.672 ID=17	8-94382-792-1	01	1	1008-	●	●	●	●	●	●	●
205	06.673 BOLT; EYE,FLEX HOSE,P/S C24SE ENG(LG1) POWER STEERING<N40> M16X28	8-97245-666-0	01	1	0810-		●		●	●		●
207	06.673 GASKET; FLEX HOSE,P/S PUMP C24SE ENG(LG1) POWER STEERING<N40> 01.252 ID=16.2 OD=24	9-09571-416-0	02	1	0810-		●		●	●		●

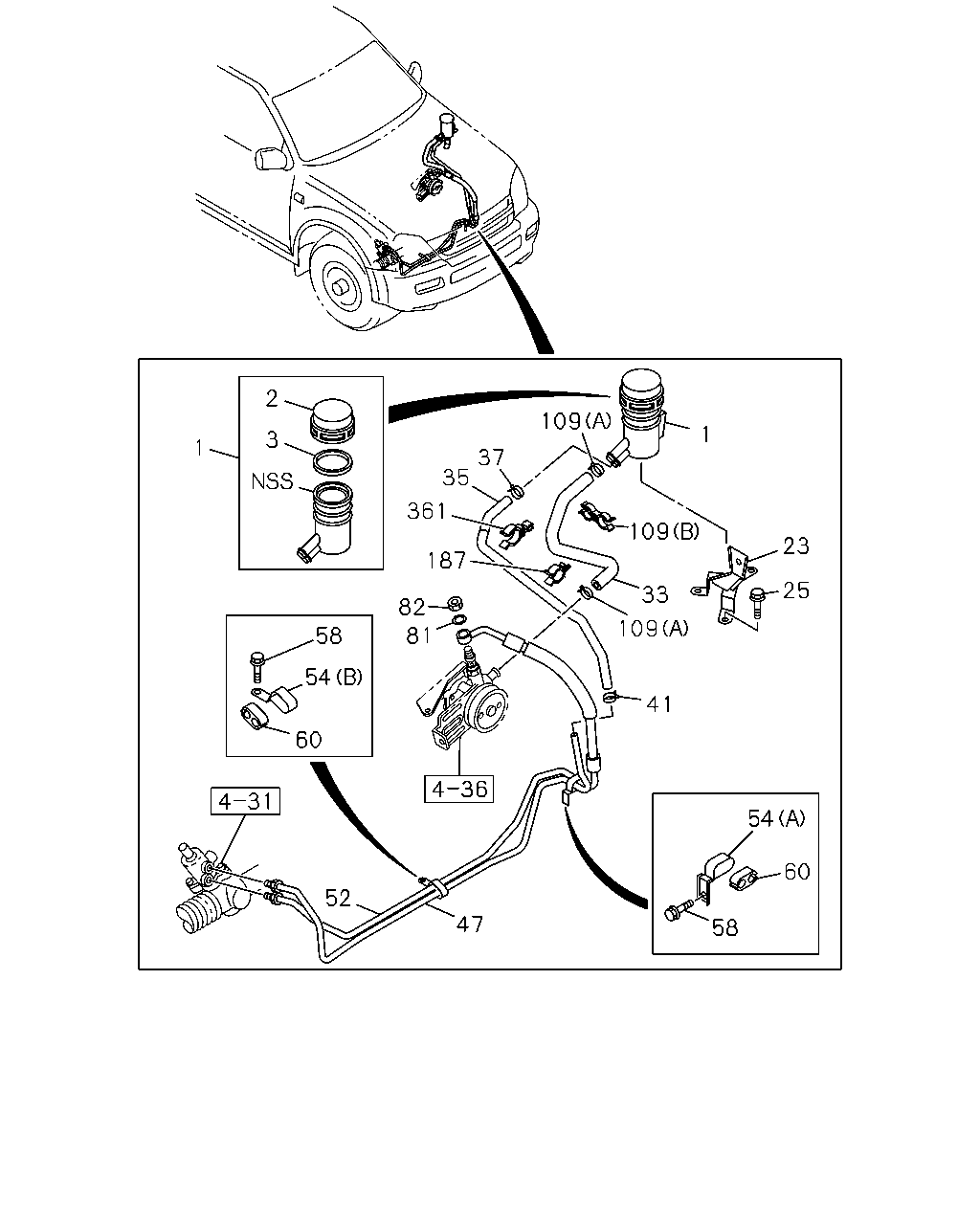

2 109 1 3 1 37 35 361 109 23 187 25 33 82 109 81 58 54 41 60 54 60 52 47 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	06.635 TANK ASM; OIL,P/S	8-97234-350-0	01	1	0808-0809	●	●	●	●	●
1	06.635 TANK ASM; OIL,P/S POWER STEERING<N40>	8-97234-350-0	01	1	0810-		●				●	●
1	06.635 TANK ASM; OIL,P/S	8-97234-350-0	01	1	0810-	●		●	●	●
2	06.672 CAP; OIL TANK,P/S	8-97349-476-0	01	1	0808-0809	●	●	●	●	●
2	06.672 CAP; OIL TANK,P/S POWER STEERING<N40>	8-97349-476-0	01	1	0810-		●				●	●
2	06.672 CAP; OIL TANK,P/S	8-97349-476-0	01	1	0810-	●		●	●	●
3	06.673 GASKET; OIL TANK,P/S	8-97349-477-0	01	1	0808-0809	●	●	●	●	●
3	06.673 GASKET; OIL TANK,P/S POWER STEERING<N40>	8-97349-477-0	01	1	0810-		●				●	●
3	06.673 GASKET; OIL TANK,P/S	8-97349-477-0	01	1	0810-	●		●	●	●
23	06.672 BRACKET; OIL TANK,P/S C24SE ENG(LG1) POWER STEERING<N40>	8-97234-383-0	01	1	0810-		●		●	●		●
23	06.672 BRACKET; OIL TANK,P/S 4JJ1-TCX ENG(LS0)	8-97234-380-1	01	1	0808-0809	●	●	●	●	●
23	06.672 BRACKET; OIL TANK,P/S 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) POWER STEERING<N40>	8-97234-380-1	01	1	0810-1007	●	●	●	●	●	●	●
23	06.672 BRACKET; OIL TANK,P/S 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) POWER STEERING<N40>	8-97234-380-1	01	1	1008-	●	●	●	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT 02.343 M6X16 FLANGE	0-28650-616-0	03	1	0808-0809	●	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT POWER STEERING<N40> 02.343 M6X16 FLANGE	0-28650-616-0	03	1	0810-		●				●	●
25	06.635 BOLT; OIL TANK BRKT 02.343 M6X16 FLANGE	0-28650-616-0	03	1	0810-	●		●	●	●
33	06.672 HOSE; RUBBER,POWER STRG 4JA1-T ENG(LP0) POWER STEERING<N40>	8-97943-682-0	01	1	0810-		●	●	●	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG C24SE ENG(LG1) POWER STEERING<N40>	8-97940-824-0	01	1	0810-		●		●	●		●
33	06.672 HOSE; RUBBER,POWER STRG 4JJ1-TCX ENG(LS0)	8-97943-485-1	01	1	0808-0809	●	●	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) POWER STEERING<N40>	8-97943-485-1	01	1	0810-1007	●	●	●	●	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) POWER STEERING<N40>	8-97943-485-1	01	1	1008-	●	●	●	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK 4JA1-T ENG(LP0) POWER STEERING<N40> PLANT - ISUZU,THAILAND<8KX>	8-97943-971-0	01	1	0810-		●	●	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK C24SE ENG(LG1) POWER STEERING<N40>	8-97234-900-0	01	1	0810-		●		●	●		●
35	06.671 HOSE; RETURN,P/S TANK 4JJ1-TCX ENG(LS0)	8-97234-899-2	01	1	0808-0809	●	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) POWER STEERING<N40>	8-97234-899-2	01	1	0810-1007	●	●	●	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK 4JA1-T ENG(LP0) POWER STEERING<N40> EXC. PLANT - ISUZU,THAILAND<8KX>	8-97234-899-2	01	1	0810-1007		●	●	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) POWER STEERING<N40>	8-97234-899-2	01	1	1008-	●	●	●	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK 4JA1-T ENG(LP0) POWER STEERING<N40> EXC. PLANT - ISUZU,THAILAND<8KX>	8-97234-899-2	01	1	1008-		●	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S ID=16	8-98030-682-0	01	1	0808-0809	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S POWER STEERING<N40> ID=16	8-98030-682-0	01	1	0810-		●				●	●
37	01.762 CLIP; HOSE,P/S ID=16	8-98030-682-0	01	1	0810-	●		●	●	●
41	06.672 CLIP; HOSE,P/S 01.762 ID=16	8-98030-682-0	01	1	0808-0809	●	●	●	●	●
41	06.672 CLIP; HOSE,P/S POWER STEERING<N40> 01.762 ID=16	8-98030-682-0	01	1	0810-		●				●	●
41	06.672 CLIP; HOSE,P/S 01.762 ID=16	8-98030-682-0	01	1	0810-	●		●	●	●
47	06.671 PIPE; RETURN 4JA1-T ENG(LP0) POWER STEERING<N40> HIGH RIDE SUSPENSION(7YC)	8-97944-602-0	01	1	0810-		●				●	●
47	06.671 PIPE; RETURN 4JA1-T ENG(LP0)	8-97944-602-0	01	1	0810-			●	●	●
47	06.671 PIPE; RETURN 4JA1-T ENG(LP0) POWER STEERING<N40> EXC. HIGH RIDE SUSPENSION(7YC)	8-97944-600-0	01	1	0810-		●				●	●
47	06.671 PIPE; RETURN C24SE ENG(LG1) POWER STEERING<N40> HIGH RIDE SUSPENSION(7YC)	8-97944-608-0	01	1	0810-		●					●
47	06.671 PIPE; RETURN C24SE ENG(LG1)	8-97944-608-0	01	1	0810-				●	●
47	06.671 PIPE; RETURN C24SE ENG(LG1) POWER STEERING<N40> EXC. HIGH RIDE SUSPENSION(7YC)	8-97944-606-0	01	1	0810-		●					●
47	06.671 PIPE; RETURN 4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC)	8-97944-596-0	01	1	0808-0809	●	●
47	06.671 PIPE; RETURN 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) POWER STEERING<N40> EXC. HIGH RIDE SUSPENSION(7YC)	8-97944-596-0	01	1	0810-1007	●	●				●	●
47	06.671 PIPE; RETURN 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) POWER STEERING<N40> EXC. HIGH RIDE SUSPENSION(7YC)	8-97944-596-0	01	1	1008-	●	●				●	●
47	06.671 PIPE; RETURN 4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC)	8-97944-598-0	01	1	0808-0809		●
47	06.671 PIPE; RETURN 4JJ1-TCX ENG(LS0)	8-97944-598-0	01	1	0808-0809			●	●	●
47	06.671 PIPE; RETURN 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) POWER STEERING<N40> HIGH RIDE SUSPENSION(7YC)	8-97944-598-0	01	1	0810-1007		●				●	●
47	06.671 PIPE; RETURN 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0)	8-97944-598-0	01	1	0810-1007			●	●	●
47	06.671 PIPE; RETURN 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) POWER STEERING<N40> HIGH RIDE SUSPENSION(7YC)	8-97944-598-0	01	1	1008-		●				●	●
47	06.671 PIPE; RETURN 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97944-598-0	01	1	1008-			●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JA1-T ENG(LP0) POWER STEERING<N40> HIGH RIDE SUSPENSION(7YC)	8-97944-582-0	01	1	0810-		●				●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JA1-T ENG(LP0)	8-97944-582-0	01	1	0810-			●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JA1-T ENG(LP0) POWER STEERING<N40> EXC. HIGH RIDE SUSPENSION(7YC)	8-97944-580-0	01	1	0810-		●				●	●
52	06.673 HOSE; FLEX,P/S CONT VLV C24SE ENG(LG1) POWER STEERING<N40> HIGH RIDE SUSPENSION(7YC)	8-97944-586-0	01	1	0810-		●					●
52	06.673 HOSE; FLEX,P/S CONT VLV C24SE ENG(LG1)	8-97944-586-0	01	1	0810-				●	●
52	06.673 HOSE; FLEX,P/S CONT VLV C24SE ENG(LG1) POWER STEERING<N40> EXC. HIGH RIDE SUSPENSION(7YC)	8-97944-584-0	01	1	0810-		●					●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC)	8-97944-576-0	01	1	0808-0809	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) POWER STEERING<N40> EXC. HIGH RIDE SUSPENSION(7YC)	8-97944-576-0	01	1	0810-1007	●	●				●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) POWER STEERING<N40> EXC. HIGH RIDE SUSPENSION(7YC)	8-97944-576-0	01	1	1008-	●	●				●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC)	8-97944-578-0	01	1	0808-0809		●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JJ1-TCX ENG(LS0)	8-97944-578-0	01	1	0808-0809			●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) POWER STEERING<N40> HIGH RIDE SUSPENSION(7YC)	8-97944-578-0	01	1	0810-1007		●				●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0)	8-97944-578-0	01	1	0810-1007			●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) POWER STEERING<N40> HIGH RIDE SUSPENSION(7YC)	8-97944-578-0	01	1	1008-		●				●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97944-578-0	01	1	1008-			●	●	●
54	06.672 CLIP; OIL PIPE C24SE ENG(LG1),4JA1-T ENG(LP0) POWER STEERING<N40> (A)	8-97026-703-0	01	1	0810-1108		●	●	●	●	●	●
54	06.672 CLIP; OIL PIPE C24SE ENG(LG1),4JA1-T ENG(LP0) POWER STEERING<N40> (A)	8-98177-574-0	01	1	1109-		●	●	●	●	●	●
54	06.672 CLIP; OIL PIPE C24SE ENG(LG1),4JA1-T ENG(LP0) POWER STEERING<N40> (B)	8-97164-013-2	01	1	0810-		●	●	●	●	●	●
54	06.672 CLIP; OIL PIPE 4JJ1-TCX ENG(LS0) (C) ID=11 L=16	0-95235-022-0	01	1	0808-0809	●	●	●	●	●
54	06.672 CLIP; OIL PIPE 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) POWER STEERING<N40> (C) ID=11 L=16	0-95235-022-0	01	1	0810-1007	●	●	●	●	●	●	●
54	06.672 CLIP; OIL PIPE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) POWER STEERING<N40> (C) ID=11 L=16	0-95235-022-0	01	1	1008-	●	●	●	●	●	●	●
58	06.672 BOLT; CLIP 02.343 M6X16 FLANGE	0-28650-616-0	02	1	0808-0809	●	●	●	●	●
58	06.672 BOLT; CLIP POWER STEERING<N40> 02.343 M6X16 FLANGE	0-28650-616-0	02	1	0810-		●				●	●
58	06.672 BOLT; CLIP 02.343 M6X16 FLANGE	0-28650-616-0	02	1	0810-	●		●	●	●
60	06.672 CLAMP; PIPE,RETURN ID=10X2 H=22	8-94252-455-2	01	1	0808-0809	●	●	●	●	●
60	06.672 CLAMP; PIPE,RETURN POWER STEERING<N40> ID=10X2 H=22	8-94252-455-2	01	1	0810-	●	●	●	●	●	●	●
60	06.672 CLAMP; PIPE,RETURN C24SE ENG(LG1),4JA1-T ENG(LP0) POWER STEERING<N40> ID=10X2 H=22	8-94252-455-2	01	1	0810-		●	●	●	●	●	●
81	06.672 WASHER; LK,FLEX HOSE 4JA1-T ENG(LP0) POWER STEERING<N40> 07.347 ID=12.2	0-91510-812-0	01	1	0810-		●	●	●	●	●	●
82	06.672 NUT; FLEX HOSE,P/S 4JA1-T ENG(LP0) POWER STEERING<N40> 04.439 M12	0-91111-512-0	01	1	0810-		●	●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE C24SE ENG(LG1),4JA1-T ENG(LP0) POWER STEERING<N40> (B) ID=17.5 & 21	8-97177-580-0	01	1	0810-		●	●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE 4JJ1-TCX ENG(LS0) (B) ID=17.5 & 21	8-97177-580-0	02	1	0808-0809	●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) POWER STEERING<N40> (B) ID=17.5 & 21	8-97177-580-0	02	1	0810-1007	●	●	●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) POWER STEERING<N40> (B) ID=17.5 & 21	8-97177-580-0	02	1	1008-	●	●	●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE 4JJ1-TCX ENG(LS0) 04.027 (D) ID=21 & 9.8	8-97309-945-0	01	1	0808-0809	●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) POWER STEERING<N40> 04.027 (D) ID=21 & 9.8	8-97309-945-0	01	1	0810-1007	●	●	●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) POWER STEERING<N40> 04.027 (D) ID=21 & 9.8	8-97309-945-0	01	1	1008-	●	●	●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE 08.846 (A) ID=20.8	8-97944-127-0	02	1	0808-0809	●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE POWER STEERING<N40> 08.846 (A) ID=20.8	8-97944-127-0	02	1	0810-		●				●	●
109	06.672 CLIP; RUBBER HOSE 08.846 (A) ID=20.8	8-97944-127-0	02	1	0810-	●		●	●	●
109	06.672 CLIP; RUBBER HOSE 4JJ1-TCX ENG(LS0) (C) ID=24 L=32	8-98006-816-0	01	1	0808-0809	●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) POWER STEERING<N40> (C) ID=24 L=32	8-98006-816-0	01	1	0810-1007	●	●	●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) POWER STEERING<N40> (C) ID=24 L=32	8-98006-816-0	01	1	1008-	●	●	●	●	●	●	●
187	03.162 CLIP; P/S OIL PIPE C24SE ENG(LG1) POWER STEERING<N40> 06.672 ID=17	8-94382-792-1	02	1	0810-		●		●	●		●
187	03.162 CLIP; P/S OIL PIPE 4JJ1-TCX ENG(LS0) 06.672 ID=17	8-94382-792-1	01	1	0808-0809	●	●	●	●	●
187	03.162 CLIP; P/S OIL PIPE 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) POWER STEERING<N40> 06.672 ID=17	8-94382-792-1	01	1	0810-1007	●	●	●	●	●	●	●
187	03.162 CLIP; P/S OIL PIPE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) POWER STEERING<N40> 06.672 ID=17	8-94382-792-1	01	1	1008-	●	●	●	●	●	●	●
361	06.672 RETAINER; P/S 4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9>	8-97943-488-0	01	1	0808-0809	●	●	●	●	●
361	06.672 RETAINER; P/S 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> POWER STEERING<N40>	8-97943-488-0	01	1	0810-1007	●	●	●	●	●		●
361	06.672 RETAINER; P/S 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> POWER STEERING<N40>	8-97943-488-0	01	1	1008-	●	●	●	●	●		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
