◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10807 - EXR FUEL TANK 400L ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-11 - FRONT HUB AND DRUM OR ROTOR ▶
4-11 — FRONT HUB AND DRUM OR ROTOR (#7704) — 72 parça

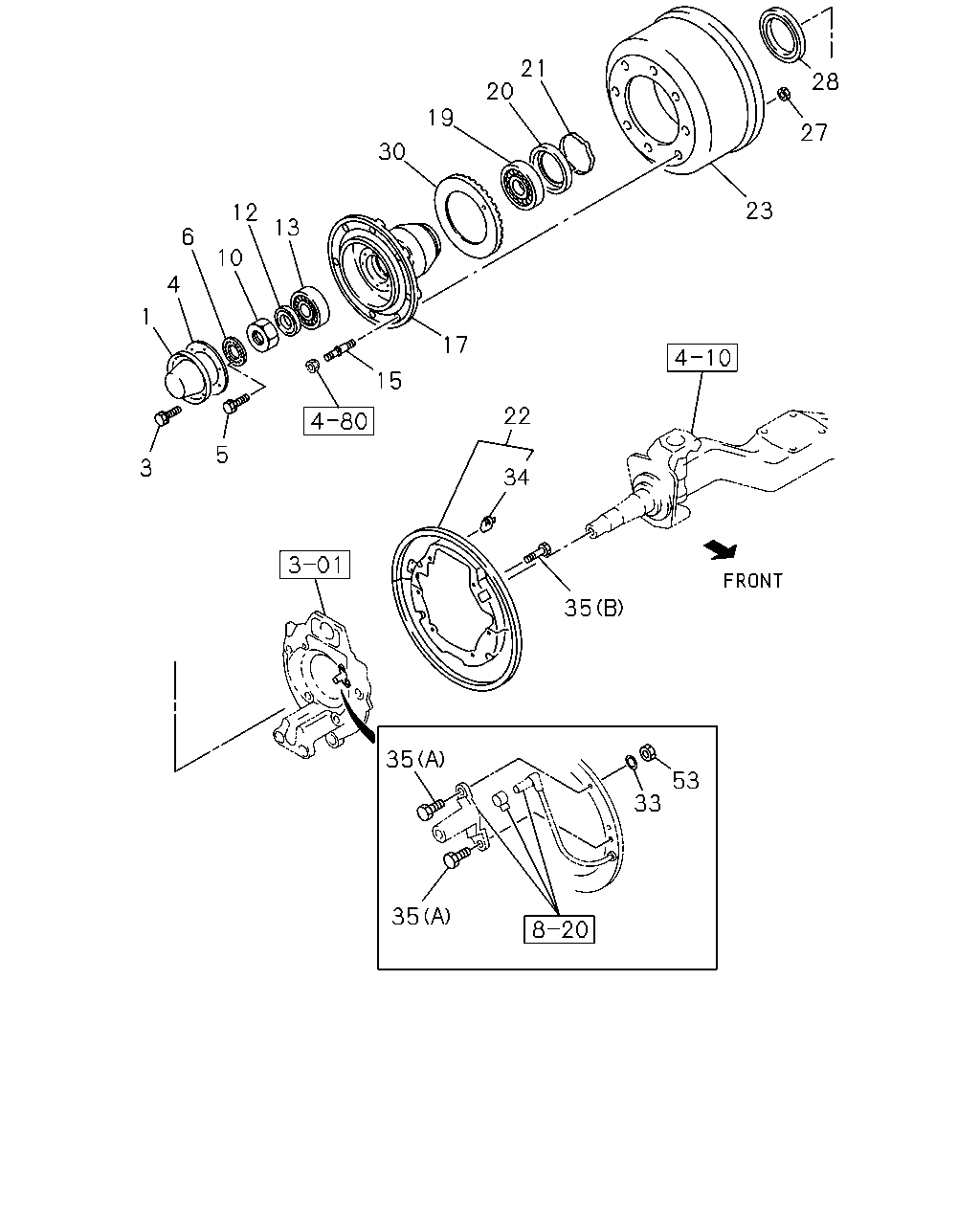

çizim 46014
21 20 28 19 27 30 23 12 13 6 10 4 1 17 15 22 5 3 34 35 35 53 33 35
BalonParca AdiParca NoAdetTipApplied Date A B
1 CAP; HUB,FRT AXLE
OD=156 		9-42313-123-2 02 1 9902-0003 ●
1 CAP; HUB,FRT AXLE
OD=156 		9-42313-123-2 02 1 0004- ● ●
3 BOLT; HUB CAP,FRT WHEEL
M8X12 FLANGE 		0-28080-812-0 12 1 9902-0003 ●
3 BOLT; HUB CAP,FRT WHEEL
M8X12 FLANGE 		0-28080-812-0 12 1 0004- ● ●
4 GASKET; HUB CAP,FRT WHEEL 1-42319-029-0 02 1 9902-9906 ●
4 GASKET; HUB CAP,FRT WHEEL 1-42319-185-0 02 1 9907-0003 ●
4 GASKET; HUB CAP,FRT WHEEL 1-42319-185-1 02 1 0004- ● ●
5 BOLT; LK WASHER
M6X16 FLANGE 		0-28680-616-0 04 1 9902-0003 ●
5 BOLT; LK WASHER
M6X16 FLANGE 		0-28680-616-0 04 1 0004- ● ●
6 WASHER; LK,FRT HUB
ID=48 		1-09533-012-1 02 1 9902-0003 ●
6 WASHER; LK,FRT HUB
ID=48 		1-09533-012-1 02 1 0004- ● ●
10 NUT; FRT HUB BRG
M48 		1-09840-012-3 02 1 9902-0003 ●
10 NUT; FRT HUB BRG
M48 		1-09840-012-5 02 1 0004- ● ●
12 WASHER; LK,FRT HUB BRG
ID=48 		1-09533-016-0 02 1 9902-0003 ●
12 WASHER; LK,FRT HUB BRG
ID=48 		1-09533-016-0 02 1 0004- ● ●
13 BEARING; HUB OUTER,FRT AXLE
KOYO 		1-09812-234-0 02 1 9902-0003 ●
13 BEARING; HUB OUTER,FRT AXLE
KOYO 		1-09812-234-0 02 1 0004- ● ●
15 PIN; WHEEL,FRT AXLE
DISC WHEEL AL<SDM> M22X48.8,M22X55.5 RH THREAD 		1-42337-011-1 20 1 9902-9904 ●
15 PIN; WHEEL,FRT AXLE
DISC WHEEL AL<SDM> EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62>,WHEEL 8STUD 8.25X22.5 165-23 AL DISH ALCOA<SHG> M22X48.8,M22X55.5 RH THREAD 		1-42337-011-1 20 1 9905- ●
15 PIN; WHEEL,FRT AXLE
EXC. DISC WHEEL AL<SDM> M22X42.8,M22X55.5 RH THREAD 		1-42337-044-0 20 1 9902-9904 ●
15 PIN; WHEEL,FRT AXLE
EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62>,DISC WHEEL AL<SDM>,WHEEL 8STUD 8.25X22.5 165-23 AL DISH ALCOA<SHG> M22X42.8,M22X55.5 RH THREAD 		1-42337-044-0 20 1 9905-0003 ●
15 PIN; WHEEL,FRT AXLE
EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62>,DISC WHEEL AL<SDM>,WHEEL 8STUD 8.25X22.5 165-23 AL DISH ALCOA<SHG> M22X42.8,M22X55.5 RH THREAD 		1-42337-044-0 20 1 0004- ●
15 PIN; WHEEL,FRT AXLE
M22X42.8,M22X55.5 RH THREAD 		1-42337-044-0 20 1 0004- ●
15 PIN; WHEEL,FRT AXLE
WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62>,WHEEL 8STUD 8.25X22.5 165-23 AL DISH ALCOA<SHG> M24X37.5 LH THREAD,M22X57.5 RH THREAD 		1-42332-109-0 08 1 9905- ●
15 PIN; WHEEL,FRT AXLE
WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62>,WHEEL 8STUD 8.25X22.5 165-23 AL DISH ALCOA<SHG> M24X37.5,M22X57.5 RH THREAD 		1-42331-109-0 08 1 9905- ●
17 HUB; FRT AXLE 1-42312-100-0 02 1 9902-9904 ●
17 HUB; FRT AXLE
EXC. ANTILOCK BRAKE SYSTEM(BFA),WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62>,WHEEL 8STUD 8.25X22.5 165-23 AL DISH ALCOA<SHG> 		1-42312-100-0 02 1 9905-0003 ●
17 HUB; FRT AXLE
EXC. ANTILOCK BRAKE SYSTEM(BFA),WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62>,WHEEL 8STUD 8.25X22.5 165-23 AL DISH ALCOA<SHG> 		1-42312-100-1 02 1 0004- ●
17 HUB; FRT AXLE 1-42312-100-1 02 1 0004- ●
17 HUB; FRT AXLE
ANTILOCK BRAKE SYSTEM(BFA) WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62>,WHEEL 8STUD 8.25X22.5 165-23 AL DISH ALCOA<SHG> EXC. BRAKE SYSTEM SPRING BRAKE(BCR),INTERNATIONAL STANDARD ISO 10STUD<B3V> 		1-42312-138-1 02 1 9905- ●
17 HUB; FRT AXLE
WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62>,WHEEL 8STUD 8.25X22.5 165-23 AL DISH ALCOA<SHG> EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTILOCK BRAKESYSTEM(BFA) 		1-42312-128-2 02 1 9905- ●
19 BEARING; HUB INNER,FRT AXLE
KOYO 		1-09812-231-0 02 1 9902-0003 ●
19 BEARING; HUB INNER,FRT AXLE
KOYO 		1-09812-231-0 02 1 0004- ● ●
20 COVER; HUB BRG INNER 1-42319-039-0 02 1 9902-0003 ●
20 COVER; HUB BRG INNER 1-42319-039-0 02 1 0004- ● ●
21 RING; SNAP,HUB 1-09587-017-0 02 1 9902-0003 ●
21 RING; SNAP,HUB 1-09587-017-0 02 1 0004- ● ●
22 COVER SET; FRT BRK DRUM 1-47151-604-1 02 1 9902-9904 ●
22 COVER SET; FRT BRK DRUM
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-47151-604-1 02 1 9905- ●
22 COVER SET; FRT BRK DRUM
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) 		1-47151-459-1 02 1 9905-0003 ●
22 COVER SET; FRT BRK DRUM
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) 		1-47151-459-1 02 1 0004- ●
22 COVER SET; FRT BRK DRUM 1-47151-459-1 02 1 0004- ●
23 DRUM; BRK,FRT 1-42315-337-0 02 1 9902-9904 ●
23 DRUM; BRK,FRT
EXC. ANTILOCK BRAKE SYSTEM(BFA),WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62>,WHEEL 8STUD 8.25X22.5 165-23 AL DISH ALCOA<SHG> 		1-42315-337-0 02 1 9905-0003 ●
23 DRUM; BRK,FRT
EXC. ANTILOCK BRAKE SYSTEM(BFA),WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62>,WHEEL 8STUD 8.25X22.5 165-23 AL DISH ALCOA<SHG> 		1-42315-337-0 02 1 0004- ●
23 DRUM; BRK,FRT 1-42315-337-0 02 1 0004- ●
23 DRUM; BRK,FRT
WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62>,WHEEL 8STUD 8.25X22.5 165-23 AL DISH ALCOA<SHG> 		1-42315-336-1 02 1 9905- ●
27 NUT; WHEEL PIN,FRT AXLE
M22 		1-09400-071-0 20 1 9902-9904 ●
27 NUT; WHEEL PIN,FRT AXLE
EXC. ANTILOCK BRAKE SYSTEM(BFA),WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62>,WHEEL 8STUD 8.25X22.5 165-23 AL DISH ALCOA<SHG> M22 		1-09400-071-0 20 1 9905-0003 ●
27 NUT; WHEEL PIN,FRT AXLE
EXC. ANTILOCK BRAKE SYSTEM(BFA),WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62>,WHEEL 8STUD 8.25X22.5 165-23 AL DISH ALCOA<SHG> M22 		1-09400-071-0 20 1 0004- ●
27 NUT; WHEEL PIN,FRT AXLE
M22 		1-09400-071-0 20 1 0004- ●
27 NUT; WHEEL PIN,FRT AXLE
WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62>,WHEEL 8STUD 8.25X22.5 165-23 AL DISH ALCOA<SHG> M22 FLANGE 		1-09440-055-0 16 1 9905-9905 ●
27 NUT; WHEEL PIN,FRT AXLE
WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62>,WHEEL 8STUD 8.25X22.5 165-23 AL DISH ALCOA<SHG> M22 FLANGE 		1-09440-065-0 16 1 9905- ●
28 SEAL; OIL,FRT HUB
OD=140 		1-09625-041-0 02 1 9902-0003 ●
28 SEAL; OIL,FRT HUB
OD=140 		1-09625-041-0 02 1 0004- ● ●
30 RING; EXCITER,FRT HUB
ANTILOCK BRAKE SYSTEM(BFA) 		1-42319-163-0 02 1 9905- ●
33 WASHER; LK,DRUM COVER
ID=16.2 		9-09150-816-0 04 1 9902-0003 ●
33 WASHER; LK,DRUM COVER
ID=16.2 		9-09150-816-0 04 1 0004- ● ●
34 COVER; CHECK HOLE,DRUM COVER 1-09333-151-0 04 1 9902-0003 ●
34 COVER; CHECK HOLE,DRUM COVER 1-09333-151-0 04 1 0004- ● ●
35 BOLT; DRUM COVER
(B) M10X16 W/LK WASHER 		0-50041-016-0 12 1 9902-0003 ●
35 BOLT; DRUM COVER
(B) M10X16 W/LK WASHER 		0-50041-016-0 12 1 0004- ● ●
35 BOLT; DRUM COVER
(A) M16X59 FLANGE 		1-09044-002-2 04 1 9902-9904 ●
35 BOLT; DRUM COVER
EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) M16X59 FLANGE 		1-09044-002-2 04 1 9905-0003 ●
35 BOLT; DRUM COVER
EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) M16X59 FLANGE 		1-09044-002-2 04 1 0004- ●
35 BOLT; DRUM COVER
(A) M16X59 FLANGE 		1-09044-002-2 04 1 0004- ●
35 BOLT; DRUM COVER
ANTILOCK BRAKE SYSTEM(BFA) (A) M12X40 		0-20801-240-0 02 1 9905- ●
35 BOLT; DRUM COVER
ANTILOCK BRAKE SYSTEM(BFA) (A) M16X59 FLANGE 		1-09044-002-2 02 1 9905- ●
35 BOLT; DRUM COVER
ANTILOCK BRAKE SYSTEM(BFA) (A) M16X74 FLANGE 		1-09044-057-2 02 1 9905- ●
53 NUT; DRUM COVER
M16 		9-99110-416-0 04 1 9902-9902 ●
53 NUT; DRUM COVER
M16 		9-99110-516-0 04 1 9903-0003 ●
53 NUT; DRUM COVER
M16 		9-99110-516-0 04 1 0004- ● ●
