Sayfa 4-30 - Isuzu EPC

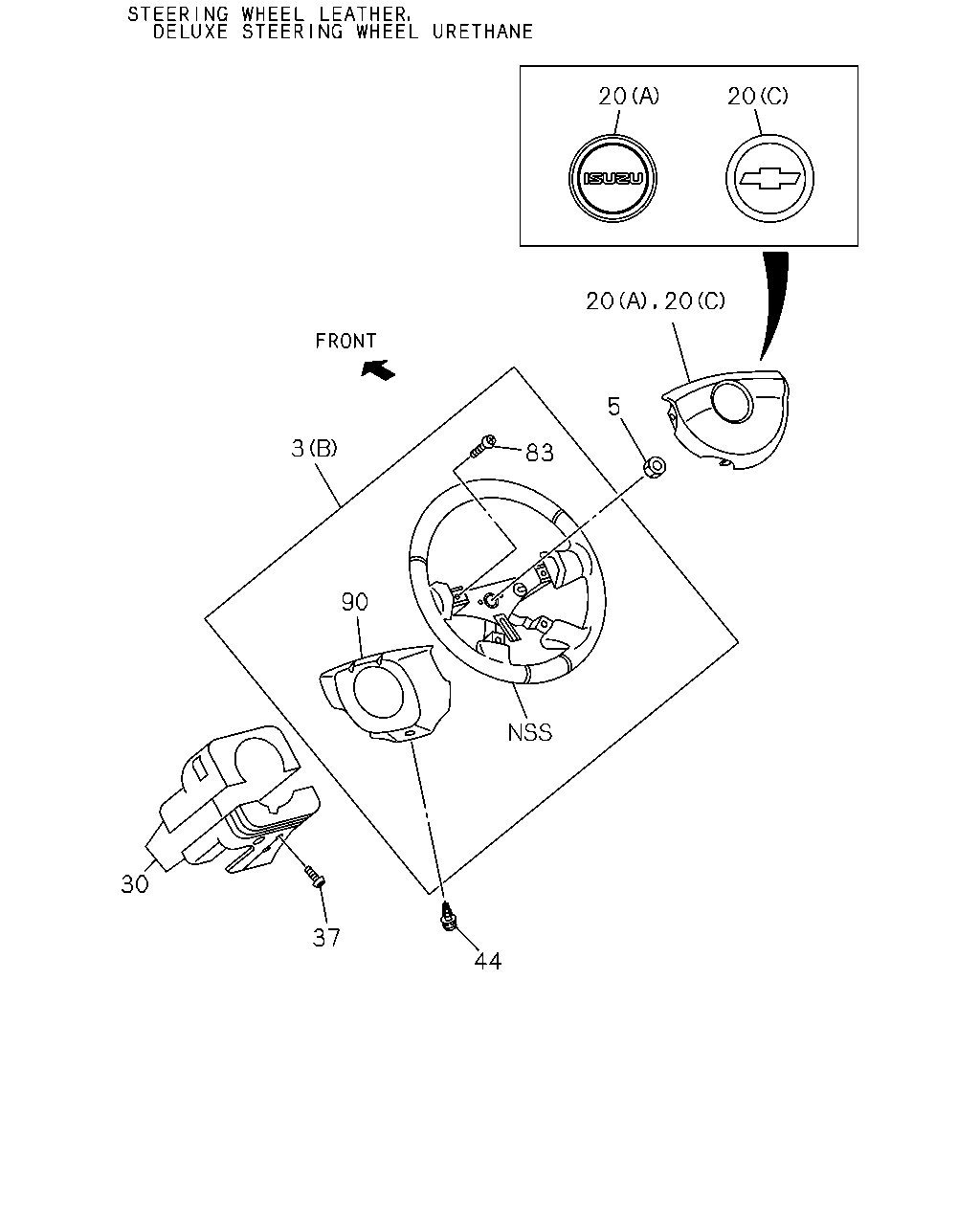

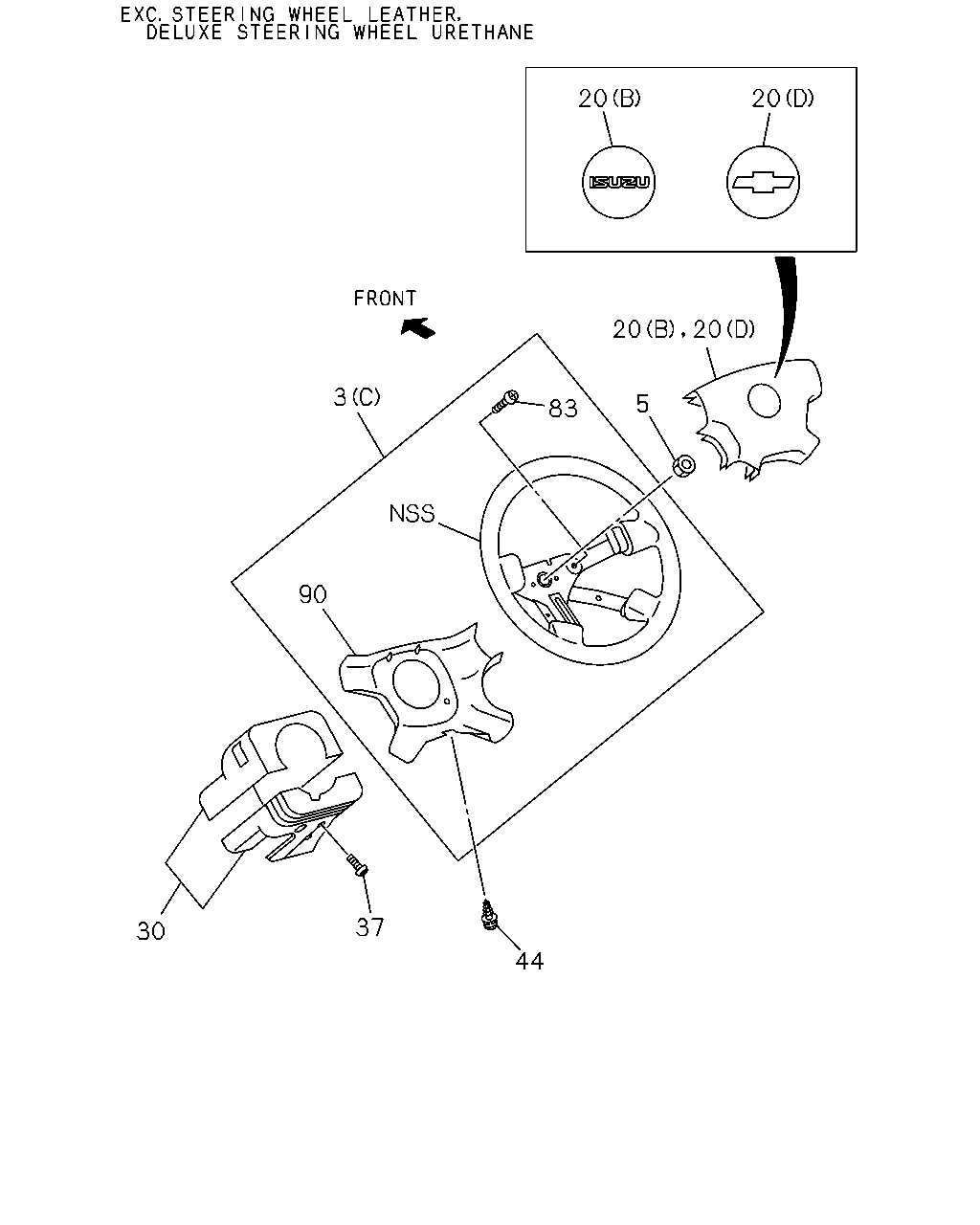

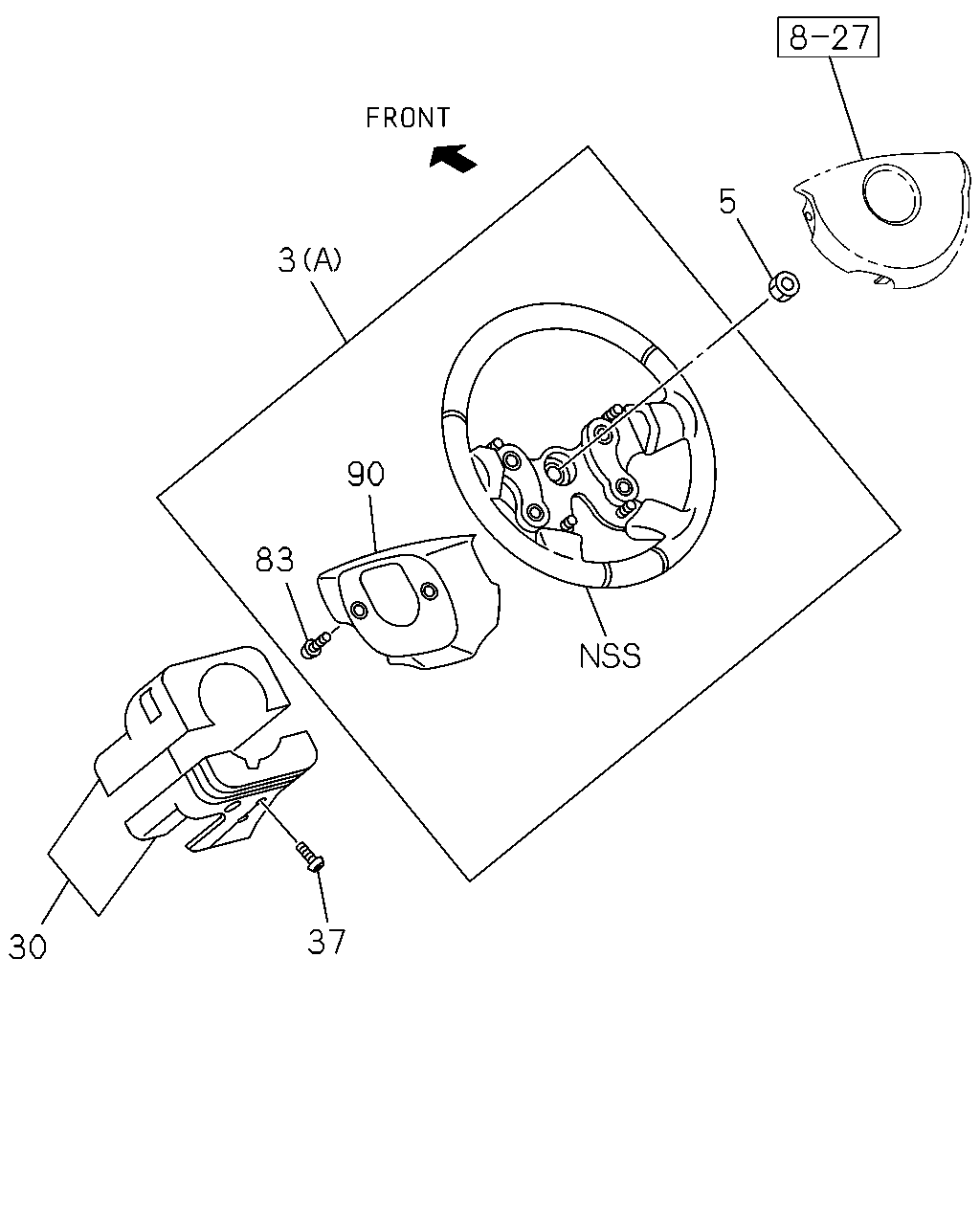

4-30 — STEERING WHEEL AND COWL (#77039) — 142 parça

20 20 20 20 5 3 83 90 30 37 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
3	06.513 WHEEL; STRG AIR BAG DRIVER & PASSENGER(AK5) DELUXE STEERING WHEEL URETHANE<N30> (A) DARK GRAY	8-97403-688-2	01	1	0808-0809	●	●	●	●	●
3	06.513 WHEEL; STRG AIR BAG DRIVER & PASSENGER(AK5) DELUXE STEERING WHEEL URETHANE<N30> (A) DARK GRAY	8-97403-688-2	01	1	0810-	●	●	●	●	●	●	●
3	06.513 WHEEL; STRG AIR BAG DRIVER & PASSENGER DELETE(AK6) DELUXE STEERING WHEEL URETHANE<N30> (B) DARK GRAY	8-97403-871-1	01	1	0808-0809	●	●	●	●	●
3	06.513 WHEEL; STRG AIR BAG DRIVER & PASSENGER DELETE(AK6) DELUXE STEERING WHEEL URETHANE<N30> (B) DARK GRAY	8-97403-871-1	01	1	0810-	●	●	●	●	●	●	●
3	06.513 WHEEL; STRG AIR BAG DRIVER & PASSENGER(AK5) STEERING WHEEL LEATHER<NP5> (A) DARK GRAY	8-97403-900-2	01	1	0808-0809		●			●
3	06.513 WHEEL; STRG AIR BAG DRIVER & PASSENGER(AK5) STEERING WHEEL LEATHER<NP5> (A) DARK GRAY	8-97403-900-2	01	1	0810-		●	●	●	●	●	●
3	06.513 WHEEL; STRG AIR BAG DRIVER & PASSENGER DELETE(AK6) STEERING WHEEL LEATHER<NP5> (B) DARK GRAY	8-97403-870-1	01	1	0808-0809		●			●
3	06.513 WHEEL; STRG AIR BAG DRIVER & PASSENGER DELETE(AK6) STEERING WHEEL LEATHER<NP5> (B) DARK GRAY	8-97403-870-1	01	1	0810-		●	●	●	●	●	●
3	06.513 WHEEL; STRG AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. STEERING WHEEL LEATHER<NP5>, DELUXE STEERING WHEEL URETHANE<N30> (C) DARK GRAY	8-97403-689-0	01	1	0808-0809		●			●
3	06.513 WHEEL; STRG AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. STEERING WHEEL LEATHER<NP5>, DELUXE STEERING WHEEL URETHANE<N30> (C) DARK GRAY	8-97403-689-0	01	1	0810-1003		●	●	●	●	●	●
3	06.513 WHEEL; STRG INTERIOR COLOR IN VERY DARK GRAY(116) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. STEERING WHEEL LEATHER<NP5>, DELUXE STEERING WHEEL URETHANE<N30> (C) DARK GRAY	8-97403-689-0	01	1	1004-		●	●	●	●	●	●
5	06.515 NUT; STRG WHEEL TO SHAFT M12 W/TOOTH WASHER	8-94455-487-1	01	1	0808-0809	●	●	●	●	●
5	06.515 NUT; STRG WHEEL TO SHAFT M12 W/TOOTH WASHER	8-94455-487-1	01	1	0810-	●	●	●	●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL AIR BAG DRIVER & PASSENGER DELETE(AK6) STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> CHEVROLET BRAND<RWE> INTERIOR STEERING CENTER PAD BADGE<8MB> (C) DARK GRAY	8-97408-847-0	01	1	0810-		●	●	●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL AIR BAG DRIVER & PASSENGER DELETE(AK6) STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> CHEVROLET BRAND<RWE> EXC. INTERIOR STEERING CENTER PAD BA DGE<8MB> (C) DARK GRAY	8-97408-850-0	01	1	0810-		●	●	●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL AIR BAG DRIVER & PASSENGER DELETE(AK6) CHEVROLET BRAND<RWE> EXC. STEERING WHEEL LEATHER<NP5>, DELUXE STEERING WHEEL URETHANE<N30>,INT ERIOR STEERING CENTER PAD BADGE<8MB> (D) DARK GRAY	8-97403-876-0	01	1	0810-		●	●	●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL AIR BAG DRIVER & PASSENGER DELETE(AK6) STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> INTERIOR STEERING CENTER PAD BADGE<8MB> (A) DARK GRAY	8-97408-845-0	01	1	0808-0809	●	●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL AIR BAG DRIVER & PASSENGER DELETE(AK6) STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> ISUZU BRAND<7WL> INTERIOR STEERING CENTER PAD BADGE<8MB> (A) DARK GRAY	8-97408-845-0	01	1	0810-	●	●	●	●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL AIR BAG DRIVER & PASSENGER DELETE(AK6) STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> EXC. INTERIOR STEERING CENTER PAD BA DGE<8MB> (A) DARK GRAY	8-97408-848-0	01	1	0808-0809	●	●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL AIR BAG DRIVER & PASSENGER DELETE(AK6) STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> ISUZU BRAND<7WL> EXC. INTERIOR STEERING CENTER PAD BA DGE<8MB> (A) DARK GRAY	8-97408-848-0	01	1	0810-	●	●	●	●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. STEERING WHEEL LEATHER<NP5>, DELUXE STEERING WHEEL URETHANE<N30>,INT ERIOR STEERING CENTER PAD BADGE<8MB> (B) DARK GRAY	8-97403-875-0	01	1	0808-0809		●			●
20	06.512 SHROUD; PAD,STRG WHEEL AIR BAG DRIVER & PASSENGER DELETE(AK6) ISUZU BRAND<7WL> EXC. STEERING WHEEL LEATHER<NP5>, DELUXE STEERING WHEEL URETHANE<N30>,INT ERIOR STEERING CENTER PAD BADGE<8MB> (B) DARK GRAY	8-97403-875-0	01	1	0810-		●	●	●	●	●	●
30	06.518 COWL; STEERING DARK GRAY	8-97396-696-2	01	1	0810-1104						●
30	06.518 COWL; STEERING EXC. SINGAPORE EQUIPMENT(2G0), IMMOBILIZER SYSTEM<7KC> DARK GRAY	8-97396-696-2	01	1	0810-1104		●	●	●	●		●
30	06.518 COWL; STEERING DARK GRAY	8-97422-707-0	01	1	1105-						●
30	06.518 COWL; STEERING EXC. SINGAPORE EQUIPMENT(2G0), IMMOBILIZER SYSTEM<7KC> DARK GRAY	8-97422-707-0	01	1	1105-		●	●	●	●		●
30	06.518 COWL; STEERING HONG KONG EQUIPMENT(B14) IMMOBILIZER SYSTEM<7KC> DARK GRAY	8-97403-687-1	01	1	0810-1104		●			●		●
30	06.518 COWL; STEERING HONG KONG EQUIPMENT(B14) IMMOBILIZER SYSTEM<7KC> DARK GRAY	8-97422-710-0	01	1	1105-		●			●		●
30	06.518 COWL; STEERING SINGAPORE EQUIPMENT(2G0) EXC. IMMOBILIZER SYSTEM<7KC> DARK GRAY	8-97403-686-1	01	1	0810-1003		●		●	●		●
30	06.518 COWL; STEERING INTERIOR COLOR IN VERY DARK GRAY(116) SINGAPORE EQUIPMENT(2G0) EXC. IMMOBILIZER SYSTEM<7KC> DARK GRAY	8-97403-686-1	01	1	1004-1104		●		●	●		●
30	06.518 COWL; STEERING INTERIOR COLOR IN VERY DARK GRAY(116) SINGAPORE EQUIPMENT(2G0) EXC. IMMOBILIZER SYSTEM<7KC> DARK GRAY	8-97422-709-0	01	1	1105-		●		●	●		●
30	06.518 COWL; STEERING DARK GRAY	8-97403-685-1	01	1	0808-0809	●	●	●	●	●
30	06.518 COWL; STEERING IMMOBILIZER SYSTEM<7KC> EXC. HONG KONG EQUIPMENT(B14) DARK GRAY	8-97403-685-1	01	1	0810-1104		●	●	●	●		●
30	06.518 COWL; STEERING DARK GRAY	8-97403-685-1	01	1	0810-1104	●
30	06.518 COWL; STEERING IMMOBILIZER SYSTEM<7KC> EXC. HONG KONG EQUIPMENT(B14) DARK GRAY	8-97422-708-0	01	1	1105-		●	●	●	●		●
30	06.518 COWL; STEERING DARK GRAY	8-97422-708-0	01	1	1105-	●
37	06.518 SCREW; STRG COWL UPR M4X12 W/PL WASHER	0-36210-412-0	03	1	0808-0809	●	●	●	●	●
37	06.518 SCREW; STRG COWL UPR M4X12 W/PL WASHER	0-36210-412-0	03	1	0810-	●	●	●	●	●	●	●
44	06.514 SCREW; STRG COWL AIR BAG DRIVER & PASSENGER DELETE(AK6) M5X19 W/LK&PL WASHER	8-98023-674-0	01	1	0808-0809	●	●	●	●	●
44	06.514 SCREW; STRG COWL AIR BAG DRIVER & PASSENGER DELETE(AK6) M5X19 W/LK&PL WASHER	8-98023-674-0	01	1	0810-	●	●	●	●	●	●	●
83	06.514 SCREW; LWR COVER TO WHEEL AIR BAG DRIVER & PASSENGER(AK5) STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30>	8-97350-038-0	02	1	0808-0809	●	●	●	●	●
83	06.514 SCREW; LWR COVER TO WHEEL AIR BAG DRIVER & PASSENGER(AK5) STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30>	8-97350-038-0	02	1	0810-	●	●	●	●	●	●	●
83	06.514 SCREW; LWR COVER TO WHEEL AIR BAG DRIVER & PASSENGER DELETE(AK6)	8-97350-037-0	04	1	0808-0809	●	●	●	●	●
83	06.514 SCREW; LWR COVER TO WHEEL AIR BAG DRIVER & PASSENGER DELETE(AK6)	8-97350-037-0	04	1	0810-	●	●	●	●	●	●	●
90	06.578 COVER ASM; STRG WHEEL,LWR AIR BAG DRIVER & PASSENGER(AK5) STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> DARK GRAY	8-97403-937-1	01	1	0808-0809	●	●	●	●	●
90	06.578 COVER ASM; STRG WHEEL,LWR AIR BAG DRIVER & PASSENGER(AK5) STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> DARK GRAY	8-97403-937-1	01	1	0810-	●	●	●	●	●	●	●
90	06.578 COVER ASM; STRG WHEEL,LWR AIR BAG DRIVER & PASSENGER DELETE(AK6) STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> DARK GRAY	8-97403-939-1	01	1	0808-0809	●	●	●	●	●
90	06.578 COVER ASM; STRG WHEEL,LWR AIR BAG DRIVER & PASSENGER DELETE(AK6) STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> DARK GRAY	8-97403-939-1	01	1	0810-	●	●	●	●	●	●	●
90	06.578 COVER ASM; STRG WHEEL,LWR AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. STEERING WHEEL LEATHER<NP5>, DELUXE STEERING WHEEL URETHANE<N30> DARK GRAY	8-97403-938-0	01	1	0808-0809		●			●
90	06.578 COVER ASM; STRG WHEEL,LWR AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. STEERING WHEEL LEATHER<NP5>, DELUXE STEERING WHEEL URETHANE<N30> DARK GRAY	8-97403-938-0	01	1	0810-1003		●	●	●	●	●	●
90	06.578 COVER ASM; STRG WHEEL,LWR INTERIOR COLOR IN VERY DARK GRAY(116) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. STEERING WHEEL LEATHER<NP5>, DELUXE STEERING WHEEL URETHANE<N30> DARK GRAY	8-97403-938-0	01	1	1004-		●	●	●	●	●	●

20 20 3 5 83 90 37 30 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
3	06.513 WHEEL; STRG AIR BAG DRIVER & PASSENGER(AK5) DELUXE STEERING WHEEL URETHANE<N30> (A) DARK GRAY	8-97403-688-2	01	1	0808-0809	●	●	●	●	●
3	06.513 WHEEL; STRG AIR BAG DRIVER & PASSENGER(AK5) DELUXE STEERING WHEEL URETHANE<N30> (A) DARK GRAY	8-97403-688-2	01	1	0810-	●	●	●	●	●	●	●
3	06.513 WHEEL; STRG AIR BAG DRIVER & PASSENGER DELETE(AK6) DELUXE STEERING WHEEL URETHANE<N30> (B) DARK GRAY	8-97403-871-1	01	1	0808-0809	●	●	●	●	●
3	06.513 WHEEL; STRG AIR BAG DRIVER & PASSENGER DELETE(AK6) DELUXE STEERING WHEEL URETHANE<N30> (B) DARK GRAY	8-97403-871-1	01	1	0810-	●	●	●	●	●	●	●
3	06.513 WHEEL; STRG AIR BAG DRIVER & PASSENGER(AK5) STEERING WHEEL LEATHER<NP5> (A) DARK GRAY	8-97403-900-2	01	1	0808-0809		●			●
3	06.513 WHEEL; STRG AIR BAG DRIVER & PASSENGER(AK5) STEERING WHEEL LEATHER<NP5> (A) DARK GRAY	8-97403-900-2	01	1	0810-		●	●	●	●	●	●
3	06.513 WHEEL; STRG AIR BAG DRIVER & PASSENGER DELETE(AK6) STEERING WHEEL LEATHER<NP5> (B) DARK GRAY	8-97403-870-1	01	1	0808-0809		●			●
3	06.513 WHEEL; STRG AIR BAG DRIVER & PASSENGER DELETE(AK6) STEERING WHEEL LEATHER<NP5> (B) DARK GRAY	8-97403-870-1	01	1	0810-		●	●	●	●	●	●
3	06.513 WHEEL; STRG AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. STEERING WHEEL LEATHER<NP5>, DELUXE STEERING WHEEL URETHANE<N30> (C) DARK GRAY	8-97403-689-0	01	1	0808-0809		●			●
3	06.513 WHEEL; STRG AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. STEERING WHEEL LEATHER<NP5>, DELUXE STEERING WHEEL URETHANE<N30> (C) DARK GRAY	8-97403-689-0	01	1	0810-1003		●	●	●	●	●	●
3	06.513 WHEEL; STRG INTERIOR COLOR IN VERY DARK GRAY(116) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. STEERING WHEEL LEATHER<NP5>, DELUXE STEERING WHEEL URETHANE<N30> (C) DARK GRAY	8-97403-689-0	01	1	1004-		●	●	●	●	●	●
5	06.515 NUT; STRG WHEEL TO SHAFT M12 W/TOOTH WASHER	8-94455-487-1	01	1	0808-0809	●	●	●	●	●
5	06.515 NUT; STRG WHEEL TO SHAFT M12 W/TOOTH WASHER	8-94455-487-1	01	1	0810-	●	●	●	●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL AIR BAG DRIVER & PASSENGER DELETE(AK6) STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> CHEVROLET BRAND<RWE> INTERIOR STEERING CENTER PAD BADGE<8MB> (C) DARK GRAY	8-97408-847-0	01	1	0810-		●	●	●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL AIR BAG DRIVER & PASSENGER DELETE(AK6) STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> CHEVROLET BRAND<RWE> EXC. INTERIOR STEERING CENTER PAD BA DGE<8MB> (C) DARK GRAY	8-97408-850-0	01	1	0810-		●	●	●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL AIR BAG DRIVER & PASSENGER DELETE(AK6) CHEVROLET BRAND<RWE> EXC. STEERING WHEEL LEATHER<NP5>, DELUXE STEERING WHEEL URETHANE<N30>,INT ERIOR STEERING CENTER PAD BADGE<8MB> (D) DARK GRAY	8-97403-876-0	01	1	0810-		●	●	●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL AIR BAG DRIVER & PASSENGER DELETE(AK6) STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> INTERIOR STEERING CENTER PAD BADGE<8MB> (A) DARK GRAY	8-97408-845-0	01	1	0808-0809	●	●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL AIR BAG DRIVER & PASSENGER DELETE(AK6) STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> ISUZU BRAND<7WL> INTERIOR STEERING CENTER PAD BADGE<8MB> (A) DARK GRAY	8-97408-845-0	01	1	0810-	●	●	●	●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL AIR BAG DRIVER & PASSENGER DELETE(AK6) STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> EXC. INTERIOR STEERING CENTER PAD BA DGE<8MB> (A) DARK GRAY	8-97408-848-0	01	1	0808-0809	●	●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL AIR BAG DRIVER & PASSENGER DELETE(AK6) STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> ISUZU BRAND<7WL> EXC. INTERIOR STEERING CENTER PAD BA DGE<8MB> (A) DARK GRAY	8-97408-848-0	01	1	0810-	●	●	●	●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. STEERING WHEEL LEATHER<NP5>, DELUXE STEERING WHEEL URETHANE<N30>,INT ERIOR STEERING CENTER PAD BADGE<8MB> (B) DARK GRAY	8-97403-875-0	01	1	0808-0809		●			●
20	06.512 SHROUD; PAD,STRG WHEEL AIR BAG DRIVER & PASSENGER DELETE(AK6) ISUZU BRAND<7WL> EXC. STEERING WHEEL LEATHER<NP5>, DELUXE STEERING WHEEL URETHANE<N30>,INT ERIOR STEERING CENTER PAD BADGE<8MB> (B) DARK GRAY	8-97403-875-0	01	1	0810-		●	●	●	●	●	●
30	06.518 COWL; STEERING DARK GRAY	8-97396-696-2	01	1	0810-1104						●
30	06.518 COWL; STEERING EXC. SINGAPORE EQUIPMENT(2G0), IMMOBILIZER SYSTEM<7KC> DARK GRAY	8-97396-696-2	01	1	0810-1104		●	●	●	●		●
30	06.518 COWL; STEERING DARK GRAY	8-97422-707-0	01	1	1105-						●
30	06.518 COWL; STEERING EXC. SINGAPORE EQUIPMENT(2G0), IMMOBILIZER SYSTEM<7KC> DARK GRAY	8-97422-707-0	01	1	1105-		●	●	●	●		●
30	06.518 COWL; STEERING HONG KONG EQUIPMENT(B14) IMMOBILIZER SYSTEM<7KC> DARK GRAY	8-97403-687-1	01	1	0810-1104		●			●		●
30	06.518 COWL; STEERING HONG KONG EQUIPMENT(B14) IMMOBILIZER SYSTEM<7KC> DARK GRAY	8-97422-710-0	01	1	1105-		●			●		●
30	06.518 COWL; STEERING SINGAPORE EQUIPMENT(2G0) EXC. IMMOBILIZER SYSTEM<7KC> DARK GRAY	8-97403-686-1	01	1	0810-1003		●		●	●		●
30	06.518 COWL; STEERING INTERIOR COLOR IN VERY DARK GRAY(116) SINGAPORE EQUIPMENT(2G0) EXC. IMMOBILIZER SYSTEM<7KC> DARK GRAY	8-97403-686-1	01	1	1004-1104		●		●	●		●
30	06.518 COWL; STEERING INTERIOR COLOR IN VERY DARK GRAY(116) SINGAPORE EQUIPMENT(2G0) EXC. IMMOBILIZER SYSTEM<7KC> DARK GRAY	8-97422-709-0	01	1	1105-		●		●	●		●
30	06.518 COWL; STEERING DARK GRAY	8-97403-685-1	01	1	0808-0809	●	●	●	●	●
30	06.518 COWL; STEERING IMMOBILIZER SYSTEM<7KC> EXC. HONG KONG EQUIPMENT(B14) DARK GRAY	8-97403-685-1	01	1	0810-1104		●	●	●	●		●
30	06.518 COWL; STEERING DARK GRAY	8-97403-685-1	01	1	0810-1104	●
30	06.518 COWL; STEERING IMMOBILIZER SYSTEM<7KC> EXC. HONG KONG EQUIPMENT(B14) DARK GRAY	8-97422-708-0	01	1	1105-		●	●	●	●		●
30	06.518 COWL; STEERING DARK GRAY	8-97422-708-0	01	1	1105-	●
37	06.518 SCREW; STRG COWL UPR M4X12 W/PL WASHER	0-36210-412-0	03	1	0808-0809	●	●	●	●	●
37	06.518 SCREW; STRG COWL UPR M4X12 W/PL WASHER	0-36210-412-0	03	1	0810-	●	●	●	●	●	●	●
44	06.514 SCREW; STRG COWL AIR BAG DRIVER & PASSENGER DELETE(AK6) M5X19 W/LK&PL WASHER	8-98023-674-0	01	1	0808-0809	●	●	●	●	●
44	06.514 SCREW; STRG COWL AIR BAG DRIVER & PASSENGER DELETE(AK6) M5X19 W/LK&PL WASHER	8-98023-674-0	01	1	0810-	●	●	●	●	●	●	●
83	06.514 SCREW; LWR COVER TO WHEEL AIR BAG DRIVER & PASSENGER(AK5) STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30>	8-97350-038-0	02	1	0808-0809	●	●	●	●	●
83	06.514 SCREW; LWR COVER TO WHEEL AIR BAG DRIVER & PASSENGER(AK5) STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30>	8-97350-038-0	02	1	0810-	●	●	●	●	●	●	●
83	06.514 SCREW; LWR COVER TO WHEEL AIR BAG DRIVER & PASSENGER DELETE(AK6)	8-97350-037-0	04	1	0808-0809	●	●	●	●	●
83	06.514 SCREW; LWR COVER TO WHEEL AIR BAG DRIVER & PASSENGER DELETE(AK6)	8-97350-037-0	04	1	0810-	●	●	●	●	●	●	●
90	06.578 COVER ASM; STRG WHEEL,LWR AIR BAG DRIVER & PASSENGER(AK5) STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> DARK GRAY	8-97403-937-1	01	1	0808-0809	●	●	●	●	●
90	06.578 COVER ASM; STRG WHEEL,LWR AIR BAG DRIVER & PASSENGER(AK5) STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> DARK GRAY	8-97403-937-1	01	1	0810-	●	●	●	●	●	●	●
90	06.578 COVER ASM; STRG WHEEL,LWR AIR BAG DRIVER & PASSENGER DELETE(AK6) STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> DARK GRAY	8-97403-939-1	01	1	0808-0809	●	●	●	●	●
90	06.578 COVER ASM; STRG WHEEL,LWR AIR BAG DRIVER & PASSENGER DELETE(AK6) STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> DARK GRAY	8-97403-939-1	01	1	0810-	●	●	●	●	●	●	●
90	06.578 COVER ASM; STRG WHEEL,LWR AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. STEERING WHEEL LEATHER<NP5>, DELUXE STEERING WHEEL URETHANE<N30> DARK GRAY	8-97403-938-0	01	1	0808-0809		●			●
90	06.578 COVER ASM; STRG WHEEL,LWR AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. STEERING WHEEL LEATHER<NP5>, DELUXE STEERING WHEEL URETHANE<N30> DARK GRAY	8-97403-938-0	01	1	0810-1003		●	●	●	●	●	●
90	06.578 COVER ASM; STRG WHEEL,LWR INTERIOR COLOR IN VERY DARK GRAY(116) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. STEERING WHEEL LEATHER<NP5>, DELUXE STEERING WHEEL URETHANE<N30> DARK GRAY	8-97403-938-0	01	1	1004-		●	●	●	●	●	●

5 3 90 83 37 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
3	06.513 WHEEL; STRG AIR BAG DRIVER & PASSENGER(AK5) DELUXE STEERING WHEEL URETHANE<N30> (A) DARK GRAY	8-97403-688-2	01	1	0808-0809	●	●	●	●	●
3	06.513 WHEEL; STRG AIR BAG DRIVER & PASSENGER(AK5) DELUXE STEERING WHEEL URETHANE<N30> (A) DARK GRAY	8-97403-688-2	01	1	0810-	●	●	●	●	●	●	●
3	06.513 WHEEL; STRG AIR BAG DRIVER & PASSENGER DELETE(AK6) DELUXE STEERING WHEEL URETHANE<N30> (B) DARK GRAY	8-97403-871-1	01	1	0808-0809	●	●	●	●	●
3	06.513 WHEEL; STRG AIR BAG DRIVER & PASSENGER DELETE(AK6) DELUXE STEERING WHEEL URETHANE<N30> (B) DARK GRAY	8-97403-871-1	01	1	0810-	●	●	●	●	●	●	●
3	06.513 WHEEL; STRG AIR BAG DRIVER & PASSENGER(AK5) STEERING WHEEL LEATHER<NP5> (A) DARK GRAY	8-97403-900-2	01	1	0808-0809		●			●
3	06.513 WHEEL; STRG AIR BAG DRIVER & PASSENGER(AK5) STEERING WHEEL LEATHER<NP5> (A) DARK GRAY	8-97403-900-2	01	1	0810-		●	●	●	●	●	●
3	06.513 WHEEL; STRG AIR BAG DRIVER & PASSENGER DELETE(AK6) STEERING WHEEL LEATHER<NP5> (B) DARK GRAY	8-97403-870-1	01	1	0808-0809		●			●
3	06.513 WHEEL; STRG AIR BAG DRIVER & PASSENGER DELETE(AK6) STEERING WHEEL LEATHER<NP5> (B) DARK GRAY	8-97403-870-1	01	1	0810-		●	●	●	●	●	●
3	06.513 WHEEL; STRG AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. STEERING WHEEL LEATHER<NP5>, DELUXE STEERING WHEEL URETHANE<N30> (C) DARK GRAY	8-97403-689-0	01	1	0808-0809		●			●
3	06.513 WHEEL; STRG AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. STEERING WHEEL LEATHER<NP5>, DELUXE STEERING WHEEL URETHANE<N30> (C) DARK GRAY	8-97403-689-0	01	1	0810-1003		●	●	●	●	●	●
3	06.513 WHEEL; STRG INTERIOR COLOR IN VERY DARK GRAY(116) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. STEERING WHEEL LEATHER<NP5>, DELUXE STEERING WHEEL URETHANE<N30> (C) DARK GRAY	8-97403-689-0	01	1	1004-		●	●	●	●	●	●
5	06.515 NUT; STRG WHEEL TO SHAFT M12 W/TOOTH WASHER	8-94455-487-1	01	1	0808-0809	●	●	●	●	●
5	06.515 NUT; STRG WHEEL TO SHAFT M12 W/TOOTH WASHER	8-94455-487-1	01	1	0810-	●	●	●	●	●	●	●
30	06.518 COWL; STEERING DARK GRAY	8-97396-696-2	01	1	0810-1104						●
30	06.518 COWL; STEERING EXC. SINGAPORE EQUIPMENT(2G0), IMMOBILIZER SYSTEM<7KC> DARK GRAY	8-97396-696-2	01	1	0810-1104		●	●	●	●		●
30	06.518 COWL; STEERING DARK GRAY	8-97422-707-0	01	1	1105-						●
30	06.518 COWL; STEERING EXC. SINGAPORE EQUIPMENT(2G0), IMMOBILIZER SYSTEM<7KC> DARK GRAY	8-97422-707-0	01	1	1105-		●	●	●	●		●
30	06.518 COWL; STEERING HONG KONG EQUIPMENT(B14) IMMOBILIZER SYSTEM<7KC> DARK GRAY	8-97403-687-1	01	1	0810-1104		●			●		●
30	06.518 COWL; STEERING HONG KONG EQUIPMENT(B14) IMMOBILIZER SYSTEM<7KC> DARK GRAY	8-97422-710-0	01	1	1105-		●			●		●
30	06.518 COWL; STEERING SINGAPORE EQUIPMENT(2G0) EXC. IMMOBILIZER SYSTEM<7KC> DARK GRAY	8-97403-686-1	01	1	0810-1003		●		●	●		●
30	06.518 COWL; STEERING INTERIOR COLOR IN VERY DARK GRAY(116) SINGAPORE EQUIPMENT(2G0) EXC. IMMOBILIZER SYSTEM<7KC> DARK GRAY	8-97403-686-1	01	1	1004-1104		●		●	●		●
30	06.518 COWL; STEERING INTERIOR COLOR IN VERY DARK GRAY(116) SINGAPORE EQUIPMENT(2G0) EXC. IMMOBILIZER SYSTEM<7KC> DARK GRAY	8-97422-709-0	01	1	1105-		●		●	●		●
30	06.518 COWL; STEERING DARK GRAY	8-97403-685-1	01	1	0808-0809	●	●	●	●	●
30	06.518 COWL; STEERING IMMOBILIZER SYSTEM<7KC> EXC. HONG KONG EQUIPMENT(B14) DARK GRAY	8-97403-685-1	01	1	0810-1104		●	●	●	●		●
30	06.518 COWL; STEERING DARK GRAY	8-97403-685-1	01	1	0810-1104	●
30	06.518 COWL; STEERING IMMOBILIZER SYSTEM<7KC> EXC. HONG KONG EQUIPMENT(B14) DARK GRAY	8-97422-708-0	01	1	1105-		●	●	●	●		●
30	06.518 COWL; STEERING DARK GRAY	8-97422-708-0	01	1	1105-	●
37	06.518 SCREW; STRG COWL UPR M4X12 W/PL WASHER	0-36210-412-0	03	1	0808-0809	●	●	●	●	●
37	06.518 SCREW; STRG COWL UPR M4X12 W/PL WASHER	0-36210-412-0	03	1	0810-	●	●	●	●	●	●	●
83	06.514 SCREW; LWR COVER TO WHEEL AIR BAG DRIVER & PASSENGER(AK5) STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30>	8-97350-038-0	02	1	0808-0809	●	●	●	●	●
83	06.514 SCREW; LWR COVER TO WHEEL AIR BAG DRIVER & PASSENGER(AK5) STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30>	8-97350-038-0	02	1	0810-	●	●	●	●	●	●	●
83	06.514 SCREW; LWR COVER TO WHEEL AIR BAG DRIVER & PASSENGER DELETE(AK6)	8-97350-037-0	04	1	0808-0809	●	●	●	●	●
83	06.514 SCREW; LWR COVER TO WHEEL AIR BAG DRIVER & PASSENGER DELETE(AK6)	8-97350-037-0	04	1	0810-	●	●	●	●	●	●	●
90	06.578 COVER ASM; STRG WHEEL,LWR AIR BAG DRIVER & PASSENGER(AK5) STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> DARK GRAY	8-97403-937-1	01	1	0808-0809	●	●	●	●	●
90	06.578 COVER ASM; STRG WHEEL,LWR AIR BAG DRIVER & PASSENGER(AK5) STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> DARK GRAY	8-97403-937-1	01	1	0810-	●	●	●	●	●	●	●
90	06.578 COVER ASM; STRG WHEEL,LWR AIR BAG DRIVER & PASSENGER DELETE(AK6) STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> DARK GRAY	8-97403-939-1	01	1	0808-0809	●	●	●	●	●
90	06.578 COVER ASM; STRG WHEEL,LWR AIR BAG DRIVER & PASSENGER DELETE(AK6) STEERING WHEEL LEATHER<NP5>,DELUXE STEERING WHEEL URETHANE<N30> DARK GRAY	8-97403-939-1	01	1	0810-	●	●	●	●	●	●	●
90	06.578 COVER ASM; STRG WHEEL,LWR AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. STEERING WHEEL LEATHER<NP5>, DELUXE STEERING WHEEL URETHANE<N30> DARK GRAY	8-97403-938-0	01	1	0808-0809		●			●
90	06.578 COVER ASM; STRG WHEEL,LWR AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. STEERING WHEEL LEATHER<NP5>, DELUXE STEERING WHEEL URETHANE<N30> DARK GRAY	8-97403-938-0	01	1	0810-1003		●	●	●	●	●	●
90	06.578 COVER ASM; STRG WHEEL,LWR INTERIOR COLOR IN VERY DARK GRAY(116) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. STEERING WHEEL LEATHER<NP5>, DELUXE STEERING WHEEL URETHANE<N30> DARK GRAY	8-97403-938-0	01	1	1004-		●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
