Sayfa 4-12 - Isuzu EPC

4-12 — FRONT DRIVE SHAFT (#77034) — 243 parça

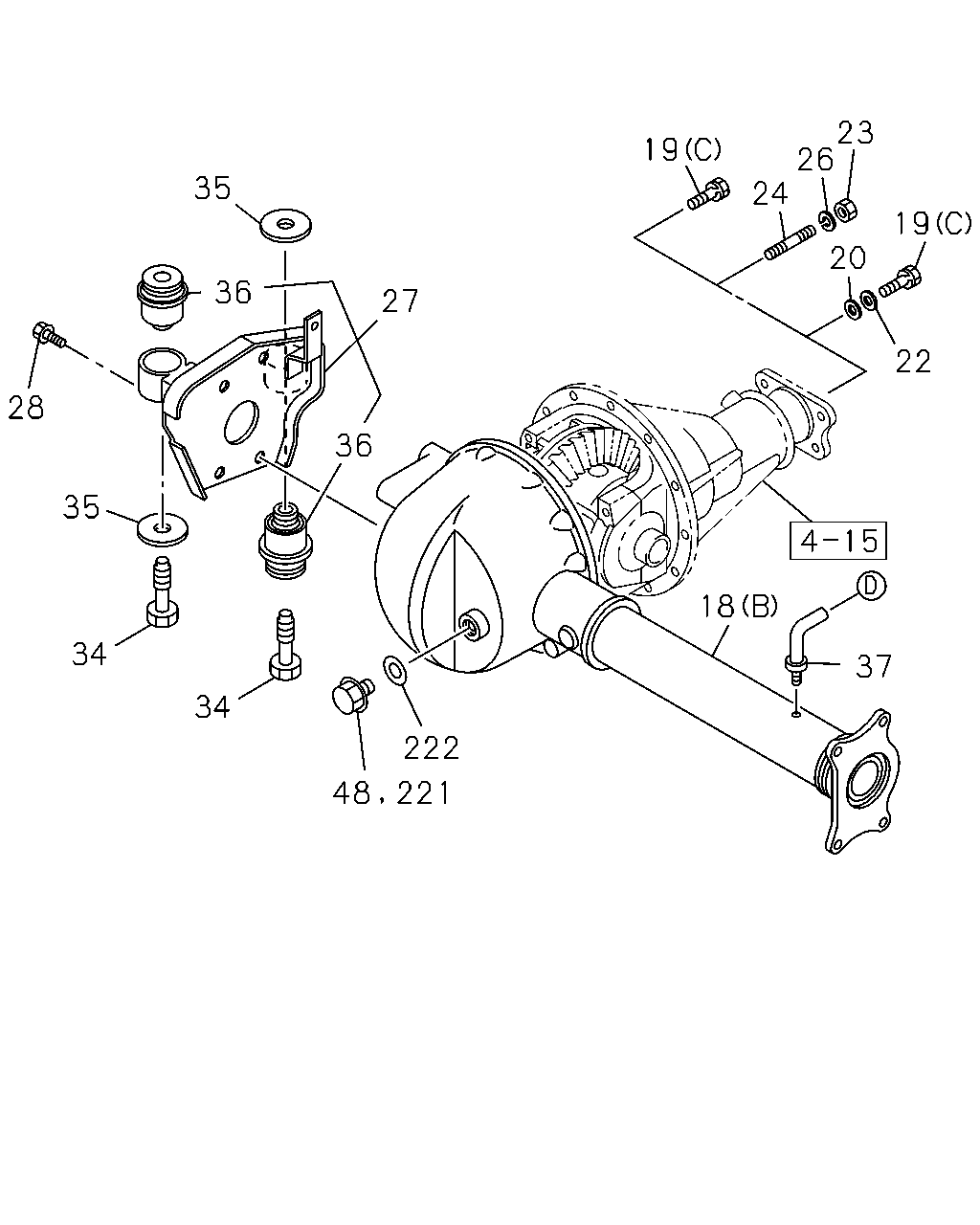

23 26 24 19 35 19 20 36 27 22 28 36 35 18 34 37 34 222 48 221

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
18	06.008 CASE; FRT AXLE SHIFT ON THE FLY<NR4> (A)	8-97081-658-3	01	1	0808-	●	●	●
18	06.008 CASE; FRT AXLE SHIFT ON THE FLY<NR4> (B)	8-97239-627-0	01	1	0808-	●	●	●
18	06.008 CASE; FRT AXLE EXC. SHIFT ON THE FLY<NR4> (B)	8-97018-230-0	01	1	0808-	●	●	●
19	06.156 BOLT; FRT AXLE SHIFT ON THE FLY<NR4> 06.056 (A) M12X20 FLANGE	0-28051-220-0	04	1	0808-	●	●	●
19	06.156 BOLT; FRT AXLE SHIFT ON THE FLY<NR4> 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	0808-	●	●	●
19	06.156 BOLT; FRT AXLE SHIFT ON THE FLY<NR4> 01.060 (B) M8X35 FLANGE	0-28650-835-0	03	1	0808-	●	●	●
19	06.156 BOLT; FRT AXLE (C) M8X25 W/LK WASHER	8-98022-410-0	06	1	0808-	●	●	●
19	06.156 BOLT; FRT AXLE (C) M8X30 W/LK WASHER	8-98022-411-0	02	1	0808-	●	●	●
19	06.156 BOLT; FRT AXLE (C) M8X90 W/LK WASHER	8-98022-412-0	02	1	0808-	●	●	●
20	06.156 GASKET; AXLE CASE 05.398 ID=8.2 OD=14.0 T=1.0	9-09571-408-0	01	1	0808-	●	●	●
22	06.056 WASHER; PL,AXLE CASE ID=8.4 OD=16	0-91614-508-0	01	1	0808-	●	●	●
23	06.056 NUT; FRT AXLE 02.334 M8	0-91110-508-0	02	1	0808-	●	●	●
24	06.056 STUD; CASE,FRT AXLE 03.275 M8X25 L=37	0-41010-825-0	02	1	0808-	●	●	●
26	06.056 WASHER; LK,CASE,FRT AXLE 02.559 ID=8.2	0-91510-808-0	02	1	0808-	●	●	●
27	06.056 BRACKET; AXLE CASE C24SE ENG(LG1)	8-98032-523-0	01	1	0810-		●	●
27	06.056 BRACKET; AXLE CASE	8-98005-640-0	01	1	0808-	●	●	●
27	06.056 BRACKET; AXLE CASE	8-98005-641-0	01	1	0808-0809	●	●	●
27	06.056 BRACKET; AXLE CASE 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-98005-641-0	01	1	0810-1007	●	●	●
27	06.056 BRACKET; AXLE CASE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0)	8-98005-641-0	01	1	1008-	●	●	●
28	06.056 BOLT; BRKT TO AXLE CASE M12X20 FLANGE	0-28051-220-0	08	1	0808-	●	●	●
34	06.008 BOLT; FRT AXLE MTG M14X85 FLANGE	8-97259-306-0	04	1	0808-	●	●	●
35	06.008 WASHER; FRT AXLE MTG ID=14.2 OD=50	8-98008-020-0	04	1	0808-	●	●	●
36	06.008 BUSHING; RUBBER,FRT AXLE MTG	8-97364-319-0	02	1	0808-	●	●	●
36	06.008 BUSHING; RUBBER,FRT AXLE MTG	8-97364-323-0	02	1	0808-	●	●	●
37	06.008 BREATHER; FRT AXLE CASE SHIFT ON THE FLY<NR4>	8-94226-943-0	02	1	0808-	●	●	●
37	06.008 BREATHER; FRT AXLE CASE EXC. SHIFT ON THE FLY<NR4>	8-94226-943-0	01	1	0808-	●	●	●
48	05.400 PLUG; DRAIN,AXLE CASE SHIFT ON THE FLY<NR4> M20X10.5	8-98009-333-0	02	1	0808-0910	●	●	●
48	05.400 PLUG; DRAIN,AXLE CASE EXC. SHIFT ON THE FLY<NR4> M20X10.5	8-98009-333-0	01	1	0808-0910	●	●	●
48	05.400 PLUG; DRAIN,AXLE CASE SHIFT ON THE FLY<NR4> M20X10.5	8-98009-333-0	01	1	0911-	●	●	●
221	06.008 PLUG; FILLER 05.400 M20X10.5	8-98009-333-0	01	1	0911-	●	●	●
222	04.515 GASKET; FILLER PLUG 05.400 ID=20 OD=30	8-94462-734-0	01	1	0808-	●	●	●

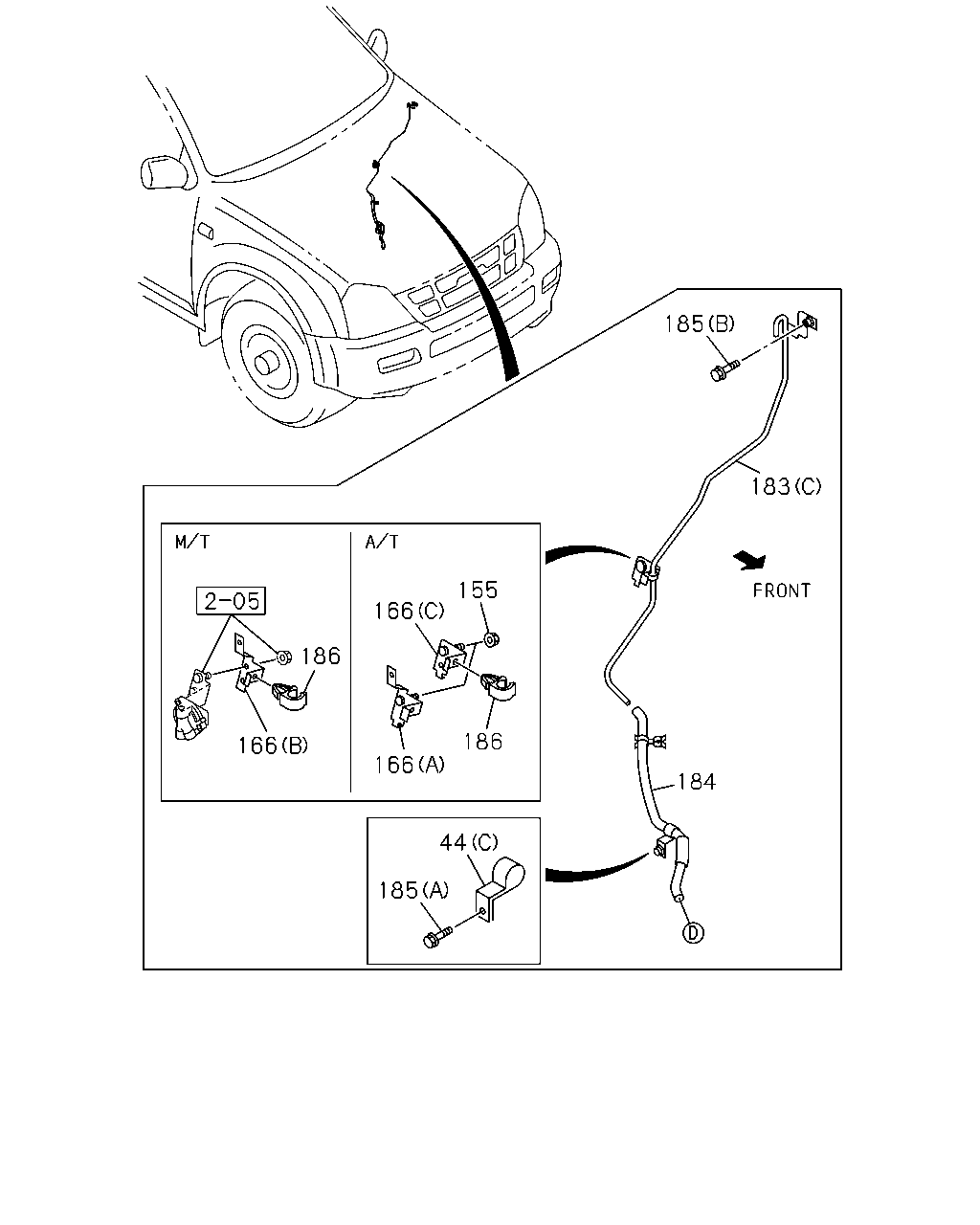

185 183 155 166 186 186 166 166 184 44 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
44	06.008 CLIP; AIR BREATHER HOSE C24SE ENG(LG1) SHIFT ON THE FLY<NR4> 03.162 (D) L=170	5-09707-054-0	02	1	0810-		●	●
44	06.008 CLIP; AIR BREATHER HOSE C24SE ENG(LG1) SHIFT ON THE FLY<NR4> 03.483 (E) ID=28	8-94362-106-0	01	1	0810-		●	●
44	06.008 CLIP; AIR BREATHER HOSE C24SE ENG(LG1) EXC. SHIFT ON THE FLY<NR4> 03.162 (D) L=170	5-09707-054-0	01	1	0810-		●	●
44	06.008 CLIP; AIR BREATHER HOSE 4JJ1-TCX ENG(LS0) SHIFT ON THE FLY<NR4> 04.686 (B)	8-94442-883-1	01	1	0808-0809	●	●	●
44	06.008 CLIP; AIR BREATHER HOSE 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) SHIFT ON THE FLY<NR4> 04.686 (B)	8-94442-883-1	01	1	0810-1007	●	●	●
44	06.008 CLIP; AIR BREATHER HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) SHIFT ON THE FLY<NR4> 04.686 (B)	8-94442-883-1	01	1	1008-	●	●	●
44	06.008 CLIP; AIR BREATHER HOSE 4JJ1-TCX ENG(LS0) SHIFT ON THE FLY<NR4> 02.559 (A) L=135	8-94473-399-0	01	1	0808-0809	●	●	●
44	06.008 CLIP; AIR BREATHER HOSE 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) SHIFT ON THE FLY<NR4> 02.559 (A) L=135	8-94473-399-0	01	1	0810-1007	●	●	●
44	06.008 CLIP; AIR BREATHER HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) SHIFT ON THE FLY<NR4> 02.559 (A) L=135	8-94473-399-0	01	1	1008-	●	●	●
44	06.008 CLIP; AIR BREATHER HOSE 4JJ1-TCX ENG(LS0) EXC. SHIFT ON THE FLY<NR4> (C) ID=13 H=24 L=20	0-95207-312-0	01	1	0808-0809	●	●	●
44	06.008 CLIP; AIR BREATHER HOSE 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. SHIFT ON THE FLY<NR4> (C) ID=13 H=24 L=20	0-95207-312-0	01	1	0810-1007	●	●	●
44	06.008 CLIP; AIR BREATHER HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) EXC. SHIFT ON THE FLY<NR4> (C) ID=13 H=24 L=20	0-95207-312-0	01	1	1008-	●	●	●
155	06.008 NUT; BRKT A/T AISIN(RMD) 01.062 M6 FLANGE	0-91180-106-0	01	1	0808-0809			●
155	06.008 NUT; BRKT A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) 01.062 M6 FLANGE	0-91180-106-0	01	1	0810-			●
166	06.008 BRACKET; CLIP 4JA1-T ENG(LP0) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T MUA 5 SPEED 5G(RSP) (A)	8-98020-074-0	01	1	0810-	●	●	●
166	06.008 BRACKET; CLIP 4JA1-T ENG(LP0) A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) (C)	8-98008-008-0	01	1	0810-			●
166	06.008 BRACKET; CLIP 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) (B)	8-98043-613-0	01	1	0808-0809	●	●	●
166	06.008 BRACKET; CLIP 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) (B)	8-98043-613-0	01	1	0810-1007	●	●	●
166	06.008 BRACKET; CLIP 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) (B)	8-98043-613-0	01	1	1008-	●	●	●
166	06.008 BRACKET; CLIP 4JJ1-TCX ENG(LS0) A/T AISIN(RMD) (A)	8-98043-612-0	01	1	0808-0809			●
166	06.008 BRACKET; CLIP 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) (A)	8-98043-612-0	01	1	0810-1007			●
166	06.008 BRACKET; CLIP 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) (A)	8-98043-612-0	01	1	1008-			●
183	06.008 PIPE; BREATHER 4JJ1-TCX ENG(LS0) SHIFT ON THE FLY<NR4> (A)	8-98007-998-0	01	1	0808-0809	●	●	●
183	06.008 PIPE; BREATHER 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) SHIFT ON THE FLY<NR4> (A)	8-98007-998-0	01	1	0810-1007	●	●	●
183	06.008 PIPE; BREATHER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) SHIFT ON THE FLY<NR4> (A)	8-98007-998-0	01	1	1008-	●	●	●
183	06.008 PIPE; BREATHER 4JJ1-TCX ENG(LS0) SHIFT ON THE FLY<NR4> (B)	8-98007-999-0	01	1	0808-0809	●	●	●
183	06.008 PIPE; BREATHER 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) SHIFT ON THE FLY<NR4> (B)	8-98007-999-0	01	1	0810-1007	●	●	●
183	06.008 PIPE; BREATHER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) SHIFT ON THE FLY<NR4> (B)	8-98007-999-0	01	1	1008-	●	●	●
183	06.008 PIPE; BREATHER 4JJ1-TCX ENG(LS0) EXC. SHIFT ON THE FLY<NR4> (C)	8-98008-000-0	01	1	0808-0809	●	●	●
183	06.008 PIPE; BREATHER 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. SHIFT ON THE FLY<NR4> (C)	8-98008-000-0	01	1	0810-1007	●	●	●
183	06.008 PIPE; BREATHER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) EXC. SHIFT ON THE FLY<NR4> (C)	8-98008-000-0	01	1	1008-	●	●	●
184	06.008 HOSE; BREATHER C24SE ENG(LG1) SHIFT ON THE FLY<NR4>	8-98044-232-0	01	1	0810-		●	●
184	06.008 HOSE; BREATHER C24SE ENG(LG1) EXC. SHIFT ON THE FLY<NR4>	8-98032-708-0	01	1	0810-		●	●
184	06.008 HOSE; BREATHER 4JJ1-TCX ENG(LS0) SHIFT ON THE FLY<NR4>	8-97250-344-1	01	1	0808-0809	●	●	●
184	06.008 HOSE; BREATHER 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) SHIFT ON THE FLY<NR4>	8-97250-344-1	01	1	0810-1007	●	●	●
184	06.008 HOSE; BREATHER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) SHIFT ON THE FLY<NR4>	8-97250-344-1	01	1	1008-	●	●	●
184	06.008 HOSE; BREATHER 4JJ1-TCX ENG(LS0) EXC. SHIFT ON THE FLY<NR4>	8-97289-525-0	01	1	0808-0809	●	●	●
184	06.008 HOSE; BREATHER 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. SHIFT ON THE FLY<NR4>	8-97289-525-0	01	1	0810-1007	●	●	●
184	06.008 HOSE; BREATHER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) EXC. SHIFT ON THE FLY<NR4>	8-97289-525-0	01	1	1008-	●	●	●
185	06.008 BOLT; PIPE,BREATHER 4JJ1-TCX ENG(LS0) 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	0808-0809	●	●	●
185	06.008 BOLT; PIPE,BREATHER 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	0810-1007	●	●	●
185	06.008 BOLT; PIPE,BREATHER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	1008-	●	●	●
185	06.008 BOLT; PIPE,BREATHER 4JJ1-TCX ENG(LS0) 03.162 (B) M6X20 FLANGE	0-28650-620-0	01	1	0808-0809	●	●	●
185	06.008 BOLT; PIPE,BREATHER 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 03.162 (B) M6X20 FLANGE	0-28650-620-0	01	1	0810-1007	●	●	●
185	06.008 BOLT; PIPE,BREATHER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 03.162 (B) M6X20 FLANGE	0-28650-620-0	01	1	1008-	●	●	●
186	06.008 CLIP; HOSE,BREATHER 4JJ1-TCX ENG(LS0) SHIFT ON THE FLY<NR4> ID=4.76X2	8-97249-905-0	01	1	0808-0809	●	●	●
186	06.008 CLIP; HOSE,BREATHER 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) SHIFT ON THE FLY<NR4> ID=4.76X2	8-97249-905-0	01	1	0810-1007	●	●	●
186	06.008 CLIP; HOSE,BREATHER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) SHIFT ON THE FLY<NR4> ID=4.76X2	8-97249-905-0	01	1	1008-	●	●	●
186	06.008 CLIP; HOSE,BREATHER 4JJ1-TCX ENG(LS0) EXC. SHIFT ON THE FLY<NR4> 02.559 ID=6.8	8-97134-154-0	01	1	0808-0809	●	●	●
186	06.008 CLIP; HOSE,BREATHER 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. SHIFT ON THE FLY<NR4> 02.559 ID=6.8	8-97134-154-0	01	1	0810-1007	●	●	●
186	06.008 CLIP; HOSE,BREATHER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) EXC. SHIFT ON THE FLY<NR4> 02.559 ID=6.8	8-97134-154-0	01	1	1008-	●	●	●

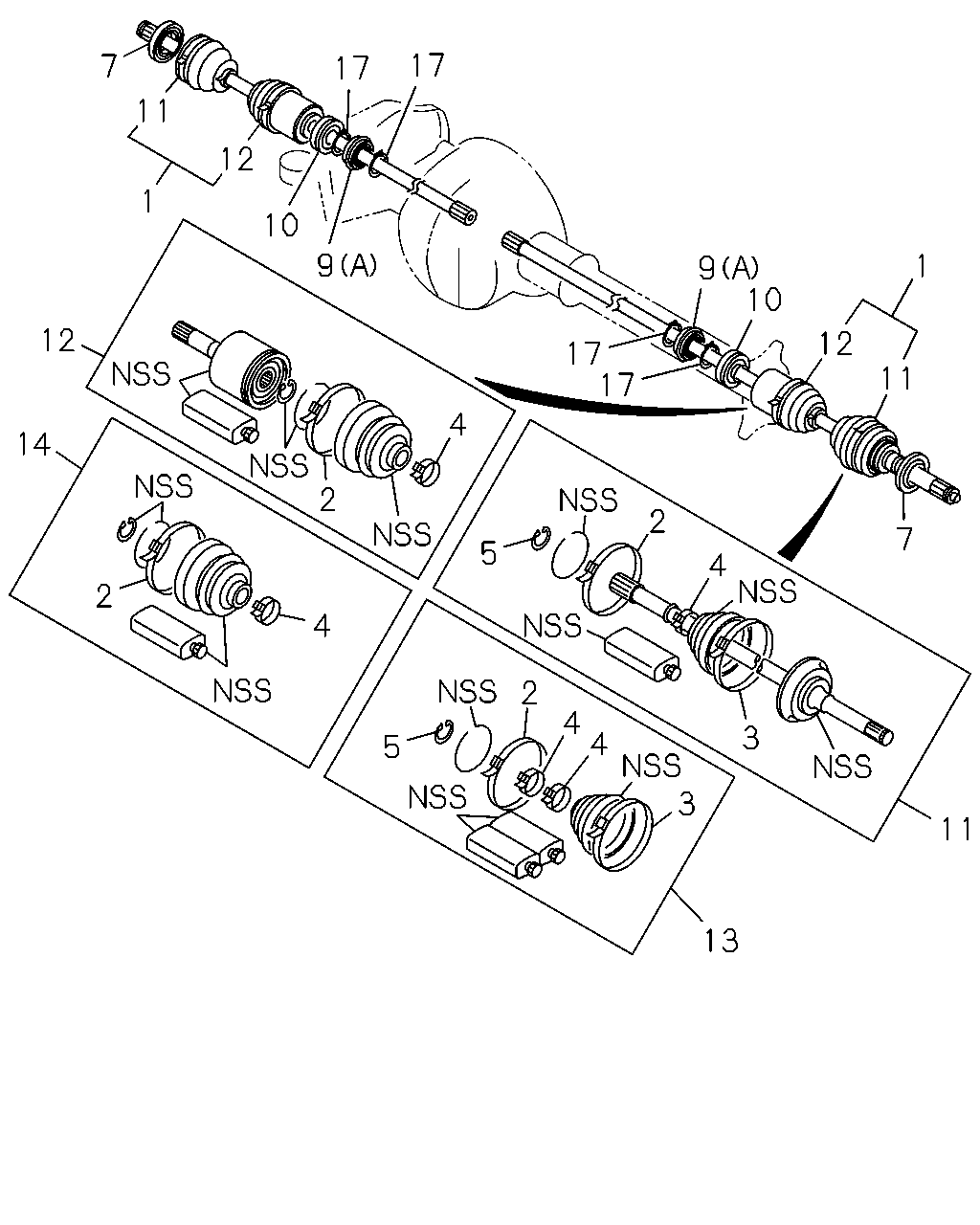

17 7 17 11 12 1 10 9 1 9 10 12 12 17 17 11 4 14 2 2 7 5 4 2 4 2 4 4 3 3 5 11 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	06.055 SHAFT ASM; FRT DRIVE SHIFT ON THE FLY<NR4> EXC.SHIFT ON THE FLY=RH	8-97387-674-1	01	1	0808-	●	●	●
1	06.055 SHAFT ASM; FRT DRIVE EXC.SHIFT ON THE FLY=RH	8-97387-674-1	01	1	0808-	●	●	●
1	06.055 SHAFT ASM; FRT DRIVE EXC. SHIFT ON THE FLY<NR4>	8-97387-675-1	01	1	0808-	●	●	●
2	06.061 BAND; "A",FRT DRIVE SHAFT	8-97349-960-0	01	1	0808-	●	●	●
3	06.061 BAND; "B",FRT DRIVE SHAFT	8-97349-959-0	01	1	0808-	●	●	●
4	06.061 BAND; "C",FRT DRIVE SHAFT	8-97222-152-0	02	1	0808-	●	●	●
5	06.061 RING; RET,FRT DRIVE SHAFT	8-97131-402-0	01	1	0808-	●	●	●
7	06.061 SEAL; DUST,DRIVE SHAFT	8-98036-560-0	02	1	0808-	●	●	●
9	06.056 BEARING; AXLE SHAFT,INNER SHIFT ON THE FLY<NR4> (B)	8-97101-878-0	01	1	0808-	●	●	●
9	06.056 BEARING; AXLE SHAFT,INNER (A)	8-94407-724-0	02	1	0808-	●	●	●
10	06.061 SEAL; OIL,AXLE SHAFT,INNER	8-97373-555-0	02	1	0808-	●	●	●
11	06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA	8-97387-664-0	01	1	0808-	●	●	●
12	06.060 JOINT ASM SHIFT ON THE FLY<NR4> EXC.SHIFT ON THE FLY=RH	8-97387-663-0	01	1	0808-	●	●	●
12	06.060 JOINT ASM EXC.SHIFT ON THE FLY=RH	8-97387-663-0	01	1	0808-	●	●	●
12	06.060 JOINT ASM EXC. SHIFT ON THE FLY<NR4>	8-97387-656-0	01	1	0808-	●	●	●
13	06.061 BOOT KIT; OUTSIDE,FRT DRIVE SHAF	8-97387-478-0	01	1	0808-	●	●	●
14	06.061 BOOT KIT; IN SIDE,FRT DRIVE SHAF	8-97387-477-0	01	1	0808-	●	●	●
17	06.061 RING; SNAP,DRIVE SHAFT TO TRANS 04.416 ID=27.9	9-09180-030-0	04	1	0808-	●	●	●

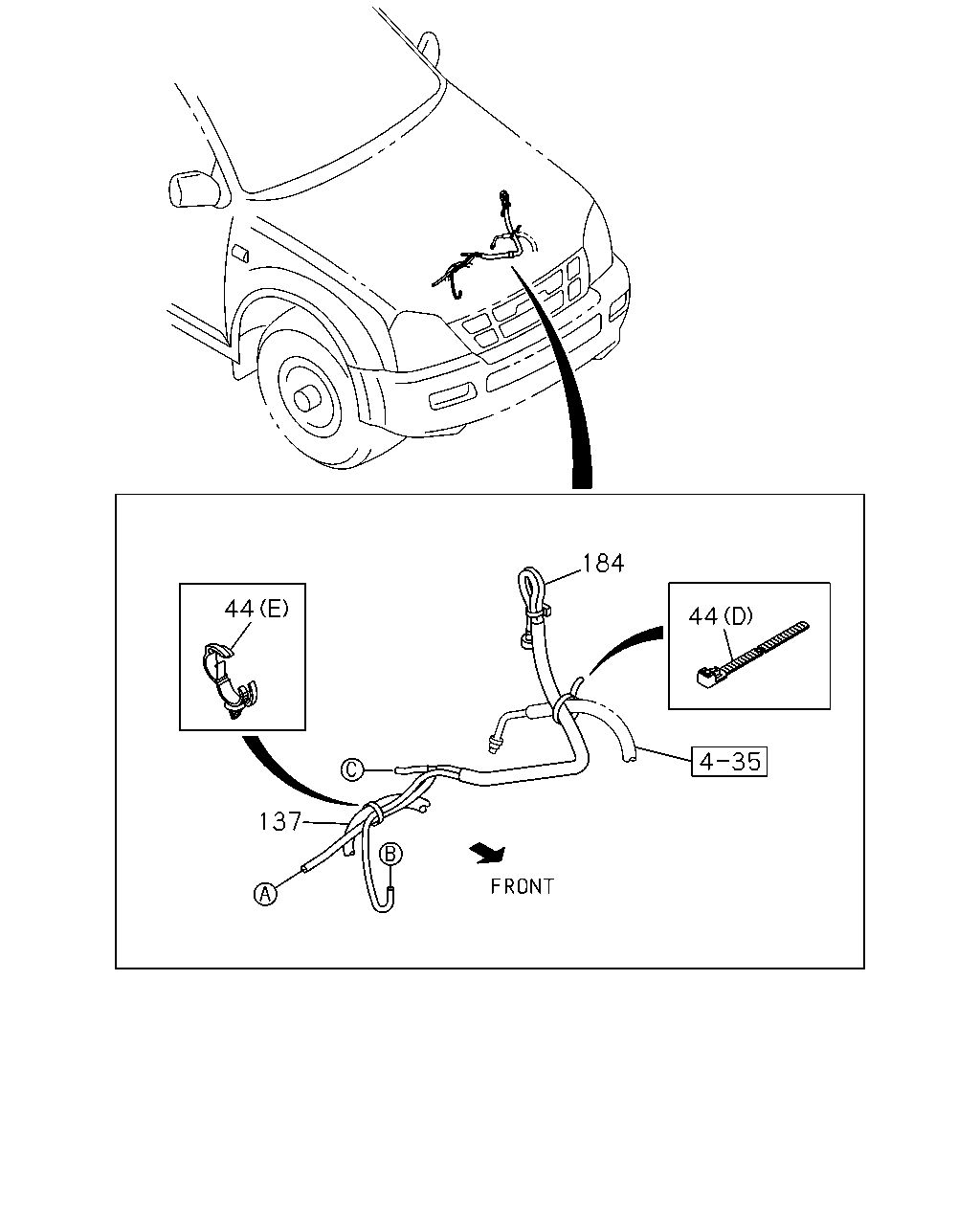

184 44 44 137

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
44	06.008 CLIP; AIR BREATHER HOSE C24SE ENG(LG1) SHIFT ON THE FLY<NR4> 03.162 (D) L=170	5-09707-054-0	02	1	0810-		●	●
44	06.008 CLIP; AIR BREATHER HOSE C24SE ENG(LG1) SHIFT ON THE FLY<NR4> 03.483 (E) ID=28	8-94362-106-0	01	1	0810-		●	●
44	06.008 CLIP; AIR BREATHER HOSE C24SE ENG(LG1) EXC. SHIFT ON THE FLY<NR4> 03.162 (D) L=170	5-09707-054-0	01	1	0810-		●	●
44	06.008 CLIP; AIR BREATHER HOSE 4JJ1-TCX ENG(LS0) SHIFT ON THE FLY<NR4> 04.686 (B)	8-94442-883-1	01	1	0808-0809	●	●	●
44	06.008 CLIP; AIR BREATHER HOSE 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) SHIFT ON THE FLY<NR4> 04.686 (B)	8-94442-883-1	01	1	0810-1007	●	●	●
44	06.008 CLIP; AIR BREATHER HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) SHIFT ON THE FLY<NR4> 04.686 (B)	8-94442-883-1	01	1	1008-	●	●	●
44	06.008 CLIP; AIR BREATHER HOSE 4JJ1-TCX ENG(LS0) SHIFT ON THE FLY<NR4> 02.559 (A) L=135	8-94473-399-0	01	1	0808-0809	●	●	●
44	06.008 CLIP; AIR BREATHER HOSE 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) SHIFT ON THE FLY<NR4> 02.559 (A) L=135	8-94473-399-0	01	1	0810-1007	●	●	●
44	06.008 CLIP; AIR BREATHER HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) SHIFT ON THE FLY<NR4> 02.559 (A) L=135	8-94473-399-0	01	1	1008-	●	●	●
44	06.008 CLIP; AIR BREATHER HOSE 4JJ1-TCX ENG(LS0) EXC. SHIFT ON THE FLY<NR4> (C) ID=13 H=24 L=20	0-95207-312-0	01	1	0808-0809	●	●	●
44	06.008 CLIP; AIR BREATHER HOSE 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. SHIFT ON THE FLY<NR4> (C) ID=13 H=24 L=20	0-95207-312-0	01	1	0810-1007	●	●	●
44	06.008 CLIP; AIR BREATHER HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) EXC. SHIFT ON THE FLY<NR4> (C) ID=13 H=24 L=20	0-95207-312-0	01	1	1008-	●	●	●
137	06.008 ACTUATOR; AXLE SHIFT ON THE FLY<NR4>	8-97367-959-0	01	1	0808-	●	●	●
184	06.008 HOSE; BREATHER C24SE ENG(LG1) SHIFT ON THE FLY<NR4>	8-98044-232-0	01	1	0810-		●	●
184	06.008 HOSE; BREATHER C24SE ENG(LG1) EXC. SHIFT ON THE FLY<NR4>	8-98032-708-0	01	1	0810-		●	●
184	06.008 HOSE; BREATHER 4JJ1-TCX ENG(LS0) SHIFT ON THE FLY<NR4>	8-97250-344-1	01	1	0808-0809	●	●	●
184	06.008 HOSE; BREATHER 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) SHIFT ON THE FLY<NR4>	8-97250-344-1	01	1	0810-1007	●	●	●
184	06.008 HOSE; BREATHER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) SHIFT ON THE FLY<NR4>	8-97250-344-1	01	1	1008-	●	●	●
184	06.008 HOSE; BREATHER 4JJ1-TCX ENG(LS0) EXC. SHIFT ON THE FLY<NR4>	8-97289-525-0	01	1	0808-0809	●	●	●
184	06.008 HOSE; BREATHER 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. SHIFT ON THE FLY<NR4>	8-97289-525-0	01	1	0810-1007	●	●	●
184	06.008 HOSE; BREATHER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) EXC. SHIFT ON THE FLY<NR4>	8-97289-525-0	01	1	1008-	●	●	●

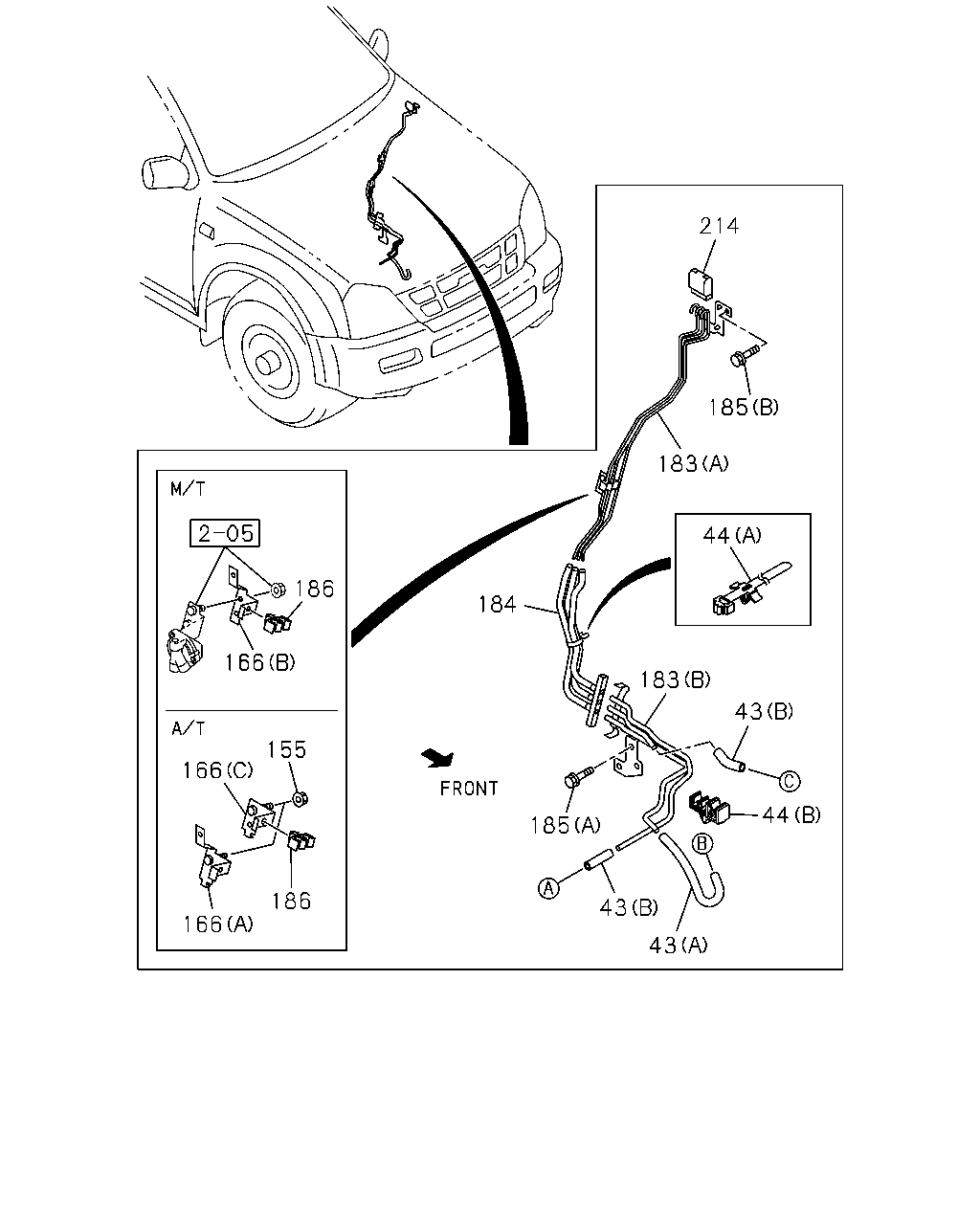

214 185 183 44 186 184 166 183 43 155 166 44 185 186 43 166 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
43	06.008 HOSE; RUBBER,AIR BREATHER 4JJ1-TCX ENG(LS0) SHIFT ON THE FLY<NR4> 08.962 (A) L=200 SERVICED BY L=3000	0-04740-300-0	01	1	0808-0809	●	●	●
43	06.008 HOSE; RUBBER,AIR BREATHER 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) SHIFT ON THE FLY<NR4> 08.962 (A) L=200 SERVICED BY L=3000	0-04740-300-0	01	1	0810-1007	●	●	●
43	06.008 HOSE; RUBBER,AIR BREATHER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) SHIFT ON THE FLY<NR4> 08.962 (A) L=200 SERVICED BY L=3000	0-04740-300-0	01	1	1008-	●	●	●
43	06.008 HOSE; RUBBER,AIR BREATHER 4JJ1-TCX ENG(LS0) SHIFT ON THE FLY<NR4> 08.962 (B) L=50 SERVICED BY L=3000	0-04750-300-0	02	1	0808-0809	●	●	●
43	06.008 HOSE; RUBBER,AIR BREATHER 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) SHIFT ON THE FLY<NR4> 08.962 (B) L=50 SERVICED BY L=3000	0-04750-300-0	02	1	0810-1007	●	●	●
43	06.008 HOSE; RUBBER,AIR BREATHER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) SHIFT ON THE FLY<NR4> 08.962 (B) L=50 SERVICED BY L=3000	0-04750-300-0	02	1	1008-	●	●	●
44	06.008 CLIP; AIR BREATHER HOSE C24SE ENG(LG1) SHIFT ON THE FLY<NR4> 03.162 (D) L=170	5-09707-054-0	02	1	0810-		●	●
44	06.008 CLIP; AIR BREATHER HOSE C24SE ENG(LG1) SHIFT ON THE FLY<NR4> 03.483 (E) ID=28	8-94362-106-0	01	1	0810-		●	●
44	06.008 CLIP; AIR BREATHER HOSE C24SE ENG(LG1) EXC. SHIFT ON THE FLY<NR4> 03.162 (D) L=170	5-09707-054-0	01	1	0810-		●	●
44	06.008 CLIP; AIR BREATHER HOSE 4JJ1-TCX ENG(LS0) SHIFT ON THE FLY<NR4> 04.686 (B)	8-94442-883-1	01	1	0808-0809	●	●	●
44	06.008 CLIP; AIR BREATHER HOSE 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) SHIFT ON THE FLY<NR4> 04.686 (B)	8-94442-883-1	01	1	0810-1007	●	●	●
44	06.008 CLIP; AIR BREATHER HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) SHIFT ON THE FLY<NR4> 04.686 (B)	8-94442-883-1	01	1	1008-	●	●	●
44	06.008 CLIP; AIR BREATHER HOSE 4JJ1-TCX ENG(LS0) SHIFT ON THE FLY<NR4> 02.559 (A) L=135	8-94473-399-0	01	1	0808-0809	●	●	●
44	06.008 CLIP; AIR BREATHER HOSE 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) SHIFT ON THE FLY<NR4> 02.559 (A) L=135	8-94473-399-0	01	1	0810-1007	●	●	●
44	06.008 CLIP; AIR BREATHER HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) SHIFT ON THE FLY<NR4> 02.559 (A) L=135	8-94473-399-0	01	1	1008-	●	●	●
44	06.008 CLIP; AIR BREATHER HOSE 4JJ1-TCX ENG(LS0) EXC. SHIFT ON THE FLY<NR4> (C) ID=13 H=24 L=20	0-95207-312-0	01	1	0808-0809	●	●	●
44	06.008 CLIP; AIR BREATHER HOSE 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. SHIFT ON THE FLY<NR4> (C) ID=13 H=24 L=20	0-95207-312-0	01	1	0810-1007	●	●	●
44	06.008 CLIP; AIR BREATHER HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) EXC. SHIFT ON THE FLY<NR4> (C) ID=13 H=24 L=20	0-95207-312-0	01	1	1008-	●	●	●
155	06.008 NUT; BRKT A/T AISIN(RMD) 01.062 M6 FLANGE	0-91180-106-0	01	1	0808-0809			●
155	06.008 NUT; BRKT A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) 01.062 M6 FLANGE	0-91180-106-0	01	1	0810-			●
166	06.008 BRACKET; CLIP 4JA1-T ENG(LP0) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T MUA 5 SPEED 5G(RSP) (A)	8-98020-074-0	01	1	0810-	●	●	●
166	06.008 BRACKET; CLIP 4JA1-T ENG(LP0) A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) (C)	8-98008-008-0	01	1	0810-			●
166	06.008 BRACKET; CLIP 4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) (B)	8-98043-613-0	01	1	0808-0809	●	●	●
166	06.008 BRACKET; CLIP 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) (B)	8-98043-613-0	01	1	0810-1007	●	●	●
166	06.008 BRACKET; CLIP 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) (B)	8-98043-613-0	01	1	1008-	●	●	●
166	06.008 BRACKET; CLIP 4JJ1-TCX ENG(LS0) A/T AISIN(RMD) (A)	8-98043-612-0	01	1	0808-0809			●
166	06.008 BRACKET; CLIP 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) (A)	8-98043-612-0	01	1	0810-1007			●
166	06.008 BRACKET; CLIP 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) (A)	8-98043-612-0	01	1	1008-			●
183	06.008 PIPE; BREATHER 4JJ1-TCX ENG(LS0) SHIFT ON THE FLY<NR4> (A)	8-98007-998-0	01	1	0808-0809	●	●	●
183	06.008 PIPE; BREATHER 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) SHIFT ON THE FLY<NR4> (A)	8-98007-998-0	01	1	0810-1007	●	●	●
183	06.008 PIPE; BREATHER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) SHIFT ON THE FLY<NR4> (A)	8-98007-998-0	01	1	1008-	●	●	●
183	06.008 PIPE; BREATHER 4JJ1-TCX ENG(LS0) SHIFT ON THE FLY<NR4> (B)	8-98007-999-0	01	1	0808-0809	●	●	●
183	06.008 PIPE; BREATHER 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) SHIFT ON THE FLY<NR4> (B)	8-98007-999-0	01	1	0810-1007	●	●	●
183	06.008 PIPE; BREATHER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) SHIFT ON THE FLY<NR4> (B)	8-98007-999-0	01	1	1008-	●	●	●
183	06.008 PIPE; BREATHER 4JJ1-TCX ENG(LS0) EXC. SHIFT ON THE FLY<NR4> (C)	8-98008-000-0	01	1	0808-0809	●	●	●
183	06.008 PIPE; BREATHER 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. SHIFT ON THE FLY<NR4> (C)	8-98008-000-0	01	1	0810-1007	●	●	●
183	06.008 PIPE; BREATHER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) EXC. SHIFT ON THE FLY<NR4> (C)	8-98008-000-0	01	1	1008-	●	●	●
184	06.008 HOSE; BREATHER C24SE ENG(LG1) SHIFT ON THE FLY<NR4>	8-98044-232-0	01	1	0810-		●	●
184	06.008 HOSE; BREATHER C24SE ENG(LG1) EXC. SHIFT ON THE FLY<NR4>	8-98032-708-0	01	1	0810-		●	●
184	06.008 HOSE; BREATHER 4JJ1-TCX ENG(LS0) SHIFT ON THE FLY<NR4>	8-97250-344-1	01	1	0808-0809	●	●	●
184	06.008 HOSE; BREATHER 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) SHIFT ON THE FLY<NR4>	8-97250-344-1	01	1	0810-1007	●	●	●
184	06.008 HOSE; BREATHER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) SHIFT ON THE FLY<NR4>	8-97250-344-1	01	1	1008-	●	●	●
184	06.008 HOSE; BREATHER 4JJ1-TCX ENG(LS0) EXC. SHIFT ON THE FLY<NR4>	8-97289-525-0	01	1	0808-0809	●	●	●
184	06.008 HOSE; BREATHER 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. SHIFT ON THE FLY<NR4>	8-97289-525-0	01	1	0810-1007	●	●	●
184	06.008 HOSE; BREATHER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) EXC. SHIFT ON THE FLY<NR4>	8-97289-525-0	01	1	1008-	●	●	●
185	06.008 BOLT; PIPE,BREATHER 4JJ1-TCX ENG(LS0) 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	0808-0809	●	●	●
185	06.008 BOLT; PIPE,BREATHER 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	0810-1007	●	●	●
185	06.008 BOLT; PIPE,BREATHER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	1008-	●	●	●
185	06.008 BOLT; PIPE,BREATHER 4JJ1-TCX ENG(LS0) 03.162 (B) M6X20 FLANGE	0-28650-620-0	01	1	0808-0809	●	●	●
185	06.008 BOLT; PIPE,BREATHER 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 03.162 (B) M6X20 FLANGE	0-28650-620-0	01	1	0810-1007	●	●	●
185	06.008 BOLT; PIPE,BREATHER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 03.162 (B) M6X20 FLANGE	0-28650-620-0	01	1	1008-	●	●	●
186	06.008 CLIP; HOSE,BREATHER 4JJ1-TCX ENG(LS0) SHIFT ON THE FLY<NR4> ID=4.76X2	8-97249-905-0	01	1	0808-0809	●	●	●
186	06.008 CLIP; HOSE,BREATHER 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) SHIFT ON THE FLY<NR4> ID=4.76X2	8-97249-905-0	01	1	0810-1007	●	●	●
186	06.008 CLIP; HOSE,BREATHER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) SHIFT ON THE FLY<NR4> ID=4.76X2	8-97249-905-0	01	1	1008-	●	●	●
186	06.008 CLIP; HOSE,BREATHER 4JJ1-TCX ENG(LS0) EXC. SHIFT ON THE FLY<NR4> 02.559 ID=6.8	8-97134-154-0	01	1	0808-0809	●	●	●
186	06.008 CLIP; HOSE,BREATHER 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. SHIFT ON THE FLY<NR4> 02.559 ID=6.8	8-97134-154-0	01	1	0810-1007	●	●	●
186	06.008 CLIP; HOSE,BREATHER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) EXC. SHIFT ON THE FLY<NR4> 02.559 ID=6.8	8-97134-154-0	01	1	1008-	●	●	●
214	06.008 COVER; BREATHER 4JJ1-TCX ENG(LS0) SHIFT ON THE FLY<NR4>	8-97261-746-0	01	1	0808-0809	●	●	●
214	06.008 COVER; BREATHER 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) SHIFT ON THE FLY<NR4>	8-97261-746-0	01	1	0810-1007	●	●	●
214	06.008 COVER; BREATHER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) SHIFT ON THE FLY<NR4>	8-97261-746-0	01	1	1008-	●	●	●

35 19 22 20 23 26 24 36 27 28 19 18 36 35 19 34 34 222 37 50 62 95 62 69 9 138 37 168 84 48 18 137 19 48 221

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
9	06.056 BEARING; AXLE SHAFT,INNER SHIFT ON THE FLY<NR4> (B)	8-97101-878-0	01	1	0808-	●	●	●
9	06.056 BEARING; AXLE SHAFT,INNER (A)	8-94407-724-0	02	1	0808-	●	●	●
18	06.008 CASE; FRT AXLE SHIFT ON THE FLY<NR4> (A)	8-97081-658-3	01	1	0808-	●	●	●
18	06.008 CASE; FRT AXLE SHIFT ON THE FLY<NR4> (B)	8-97239-627-0	01	1	0808-	●	●	●
18	06.008 CASE; FRT AXLE EXC. SHIFT ON THE FLY<NR4> (B)	8-97018-230-0	01	1	0808-	●	●	●
19	06.156 BOLT; FRT AXLE SHIFT ON THE FLY<NR4> 06.056 (A) M12X20 FLANGE	0-28051-220-0	04	1	0808-	●	●	●
19	06.156 BOLT; FRT AXLE SHIFT ON THE FLY<NR4> 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	0808-	●	●	●
19	06.156 BOLT; FRT AXLE SHIFT ON THE FLY<NR4> 01.060 (B) M8X35 FLANGE	0-28650-835-0	03	1	0808-	●	●	●
19	06.156 BOLT; FRT AXLE (C) M8X25 W/LK WASHER	8-98022-410-0	06	1	0808-	●	●	●
19	06.156 BOLT; FRT AXLE (C) M8X30 W/LK WASHER	8-98022-411-0	02	1	0808-	●	●	●
19	06.156 BOLT; FRT AXLE (C) M8X90 W/LK WASHER	8-98022-412-0	02	1	0808-	●	●	●
20	06.156 GASKET; AXLE CASE 05.398 ID=8.2 OD=14.0 T=1.0	9-09571-408-0	01	1	0808-	●	●	●
22	06.056 WASHER; PL,AXLE CASE ID=8.4 OD=16	0-91614-508-0	01	1	0808-	●	●	●
23	06.056 NUT; FRT AXLE 02.334 M8	0-91110-508-0	02	1	0808-	●	●	●
24	06.056 STUD; CASE,FRT AXLE 03.275 M8X25 L=37	0-41010-825-0	02	1	0808-	●	●	●
26	06.056 WASHER; LK,CASE,FRT AXLE 02.559 ID=8.2	0-91510-808-0	02	1	0808-	●	●	●
27	06.056 BRACKET; AXLE CASE C24SE ENG(LG1)	8-98032-523-0	01	1	0810-		●	●
27	06.056 BRACKET; AXLE CASE	8-98005-640-0	01	1	0808-	●	●	●
27	06.056 BRACKET; AXLE CASE	8-98005-641-0	01	1	0808-0809	●	●	●
27	06.056 BRACKET; AXLE CASE 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-98005-641-0	01	1	0810-1007	●	●	●
27	06.056 BRACKET; AXLE CASE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0)	8-98005-641-0	01	1	1008-	●	●	●
28	06.056 BOLT; BRKT TO AXLE CASE M12X20 FLANGE	0-28051-220-0	08	1	0808-	●	●	●
34	06.008 BOLT; FRT AXLE MTG M14X85 FLANGE	8-97259-306-0	04	1	0808-	●	●	●
35	06.008 WASHER; FRT AXLE MTG ID=14.2 OD=50	8-98008-020-0	04	1	0808-	●	●	●
36	06.008 BUSHING; RUBBER,FRT AXLE MTG	8-97364-319-0	02	1	0808-	●	●	●
36	06.008 BUSHING; RUBBER,FRT AXLE MTG	8-97364-323-0	02	1	0808-	●	●	●
37	06.008 BREATHER; FRT AXLE CASE SHIFT ON THE FLY<NR4>	8-94226-943-0	02	1	0808-	●	●	●
37	06.008 BREATHER; FRT AXLE CASE EXC. SHIFT ON THE FLY<NR4>	8-94226-943-0	01	1	0808-	●	●	●
48	05.400 PLUG; DRAIN,AXLE CASE SHIFT ON THE FLY<NR4> M20X10.5	8-98009-333-0	02	1	0808-0910	●	●	●
48	05.400 PLUG; DRAIN,AXLE CASE EXC. SHIFT ON THE FLY<NR4> M20X10.5	8-98009-333-0	01	1	0808-0910	●	●	●
48	05.400 PLUG; DRAIN,AXLE CASE SHIFT ON THE FLY<NR4> M20X10.5	8-98009-333-0	01	1	0911-	●	●	●
50	06.061 SEAL; OIL,SHAFT,FRT AXLE SHIFT ON THE FLY<NR4>	8-97084-507-0	01	1	0808-	●	●	●
62	06.061 RING; SNAP,AXLE SHAFT SHIFT ON THE FLY<NR4> 08.934 (A) ID=37.0	9-09180-040-0	01	1	0808-	●	●	●
62	06.061 RING; SNAP,AXLE SHAFT SHIFT ON THE FLY<NR4> 01.105 (B) ID=57.9	9-09180-162-0	01	1	0808-	●	●	●
69	06.055 SHAFT; AXLE,FRT INNER SHIFT ON THE FLY<NR4>	8-97188-174-1	01	1	0808-	●	●	●
84	06.326 GASKET; PLUG,OIL FILLER SHIFT ON THE FLY<NR4> 05.400 ID=20 OD=30	8-94462-734-0	01	1	0808-	●	●	●
95	06.008 BEARING; AXLE SHAFT,FRT SHIFT ON THE FLY<NR4>	8-97103-392-0	01	1	0808-	●	●	●
137	06.008 ACTUATOR; AXLE SHIFT ON THE FLY<NR4>	8-97367-959-0	01	1	0808-	●	●	●
138	06.008 GEAR; CLUTCH SHIFT ON THE FLY<NR4> Z=17	8-97134-857-1	01	1	0808-	●	●	●
168	06.056 SLEEVE; FRT AXLE SHIFT ON THE FLY<NR4> 06.008	8-97130-567-1	01	1	0808-	●	●	●
221	06.008 PLUG; FILLER 05.400 M20X10.5	8-98009-333-0	01	1	0911-	●	●	●
222	04.515 GASKET; FILLER PLUG 05.400 ID=20 OD=30	8-94462-734-0	01	1	0808-	●	●	●

184 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
44	06.008 CLIP; AIR BREATHER HOSE C24SE ENG(LG1) SHIFT ON THE FLY<NR4> 03.162 (D) L=170	5-09707-054-0	02	1	0810-		●	●
44	06.008 CLIP; AIR BREATHER HOSE C24SE ENG(LG1) SHIFT ON THE FLY<NR4> 03.483 (E) ID=28	8-94362-106-0	01	1	0810-		●	●
44	06.008 CLIP; AIR BREATHER HOSE C24SE ENG(LG1) EXC. SHIFT ON THE FLY<NR4> 03.162 (D) L=170	5-09707-054-0	01	1	0810-		●	●
44	06.008 CLIP; AIR BREATHER HOSE 4JJ1-TCX ENG(LS0) SHIFT ON THE FLY<NR4> 04.686 (B)	8-94442-883-1	01	1	0808-0809	●	●	●
44	06.008 CLIP; AIR BREATHER HOSE 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) SHIFT ON THE FLY<NR4> 04.686 (B)	8-94442-883-1	01	1	0810-1007	●	●	●
44	06.008 CLIP; AIR BREATHER HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) SHIFT ON THE FLY<NR4> 04.686 (B)	8-94442-883-1	01	1	1008-	●	●	●
44	06.008 CLIP; AIR BREATHER HOSE 4JJ1-TCX ENG(LS0) SHIFT ON THE FLY<NR4> 02.559 (A) L=135	8-94473-399-0	01	1	0808-0809	●	●	●
44	06.008 CLIP; AIR BREATHER HOSE 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) SHIFT ON THE FLY<NR4> 02.559 (A) L=135	8-94473-399-0	01	1	0810-1007	●	●	●
44	06.008 CLIP; AIR BREATHER HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) SHIFT ON THE FLY<NR4> 02.559 (A) L=135	8-94473-399-0	01	1	1008-	●	●	●
44	06.008 CLIP; AIR BREATHER HOSE 4JJ1-TCX ENG(LS0) EXC. SHIFT ON THE FLY<NR4> (C) ID=13 H=24 L=20	0-95207-312-0	01	1	0808-0809	●	●	●
44	06.008 CLIP; AIR BREATHER HOSE 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. SHIFT ON THE FLY<NR4> (C) ID=13 H=24 L=20	0-95207-312-0	01	1	0810-1007	●	●	●
44	06.008 CLIP; AIR BREATHER HOSE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) EXC. SHIFT ON THE FLY<NR4> (C) ID=13 H=24 L=20	0-95207-312-0	01	1	1008-	●	●	●
184	06.008 HOSE; BREATHER C24SE ENG(LG1) SHIFT ON THE FLY<NR4>	8-98044-232-0	01	1	0810-		●	●
184	06.008 HOSE; BREATHER C24SE ENG(LG1) EXC. SHIFT ON THE FLY<NR4>	8-98032-708-0	01	1	0810-		●	●
184	06.008 HOSE; BREATHER 4JJ1-TCX ENG(LS0) SHIFT ON THE FLY<NR4>	8-97250-344-1	01	1	0808-0809	●	●	●
184	06.008 HOSE; BREATHER 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) SHIFT ON THE FLY<NR4>	8-97250-344-1	01	1	0810-1007	●	●	●
184	06.008 HOSE; BREATHER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) SHIFT ON THE FLY<NR4>	8-97250-344-1	01	1	1008-	●	●	●
184	06.008 HOSE; BREATHER 4JJ1-TCX ENG(LS0) EXC. SHIFT ON THE FLY<NR4>	8-97289-525-0	01	1	0808-0809	●	●	●
184	06.008 HOSE; BREATHER 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. SHIFT ON THE FLY<NR4>	8-97289-525-0	01	1	0810-1007	●	●	●
184	06.008 HOSE; BREATHER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) EXC. SHIFT ON THE FLY<NR4>	8-97289-525-0	01	1	1008-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
