◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51194 - TFR/TFS-RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-11 - FRONT HUB AND DRUM OR ROTOR ▶
4-11 — FRONT HUB AND DRUM OR ROTOR (#77033) — 230 parça

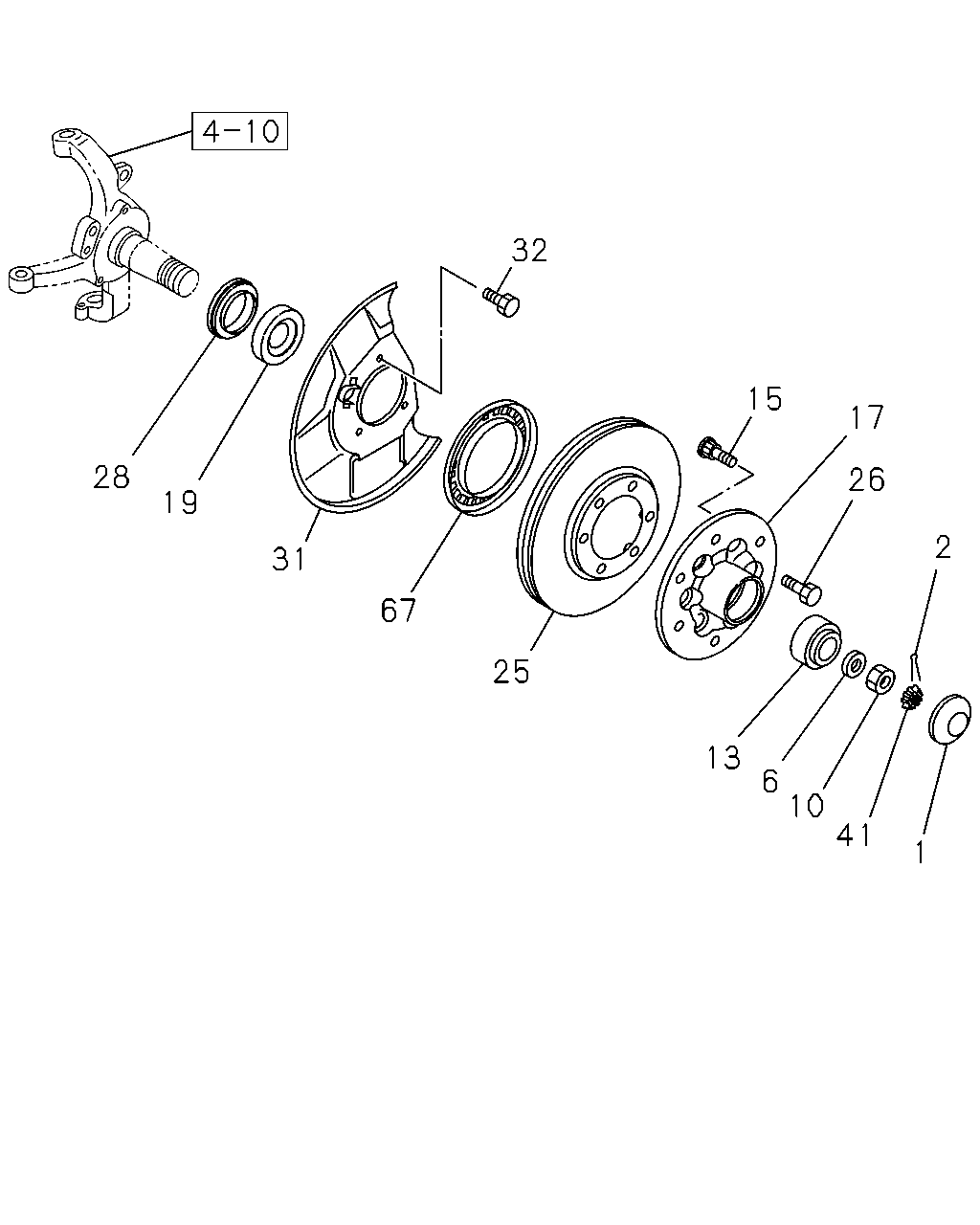

çizim 122438
32 15 17 28 26 19 2 31 67 25 13 6 10 41 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 06.330 CAP; HUB,FRT AXLE 8-98006-055-0 02 1 0808-0809 ●
1 06.330 CAP; HUB,FRT AXLE
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98006-055-0 02 1 0808-0809 ●
1 06.330 CAP; HUB,FRT AXLE
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98006-055-0 02 1 0810- ● ● ●
1 06.330 CAP; HUB,FRT AXLE 8-98006-055-0 02 1 0810- ●
1 06.330 CAP; HUB,FRT AXLE
HIGH RIDE SUSPENSION(7YC) 		8-97944-565-0 02 1 0808-0809 ●
1 06.330 CAP; HUB,FRT AXLE
EXC. MANUAL LOCKING HUB(ED2) 		8-97944-565-0 02 1 0808-0809 ● ● ●
1 06.330 CAP; HUB,FRT AXLE
HIGH RIDE SUSPENSION(7YC) 		8-97944-565-0 02 1 0810- ● ● ●
1 06.330 CAP; HUB,FRT AXLE
EXC. MANUAL LOCKING HUB(ED2) 		8-97944-565-0 02 1 0810- ● ● ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT
OD=3.7 L=30 		0-81124-030-0 02 1 0808-0809 ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT
EXC. HIGH RIDE SUSPENSION(7YC) OD=3.7 L=30 		0-81124-030-0 02 1 0808-0809 ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT
EXC. HIGH RIDE SUSPENSION(7YC) OD=3.7 L=30 		0-81124-030-0 02 1 0810- ● ● ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT
OD=3.7 L=30 		0-81124-030-0 02 1 0810- ●
6 05.812 WASHER; LK,FRT HUB
T=3.2 OD=35 		8-97382-661-0 02 1 0808-0809 ●
6 05.812 WASHER; LK,FRT HUB
EXC. HIGH RIDE SUSPENSION(7YC) T=3.2 OD=35 		8-97382-661-0 02 1 0808-0809 ●
6 05.812 WASHER; LK,FRT HUB
EXC. HIGH RIDE SUSPENSION(7YC) T=3.2 OD=35 		8-97382-661-0 02 1 0810- ● ● ●
6 05.812 WASHER; LK,FRT HUB
T=3.2 OD=35 		8-97382-661-0 02 1 0810- ●
6 05.812 WASHER; LK,FRT HUB
HIGH RIDE SUSPENSION(7YC) T=1.8 OD=65 		8-94442-398-0 02 1 0808-0809 ●
6 05.812 WASHER; LK,FRT HUB
T=1.8 OD=65 		8-94442-398-0 02 1 0808-0809 ● ● ●
6 05.812 WASHER; LK,FRT HUB
HIGH RIDE SUSPENSION(7YC) T=1.8 OD=65 		8-94442-398-0 02 1 0810- ● ● ●
6 05.812 WASHER; LK,FRT HUB
T=1.8 OD=65 		8-94442-398-0 02 1 0810- ● ● ●
10 05.812 NUT; FRT HUB BRG
M18 		8-94243-927-1 02 1 0808-0809 ●
10 05.812 NUT; FRT HUB BRG
EXC. HIGH RIDE SUSPENSION(7YC) M18 		8-94243-927-1 02 1 0808-0809 ●
10 05.812 NUT; FRT HUB BRG
EXC. HIGH RIDE SUSPENSION(7YC) M18 		8-94243-927-1 02 1 0810- ● ● ●
10 05.812 NUT; FRT HUB BRG
M18 		8-94243-927-1 02 1 0810- ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
NSK 		8-94242-913-0 02 1 0808-0809 ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
EXC. HIGH RIDE SUSPENSION(7YC) NSK 		8-94242-913-0 02 1 0808-0809 ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
EXC. HIGH RIDE SUSPENSION(7YC) NSK 		8-94242-913-0 02 1 0810- ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
NSK 		8-94242-913-0 02 1 0810- ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
HIGH RIDE SUSPENSION(7YC) 06.311 NSK 		8-94227-041-0 02 1 0808-0809 ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
06.311 NSK 		8-94227-041-0 02 1 0808-0809 ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
HIGH RIDE SUSPENSION(7YC) 06.311 NSK 		8-94227-041-0 02 1 0810- ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
06.311 NSK 		8-94227-041-0 02 1 0810- ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
M12X37.5 		8-97944-564-0 12 1 0808-0809 ● ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
M12X37.5 		8-97944-564-1 12 1 0810- ● ● ● ● ● ● ●
17 06.307 HUB; FRT AXLE 8-98054-664-0 02 1 0808-0809 ●
17 06.307 HUB; FRT AXLE
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98054-664-0 02 1 0808-0809 ●
17 06.307 HUB; FRT AXLE
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98054-664-0 02 1 0810-1309 ● ● ●
17 06.307 HUB; FRT AXLE 8-98054-664-0 02 1 0810-1309 ●
17 06.307 HUB; FRT AXLE
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97238-417-1 02 1 1310- ● ● ●
17 06.307 HUB; FRT AXLE 8-97238-417-1 02 1 1310- ●
17 06.307 HUB; FRT AXLE
HIGH RIDE SUSPENSION(7YC) 		8-98054-665-0 02 1 0808-0809 ●
17 06.307 HUB; FRT AXLE 8-98054-665-0 02 1 0808-0809 ● ● ●
17 06.307 HUB; FRT AXLE
HIGH RIDE SUSPENSION(7YC) 		8-98054-665-0 02 1 0810- ● ● ●
17 06.307 HUB; FRT AXLE 8-98054-665-0 02 1 0810- ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
NSK 		8-94242-683-0 02 1 0808-0809 ●
19 06.311 BEARING; HUB INNER,FRT AXLE
EXC. HIGH RIDE SUSPENSION(7YC) NSK 		8-94242-683-0 02 1 0808-0809 ●
19 06.311 BEARING; HUB INNER,FRT AXLE
EXC. HIGH RIDE SUSPENSION(7YC) NSK 		8-94242-683-0 02 1 0810- ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
NSK 		8-94242-683-0 02 1 0810- ●
19 06.311 BEARING; HUB INNER,FRT AXLE
HIGH RIDE SUSPENSION(7YC) 06.314 NSK 		8-94258-819-0 02 1 0808-0809 ●
19 06.311 BEARING; HUB INNER,FRT AXLE
06.314 NSK 		8-94258-819-0 02 1 0808-0809 ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
HIGH RIDE SUSPENSION(7YC) 06.314 NSK 		8-94258-819-0 02 1 0810- ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
06.314 NSK 		8-94258-819-0 02 1 0810- ● ● ●
25 05.809 ROTOR; DISC BRK,FRT
REAR BODY FLAT BED(E39) 		8-98006-258-0 02 1 0810-1211 ●
25 05.809 ROTOR; DISC BRK,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> REAR BODY FLAT BED(E39) 		8-98006-258-0 02 1 1212- ●
25 05.809 ROTOR; DISC BRK,FRT
FRT&RR 195R14C(CNU) REAR BODY FLAT BED(E39) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98006-258-0 02 1 1212- ●
25 05.809 ROTOR; DISC BRK,FRT
MALAYSIA EQUIPMENT(B10) 		8-97360-677-2 02 1 0810- ● ●
25 05.809 ROTOR; DISC BRK,FRT 8-98006-259-0 02 1 0808-0809 ● ● ● ● ●
25 05.809 ROTOR; DISC BRK,FRT 8-98006-259-1 02 1 0810- ● ● ● ●
25 05.809 ROTOR; DISC BRK,FRT
REAR BODY DBL WALL CTR PULL(E63), REAR BODY DELETE(8HH) 		8-98006-259-1 02 1 0810- ●
25 05.809 ROTOR; DISC BRK,FRT
EXC. MALAYSIA EQUIPMENT(B10) 		8-98006-259-1 02 1 0810- ● ●
26 05.812 BOLT; BRK,DISC TO HUB
M12X31.5 FLANGE 		8-98006-065-0 12 1 0808-0809 ● ● ● ● ●
26 05.812 BOLT; BRK,DISC TO HUB
M12X31.5 FLANGE 		8-98006-065-0 12 1 0810- ● ● ● ● ● ● ●
28 06.326 SEAL; OIL,FRT HUB 8-98036-593-0 02 1 0808-0809 ●
28 06.326 SEAL; OIL,FRT HUB
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98036-593-0 02 1 0808-0809 ●
28 06.326 SEAL; OIL,FRT HUB
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98036-593-0 02 1 0810- ● ● ●
28 06.326 SEAL; OIL,FRT HUB 8-98036-593-0 02 1 0810- ●
28 06.326 SEAL; OIL,FRT HUB
HIGH RIDE SUSPENSION(7YC) 		8-98036-594-0 02 1 0808-0809 ●
28 06.326 SEAL; OIL,FRT HUB 8-98036-594-0 02 1 0808-0809 ● ● ●
28 06.326 SEAL; OIL,FRT HUB
HIGH RIDE SUSPENSION(7YC) 		8-98036-594-0 02 1 0810- ● ● ●
28 06.326 SEAL; OIL,FRT HUB 8-98036-594-0 02 1 0810- ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
REAR BODY FLAT BED(E39) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97238-287-0 01 1 0810-1211 ●
31 04.665 COVER; DUST,FRT BRAKE
FRT&RR 195R14C(CNU) REAR BODY FLAT BED(E39) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97238-287-0 01 1 1212- ●
31 04.665 COVER; DUST,FRT BRAKE
REAR BODY FLAT BED(E39) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97238-288-0 01 1 0810-1211 ●
31 04.665 COVER; DUST,FRT BRAKE
FRT&RR 195R14C(CNU) REAR BODY FLAT BED(E39) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97238-288-0 01 1 1212- ●
31 04.665 COVER; DUST,FRT BRAKE
4 WHEEL ANTI LOCK BRAKE<JE5> REAR BODY FLAT BED(E39) 		8-97238-285-0 01 1 0810- ●
31 04.665 COVER; DUST,FRT BRAKE
4 WHEEL ANTI LOCK BRAKE<JE5> REAR BODY FLAT BED(E39) 		8-97238-286-0 01 1 0810- ●
31 04.665 COVER; DUST,FRT BRAKE
4 WHEEL ANTI LOCK BRAKE<JE5> REAR BODY DBL WALL CTR PULL(E63), REAR BODY DELETE(8HH) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98008-148-0 01 1 0808-0809 ● ●
31 04.665 COVER; DUST,FRT BRAKE
4 WHEEL ANTI LOCK BRAKE<JE5> REAR BODY DBL WALL CTR PULL(E63), REAR BODY DELETE(8HH) EXC. MALAYSIA EQUIPMENT(B10),HIGH RIDE SUSPENSION(7YC) 		8-98008-148-0 01 1 0810- ● ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
4 WHEEL ANTI LOCK BRAKE<JE5> REAR BODY DBL WALL CTR PULL(E63), REAR BODY DELETE(8HH) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98008-149-0 01 1 0808-0809 ● ●
31 04.665 COVER; DUST,FRT BRAKE
4 WHEEL ANTI LOCK BRAKE<JE5> REAR BODY DBL WALL CTR PULL(E63), REAR BODY DELETE(8HH) EXC. MALAYSIA EQUIPMENT(B10),HIGH RIDE SUSPENSION(7YC) 		8-98008-149-0 01 1 0810- ● ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
REAR BODY DBL WALL CTR PULL(E63), REAR BODY DELETE(8HH) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HIGH RIDE SUSPENSION(7YC) 		8-98008-150-0 01 1 0808-0809 ● ●
31 04.665 COVER; DUST,FRT BRAKE
REAR BODY DBL WALL CTR PULL(E63), REAR BODY DELETE(8HH) EXC. MALAYSIA EQUIPMENT(B10),4 WHEELANTI LOCK BRAKE<JE5>,HIGH RIDE SUSP ENSION(7YC) 		8-98008-150-0 01 1 0810- ● ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
REAR BODY DBL WALL CTR PULL(E63), REAR BODY DELETE(8HH) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HIGH RIDE SUSPENSION(7YC) 		8-98008-151-0 01 1 0808-0809 ● ●
31 04.665 COVER; DUST,FRT BRAKE
REAR BODY DBL WALL CTR PULL(E63), REAR BODY DELETE(8HH) EXC. MALAYSIA EQUIPMENT(B10),4 WHEELANTI LOCK BRAKE<JE5>,HIGH RIDE SUSP ENSION(7YC) 		8-98008-151-0 01 1 0810- ● ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) 		8-97327-611-0 01 1 0808-0809 ●
31 04.665 COVER; DUST,FRT BRAKE
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97327-611-0 01 1 0808-0809 ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) 		8-97327-611-0 01 1 0810- ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97327-611-0 01 1 0810- ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) 		8-97327-612-0 01 1 0808-0809 ●
31 04.665 COVER; DUST,FRT BRAKE
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97327-612-0 01 1 0808-0809 ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) 		8-97327-612-0 01 1 0810- ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97327-612-0 01 1 0810- ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97327-613-0 01 1 0808-0809 ●
31 04.665 COVER; DUST,FRT BRAKE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97327-613-0 01 1 0808-0809 ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97327-613-0 01 1 0810- ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97327-613-0 01 1 0810- ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97327-614-0 01 1 0808-0809 ●
31 04.665 COVER; DUST,FRT BRAKE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97327-614-0 01 1 0808-0809 ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97327-614-0 01 1 0810- ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97327-614-0 01 1 0810- ● ● ●
32 04.665 BOLT; DUST COVER TO KNUCKLE
M8X10 W/LK WASHER 		8-98006-352-0 06 1 0808-0809 ● ● ● ● ●
32 04.665 BOLT; DUST COVER TO KNUCKLE
M8X10 W/LK WASHER 		8-98006-352-0 06 1 0810- ● ● ● ● ● ● ●
41 05.812 RETAINER; NUT,FRT HUB 8-94243-928-1 02 1 0808-0809 ●
41 05.812 RETAINER; NUT,FRT HUB
EXC. HIGH RIDE SUSPENSION(7YC) 		8-94243-928-1 02 1 0808-0809 ●
41 05.812 RETAINER; NUT,FRT HUB
EXC. HIGH RIDE SUSPENSION(7YC) 		8-94243-928-1 02 1 0810- ● ● ●
41 05.812 RETAINER; NUT,FRT HUB 8-94243-928-1 02 1 0810- ●
67 05.811 ROTOR; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> REAR BODY DBL WALL CTR PULL(E63), REAR BODY DELETE(8HH) EXC. HIGH RIDE SUSPENSION(7YC) 		8-97238-278-0 02 1 0808-0809 ● ●
67 05.811 ROTOR; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) 		8-97238-278-0 02 1 0810- ● ● ● ●
67 05.811 ROTOR; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) 		8-97238-280-0 02 1 0808-0809 ●
67 05.811 ROTOR; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97238-280-0 02 1 0808-0809 ● ● ●
67 05.811 ROTOR; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) 		8-97238-280-0 02 1 0810- ● ● ●
67 05.811 ROTOR; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97238-280-0 02 1 0810- ● ● ●

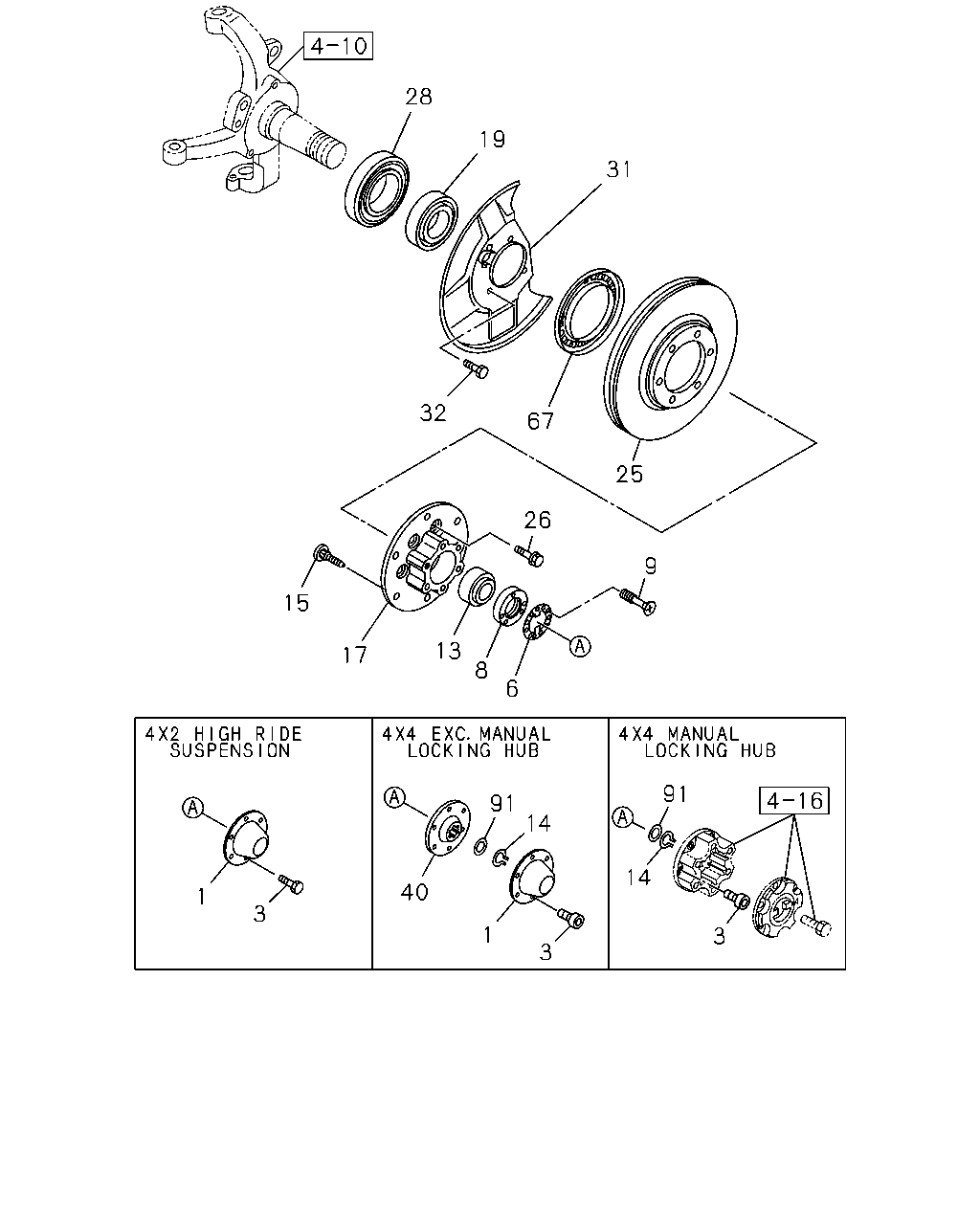

çizim 122442
28 19 31 32 67 25 26 9 15 13 17 8 6 91 91 14 14 40 1 3 1 3 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 06.330 CAP; HUB,FRT AXLE 8-98006-055-0 02 1 0808-0809 ●
1 06.330 CAP; HUB,FRT AXLE
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98006-055-0 02 1 0808-0809 ●
1 06.330 CAP; HUB,FRT AXLE
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98006-055-0 02 1 0810- ● ● ●
1 06.330 CAP; HUB,FRT AXLE 8-98006-055-0 02 1 0810- ●
1 06.330 CAP; HUB,FRT AXLE
HIGH RIDE SUSPENSION(7YC) 		8-97944-565-0 02 1 0808-0809 ●
1 06.330 CAP; HUB,FRT AXLE
EXC. MANUAL LOCKING HUB(ED2) 		8-97944-565-0 02 1 0808-0809 ● ● ●
1 06.330 CAP; HUB,FRT AXLE
HIGH RIDE SUSPENSION(7YC) 		8-97944-565-0 02 1 0810- ● ● ●
1 06.330 CAP; HUB,FRT AXLE
EXC. MANUAL LOCKING HUB(ED2) 		8-97944-565-0 02 1 0810- ● ● ●
3 06.330 BOLT; HUB CAP,FRT WHEEL
HIGH RIDE SUSPENSION(7YC) 06.174 M10X20 		0-20951-020-0 12 1 0808-0809 ●
3 06.330 BOLT; HUB CAP,FRT WHEEL
HIGH RIDE SUSPENSION(7YC) 06.174 M10X20 		0-20951-020-0 12 1 0810- ● ● ●
3 06.330 BOLT; HUB CAP,FRT WHEEL
M10X33 		8-98117-920-0 12 1 0808- ● ● ●
6 05.812 WASHER; LK,FRT HUB
T=3.2 OD=35 		8-97382-661-0 02 1 0808-0809 ●
6 05.812 WASHER; LK,FRT HUB
EXC. HIGH RIDE SUSPENSION(7YC) T=3.2 OD=35 		8-97382-661-0 02 1 0808-0809 ●
6 05.812 WASHER; LK,FRT HUB
EXC. HIGH RIDE SUSPENSION(7YC) T=3.2 OD=35 		8-97382-661-0 02 1 0810- ● ● ●
6 05.812 WASHER; LK,FRT HUB
T=3.2 OD=35 		8-97382-661-0 02 1 0810- ●
6 05.812 WASHER; LK,FRT HUB
HIGH RIDE SUSPENSION(7YC) T=1.8 OD=65 		8-94442-398-0 02 1 0808-0809 ●
6 05.812 WASHER; LK,FRT HUB
T=1.8 OD=65 		8-94442-398-0 02 1 0808-0809 ● ● ●
6 05.812 WASHER; LK,FRT HUB
HIGH RIDE SUSPENSION(7YC) T=1.8 OD=65 		8-94442-398-0 02 1 0810- ● ● ●
6 05.812 WASHER; LK,FRT HUB
T=1.8 OD=65 		8-94442-398-0 02 1 0810- ● ● ●
8 05.812 NUT; ADJ,FRT HUB
HIGH RIDE SUSPENSION(7YC) ID=40 OD=65 T=8 		8-94442-399-1 02 1 0808-0809 ●
8 05.812 NUT; ADJ,FRT HUB
ID=40 OD=65 T=8 		8-94442-399-1 02 1 0808-0809 ● ● ●
8 05.812 NUT; ADJ,FRT HUB
HIGH RIDE SUSPENSION(7YC) ID=40 OD=65 T=8 		8-94442-399-1 02 1 0810- ● ● ●
8 05.812 NUT; ADJ,FRT HUB
ID=40 OD=65 T=8 		8-94442-399-1 02 1 0810- ● ● ●
9 05.812 SCREW; ADJ,NUT
HIGH RIDE SUSPENSION(7YC) M4X8 CK-HEAD 		8-98008-301-0 06 1 0808-0809 ●
9 05.812 SCREW; ADJ,NUT
M4X8 CK-HEAD 		8-98008-301-0 06 1 0808-0809 ● ● ●
9 05.812 SCREW; ADJ,NUT
HIGH RIDE SUSPENSION(7YC) M4X8 CK-HEAD 		8-98008-301-0 06 1 0810- ● ● ●
9 05.812 SCREW; ADJ,NUT
M4X8 CK-HEAD 		8-98008-301-0 06 1 0810- ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
NSK 		8-94242-913-0 02 1 0808-0809 ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
EXC. HIGH RIDE SUSPENSION(7YC) NSK 		8-94242-913-0 02 1 0808-0809 ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
EXC. HIGH RIDE SUSPENSION(7YC) NSK 		8-94242-913-0 02 1 0810- ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
NSK 		8-94242-913-0 02 1 0810- ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
HIGH RIDE SUSPENSION(7YC) 06.311 NSK 		8-94227-041-0 02 1 0808-0809 ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
06.311 NSK 		8-94227-041-0 02 1 0808-0809 ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
HIGH RIDE SUSPENSION(7YC) 06.311 NSK 		8-94227-041-0 02 1 0810- ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
06.311 NSK 		8-94227-041-0 02 1 0810- ● ● ●
14 05.813 RING; SPR,FRT WHEEL
08.934 ID=25.9 		9-09180-028-0 02 1 0808- ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
M12X37.5 		8-97944-564-0 12 1 0808-0809 ● ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
M12X37.5 		8-97944-564-1 12 1 0810- ● ● ● ● ● ● ●
17 06.307 HUB; FRT AXLE 8-98054-664-0 02 1 0808-0809 ●
17 06.307 HUB; FRT AXLE
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98054-664-0 02 1 0808-0809 ●
17 06.307 HUB; FRT AXLE
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98054-664-0 02 1 0810-1309 ● ● ●
17 06.307 HUB; FRT AXLE 8-98054-664-0 02 1 0810-1309 ●
17 06.307 HUB; FRT AXLE
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97238-417-1 02 1 1310- ● ● ●
17 06.307 HUB; FRT AXLE 8-97238-417-1 02 1 1310- ●
17 06.307 HUB; FRT AXLE
HIGH RIDE SUSPENSION(7YC) 		8-98054-665-0 02 1 0808-0809 ●
17 06.307 HUB; FRT AXLE 8-98054-665-0 02 1 0808-0809 ● ● ●
17 06.307 HUB; FRT AXLE
HIGH RIDE SUSPENSION(7YC) 		8-98054-665-0 02 1 0810- ● ● ●
17 06.307 HUB; FRT AXLE 8-98054-665-0 02 1 0810- ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
NSK 		8-94242-683-0 02 1 0808-0809 ●
19 06.311 BEARING; HUB INNER,FRT AXLE
EXC. HIGH RIDE SUSPENSION(7YC) NSK 		8-94242-683-0 02 1 0808-0809 ●
19 06.311 BEARING; HUB INNER,FRT AXLE
EXC. HIGH RIDE SUSPENSION(7YC) NSK 		8-94242-683-0 02 1 0810- ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
NSK 		8-94242-683-0 02 1 0810- ●
19 06.311 BEARING; HUB INNER,FRT AXLE
HIGH RIDE SUSPENSION(7YC) 06.314 NSK 		8-94258-819-0 02 1 0808-0809 ●
19 06.311 BEARING; HUB INNER,FRT AXLE
06.314 NSK 		8-94258-819-0 02 1 0808-0809 ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
HIGH RIDE SUSPENSION(7YC) 06.314 NSK 		8-94258-819-0 02 1 0810- ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
06.314 NSK 		8-94258-819-0 02 1 0810- ● ● ●
25 05.809 ROTOR; DISC BRK,FRT
REAR BODY FLAT BED(E39) 		8-98006-258-0 02 1 0810-1211 ●
25 05.809 ROTOR; DISC BRK,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> REAR BODY FLAT BED(E39) 		8-98006-258-0 02 1 1212- ●
25 05.809 ROTOR; DISC BRK,FRT
FRT&RR 195R14C(CNU) REAR BODY FLAT BED(E39) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98006-258-0 02 1 1212- ●
25 05.809 ROTOR; DISC BRK,FRT
MALAYSIA EQUIPMENT(B10) 		8-97360-677-2 02 1 0810- ● ●
25 05.809 ROTOR; DISC BRK,FRT 8-98006-259-0 02 1 0808-0809 ● ● ● ● ●
25 05.809 ROTOR; DISC BRK,FRT 8-98006-259-1 02 1 0810- ● ● ● ●
25 05.809 ROTOR; DISC BRK,FRT
REAR BODY DBL WALL CTR PULL(E63), REAR BODY DELETE(8HH) 		8-98006-259-1 02 1 0810- ●
25 05.809 ROTOR; DISC BRK,FRT
EXC. MALAYSIA EQUIPMENT(B10) 		8-98006-259-1 02 1 0810- ● ●
26 05.812 BOLT; BRK,DISC TO HUB
M12X31.5 FLANGE 		8-98006-065-0 12 1 0808-0809 ● ● ● ● ●
26 05.812 BOLT; BRK,DISC TO HUB
M12X31.5 FLANGE 		8-98006-065-0 12 1 0810- ● ● ● ● ● ● ●
28 06.326 SEAL; OIL,FRT HUB 8-98036-593-0 02 1 0808-0809 ●
28 06.326 SEAL; OIL,FRT HUB
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98036-593-0 02 1 0808-0809 ●
28 06.326 SEAL; OIL,FRT HUB
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98036-593-0 02 1 0810- ● ● ●
28 06.326 SEAL; OIL,FRT HUB 8-98036-593-0 02 1 0810- ●
28 06.326 SEAL; OIL,FRT HUB
HIGH RIDE SUSPENSION(7YC) 		8-98036-594-0 02 1 0808-0809 ●
28 06.326 SEAL; OIL,FRT HUB 8-98036-594-0 02 1 0808-0809 ● ● ●
28 06.326 SEAL; OIL,FRT HUB
HIGH RIDE SUSPENSION(7YC) 		8-98036-594-0 02 1 0810- ● ● ●
28 06.326 SEAL; OIL,FRT HUB 8-98036-594-0 02 1 0810- ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
REAR BODY FLAT BED(E39) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97238-287-0 01 1 0810-1211 ●
31 04.665 COVER; DUST,FRT BRAKE
FRT&RR 195R14C(CNU) REAR BODY FLAT BED(E39) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97238-287-0 01 1 1212- ●
31 04.665 COVER; DUST,FRT BRAKE
REAR BODY FLAT BED(E39) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97238-288-0 01 1 0810-1211 ●
31 04.665 COVER; DUST,FRT BRAKE
FRT&RR 195R14C(CNU) REAR BODY FLAT BED(E39) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97238-288-0 01 1 1212- ●
31 04.665 COVER; DUST,FRT BRAKE
4 WHEEL ANTI LOCK BRAKE<JE5> REAR BODY FLAT BED(E39) 		8-97238-285-0 01 1 0810- ●
31 04.665 COVER; DUST,FRT BRAKE
4 WHEEL ANTI LOCK BRAKE<JE5> REAR BODY FLAT BED(E39) 		8-97238-286-0 01 1 0810- ●
31 04.665 COVER; DUST,FRT BRAKE
4 WHEEL ANTI LOCK BRAKE<JE5> REAR BODY DBL WALL CTR PULL(E63), REAR BODY DELETE(8HH) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98008-148-0 01 1 0808-0809 ● ●
31 04.665 COVER; DUST,FRT BRAKE
4 WHEEL ANTI LOCK BRAKE<JE5> REAR BODY DBL WALL CTR PULL(E63), REAR BODY DELETE(8HH) EXC. MALAYSIA EQUIPMENT(B10),HIGH RIDE SUSPENSION(7YC) 		8-98008-148-0 01 1 0810- ● ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
4 WHEEL ANTI LOCK BRAKE<JE5> REAR BODY DBL WALL CTR PULL(E63), REAR BODY DELETE(8HH) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98008-149-0 01 1 0808-0809 ● ●
31 04.665 COVER; DUST,FRT BRAKE
4 WHEEL ANTI LOCK BRAKE<JE5> REAR BODY DBL WALL CTR PULL(E63), REAR BODY DELETE(8HH) EXC. MALAYSIA EQUIPMENT(B10),HIGH RIDE SUSPENSION(7YC) 		8-98008-149-0 01 1 0810- ● ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
REAR BODY DBL WALL CTR PULL(E63), REAR BODY DELETE(8HH) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HIGH RIDE SUSPENSION(7YC) 		8-98008-150-0 01 1 0808-0809 ● ●
31 04.665 COVER; DUST,FRT BRAKE
REAR BODY DBL WALL CTR PULL(E63), REAR BODY DELETE(8HH) EXC. MALAYSIA EQUIPMENT(B10),4 WHEELANTI LOCK BRAKE<JE5>,HIGH RIDE SUSP ENSION(7YC) 		8-98008-150-0 01 1 0810- ● ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
REAR BODY DBL WALL CTR PULL(E63), REAR BODY DELETE(8HH) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HIGH RIDE SUSPENSION(7YC) 		8-98008-151-0 01 1 0808-0809 ● ●
31 04.665 COVER; DUST,FRT BRAKE
REAR BODY DBL WALL CTR PULL(E63), REAR BODY DELETE(8HH) EXC. MALAYSIA EQUIPMENT(B10),4 WHEELANTI LOCK BRAKE<JE5>,HIGH RIDE SUSP ENSION(7YC) 		8-98008-151-0 01 1 0810- ● ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) 		8-97327-611-0 01 1 0808-0809 ●
31 04.665 COVER; DUST,FRT BRAKE
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97327-611-0 01 1 0808-0809 ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) 		8-97327-611-0 01 1 0810- ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97327-611-0 01 1 0810- ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) 		8-97327-612-0 01 1 0808-0809 ●
31 04.665 COVER; DUST,FRT BRAKE
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97327-612-0 01 1 0808-0809 ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) 		8-97327-612-0 01 1 0810- ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97327-612-0 01 1 0810- ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97327-613-0 01 1 0808-0809 ●
31 04.665 COVER; DUST,FRT BRAKE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97327-613-0 01 1 0808-0809 ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97327-613-0 01 1 0810- ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97327-613-0 01 1 0810- ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97327-614-0 01 1 0808-0809 ●
31 04.665 COVER; DUST,FRT BRAKE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97327-614-0 01 1 0808-0809 ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97327-614-0 01 1 0810- ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97327-614-0 01 1 0810- ● ● ●
32 04.665 BOLT; DUST COVER TO KNUCKLE
M8X10 W/LK WASHER 		8-98006-352-0 06 1 0808-0809 ● ● ● ● ●
32 04.665 BOLT; DUST COVER TO KNUCKLE
M8X10 W/LK WASHER 		8-98006-352-0 06 1 0810- ● ● ● ● ● ● ●
40 06.308 FLANGE; FRT WHEEL HUB
EXC. MANUAL LOCKING HUB(ED2) 		8-94173-313-0 02 1 0808-1207 ● ● ●
40 06.308 FLANGE; FRT WHEEL HUB
EXC. MANUAL LOCKING HUB(ED2) 		8-98197-869-0 02 1 1208- ● ● ●
67 05.811 ROTOR; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> REAR BODY DBL WALL CTR PULL(E63), REAR BODY DELETE(8HH) EXC. HIGH RIDE SUSPENSION(7YC) 		8-97238-278-0 02 1 0808-0809 ● ●
67 05.811 ROTOR; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) 		8-97238-278-0 02 1 0810- ● ● ● ●
67 05.811 ROTOR; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) 		8-97238-280-0 02 1 0808-0809 ●
67 05.811 ROTOR; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97238-280-0 02 1 0808-0809 ● ● ●
67 05.811 ROTOR; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) 		8-97238-280-0 02 1 0810- ● ● ●
67 05.811 ROTOR; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97238-280-0 02 1 0810- ● ● ●
91 06.056 SPACER; HUB BRG
06.323 T=0.20 		8-94178-929-0 AR 1 0808- ● ● ●
91 06.056 SPACER; HUB BRG
06.323 T=0.30 		8-94178-930-0 AR 1 0808- ● ● ●
91 06.056 SPACER; HUB BRG
06.323 T=0.50 		8-94178-931-0 AR 1 0808- ● ● ●
91 06.056 SPACER; HUB BRG
06.323 T=1.00 		8-94178-932-0 AR 1 0808- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
