3-60 — BRAKE PIPING; VACUUM (#77030) — 60 parça

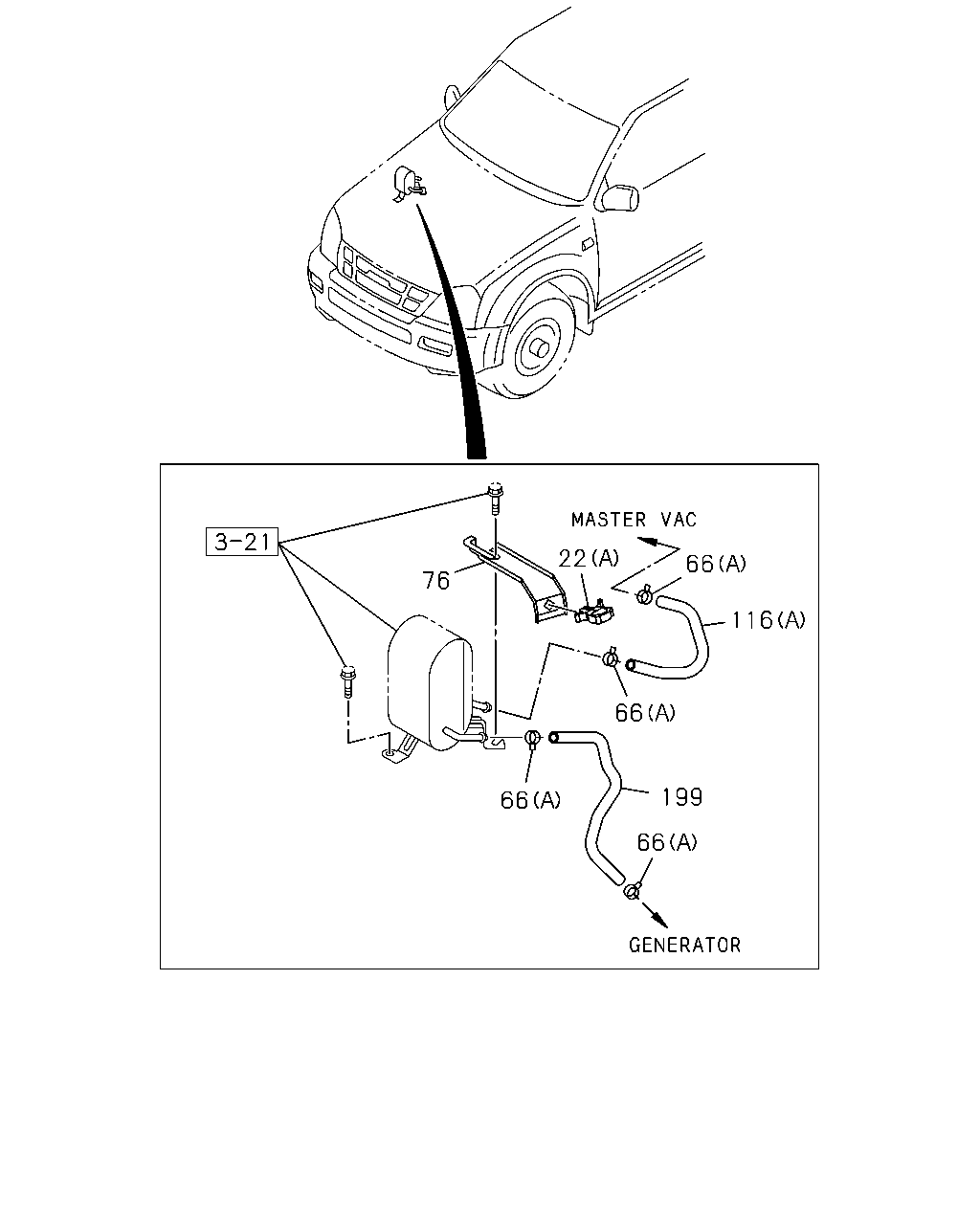

çizim 121442
22 66 76 116 66 199 66 66
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
22 04.681 CLIP; HOSE,VAC TANK
4JA1-T ENG(LP0) 03.162 (A) 		8-97089-536-0 01 1 0810- ● ● ● ● ● ●
22 04.681 CLIP; HOSE,VAC TANK
C24SE ENG(LG1) (B) 		8-97249-910-0 01 1 0810- ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JA1-T ENG(LP0) (A) ID=15.5 		8-98035-872-0 04 1 0810- ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
C24SE ENG(LG1) (A) ID=15.5 		8-98035-872-0 02 1 0810- ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JJ1-TCX ENG(LS0) (A) ID=15.5 		8-98035-872-0 03 1 0808-0809 ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) (A) ID=15.5 		8-98035-872-0 03 1 0810-1007 ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (A) ID=15.5 		8-98035-872-0 03 1 1008- ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JJ1-TCX ENG(LS0) (B) ID=16 		8-98036-539-0 01 1 0808-0809 ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) (B) ID=16 		8-98036-539-0 01 1 0810-1007 ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (B) ID=16 		8-98036-539-0 01 1 1008- ● ● ● ● ● ● ●
76 04.930 BRACKET; VAC HOSE CLIP
4JA1-T ENG(LP0) 		8-98050-712-0 01 1 0810- ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
4JA1-T ENG(LP0) (A) 		8-97944-834-0 01 1 0810- ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
C24SE ENG(LG1) (A) 		8-97944-833-0 01 1 0810- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCX ENG(LS0) (A) 		8-97944-840-1 01 1 0808-0809 ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) (A) 		8-97944-840-1 01 1 0810-1007 ● ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (A) 		8-97944-840-1 01 1 1008- ● ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCX ENG(LS0) (B) 		8-97944-841-0 01 1 0808-0809 ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) (B) 		8-97944-841-0 01 1 0810-1007 ● ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (B) 		8-97944-841-0 01 1 1008- ● ● ● ● ● ● ●
199 04.681 HOSE; VAC,VAC TANK TO VAC PUMP
4JA1-T ENG(LP0) 		8-97385-746-0 01 1 0810- ● ● ● ● ● ●

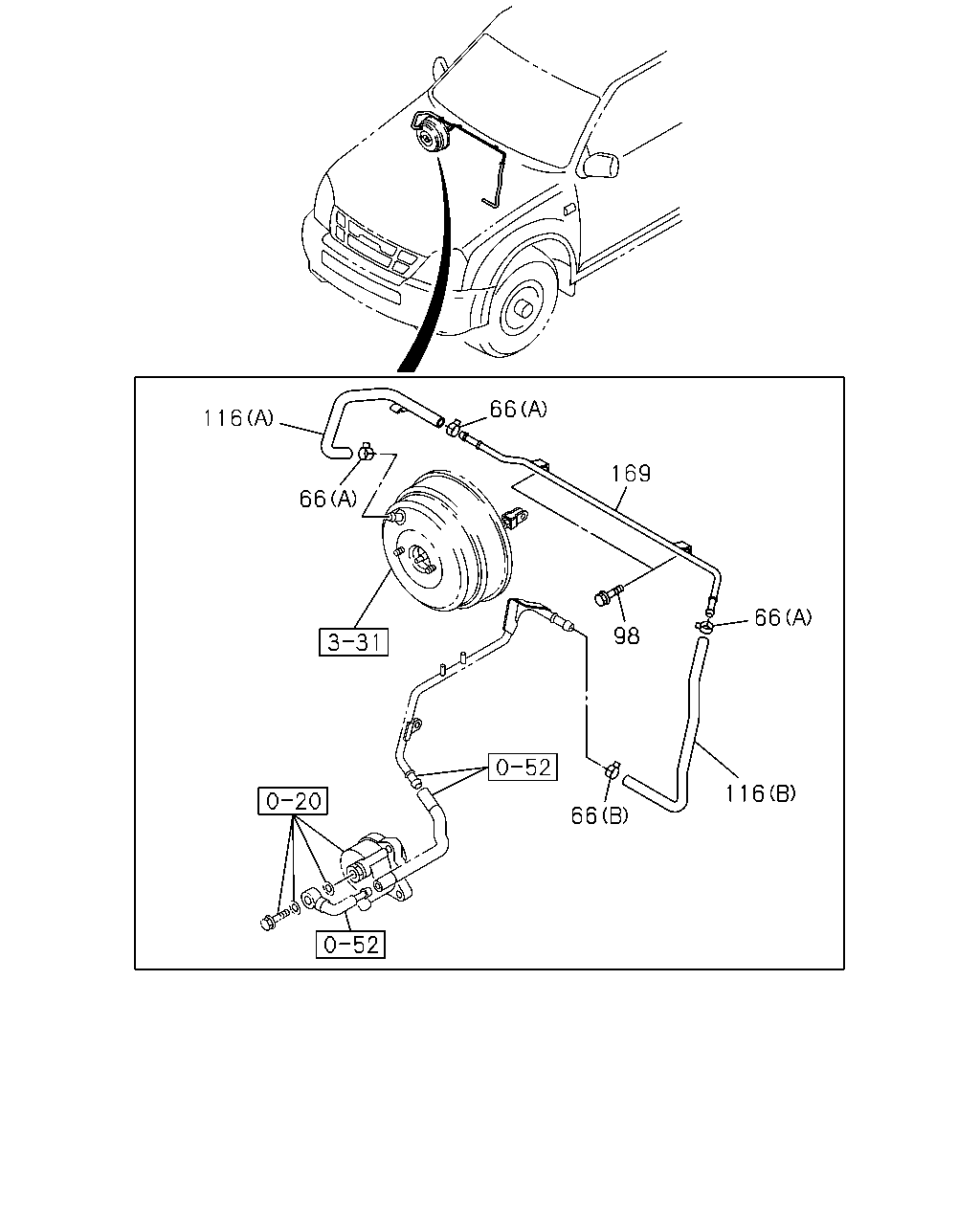

çizim 121503
66 116 169 66 66 98 116 66
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
66 04.930 CLIP; VAC HOSE,M/VAC
4JA1-T ENG(LP0) (A) ID=15.5 		8-98035-872-0 04 1 0810- ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
C24SE ENG(LG1) (A) ID=15.5 		8-98035-872-0 02 1 0810- ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JJ1-TCX ENG(LS0) (A) ID=15.5 		8-98035-872-0 03 1 0808-0809 ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) (A) ID=15.5 		8-98035-872-0 03 1 0810-1007 ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (A) ID=15.5 		8-98035-872-0 03 1 1008- ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JJ1-TCX ENG(LS0) (B) ID=16 		8-98036-539-0 01 1 0808-0809 ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) (B) ID=16 		8-98036-539-0 01 1 0810-1007 ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (B) ID=16 		8-98036-539-0 01 1 1008- ● ● ● ● ● ● ●
98 04.931 BOLT; VAC PIPE FIX
4JJ1-TCX ENG(LS0) 02.343 M6X16 FLANGE 		0-28650-616-0 02 1 0808-0809 ● ● ● ● ●
98 04.931 BOLT; VAC PIPE FIX
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 02.343 M6X16 FLANGE 		0-28650-616-0 02 1 0810-1007 ● ● ● ● ● ● ●
98 04.931 BOLT; VAC PIPE FIX
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 02.343 M6X16 FLANGE 		0-28650-616-0 02 1 1008- ● ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
4JA1-T ENG(LP0) (A) 		8-97944-834-0 01 1 0810- ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
C24SE ENG(LG1) (A) 		8-97944-833-0 01 1 0810- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCX ENG(LS0) (A) 		8-97944-840-1 01 1 0808-0809 ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) (A) 		8-97944-840-1 01 1 0810-1007 ● ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (A) 		8-97944-840-1 01 1 1008- ● ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCX ENG(LS0) (B) 		8-97944-841-0 01 1 0808-0809 ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) (B) 		8-97944-841-0 01 1 0810-1007 ● ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (B) 		8-97944-841-0 01 1 1008- ● ● ● ● ● ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
4JJ1-TCX ENG(LS0) 		8-97944-847-1 01 1 0808-0809 ● ● ● ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 		8-97944-847-1 01 1 0810-1007 ● ● ● ● ● ● ●
169 04.930 PIPE; VAC,BOOSTER SIDE
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 		8-97944-847-1 01 1 1008- ● ● ● ● ● ● ●

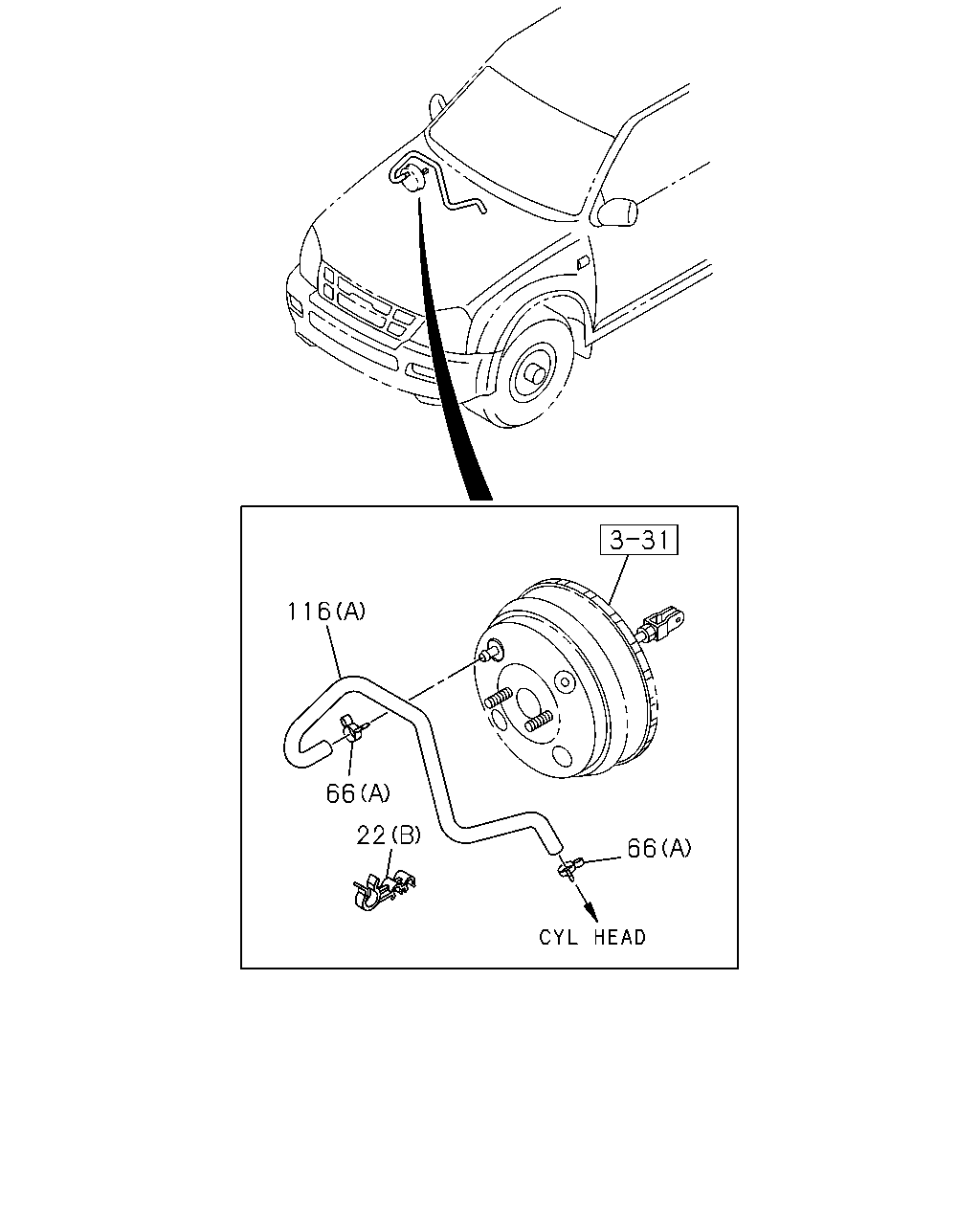

çizim 121511
116 66 22 66
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
22 04.681 CLIP; HOSE,VAC TANK
4JA1-T ENG(LP0) 03.162 (A) 		8-97089-536-0 01 1 0810- ● ● ● ● ● ●
22 04.681 CLIP; HOSE,VAC TANK
C24SE ENG(LG1) (B) 		8-97249-910-0 01 1 0810- ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JA1-T ENG(LP0) (A) ID=15.5 		8-98035-872-0 04 1 0810- ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
C24SE ENG(LG1) (A) ID=15.5 		8-98035-872-0 02 1 0810- ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JJ1-TCX ENG(LS0) (A) ID=15.5 		8-98035-872-0 03 1 0808-0809 ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) (A) ID=15.5 		8-98035-872-0 03 1 0810-1007 ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (A) ID=15.5 		8-98035-872-0 03 1 1008- ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JJ1-TCX ENG(LS0) (B) ID=16 		8-98036-539-0 01 1 0808-0809 ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) (B) ID=16 		8-98036-539-0 01 1 0810-1007 ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (B) ID=16 		8-98036-539-0 01 1 1008- ● ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
4JA1-T ENG(LP0) (A) 		8-97944-834-0 01 1 0810- ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
C24SE ENG(LG1) (A) 		8-97944-833-0 01 1 0810- ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCX ENG(LS0) (A) 		8-97944-840-1 01 1 0808-0809 ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) (A) 		8-97944-840-1 01 1 0810-1007 ● ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (A) 		8-97944-840-1 01 1 1008- ● ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCX ENG(LS0) (B) 		8-97944-841-0 01 1 0808-0809 ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) (B) 		8-97944-841-0 01 1 0810-1007 ● ● ● ● ● ● ●
116 04.931 HOSE; VAC,M/VAC
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (B) 		8-97944-841-0 01 1 1008- ● ● ● ● ● ● ●
