3-55 — BRAKE PIPING; OIL,REAR (#77028) — 96 parça

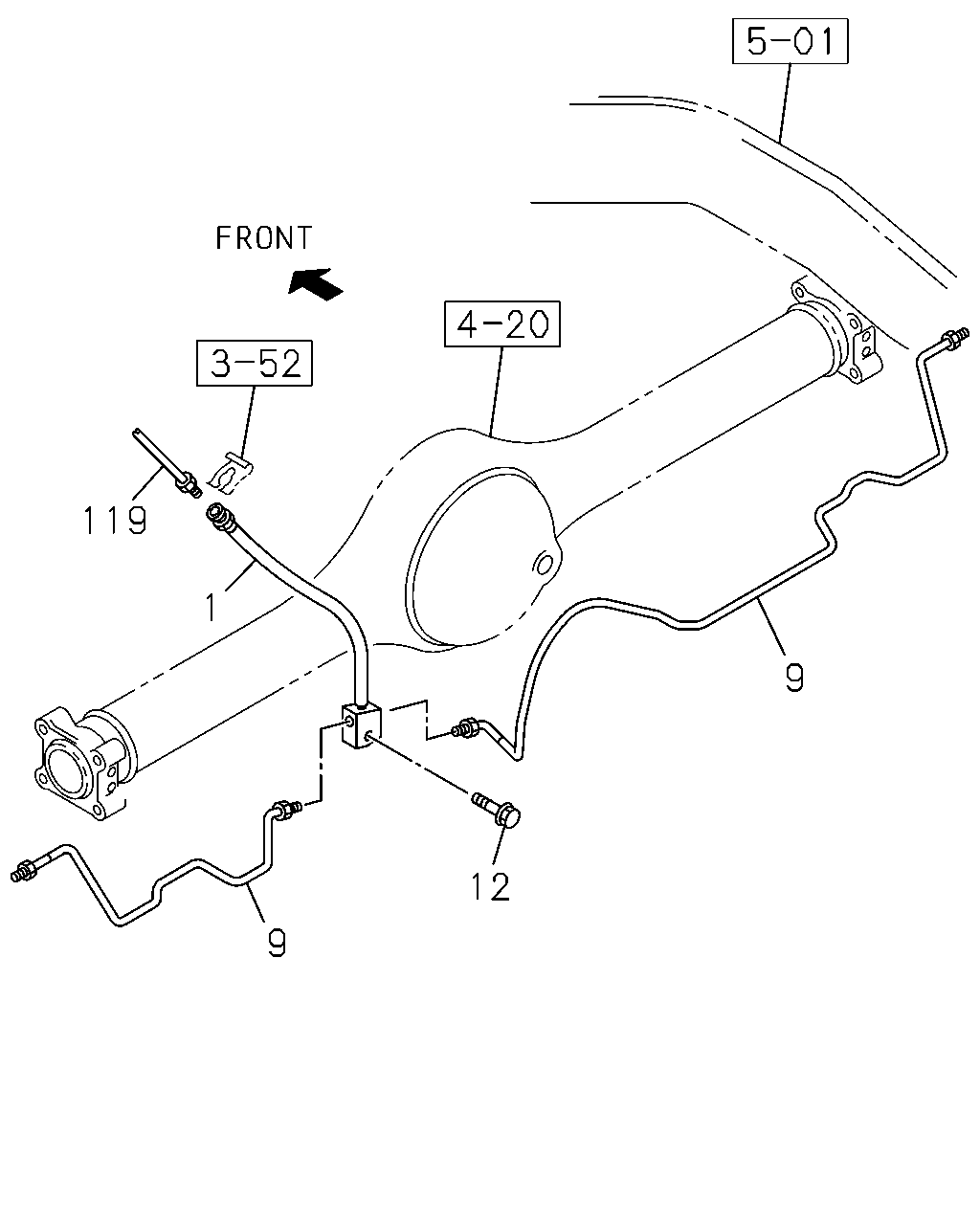

çizim 121100
119 1 9 12 9
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 04.680 HOSE; FLEX,RR BRK 8-98006-785-0 01 1 0808-0808 ● ● ● ● ●
1 04.680 HOSE; FLEX,RR BRK 8-98122-044-0 01 1 0809-0809 ● ● ● ● ●
1 04.680 HOSE; FLEX,RR BRK 8-98122-044-0 01 1 0810- ● ● ● ● ● ● ●
9 04.685 PIPE; BRK,RR AXLE
4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) 		8-97944-703-0 01 1 0808-0809 ● ●
9 04.685 PIPE; BRK,RR AXLE
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97944-703-0 01 1 0810- ● ● ● ●
9 04.685 PIPE; BRK,RR AXLE
4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) 		8-97944-705-0 01 1 0808-0809 ● ●
9 04.685 PIPE; BRK,RR AXLE
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97944-705-0 01 1 0810- ● ● ● ●
9 04.685 PIPE; BRK,RR AXLE
HIGH RIDE SUSPENSION(7YC) 		8-97944-704-0 01 1 0808-0809 ●
9 04.685 PIPE; BRK,RR AXLE 8-97944-704-0 01 1 0808-0809 ● ● ●
9 04.685 PIPE; BRK,RR AXLE
HIGH RIDE SUSPENSION(7YC) 		8-97944-704-0 01 1 0810- ● ● ●
9 04.685 PIPE; BRK,RR AXLE 8-97944-704-0 01 1 0810- ● ● ●
9 04.685 PIPE; BRK,RR AXLE
HIGH RIDE SUSPENSION(7YC) 		8-97944-706-0 01 1 0808-0809 ●
9 04.685 PIPE; BRK,RR AXLE 8-97944-706-0 01 1 0808-0809 ● ● ●
9 04.685 PIPE; BRK,RR AXLE
HIGH RIDE SUSPENSION(7YC) 		8-97944-706-0 01 1 0810- ● ● ●
9 04.685 PIPE; BRK,RR AXLE 8-97944-706-0 01 1 0810- ● ● ●
12 04.685 BOLT; FLEX HOSE TO RR AXLE
03.403 M8X30 FLANGE 		0-28650-830-0 01 1 0808-0809 ● ● ● ● ●
12 04.685 BOLT; FLEX HOSE TO RR AXLE
03.403 M8X30 FLANGE 		0-28650-830-0 01 1 0810- ● ● ● ● ● ● ●
119 04.685 PIPE; BRK,2WAY TO RR
C24SE ENG(LG1),4JA1-T ENG(LP0) HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<JR9> 		8-97944-641-0 01 1 0810- ● ● ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 EXTEND CAB LONG(TFS*CF) C24SE ENG(LG1),4JA1-T ENG(LP0) EXC. BRK WHL LK CONT LSPV<JR9> 		8-97944-641-0 01 1 0810- ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 REGULAR CAB LONG(TFS*SF) C24SE ENG(LG1),4JA1-T ENG(LP0) EXC. BRK WHL LK CONT LSPV<JR9> 		8-97944-641-0 01 1 0810- ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 CREW CAB LONG(TFS*WF) C24SE ENG(LG1),4JA1-T ENG(LP0) EXC. BRK WHL LK CONT LSPV<JR9> 		8-97944-641-0 01 1 0810- ●
119 04.685 PIPE; BRK,2WAY TO RR
C24SE ENG(LG1),4JA1-T ENG(LP0) EXC. BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) 		8-97944-637-0 01 1 0810- ● ● ●
119 04.685 PIPE; BRK,2WAY TO RR
4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98043-600-0 01 1 0808- ●
119 04.685 PIPE; BRK,2WAY TO RR
4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98043-601-0 01 1 0808-0809 ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 CREW CAB LONG(TFS*WF) 4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98043-601-0 01 1 0808-0809 ●
119 04.685 PIPE; BRK,2WAY TO RR
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98043-601-0 01 1 0810-1007 ● ● ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 EXTEND CAB LONG(TFS*CF) 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98043-601-0 01 1 0810-1007 ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 REGULAR CAB LONG(TFS*SF) 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98043-601-0 01 1 0810-1007 ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 CREW CAB LONG(TFS*WF) 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98043-601-0 01 1 0810-1007 ●
119 04.685 PIPE; BRK,2WAY TO RR
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98043-601-0 01 1 1008- ● ● ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 EXTEND CAB LONG(TFS*CF) 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98043-601-0 01 1 1008- ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 REGULAR CAB LONG(TFS*SF) 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98043-601-0 01 1 1008- ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 CREW CAB LONG(TFS*WF) 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98043-601-0 01 1 1008- ●
119 04.685 PIPE; BRK,2WAY TO RR
4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) 		8-98043-599-0 01 1 0808-0809 ●
119 04.685 PIPE; BRK,2WAY TO RR
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) 		8-98043-599-0 01 1 0810-1007 ● ● ●
119 04.685 PIPE; BRK,2WAY TO RR
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) 		8-98043-599-0 01 1 1008- ● ● ●
119 04.685 PIPE; BRK,2WAY TO RR
EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98043-603-0 01 1 0808- ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98043-603-0 01 1 0808- ●
119 04.685 PIPE; BRK,2WAY TO RR
CREW CAB EXTRA LONG(TF**WK) 4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98043-603-0 01 1 0808- ●

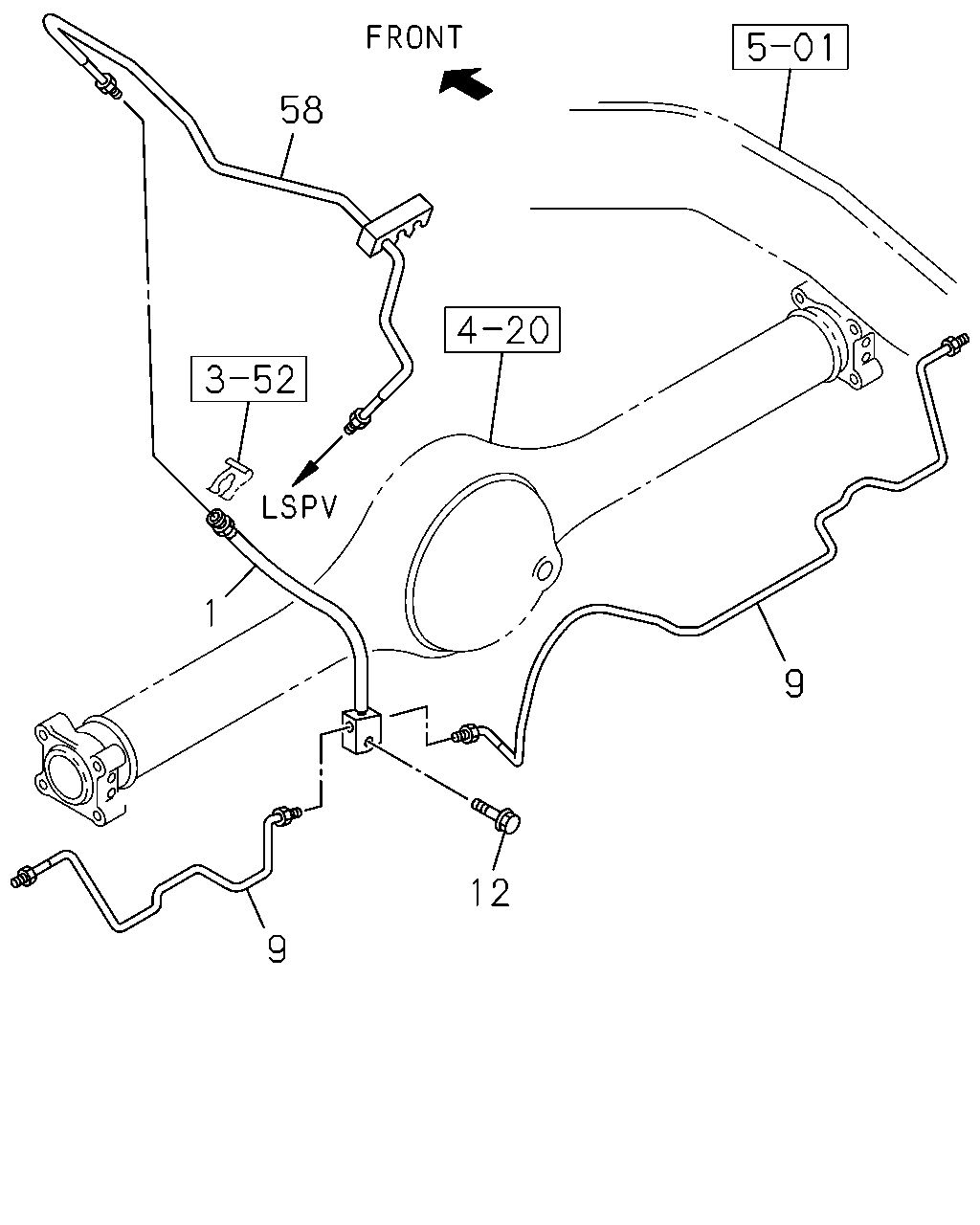

çizim 121153
58 1 9 12 9
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 04.680 HOSE; FLEX,RR BRK 8-98006-785-0 01 1 0808-0808 ● ● ● ● ●
1 04.680 HOSE; FLEX,RR BRK 8-98122-044-0 01 1 0809-0809 ● ● ● ● ●
1 04.680 HOSE; FLEX,RR BRK 8-98122-044-0 01 1 0810- ● ● ● ● ● ● ●
9 04.685 PIPE; BRK,RR AXLE
4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) 		8-97944-703-0 01 1 0808-0809 ● ●
9 04.685 PIPE; BRK,RR AXLE
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97944-703-0 01 1 0810- ● ● ● ●
9 04.685 PIPE; BRK,RR AXLE
4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) 		8-97944-705-0 01 1 0808-0809 ● ●
9 04.685 PIPE; BRK,RR AXLE
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97944-705-0 01 1 0810- ● ● ● ●
9 04.685 PIPE; BRK,RR AXLE
HIGH RIDE SUSPENSION(7YC) 		8-97944-704-0 01 1 0808-0809 ●
9 04.685 PIPE; BRK,RR AXLE 8-97944-704-0 01 1 0808-0809 ● ● ●
9 04.685 PIPE; BRK,RR AXLE
HIGH RIDE SUSPENSION(7YC) 		8-97944-704-0 01 1 0810- ● ● ●
9 04.685 PIPE; BRK,RR AXLE 8-97944-704-0 01 1 0810- ● ● ●
9 04.685 PIPE; BRK,RR AXLE
HIGH RIDE SUSPENSION(7YC) 		8-97944-706-0 01 1 0808-0809 ●
9 04.685 PIPE; BRK,RR AXLE 8-97944-706-0 01 1 0808-0809 ● ● ●
9 04.685 PIPE; BRK,RR AXLE
HIGH RIDE SUSPENSION(7YC) 		8-97944-706-0 01 1 0810- ● ● ●
9 04.685 PIPE; BRK,RR AXLE 8-97944-706-0 01 1 0810- ● ● ●
12 04.685 BOLT; FLEX HOSE TO RR AXLE
03.403 M8X30 FLANGE 		0-28650-830-0 01 1 0808-0809 ● ● ● ● ●
12 04.685 BOLT; FLEX HOSE TO RR AXLE
03.403 M8X30 FLANGE 		0-28650-830-0 01 1 0810- ● ● ● ● ● ● ●
58 04.686 PIPE; BRK,LSV TO RR AXLE
BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) 		8-97944-748-0 01 1 0808-0809 ● ●
58 04.686 PIPE; BRK,LSV TO RR AXLE
BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) 		8-97944-748-0 01 1 0810- ● ● ●
58 04.686 PIPE; BRK,LSV TO RR AXLE
BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) 		8-97944-749-0 01 1 0808-0809 ●
58 04.686 PIPE; BRK,LSV TO RR AXLE
BRK WHL LK CONT LSPV<JR9> 		8-97944-749-0 01 1 0808-0809 ● ● ●
58 04.686 PIPE; BRK,LSV TO RR AXLE
BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) 		8-97944-749-0 01 1 0810- ● ●
58 04.686 PIPE; BRK,LSV TO RR AXLE
BRK WHL LK CONT LSPV<JR9> 		8-97944-749-0 01 1 0810- ● ● ●

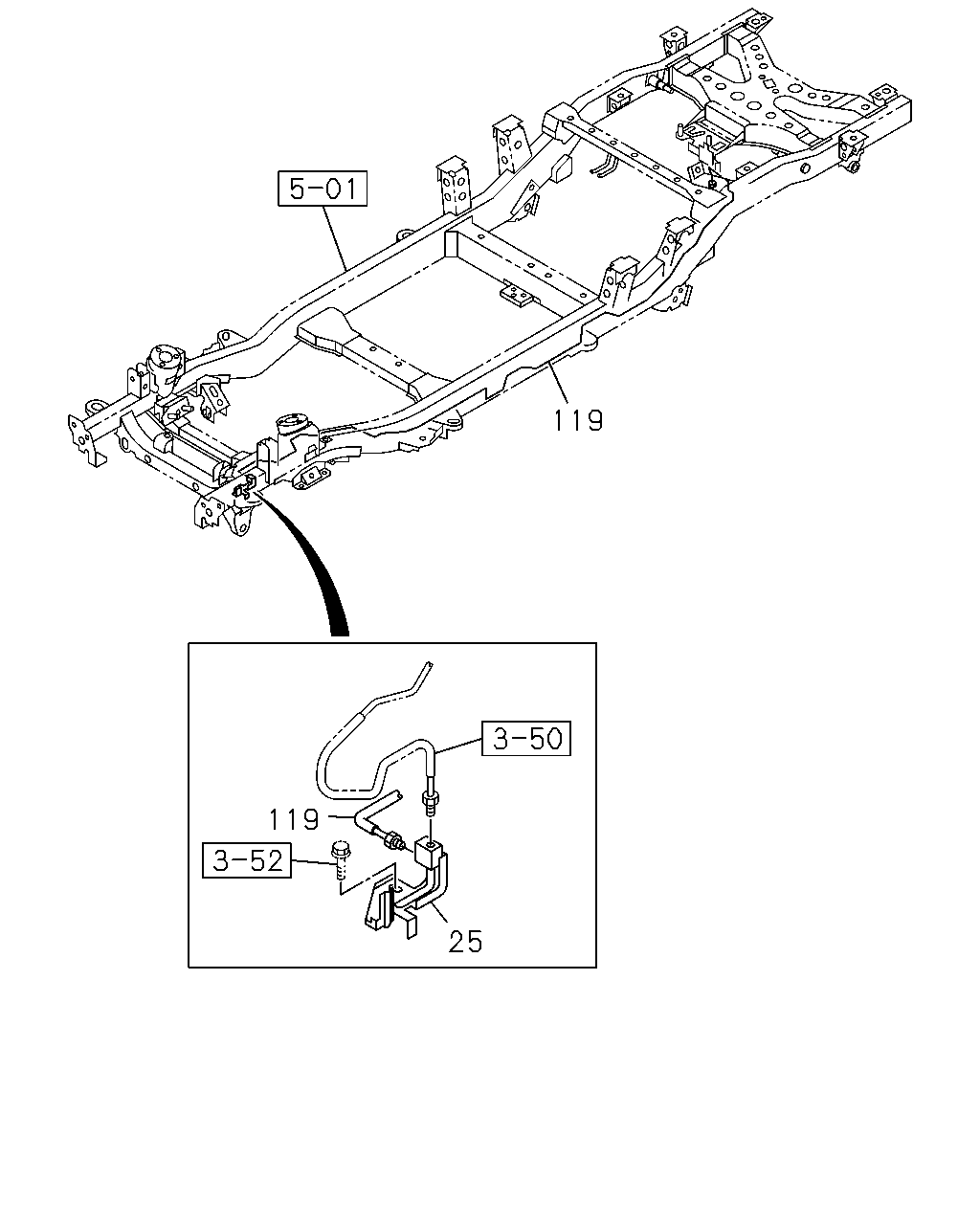

çizim 186166
119 119 25
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
25 04.686 CONNECTOR
4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98046-620-0 01 1 0808-0809 ● ● ● ● ●
25 04.686 CONNECTOR
4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> 		8-98046-620-0 01 1 0808-0809 ● ● ● ● ●
25 04.686 CONNECTOR
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98046-620-0 01 1 0810- ● ● ● ● ● ● ●
25 04.686 CONNECTOR
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> 		8-98046-620-0 01 1 0810- ● ● ● ● ● ● ●
25 04.686 CONNECTOR
BRK WHL LK CONT LSPV<JR9> 		8-98046-621-0 01 1 0808-0809 ● ● ● ● ●
25 04.686 CONNECTOR
BRK WHL LK CONT LSPV<JR9> 		8-98046-621-0 01 1 0810- ● ● ● ● ● ●
119 04.685 PIPE; BRK,2WAY TO RR
C24SE ENG(LG1),4JA1-T ENG(LP0) HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<JR9> 		8-97944-641-0 01 1 0810- ● ● ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 EXTEND CAB LONG(TFS*CF) C24SE ENG(LG1),4JA1-T ENG(LP0) EXC. BRK WHL LK CONT LSPV<JR9> 		8-97944-641-0 01 1 0810- ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 REGULAR CAB LONG(TFS*SF) C24SE ENG(LG1),4JA1-T ENG(LP0) EXC. BRK WHL LK CONT LSPV<JR9> 		8-97944-641-0 01 1 0810- ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 CREW CAB LONG(TFS*WF) C24SE ENG(LG1),4JA1-T ENG(LP0) EXC. BRK WHL LK CONT LSPV<JR9> 		8-97944-641-0 01 1 0810- ●
119 04.685 PIPE; BRK,2WAY TO RR
C24SE ENG(LG1),4JA1-T ENG(LP0) EXC. BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) 		8-97944-637-0 01 1 0810- ● ● ●
119 04.685 PIPE; BRK,2WAY TO RR
4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98043-600-0 01 1 0808- ●
119 04.685 PIPE; BRK,2WAY TO RR
4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98043-601-0 01 1 0808-0809 ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 CREW CAB LONG(TFS*WF) 4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98043-601-0 01 1 0808-0809 ●
119 04.685 PIPE; BRK,2WAY TO RR
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98043-601-0 01 1 0810-1007 ● ● ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 EXTEND CAB LONG(TFS*CF) 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98043-601-0 01 1 0810-1007 ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 REGULAR CAB LONG(TFS*SF) 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98043-601-0 01 1 0810-1007 ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 CREW CAB LONG(TFS*WF) 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98043-601-0 01 1 0810-1007 ●
119 04.685 PIPE; BRK,2WAY TO RR
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98043-601-0 01 1 1008- ● ● ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 EXTEND CAB LONG(TFS*CF) 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98043-601-0 01 1 1008- ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 REGULAR CAB LONG(TFS*SF) 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98043-601-0 01 1 1008- ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 CREW CAB LONG(TFS*WF) 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98043-601-0 01 1 1008- ●
119 04.685 PIPE; BRK,2WAY TO RR
4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) 		8-98043-599-0 01 1 0808-0809 ●
119 04.685 PIPE; BRK,2WAY TO RR
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) 		8-98043-599-0 01 1 0810-1007 ● ● ●
119 04.685 PIPE; BRK,2WAY TO RR
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) 		8-98043-599-0 01 1 1008- ● ● ●
119 04.685 PIPE; BRK,2WAY TO RR
EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98043-603-0 01 1 0808- ●
119 04.685 PIPE; BRK,2WAY TO RR
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98043-603-0 01 1 0808- ●
119 04.685 PIPE; BRK,2WAY TO RR
CREW CAB EXTRA LONG(TF**WK) 4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9> 		8-98043-603-0 01 1 0808- ●

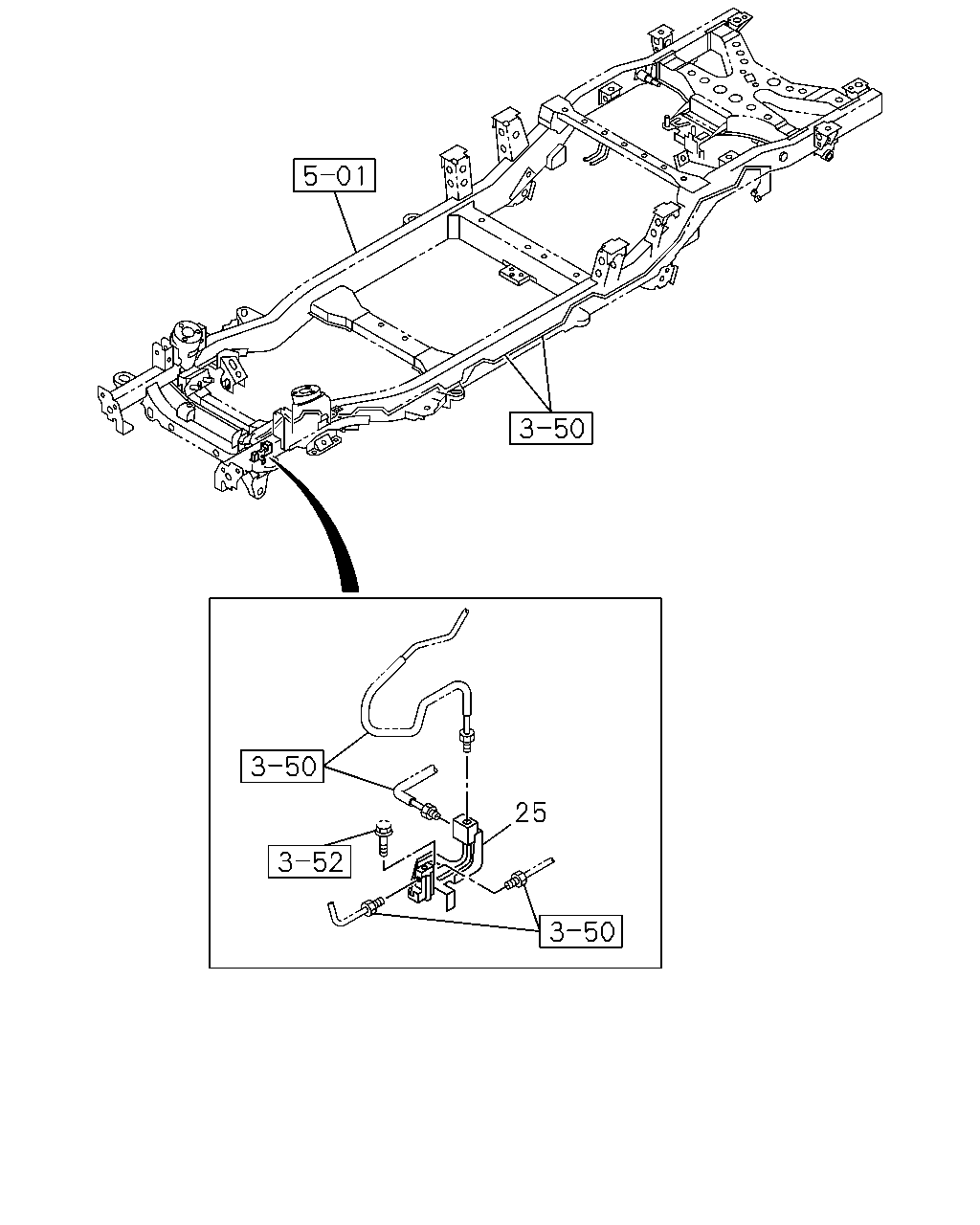

çizim 186169
25
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
25 04.686 CONNECTOR
4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98046-620-0 01 1 0808-0809 ● ● ● ● ●
25 04.686 CONNECTOR
4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> 		8-98046-620-0 01 1 0808-0809 ● ● ● ● ●
25 04.686 CONNECTOR
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98046-620-0 01 1 0810- ● ● ● ● ● ● ●
25 04.686 CONNECTOR
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRK WHL LK CONT LSPV<JR9> 		8-98046-620-0 01 1 0810- ● ● ● ● ● ● ●
25 04.686 CONNECTOR
BRK WHL LK CONT LSPV<JR9> 		8-98046-621-0 01 1 0808-0809 ● ● ● ● ●
25 04.686 CONNECTOR
BRK WHL LK CONT LSPV<JR9> 		8-98046-621-0 01 1 0810- ● ● ● ● ● ●
