◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51194 - TFR/TFS-RHD ▶ 3 - Brakes, Brake System ▶ 3-52 - BRAKE PIPING; OIL,FRONT ▶
3-52 — BRAKE PIPING; OIL,FRONT (#77027) — 50 parça

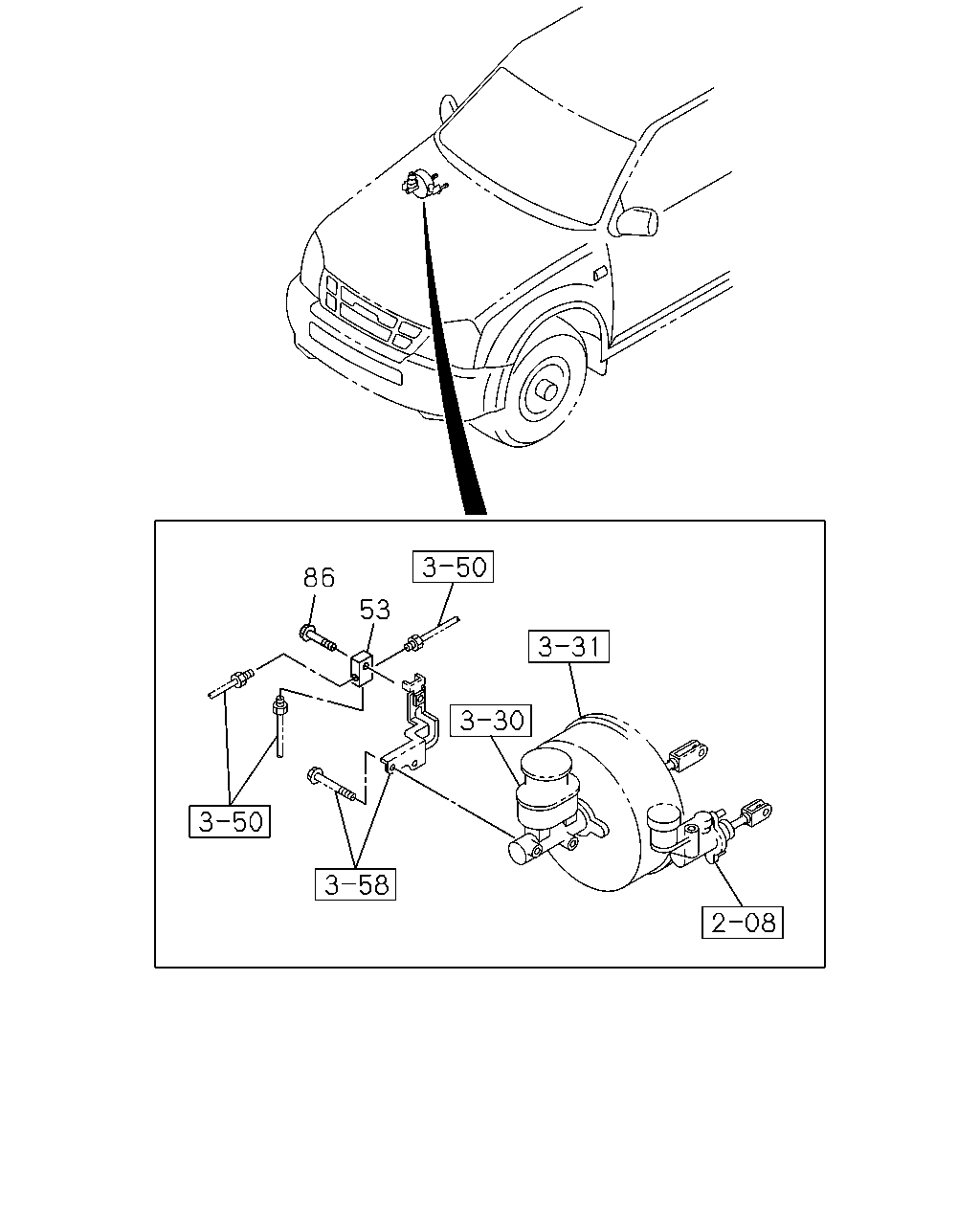

çizim 119670
86 53
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
53 04.686 CONNECTOR; OIL PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98008-113-0 01 1 0808-0809 ● ● ● ● ●
53 04.686 CONNECTOR; OIL PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98008-113-0 01 1 0810- ● ● ● ● ● ● ●
86 04.686 BOLT; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0808-0809 ● ● ● ● ●
86 04.686 BOLT; BRK PIPE
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0808-0809 ● ● ● ● ●
86 04.686 BOLT; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0810- ● ● ● ● ● ● ●
86 04.686 BOLT; BRK PIPE
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0810- ● ● ● ● ● ● ●

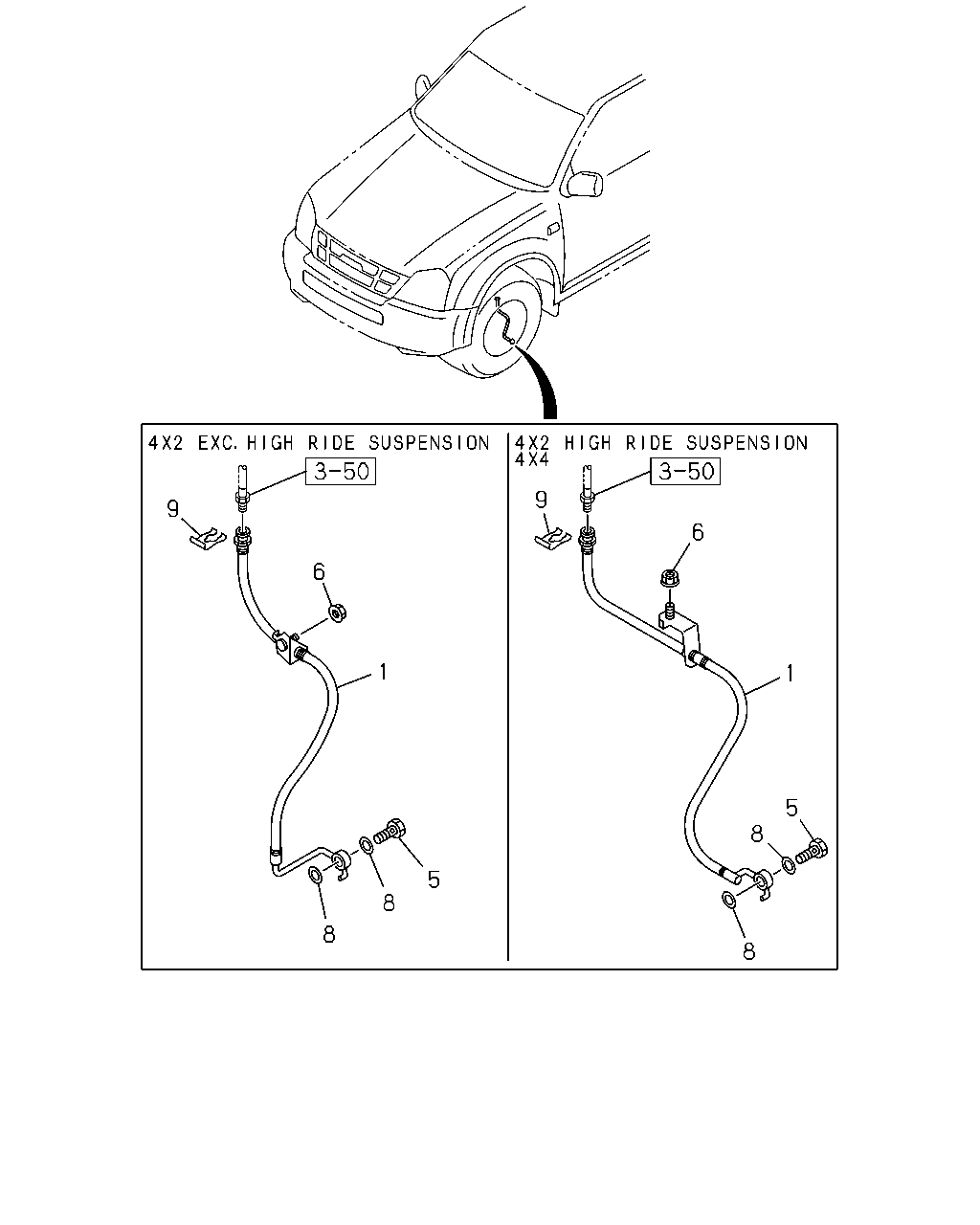

çizim 119908
9 9 6 6 1 1 5 8 5 8 8 8
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 04.680 HOSE; FLEX,FRT BRK
FRT&RR 195R14C(CNU) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98122-038-0 01 1 0810- ●
1 04.680 HOSE; FLEX,FRT BRK
FRT&RR 195R14C(CNU) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98122-039-0 01 1 0810- ●
1 04.680 HOSE; FLEX,FRT BRK 8-98008-256-0 01 1 0808-0808 ●
1 04.680 HOSE; FLEX,FRT BRK
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98008-256-0 01 1 0808-0808 ●
1 04.680 HOSE; FLEX,FRT BRK 8-98122-040-0 01 1 0809-0809 ●
1 04.680 HOSE; FLEX,FRT BRK
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98122-040-0 01 1 0809-0809 ●
1 04.680 HOSE; FLEX,FRT BRK
FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ), FRT&RR 215/70R15C GOODYEAR TIRE(QFT), FRT&RR 195R15C(QZO) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98122-040-0 01 1 0810-1101 ● ● ●
1 04.680 HOSE; FLEX,FRT BRK 8-98122-040-0 01 1 0810-1101 ●
1 04.680 HOSE; FLEX,FRT BRK
FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16(BZD),FRT&RR 215/70R15C DUNLOP TIRE(CWP),FRT&RR 245/70R16 ALS(QCQ),FR T&RR 215/70R15C GOODYEAR TIRE(QFT), FRT&RR 195R15C(QZO) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98122-040-0 01 1 1102- ● ● ●
1 04.680 HOSE; FLEX,FRT BRK 8-98122-040-0 01 1 1102- ●
1 04.680 HOSE; FLEX,FRT BRK 8-98008-257-0 01 1 0808-0808 ●
1 04.680 HOSE; FLEX,FRT BRK
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98008-257-0 01 1 0808-0808 ●
1 04.680 HOSE; FLEX,FRT BRK 8-98122-041-0 01 1 0809-0809 ●
1 04.680 HOSE; FLEX,FRT BRK
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98122-041-0 01 1 0809-0809 ●
1 04.680 HOSE; FLEX,FRT BRK
FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ), FRT&RR 215/70R15C GOODYEAR TIRE(QFT), FRT&RR 195R15C(QZO) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98122-041-0 01 1 0810-1101 ● ● ●
1 04.680 HOSE; FLEX,FRT BRK 8-98122-041-0 01 1 0810-1101 ●
1 04.680 HOSE; FLEX,FRT BRK
FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16(BZD),FRT&RR 215/70R15C DUNLOP TIRE(CWP),FRT&RR 245/70R16 ALS(QCQ),FR T&RR 215/70R15C GOODYEAR TIRE(QFT), FRT&RR 195R15C(QZO) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98122-041-0 01 1 1102- ● ● ●
1 04.680 HOSE; FLEX,FRT BRK 8-98122-041-0 01 1 1102- ●
1 04.680 HOSE; FLEX,FRT BRK
HIGH RIDE SUSPENSION(7YC) 		8-98006-706-0 01 1 0808-0808 ●
1 04.680 HOSE; FLEX,FRT BRK 8-98006-706-0 01 1 0808-0808 ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
HIGH RIDE SUSPENSION(7YC) 		8-98122-042-0 01 1 0809-0809 ●
1 04.680 HOSE; FLEX,FRT BRK 8-98122-042-0 01 1 0809-0809 ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
HIGH RIDE SUSPENSION(7YC) 		8-98122-042-0 01 1 0810- ● ● ●
1 04.680 HOSE; FLEX,FRT BRK 8-98122-042-0 01 1 0810- ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
HIGH RIDE SUSPENSION(7YC) 		8-98006-707-0 01 1 0808-0808 ●
1 04.680 HOSE; FLEX,FRT BRK 8-98006-707-0 01 1 0808-0808 ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
HIGH RIDE SUSPENSION(7YC) 		8-98122-043-0 01 1 0809-0809 ●
1 04.680 HOSE; FLEX,FRT BRK 8-98122-043-0 01 1 0809-0809 ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
HIGH RIDE SUSPENSION(7YC) 		8-98122-043-0 01 1 0810- ● ● ●
1 04.680 HOSE; FLEX,FRT BRK 8-98122-043-0 01 1 0810- ● ● ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
M10X22 		8-97359-818-0 02 1 0808-0809 ● ● ● ● ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
M10X22 		8-97359-818-0 02 1 0810- ● ● ● ● ● ● ●
6 04.686 NUT; FLEX HOSE,FRT BRK
01.062 M8 FLANGE 		0-91180-108-0 02 1 0808-0809 ● ● ● ● ●
6 04.686 NUT; FLEX HOSE,FRT BRK
01.062 M8 FLANGE 		0-91180-108-0 02 1 0810- ● ● ● ● ● ● ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 0808-0809 ● ● ● ● ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 0810- ● ● ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 03 1 0808-0809 ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 03 1 0810- ● ● ● ● ● ● ●

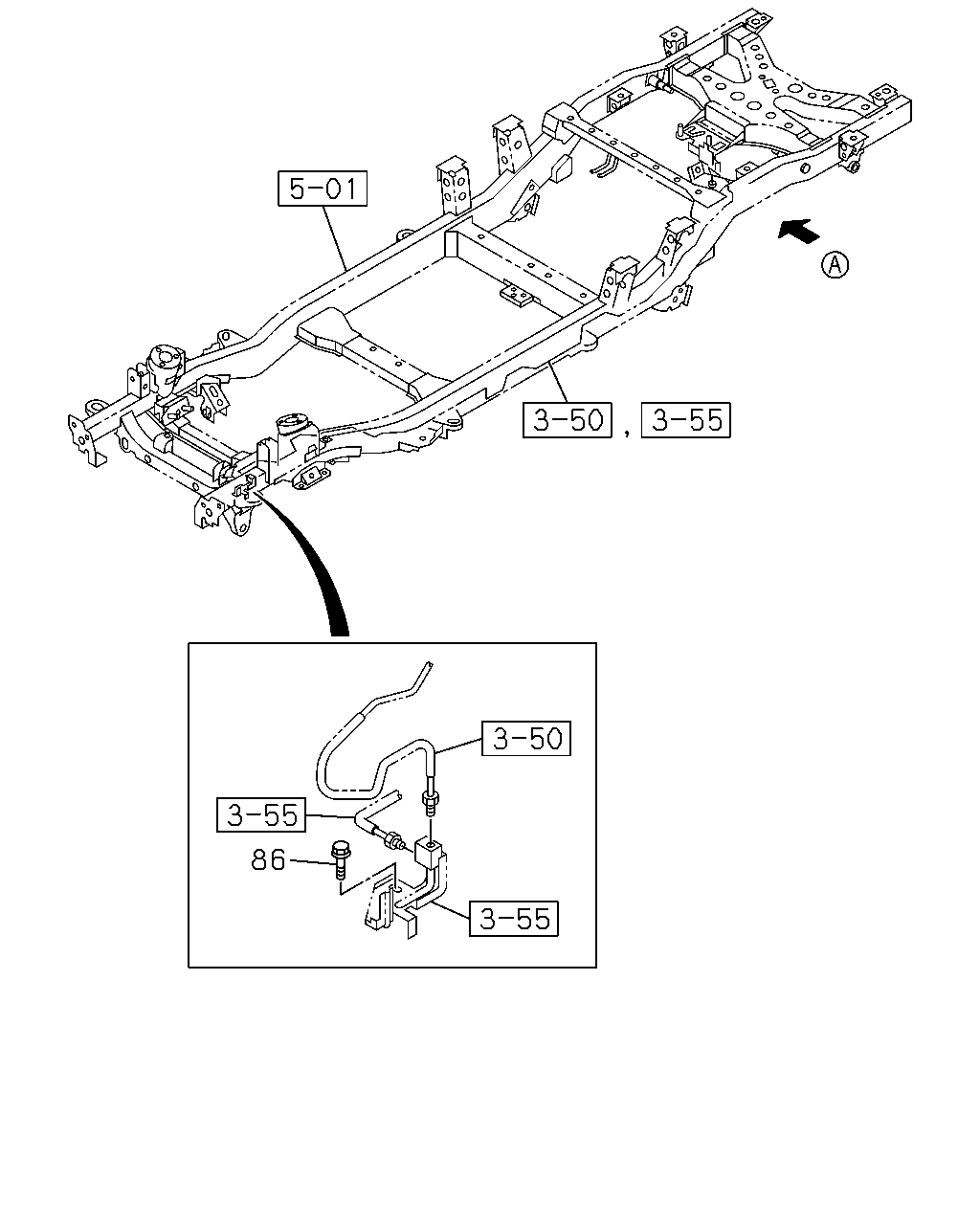

çizim 186165
86
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
86 04.686 BOLT; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0808-0809 ● ● ● ● ●
86 04.686 BOLT; BRK PIPE
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0808-0809 ● ● ● ● ●
86 04.686 BOLT; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0810- ● ● ● ● ● ● ●
86 04.686 BOLT; BRK PIPE
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0810- ● ● ● ● ● ● ●

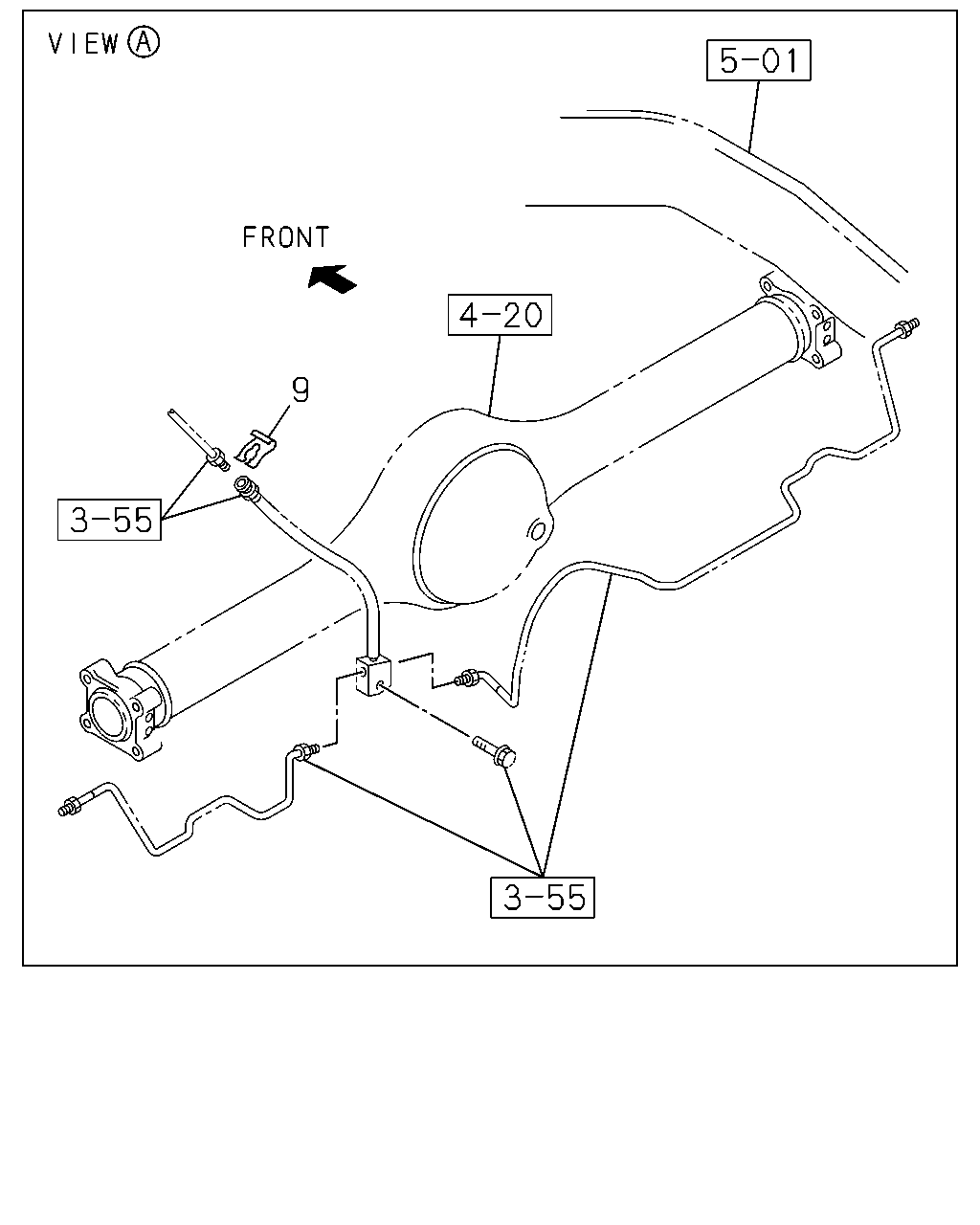

çizim 186176
9
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 03 1 0808-0809 ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 03 1 0810- ● ● ● ● ● ● ●
