3-30 — BRAKE MASTER CYLINDER (#77023) — 22 parça

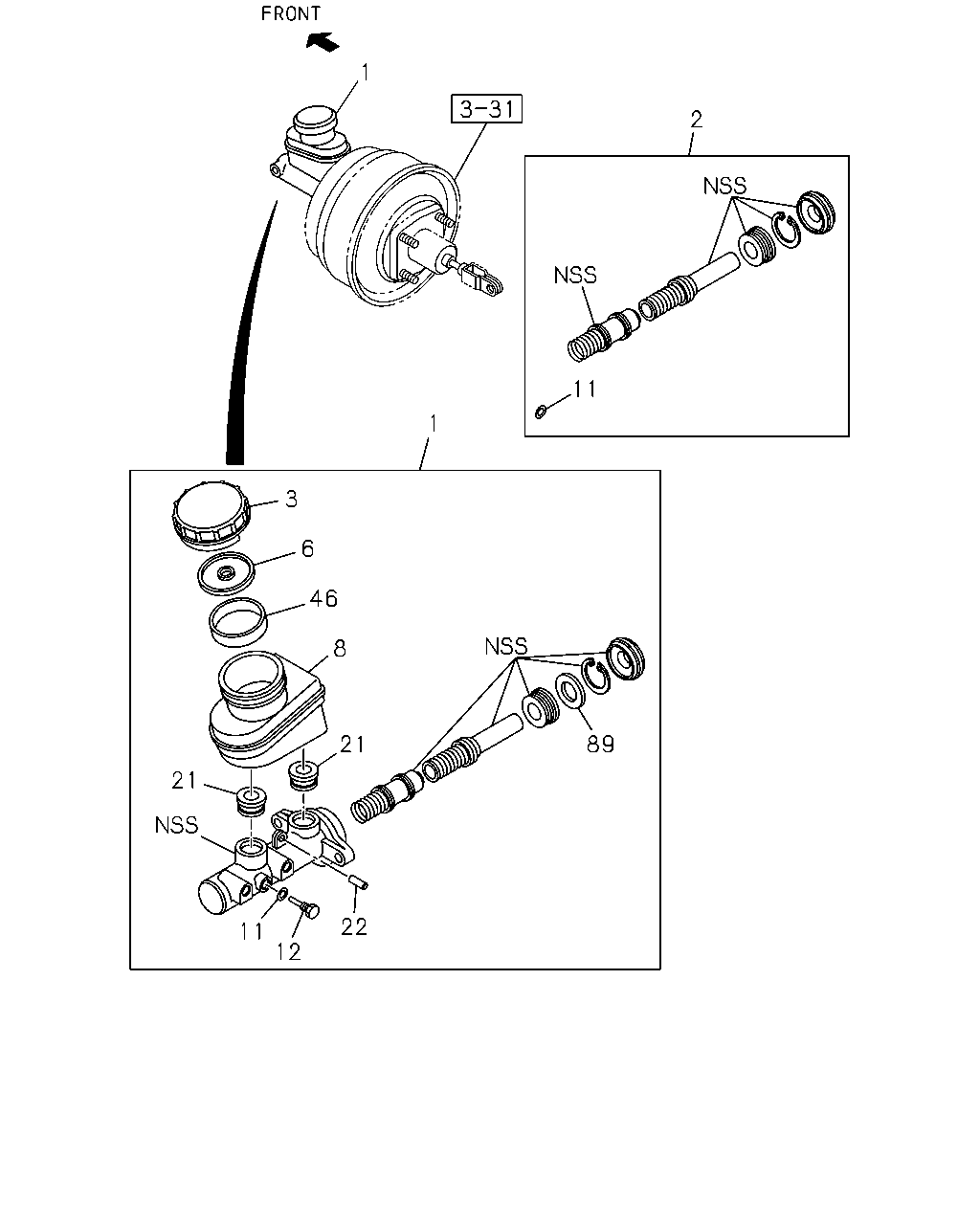

çizim 117025
1 2 11 1 3 6 46 8 21 89 21 22 11 12
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 04.650 CYLINDER ASM; BRK MASTER 8-98006-941-0 01 1 0808-0809 ● ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER 8-98006-941-0 01 1 0810- ● ● ● ● ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL 8-98047-691-0 01 1 0808-0809 ● ● ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL 8-98047-691-0 01 1 0810- ● ● ● ● ● ● ●
3 04.651 CAP; OIL TANK 8-98047-705-0 01 1 0808-0809 ● ● ● ● ●
3 04.651 CAP; OIL TANK 8-98047-705-0 01 1 0810- ● ● ● ● ● ● ●
6 04.651 DIAPHRAGM; BRK M/CYL 8-98047-706-0 01 1 0808-0809 ● ● ● ● ●
6 04.651 DIAPHRAGM; BRK M/CYL 8-98047-706-0 01 1 0810- ● ● ● ● ● ● ●
8 04.651 TANK; OIL,M/CYL 8-98047-700-0 01 1 0808-0809 ● ● ● ● ●
8 04.651 TANK; OIL,M/CYL 8-98047-700-0 01 1 0810- ● ● ● ● ● ● ●
11 04.653 GASKET; STOPPER BOLT TO BRK M/CY 8-98047-696-0 01 1 0808-0809 ● ● ● ● ●
11 04.653 GASKET; STOPPER BOLT TO BRK M/CY 8-98047-696-0 01 1 0810- ● ● ● ● ● ● ●
12 04.653 BOLT; STOPPER,BRK M/CYL 8-98047-695-0 01 1 0808-0809 ● ● ● ● ●
12 04.653 BOLT; STOPPER,BRK M/CYL 8-98047-695-0 01 1 0810- ● ● ● ● ● ● ●
21 04.651 GROMMET; BRK M/CYL 8-97940-643-0 02 1 0808-0809 ● ● ● ● ●
21 04.651 GROMMET; BRK M/CYL 8-97940-643-0 02 1 0810- ● ● ● ● ● ● ●
22 04.651 SCREW; OIL TANK 8-98047-707-0 01 1 0808-0809 ● ● ● ● ●
22 04.651 SCREW; OIL TANK 8-98047-707-0 01 1 0810- ● ● ● ● ● ● ●
46 04.651 FILTER; OIL TANK,M/CYL 8-98047-702-0 01 1 0808-0809 ● ● ● ● ●
46 04.651 FILTER; OIL TANK,M/CYL 8-98047-702-0 01 1 0810- ● ● ● ● ● ● ●
89 04.648 PLATE; BRK M/CYL 8-98047-698-0 01 1 0808-0809 ● ● ● ● ●
89 04.648 PLATE; BRK M/CYL 8-98047-698-0 01 1 0810- ● ● ● ● ● ● ●
