3-11 — PARKING BRAKE CONTROL (#77021) — 138 parça

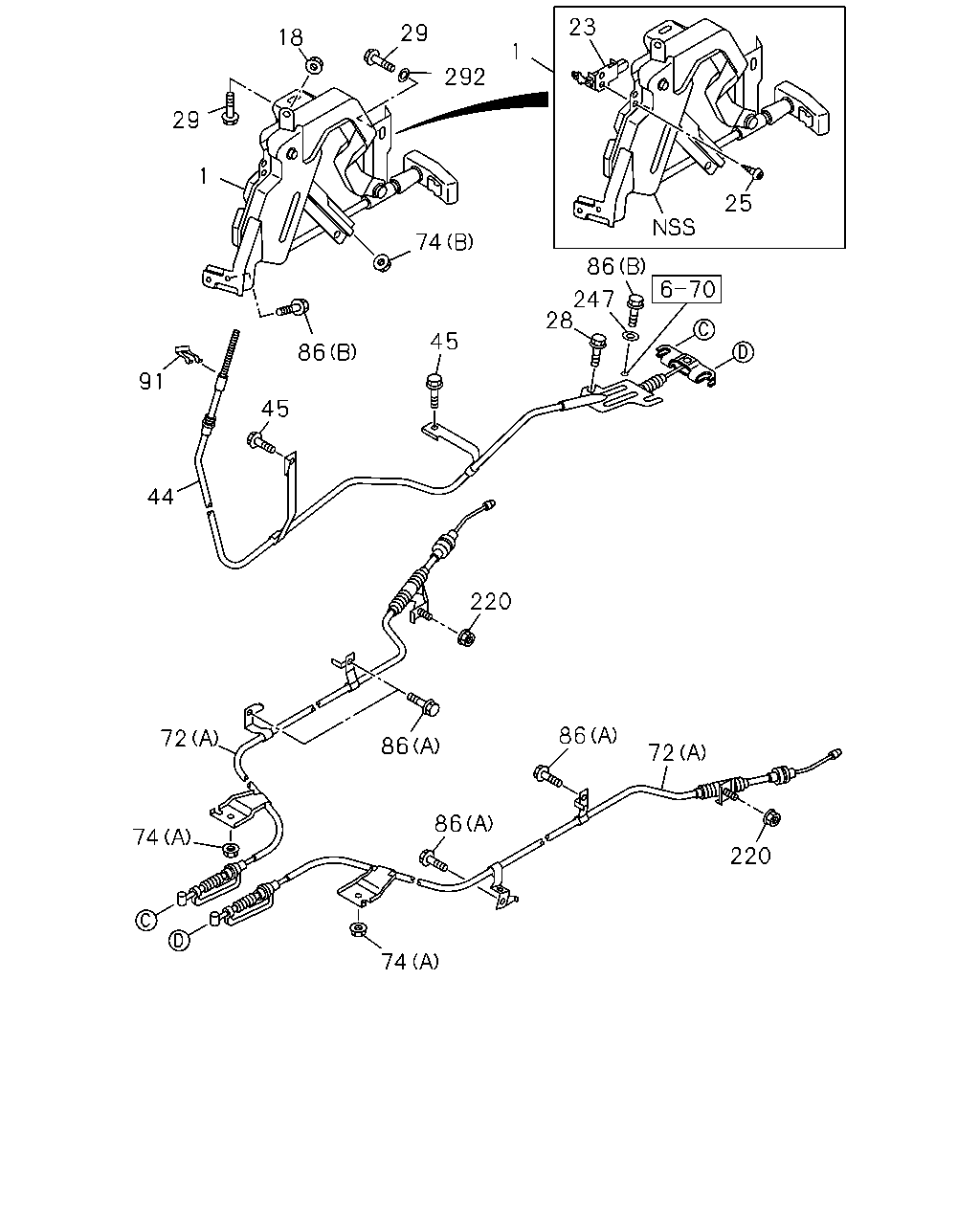

çizim 115501
23 29 18 1 292 29 1 25 74 86 247 28 45 86 91 45 44 220 86 72 86 72 86 74 220 74
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 04.592 STEM ASM; PARKING BRK
PARKING BRAKE FLOOR<7XW> 		8-98007-034-0 01 1 0808-0809 ● ● ● ● ●
1 04.592 STEM ASM; PARKING BRK
PARKING BRAKE FLOOR<7XW> 		8-98007-034-0 01 1 0810- ● ● ● ● ● ● ●
1 04.592 STEM ASM; PARKING BRK
EXC. PARKING BRAKE FLOOR<7XW> 		8-98007-032-0 01 1 0808-0809 ● ● ● ●
1 04.592 STEM ASM; PARKING BRK
EXC. PARKING BRAKE FLOOR<7XW> 		8-98007-032-0 01 1 0810- ● ● ● ● ● ● ●
18 04.589 NUT; STEM
EXC. PARKING BRAKE FLOOR<7XW> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0808-0809 ● ● ● ●
18 04.589 NUT; STEM
EXC. PARKING BRAKE FLOOR<7XW> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0810- ● ● ● ● ● ● ●
23 04.589 SWITCH; PARKING BRK
PARKING BRAKE FLOOR<7XW> 		8-98017-627-0 01 1 0808-0809 ● ● ● ● ●
23 04.589 SWITCH; PARKING BRK
PARKING BRAKE FLOOR<7XW> 		8-98017-627-0 01 1 0810- ● ● ● ● ● ● ●
23 04.589 SWITCH; PARKING BRK
EXC. PARKING BRAKE FLOOR<7XW> 		8-98017-625-0 01 1 0808-0809 ● ● ● ●
23 04.589 SWITCH; PARKING BRK
EXC. PARKING BRAKE FLOOR<7XW> 		8-98017-625-0 01 1 0810- ● ● ● ● ● ● ●
25 04.589 SCREW; SW,PARKING BRK 8-98017-655-0 01 1 0808-0809 ● ● ● ● ●
25 04.589 SCREW; SW,PARKING BRK 8-98017-655-0 01 1 0810- ● ● ● ● ● ● ●
28 04.594 BOLT; HAND BRK LEVER
EXC. PARKING BRAKE FLOOR<7XW> 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0808-0809 ● ● ● ●
28 04.594 BOLT; HAND BRK LEVER
EXC. PARKING BRAKE FLOOR<7XW> 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0810- ● ● ● ● ● ● ●
29 04.595 BOLT; PARKING BRK LEVER TO BODY
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0808-0809 ● ● ● ● ●
29 04.595 BOLT; PARKING BRK LEVER TO BODY
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0810- ● ● ● ● ● ● ●
44 04.779 CABLE; PARKING BRK,FRT
EXC. PARKING BRAKE FLOOR<7XW> 		8-98006-946-0 01 1 0808-0809 ● ● ● ●
44 04.779 CABLE; PARKING BRK,FRT
EXC. PARKING BRAKE FLOOR<7XW> 		8-98006-946-0 01 1 0810- ● ● ● ● ● ● ●
45 04.785 BOLT; CABLE TO FLOOR
EXC. PARKING BRAKE FLOOR<7XW> 02.343 M8X12 FLANGE 		0-28050-812-0 02 1 0808-0809 ● ● ● ●
45 04.785 BOLT; CABLE TO FLOOR
EXC. PARKING BRAKE FLOOR<7XW> 02.343 M8X12 FLANGE 		0-28050-812-0 02 1 0810- ● ● ● ● ● ● ●
72 04.779 CABLE; PARKING BRK
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98007-008-1 01 1 0810-1007 ● ● ●
72 04.779 CABLE; PARKING BRK
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98007-008-1 01 1 1008- ● ● ●
72 04.779 CABLE; PARKING BRK
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98007-007-1 01 1 0810-1007 ● ● ●
72 04.779 CABLE; PARKING BRK
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98007-007-1 01 1 1008- ● ● ●
72 04.779 CABLE; PARKING BRK
C24SE ENG(LG1) HIGH RIDE SUSPENSION(7YC) (A) 		8-98007-012-1 01 1 0810- ● ●
72 04.779 CABLE; PARKING BRK
C24SE ENG(LG1) (A) 		8-98007-012-1 01 1 0810- ● ●
72 04.779 CABLE; PARKING BRK
C24SE ENG(LG1) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98007-009-1 01 1 0810- ● ●
72 04.779 CABLE; PARKING BRK
PARKING BRAKE FLOOR<7XW> (B) 		8-98017-629-0 01 1 0808-0809 ● ● ● ● ●
72 04.779 CABLE; PARKING BRK
PARKING BRAKE FLOOR<7XW> (B) 		8-98017-629-0 01 1 0810- ● ● ● ● ● ● ●
72 04.779 CABLE; PARKING BRK
4JJ1-TCX ENG(LS0) (A) 		8-98008-160-1 01 1 0808- ●
72 04.779 CABLE; PARKING BRK
4JJ1-TCX ENG(LS0) (A) 		8-98008-161-1 01 1 0808- ●
72 04.779 CABLE; PARKING BRK
4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) (A) 		8-98007-010-1 01 1 0808-0809 ●
72 04.779 CABLE; PARKING BRK
4X4 CREW CAB LONG(TFS*WF) 4JJ1-TCX ENG(LS0) (A) 		8-98007-010-1 01 1 0808-0809 ●
72 04.779 CABLE; PARKING BRK
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) (A) 		8-98007-010-1 01 1 0810-1007 ● ● ●
72 04.779 CABLE; PARKING BRK
4X4 EXTEND CAB LONG(TFS*CF) 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (A) 		8-98007-010-1 01 1 0810-1007 ●
72 04.779 CABLE; PARKING BRK
4X4 REGULAR CAB LONG(TFS*SF) 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (A) 		8-98007-010-1 01 1 0810-1007 ●
72 04.779 CABLE; PARKING BRK
4X4 CREW CAB LONG(TFS*WF) 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (A) 		8-98007-010-1 01 1 0810-1007 ●
72 04.779 CABLE; PARKING BRK
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) (A) 		8-98007-010-1 01 1 1008- ● ● ●
72 04.779 CABLE; PARKING BRK
4X4 EXTEND CAB LONG(TFS*CF) 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) (A) 		8-98007-010-1 01 1 1008- ●
72 04.779 CABLE; PARKING BRK
4X4 REGULAR CAB LONG(TFS*SF) 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) (A) 		8-98007-010-1 01 1 1008- ●
72 04.779 CABLE; PARKING BRK
4X4 CREW CAB LONG(TFS*WF) 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) (A) 		8-98007-010-1 01 1 1008- ●
72 04.779 CABLE; PARKING BRK
HIGH RIDE SUSPENSION(7YC) (A) 		8-98007-011-1 01 1 0808-0809 ●
72 04.779 CABLE; PARKING BRK
4X4 CREW CAB LONG(TFS*WF) (A) 		8-98007-011-1 01 1 0808-0809 ●
72 04.779 CABLE; PARKING BRK
HIGH RIDE SUSPENSION(7YC) (A) 		8-98007-011-1 01 1 0810- ● ● ●
72 04.779 CABLE; PARKING BRK
4X4 EXTEND CAB LONG(TFS*CF) (A) 		8-98007-011-1 01 1 0810- ●
72 04.779 CABLE; PARKING BRK
4X4 REGULAR CAB LONG(TFS*SF) (A) 		8-98007-011-1 01 1 0810- ●
72 04.779 CABLE; PARKING BRK
4X4 CREW CAB LONG(TFS*WF) (A) 		8-98007-011-1 01 1 0810- ●
72 04.779 CABLE; PARKING BRK
4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98008-158-1 01 1 0808-0809 ●
72 04.779 CABLE; PARKING BRK
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98008-158-1 01 1 0810- ● ●
72 04.779 CABLE; PARKING BRK
4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98008-159-1 01 1 0808-0809 ●
72 04.779 CABLE; PARKING BRK
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98008-159-1 01 1 0810- ● ●
72 04.779 CABLE; PARKING BRK
EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) (A) 		8-98007-016-1 01 1 0808- ●
72 04.779 CABLE; PARKING BRK
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) (A) 		8-98007-016-1 01 1 0808- ●
72 04.779 CABLE; PARKING BRK
CREW CAB EXTRA LONG(TF**WK) 4JJ1-TCX ENG(LS0) (A) 		8-98007-016-1 01 1 0808- ●
72 04.779 CABLE; PARKING BRK
EXTEND CAB EXTRA LONG(TF**CK) (A) 		8-98007-017-1 01 1 0808- ●
72 04.779 CABLE; PARKING BRK
4X4 REGULAR CAB EXTRA LONG(TFS*SK) (A) 		8-98007-017-1 01 1 0808- ●
72 04.779 CABLE; PARKING BRK
CREW CAB EXTRA LONG(TF**WK) (A) 		8-98007-017-1 01 1 0808- ●
74 04.785 NUT; CONT WIRE
(A) 		8-98008-071-0 02 1 0808-0809 ● ● ● ● ●
74 04.785 NUT; CONT WIRE
(A) 		8-98008-071-0 02 1 0810- ● ● ● ● ● ● ●
74 04.785 NUT; CONT WIRE
EXC. PARKING BRAKE FLOOR<7XW> (B) M6 LOCK NUT FLANGE 		0-91380-006-0 01 1 0808-0809 ● ● ● ●
74 04.785 NUT; CONT WIRE
EXC. PARKING BRAKE FLOOR<7XW> (B) M6 LOCK NUT FLANGE 		0-91380-006-0 01 1 0810- ● ● ● ● ● ● ●
86 04.785 BOLT
03.162 (A) M6X20 FLANGE 		0-28650-620-0 04 1 0808-0809 ● ● ● ● ●
86 04.785 BOLT
03.162 (A) M6X20 FLANGE 		0-28650-620-0 04 1 0810- ● ● ● ● ● ● ●
86 04.785 BOLT
01.531 (B) M8X20 FLANGE 		0-28650-820-0 03 1 0808-0809 ● ● ● ● ●
86 04.785 BOLT
01.531 (B) M8X20 FLANGE 		0-28650-820-0 03 1 0810- ● ● ● ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. PARKING BRAKE FLOOR<7XW> 		8-98007-093-0 01 1 0808-0809 ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. PARKING BRAKE FLOOR<7XW> 		8-98007-093-0 01 1 0810- ● ● ● ● ● ● ●
220 04.785 NUT; CLIP,PARKING CONT CABLE
01.062 M6 FLANGE 		0-91180-106-0 02 1 0808-0809 ● ● ● ● ●
220 04.785 NUT; CLIP,PARKING CONT CABLE
01.062 M6 FLANGE 		0-91180-106-0 02 1 0810- ● ● ● ● ● ● ●
247 04.595 WASHER; PL
EXC. PARKING BRAKE FLOOR<7XW> ID=8.4 OD=22 		0-91610-708-0 01 1 0808-0809 ● ● ● ●
247 04.595 WASHER; PL
EXC. PARKING BRAKE FLOOR<7XW> ID=8.4 OD=22 		0-91610-708-0 01 1 0810- ● ● ● ● ● ● ●
292 04.589 WASHER; PARK BRK LEVER
EXC. PARKING BRAKE FLOOR<7XW> 02.559 ID=8.4 OD=18 		0-91614-608-0 01 1 0808-0809 ● ● ● ●
292 04.589 WASHER; PARK BRK LEVER
EXC. PARKING BRAKE FLOOR<7XW> 02.559 ID=8.4 OD=18 		0-91614-608-0 01 1 0810- ● ● ● ● ● ● ●

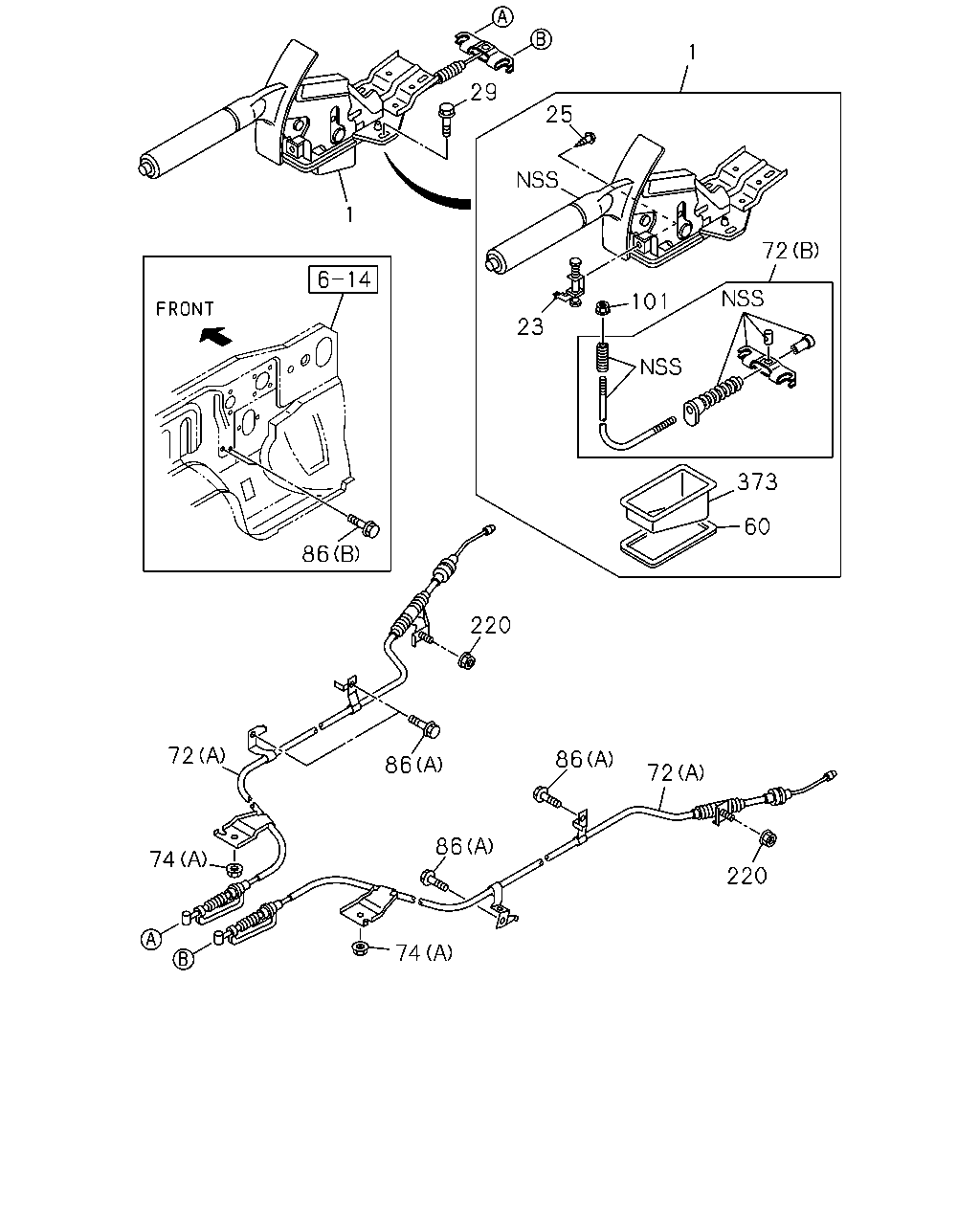

çizim 186162
1 29 25 1 72 101 23 373 60 86 220 72 86 86 72 86 74 220 74
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 04.592 STEM ASM; PARKING BRK
PARKING BRAKE FLOOR<7XW> 		8-98007-034-0 01 1 0808-0809 ● ● ● ● ●
1 04.592 STEM ASM; PARKING BRK
PARKING BRAKE FLOOR<7XW> 		8-98007-034-0 01 1 0810- ● ● ● ● ● ● ●
1 04.592 STEM ASM; PARKING BRK
EXC. PARKING BRAKE FLOOR<7XW> 		8-98007-032-0 01 1 0808-0809 ● ● ● ●
1 04.592 STEM ASM; PARKING BRK
EXC. PARKING BRAKE FLOOR<7XW> 		8-98007-032-0 01 1 0810- ● ● ● ● ● ● ●
23 04.589 SWITCH; PARKING BRK
PARKING BRAKE FLOOR<7XW> 		8-98017-627-0 01 1 0808-0809 ● ● ● ● ●
23 04.589 SWITCH; PARKING BRK
PARKING BRAKE FLOOR<7XW> 		8-98017-627-0 01 1 0810- ● ● ● ● ● ● ●
23 04.589 SWITCH; PARKING BRK
EXC. PARKING BRAKE FLOOR<7XW> 		8-98017-625-0 01 1 0808-0809 ● ● ● ●
23 04.589 SWITCH; PARKING BRK
EXC. PARKING BRAKE FLOOR<7XW> 		8-98017-625-0 01 1 0810- ● ● ● ● ● ● ●
25 04.589 SCREW; SW,PARKING BRK 8-98017-655-0 01 1 0808-0809 ● ● ● ● ●
25 04.589 SCREW; SW,PARKING BRK 8-98017-655-0 01 1 0810- ● ● ● ● ● ● ●
29 04.595 BOLT; PARKING BRK LEVER TO BODY
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0808-0809 ● ● ● ● ●
29 04.595 BOLT; PARKING BRK LEVER TO BODY
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0810- ● ● ● ● ● ● ●
60 04.595 GASKET; PARKING BRK
PARKING BRAKE FLOOR<7XW> 		8-97355-931-0 01 1 0808-0809 ● ● ● ● ●
60 04.595 GASKET; PARKING BRK
PARKING BRAKE FLOOR<7XW> 		8-97355-931-0 01 1 0810- ● ● ● ● ● ● ●
72 04.779 CABLE; PARKING BRK
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98007-008-1 01 1 0810-1007 ● ● ●
72 04.779 CABLE; PARKING BRK
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98007-008-1 01 1 1008- ● ● ●
72 04.779 CABLE; PARKING BRK
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98007-007-1 01 1 0810-1007 ● ● ●
72 04.779 CABLE; PARKING BRK
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98007-007-1 01 1 1008- ● ● ●
72 04.779 CABLE; PARKING BRK
C24SE ENG(LG1) HIGH RIDE SUSPENSION(7YC) (A) 		8-98007-012-1 01 1 0810- ● ●
72 04.779 CABLE; PARKING BRK
C24SE ENG(LG1) (A) 		8-98007-012-1 01 1 0810- ● ●
72 04.779 CABLE; PARKING BRK
C24SE ENG(LG1) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98007-009-1 01 1 0810- ● ●
72 04.779 CABLE; PARKING BRK
PARKING BRAKE FLOOR<7XW> (B) 		8-98017-629-0 01 1 0808-0809 ● ● ● ● ●
72 04.779 CABLE; PARKING BRK
PARKING BRAKE FLOOR<7XW> (B) 		8-98017-629-0 01 1 0810- ● ● ● ● ● ● ●
72 04.779 CABLE; PARKING BRK
4JJ1-TCX ENG(LS0) (A) 		8-98008-160-1 01 1 0808- ●
72 04.779 CABLE; PARKING BRK
4JJ1-TCX ENG(LS0) (A) 		8-98008-161-1 01 1 0808- ●
72 04.779 CABLE; PARKING BRK
4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) (A) 		8-98007-010-1 01 1 0808-0809 ●
72 04.779 CABLE; PARKING BRK
4X4 CREW CAB LONG(TFS*WF) 4JJ1-TCX ENG(LS0) (A) 		8-98007-010-1 01 1 0808-0809 ●
72 04.779 CABLE; PARKING BRK
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) (A) 		8-98007-010-1 01 1 0810-1007 ● ● ●
72 04.779 CABLE; PARKING BRK
4X4 EXTEND CAB LONG(TFS*CF) 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (A) 		8-98007-010-1 01 1 0810-1007 ●
72 04.779 CABLE; PARKING BRK
4X4 REGULAR CAB LONG(TFS*SF) 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (A) 		8-98007-010-1 01 1 0810-1007 ●
72 04.779 CABLE; PARKING BRK
4X4 CREW CAB LONG(TFS*WF) 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (A) 		8-98007-010-1 01 1 0810-1007 ●
72 04.779 CABLE; PARKING BRK
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) (A) 		8-98007-010-1 01 1 1008- ● ● ●
72 04.779 CABLE; PARKING BRK
4X4 EXTEND CAB LONG(TFS*CF) 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) (A) 		8-98007-010-1 01 1 1008- ●
72 04.779 CABLE; PARKING BRK
4X4 REGULAR CAB LONG(TFS*SF) 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) (A) 		8-98007-010-1 01 1 1008- ●
72 04.779 CABLE; PARKING BRK
4X4 CREW CAB LONG(TFS*WF) 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) (A) 		8-98007-010-1 01 1 1008- ●
72 04.779 CABLE; PARKING BRK
HIGH RIDE SUSPENSION(7YC) (A) 		8-98007-011-1 01 1 0808-0809 ●
72 04.779 CABLE; PARKING BRK
4X4 CREW CAB LONG(TFS*WF) (A) 		8-98007-011-1 01 1 0808-0809 ●
72 04.779 CABLE; PARKING BRK
HIGH RIDE SUSPENSION(7YC) (A) 		8-98007-011-1 01 1 0810- ● ● ●
72 04.779 CABLE; PARKING BRK
4X4 EXTEND CAB LONG(TFS*CF) (A) 		8-98007-011-1 01 1 0810- ●
72 04.779 CABLE; PARKING BRK
4X4 REGULAR CAB LONG(TFS*SF) (A) 		8-98007-011-1 01 1 0810- ●
72 04.779 CABLE; PARKING BRK
4X4 CREW CAB LONG(TFS*WF) (A) 		8-98007-011-1 01 1 0810- ●
72 04.779 CABLE; PARKING BRK
4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98008-158-1 01 1 0808-0809 ●
72 04.779 CABLE; PARKING BRK
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98008-158-1 01 1 0810- ● ●
72 04.779 CABLE; PARKING BRK
4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98008-159-1 01 1 0808-0809 ●
72 04.779 CABLE; PARKING BRK
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98008-159-1 01 1 0810- ● ●
72 04.779 CABLE; PARKING BRK
EXTEND CAB EXTRA LONG(TF**CK) 4JJ1-TCX ENG(LS0) (A) 		8-98007-016-1 01 1 0808- ●
72 04.779 CABLE; PARKING BRK
4X4 REGULAR CAB EXTRA LONG(TFS*SK) 4JJ1-TCX ENG(LS0) (A) 		8-98007-016-1 01 1 0808- ●
72 04.779 CABLE; PARKING BRK
CREW CAB EXTRA LONG(TF**WK) 4JJ1-TCX ENG(LS0) (A) 		8-98007-016-1 01 1 0808- ●
72 04.779 CABLE; PARKING BRK
EXTEND CAB EXTRA LONG(TF**CK) (A) 		8-98007-017-1 01 1 0808- ●
72 04.779 CABLE; PARKING BRK
4X4 REGULAR CAB EXTRA LONG(TFS*SK) (A) 		8-98007-017-1 01 1 0808- ●
72 04.779 CABLE; PARKING BRK
CREW CAB EXTRA LONG(TF**WK) (A) 		8-98007-017-1 01 1 0808- ●
74 04.785 NUT; CONT WIRE
(A) 		8-98008-071-0 02 1 0808-0809 ● ● ● ● ●
74 04.785 NUT; CONT WIRE
(A) 		8-98008-071-0 02 1 0810- ● ● ● ● ● ● ●
74 04.785 NUT; CONT WIRE
EXC. PARKING BRAKE FLOOR<7XW> (B) M6 LOCK NUT FLANGE 		0-91380-006-0 01 1 0808-0809 ● ● ● ●
74 04.785 NUT; CONT WIRE
EXC. PARKING BRAKE FLOOR<7XW> (B) M6 LOCK NUT FLANGE 		0-91380-006-0 01 1 0810- ● ● ● ● ● ● ●
86 04.785 BOLT
03.162 (A) M6X20 FLANGE 		0-28650-620-0 04 1 0808-0809 ● ● ● ● ●
86 04.785 BOLT
03.162 (A) M6X20 FLANGE 		0-28650-620-0 04 1 0810- ● ● ● ● ● ● ●
86 04.785 BOLT
01.531 (B) M8X20 FLANGE 		0-28650-820-0 03 1 0808-0809 ● ● ● ● ●
86 04.785 BOLT
01.531 (B) M8X20 FLANGE 		0-28650-820-0 03 1 0810- ● ● ● ● ● ● ●
101 04.785 NUT; CABLE TO LEVER
PARKING BRAKE FLOOR<7XW> 		8-98017-654-0 01 1 0808-0809 ● ● ● ● ●
101 04.785 NUT; CABLE TO LEVER
PARKING BRAKE FLOOR<7XW> 		8-98017-654-0 01 1 0810- ● ● ● ● ● ● ●
220 04.785 NUT; CLIP,PARKING CONT CABLE
01.062 M6 FLANGE 		0-91180-106-0 02 1 0808-0809 ● ● ● ● ●
220 04.785 NUT; CLIP,PARKING CONT CABLE
01.062 M6 FLANGE 		0-91180-106-0 02 1 0810- ● ● ● ● ● ● ●
373 04.594 COVER; BOTTOM,PARKING BRK LEVER
PARKING BRAKE FLOOR<7XW> 		8-97355-930-0 01 1 0808-0809 ● ● ● ● ●
373 04.594 COVER; BOTTOM,PARKING BRK LEVER
PARKING BRAKE FLOOR<7XW> 		8-97355-930-0 01 1 0810- ● ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
