3-10 — BRAKE PEDAL AND CONTROL (#77020) — 42 parça

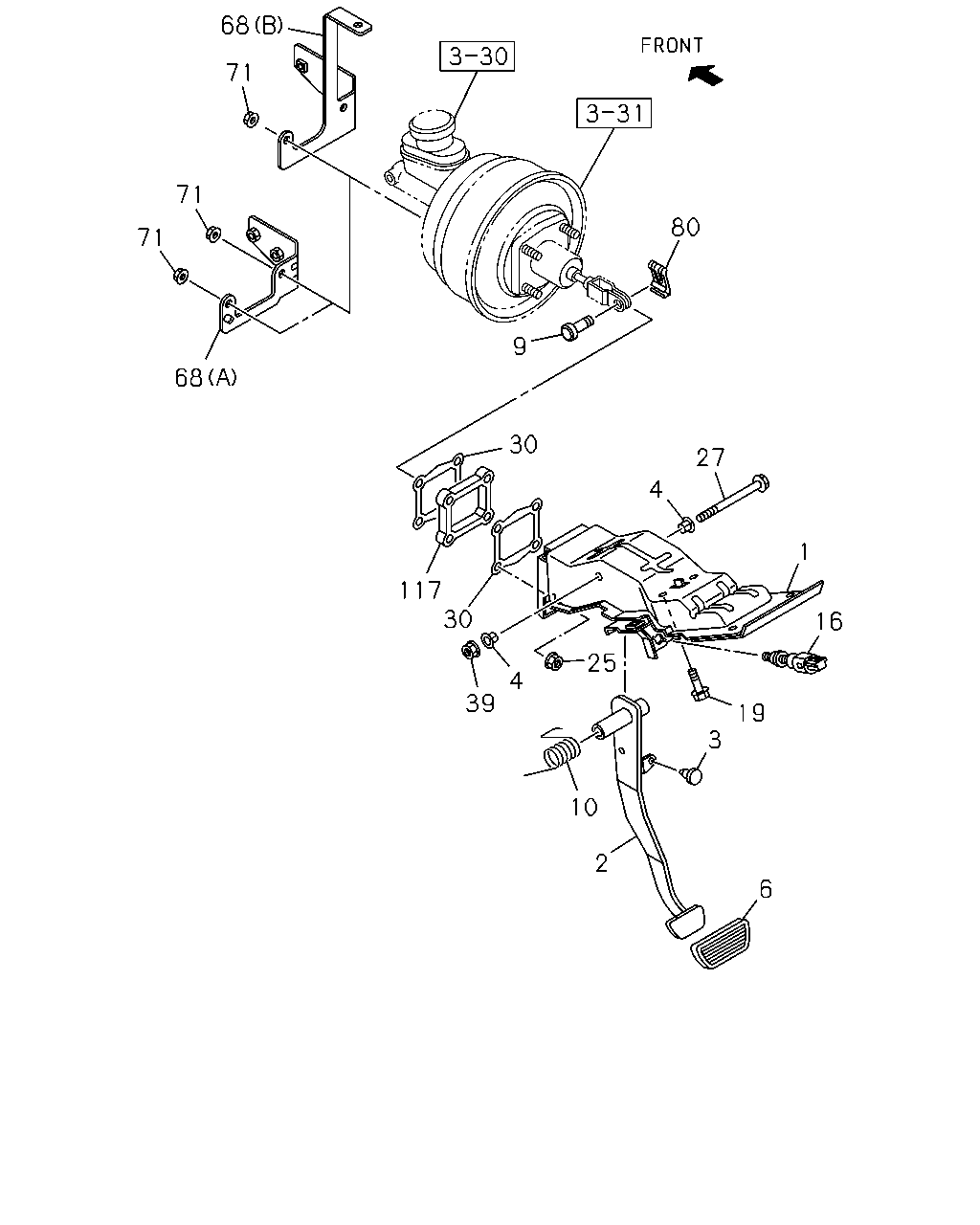

çizim 115229
68 71 71 80 71 9 68 30 27 4 1 117 30 16 25 4 39 19 3 10 2 6
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 04.634 BRACKET ASM; PEDAL 8-98013-694-0 01 1 0808-0809 ● ● ● ● ●
1 04.634 BRACKET ASM; PEDAL 8-98013-694-0 01 1 0810- ● ● ● ● ● ● ●
2 04.625 PEDAL; BRK
M/T MUX 5 SPEED 5S(MZJ) 		8-97327-158-1 01 1 0808-0809 ● ● ● ● ●
2 04.625 PEDAL; BRK
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T MSG 5 SPEED(M75), M/TMUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 		8-97327-158-1 01 1 0810- ● ● ● ● ● ● ●
2 04.625 PEDAL; BRK
A/T AISIN(RMD) 		8-97327-159-1 01 1 0808-0809 ● ●
2 04.625 PEDAL; BRK
A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) 		8-97327-159-1 01 1 0810- ● ● ● ●
3 04.634 STOPPER; BRK PEDAL 8-97302-035-0 01 1 0808-0809 ● ● ● ● ●
3 04.634 STOPPER; BRK PEDAL 8-97302-035-0 01 1 0810- ● ● ● ● ● ● ●
4 04.634 BUSHING; BRK PEDAL 8-97301-688-0 02 1 0808-0809 ● ● ● ● ●
4 04.634 BUSHING; BRK PEDAL 8-97301-688-0 02 1 0810-1007 ● ● ● ● ● ● ●
6 04.630 COVER; BRK PEDAL
M/T MUX 5 SPEED 5S(MZJ) 		8-97318-799-0 01 1 0808-0809 ● ● ● ● ●
6 04.630 COVER; BRK PEDAL
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T MSG 5 SPEED(M75), M/TMUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 		8-97318-799-0 01 1 0810- ● ● ● ● ● ● ●
6 04.630 COVER; BRK PEDAL
A/T AISIN(RMD) 		8-97263-035-0 01 1 0808-0809 ● ●
6 04.630 COVER; BRK PEDAL
A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) 		8-97263-035-0 01 1 0810- ● ● ● ●
9 04.634 PIN; JAW JOINT 8-97311-602-0 01 1 0808-0809 ● ● ● ● ●
9 04.634 PIN; JAW JOINT 8-97311-602-0 01 1 0810- ● ● ● ● ● ● ●
10 04.639 SPRING; RETURN,BRK PEDAL 8-97387-812-0 01 1 0808-0809 ● ● ● ● ●
10 04.639 SPRING; RETURN,BRK PEDAL 8-97387-812-0 01 1 0810- ● ● ● ● ● ● ●
16 02.447 SWITCH; STOP LAMP
EXC. AUTO CRUISE CONT<K30> 		8-97301-684-0 01 1 0808-0809 ● ● ● ● ●
16 02.447 SWITCH; STOP LAMP
EXC. AUTO CRUISE CONT<K30> 		8-97301-684-0 01 1 0810- ● ● ● ● ● ● ●
16 02.447 SWITCH; STOP LAMP
AUTO CRUISE CONT<K30> 		8-97327-156-0 01 1 0808-1003 ● ●
16 02.447 SWITCH; STOP LAMP
AUTO CRUISE CONT<K30> 		8-97327-156-0 01 1 1004- ● ● ●
19 04.634 BOLT; BRKT
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0808-0809 ● ● ● ● ●
19 04.634 BOLT; BRKT
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0810- ● ● ● ● ● ● ●
25 04.634 NUT; FLANGE,MTG BRKT TO BODY
M8 FLANGE 		8-97581-233-0 04 1 0808-0809 ● ● ● ● ●
25 04.634 NUT; FLANGE,MTG BRKT TO BODY
M8 FLANGE 		8-97581-233-0 04 1 0810- ● ● ● ● ● ● ●
27 04.634 SHAFT; BRK PEDAL 8-97304-171-0 01 1 0808-0809 ● ● ● ● ●
27 04.634 SHAFT; BRK PEDAL 8-97304-171-0 01 1 0810- ● ● ● ● ● ● ●
30 04.910 GASKET; M/VAC TO BODY 8-97943-457-0 02 1 0808-0809 ● ● ● ● ●
30 04.910 GASKET; M/VAC TO BODY 8-97943-457-0 02 1 0810- ● ● ● ● ● ● ●
39 04.634 NUT; STOPPER LK
M10 LOCK NUT FLANGE 		0-91380-010-0 01 1 0808-0809 ● ● ● ● ●
39 04.634 NUT; STOPPER LK
M10 LOCK NUT FLANGE 		0-91380-010-0 01 1 0810- ● ● ● ● ● ● ●
68 04.634 BRACKET; SERVO TO DASH PANEL
C24SE ENG(LG1),4JA1-T ENG(LP0) (B) 		8-98007-771-0 01 1 0810- ● ● ● ● ● ●
68 04.634 BRACKET; SERVO TO DASH PANEL
(A) 		8-98007-772-0 01 1 0808-0809 ● ● ● ● ●
68 04.634 BRACKET; SERVO TO DASH PANEL
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) (A) 		8-98007-772-0 01 1 0810-1007 ● ● ● ● ● ● ●
68 04.634 BRACKET; SERVO TO DASH PANEL
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (A) 		8-98007-772-0 01 1 1008- ● ● ● ● ● ● ●
71 04.650 NUT; BRK M/CYL 8-98031-675-0 02 1 0808-0809 ● ● ● ● ●
71 04.650 NUT; BRK M/CYL 8-98031-675-0 02 1 0810- ● ● ● ● ● ● ●
80 04.634 PIN; SNAP,BRK PEDAL
00.833 		8-98007-161-0 01 1 0808-0809 ● ● ● ● ●
80 04.634 PIN; SNAP,BRK PEDAL
00.833 		8-98007-161-0 01 1 0810- ● ● ● ● ● ● ●
117 04.910 SPACER; M/VAC TO BODY 8-98008-278-0 01 1 0808-0809 ● ● ● ● ●
117 04.910 SPACER; M/VAC TO BODY 8-98008-278-0 01 1 0810- ● ● ● ● ● ● ●
