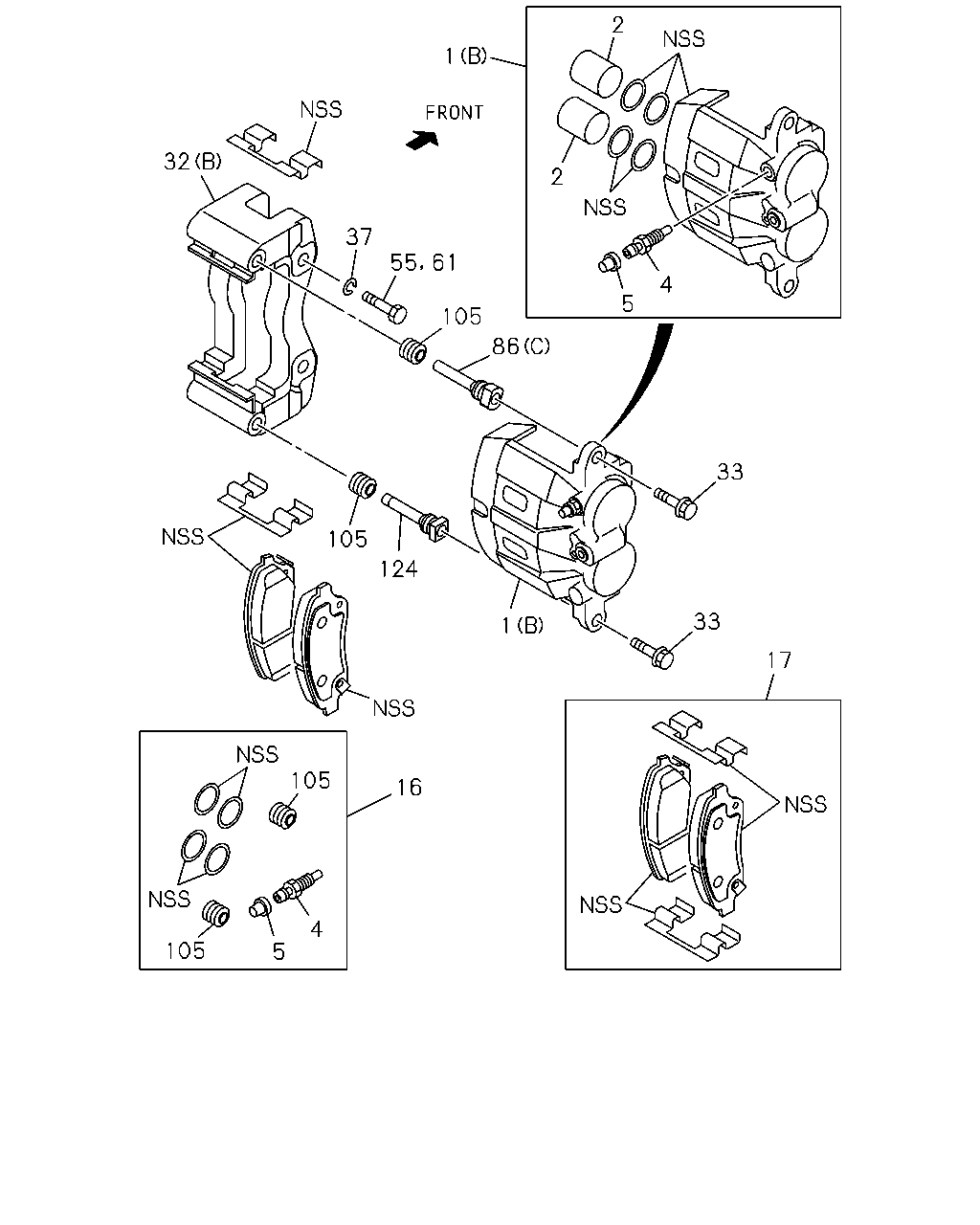

3-02 — FRONT DISC BRAKE CALIPER (#77018) — 155 parça

2 1 32 2 37 4 5 105 86 33 105 124 33 1 17 105 16 4 105 5 55 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	04.665 CALIPER; FRT DISC BRK REAR BODY FLAT BED(E39) (A)	8-98006-533-1	01	1	0810-1211	●
1	04.665 CALIPER; FRT DISC BRK 4 WHEEL ANTI LOCK BRAKE<JE5> REAR BODY FLAT BED(E39) (A)	8-98006-533-1	01	1	1212-	●
1	04.665 CALIPER; FRT DISC BRK FRT&RR 195R14C(CNU) REAR BODY FLAT BED(E39) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-98006-533-1	01	1	1212-	●
1	04.665 CALIPER; FRT DISC BRK REAR BODY FLAT BED(E39) (A)	8-98006-534-1	01	1	0810-1211	●
1	04.665 CALIPER; FRT DISC BRK 4 WHEEL ANTI LOCK BRAKE<JE5> REAR BODY FLAT BED(E39) (A)	8-98006-534-1	01	1	1212-	●
1	04.665 CALIPER; FRT DISC BRK FRT&RR 195R14C(CNU) REAR BODY FLAT BED(E39) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-98006-534-1	01	1	1212-	●
1	04.665 CALIPER; FRT DISC BRK (B)	8-98077-996-0	01	1	0808-0809		●	●	●	●	●
1	04.665 CALIPER; FRT DISC BRK (B)	8-98077-996-0	01	1	0810-		●	●	●	●	●	●
1	04.665 CALIPER; FRT DISC BRK REAR BODY DBL WALL CTR PULL(E63), REAR BODY DELETE(8HH) (B)	8-98077-996-0	01	1	0810-	●
1	04.665 CALIPER; FRT DISC BRK (B)	8-98077-997-0	01	1	0808-0809		●	●	●	●	●
1	04.665 CALIPER; FRT DISC BRK (B)	8-98077-997-0	01	1	0810-		●	●	●	●	●	●
1	04.665 CALIPER; FRT DISC BRK REAR BODY DBL WALL CTR PULL(E63), REAR BODY DELETE(8HH) (B)	8-98077-997-0	01	1	0810-	●
2	04.668 PISTON; CALIPER,DISC BRK,FRT REAR BODY FLAT BED(E39)	8-98040-810-0	04	1	0810-1211	●
2	04.668 PISTON; CALIPER,DISC BRK,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> REAR BODY FLAT BED(E39)	8-98040-810-0	04	1	1212-	●
2	04.668 PISTON; CALIPER,DISC BRK,FRT FRT&RR 195R14C(CNU) REAR BODY FLAT BED(E39) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98040-810-0	04	1	1212-	●
2	04.668 PISTON; CALIPER,DISC BRK,FRT	8-98078-000-0	04	1	0808-0809		●	●	●	●	●
2	04.668 PISTON; CALIPER,DISC BRK,FRT	8-98078-000-0	04	1	0810-		●	●	●	●	●	●
2	04.668 PISTON; CALIPER,DISC BRK,FRT REAR BODY DBL WALL CTR PULL(E63), REAR BODY DELETE(8HH)	8-98078-000-0	04	1	0810-	●
4	04.666 SCREW; BLEEDER,DISC BRK,FRT REAR BODY FLAT BED(E39)	8-98006-254-0	02	1	0810-1211	●
4	04.666 SCREW; BLEEDER,DISC BRK,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> REAR BODY FLAT BED(E39)	8-98006-254-0	02	1	1212-	●
4	04.666 SCREW; BLEEDER,DISC BRK,FRT FRT&RR 195R14C(CNU) REAR BODY FLAT BED(E39) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98006-254-0	02	1	1212-	●
4	04.666 SCREW; BLEEDER,DISC BRK,FRT	8-98050-476-0	02	1	0808-0809		●	●	●	●	●
4	04.666 SCREW; BLEEDER,DISC BRK,FRT	8-98050-476-0	02	1	0810-		●	●	●	●	●	●
4	04.666 SCREW; BLEEDER,DISC BRK,FRT REAR BODY DBL WALL CTR PULL(E63), REAR BODY DELETE(8HH)	8-98050-476-0	02	1	0810-	●
5	04.666 CAP; BLEEDER,DISC BRK,FRT REAR BODY FLAT BED(E39)	8-97301-726-0	02	1	0810-1211	●
5	04.666 CAP; BLEEDER,DISC BRK,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> REAR BODY FLAT BED(E39)	8-97301-726-0	02	1	1212-	●
5	04.666 CAP; BLEEDER,DISC BRK,FRT FRT&RR 195R14C(CNU) REAR BODY FLAT BED(E39) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97301-726-0	02	1	1212-	●
5	04.666 CAP; BLEEDER,DISC BRK,FRT	8-98050-479-0	02	1	0808-0809		●	●	●	●	●
5	04.666 CAP; BLEEDER,DISC BRK,FRT	8-98050-479-0	02	1	0810-		●	●	●	●	●	●
5	04.666 CAP; BLEEDER,DISC BRK,FRT REAR BODY DBL WALL CTR PULL(E63), REAR BODY DELETE(8HH)	8-98050-479-0	02	1	0810-	●
16	04.667 REPAIR KIT; CALIPER,DISC BRK,FRT REAR BODY FLAT BED(E39)	8-98018-761-1	01	1	0810-1211	●
16	04.667 REPAIR KIT; CALIPER,DISC BRK,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> REAR BODY FLAT BED(E39)	8-98018-761-1	01	1	1212-	●
16	04.667 REPAIR KIT; CALIPER,DISC BRK,FRT FRT&RR 195R14C(CNU) REAR BODY FLAT BED(E39) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98018-761-1	01	1	1212-	●
16	04.667 REPAIR KIT; CALIPER,DISC BRK,FRT	8-98079-105-0	01	1	0808-0809		●	●	●	●	●
16	04.667 REPAIR KIT; CALIPER,DISC BRK,FRT	8-98079-105-0	01	1	0810-		●	●	●	●	●	●
16	04.667 REPAIR KIT; CALIPER,DISC BRK,FRT REAR BODY DBL WALL CTR PULL(E63), REAR BODY DELETE(8HH)	8-98079-105-0	01	1	0810-	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT REAR BODY FLAT BED(E39)	8-97368-251-0	01	1	0911-1211	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> REAR BODY FLAT BED(E39)	8-97368-251-0	01	1	1212-	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT FRT&RR 195R14C(CNU) REAR BODY FLAT BED(E39) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97368-251-0	01	1	1212-	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT REAR BODY FLAT BED(E39)	8-98051-116-0	01	1	0810-0910	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT	8-98079-104-0	01	1	0808-0809		●	●	●	●	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT	8-98079-104-0	01	1	0810-		●	●	●	●	●	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT REAR BODY DBL WALL CTR PULL(E63), REAR BODY DELETE(8HH)	8-98079-104-0	01	1	0810-	●
32	04.665 SUPPORT; FRT DISC BRK REAR BODY FLAT BED(E39) (A)	8-98049-957-0	02	1	0810-1211	●
32	04.665 SUPPORT; FRT DISC BRK 4 WHEEL ANTI LOCK BRAKE<JE5> REAR BODY FLAT BED(E39) (A)	8-98049-957-0	02	1	1212-	●
32	04.665 SUPPORT; FRT DISC BRK FRT&RR 195R14C(CNU) REAR BODY FLAT BED(E39) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-98049-957-0	02	1	1212-	●
32	04.665 SUPPORT; FRT DISC BRK (B)	8-98078-168-0	02	1	0808-0809		●	●	●	●	●
32	04.665 SUPPORT; FRT DISC BRK (B)	8-98078-168-0	02	1	0810-		●	●	●	●	●	●
32	04.665 SUPPORT; FRT DISC BRK REAR BODY DBL WALL CTR PULL(E63), REAR BODY DELETE(8HH) (B)	8-98078-168-0	02	1	0810-	●
33	04.665 BOLT; SUPPORT BRKT TO DISC BRK REAR BODY FLAT BED(E39)	8-98006-255-0	04	1	0810-1211	●
33	04.665 BOLT; SUPPORT BRKT TO DISC BRK 4 WHEEL ANTI LOCK BRAKE<JE5> REAR BODY FLAT BED(E39)	8-98006-255-0	04	1	1212-	●
33	04.665 BOLT; SUPPORT BRKT TO DISC BRK FRT&RR 195R14C(CNU) REAR BODY FLAT BED(E39) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98006-255-0	04	1	1212-	●
33	04.665 BOLT; SUPPORT BRKT TO DISC BRK	8-98078-192-0	04	1	0808-0809		●	●	●	●	●
33	04.665 BOLT; SUPPORT BRKT TO DISC BRK	8-98078-192-0	04	1	0810-		●	●	●	●	●	●
33	04.665 BOLT; SUPPORT BRKT TO DISC BRK REAR BODY DBL WALL CTR PULL(E63), REAR BODY DELETE(8HH)	8-98078-192-0	04	1	0810-	●
37	04.665 WASHER; LK 06.174 ID=14.2	0-91510-814-0	04	1	0808-0809		●	●	●	●	●
37	04.665 WASHER; LK 06.174 ID=14.2	0-91510-814-0	04	1	0810-	●	●	●	●	●	●	●
55	04.681 BOLT; SUPPORT BRKT TO DISC BRK	8-98037-731-0	02	1	0808-0809		●	●	●	●	●
55	04.681 BOLT; SUPPORT BRKT TO DISC BRK	8-98037-731-0	02	1	0810-	●	●	●	●	●	●	●
61	04.665 BOLT; SUPPORT BRKT TO KNUCKLE 04.681	8-98037-731-0	02	1	0808-0809		●	●	●	●	●
61	04.665 BOLT; SUPPORT BRKT TO KNUCKLE 04.681	8-98037-731-0	02	1	0810-	●	●	●	●	●	●	●
86	04.665 PIN; GUIDE REAR BODY FLAT BED(E39) (A) LEADING	8-98006-256-0	02	1	0810-1211	●
86	04.665 PIN; GUIDE 4 WHEEL ANTI LOCK BRAKE<JE5> REAR BODY FLAT BED(E39) (A) LEADING	8-98006-256-0	02	1	1212-	●
86	04.665 PIN; GUIDE FRT&RR 195R14C(CNU) REAR BODY FLAT BED(E39) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) LEADING	8-98006-256-0	02	1	1212-	●
86	04.665 PIN; GUIDE REAR BODY FLAT BED(E39) (B) TRAILING	8-98006-257-0	02	1	0810-1211	●
86	04.665 PIN; GUIDE 4 WHEEL ANTI LOCK BRAKE<JE5> REAR BODY FLAT BED(E39) (B) TRAILING	8-98006-257-0	02	1	1212-	●
86	04.665 PIN; GUIDE FRT&RR 195R14C(CNU) REAR BODY FLAT BED(E39) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) TRAILING	8-98006-257-0	02	1	1212-	●
86	04.665 PIN; GUIDE (C)	8-98078-175-0	02	1	0808-0809		●	●	●	●	●
86	04.665 PIN; GUIDE (C)	8-98078-175-0	02	1	0810-		●	●	●	●	●	●
86	04.665 PIN; GUIDE REAR BODY DBL WALL CTR PULL(E63), REAR BODY DELETE(8HH) (C)	8-98078-175-0	02	1	0810-	●
105	04.665 BOOT; CALIPER REAR BODY FLAT BED(E39)	8-97328-229-0	04	1	0810-1211	●
105	04.665 BOOT; CALIPER 4 WHEEL ANTI LOCK BRAKE<JE5> REAR BODY FLAT BED(E39)	8-97328-229-0	04	1	1212-	●
105	04.665 BOOT; CALIPER FRT&RR 195R14C(CNU) REAR BODY FLAT BED(E39) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97328-229-0	04	1	1212-	●
105	04.665 BOOT; CALIPER	8-98078-193-0	04	1	0808-0809		●	●	●	●	●
105	04.665 BOOT; CALIPER	8-98078-193-0	04	1	0810-		●	●	●	●	●	●
105	04.665 BOOT; CALIPER REAR BODY DBL WALL CTR PULL(E63), REAR BODY DELETE(8HH)	8-98078-193-0	04	1	0810-	●
124	04.665 PIN ASM; W/BUSH	8-98078-176-0	02	1	0808-0809		●	●	●	●	●
124	04.665 PIN ASM; W/BUSH	8-98078-176-0	02	1	0810-		●	●	●	●	●	●
124	04.665 PIN ASM; W/BUSH REAR BODY DBL WALL CTR PULL(E63), REAR BODY DELETE(8HH)	8-98078-176-0	02	1	0810-	●

2 1 32 2 37 105 4 5 86 33 105 86 33 1 17 105 16 4 105 5 55 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	04.665 CALIPER; FRT DISC BRK REAR BODY FLAT BED(E39) (A)	8-98006-533-1	01	1	0810-1211	●
1	04.665 CALIPER; FRT DISC BRK 4 WHEEL ANTI LOCK BRAKE<JE5> REAR BODY FLAT BED(E39) (A)	8-98006-533-1	01	1	1212-	●
1	04.665 CALIPER; FRT DISC BRK FRT&RR 195R14C(CNU) REAR BODY FLAT BED(E39) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-98006-533-1	01	1	1212-	●
1	04.665 CALIPER; FRT DISC BRK REAR BODY FLAT BED(E39) (A)	8-98006-534-1	01	1	0810-1211	●
1	04.665 CALIPER; FRT DISC BRK 4 WHEEL ANTI LOCK BRAKE<JE5> REAR BODY FLAT BED(E39) (A)	8-98006-534-1	01	1	1212-	●
1	04.665 CALIPER; FRT DISC BRK FRT&RR 195R14C(CNU) REAR BODY FLAT BED(E39) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-98006-534-1	01	1	1212-	●
1	04.665 CALIPER; FRT DISC BRK (B)	8-98077-996-0	01	1	0808-0809		●	●	●	●	●
1	04.665 CALIPER; FRT DISC BRK (B)	8-98077-996-0	01	1	0810-		●	●	●	●	●	●
1	04.665 CALIPER; FRT DISC BRK REAR BODY DBL WALL CTR PULL(E63), REAR BODY DELETE(8HH) (B)	8-98077-996-0	01	1	0810-	●
1	04.665 CALIPER; FRT DISC BRK (B)	8-98077-997-0	01	1	0808-0809		●	●	●	●	●
1	04.665 CALIPER; FRT DISC BRK (B)	8-98077-997-0	01	1	0810-		●	●	●	●	●	●
1	04.665 CALIPER; FRT DISC BRK REAR BODY DBL WALL CTR PULL(E63), REAR BODY DELETE(8HH) (B)	8-98077-997-0	01	1	0810-	●
2	04.668 PISTON; CALIPER,DISC BRK,FRT REAR BODY FLAT BED(E39)	8-98040-810-0	04	1	0810-1211	●
2	04.668 PISTON; CALIPER,DISC BRK,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> REAR BODY FLAT BED(E39)	8-98040-810-0	04	1	1212-	●
2	04.668 PISTON; CALIPER,DISC BRK,FRT FRT&RR 195R14C(CNU) REAR BODY FLAT BED(E39) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98040-810-0	04	1	1212-	●
2	04.668 PISTON; CALIPER,DISC BRK,FRT	8-98078-000-0	04	1	0808-0809		●	●	●	●	●
2	04.668 PISTON; CALIPER,DISC BRK,FRT	8-98078-000-0	04	1	0810-		●	●	●	●	●	●
2	04.668 PISTON; CALIPER,DISC BRK,FRT REAR BODY DBL WALL CTR PULL(E63), REAR BODY DELETE(8HH)	8-98078-000-0	04	1	0810-	●
4	04.666 SCREW; BLEEDER,DISC BRK,FRT REAR BODY FLAT BED(E39)	8-98006-254-0	02	1	0810-1211	●
4	04.666 SCREW; BLEEDER,DISC BRK,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> REAR BODY FLAT BED(E39)	8-98006-254-0	02	1	1212-	●
4	04.666 SCREW; BLEEDER,DISC BRK,FRT FRT&RR 195R14C(CNU) REAR BODY FLAT BED(E39) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98006-254-0	02	1	1212-	●
4	04.666 SCREW; BLEEDER,DISC BRK,FRT	8-98050-476-0	02	1	0808-0809		●	●	●	●	●
4	04.666 SCREW; BLEEDER,DISC BRK,FRT	8-98050-476-0	02	1	0810-		●	●	●	●	●	●
4	04.666 SCREW; BLEEDER,DISC BRK,FRT REAR BODY DBL WALL CTR PULL(E63), REAR BODY DELETE(8HH)	8-98050-476-0	02	1	0810-	●
5	04.666 CAP; BLEEDER,DISC BRK,FRT REAR BODY FLAT BED(E39)	8-97301-726-0	02	1	0810-1211	●
5	04.666 CAP; BLEEDER,DISC BRK,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> REAR BODY FLAT BED(E39)	8-97301-726-0	02	1	1212-	●
5	04.666 CAP; BLEEDER,DISC BRK,FRT FRT&RR 195R14C(CNU) REAR BODY FLAT BED(E39) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97301-726-0	02	1	1212-	●
5	04.666 CAP; BLEEDER,DISC BRK,FRT	8-98050-479-0	02	1	0808-0809		●	●	●	●	●
5	04.666 CAP; BLEEDER,DISC BRK,FRT	8-98050-479-0	02	1	0810-		●	●	●	●	●	●
5	04.666 CAP; BLEEDER,DISC BRK,FRT REAR BODY DBL WALL CTR PULL(E63), REAR BODY DELETE(8HH)	8-98050-479-0	02	1	0810-	●
16	04.667 REPAIR KIT; CALIPER,DISC BRK,FRT REAR BODY FLAT BED(E39)	8-98018-761-1	01	1	0810-1211	●
16	04.667 REPAIR KIT; CALIPER,DISC BRK,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> REAR BODY FLAT BED(E39)	8-98018-761-1	01	1	1212-	●
16	04.667 REPAIR KIT; CALIPER,DISC BRK,FRT FRT&RR 195R14C(CNU) REAR BODY FLAT BED(E39) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98018-761-1	01	1	1212-	●
16	04.667 REPAIR KIT; CALIPER,DISC BRK,FRT	8-98079-105-0	01	1	0808-0809		●	●	●	●	●
16	04.667 REPAIR KIT; CALIPER,DISC BRK,FRT	8-98079-105-0	01	1	0810-		●	●	●	●	●	●
16	04.667 REPAIR KIT; CALIPER,DISC BRK,FRT REAR BODY DBL WALL CTR PULL(E63), REAR BODY DELETE(8HH)	8-98079-105-0	01	1	0810-	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT REAR BODY FLAT BED(E39)	8-97368-251-0	01	1	0911-1211	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> REAR BODY FLAT BED(E39)	8-97368-251-0	01	1	1212-	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT FRT&RR 195R14C(CNU) REAR BODY FLAT BED(E39) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97368-251-0	01	1	1212-	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT REAR BODY FLAT BED(E39)	8-98051-116-0	01	1	0810-0910	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT	8-98079-104-0	01	1	0808-0809		●	●	●	●	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT	8-98079-104-0	01	1	0810-		●	●	●	●	●	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT REAR BODY DBL WALL CTR PULL(E63), REAR BODY DELETE(8HH)	8-98079-104-0	01	1	0810-	●
32	04.665 SUPPORT; FRT DISC BRK REAR BODY FLAT BED(E39) (A)	8-98049-957-0	02	1	0810-1211	●
32	04.665 SUPPORT; FRT DISC BRK 4 WHEEL ANTI LOCK BRAKE<JE5> REAR BODY FLAT BED(E39) (A)	8-98049-957-0	02	1	1212-	●
32	04.665 SUPPORT; FRT DISC BRK FRT&RR 195R14C(CNU) REAR BODY FLAT BED(E39) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-98049-957-0	02	1	1212-	●
32	04.665 SUPPORT; FRT DISC BRK (B)	8-98078-168-0	02	1	0808-0809		●	●	●	●	●
32	04.665 SUPPORT; FRT DISC BRK (B)	8-98078-168-0	02	1	0810-		●	●	●	●	●	●
32	04.665 SUPPORT; FRT DISC BRK REAR BODY DBL WALL CTR PULL(E63), REAR BODY DELETE(8HH) (B)	8-98078-168-0	02	1	0810-	●
33	04.665 BOLT; SUPPORT BRKT TO DISC BRK REAR BODY FLAT BED(E39)	8-98006-255-0	04	1	0810-1211	●
33	04.665 BOLT; SUPPORT BRKT TO DISC BRK 4 WHEEL ANTI LOCK BRAKE<JE5> REAR BODY FLAT BED(E39)	8-98006-255-0	04	1	1212-	●
33	04.665 BOLT; SUPPORT BRKT TO DISC BRK FRT&RR 195R14C(CNU) REAR BODY FLAT BED(E39) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98006-255-0	04	1	1212-	●
33	04.665 BOLT; SUPPORT BRKT TO DISC BRK	8-98078-192-0	04	1	0808-0809		●	●	●	●	●
33	04.665 BOLT; SUPPORT BRKT TO DISC BRK	8-98078-192-0	04	1	0810-		●	●	●	●	●	●
33	04.665 BOLT; SUPPORT BRKT TO DISC BRK REAR BODY DBL WALL CTR PULL(E63), REAR BODY DELETE(8HH)	8-98078-192-0	04	1	0810-	●
37	04.665 WASHER; LK 06.174 ID=14.2	0-91510-814-0	04	1	0808-0809		●	●	●	●	●
37	04.665 WASHER; LK 06.174 ID=14.2	0-91510-814-0	04	1	0810-	●	●	●	●	●	●	●
55	04.681 BOLT; SUPPORT BRKT TO DISC BRK	8-98037-731-0	02	1	0808-0809		●	●	●	●	●
55	04.681 BOLT; SUPPORT BRKT TO DISC BRK	8-98037-731-0	02	1	0810-	●	●	●	●	●	●	●
61	04.665 BOLT; SUPPORT BRKT TO KNUCKLE 04.681	8-98037-731-0	02	1	0808-0809		●	●	●	●	●
61	04.665 BOLT; SUPPORT BRKT TO KNUCKLE 04.681	8-98037-731-0	02	1	0810-	●	●	●	●	●	●	●
86	04.665 PIN; GUIDE REAR BODY FLAT BED(E39) (A) LEADING	8-98006-256-0	02	1	0810-1211	●
86	04.665 PIN; GUIDE 4 WHEEL ANTI LOCK BRAKE<JE5> REAR BODY FLAT BED(E39) (A) LEADING	8-98006-256-0	02	1	1212-	●
86	04.665 PIN; GUIDE FRT&RR 195R14C(CNU) REAR BODY FLAT BED(E39) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) LEADING	8-98006-256-0	02	1	1212-	●
86	04.665 PIN; GUIDE REAR BODY FLAT BED(E39) (B) TRAILING	8-98006-257-0	02	1	0810-1211	●
86	04.665 PIN; GUIDE 4 WHEEL ANTI LOCK BRAKE<JE5> REAR BODY FLAT BED(E39) (B) TRAILING	8-98006-257-0	02	1	1212-	●
86	04.665 PIN; GUIDE FRT&RR 195R14C(CNU) REAR BODY FLAT BED(E39) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) TRAILING	8-98006-257-0	02	1	1212-	●
86	04.665 PIN; GUIDE (C)	8-98078-175-0	02	1	0808-0809		●	●	●	●	●
86	04.665 PIN; GUIDE (C)	8-98078-175-0	02	1	0810-		●	●	●	●	●	●
86	04.665 PIN; GUIDE REAR BODY DBL WALL CTR PULL(E63), REAR BODY DELETE(8HH) (C)	8-98078-175-0	02	1	0810-	●
105	04.665 BOOT; CALIPER REAR BODY FLAT BED(E39)	8-97328-229-0	04	1	0810-1211	●
105	04.665 BOOT; CALIPER 4 WHEEL ANTI LOCK BRAKE<JE5> REAR BODY FLAT BED(E39)	8-97328-229-0	04	1	1212-	●
105	04.665 BOOT; CALIPER FRT&RR 195R14C(CNU) REAR BODY FLAT BED(E39) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97328-229-0	04	1	1212-	●
105	04.665 BOOT; CALIPER	8-98078-193-0	04	1	0808-0809		●	●	●	●	●
105	04.665 BOOT; CALIPER	8-98078-193-0	04	1	0810-		●	●	●	●	●	●
105	04.665 BOOT; CALIPER REAR BODY DBL WALL CTR PULL(E63), REAR BODY DELETE(8HH)	8-98078-193-0	04	1	0810-	●
