◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51194 - TFR/TFS-RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-61 - TRANSFER CASE AND GEAR SHIFTER ▶
2-61 — TRANSFER CASE AND GEAR SHIFTER (#77014) — 31 parça

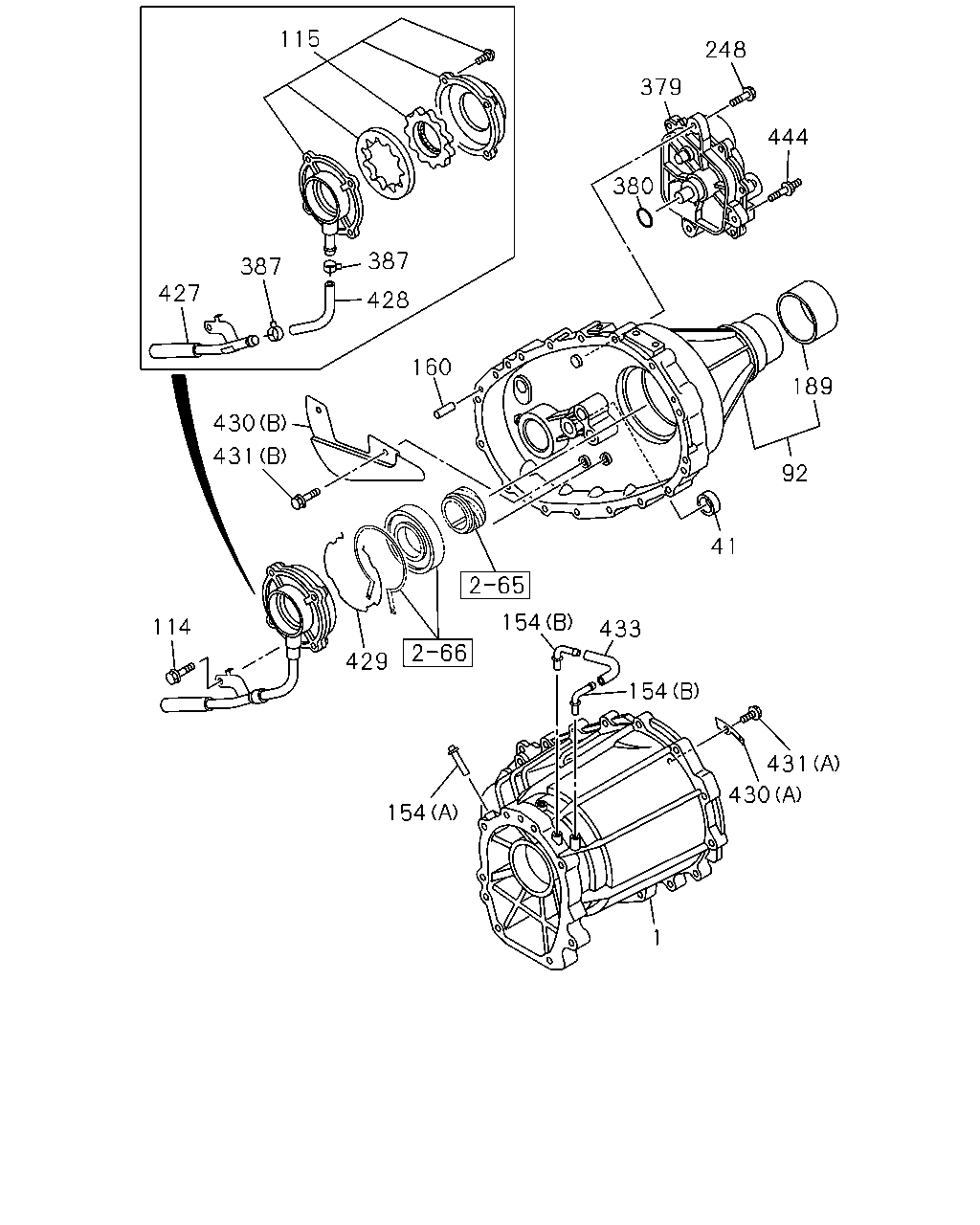

çizim 114566
115 248 379 444 380 387 387 427 428 160 189 430 431 92 41 154 114 433 429 154 431 430 154 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.510 CASE; TRANSFER 8-97306-571-5 01 1 0808- ● ● ●
41 04.515 SEAL; OIL,SHIFT ROD 8-97238-998-0 01 1 0808- ● ● ●
92 04.552 COVER; RR,TRANSFER 8-98013-523-0 01 1 0808- ● ● ●
114 04.200 BOLT; OIL PUMP,TRANSFER
01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0808- ● ● ●
115 04.200 PUMP ASM; OIL,TRANSFER 8-98029-157-0 01 1 0808- ● ● ●
154 04.510 PIPE; BREATHER
(B) 		8-97358-318-0 02 1 0808- ● ● ●
154 04.510 PIPE; BREATHER
(A) 		8-97358-319-0 01 1 0808- ● ● ●
160 04.107 PIN; KNOCK,SHIFT CASE
04.510 OD=10 L=20 		8-97135-423-0 02 1 0808- ● ● ●
189 04.510 COVER; DUST,OIL SEAL
04.317 		8-98027-802-0 01 1 0808-1109 ● ● ●
189 04.510 COVER; DUST,OIL SEAL 8-98173-748-0 01 1 1110- ● ● ●
248 04.105 BOLT
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 03.403 M8X30 FLANGE 		0-28650-830-0 03 1 0810-1007 ● ● ●
248 04.105 BOLT
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 03.403 M8X30 FLANGE 		0-28650-830-0 03 1 1008- ● ● ●
248 04.105 BOLT
03.403 M8X30 FLANGE 		0-28650-830-0 03 1 0808-0809 ● ● ●
248 04.105 BOLT
C24SE ENG(LG1) 03.403 M8X30 FLANGE 		0-28650-830-0 01 1 0810- ● ●
379 04.505 ACTUATOR; TRANSFER,2-4 SHIFT
C24SE ENG(LG1) 		8-97317-686-1 01 1 0810-1001 ● ●
379 04.505 ACTUATOR; TRANSFER,2-4 SHIFT
C24SE ENG(LG1) 		8-98158-125-0 01 1 1002- ● ●
379 04.505 ACTUATOR; TRANSFER,2-4 SHIFT 8-97366-626-0 01 1 0808-0809 ● ● ●
379 04.505 ACTUATOR; TRANSFER,2-4 SHIFT
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 		8-97366-626-0 01 1 0810-1007 ● ● ●
379 04.505 ACTUATOR; TRANSFER,2-4 SHIFT
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 		8-97366-626-0 01 1 1008-1110 ● ● ●
379 04.505 ACTUATOR; TRANSFER,2-4 SHIFT
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) 		8-98196-415-0 01 1 1111- ● ● ●
380 04.505 GASKET; ACTUATOR
ID=29.7 OD=36.7 		8-97318-475-0 01 1 0808- ● ● ●
387 04.319 CLAMP; HOSE
01.097 ID=16 		8-97329-628-0 02 1 0808- ● ● ●
427 04.510 SCREEN; OIL PUMP 8-97234-488-3 01 1 0808- ● ● ●
428 04.510 HOSE; OIL PUMP
ID=9.5 OD=16.5 L=80 		8-98009-116-0 01 1 0808- ● ● ●
429 04.525 RING; SNAP,OIL PUMP 8-97240-666-0 01 1 0808- ● ● ●
430 04.500 PLATE; BAFFLE
(A) 		8-97239-130-0 01 1 0808- ● ● ●
430 04.500 PLATE; BAFFLE
(B) 		8-97249-300-1 01 1 0808- ● ● ●
431 04.200 BOLT; BAFFLE PLATE
02.343 (A) M6X16 FLANGE 		0-28650-616-0 01 1 0808- ● ● ●
431 04.200 BOLT; BAFFLE PLATE
01.531 (B) M8X20 FLANGE 		0-28650-820-0 02 1 0808- ● ● ●
433 04.510 HOSE; AIR,TRANSFER 8-97236-080-0 01 1 0808- ● ● ●
444 04.510 STUD; ACTUATOR
C24SE ENG(LG1) M8X12,M8X30 L=50 		8-98028-225-0 02 1 0810- ● ●
