◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51194 - TFR/TFS-RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-60 - TRANSFER ▶
2-60 — TRANSFER (#77013) — 16 parça

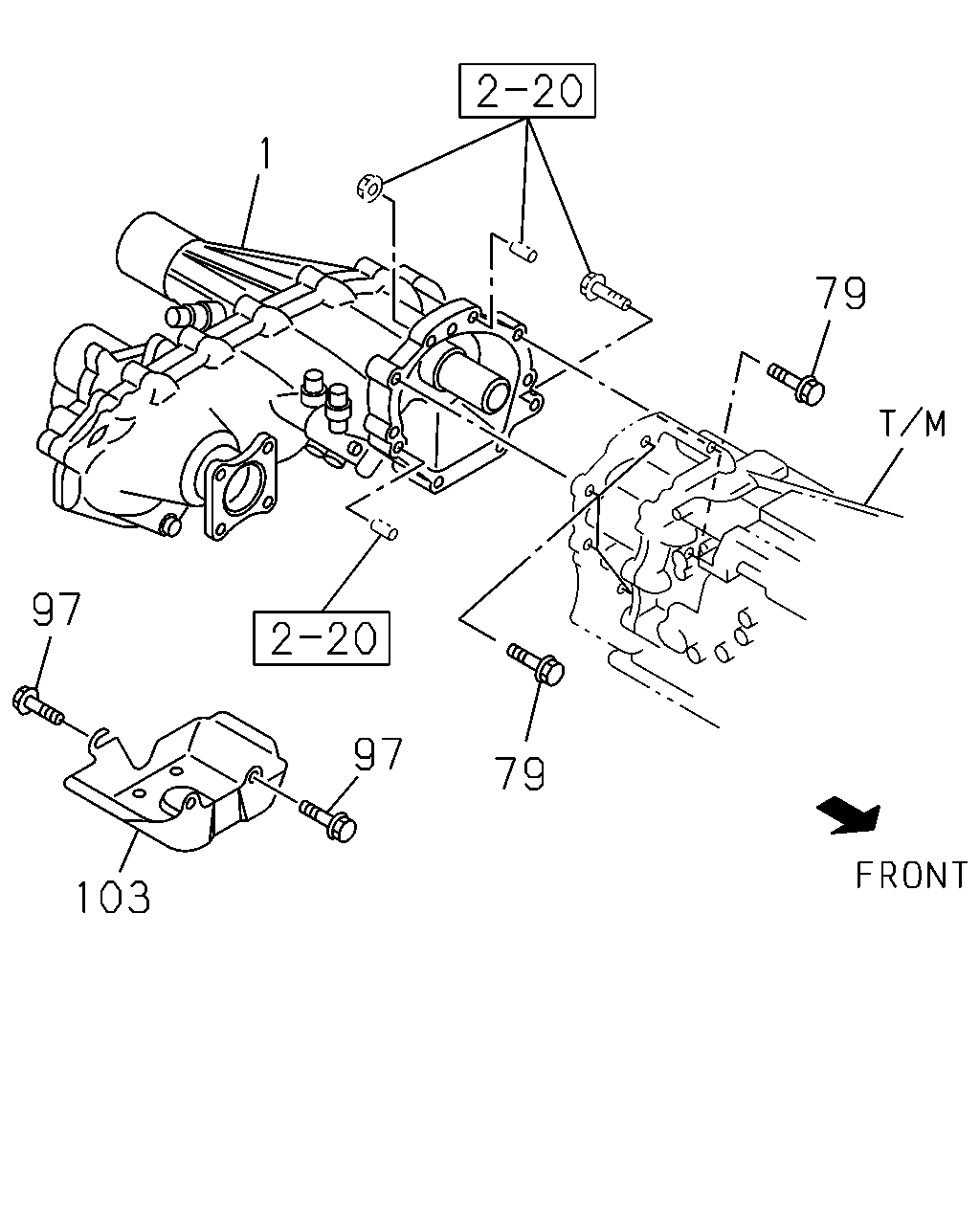

çizim 114329
1 79 97 97 79 103
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.505 TRANSFER ASM
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(GY2) 		8-98028-762-0 01 1 0810-1007 ● ● ●
1 04.505 TRANSFER ASM
4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(GY2) 		8-98028-762-0 01 1 1008- ● ● ●
1 04.505 TRANSFER ASM
4JK1-TCS ENG(LKZ) FINAL GEAR RATIO 43/11(GW1) FRT&RR 245/70R16 ALS(QCQ) MALAYSIA EQUIPMENT(B10) 		8-98028-762-0 01 1 1008- ● ● ●
1 04.505 TRANSFER ASM
4JA1-T ENG(LP0) FINAL GEAR RATIO 41/9(GT3) 		8-98028-761-0 01 1 0810- ● ● ●
1 04.505 TRANSFER ASM
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) FINAL GEAR RATIO 43/9(GT2) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) 		8-98028-761-0 01 1 0810- ● ● ●
1 04.505 TRANSFER ASM
C24SE ENG(LG1) 		8-98028-763-0 01 1 0810- ● ●
1 04.505 TRANSFER ASM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 		8-98028-765-0 01 1 0808- ● ● ●
1 04.505 TRANSFER ASM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) 		8-98028-766-0 01 1 0808-0809 ●
1 04.505 TRANSFER ASM
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD) 		8-98028-766-0 01 1 0810- ● ●
79 04.512 BOLT; STOPPER
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) IDENTIFICATION LABEL FOR KD<6UT> 04.510 M10X35 FLANGE 		0-28051-035-0 06 1 0808-0809 ● ● ●
79 04.512 BOLT; STOPPER
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP) 04.510 M10X35 FLANGE 		0-28051-035-0 06 1 0810-1007 ● ● ●
79 04.512 BOLT; STOPPER
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) IDENTIFICATION LABEL FOR KD<6UT> 04.510 M10X35 FLANGE 		0-28051-035-0 06 1 0810-1007 ● ● ●
79 04.512 BOLT; STOPPER
A/T AISIN(RMD) 04.510 M10X35 FLANGE 		0-28051-035-0 07 1 0808-0809 ●
79 04.512 BOLT; STOPPER
A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) 04.510 M10X35 FLANGE 		0-28051-035-0 07 1 0810- ●
97 04.512 BOLT
01.531 M8X20 FLANGE 		0-28650-820-0 03 1 0808- ● ● ●
103 04.510 GUARD; TRANSFER 8-97234-751-0 01 1 0808- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
