2-55B — AUTO TRANS SHIFT CONTROL LEVER (#77010) — 101 parça

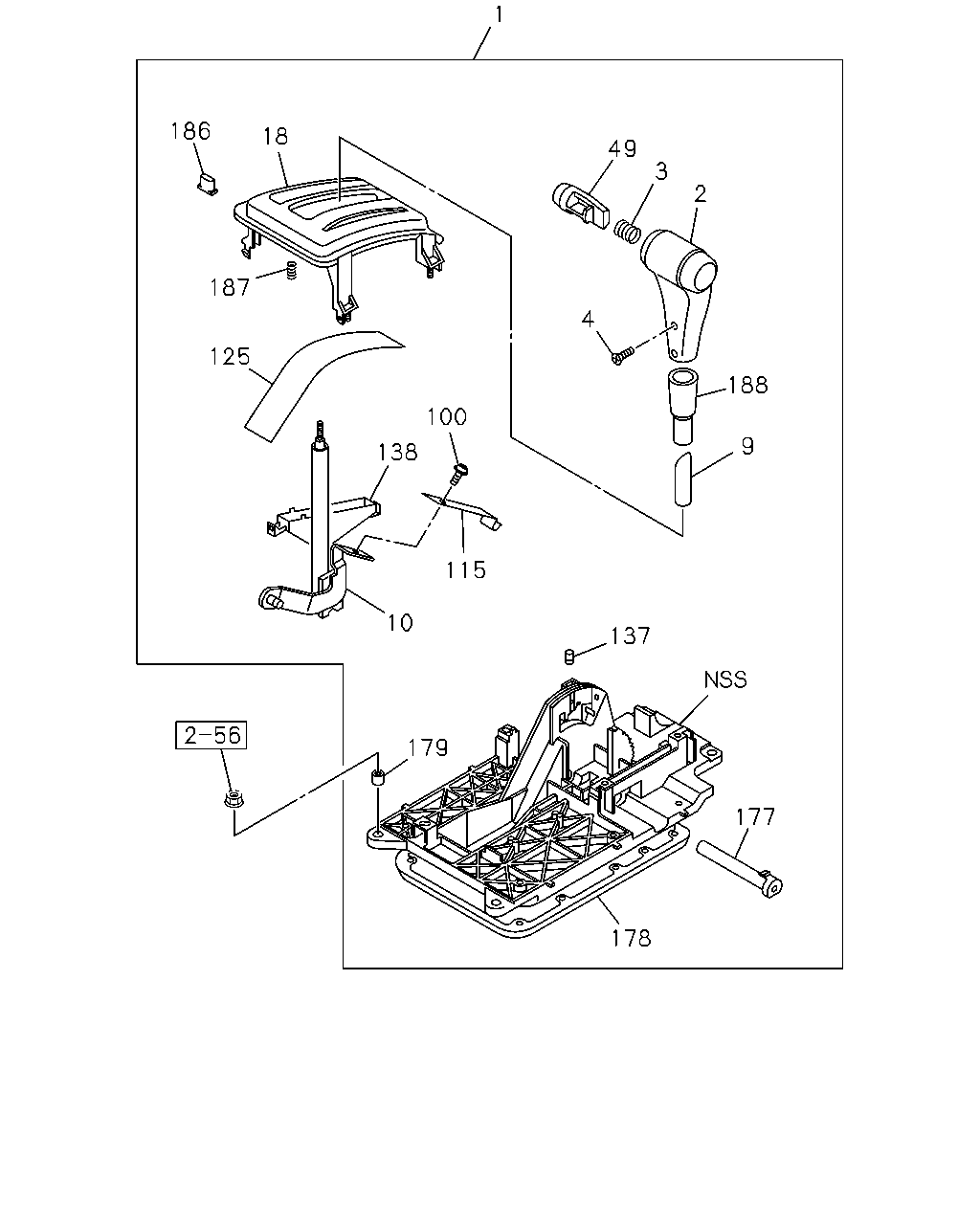

çizim 114400
1 186 18 49 3 2 187 4 125 188 100 9 138 115 10 137 179 177 178
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.006 LEVER; SHIFT,A/T
SHIFT KNOB LEATHER<VY7> LIGHT GRAY 		8-97403-665-1 01 1 0810-1003 ●
1 04.006 LEVER; SHIFT,A/T
SHIFT KNOB LEATHER<VY7> 		8-97418-477-0 01 1 1004- ●
1 04.006 LEVER; SHIFT,A/T
EXC. SHIFT KNOB LEATHER<VY7> LIGHT GRAY 		8-97403-905-0 01 1 0810-1003 ●
1 04.006 LEVER; SHIFT,A/T
EXC. SHIFT KNOB LEATHER<VY7> 		8-97418-602-0 01 1 1004- ●
1 04.006 LEVER; SHIFT,A/T
SHIFT KNOB LEATHER<VY7> LIGHT GRAY 		8-97403-655-1 01 1 0808-1003 ●
1 04.006 LEVER; SHIFT,A/T
SHIFT KNOB LEATHER<VY7> LIGHT GRAY 		8-97418-476-0 01 1 1004- ●
1 04.006 LEVER; SHIFT,A/T
EXC. SHIFT KNOB LEATHER<VY7> LIGHT GRAY 		8-97403-640-0 01 1 0808-1003 ●
1 04.006 LEVER; SHIFT,A/T
EXC. SHIFT KNOB LEATHER<VY7> 		8-97418-601-0 01 1 1004- ●
2 04.006 KNOB ASM; AUTO CONT LEVER
SHIFT KNOB LEATHER<VY7> DARK GRAY 		8-97408-715-0 01 1 0808-0809 ●
2 04.006 KNOB ASM; AUTO CONT LEVER
SHIFT KNOB LEATHER<VY7> DARK GRAY 		8-97408-715-0 01 1 0810- ● ●
2 04.006 KNOB ASM; AUTO CONT LEVER
EXC. SHIFT KNOB LEATHER<VY7> DARK GRAY 		8-97396-836-0 01 1 0808-0809 ●
2 04.006 KNOB ASM; AUTO CONT LEVER
EXC. SHIFT KNOB LEATHER<VY7> DARK GRAY 		8-97396-836-0 01 1 0810- ● ●
3 04.008 SPRING; RETURN,KNOB 8-97332-979-0 01 1 0808-0809 ●
3 04.008 SPRING; RETURN,KNOB 8-97332-979-0 01 1 0810- ● ●
4 04.006 SCREW; KNOB TO LEVER 8-97332-950-0 02 1 0808-0809 ●
4 04.006 SCREW; KNOB TO LEVER 8-97332-950-0 02 1 0810- ● ●
9 04.006 SLEEVE; KNOB,SHIFT LEVER 8-97332-980-0 01 1 0808-0809 ●
9 04.006 SLEEVE; KNOB,SHIFT LEVER 8-97332-980-0 01 1 0810- ● ●
10 04.006 LEVER; A/T CONT 8-98032-564-0 01 1 0808-0809 ●
10 04.006 LEVER; A/T CONT 8-98032-564-0 01 1 0810- ● ●
18 04.020 COVER; INDICATOR,UPR
LIGHT GRAY 		8-97407-874-0 01 1 0808-0809 ●
18 04.020 COVER; INDICATOR,UPR
LIGHT GRAY 		8-97407-874-0 01 1 0810- ● ●
49 04.006 BUTTON; PUSH,KNOB
SHIFT KNOB LEATHER<VY7> 		8-98032-538-0 01 1 0808-0809 ●
49 04.006 BUTTON; PUSH,KNOB
SHIFT KNOB LEATHER<VY7> 		8-98032-538-0 01 1 0810- ● ●
49 04.006 BUTTON; PUSH,KNOB
EXC. SHIFT KNOB LEATHER<VY7> DARK GRAY 		8-97396-835-0 01 1 0808-0809 ●
49 04.006 BUTTON; PUSH,KNOB
EXC. SHIFT KNOB LEATHER<VY7> DARK GRAY 		8-97396-835-0 01 1 0810- ● ●
100 04.012 SCREW 8-97332-953-0 01 1 0808-0809 ●
100 04.012 SCREW 8-97332-953-0 01 1 0810- ● ●
115 04.008 PLATE; SPR,LEVER 8-97332-936-0 01 1 0808-0809 ●
115 04.008 PLATE; SPR,LEVER 8-97332-936-0 01 1 0810- ● ●
125 04.020 COVER; SHIFT LEVER
SHIFT KNOB LEATHER<VY7> 		8-98052-035-0 01 1 0808-0809 ●
125 04.020 COVER; SHIFT LEVER
SHIFT KNOB LEATHER<VY7> 		8-98052-035-0 01 1 0810- ● ●
125 04.020 COVER; SHIFT LEVER
EXC. SHIFT KNOB LEATHER<VY7> 		8-97332-934-0 01 1 0808-0809 ●
125 04.020 COVER; SHIFT LEVER
EXC. SHIFT KNOB LEATHER<VY7> 		8-97332-934-0 01 1 0810- ● ●
137 04.010 CUSHION 8-97332-938-0 03 1 0808-0809 ●
137 04.010 CUSHION 8-97332-938-0 03 1 0810- ● ●
138 04.030 BOX; LAMP 8-98032-536-0 01 1 0808-0809 ●
138 04.030 BOX; LAMP 8-98032-536-0 01 1 0810- ● ●
177 04.040 SHAFT; SHIFT LEVER,A/T 8-97332-952-0 01 1 0808-0809 ●
177 04.040 SHAFT; SHIFT LEVER,A/T 8-97332-952-0 01 1 0810- ● ●
178 04.008 SHEET; SHIFT LEVER 8-97332-935-0 01 1 0808-0809 ●
178 04.008 SHEET; SHIFT LEVER 8-97332-935-0 01 1 0810- ● ●
179 04.008 COLLAR; SHIFT LEVER 8-97332-951-0 04 1 0808-0809 ●
179 04.008 COLLAR; SHIFT LEVER 8-97332-951-0 04 1 0810-1007 ● ●
186 04.006 BUTTON; SHIFT LOCK
DARK GRAY 		8-97407-872-0 01 1 0808-0809 ●
186 04.006 BUTTON; SHIFT LOCK
DARK GRAY 		8-97407-872-0 01 1 0810- ● ●
187 04.008 SPRING; RETURN,SHIFT 8-98032-566-0 01 1 0808-0809 ●
187 04.008 SPRING; RETURN,SHIFT 8-98032-566-0 01 1 0810- ● ●
188 04.008 COVER; KNOB
SHIFT KNOB LEATHER<VY7> 		8-98032-557-0 01 1 0808-0809 ●
188 04.008 COVER; KNOB
SHIFT KNOB LEATHER<VY7> 		8-98032-557-0 01 1 0810- ● ●

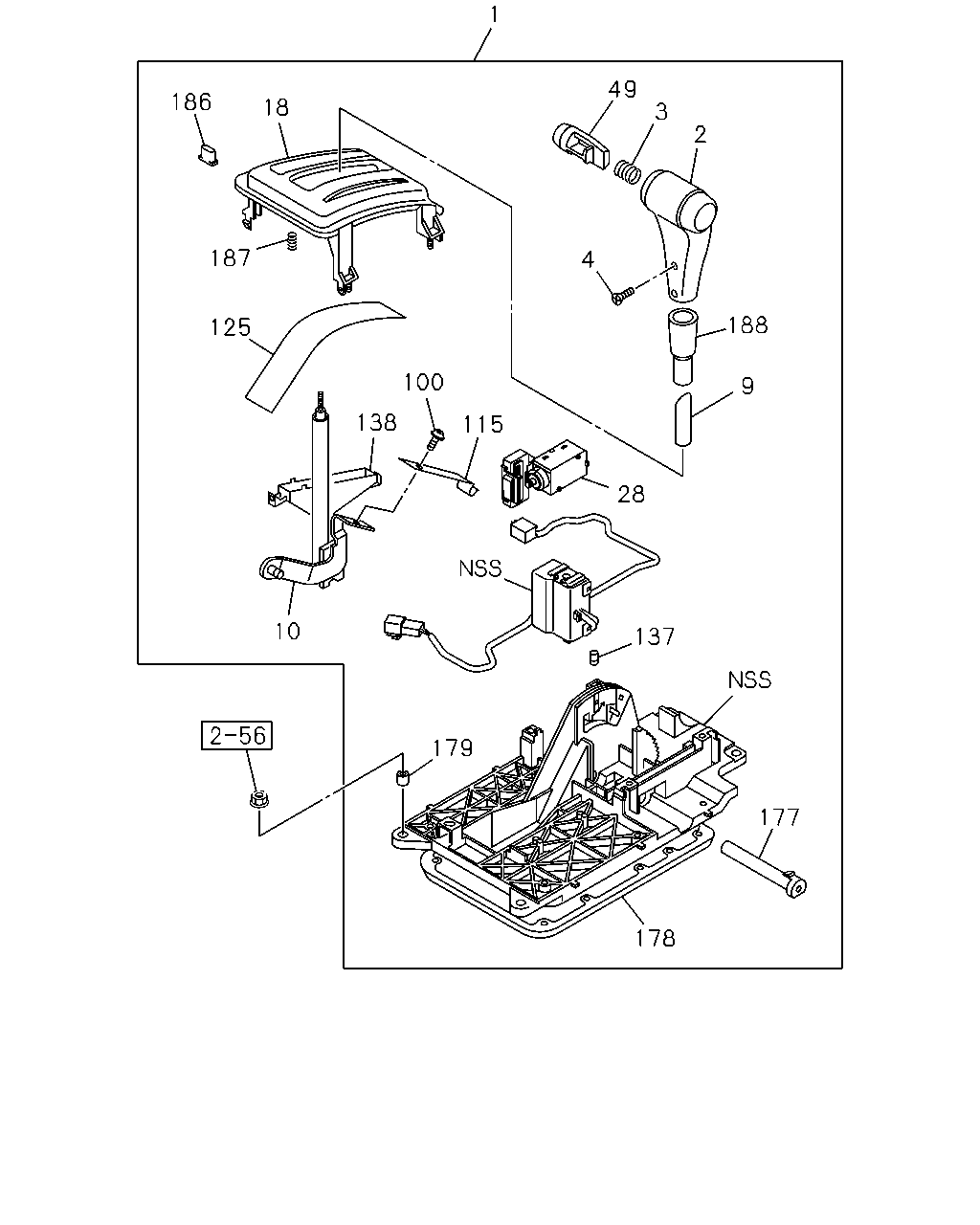

çizim 114479
1 49 186 18 3 2 187 4 188 125 100 9 138 115 28 10 137 179 177 178
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.006 LEVER; SHIFT,A/T
SHIFT KNOB LEATHER<VY7> LIGHT GRAY 		8-97403-665-1 01 1 0810-1003 ●
1 04.006 LEVER; SHIFT,A/T
SHIFT KNOB LEATHER<VY7> 		8-97418-477-0 01 1 1004- ●
1 04.006 LEVER; SHIFT,A/T
EXC. SHIFT KNOB LEATHER<VY7> LIGHT GRAY 		8-97403-905-0 01 1 0810-1003 ●
1 04.006 LEVER; SHIFT,A/T
EXC. SHIFT KNOB LEATHER<VY7> 		8-97418-602-0 01 1 1004- ●
1 04.006 LEVER; SHIFT,A/T
SHIFT KNOB LEATHER<VY7> LIGHT GRAY 		8-97403-655-1 01 1 0808-1003 ●
1 04.006 LEVER; SHIFT,A/T
SHIFT KNOB LEATHER<VY7> LIGHT GRAY 		8-97418-476-0 01 1 1004- ●
1 04.006 LEVER; SHIFT,A/T
EXC. SHIFT KNOB LEATHER<VY7> LIGHT GRAY 		8-97403-640-0 01 1 0808-1003 ●
1 04.006 LEVER; SHIFT,A/T
EXC. SHIFT KNOB LEATHER<VY7> 		8-97418-601-0 01 1 1004- ●
2 04.006 KNOB ASM; AUTO CONT LEVER
SHIFT KNOB LEATHER<VY7> DARK GRAY 		8-97408-715-0 01 1 0808-0809 ●
2 04.006 KNOB ASM; AUTO CONT LEVER
SHIFT KNOB LEATHER<VY7> DARK GRAY 		8-97408-715-0 01 1 0810- ● ●
2 04.006 KNOB ASM; AUTO CONT LEVER
EXC. SHIFT KNOB LEATHER<VY7> DARK GRAY 		8-97396-836-0 01 1 0808-0809 ●
2 04.006 KNOB ASM; AUTO CONT LEVER
EXC. SHIFT KNOB LEATHER<VY7> DARK GRAY 		8-97396-836-0 01 1 0810- ● ●
3 04.008 SPRING; RETURN,KNOB 8-97332-979-0 01 1 0808-0809 ●
3 04.008 SPRING; RETURN,KNOB 8-97332-979-0 01 1 0810- ● ●
4 04.006 SCREW; KNOB TO LEVER 8-97332-950-0 02 1 0808-0809 ●
4 04.006 SCREW; KNOB TO LEVER 8-97332-950-0 02 1 0810- ● ●
9 04.006 SLEEVE; KNOB,SHIFT LEVER 8-97332-980-0 01 1 0808-0809 ●
9 04.006 SLEEVE; KNOB,SHIFT LEVER 8-97332-980-0 01 1 0810- ● ●
10 04.006 LEVER; A/T CONT 8-98032-564-0 01 1 0808-0809 ●
10 04.006 LEVER; A/T CONT 8-98032-564-0 01 1 0810- ● ●
18 04.020 COVER; INDICATOR,UPR
LIGHT GRAY 		8-97407-874-0 01 1 0808-0809 ●
18 04.020 COVER; INDICATOR,UPR
LIGHT GRAY 		8-97407-874-0 01 1 0810- ● ●
28 04.006 SOLENOID ASM 8-98032-553-0 01 1 1004- ● ●
49 04.006 BUTTON; PUSH,KNOB
SHIFT KNOB LEATHER<VY7> 		8-98032-538-0 01 1 0808-0809 ●
49 04.006 BUTTON; PUSH,KNOB
SHIFT KNOB LEATHER<VY7> 		8-98032-538-0 01 1 0810- ● ●
49 04.006 BUTTON; PUSH,KNOB
EXC. SHIFT KNOB LEATHER<VY7> DARK GRAY 		8-97396-835-0 01 1 0808-0809 ●
49 04.006 BUTTON; PUSH,KNOB
EXC. SHIFT KNOB LEATHER<VY7> DARK GRAY 		8-97396-835-0 01 1 0810- ● ●
100 04.012 SCREW 8-97332-953-0 01 1 0808-0809 ●
100 04.012 SCREW 8-97332-953-0 01 1 0810- ● ●
115 04.008 PLATE; SPR,LEVER 8-97332-936-0 01 1 0808-0809 ●
115 04.008 PLATE; SPR,LEVER 8-97332-936-0 01 1 0810- ● ●
125 04.020 COVER; SHIFT LEVER
SHIFT KNOB LEATHER<VY7> 		8-98052-035-0 01 1 0808-0809 ●
125 04.020 COVER; SHIFT LEVER
SHIFT KNOB LEATHER<VY7> 		8-98052-035-0 01 1 0810- ● ●
125 04.020 COVER; SHIFT LEVER
EXC. SHIFT KNOB LEATHER<VY7> 		8-97332-934-0 01 1 0808-0809 ●
125 04.020 COVER; SHIFT LEVER
EXC. SHIFT KNOB LEATHER<VY7> 		8-97332-934-0 01 1 0810- ● ●
137 04.010 CUSHION 8-97332-938-0 03 1 0808-0809 ●
137 04.010 CUSHION 8-97332-938-0 03 1 0810- ● ●
138 04.030 BOX; LAMP 8-98032-536-0 01 1 0808-0809 ●
138 04.030 BOX; LAMP 8-98032-536-0 01 1 0810- ● ●
177 04.040 SHAFT; SHIFT LEVER,A/T 8-97332-952-0 01 1 0808-0809 ●
177 04.040 SHAFT; SHIFT LEVER,A/T 8-97332-952-0 01 1 0810- ● ●
178 04.008 SHEET; SHIFT LEVER 8-97332-935-0 01 1 0808-0809 ●
178 04.008 SHEET; SHIFT LEVER 8-97332-935-0 01 1 0810- ● ●
179 04.008 COLLAR; SHIFT LEVER 8-97332-951-0 04 1 0808-0809 ●
179 04.008 COLLAR; SHIFT LEVER 8-97332-951-0 04 1 0810-1007 ● ●
186 04.006 BUTTON; SHIFT LOCK
DARK GRAY 		8-97407-872-0 01 1 0808-0809 ●
186 04.006 BUTTON; SHIFT LOCK
DARK GRAY 		8-97407-872-0 01 1 0810- ● ●
187 04.008 SPRING; RETURN,SHIFT 8-98032-566-0 01 1 0808-0809 ●
187 04.008 SPRING; RETURN,SHIFT 8-98032-566-0 01 1 0810- ● ●
188 04.008 COVER; KNOB
SHIFT KNOB LEATHER<VY7> 		8-98032-557-0 01 1 0808-0809 ●
188 04.008 COVER; KNOB
SHIFT KNOB LEATHER<VY7> 		8-98032-557-0 01 1 0810- ● ●
