4-01 — PROPELLER SHAFT (#7701) — 29 parça

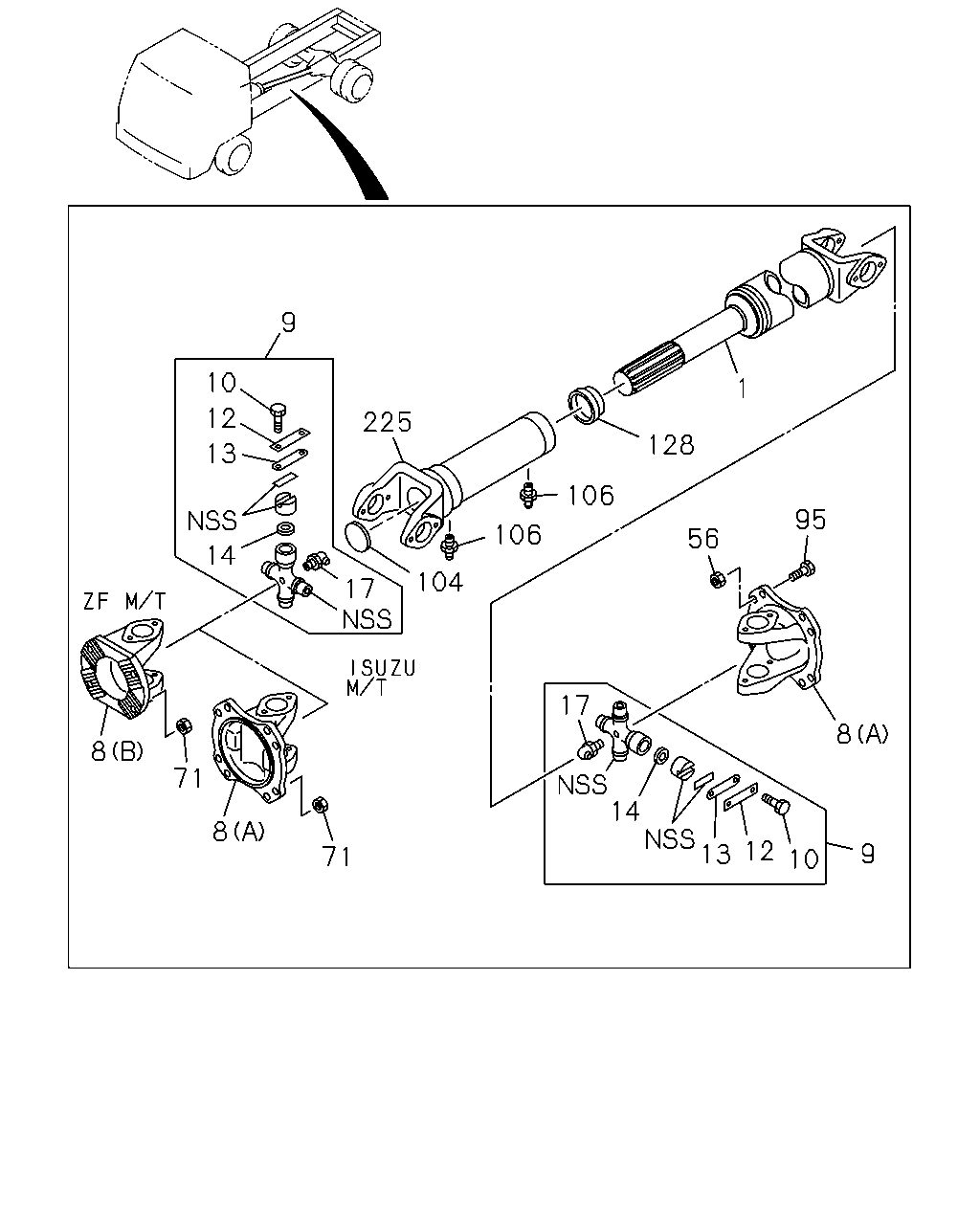

çizim 47975
9 10 1 12 225 128 13 106 95 106 56 14 104 17 17 8 8 71 14 13 8 12 9 71 10
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; PROP
MJA7U M/T(X6G) L=970 		1-37124-236-0 01 1 9902- ●
1 SHAFT; PROP
TRANSMISSION-ZF 16S221 OD(Y1U) L=945 		1-37123-816-0 01 1 9910- ●
1 SHAFT; PROP
ZF M/T<X9E> L=1030 		1-37124-393-0 01 1 9902-0003 ● ●
1 SHAFT; PROP
TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) L=1030 		1-37124-393-0 01 1 0004- ●
1 SHAFT; PROP
TRANSMISSION-ZF 16S221 OD(Y1U) L=715 		1-37124-519-0 01 1 0004- ●
1 SHAFT; PROP
SHORT CHASSIS&LHD(EXR6MC) ISUZU M/T<X9A> L=770 		1-37123-737-0 01 1 9905-0003 ●
1 SHAFT; PROP
ISUZU M/T<X9A> L=770 		1-37123-737-0 01 1 0004- ●
1 SHAFT; PROP
SHORT CHASSIS&LHD(EXR6MC) TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) L=830 		1-37124-060-0 01 1 9905-0003 ●
1 SHAFT; PROP
TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) L=830 		1-37124-060-0 01 1 0004- ●
8 YOKE; FLANGE,PROP SHAFT
MJA7U M/T(X6G) (A) 		1-37211-068-1 02 1 9902-0003 ●
8 YOKE; FLANGE,PROP SHAFT
ISUZU M/T<X9A> (A) 		1-37211-068-1 02 1 0004- ● ●
8 YOKE; FLANGE,PROP SHAFT
ZF M/T<X9E> (A) 		1-37211-068-1 01 1 9902- ● ●
8 YOKE; FLANGE,PROP SHAFT
ZF M/T<X9E> (B) 		1-37211-069-2 01 1 9902- ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-093-0 AR 1 9902- ● ●
10 BOLT; UJT
M10X20 		9-02061-020-0 AR 1 9902- ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-009-0 AR 1 9902- ● ●
13 COVER; FRT UJT,PROP SHAFT 1-37355-021-0 AR 1 9902- ● ●
14 COVER; DUST,SPIDER 1-37249-133-0 AR 1 9902- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 AR 1 9902- ● ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 08 1 9902- ● ●
71 NUT; YOKE
ISUZU M/T<X9A> M16 FLANGE 		1-09449-065-0 08 1 9902- ● ●
71 NUT; YOKE
ZF M/T<X9E> M14 FLANGE 		1-09440-048-0 04 1 9902- ● ●
95 BOLT; YOKE,FINAL
BRAKE SYSTEM RETARDER<RE2> M16X48 		1-09000-383-0 08 1 9902- ● ●
104 PLUG; SLEEVE YOKE 1-09600-049-0 01 1 9902- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 02 1 9902- ● ●
128 SEAL; SLEEVE 1-37247-020-0 01 1 9902- ● ●
225 YOKE; SLEEVE,PROP SHAFT
MJA7U M/T(X6G) L=410 		1-37241-105-1 01 1 9902-0003 ●
225 YOKE; SLEEVE,PROP SHAFT
ISUZU M/T<X9A> L=410 		1-37241-105-1 01 1 0004- ● ●
225 YOKE; SLEEVE,PROP SHAFT
ZF M/T<X9E> L=345 		1-37241-107-1 01 1 9902- ● ●
