Isuzu WW
▶
PICKUP
▶
TFR
▶
51194 - TFR/TFS-RHD
▶
2 - Clutch, Transmission, Trans Axle
▶
2-53B - TRANSMISSION OIL COOLER SYSTEM
▶
2-53B — TRANSMISSION OIL COOLER SYSTEM
(#77009) — 31 parça
Tümü
A - A/T AISIN
B - A/T 4 SPEED-JATCO
◀

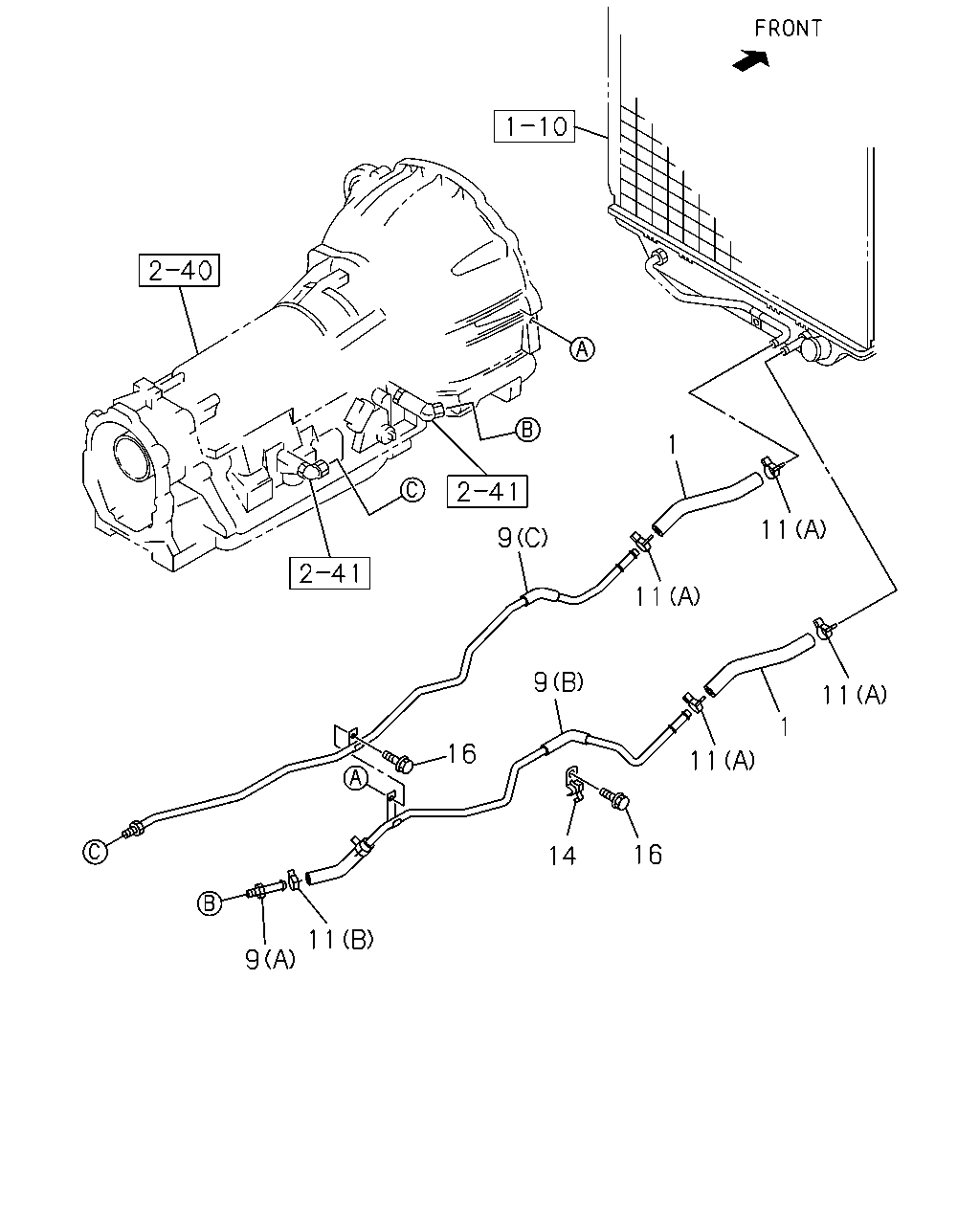

[253B] A/T AISIN (14 parça)

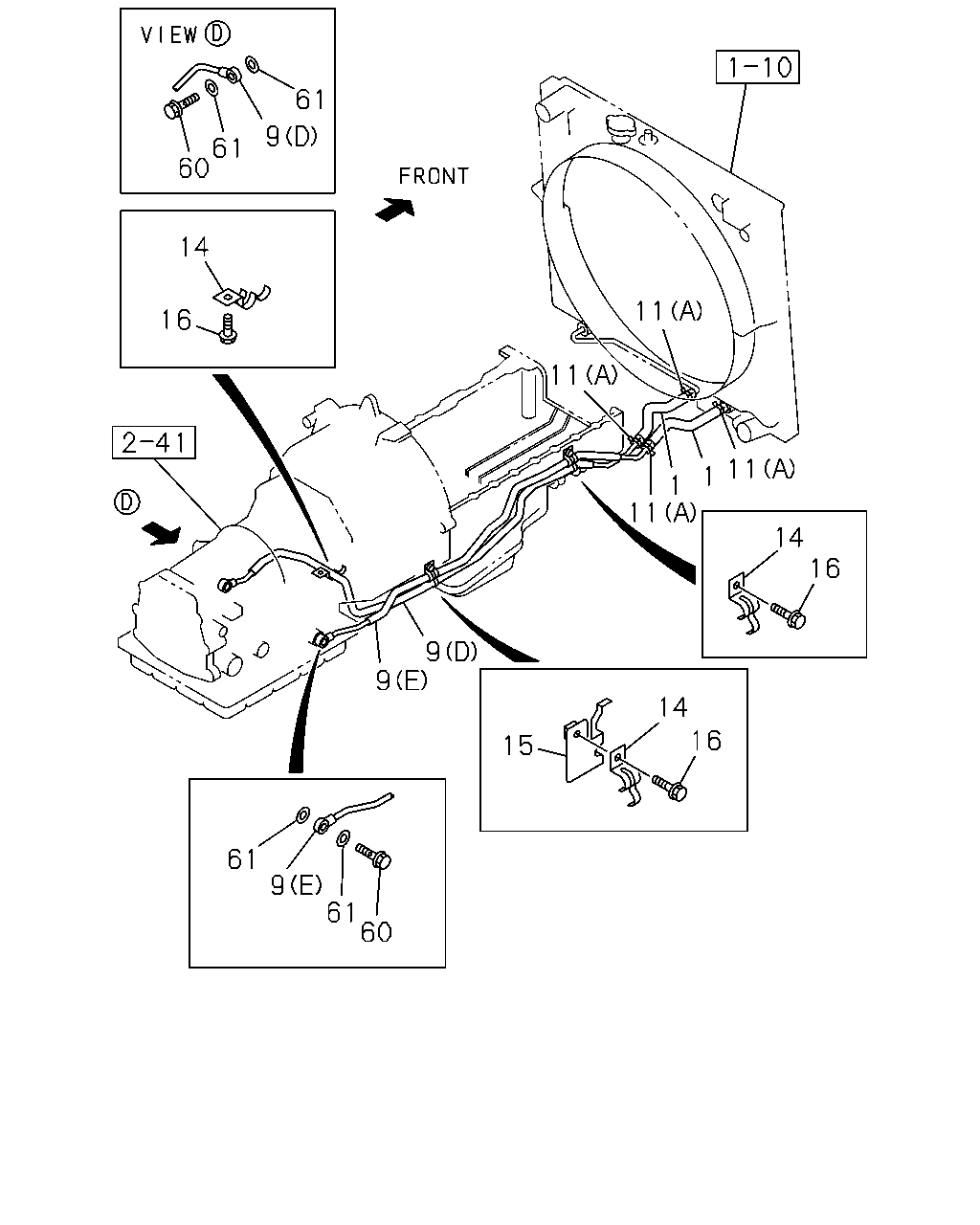

[253B] A/T 4 SPEED-JATCO (17 parça)
▶
1
11
9
11
9
11
1
16
11
16
14
11
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
04.128 HOSE; ATF
4JJ1-TCX ENG(LS0) L=250 SERVICED BY L=3000
0-02259-300-0
02
1
0808-0809
●
1
04.128 HOSE; ATF
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) L=250 SERVICED BY L=3000
0-02259-300-0
02
1
0810-
●
●
9
04.128 PIPE; ATF,INL,A/T
4JJ1-TCS ENG(LFB) (D)
8-97946-403-0
01
1
0810-
●
9
04.128 PIPE; ATF,INL,A/T
4JJ1-TCS ENG(LFB) (E)
8-97946-404-0
01
1
0810-
●
9
04.128 PIPE; ATF,INL,A/T
4JJ1-TCX ENG(LS0) (A)
8-98036-273-0
01
1
0808-
●
9
04.128 PIPE; ATF,INL,A/T
4JJ1-TCX ENG(LS0) (B)
8-98061-107-0
01
1
0808-
●
9
04.128 PIPE; ATF,INL,A/T
4JJ1-TCX ENG(LS0) (C)
8-98085-689-0
01
1
0808-
●
11
04.128 CLIP; PIPE
4JJ1-TCX ENG(LS0) (A)
8-98008-165-0
04
1
0808-0809
●
11
04.128 CLIP; PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) (A)
8-98008-165-0
04
1
0810-
●
●
11
04.128 CLIP; PIPE
4JJ1-TCX ENG(LS0) 01.762 (B) ID=16
8-98030-682-0
01
1
0808-
●
14
04.128 CLIP; PIPE TO ENG SIDE
4JJ1-TCS ENG(LFB)
8-98008-163-0
03
1
0810-
●
14
04.128 CLIP; PIPE TO ENG SIDE
4JJ1-TCX ENG(LS0)
8-98008-163-0
01
1
0808-
●
16
04.128 BOLT; CLIP,ENG SIDE
4JJ1-TCS ENG(LFB) 02.343 M8X16 FLANGE
0-28050-816-0
03
1
0810-
●
16
04.128 BOLT; CLIP,ENG SIDE
4JJ1-TCX ENG(LS0) 02.343 M8X16 FLANGE
0-28050-816-0
02
1
0808-
●
61
9
61
60
14
11
16
11
11
1
1
11
14
16
9
9
14
16
15
61
9
61
60
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
04.128 HOSE; ATF
4JJ1-TCX ENG(LS0) L=250 SERVICED BY L=3000
0-02259-300-0
02
1
0808-0809
●
1
04.128 HOSE; ATF
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) L=250 SERVICED BY L=3000
0-02259-300-0
02
1
0810-
●
●
9
04.128 PIPE; ATF,INL,A/T
4JJ1-TCS ENG(LFB) (D)
8-97946-403-0
01
1
0810-
●
9
04.128 PIPE; ATF,INL,A/T
4JJ1-TCS ENG(LFB) (E)
8-97946-404-0
01
1
0810-
●
9
04.128 PIPE; ATF,INL,A/T
4JJ1-TCX ENG(LS0) (A)
8-98036-273-0
01
1
0808-
●
9
04.128 PIPE; ATF,INL,A/T
4JJ1-TCX ENG(LS0) (B)
8-98061-107-0
01
1
0808-
●
9
04.128 PIPE; ATF,INL,A/T
4JJ1-TCX ENG(LS0) (C)
8-98085-689-0
01
1
0808-
●
11
04.128 CLIP; PIPE
4JJ1-TCX ENG(LS0) (A)
8-98008-165-0
04
1
0808-0809
●
11
04.128 CLIP; PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) (A)
8-98008-165-0
04
1
0810-
●
●
11
04.128 CLIP; PIPE
4JJ1-TCX ENG(LS0) 01.762 (B) ID=16
8-98030-682-0
01
1
0808-
●
14
04.128 CLIP; PIPE TO ENG SIDE
4JJ1-TCS ENG(LFB)
8-98008-163-0
03
1
0810-
●
14
04.128 CLIP; PIPE TO ENG SIDE
4JJ1-TCX ENG(LS0)
8-98008-163-0
01
1
0808-
●
15
04.128 BRACKET; ATF PIPE
4JJ1-TCS ENG(LFB)
8-98050-694-0
01
1
0810-
●
16
04.128 BOLT; CLIP,ENG SIDE
4JJ1-TCS ENG(LFB) 02.343 M8X16 FLANGE
0-28050-816-0
03
1
0810-
●
16
04.128 BOLT; CLIP,ENG SIDE
4JJ1-TCX ENG(LS0) 02.343 M8X16 FLANGE
0-28050-816-0
02
1
0808-
●
60
04.128 BOLT; EYE,ATF PIPE
4JJ1-TCS ENG(LFB) M14X29
1-09675-033-0
02
1
0810-
●
61
04.128 GASKET; EYE BOLT,ATF PIPE
4JJ1-TCS ENG(LFB) 08.955 ID=14.2 OD=20.0
9-09571-414-0
04
1
0810-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
