Sayfa 2-50B - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51194 - TFR/TFS-RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-50B - AUTO TRANS BRAKE AND DISC CLUTCH ▶

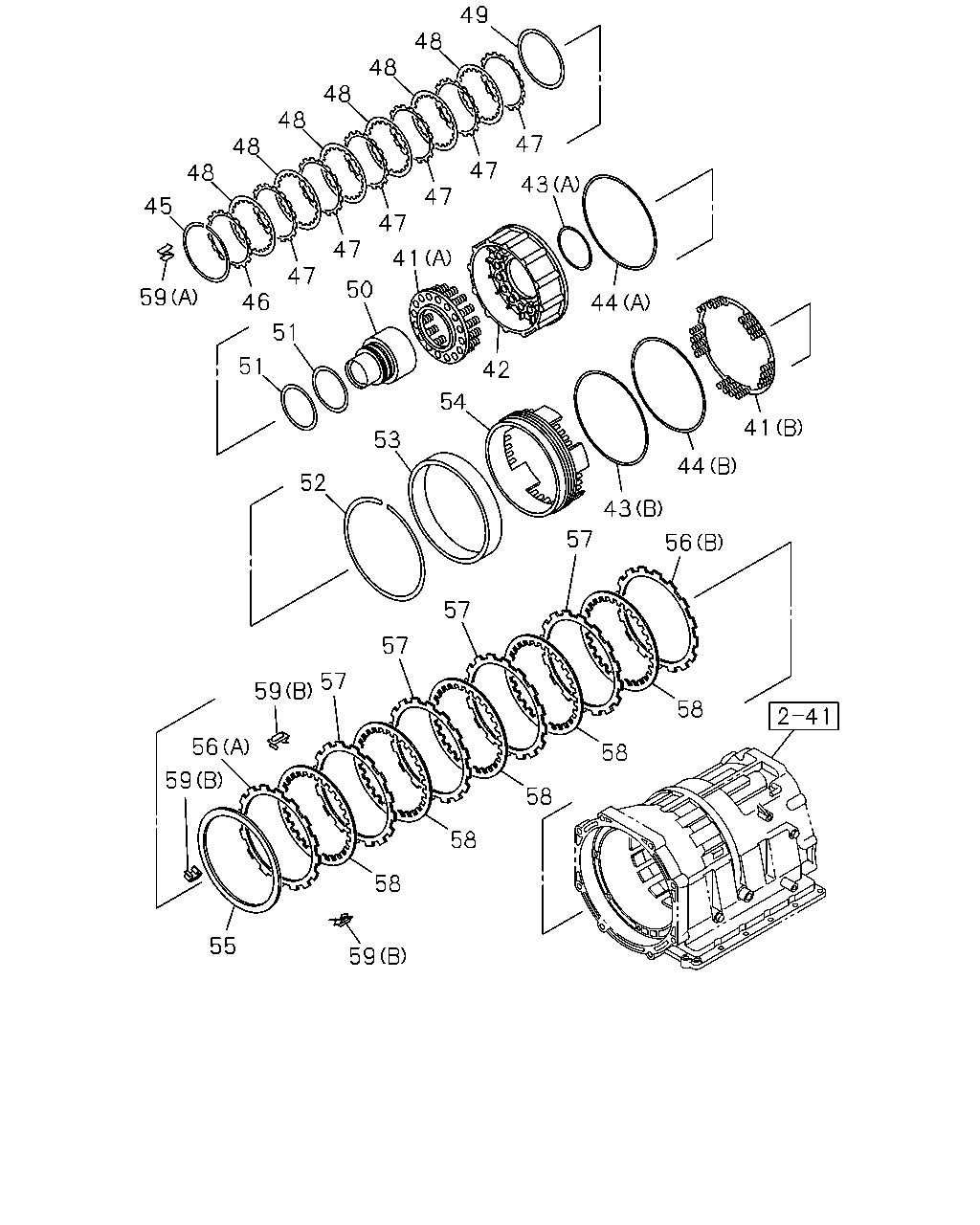

2-50B — AUTO TRANS BRAKE AND DISC CLUTCH (#77007) — 35 parça

49 48 48 48 48 47 48 47 48 43 47 45 47 47 41 47 50 59 46 44 51 51 42 54 41 53 44 52 43 57 56 57 57 57 59 58 56 58 59 58 58 58 55 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
41	04.164 SPRING; RETURN,PISTON,BRAKE 4JJ1-TCS ENG(LFB) (A)	8-97331-047-0	01	1	0810-
41	04.164 SPRING; RETURN,PISTON,BRAKE 4JJ1-TCS ENG(LFB) (B)	8-97331-048-0	01	1	0810-
42	04.264 PISTON; LOW BRAKE 4JJ1-TCS ENG(LFB)	8-97331-046-0	01	1	0810-
43	04.212 SEAL; BRAKE PISTON,INNER 4JJ1-TCS ENG(LFB) 04.166 (A)	8-94483-385-0	01	1	0810-
43	04.212 SEAL; BRAKE PISTON,INNER 4JJ1-TCS ENG(LFB) (B)	8-97330-992-0	01	1	0810-
44	04.212 SEAL; BRAKE PISTON,OUTER 4JJ1-TCS ENG(LFB) 04.166 (A)	8-94483-382-0	01	1	0810-
44	04.212 SEAL; BRAKE PISTON,OUTER 4JJ1-TCS ENG(LFB) (B)	8-97330-993-0	01	1	0810-
45	04.166 RING; SNAP,LOW BRAKE PLATE 4JJ1-TCS ENG(LFB)	8-97330-964-0	01	1	0810-
46	04.265 PLATE; RET,LOW BRAKE 4JJ1-TCS ENG(LFB) T=5.2	8-97331-051-0	01	1	0810-
46	04.265 PLATE; RET,LOW BRAKE 4JJ1-TCS ENG(LFB) T=5.4	8-97331-052-0	01	1	0810-
46	04.265 PLATE; RET,LOW BRAKE 4JJ1-TCS ENG(LFB) T=5.6	8-97331-053-0	01	1	0810-
46	04.265 PLATE; RET,LOW BRAKE 4JJ1-TCS ENG(LFB) T=5.8	8-97331-054-0	01	1	0810-
46	04.265 PLATE; RET,LOW BRAKE 4JJ1-TCS ENG(LFB) T=6.0	8-97331-055-0	01	1	0810-
47	04.265 PLATE; DRIVEN,LOW BRAKE 4JJ1-TCS ENG(LFB)	8-97331-050-0	06	1	0810-
48	04.265 PLATE; DRIVE,LOW BRAKE 4JJ1-TCS ENG(LFB)	8-97330-996-0	06	1	0810-
49	04.265 PLATE; DISHED,LOW BRAKE 4JJ1-TCS ENG(LFB)	8-97331-001-0	01	1	0810-
50	04.265 SUPPORT; LOW BRAKE 4JJ1-TCS ENG(LFB)	8-97330-958-0	01	1	0810-
51	04.266 RING; SEAL,SUPPORT 4JJ1-TCS ENG(LFB)	8-97330-982-0	02	1	0810-
52	04.266 RING; SNAP,RET,2 & 4 BRAKE 4JJ1-TCS ENG(LFB)	8-97330-972-0	01	1	0810-
53	04.266 RETAINER; PISTON,2 & 4 BRAKE 4JJ1-TCS ENG(LFB)	8-97331-045-0	01	1	0810-
54	04.264 PISTON; 2 & 4 BRAKE 4JJ1-TCS ENG(LFB)	8-97331-042-0	01	1	0810-
55	04.265 PLATE; DISHED,2 & 4 BRAKE 4JJ1-TCS ENG(LFB)	8-97331-002-0	01	1	0810-
56	04.265 PLATE; RET,2 & 4 BRAKE 4JJ1-TCS ENG(LFB) (A) T=5.0	8-97331-025-0	01	1	0810-
56	04.265 PLATE; RET,2 & 4 BRAKE 4JJ1-TCS ENG(LFB) (A) T=5.2	8-97331-026-0	01	1	0810-
56	04.265 PLATE; RET,2 & 4 BRAKE 4JJ1-TCS ENG(LFB) (A) T=5.4	8-97331-027-0	01	1	0810-
56	04.265 PLATE; RET,2 & 4 BRAKE 4JJ1-TCS ENG(LFB) (B) T=5.6	8-97331-028-0	01	1	0810-
56	04.265 PLATE; RET,2 & 4 BRAKE 4JJ1-TCS ENG(LFB) (A) T=5.8	8-97331-029-0	01	1	0810-
56	04.265 PLATE; RET,2 & 4 BRAKE 4JJ1-TCS ENG(LFB) (A) T=6.0	8-97331-030-0	01	1	0810-
56	04.265 PLATE; RET,2 & 4 BRAKE 4JJ1-TCS ENG(LFB) (A) T=6.2	8-97331-031-0	01	1	0810-
56	04.265 PLATE; RET,2 & 4 BRAKE 4JJ1-TCS ENG(LFB) (A) T=6.4	8-97331-032-0	01	1	0810-
56	04.265 PLATE; RET,2 & 4 BRAKE 4JJ1-TCS ENG(LFB) (A) T=5.6	8-98126-858-0	01	1	0810-
57	04.265 PLATE; DRIVEN,2 & 4 BRAKE 4JJ1-TCS ENG(LFB)	8-97331-009-0	04	1	0810-
58	04.265 PLATE; DRIVE,2 & 4 BRAKE 4JJ1-TCS ENG(LFB)	8-97330-999-0	05	1	0810-
59	04.164 SPRING; PLATE HOLD 4JJ1-TCS ENG(LFB) (A)	8-97331-043-0	01	1	0810-
59	04.164 SPRING; PLATE HOLD 4JJ1-TCS ENG(LFB) (B)	8-97331-044-0	03	1	0810-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
