◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51194 - TFR/TFS-RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-45B - AUTO TRANS CLUTCH AND PLANETARY GEAR ▶
2-45B — AUTO TRANS CLUTCH AND PLANETARY GEAR (#77002) — 32 parça

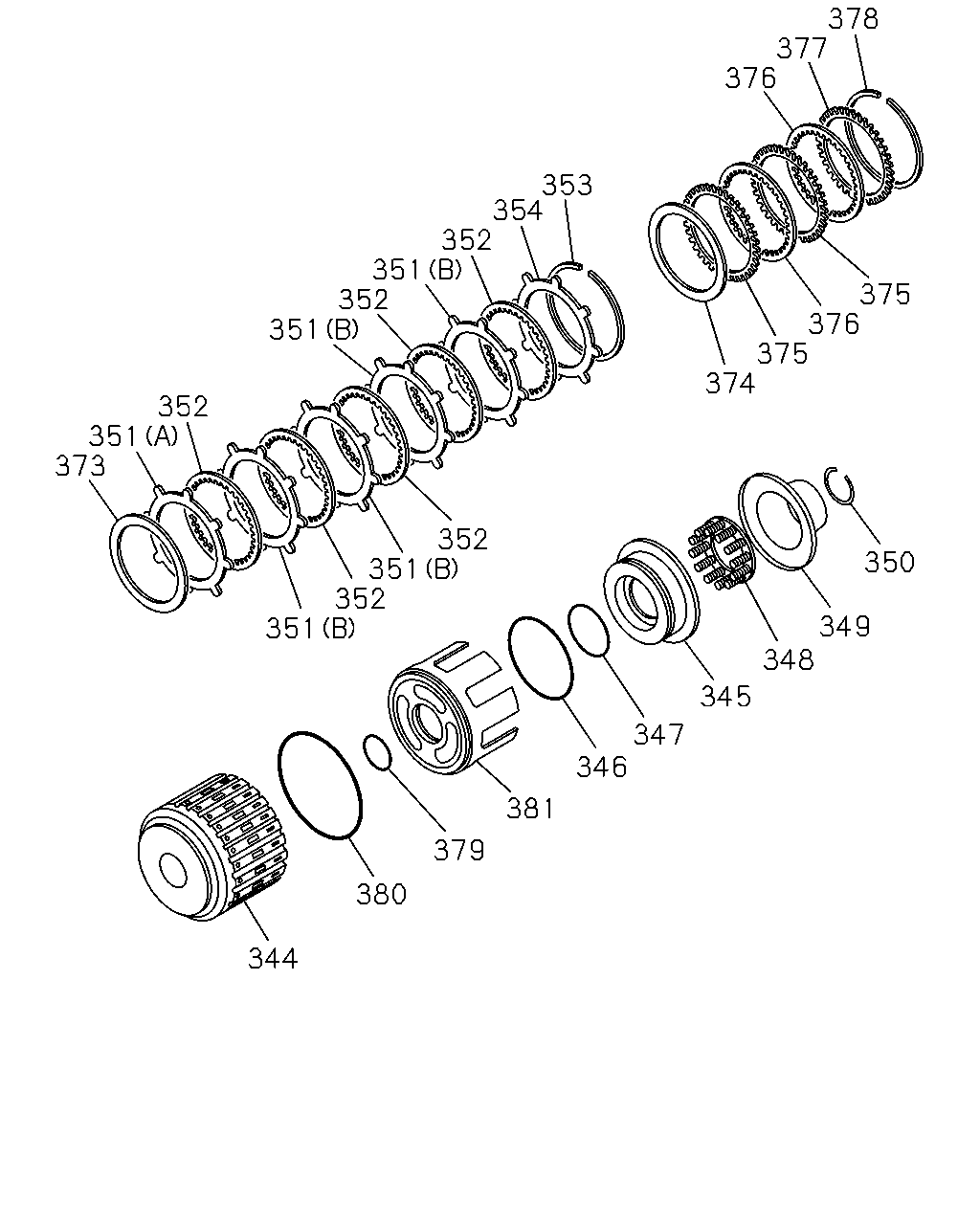

çizim 114260
378 377 376 353 354 352 351 352 351 375 376 375 374 352 351 373 352 351 352 351 350 349 348 345 347 346 381 379 380 344
BalonParca AdiParca NoAdetTipApplied Date
344 04.169 DRUM; HIGH CLU
4JJ1-TCS ENG(LFB) 		8-97330-978-0 01 1 0810-
345 04.166 PISTON; HIGH CLU
4JJ1-TCS ENG(LFB) 		8-97376-053-0 01 1 0810-
346 04.166 SEAL; HIGH CLU PISTON,OUTER
4JJ1-TCS ENG(LFB) 		8-97330-989-0 01 1 0810-
347 04.166 SEAL; HIGH CLU PISTON,INNER
4JJ1-TCS ENG(LFB) 		8-97331-035-0 01 1 0810-
348 04.164 SPRING; RETURN,HIGH CLU PISTON
4JJ1-TCS ENG(LFB) 		8-97330-980-0 01 1 0810-
349 04.164 RETAINER; RETURN SPRING,CLU PIST
4JJ1-TCS ENG(LFB) 		8-97331-034-0 01 1 0810-
350 04.164 RING; SNAP,SPRING RET,HIGH CLU
4JJ1-TCS ENG(LFB) 		8-97330-975-0 01 1 0810-
351 04.176 PLATE; DRIVEN,HIGH CLU,A/T
4JJ1-TCS ENG(LFB) (A) T=2.0 		8-97331-007-0 01 1 0810-
351 04.176 PLATE; DRIVEN,HIGH CLU,A/T
4JJ1-TCS ENG(LFB) (B) T=2.9 		8-97357-799-0 04 1 0810-
352 04.176 PLATE; DRIVE,HIGH CLU,A/T
4JJ1-TCS ENG(LFB) 		8-97331-000-0 05 1 0810-
353 04.176 RING; SNAP,HIGH CLU PLATE
4JJ1-TCS ENG(LFB) 		8-97330-976-0 01 1 0810-
354 04.176 PLATE; RET,HIGH CLU
4JJ1-TCS ENG(LFB) T=4.6 		8-97331-019-0 01 1 0810-
354 04.176 PLATE; RET,HIGH CLU
4JJ1-TCS ENG(LFB) T=4.8 		8-97331-020-0 01 1 0810-
354 04.176 PLATE; RET,HIGH CLU
4JJ1-TCS ENG(LFB) T=5.0 		8-97331-021-0 01 1 0810-
354 04.176 PLATE; RET,HIGH CLU
4JJ1-TCS ENG(LFB) T=5.2 		8-97331-022-0 01 1 0810-
354 04.176 PLATE; RET,HIGH CLU
4JJ1-TCS ENG(LFB) T=5.4 		8-97331-023-0 01 1 0810-
354 04.176 PLATE; RET,HIGH CLU
4JJ1-TCS ENG(LFB) T=4.7 		8-98126-849-0 01 1 0810-
354 04.176 PLATE; RET,HIGH CLU
4JJ1-TCS ENG(LFB) T=4.9 		8-98126-850-0 01 1 0810-
354 04.176 PLATE; RET,HIGH CLU
4JJ1-TCS ENG(LFB) T=5.1 		8-98126-851-0 01 1 0810-
354 04.176 PLATE; RET,HIGH CLU
4JJ1-TCS ENG(LFB) T=5.3 		8-98126-852-0 01 1 0810-
373 04.176 PLATE; DISHED,HIGH CLU
4JJ1-TCS ENG(LFB) 		8-97331-003-0 01 1 0810-
374 04.176 PLATE; DISHED,REV CLU
4JJ1-TCS ENG(LFB) 		8-97331-049-0 01 1 0810-
375 04.176 PLATE; DRIVEN,REV CLU
4JJ1-TCS ENG(LFB) 		8-97331-006-0 02 1 0810-
376 04.176 PLATE; DRIVE,REV CLU
4JJ1-TCS ENG(LFB) 		8-97330-997-0 02 1 0810-
377 04.176 PLATE; RET,REV CLU
4JJ1-TCS ENG(LFB) T=4.8 		8-97331-015-0 01 1 0810-
377 04.176 PLATE; RET,REV CLU
4JJ1-TCS ENG(LFB) T=5.0 		8-97331-016-0 01 1 0810-
377 04.176 PLATE; RET,REV CLU
4JJ1-TCS ENG(LFB) T=5.2 		8-97331-017-0 01 1 0810-
377 04.176 PLATE; RET,REV CLU
4JJ1-TCS ENG(LFB) T=5.4 		8-97331-018-0 01 1 0810-
378 04.176 RING; SNAP,REV CLU PLATE
4JJ1-TCS ENG(LFB) 		8-97330-973-0 01 1 0810-
379 04.176 SEAL; REV CLU PISTON,INNER
4JJ1-TCS ENG(LFB) 		8-97330-994-0 01 1 0810-
380 04.176 SEAL; REV CLU PISTON,OUTER
4JJ1-TCS ENG(LFB) 		8-97330-995-0 01 1 0810-
381 04.176 PISTON; REV CLUTCH
4JJ1-TCS ENG(LFB) 		8-97357-798-0 01 1 0810-
