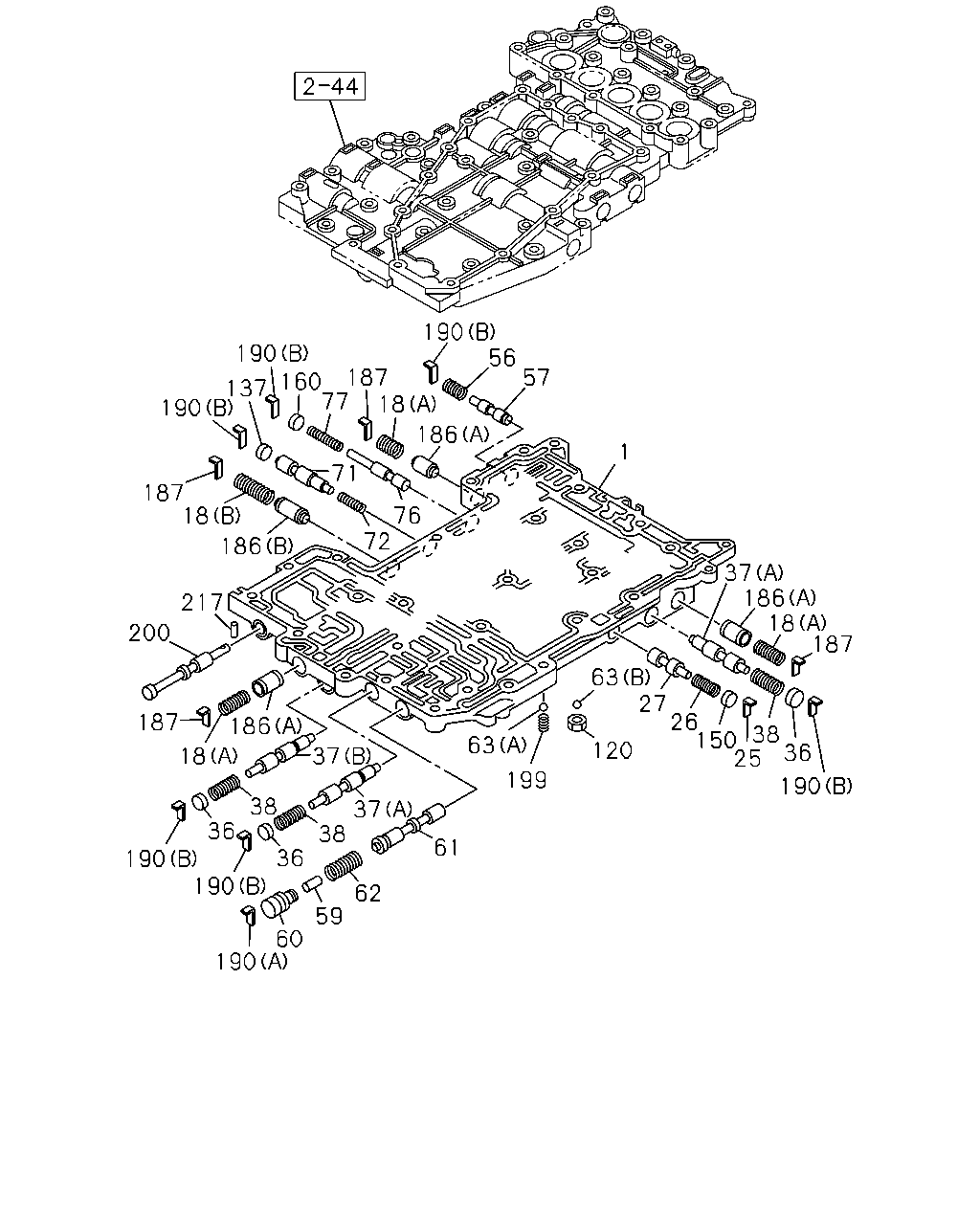

2-43B — AUTO TRANS CONTROL VALVE; UPPER BODY (#77000) — 34 parça

190 56 57 190 187 160 77 18 137 190 186 1 71 187 18 76 72 186 37 186 18 187 217 200 63 27 26 38 150 36 25 186 187 37 63 120 18 199 190 38 37 38 62 36 61 36 190 190 59 60 190

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.265 BODY ASM; UPR,VALVE,A/T 4JJ1-TCS ENG(LFB)	8-97331-058-0	01	1	0810-
18	04.265 SPRING; ACCUMLATOR CONT VLV 4JJ1-TCS ENG(LFB) 04.246 (A)	8-97092-821-0	03	1	0810-
18	04.265 SPRING; ACCUMLATOR CONT VLV 4JJ1-TCS ENG(LFB) (B)	8-97331-077-0	01	1	0810-
25	04.265 PLATE; RET,SHIFT CONT VLV 4JJ1-TCS ENG(LFB)	8-97331-080-0	01	1	0810-
26	04.265 SPRING; SHIFT CONT VLV 4JJ1-TCS ENG(LFB)	8-97331-076-0	01	1	0810-
27	04.265 VALVE; SHIFT CONT,UPR BODY 4JJ1-TCS ENG(LFB)	8-97331-084-0	01	1	0810-
36	04.265 PLUG; SPOOL CONT VLV,UPR BODY 4JJ1-TCS ENG(LFB)	8-97331-098-0	03	1	0810-
37	04.265 VALVE; SPOOL CONT,UPR BODY 4JJ1-TCS ENG(LFB) (A)	8-97331-086-0	02	1	0810-
37	04.265 VALVE; SPOOL CONT,UPR BODY 4JJ1-TCS ENG(LFB) (B)	8-97331-090-0	01	1	0810-
38	04.265 SPRING; SPOOL CONT VLV 4JJ1-TCS ENG(LFB)	8-97331-068-0	03	1	0810-
56	04.265 SPRING; PILOT VALVE,SPOOL CONT 4JJ1-TCS ENG(LFB)	8-97331-066-0	01	1	0810-
57	04.265 VALVE; PILOT,SPOOL CONT 4JJ1-TCS ENG(LFB)	8-97331-088-0	01	1	0810-
59	04.265 SLEEVE; LOCKUP CONT VALVE 4JJ1-TCS ENG(LFB)	8-97331-095-0	01	1	0810-
60	04.265 PLUG; LOCKUP CONT VALVE 4JJ1-TCS ENG(LFB)	8-97331-094-0	01	1	0810-
61	04.265 VALVE; LOCKUP CONT,UPR BODY 4JJ1-TCS ENG(LFB)	8-97331-093-0	01	1	0810-
62	04.265 SPRING; LOCKUP CONT VALVE 4JJ1-TCS ENG(LFB)	8-97331-067-0	01	1	0810-
63	04.265 BALL; STEEL,VLV UPR,A/T 4JJ1-TCS ENG(LFB) (A)	8-97135-609-0	10	1	0810-
63	04.265 BALL; STEEL,VLV UPR,A/T 4JJ1-TCS ENG(LFB) (B)	8-97331-092-0	01	1	0810-
71	04.265 VALVE; LOW,VLV UPR RR,A/T 4JJ1-TCS ENG(LFB)	8-97331-082-0	01	1	0810-
72	04.265 SPRING; VLV LOW,VLV UPR RR,A/T 4JJ1-TCS ENG(LFB)	8-97331-070-0	01	1	0810-
76	04.265 VALVE; REV CLU,A/T 4JJ1-TCS ENG(LFB)	8-97331-085-0	01	1	0810-
77	04.265 SPRING; VLV,REV,A/T 4JJ1-TCS ENG(LFB)	8-97331-074-0	01	1	0810-
120	04.265 NUT; UPR BODY,VLV,A/T 4JJ1-TCS ENG(LFB)	8-97112-969-0	02	1	0810-
137	04.265 PLUG; LOW MODULATOR VALVE 4JJ1-TCS ENG(LFB)	8-97331-099-0	01	1	0810-
150	04.265 PLUG; SHIFT VLV 4JJ1-TCS ENG(LFB)	8-97331-099-0	01	1	0810-
160	04.265 PLUG; VLV BODY 4JJ1-TCS ENG(LFB)	8-97331-097-0	01	1	0810-
186	04.241 PISTON; ACCUMLATOR VLV,A/T 4JJ1-TCS ENG(LFB) (A)	8-94342-922-0	03	1	0810-
186	04.241 PISTON; ACCUMLATOR VLV,A/T 4JJ1-TCS ENG(LFB) (B)	8-97331-056-0	01	1	0810-
187	04.265 PLATE; ACCUM CONT VLV,A/T 4JJ1-TCS ENG(LFB)	8-94385-905-0	04	1	0810-
190	04.265 PLATE; VLV RET,A/T 4JJ1-TCS ENG(LFB) (A)	8-94385-905-0	01	1	0810-
190	04.265 PLATE; VLV RET,A/T 4JJ1-TCS ENG(LFB) (B)	8-97331-080-0	06	1	0810-
199	04.265 SPRING; VALVE,A/T 4JJ1-TCS ENG(LFB)	8-97331-079-0	01	1	0810-
200	04.265 VALVE; MANUAL,UPR BODY 4JJ1-TCS ENG(LFB)	8-97331-065-0	01	1	0810-
217	04.105 PIN; DOWEL 4JJ1-TCS ENG(LFB)	8-97331-120-0	01	1	0810-
