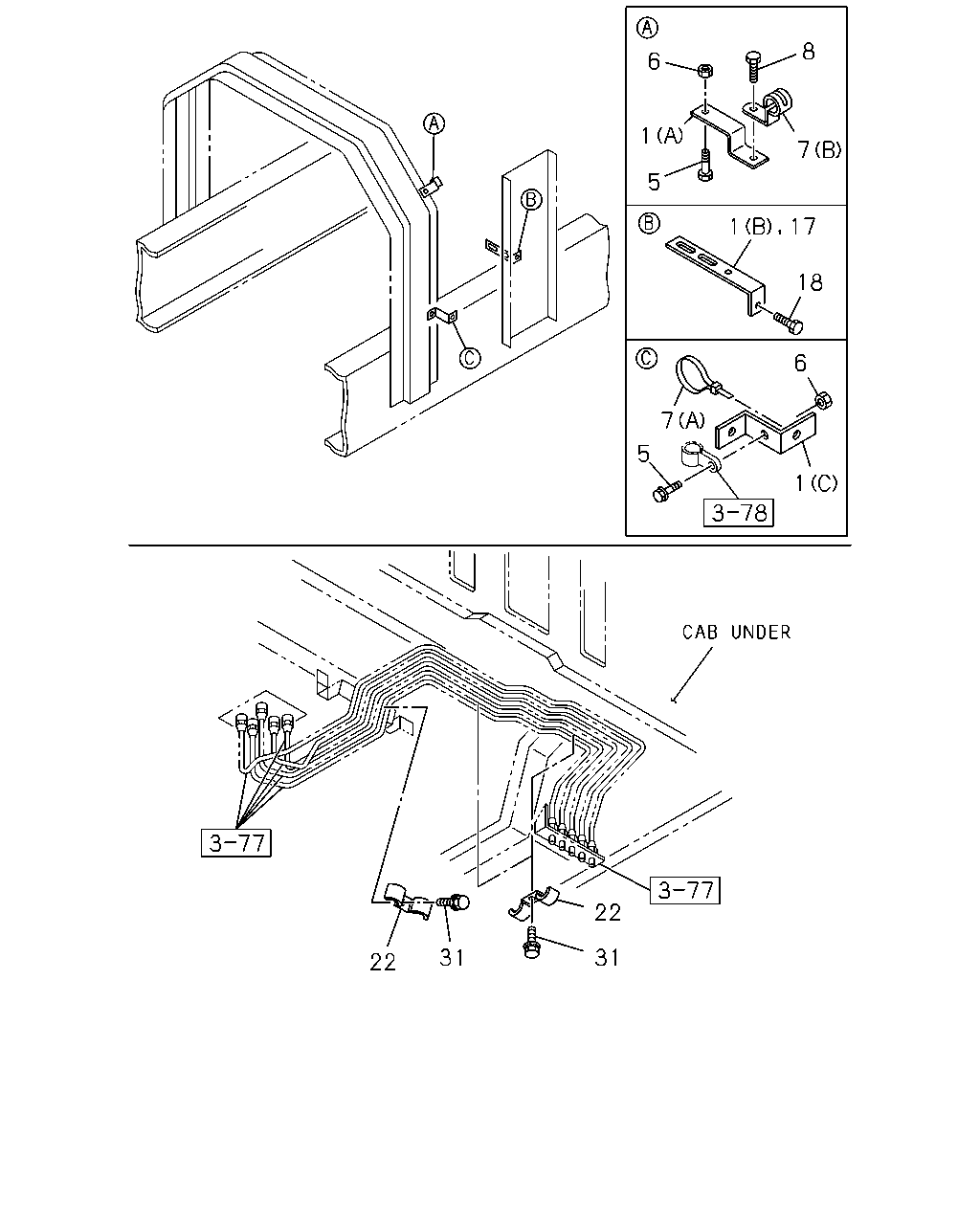

3-83 — FIXING PARTS; TRAILER PIPING (#7700) — 41 parça

8 6 1 7 5 1 17 18 6 7 5 1 22 31 31 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BRACKET; CLIP (A)	1-47477-908-1	01	1	9902-0003	●
1	BRACKET; CLIP (A)	1-47477-908-1	01	1	0004-	●	●
1	BRACKET; CLIP SILENCER SINGLE VERTICAL<N28> (B) L=150 H=30	1-47477-629-2	01	1	9902-	●
1	BRACKET; CLIP SILENCER SINGLE VERTICAL<N28> (C)	1-47478-462-0	02	1	9902-9907	●
1	BRACKET; CLIP WHEEL BASE 3500MM(35W) ANTILOCK BRAKE SYSTEM(BFA) (C)	1-47478-462-0	02	1	9908-	●
1	BRACKET; CLIP WHEEL BASE 3500MM(35W) SILENCER SINGLE VERTICAL<N28> (C)	1-47478-462-0	02	1	9908-	●
5	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	01	1	9908-0004	●
5	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	01	1	0005-	●	●
5	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M8X30 FLANGE	0-28680-830-0	03	1	9902-9907	●
5	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M8X30 FLANGE	0-28680-830-0	01	1	9908-	●
5	BOLT; BRKT WHEEL BASE 3500MM(35W) ANTILOCK BRAKE SYSTEM(BFA) M8X25 FLANGE	0-28680-825-0	02	1	9908-	●
5	BOLT; BRKT WHEEL BASE 3500MM(35W) SILENCER SINGLE VERTICAL<N28> M8X25 FLANGE	0-28680-825-0	02	1	9908-	●
5	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	02	1	0004-0004		●
6	NUT; BRKT SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91150-108-0	03	1	9902-9907	●
6	NUT; BRKT SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91150-108-0	01	1	9908-0003	●
6	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	9908-0003	●
6	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0004-	●	●
6	NUT; BRKT SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91150-108-0	01	1	0004-	●
6	NUT; BRKT WHEEL BASE 3500MM(35W) ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91150-108-0	02	1	9908-	●
6	NUT; BRKT WHEEL BASE 3500MM(35W) SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91150-108-0	02	1	9908-	●
7	CLIP; NYLON TUBE (A) L=250	1-09707-126-0	03	1	9902-9907	●
7	CLIP; NYLON TUBE WHEEL BASE 3500MM(35W) ANTILOCK BRAKE SYSTEM(BFA) (A) L=250	1-09707-126-0	04	1	9908-	●
7	CLIP; NYLON TUBE SILENCER SINGLE VERTICAL<N28> (A) L=250	1-09707-126-0	02	1	9902-9907	●
7	CLIP; NYLON TUBE WHEEL BASE 3200MM(32W) (A) L=250	1-09707-126-0	03	1	9908-	●
7	CLIP; NYLON TUBE WHEEL BASE 3500MM(35W) EXC. ANTILOCK BRAKE SYSTEM(BFA),SILENCER SINGLE VERTICAL<N28> (A) L=250	1-09707-126-0	03	1	9908-	●
7	CLIP; NYLON TUBE EXC. SILENCER SINGLE VERTICAL<N28> (B) ID=27.5 H=23 L=24	1-09700-863-0	02	1	9902-0003	●
7	CLIP; NYLON TUBE EXC. SILENCER SINGLE VERTICAL<N28> (B) ID=27.5 H=23 L=24	1-09700-863-0	02	1	0004-0004	●
7	CLIP; NYLON TUBE (B) ID=27.5 H=23 L=24	1-09700-863-0	02	1	0004-0004		●
7	CLIP; NYLON TUBE EXC. SILENCER SINGLE VERTICAL<N28> (B) ID=27.5 H=23 L=24	1-09700-863-0	02	1	0005-	●
7	CLIP; NYLON TUBE WHEEL BASE 3500MM(35W) SILENCER SINGLE VERTICAL<N28> (A) L=250	1-09707-126-0	05	1	9908-0003	●
7	CLIP; NYLON TUBE WHEEL BASE 3500MM(35W) SILENCER SINGLE VERTICAL<N28> (A) L=250	1-09707-126-0	05	1	0004-	●
7	CLIP; NYLON TUBE WHEEL BASE 3200MM(32W) (A) L=250	1-09707-126-0	05	1	0004-		●
8	BOLT; TUBE CLIP EXC. SILENCER SINGLE VERTICAL<N28> M8X30 FLANGE	0-28680-830-0	02	1	9902-0003	●
8	BOLT; TUBE CLIP EXC. SILENCER SINGLE VERTICAL<N28> M8X30 FLANGE	0-28680-830-0	02	1	0004-0004	●
8	BOLT; TUBE CLIP M8X30 FLANGE	0-28680-830-0	02	1	0004-0004		●
8	BOLT; TUBE CLIP EXC. SILENCER SINGLE VERTICAL<N28> M8X30 FLANGE	0-28680-830-0	02	1	0005-	●
17	BRACKET; CLIP L=100 H=30	1-47477-645-2	02	1	0004-		●
18	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	01	1	0004-0004		●
18	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	02	1	0005-		●
22	CLIP; AIR PIPE ID=9 & 9 L=15 & 15	1-09700-061-0	03	1	9902-	●
31	BOLT; CLIP,AIR PIPE M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	9902-	●
