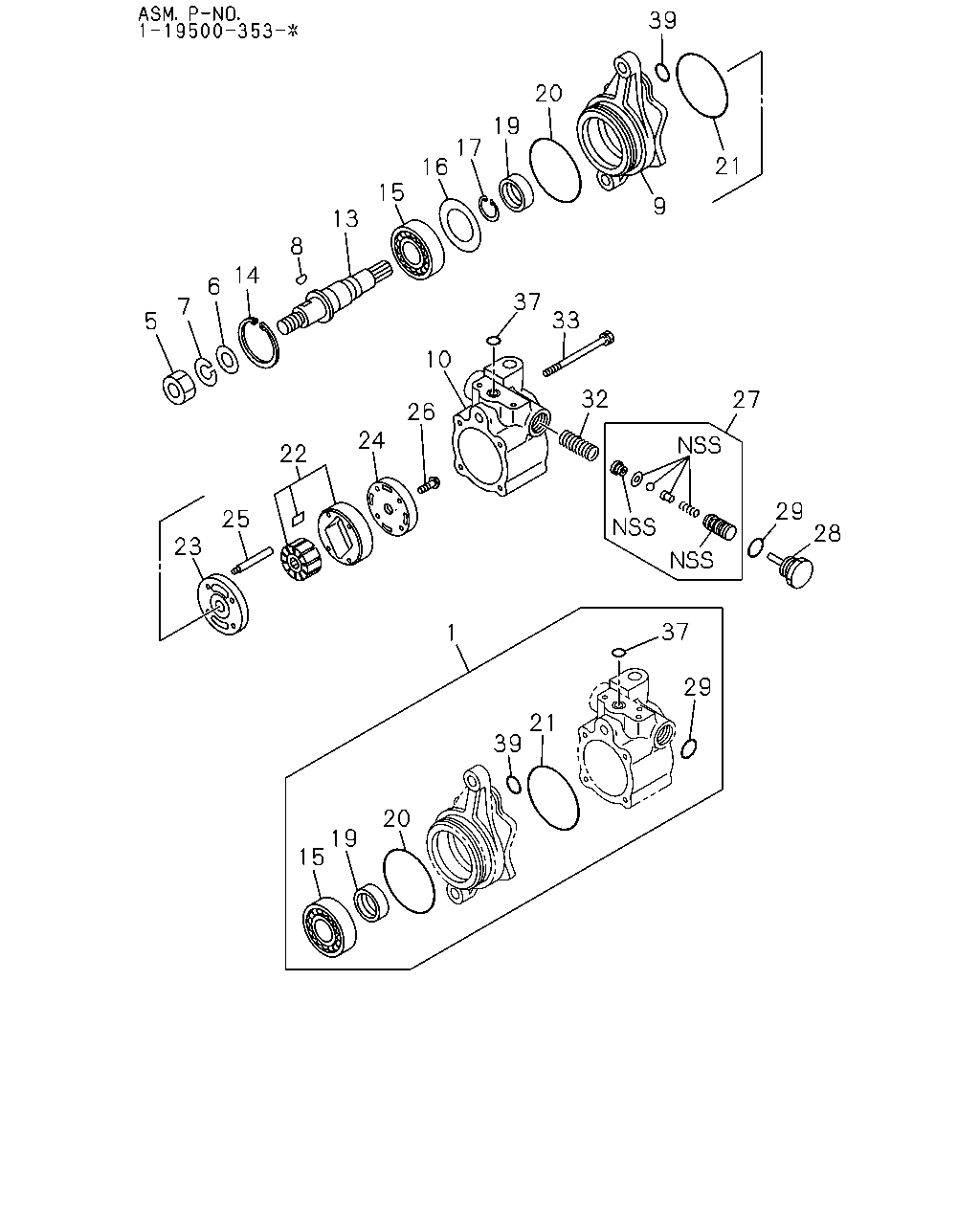

4-42 — POWER STEERING OIL PUMP (#770) — 83 parça

39 20 19 17 16 21 15 9 13 8 14 6 37 7 33 5 10 32 27 26 24 22 29 25 28 23 37 1 29 21 39 20 19 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; OIL PUMP ASM PART: A = 1-19500-353-1	1-85574-008-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: B = 1-19500-453-0	1-85574-025-0	01	1	-
5	NUT; SHAFT,P/S PUMP ASM PART: A = 1-19500-353-1	9-88510-424-0	01	1	-
6	WASHER; PL,OIL PUMP ASM PART: A = 1-19500-353-1	1-19519-293-0	01	1	-
7	WASHER; SHAFT ASM PART: A = 1-19500-353-1	9-88510-425-0	01	1	-
8	KEY; SHAFT,OIL PUMP ASM PART: B = 1-19500-453-0	9-08055-413-0	01	1	-
8	KEY; SHAFT,OIL PUMP ASM PART: A = 1-19500-353-1	9-19519-036-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: A = 1-19500-353-1	1-19511-064-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: B = 1-19500-453-0	1-19511-123-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: A = 1-19500-353-1	1-19511-063-1	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: B = 1-19500-453-0	1-19511-102-0	01	1	-
13	SHAFT KIT; RET ASM PART: A = 1-19500-353-1	1-19521-018-0	01	1	-
13	SHAFT KIT; RET ASM PART: B = 1-19500-453-0	1-19521-030-0	01	1	-
14	RING; RET,OIL PUMP ASM PART: A = 1-19500-353-1	1-19519-135-0	01	1	-
14	RING; RET,OIL PUMP ASM PART: B = 1-19500-453-0	1-19519-257-0	01	1	-
15	BEARING; BALL,OIL PUMP ASM PART: A = 1-19500-353-1	1-19515-004-0	01	1	-
15	BEARING; BALL,OIL PUMP ASM PART: B = 1-19500-453-0	1-19519-264-0	01	1	-
16	RING; RET,OIL PUMP ASM PART: B = 1-19500-453-0	1-19519-258-0	01	1	-
16	RING; RET,OIL PUMP ASM PART: A = 1-19500-353-1	9-19519-078-0	01	1	-
17	RING; RET ASM PART: A = 1-19500-353-1	1-19519-177-0	01	1	-
19	SEAL; OIL,OIL PUMP ASM PART: A = 1-19500-353-1	1-19519-252-0	01	1	-
19	SEAL; OIL,OIL PUMP ASM PART: B = 1-19500-453-0	1-19519-256-0	01	1	-
20	GASKET; FRT,OIL PUMP ID=77 ASM PART: A = 1-19500-353-1	1-09623-143-0	01	1	-
21	GASKET; FRT COVER TO BODY (A) ASM PART: B = 1-19500-453-0	8-94475-378-0	01	1	-
21	GASKET; FRT COVER TO BODY (B) ASM PART: B = 1-19500-453-0	8-94475-380-1	01	1	-
21	GASKET; FRT COVER TO BODY ASM PART: A = 1-19500-353-1	9-88510-234-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: A = 1-19500-353-1	1-19519-132-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: B = 1-19500-453-0	1-19519-304-0	01	1	-
23	PLATE; SIDE,OIL PUMP ASM PART: A = 1-19500-353-1	1-19519-133-1	01	1	-
24	PLATE ASM; THRUST ASM PART: B = 1-19500-453-0	1-19515-012-0	01	1	-
24	PLATE ASM; THRUST ASM PART: A = 1-19500-353-1	1-19519-228-1	01	1	-
25	PIN; HSG,P/S ASM PART: B = 1-19500-453-0	1-33739-345-0	02	1	-
25	PIN; HSG,P/S ASM PART: A = 1-19500-353-1	9-88510-408-0	02	1	-
26	SCREW; PLATE ASM PART: A = 1-19500-353-1	1-19519-106-0	02	1	-
27	VALVE ASM; OIL PUMP ASM PART: A = 1-19500-353-1	1-19519-183-1	01	1	-
28	PLUG; DRAIN,OIL PUMP ASM PART: A = 1-19500-353-1	1-19519-230-0	01	1	-
29	GASKET; PLUG TO VLV ASM PART: A = 1-19500-353-1	9-88510-248-0	01	1	-
32	SPRING; OIL PUMP ASM PART: B = 1-19500-453-0	8-94475-376-0	01	1	-
32	SPRING; OIL PUMP ASM PART: A = 1-19500-353-1	9-19529-013-0	01	1	-
33	BOLT; COVER ASM PART: A = 1-19500-353-1	1-19519-244-0	04	1	-
33	BOLT; COVER ASM PART: B = 1-19500-453-0	1-48119-054-0	04	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: B = 1-19500-453-0	1-33739-070-0	01	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: A = 1-19500-353-1	9-48429-028-0	01	1	-
39	GASKET; OIL PUMP ASM PART: A = 1-19500-353-1	1-19519-100-0	01	1	-
39	GASKET; OIL PUMP (A) ASM PART: B = 1-19500-453-0	1-19519-259-0	01	1	-
39	GASKET; OIL PUMP (B) ASM PART: B = 1-19500-453-0	9-48429-028-0	01	1	-

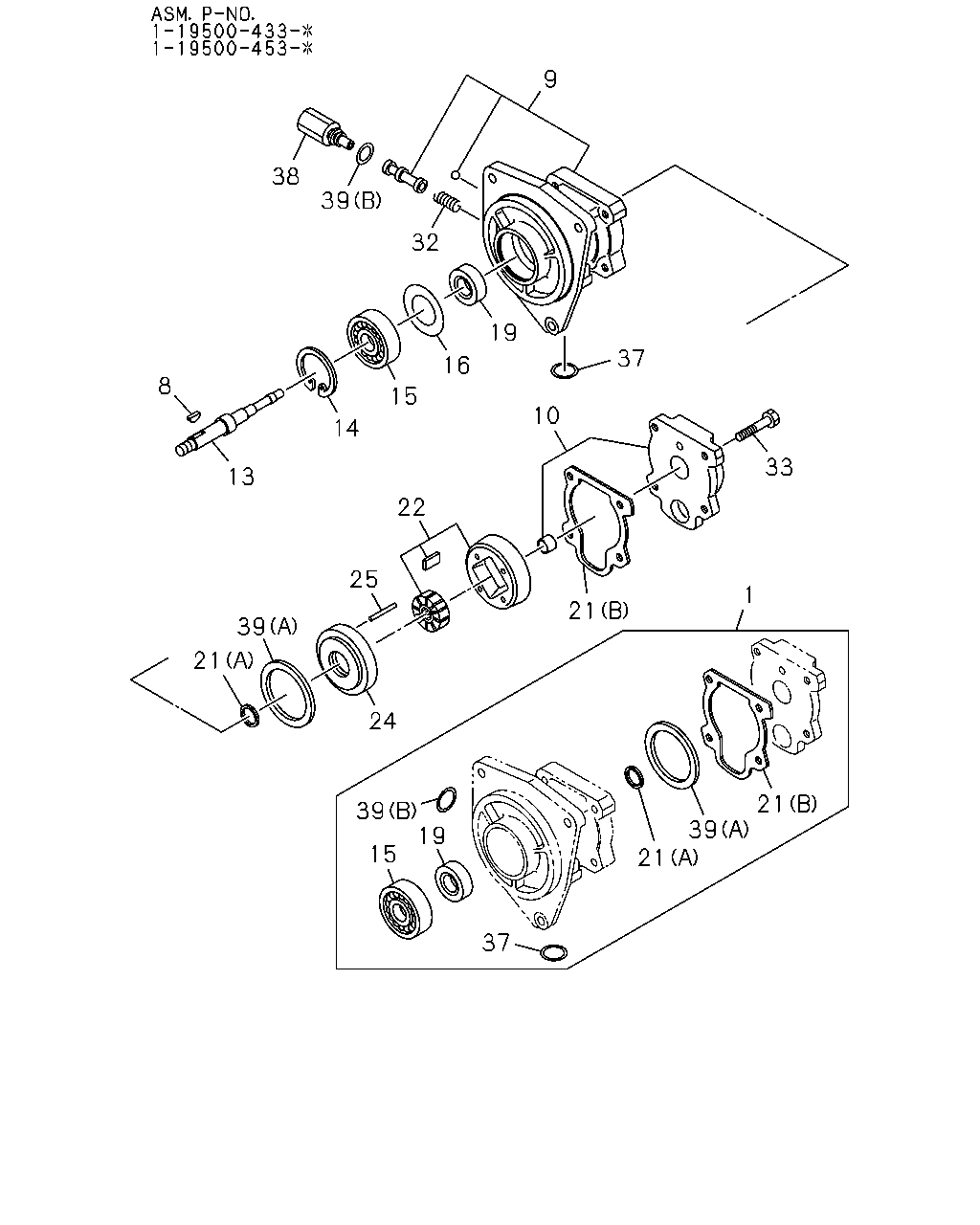

9 38 39 32 19 37 16 8 15 10 14 33 13 22 25 1 21 39 21 24 21 39 19 39 15 21 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; OIL PUMP ASM PART: A = 1-19500-353-1	1-85574-008-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: B = 1-19500-453-0	1-85574-025-0	01	1	-
8	KEY; SHAFT,OIL PUMP ASM PART: B = 1-19500-453-0	9-08055-413-0	01	1	-
8	KEY; SHAFT,OIL PUMP ASM PART: A = 1-19500-353-1	9-19519-036-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: A = 1-19500-353-1	1-19511-064-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: B = 1-19500-453-0	1-19511-123-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: A = 1-19500-353-1	1-19511-063-1	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: B = 1-19500-453-0	1-19511-102-0	01	1	-
13	SHAFT KIT; RET ASM PART: A = 1-19500-353-1	1-19521-018-0	01	1	-
13	SHAFT KIT; RET ASM PART: B = 1-19500-453-0	1-19521-030-0	01	1	-
14	RING; RET,OIL PUMP ASM PART: A = 1-19500-353-1	1-19519-135-0	01	1	-
14	RING; RET,OIL PUMP ASM PART: B = 1-19500-453-0	1-19519-257-0	01	1	-
15	BEARING; BALL,OIL PUMP ASM PART: A = 1-19500-353-1	1-19515-004-0	01	1	-
15	BEARING; BALL,OIL PUMP ASM PART: B = 1-19500-453-0	1-19519-264-0	01	1	-
16	RING; RET,OIL PUMP ASM PART: B = 1-19500-453-0	1-19519-258-0	01	1	-
16	RING; RET,OIL PUMP ASM PART: A = 1-19500-353-1	9-19519-078-0	01	1	-
19	SEAL; OIL,OIL PUMP ASM PART: A = 1-19500-353-1	1-19519-252-0	01	1	-
19	SEAL; OIL,OIL PUMP ASM PART: B = 1-19500-453-0	1-19519-256-0	01	1	-
21	GASKET; FRT COVER TO BODY (A) ASM PART: B = 1-19500-453-0	8-94475-378-0	01	1	-
21	GASKET; FRT COVER TO BODY (B) ASM PART: B = 1-19500-453-0	8-94475-380-1	01	1	-
21	GASKET; FRT COVER TO BODY ASM PART: A = 1-19500-353-1	9-88510-234-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: A = 1-19500-353-1	1-19519-132-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: B = 1-19500-453-0	1-19519-304-0	01	1	-
24	PLATE ASM; THRUST ASM PART: B = 1-19500-453-0	1-19515-012-0	01	1	-
24	PLATE ASM; THRUST ASM PART: A = 1-19500-353-1	1-19519-228-1	01	1	-
25	PIN; HSG,P/S ASM PART: B = 1-19500-453-0	1-33739-345-0	02	1	-
25	PIN; HSG,P/S ASM PART: A = 1-19500-353-1	9-88510-408-0	02	1	-
32	SPRING; OIL PUMP ASM PART: B = 1-19500-453-0	8-94475-376-0	01	1	-
32	SPRING; OIL PUMP ASM PART: A = 1-19500-353-1	9-19529-013-0	01	1	-
33	BOLT; COVER ASM PART: A = 1-19500-353-1	1-19519-244-0	04	1	-
33	BOLT; COVER ASM PART: B = 1-19500-453-0	1-48119-054-0	04	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: B = 1-19500-453-0	1-33739-070-0	01	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: A = 1-19500-353-1	9-48429-028-0	01	1	-
38	CONNECTOR; OIL PUMP ASM PART: B = 1-19500-453-0	1-19519-279-1	01	1	-
39	GASKET; OIL PUMP ASM PART: A = 1-19500-353-1	1-19519-100-0	01	1	-
39	GASKET; OIL PUMP (A) ASM PART: B = 1-19500-453-0	1-19519-259-0	01	1	-
39	GASKET; OIL PUMP (B) ASM PART: B = 1-19500-453-0	9-48429-028-0	01	1	-
