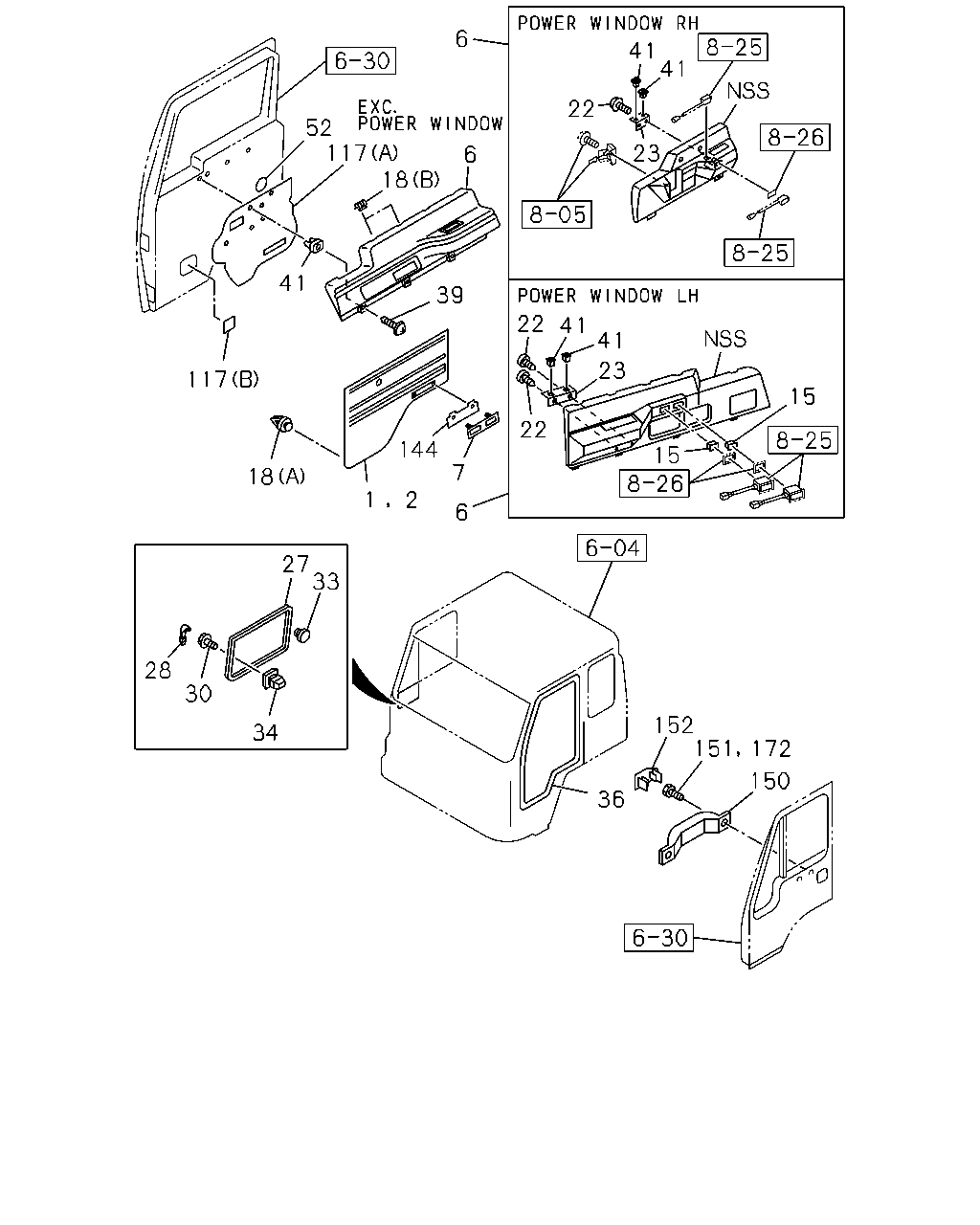

6-35 — FRONT DOOR TRIM (#77) — 59 parça

6 41 41 23 22 22 41 41 23 22 15 15 52 117 18 6 39 41 117 18 144 1 2 7 6 27 33 34 30 28 152 151 172 150 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PAD; TRIM,FRT DOOR THAILAND KD SPECIAL<PT6>	1-73338-255-0	01	1	9202-9212	●
1	PAD; TRIM,FRT DOOR THAILAND KD SPECIAL<PT6>	1-73338-254-0	01	1	9202-9212	●
2	TRIM; DOOR,LWR POWER WINDOW<A30>	1-73337-466-0	01	1	9206-	●
2	TRIM; DOOR,LWR POWER WINDOW<A30>	1-73337-429-0	01	1	9206-	●
2	TRIM; DOOR,LWR EXC. POWER WINDOW<A30>,THAILAND KD SPECIAL<PT6> DARK GRAY	1-73338-310-0	01	1	9202-	●
2	TRIM; DOOR,LWR DARK GRAY	1-73338-310-0	01	1	9202-		●
2	TRIM; DOOR,LWR EXC. POWER WINDOW<A30>,THAILAND KD SPECIAL<PT6> DARK GRAY	1-73337-347-0	01	1	9202-	●
2	TRIM; DOOR,LWR DARK GRAY	1-73337-347-0	01	1	9202-		●
6	TRIM; DOOR,UPR POWER WINDOW<A30>	1-73337-464-3	01	1	9206-	●
6	TRIM; DOOR,UPR POWER WINDOW<A30>	1-73337-373-5	01	1	9206-	●
6	TRIM; DOOR,UPR EXC. POWER WINDOW<A30>	1-73338-326-0	01	1	9202-	●
6	TRIM; DOOR,UPR	1-73338-326-0	01	1	9202-		●
6	TRIM; DOOR,UPR EXC. POWER WINDOW<A30>	1-73338-325-0	01	1	9202-	●
6	TRIM; DOOR,UPR	1-73338-325-0	01	1	9202-		●
7	COVER; DOOR OUTLET VENT DARK GRAY	1-73337-310-0	02	1	9202-	●	●
15	COVER; HOLE,DOOR TRIM POWER WINDOW<A30>	1-73337-471-2	01	1	9206-	●
18	CLIP; DOOR PAD EXC. POWER WINDOW<A30>,THAILAND KD SPECIAL<PT6> (B)	1-73337-276-0	04	1	9206-	●
18	CLIP; DOOR PAD (B)	1-73337-276-0	04	1	9206-		●
18	CLIP; DOOR PAD THAILAND KD SPECIAL<PT6> (A)	1-09987-119-1	26	1	9202-9212	●
18	CLIP; DOOR PAD (A)	1-09987-119-1	22	1	9301-	●	●
18	CLIP; DOOR PAD EXC. THAILAND KD SPECIAL<PT6> (A)	1-09987-119-1	22	1	9202-9212	●	●
18	CLIP; DOOR PAD EXC. THAILAND KD SPECIAL<PT6> (B)	1-73337-276-0	04	1	9202-9205	●	●
18	CLIP; DOOR PAD POWER WINDOW<A30> (B)	1-73337-276-0	02	1	9206-	●
22	SCREW; DOOR TRIM BRKT POWER WINDOW<A30> M4X12 TAPPING	9-07076-412-0	04	1	9206-	●
23	BRACKET; DOOR TRIM POWER WINDOW<A30>	1-73337-311-1	02	1	9206-	●
27	PANEL; ORNAMENT,DOOR	1-71997-511-0	01	1	9202-	●	●
27	PANEL; ORNAMENT,DOOR	1-71997-510-0	01	1	9202-	●	●
28	MOLDING; DOOR ORNAMENT	1-71997-524-1	04	1	9202-	●	●
30	SCREW; DOOR ORNAMENT M6X16 TAPPING W/PL WASHER	1-09981-452-0	04	1	9202-	●	●
33	GROMMET; DOOR ORNAMENT	1-09983-090-0	04	1	9202-	●	●
34	GROMMET; SCREW,DOOR ORNAMENT	1-09983-061-0	04	1	9202-	●	●
36	SEAL; DOOR,MAIN,CAB SIDE L=3060	1-76717-063-4	02	1	9202-	●	●
39	SCREW; DOOR PAD EXC. THAILAND KD SPECIAL<PT6> M6X16 TAPPING W/PL WASHER	0-74110-616-0	08	1	9202-9212	●	●
39	SCREW; DOOR PAD M6X16 TAPPING W/PL WASHER	0-74110-616-0	08	1	9301-	●	●
41	GROMMET; SCREW,DOOR PAD EXC. THAILAND KD SPECIAL<PT6>	1-09983-061-0	08	1	9202-9212	●	●
41	GROMMET; SCREW,DOOR PAD	1-09983-061-0	08	1	9301-	●	●
52	SEAL; WATER,DOOR LWR EXC. POWER WINDOW<A30> OD=25 BLACK	1-76798-019-0	03	1	9202-9205	●
52	SEAL; WATER,DOOR LWR OD=25 BLACK	1-76798-019-0	03	1	9202-9205		●
52	SEAL; WATER,DOOR LWR EXC. POWER WINDOW<A30> OD=25 BLACK	1-76798-019-0	05	1	9206-	●
52	SEAL; WATER,DOOR LWR OD=25 BLACK	1-76798-019-0	05	1	9206-		●
117	SEAL ASM; WATER DOOR POWER WINDOW<A30> (A)	1-76777-110-0	01	1	9206-	●
117	SEAL ASM; WATER DOOR POWER WINDOW<A30> (A)	1-76777-106-0	01	1	9206-9210	●
117	SEAL ASM; WATER DOOR POWER WINDOW<A30> (A)	1-76777-093-0	01	1	9211-	●
117	SEAL ASM; WATER DOOR EXC. POWER WINDOW<A30> (A)	1-76777-083-1	01	1	9202-9210	●
117	SEAL ASM; WATER DOOR (A)	1-76777-083-1	01	1	9202-9210		●
117	SEAL ASM; WATER DOOR EXC. POWER WINDOW<A30> (A)	1-76777-087-1	01	1	9211-	●
117	SEAL ASM; WATER DOOR (A)	1-76777-087-1	01	1	9211-		●
117	SEAL ASM; WATER DOOR EXC. POWER WINDOW<A30> (A)	1-76777-090-0	01	1	9202-9210	●
117	SEAL ASM; WATER DOOR (A)	1-76777-090-0	01	1	9202-9210		●
117	SEAL ASM; WATER DOOR EXC. POWER WINDOW<A30> (A)	1-76777-086-1	01	1	9211-	●
117	SEAL ASM; WATER DOOR (A)	1-76777-086-1	01	1	9211-		●
117	SEAL ASM; WATER DOOR (B)	1-76797-023-0	02	1	9204-	●	●
144	SHUTTER; DOOR TRIM	1-73337-288-0	02	1	9202-	●	●
150	GRIP; ASSIST,DOOR TRIM POWER WINDOW<A30>	1-73618-167-0	01	1	9206-	●
150	GRIP; ASSIST,DOOR TRIM THAILAND KD SPECIAL<PT6>	1-73617-042-0	02	1	9202-9212	●
151	SCREW; ASSIST GRIP,DOOR TRIM POWER WINDOW<A30> M6X30 W/PL WASHER	1-09981-495-0	02	1	9206-9208	●
151	SCREW; ASSIST GRIP,DOOR TRIM THAILAND KD SPECIAL<PT6> M6X20 M6X20 W/LK&PL WASHER	1-09981-374-0	04	1	9202-9212	●
152	PLUG; ASSIST GRIP,DOOR TRIM THAILAND KD SPECIAL<PT6>	1-73617-043-0	04	1	9202-9212	●
172	BOLT; ASSIST GRIP POWER WINDOW<A30> M6X20	1-09980-550-0	02	1	9209-	●
