2-42B — AUTO TRANS OIL PAN AND OIL CONTROL (#76999) — 43 parça

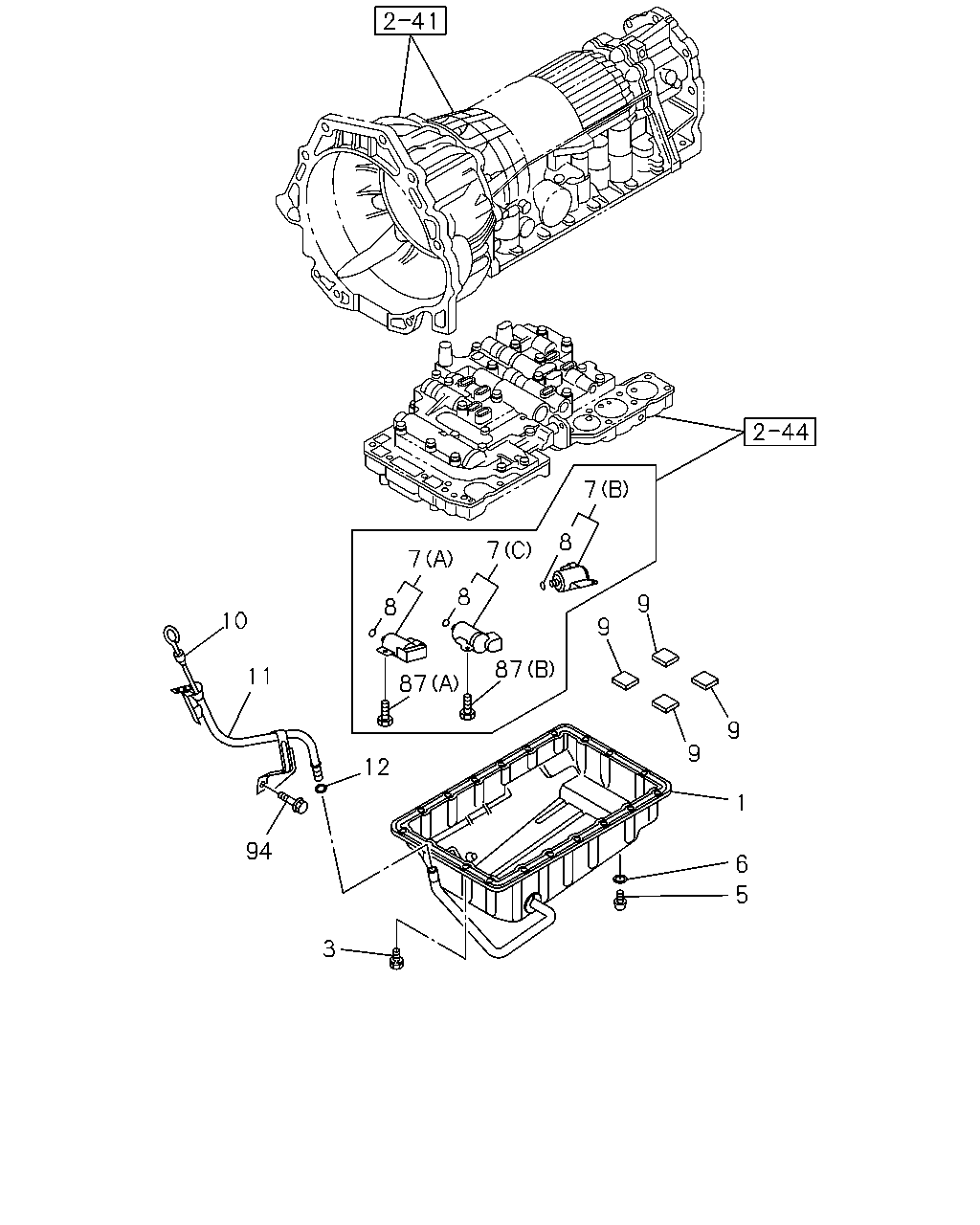

7 8 7 7 8 9 8 10 9 87 11 87 9 9 12 1 94 6 5 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.195 PAN ASM; OIL,A/T 4JJ1-TCS ENG(LFB)	8-97330-915-0	01	1	0810-	●
1	04.195 PAN ASM; OIL,A/T 4JJ1-TCX ENG(LS0)	8-98050-558-0	01	1	0808-		●
3	04.196 BOLT; OIL PAN TO CASE 4JJ1-TCS ENG(LFB)	8-97330-911-0	19	1	0810-	●
3	04.196 BOLT; OIL PAN TO CASE 4JJ1-TCX ENG(LS0)	8-97130-928-0	19	1	0808-		●
5	04.195 PLUG; OIL PAN 4JJ1-TCS ENG(LFB)	8-97131-023-0	01	1	0810-	●
5	04.195 PLUG; OIL PAN 4JJ1-TCX ENG(LS0) M10X9	8-97367-573-0	01	1	0808-		●
6	04.195 GASKET; OIL PAN TO PLUG 4JJ1-TCS ENG(LFB)	8-97044-671-0	01	1	0810-	●
6	04.195 GASKET; OIL PAN TO PLUG 4JJ1-TCX ENG(LS0) ID=12	5-34132-002-0	01	1	0808-		●
7	04.265 SOLENOID; DOWN SHIFT,A/T 4JJ1-TCX ENG(LS0) (A)	8-97214-539-0	01	1	0808-		●
7	04.265 SOLENOID; DOWN SHIFT,A/T 4JJ1-TCX ENG(LS0) (B)	8-97218-986-0	01	1	0808-		●
7	04.265 SOLENOID; DOWN SHIFT,A/T 4JJ1-TCX ENG(LS0) (C)	8-97218-987-0	01	1	0808-		●
8	04.265 GASKET; DOWN SHIFT SOLENOID,A/T 4JJ1-TCX ENG(LS0) ID=6.1	8-94480-101-0	03	1	0808-		●
9	04.195 MAGNET; OIL PAN 4JJ1-TCS ENG(LFB)	8-94140-738-0	01	1	0810-	●
9	04.195 MAGNET; OIL PAN 4JJ1-TCX ENG(LS0)	5-34138-004-0	04	1	0808-		●
10	04.197 GAUGE; OIL LEVEL 4JJ1-TCS ENG(LFB)	8-97371-037-0	01	1	0810-	●
10	04.197 GAUGE; OIL LEVEL 4JJ1-TCX ENG(LS0)	8-98043-896-0	01	1	0808-		●
11	04.197 TUBE; OIL FILLER 4JJ1-TCS ENG(LFB)	8-97380-513-0	01	1	0810-	●
11	04.197 TUBE; OIL FILLER 4JJ1-TCX ENG(LS0)	8-98005-234-2	01	1	0808-		●
12	04.197 GASKET; OIL FILLER TUBE TO A/T 4JJ1-TCX ENG(LS0) 04.133 ID=9.8	9-09561-110-0	01	1	0808-0809		●
12	04.197 GASKET; OIL FILLER TUBE TO A/T 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) 04.133 ID=9.8	9-09561-110-0	01	1	0810-	●	●
87	04.265 BOLT; SOLENOID 4JJ1-TCX ENG(LS0) 04.197 (B) M5X12	8-94405-335-0	01	1	0808-		●
87	04.265 BOLT; SOLENOID 4JJ1-TCX ENG(LS0) (A) M6X12	8-94479-927-0	01	1	0808-		●
94	04.197 BOLT; OIL FILLER TUBE 4JJ1-TCX ENG(LS0) 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0808-0809		●
94	04.197 BOLT; OIL FILLER TUBE 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0810-	●	●

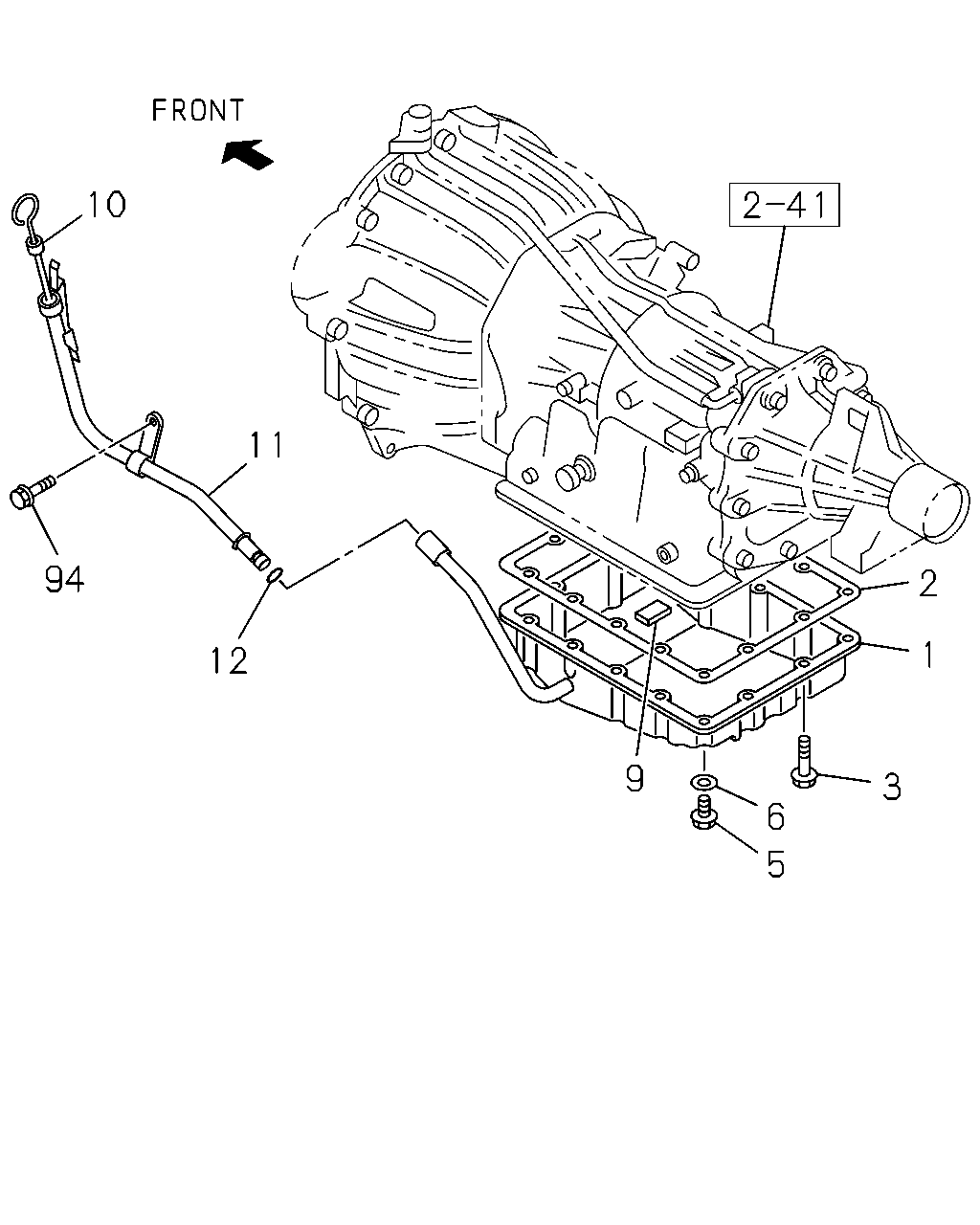

10 11 2 94 1 12 9 3 6 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.195 PAN ASM; OIL,A/T 4JJ1-TCS ENG(LFB)	8-97330-915-0	01	1	0810-	●
1	04.195 PAN ASM; OIL,A/T 4JJ1-TCX ENG(LS0)	8-98050-558-0	01	1	0808-		●
2	04.196 GASKET; OIL PAN,A/T 4JJ1-TCS ENG(LFB)	8-97330-916-0	01	1	0810-	●
3	04.196 BOLT; OIL PAN TO CASE 4JJ1-TCS ENG(LFB)	8-97330-911-0	19	1	0810-	●
3	04.196 BOLT; OIL PAN TO CASE 4JJ1-TCX ENG(LS0)	8-97130-928-0	19	1	0808-		●
5	04.195 PLUG; OIL PAN 4JJ1-TCS ENG(LFB)	8-97131-023-0	01	1	0810-	●
5	04.195 PLUG; OIL PAN 4JJ1-TCX ENG(LS0) M10X9	8-97367-573-0	01	1	0808-		●
6	04.195 GASKET; OIL PAN TO PLUG 4JJ1-TCS ENG(LFB)	8-97044-671-0	01	1	0810-	●
6	04.195 GASKET; OIL PAN TO PLUG 4JJ1-TCX ENG(LS0) ID=12	5-34132-002-0	01	1	0808-		●
9	04.195 MAGNET; OIL PAN 4JJ1-TCS ENG(LFB)	8-94140-738-0	01	1	0810-	●
9	04.195 MAGNET; OIL PAN 4JJ1-TCX ENG(LS0)	5-34138-004-0	04	1	0808-		●
10	04.197 GAUGE; OIL LEVEL 4JJ1-TCS ENG(LFB)	8-97371-037-0	01	1	0810-	●
10	04.197 GAUGE; OIL LEVEL 4JJ1-TCX ENG(LS0)	8-98043-896-0	01	1	0808-		●
11	04.197 TUBE; OIL FILLER 4JJ1-TCS ENG(LFB)	8-97380-513-0	01	1	0810-	●
11	04.197 TUBE; OIL FILLER 4JJ1-TCX ENG(LS0)	8-98005-234-2	01	1	0808-		●
12	04.197 GASKET; OIL FILLER TUBE TO A/T 4JJ1-TCX ENG(LS0) 04.133 ID=9.8	9-09561-110-0	01	1	0808-0809		●
12	04.197 GASKET; OIL FILLER TUBE TO A/T 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) 04.133 ID=9.8	9-09561-110-0	01	1	0810-	●	●
94	04.197 BOLT; OIL FILLER TUBE 4JJ1-TCX ENG(LS0) 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0808-0809		●
94	04.197 BOLT; OIL FILLER TUBE 4JJ1-TCS ENG(LFB),4JJ1-TCX ENG(LS0) 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0810-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
