Sayfa 2-41B - Isuzu EPC

2-41B — AUTO TRANS CASE,CONVERTER AND OIL PUMP (#76998) — 194 parça

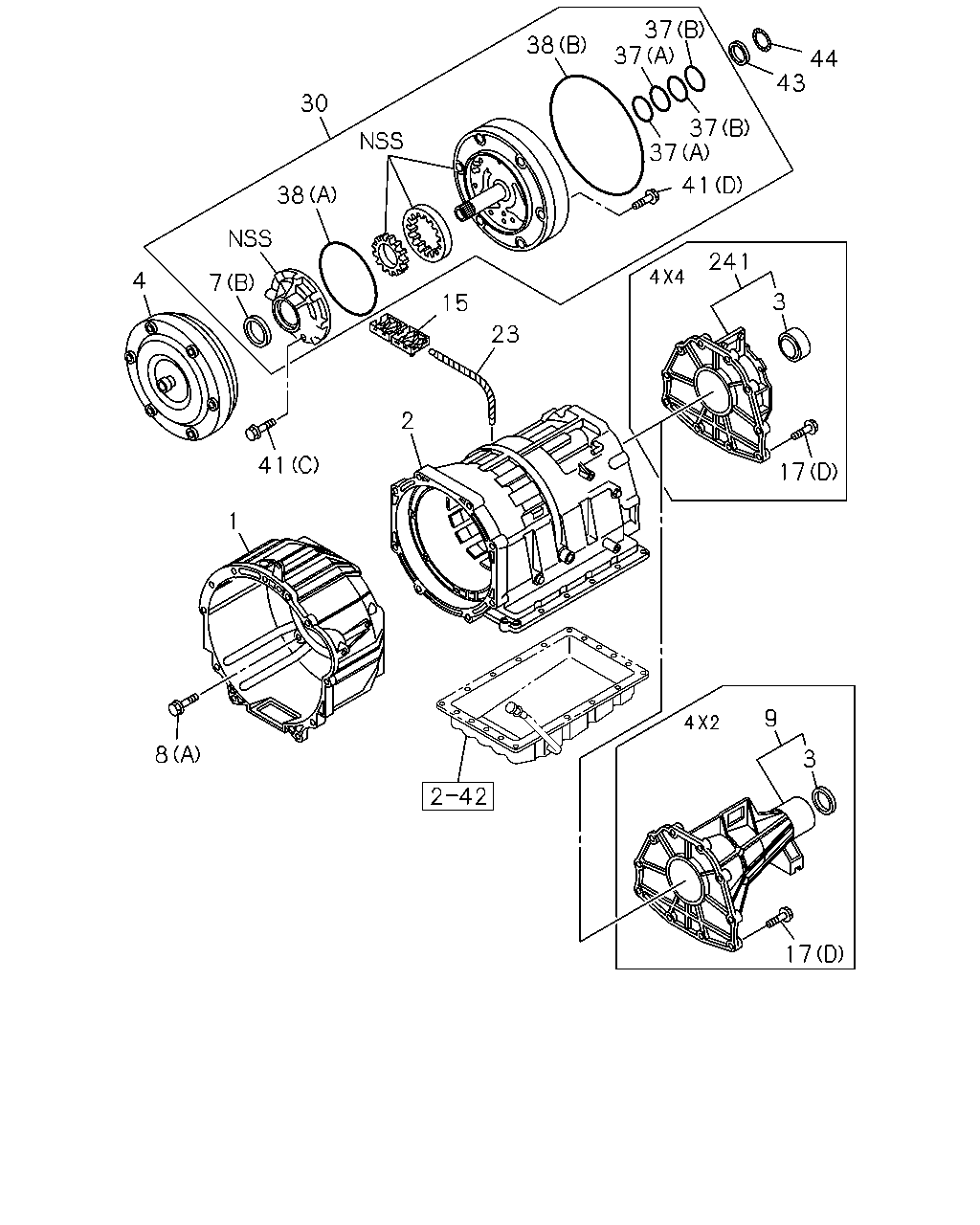

37 37 38 44 43 30 37 37 41 38 241 4 7 3 15 23 2 41 17 1 9 8 3 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.103 HOUSING; CONV,A/T 4JJ1-TCX ENG(LS0)	8-97179-520-0	01	1	1008-	●
1	04.103 HOUSING; CONV,A/T 4JJ1-TCS ENG(LFB)	8-97330-899-0	01	1	0810-		●
1	04.103 HOUSING; CONV,A/T 4JJ1-TCX ENG(LS0)	8-98056-390-0	01	1	0808-1007	●
2	04.103 CASE ASM; A/T 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) HIGH RIDE SUSPENSION(7YC)	8-98112-178-0	01	1	1008-	●
2	04.103 CASE ASM; A/T 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) HIGH RIDE SUSPENSION(7YC)	8-98112-178-0	01	1	1008-	●
2	04.103 CASE ASM; A/T 4JJ1-TCS ENG(LFB)	8-97383-551-0	01	1	0810-		●
2	04.103 CASE ASM; A/T 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) HIGH RIDE SUSPENSION(7YC)	8-98112-177-0	01	1	0808-0809	●
2	04.103 CASE ASM; A/T 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) AUSTRALIA EQUIPMENT(B13) HIGH RIDE SUSPENSION(7YC)	8-98112-177-0	01	1	0808-0809	●
2	04.103 CASE ASM; A/T 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) HIGH RIDE SUSPENSION(7YC)	8-98112-177-0	01	1	0810-1007	●
2	04.103 CASE ASM; A/T 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) HIGH RIDE SUSPENSION(7YC)	8-98112-177-0	01	1	0810-1007	●
2	04.103 CASE ASM; A/T 4X4(TFS***) 4JJ1-TCX ENG(LS0)	8-98112-176-0	01	1	0808-	●
3	04.241 SEAL; OIL,RR COVER,A/T 4X2(TFB***) 4JJ1-TCS ENG(LFB)	8-97330-910-0	01	1	0810-		●
3	04.241 SEAL; OIL,RR COVER,A/T 4X4(TFS***) 4JJ1-TCS ENG(LFB)	8-97330-909-0	01	1	0810-		●
3	04.241 SEAL; OIL,RR COVER,A/T 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) HIGH RIDE SUSPENSION(7YC)	8-97184-430-0	01	1	0808-0809	●
3	04.241 SEAL; OIL,RR COVER,A/T 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) AUSTRALIA EQUIPMENT(B13) HIGH RIDE SUSPENSION(7YC)	8-97184-430-0	01	1	0808-0809	●
3	04.241 SEAL; OIL,RR COVER,A/T 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) HIGH RIDE SUSPENSION(7YC)	8-97184-430-0	01	1	0810-	●
3	04.241 SEAL; OIL,RR COVER,A/T 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) HIGH RIDE SUSPENSION(7YC)	8-97184-430-0	01	1	0810-	●
3	04.241 SEAL; OIL,RR COVER,A/T 4X4(TFS***) 4JJ1-TCX ENG(LS0)	8-97069-465-0	01	1	0808-	●
4	04.115 CONVERTER ASM; TORQUE,A/T 4JJ1-TCS ENG(LFB)	8-97368-547-0	01	1	0810-		●
4	04.115 CONVERTER ASM; TORQUE,A/T 4JJ1-TCX ENG(LS0)	8-98056-389-0	01	1	0808-	●
7	04.226 SEAL; OIL,LIP,A/T 4JJ1-TCS ENG(LFB) 02.559 (A)	8-94385-664-0	01	1	0810-		●
7	04.226 SEAL; OIL,LIP,A/T 4JJ1-TCS ENG(LFB) (B)	8-98126-853-0	01	1	0810-		●
7	04.226 SEAL; OIL,LIP,A/T 4JJ1-TCX ENG(LS0) (C)	8-94479-742-1	01	1	0808-	●
8	04.217 BOLT; HSG TO CASE 4JJ1-TCS ENG(LFB) (A) M8X35	8-97330-912-0	08	1	0810-		●
8	04.217 BOLT; HSG TO CASE 4JJ1-TCX ENG(LS0) (B) M10X35	8-90257-082-0	04	1	0808-	●
8	04.217 BOLT; HSG TO CASE 4JJ1-TCX ENG(LS0) (C) M12X68	8-97025-830-0	02	1	0808-	●
9	04.317 COVER ASM; RR,A/T 4X2(TFB***) 4JJ1-TCS ENG(LFB) 04.217	8-97330-901-0	01	1	0810-		●
9	04.317 COVER ASM; RR,A/T 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) HIGH RIDE SUSPENSION(7YC)	8-98056-398-0	01	1	0808-0809	●
9	04.317 COVER ASM; RR,A/T 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) AUSTRALIA EQUIPMENT(B13) HIGH RIDE SUSPENSION(7YC)	8-98056-398-0	01	1	0808-0809	●
9	04.317 COVER ASM; RR,A/T 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) HIGH RIDE SUSPENSION(7YC)	8-98056-398-0	01	1	0810-1411	●
9	04.317 COVER ASM; RR,A/T 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) HIGH RIDE SUSPENSION(7YC)	8-98056-398-0	01	1	0810-1411	●
9	04.317 COVER ASM; RR,A/T 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) HIGH RIDE SUSPENSION(7YC)	8-98317-855-0	01	1	1412-	●
9	04.317 COVER ASM; RR,A/T 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) HIGH RIDE SUSPENSION(7YC)	8-98317-855-0	01	1	1412-	●
15	04.104 BREATHER; A/T CASE 4JJ1-TCS ENG(LFB)	8-97301-433-1	01	1	0810-		●
17	04.319 BOLT; REAR COVER TO CASE 4JJ1-TCS ENG(LFB) 04.217 (D) M8X35	8-97330-912-0	10	1	0810-		●
17	04.319 BOLT; REAR COVER TO CASE 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) HIGH RIDE SUSPENSION(7YC) (A) M10X45	8-94473-632-0	04	1	0808-0809	●
17	04.319 BOLT; REAR COVER TO CASE 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) AUSTRALIA EQUIPMENT(B13) HIGH RIDE SUSPENSION(7YC) (A) M10X45	8-94473-632-0	04	1	0808-0809	●
17	04.319 BOLT; REAR COVER TO CASE 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) HIGH RIDE SUSPENSION(7YC) (A) M10X45	8-94473-632-0	04	1	0810-	●
17	04.319 BOLT; REAR COVER TO CASE 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) HIGH RIDE SUSPENSION(7YC) (A) M10X45	8-94473-632-0	04	1	0810-	●
17	04.319 BOLT; REAR COVER TO CASE 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) HIGH RIDE SUSPENSION(7YC) (B) M10X35	8-94479-951-0	02	1	0808-0809	●
17	04.319 BOLT; REAR COVER TO CASE 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) AUSTRALIA EQUIPMENT(B13) HIGH RIDE SUSPENSION(7YC) (B) M10X35	8-94479-951-0	02	1	0808-0809	●
17	04.319 BOLT; REAR COVER TO CASE 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) HIGH RIDE SUSPENSION(7YC) (B) M10X35	8-94479-951-0	02	1	0810-	●
17	04.319 BOLT; REAR COVER TO CASE 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) HIGH RIDE SUSPENSION(7YC) (B) M10X35	8-94479-951-0	02	1	0810-	●
17	04.319 BOLT; REAR COVER TO CASE 4X4(TFS***) 4JJ1-TCX ENG(LS0) (C) M10X40	8-94479-936-0	07	1	0808-	●
23	04.101 HOSE; BREATHER,A/T 4X2 CREW CAB(TFBW) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) HIGH RIDE SUSPENSION(7YC) EXC. AUSTRALIA EQUIPMENT(B13) 04.104 L=240 SERVICED BY L=3000	0-02857-300-0	01	1	1412-	●
23	04.101 HOSE; BREATHER,A/T 4JJ1-TCS ENG(LFB) 08.962 L=580 SERVICED BY L=3000	0-04750-300-0	01	1	0810-		●
23	04.101 HOSE; BREATHER,A/T 4JJ1-TCX ENG(LS0) 04.104 L=240 SERVICED BY L=3000	0-02857-300-0	02	1	0808-1411	●
23	04.101 HOSE; BREATHER,A/T 4X2 CREW CAB(TFBW) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) HIGH RIDE SUSPENSION(7YC) 04.104 L=240 SERVICED BY L=3000	0-02857-300-0	02	1	1412-	●
23	04.101 HOSE; BREATHER,A/T 4X4 CREW CAB LONG(TFS*WF) 4JJ1-TCX ENG(LS0) 04.104 L=240 SERVICED BY L=3000	0-02857-300-0	02	1	1412-	●
23	04.101 HOSE; BREATHER,A/T 4X2 CREW CAB(TFBW) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) AUSTRALIA EQUIPMENT(B13) HIGH RIDE SUSPENSION(7YC) 04.104 L=240 SERVICED BY L=3000	0-02857-300-0	02	1	1412-	●
30	04.224 PUMP ASM; OIL,A/T 4JJ1-TCS ENG(LFB)	8-97357-220-0	01	1	0810-		●
30	04.224 PUMP ASM; OIL,A/T 4JJ1-TCX ENG(LS0)	8-97370-809-0	01	1	0808-	●
37	04.226 RING; SEAL,OIL PUMP,A/T 4JJ1-TCS ENG(LFB) 04.166 (A)	8-94483-322-0	02	1	0810-		●
37	04.226 RING; SEAL,OIL PUMP,A/T 4JJ1-TCS ENG(LFB) (B)	8-97330-984-0	02	1	0810-		●
37	04.226 RING; SEAL,OIL PUMP,A/T 4JJ1-TCX ENG(LS0) (C)	8-94479-747-0	02	1	0808-	●
38	04.226 GASKET; OIL PUMP,A/T 4JJ1-TCS ENG(LFB) (A)	8-97330-985-0	01	1	0810-		●
38	04.226 GASKET; OIL PUMP,A/T 4JJ1-TCS ENG(LFB) (B)	8-97330-986-0	01	1	0810-		●
38	04.226 GASKET; OIL PUMP,A/T 4JJ1-TCX ENG(LS0) (C)	8-94479-748-0	01	1	0808-	●
41	04.226 BOLT; OIL PUMP HSG,A/T 4JJ1-TCS ENG(LFB) (C) M8X45 FLANGE	8-97330-913-0	08	1	0810-		●
41	04.226 BOLT; OIL PUMP HSG,A/T 4JJ1-TCS ENG(LFB) (D) M6X25 FLANGE	8-97331-123-0	08	1	0810-		●
41	04.226 BOLT; OIL PUMP HSG,A/T 4JJ1-TCX ENG(LS0) (A) M8X35	8-94479-749-0	07	1	0808-	●
41	04.226 BOLT; OIL PUMP HSG,A/T 4JJ1-TCX ENG(LS0) (B) M6X15.5	8-97019-532-0	13	1	0808-	●
43	04.226 RACE; THRUST BRG,OIL PUMP,A/T 4JJ1-TCS ENG(LFB) T=1.4	8-97330-940-0	01	1	0810-		●
43	04.226 RACE; THRUST BRG,OIL PUMP,A/T 4JJ1-TCS ENG(LFB) T=1.6	8-97330-941-0	01	1	0810-		●
43	04.226 RACE; THRUST BRG,OIL PUMP,A/T 4JJ1-TCS ENG(LFB) T=1.8	8-97330-942-0	01	1	0810-		●
43	04.226 RACE; THRUST BRG,OIL PUMP,A/T 4JJ1-TCS ENG(LFB) T=2.0	8-97330-943-0	01	1	0810-		●
43	04.226 RACE; THRUST BRG,OIL PUMP,A/T 4JJ1-TCS ENG(LFB) T=2.2	8-97330-944-0	01	1	0810-		●
43	04.226 RACE; THRUST BRG,OIL PUMP,A/T 4JJ1-TCS ENG(LFB) T=2.4	8-97330-945-0	01	1	0810-		●
44	04.226 BEARING; THRUST,OIL PUMP,A/T 4JJ1-TCS ENG(LFB)	8-97330-924-0	01	1	0810-		●
241	04.317 ADAPTER; A/T 4X4(TFS***) 4JJ1-TCS ENG(LFB)	8-97330-902-0	01	1	0810-		●
241	04.317 ADAPTER; A/T 4X4(TFS***) 4JJ1-TCX ENG(LS0)	8-98050-559-0	01	1	0808-	●

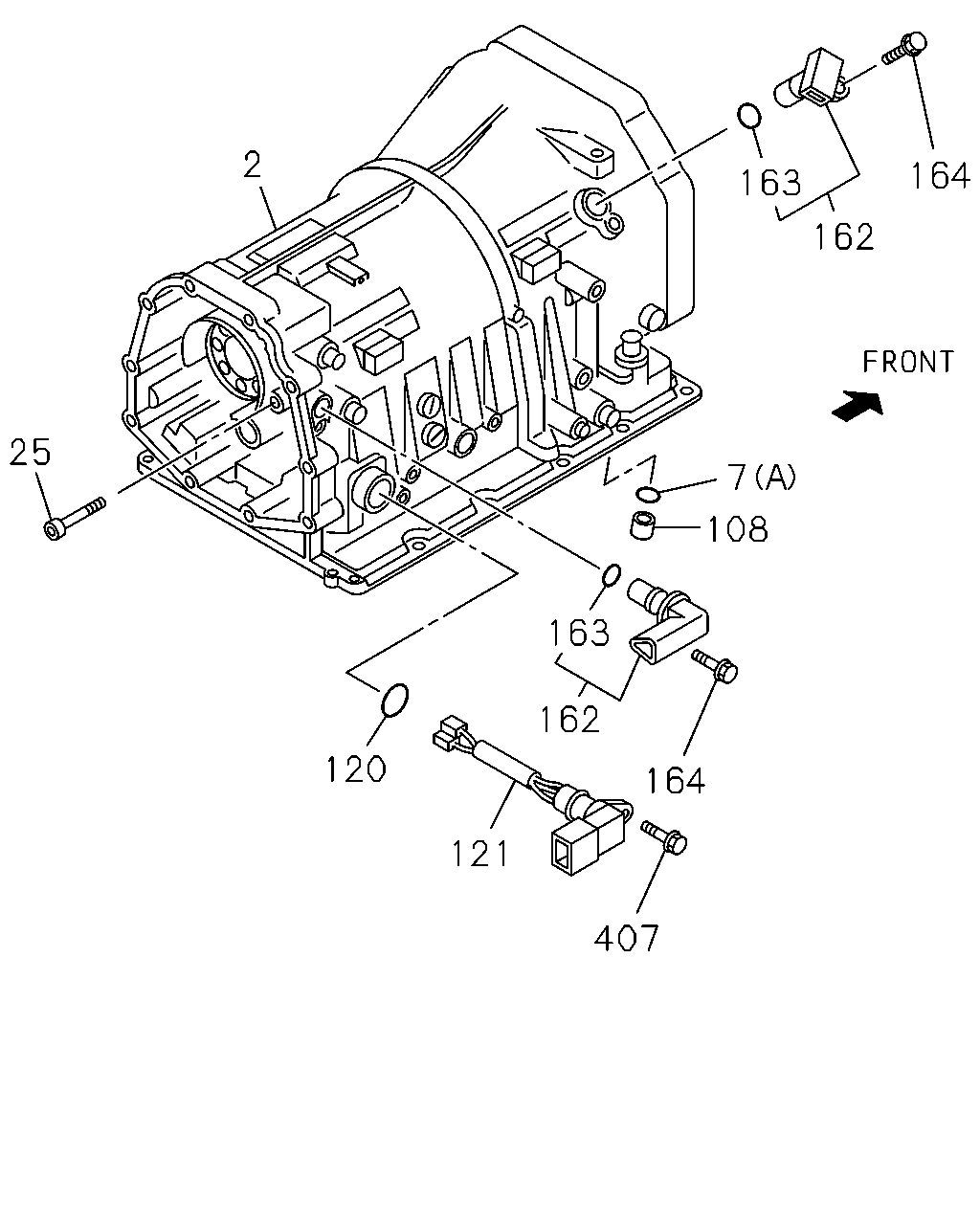

2 164 163 162 25 7 108 163 162 120 164 121 407

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	04.103 CASE ASM; A/T 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) HIGH RIDE SUSPENSION(7YC)	8-98112-178-0	01	1	1008-	●
2	04.103 CASE ASM; A/T 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) HIGH RIDE SUSPENSION(7YC)	8-98112-178-0	01	1	1008-	●
2	04.103 CASE ASM; A/T 4JJ1-TCS ENG(LFB)	8-97383-551-0	01	1	0810-		●
2	04.103 CASE ASM; A/T 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) HIGH RIDE SUSPENSION(7YC)	8-98112-177-0	01	1	0808-0809	●
2	04.103 CASE ASM; A/T 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) AUSTRALIA EQUIPMENT(B13) HIGH RIDE SUSPENSION(7YC)	8-98112-177-0	01	1	0808-0809	●
2	04.103 CASE ASM; A/T 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) HIGH RIDE SUSPENSION(7YC)	8-98112-177-0	01	1	0810-1007	●
2	04.103 CASE ASM; A/T 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) HIGH RIDE SUSPENSION(7YC)	8-98112-177-0	01	1	0810-1007	●
2	04.103 CASE ASM; A/T 4X4(TFS***) 4JJ1-TCX ENG(LS0)	8-98112-176-0	01	1	0808-	●
7	04.226 SEAL; OIL,LIP,A/T 4JJ1-TCS ENG(LFB) 02.559 (A)	8-94385-664-0	01	1	0810-		●
7	04.226 SEAL; OIL,LIP,A/T 4JJ1-TCS ENG(LFB) (B)	8-98126-853-0	01	1	0810-		●
7	04.226 SEAL; OIL,LIP,A/T 4JJ1-TCX ENG(LS0) (C)	8-94479-742-1	01	1	0808-	●
25	04.105 PIN; SPR,BRG HSG,A/T 4JJ1-TCS ENG(LFB)	8-97330-914-0	07	1	0810-		●
108	04.180 SLEEVE; LOW & REV BRAKE,A/T 4JJ1-TCS ENG(LFB)	8-94385-683-0	01	1	0810-		●
120	04.180 SEAL; TRANS,ELEC CONN 4JJ1-TCS ENG(LFB)	8-97330-987-0	01	1	0810-		●
121	04.226 CONNECTOR; ELEC 4JJ1-TCS ENG(LFB)	8-97331-112-0	01	1	0810-		●
162	04.054 SENSOR; REVOLUTION,A/T CONT 4JJ1-TCS ENG(LFB)	8-97331-108-0	02	1	0810-		●
163	04.054 GASKET; REV SENSOR,A/T 4JJ1-TCS ENG(LFB)	8-98126-854-0	02	1	0810-		●
164	04.054 BOLT; REV SENSOR,A/T 4JJ1-TCS ENG(LFB) 04.205	8-94483-616-0	02	1	0810-		●
407	04.226 BOLT; ELEC CONNECTOR 4JJ1-TCS ENG(LFB) 04.205	8-94483-616-0	01	1	0810-		●

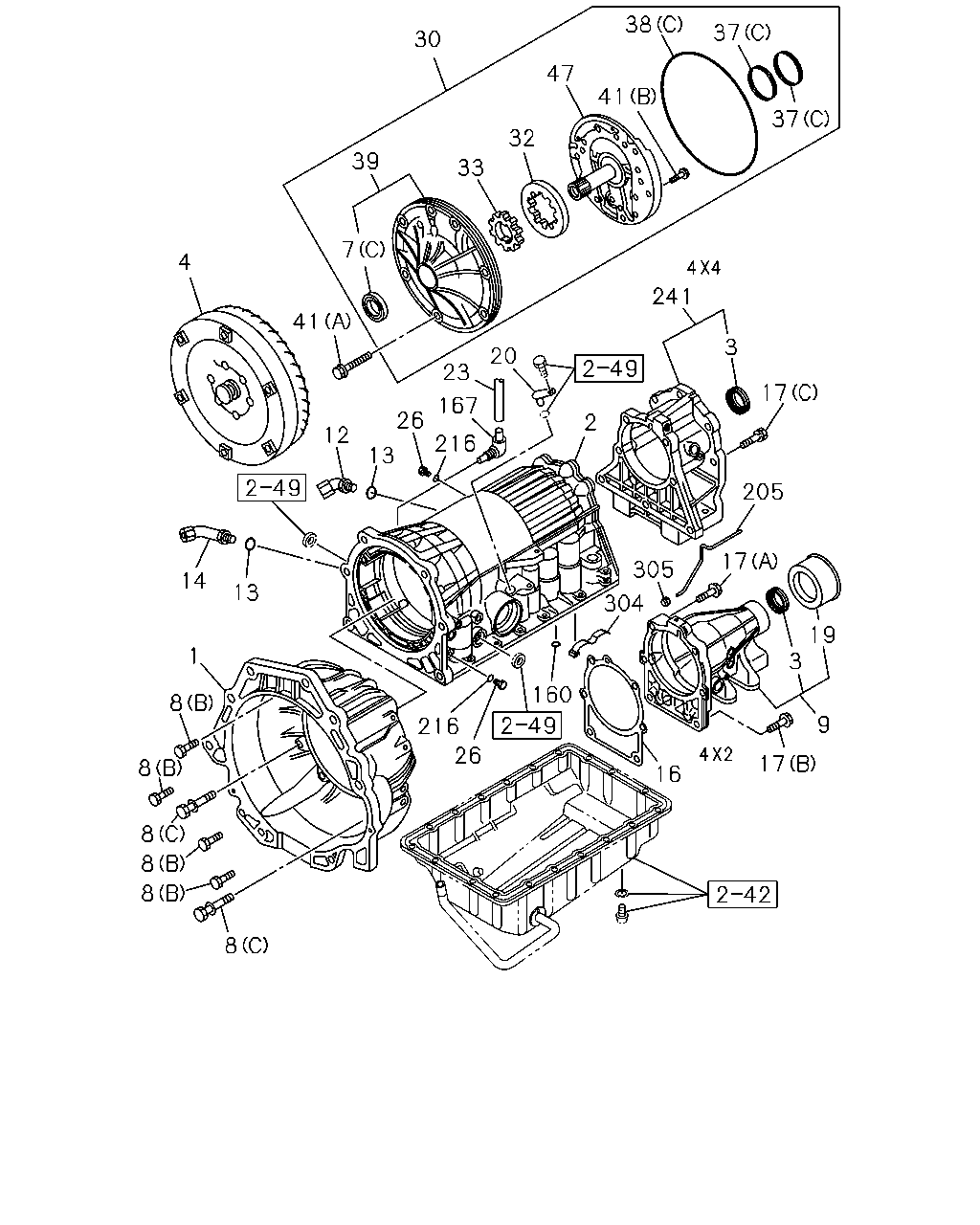

4 14 1 8 8 8 8 8 8 13 41 7 39 30 33 12 13 26 23 167 216 216 26 160 304 16 17 9 3 19 17 305 205 17 2 20 241 37 37 38 47 32 41 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.103 HOUSING; CONV,A/T 4JJ1-TCX ENG(LS0)	8-97179-520-0	01	1	1008-	●
1	04.103 HOUSING; CONV,A/T 4JJ1-TCS ENG(LFB)	8-97330-899-0	01	1	0810-		●
1	04.103 HOUSING; CONV,A/T 4JJ1-TCX ENG(LS0)	8-98056-390-0	01	1	0808-1007	●
2	04.103 CASE ASM; A/T 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) HIGH RIDE SUSPENSION(7YC)	8-98112-178-0	01	1	1008-	●
2	04.103 CASE ASM; A/T 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) HIGH RIDE SUSPENSION(7YC)	8-98112-178-0	01	1	1008-	●
2	04.103 CASE ASM; A/T 4JJ1-TCS ENG(LFB)	8-97383-551-0	01	1	0810-		●
2	04.103 CASE ASM; A/T 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) HIGH RIDE SUSPENSION(7YC)	8-98112-177-0	01	1	0808-0809	●
2	04.103 CASE ASM; A/T 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) AUSTRALIA EQUIPMENT(B13) HIGH RIDE SUSPENSION(7YC)	8-98112-177-0	01	1	0808-0809	●
2	04.103 CASE ASM; A/T 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) HIGH RIDE SUSPENSION(7YC)	8-98112-177-0	01	1	0810-1007	●
2	04.103 CASE ASM; A/T 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) HIGH RIDE SUSPENSION(7YC)	8-98112-177-0	01	1	0810-1007	●
2	04.103 CASE ASM; A/T 4X4(TFS***) 4JJ1-TCX ENG(LS0)	8-98112-176-0	01	1	0808-	●
3	04.241 SEAL; OIL,RR COVER,A/T 4X2(TFB***) 4JJ1-TCS ENG(LFB)	8-97330-910-0	01	1	0810-		●
3	04.241 SEAL; OIL,RR COVER,A/T 4X4(TFS***) 4JJ1-TCS ENG(LFB)	8-97330-909-0	01	1	0810-		●
3	04.241 SEAL; OIL,RR COVER,A/T 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) HIGH RIDE SUSPENSION(7YC)	8-97184-430-0	01	1	0808-0809	●
3	04.241 SEAL; OIL,RR COVER,A/T 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) AUSTRALIA EQUIPMENT(B13) HIGH RIDE SUSPENSION(7YC)	8-97184-430-0	01	1	0808-0809	●
3	04.241 SEAL; OIL,RR COVER,A/T 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) HIGH RIDE SUSPENSION(7YC)	8-97184-430-0	01	1	0810-	●
3	04.241 SEAL; OIL,RR COVER,A/T 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) HIGH RIDE SUSPENSION(7YC)	8-97184-430-0	01	1	0810-	●
3	04.241 SEAL; OIL,RR COVER,A/T 4X4(TFS***) 4JJ1-TCX ENG(LS0)	8-97069-465-0	01	1	0808-	●
4	04.115 CONVERTER ASM; TORQUE,A/T 4JJ1-TCS ENG(LFB)	8-97368-547-0	01	1	0810-		●
4	04.115 CONVERTER ASM; TORQUE,A/T 4JJ1-TCX ENG(LS0)	8-98056-389-0	01	1	0808-	●
7	04.226 SEAL; OIL,LIP,A/T 4JJ1-TCS ENG(LFB) 02.559 (A)	8-94385-664-0	01	1	0810-		●
7	04.226 SEAL; OIL,LIP,A/T 4JJ1-TCS ENG(LFB) (B)	8-98126-853-0	01	1	0810-		●
7	04.226 SEAL; OIL,LIP,A/T 4JJ1-TCX ENG(LS0) (C)	8-94479-742-1	01	1	0808-	●
8	04.217 BOLT; HSG TO CASE 4JJ1-TCS ENG(LFB) (A) M8X35	8-97330-912-0	08	1	0810-		●
8	04.217 BOLT; HSG TO CASE 4JJ1-TCX ENG(LS0) (B) M10X35	8-90257-082-0	04	1	0808-	●
8	04.217 BOLT; HSG TO CASE 4JJ1-TCX ENG(LS0) (C) M12X68	8-97025-830-0	02	1	0808-	●
9	04.317 COVER ASM; RR,A/T 4X2(TFB***) 4JJ1-TCS ENG(LFB) 04.217	8-97330-901-0	01	1	0810-		●
9	04.317 COVER ASM; RR,A/T 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) HIGH RIDE SUSPENSION(7YC)	8-98056-398-0	01	1	0808-0809	●
9	04.317 COVER ASM; RR,A/T 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) AUSTRALIA EQUIPMENT(B13) HIGH RIDE SUSPENSION(7YC)	8-98056-398-0	01	1	0808-0809	●
9	04.317 COVER ASM; RR,A/T 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) HIGH RIDE SUSPENSION(7YC)	8-98056-398-0	01	1	0810-1411	●
9	04.317 COVER ASM; RR,A/T 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) HIGH RIDE SUSPENSION(7YC)	8-98056-398-0	01	1	0810-1411	●
9	04.317 COVER ASM; RR,A/T 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) HIGH RIDE SUSPENSION(7YC)	8-98317-855-0	01	1	1412-	●
9	04.317 COVER ASM; RR,A/T 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) HIGH RIDE SUSPENSION(7YC)	8-98317-855-0	01	1	1412-	●
12	04.205 CONNECTOR; OIL COOLER OUTLET PIP 4JJ1-TCX ENG(LS0) 04.265	8-94450-761-0	01	1	0808-	●
13	04.205 GASKET; OIL COOLER PIPE 4JJ1-TCX ENG(LS0) 04.265 ID=11.7	8-94479-724-0	02	1	0808-	●
14	04.205 UNION; OIL COOLER RETURN PIPE 4JJ1-TCX ENG(LS0) 04.265	8-94450-762-0	01	1	0808-	●
16	04.318 GASKET; EXT HSG 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) HIGH RIDE SUSPENSION(7YC)	8-97032-928-0	01	1	0808-0809	●
16	04.318 GASKET; EXT HSG 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) AUSTRALIA EQUIPMENT(B13) HIGH RIDE SUSPENSION(7YC)	8-97032-928-0	01	1	0808-0809	●
16	04.318 GASKET; EXT HSG 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) HIGH RIDE SUSPENSION(7YC)	8-97032-928-0	01	1	0810-	●
16	04.318 GASKET; EXT HSG 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) HIGH RIDE SUSPENSION(7YC)	8-97032-928-0	01	1	0810-	●
17	04.319 BOLT; REAR COVER TO CASE 4JJ1-TCS ENG(LFB) 04.217 (D) M8X35	8-97330-912-0	10	1	0810-		●
17	04.319 BOLT; REAR COVER TO CASE 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) HIGH RIDE SUSPENSION(7YC) (A) M10X45	8-94473-632-0	04	1	0808-0809	●
17	04.319 BOLT; REAR COVER TO CASE 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) AUSTRALIA EQUIPMENT(B13) HIGH RIDE SUSPENSION(7YC) (A) M10X45	8-94473-632-0	04	1	0808-0809	●
17	04.319 BOLT; REAR COVER TO CASE 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) HIGH RIDE SUSPENSION(7YC) (A) M10X45	8-94473-632-0	04	1	0810-	●
17	04.319 BOLT; REAR COVER TO CASE 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) HIGH RIDE SUSPENSION(7YC) (A) M10X45	8-94473-632-0	04	1	0810-	●
17	04.319 BOLT; REAR COVER TO CASE 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) HIGH RIDE SUSPENSION(7YC) (B) M10X35	8-94479-951-0	02	1	0808-0809	●
17	04.319 BOLT; REAR COVER TO CASE 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) AUSTRALIA EQUIPMENT(B13) HIGH RIDE SUSPENSION(7YC) (B) M10X35	8-94479-951-0	02	1	0808-0809	●
17	04.319 BOLT; REAR COVER TO CASE 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) HIGH RIDE SUSPENSION(7YC) (B) M10X35	8-94479-951-0	02	1	0810-	●
17	04.319 BOLT; REAR COVER TO CASE 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) HIGH RIDE SUSPENSION(7YC) (B) M10X35	8-94479-951-0	02	1	0810-	●
17	04.319 BOLT; REAR COVER TO CASE 4X4(TFS***) 4JJ1-TCX ENG(LS0) (C) M10X40	8-94479-936-0	07	1	0808-	●
19	04.241 COVER; DUST,REAR COVER 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) HIGH RIDE SUSPENSION(7YC)	8-97184-432-0	01	1	0808-0809	●
19	04.241 COVER; DUST,REAR COVER 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) AUSTRALIA EQUIPMENT(B13) HIGH RIDE SUSPENSION(7YC)	8-97184-432-0	01	1	0808-0809	●
19	04.241 COVER; DUST,REAR COVER 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) HIGH RIDE SUSPENSION(7YC)	8-97184-432-0	01	1	0810-	●
19	04.241 COVER; DUST,REAR COVER 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) HIGH RIDE SUSPENSION(7YC)	8-97184-432-0	01	1	0810-	●
20	04.105 PLUG; TAPER,A/T CASE 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) HIGH RIDE SUSPENSION(7YC)	8-97232-067-0	01	1	0808-0809	●
20	04.105 PLUG; TAPER,A/T CASE 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) AUSTRALIA EQUIPMENT(B13) HIGH RIDE SUSPENSION(7YC)	8-97232-067-0	01	1	0808-0809	●
20	04.105 PLUG; TAPER,A/T CASE 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) HIGH RIDE SUSPENSION(7YC)	8-97232-067-0	01	1	0810-1007	●
20	04.105 PLUG; TAPER,A/T CASE 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) HIGH RIDE SUSPENSION(7YC)	8-97232-067-0	01	1	0810-1007	●
23	04.101 HOSE; BREATHER,A/T 4X2 CREW CAB(TFBW) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) HIGH RIDE SUSPENSION(7YC) EXC. AUSTRALIA EQUIPMENT(B13) 04.104 L=240 SERVICED BY L=3000	0-02857-300-0	01	1	1412-	●
23	04.101 HOSE; BREATHER,A/T 4JJ1-TCS ENG(LFB) 08.962 L=580 SERVICED BY L=3000	0-04750-300-0	01	1	0810-		●
23	04.101 HOSE; BREATHER,A/T 4JJ1-TCX ENG(LS0) 04.104 L=240 SERVICED BY L=3000	0-02857-300-0	02	1	0808-1411	●
23	04.101 HOSE; BREATHER,A/T 4X2 CREW CAB(TFBW) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) HIGH RIDE SUSPENSION(7YC) 04.104 L=240 SERVICED BY L=3000	0-02857-300-0	02	1	1412-	●
23	04.101 HOSE; BREATHER,A/T 4X4 CREW CAB LONG(TFS*WF) 4JJ1-TCX ENG(LS0) 04.104 L=240 SERVICED BY L=3000	0-02857-300-0	02	1	1412-	●
23	04.101 HOSE; BREATHER,A/T 4X2 CREW CAB(TFBW) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) AUSTRALIA EQUIPMENT(B13) HIGH RIDE SUSPENSION(7YC) 04.104 L=240 SERVICED BY L=3000	0-02857-300-0	02	1	1412-	●
26	04.195 PLUG; TRANS CASE 4JJ1-TCX ENG(LS0) 04.103	5-34119-002-0	02	1	0808-	●
30	04.224 PUMP ASM; OIL,A/T 4JJ1-TCS ENG(LFB)	8-97357-220-0	01	1	0810-		●
30	04.224 PUMP ASM; OIL,A/T 4JJ1-TCX ENG(LS0)	8-97370-809-0	01	1	0808-	●
32	04.210 GEAR; OUTER,OIL PUMP,A/T 4JJ1-TCX ENG(LS0) T=11.715 -0.016/-0.025 MARK M	8-97370-816-0	01	1	0808-	●
32	04.210 GEAR; OUTER,OIL PUMP,A/T 4JJ1-TCX ENG(LS0) T=11.715 -0.006/-0.015 MARK N	8-97370-817-0	01	1	0808-	●
32	04.210 GEAR; OUTER,OIL PUMP,A/T 4JJ1-TCX ENG(LS0) T=11.715 +0.005/-0.005 MARK P	8-97370-818-0	01	1	0808-	●
32	04.210 GEAR; OUTER,OIL PUMP,A/T 4JJ1-TCX ENG(LS0) T=11.715 +0.015/+0.006 MARK R	8-97370-819-0	01	1	0808-	●
32	04.210 GEAR; OUTER,OIL PUMP,A/T 4JJ1-TCX ENG(LS0) T=11.715 +0.025/+0.016 MARK S	8-97370-820-0	01	1	0808-	●
33	04.224 GEAR; INNER,OIL PUMP,A/T 4JJ1-TCX ENG(LS0) T=11.715 -0.016/-0.025 MARK M	8-97370-811-0	01	1	0808-	●
33	04.224 GEAR; INNER,OIL PUMP,A/T 4JJ1-TCX ENG(LS0) T=11.715 -0.006/-0.015 MARK N	8-97370-812-0	01	1	0808-	●
33	04.224 GEAR; INNER,OIL PUMP,A/T 4JJ1-TCX ENG(LS0) T=11.715 +0.005/-0.005 MARK P	8-97370-813-0	01	1	0808-	●
33	04.224 GEAR; INNER,OIL PUMP,A/T 4JJ1-TCX ENG(LS0) T=11.715 +0.015/+0.006 MARK R	8-97370-814-0	01	1	0808-	●
33	04.224 GEAR; INNER,OIL PUMP,A/T 4JJ1-TCX ENG(LS0) T=11.715 +0.025/+0.016 MARK S	8-97370-815-0	01	1	0808-	●
37	04.226 RING; SEAL,OIL PUMP,A/T 4JJ1-TCS ENG(LFB) 04.166 (A)	8-94483-322-0	02	1	0810-		●
37	04.226 RING; SEAL,OIL PUMP,A/T 4JJ1-TCS ENG(LFB) (B)	8-97330-984-0	02	1	0810-		●
37	04.226 RING; SEAL,OIL PUMP,A/T 4JJ1-TCX ENG(LS0) (C)	8-94479-747-0	02	1	0808-	●
38	04.226 GASKET; OIL PUMP,A/T 4JJ1-TCS ENG(LFB) (A)	8-97330-985-0	01	1	0810-		●
38	04.226 GASKET; OIL PUMP,A/T 4JJ1-TCS ENG(LFB) (B)	8-97330-986-0	01	1	0810-		●
38	04.226 GASKET; OIL PUMP,A/T 4JJ1-TCX ENG(LS0) (C)	8-94479-748-0	01	1	0808-	●
39	04.224 BODY SUB ASM; FRT,OIL PUMP,A/T 4JJ1-TCX ENG(LS0)	8-98112-183-0	01	1	0808-	●
41	04.226 BOLT; OIL PUMP HSG,A/T 4JJ1-TCS ENG(LFB) (C) M8X45 FLANGE	8-97330-913-0	08	1	0810-		●
41	04.226 BOLT; OIL PUMP HSG,A/T 4JJ1-TCS ENG(LFB) (D) M6X25 FLANGE	8-97331-123-0	08	1	0810-		●
41	04.226 BOLT; OIL PUMP HSG,A/T 4JJ1-TCX ENG(LS0) (A) M8X35	8-94479-749-0	07	1	0808-	●
41	04.226 BOLT; OIL PUMP HSG,A/T 4JJ1-TCX ENG(LS0) (B) M6X15.5	8-97019-532-0	13	1	0808-	●
47	04.226 SHAFT; OIL PUMP,A/T 4JJ1-TCX ENG(LS0)	8-98112-188-0	01	1	0808-	●
160	04.265 GASKET; BRK DRUM,A/T 4JJ1-TCX ENG(LS0)	8-94313-576-0	01	1	0808-	●
167	04.052 CONNECTOR; CASE,A/T 4JJ1-TCX ENG(LS0) 04.104	8-94479-727-0	01	1	1008-	●
167	04.052 CONNECTOR; CASE,A/T 4JJ1-TCX ENG(LS0) 04.104	8-97126-812-0	01	1	0808-1007	●
205	04.103 TUBE; EXT HSG 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) HIGH RIDE SUSPENSION(7YC)	8-97331-557-0	01	1	0808-0809	●
205	04.103 TUBE; EXT HSG 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) AUSTRALIA EQUIPMENT(B13) HIGH RIDE SUSPENSION(7YC)	8-97331-557-0	01	1	0808-0809	●
205	04.103 TUBE; EXT HSG 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) HIGH RIDE SUSPENSION(7YC)	8-97331-557-0	01	1	0810-	●
205	04.103 TUBE; EXT HSG 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) HIGH RIDE SUSPENSION(7YC)	8-97331-557-0	01	1	0810-	●
216	04.265 GASKET; SOLENOID OUTER 4JJ1-TCX ENG(LS0) 04.103 ID=6	5-34119-001-0	02	1	0808-	●
241	04.317 ADAPTER; A/T 4X4(TFS***) 4JJ1-TCS ENG(LFB)	8-97330-902-0	01	1	0810-		●
241	04.317 ADAPTER; A/T 4X4(TFS***) 4JJ1-TCX ENG(LS0)	8-98050-559-0	01	1	0808-	●
304	04.205 SPRING; LEAF,A/T 4JJ1-TCX ENG(LS0)	8-97184-331-0	01	1	0808-	●
305	04.103 GASKET; TUBE,EXT HSG 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) HIGH RIDE SUSPENSION(7YC)	8-97027-228-0	01	1	0808-0809	●
305	04.103 GASKET; TUBE,EXT HSG 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) AUSTRALIA EQUIPMENT(B13) HIGH RIDE SUSPENSION(7YC)	8-97027-228-0	01	1	0808-0809	●
305	04.103 GASKET; TUBE,EXT HSG 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) HIGH RIDE SUSPENSION(7YC)	8-97027-228-0	01	1	0810-	●
305	04.103 GASKET; TUBE,EXT HSG 4X2(TFB***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16 ALS(QCQ) HIGH RIDE SUSPENSION(7YC)	8-97027-228-0	01	1	0810-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
