Sayfa 2-35A - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51194 - TFR/TFS-RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-35A - MANUAL TRANSMISSION SHIFT CONTROL LEVER ▶

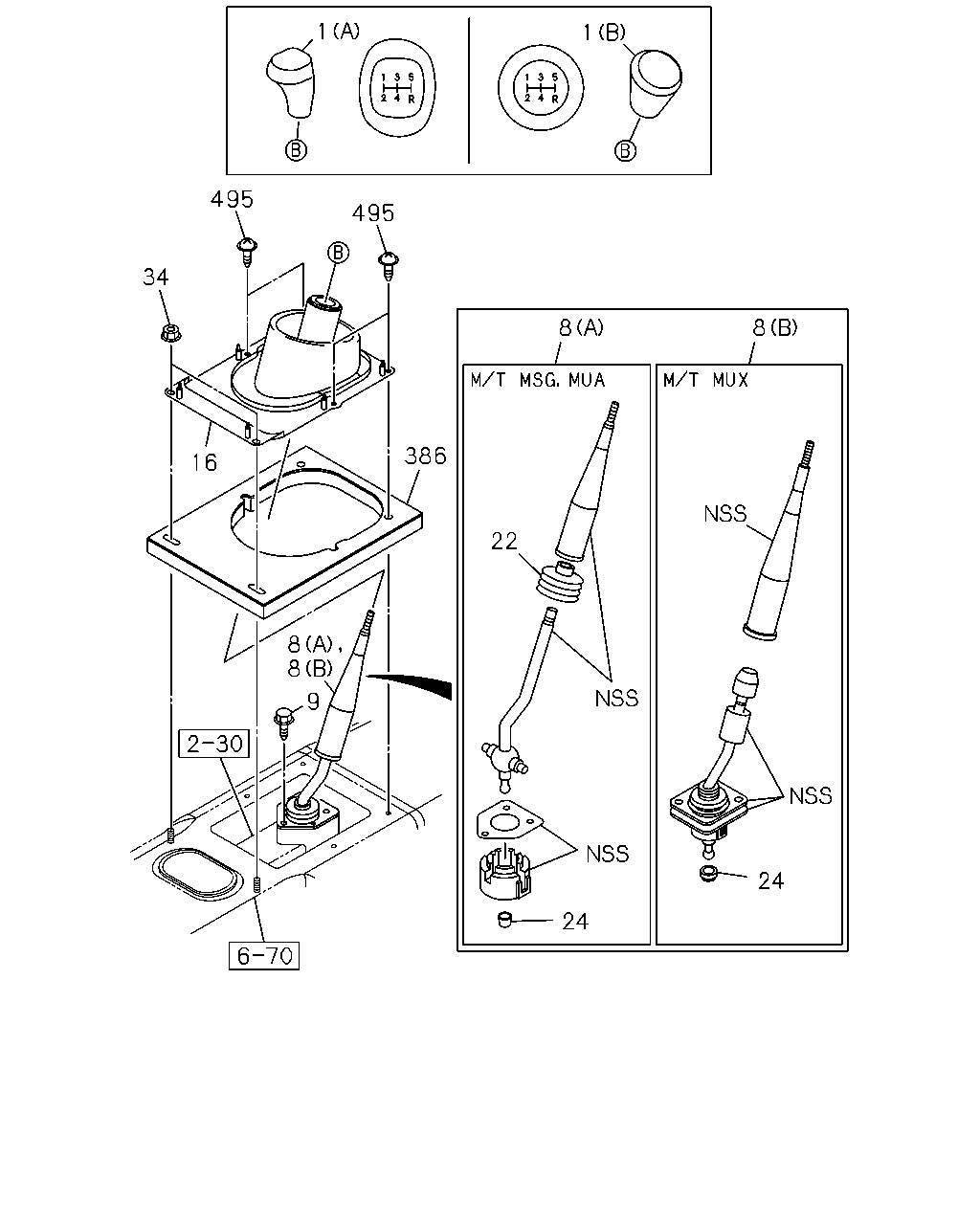

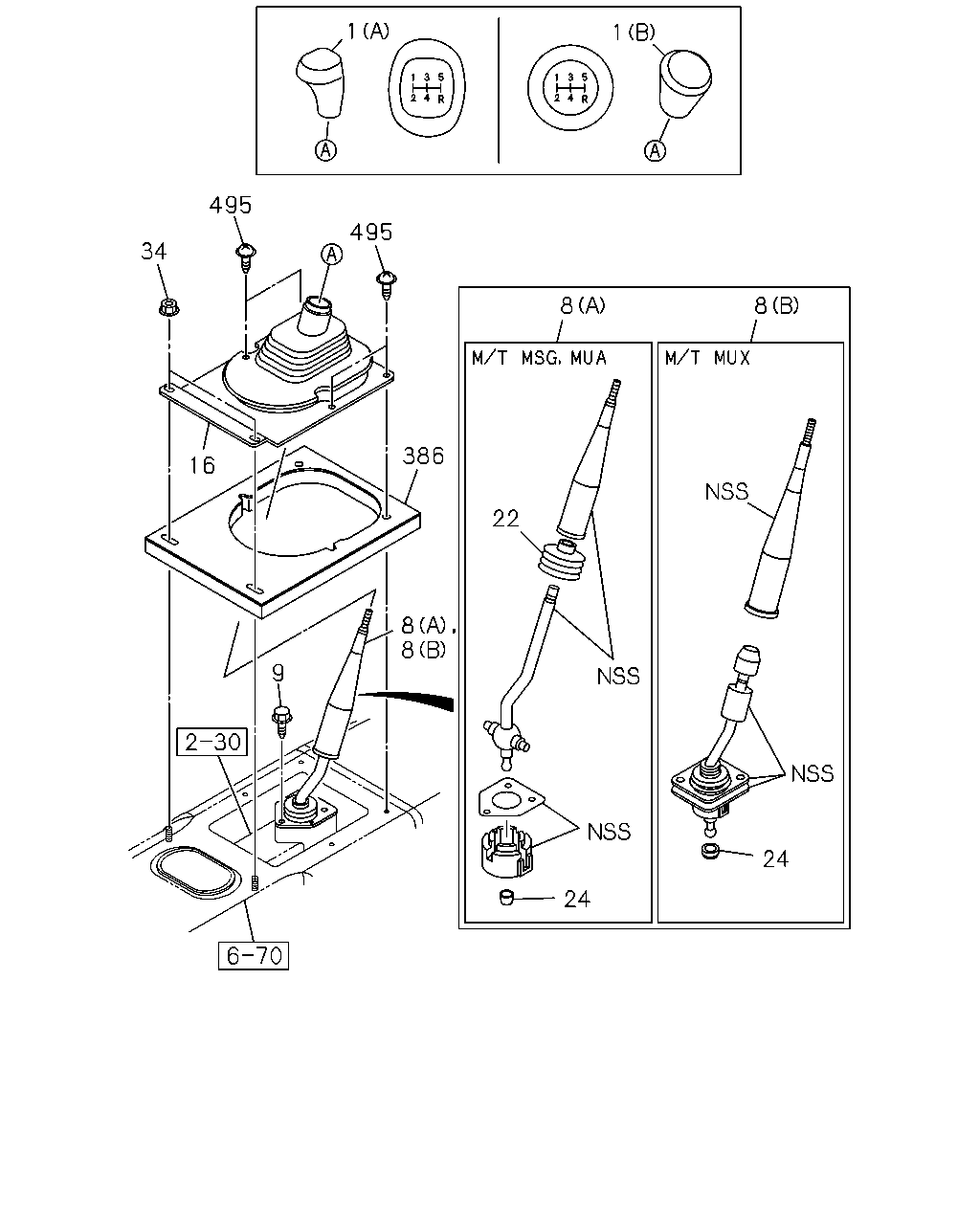

2-35A — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#76996) — 58 parça

1 1 495 495 34 8 8 386 16 22 8 8 9 24 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	04.006 KNOB; CHANGE LEVER FRONT CONSOLE<D55> (A) DARK GRAY	8-97406-184-0	01	1	0808-0809	●
1	04.006 KNOB; CHANGE LEVER SHIFT KNOB SPORTS<KAE> (A) DARK GRAY	8-97406-184-0	01	1	0810-	●	●	●	●	●
1	04.006 KNOB; CHANGE LEVER SHIFT KNOB LEATHER<VY7> (A) DARK GRAY	8-97406-182-0	01	1	0808-0809	●
1	04.006 KNOB; CHANGE LEVER SHIFT KNOB LEATHER<VY7> (A) DARK GRAY	8-97406-182-0	01	1	0810-	●	●	●	●	●
1	04.006 KNOB; CHANGE LEVER EXC. SHIFT KNOB SPORTS<KAE>,SHIFT KNOBLEATHER<VY7> (B)	8-97371-734-0	01	1	0808-0809	●
1	04.006 KNOB; CHANGE LEVER EXC. SHIFT KNOB SPORTS<KAE>,SHIFT KNOBLEATHER<VY7> (B)	8-97371-734-0	01	1	0810-	●	●	●	●	●
8	04.006 LEVER; CHANGE 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) (A)	8-97945-847-0	01	1	0810-1003			●	●	●
8	04.006 LEVER; CHANGE 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) (A)	8-97945-847-0	01	1	1004-1007			●	●
8	04.006 LEVER; CHANGE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) (A)	8-97945-847-0	01	1	1008-			●	●
8	04.006 LEVER; CHANGE 4JA1-T ENG(LP0) (A)	8-97945-851-0	01	1	0810-			●	●	●
8	04.006 LEVER; CHANGE 4JA1-T ENG(LP0) (A)	8-97945-853-0	01	1	0810-		●
8	04.006 LEVER; CHANGE C24SE ENG(LG1) (A)	8-97945-849-0	01	1	0810-				●	●
8	04.006 LEVER; CHANGE 4JJ1-TCX ENG(LS0) (B)	8-97945-472-0	01	1	0808-	●
9	04.012 BOLT; CHANGE LEVER 01.531 M8X20 FLANGE	0-28650-820-0	03	1	0810-		●	●	●	●
9	04.012 BOLT; CHANGE LEVER 01.531 M8X20 FLANGE	0-28650-820-0	04	1	0808-	●
16	04.015 BOOT; CHANGE LEVER FRONT CONSOLE<D55>	8-97235-879-2	01	1	0808-0809	●
16	04.015 BOOT; CHANGE LEVER FRONT CONSOLE<D55>	8-97235-879-2	01	1	0810-	●	●	●	●	●
16	04.015 BOOT; CHANGE LEVER EXC. FRONT CONSOLE<D55>	8-98003-438-0	01	1	0808-0809	●
16	04.015 BOOT; CHANGE LEVER EXC. FRONT CONSOLE<D55>	8-98003-438-0	01	1	0810-	●	●	●	●	●
22	04.015 COVER; DUST,CHANGE LEVER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-97945-801-0	01	1	0810-1007		●	●	●	●
22	04.015 COVER; DUST,CHANGE LEVER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-97945-801-0	01	1	1008-		●	●	●	●
24	04.008 BUSHING; CHANGE LEVER 4JJ1-TCX ENG(LS0)	8-97943-618-0	01	1	0808-0809	●
24	04.008 BUSHING; CHANGE LEVER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97943-618-0	01	1	0810-1007	●	●	●	●	●
24	04.008 BUSHING; CHANGE LEVER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97943-618-0	01	1	1008-	●	●	●	●	●
34	08.915 NUT M6 FLANGE	8-98055-704-0	02	1	0808-0809	●
34	08.915 NUT M6 FLANGE	8-98055-704-0	02	1	0810-	●	●	●	●	●
386	04.015 INSULATION; CHANGE LEVER 4JJ1-TCX ENG(LS0)	8-98063-555-0	01	1	0808-	●
495	04.012 SCREW; GROMMET M5X16 TAPPING W/PL WASHER	0-74365-516-0	04	1	0808-0809	●
495	04.012 SCREW; GROMMET M5X16 TAPPING W/PL WASHER	0-74365-516-0	04	1	0810-	●	●	●	●	●

1 1 495 495 34 8 8 386 16 22 8 8 9 24 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	04.006 KNOB; CHANGE LEVER FRONT CONSOLE<D55> (A) DARK GRAY	8-97406-184-0	01	1	0808-0809	●
1	04.006 KNOB; CHANGE LEVER SHIFT KNOB SPORTS<KAE> (A) DARK GRAY	8-97406-184-0	01	1	0810-	●	●	●	●	●
1	04.006 KNOB; CHANGE LEVER SHIFT KNOB LEATHER<VY7> (A) DARK GRAY	8-97406-182-0	01	1	0808-0809	●
1	04.006 KNOB; CHANGE LEVER SHIFT KNOB LEATHER<VY7> (A) DARK GRAY	8-97406-182-0	01	1	0810-	●	●	●	●	●
1	04.006 KNOB; CHANGE LEVER EXC. SHIFT KNOB SPORTS<KAE>,SHIFT KNOBLEATHER<VY7> (B)	8-97371-734-0	01	1	0808-0809	●
1	04.006 KNOB; CHANGE LEVER EXC. SHIFT KNOB SPORTS<KAE>,SHIFT KNOBLEATHER<VY7> (B)	8-97371-734-0	01	1	0810-	●	●	●	●	●
8	04.006 LEVER; CHANGE 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) (A)	8-97945-847-0	01	1	0810-1003			●	●	●
8	04.006 LEVER; CHANGE 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) (A)	8-97945-847-0	01	1	1004-1007			●	●
8	04.006 LEVER; CHANGE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) (A)	8-97945-847-0	01	1	1008-			●	●
8	04.006 LEVER; CHANGE 4JA1-T ENG(LP0) (A)	8-97945-851-0	01	1	0810-			●	●	●
8	04.006 LEVER; CHANGE 4JA1-T ENG(LP0) (A)	8-97945-853-0	01	1	0810-		●
8	04.006 LEVER; CHANGE C24SE ENG(LG1) (A)	8-97945-849-0	01	1	0810-				●	●
8	04.006 LEVER; CHANGE 4JJ1-TCX ENG(LS0) (B)	8-97945-472-0	01	1	0808-	●
9	04.012 BOLT; CHANGE LEVER 01.531 M8X20 FLANGE	0-28650-820-0	03	1	0810-		●	●	●	●
9	04.012 BOLT; CHANGE LEVER 01.531 M8X20 FLANGE	0-28650-820-0	04	1	0808-	●
16	04.015 BOOT; CHANGE LEVER FRONT CONSOLE<D55>	8-97235-879-2	01	1	0808-0809	●
16	04.015 BOOT; CHANGE LEVER FRONT CONSOLE<D55>	8-97235-879-2	01	1	0810-	●	●	●	●	●
16	04.015 BOOT; CHANGE LEVER EXC. FRONT CONSOLE<D55>	8-98003-438-0	01	1	0808-0809	●
16	04.015 BOOT; CHANGE LEVER EXC. FRONT CONSOLE<D55>	8-98003-438-0	01	1	0810-	●	●	●	●	●
22	04.015 COVER; DUST,CHANGE LEVER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-97945-801-0	01	1	0810-1007		●	●	●	●
22	04.015 COVER; DUST,CHANGE LEVER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-97945-801-0	01	1	1008-		●	●	●	●
24	04.008 BUSHING; CHANGE LEVER 4JJ1-TCX ENG(LS0)	8-97943-618-0	01	1	0808-0809	●
24	04.008 BUSHING; CHANGE LEVER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97943-618-0	01	1	0810-1007	●	●	●	●	●
24	04.008 BUSHING; CHANGE LEVER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97943-618-0	01	1	1008-	●	●	●	●	●
34	08.915 NUT M6 FLANGE	8-98055-704-0	02	1	0808-0809	●
34	08.915 NUT M6 FLANGE	8-98055-704-0	02	1	0810-	●	●	●	●	●
386	04.015 INSULATION; CHANGE LEVER 4JJ1-TCX ENG(LS0)	8-98063-555-0	01	1	0808-	●
495	04.012 SCREW; GROMMET M5X16 TAPPING W/PL WASHER	0-74365-516-0	04	1	0808-0809	●
495	04.012 SCREW; GROMMET M5X16 TAPPING W/PL WASHER	0-74365-516-0	04	1	0810-	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
