Sayfa 2-30A - Isuzu EPC

2-30A — GEAR SHIFTER AND QUADRANT BOX (#76995) — 318 parça

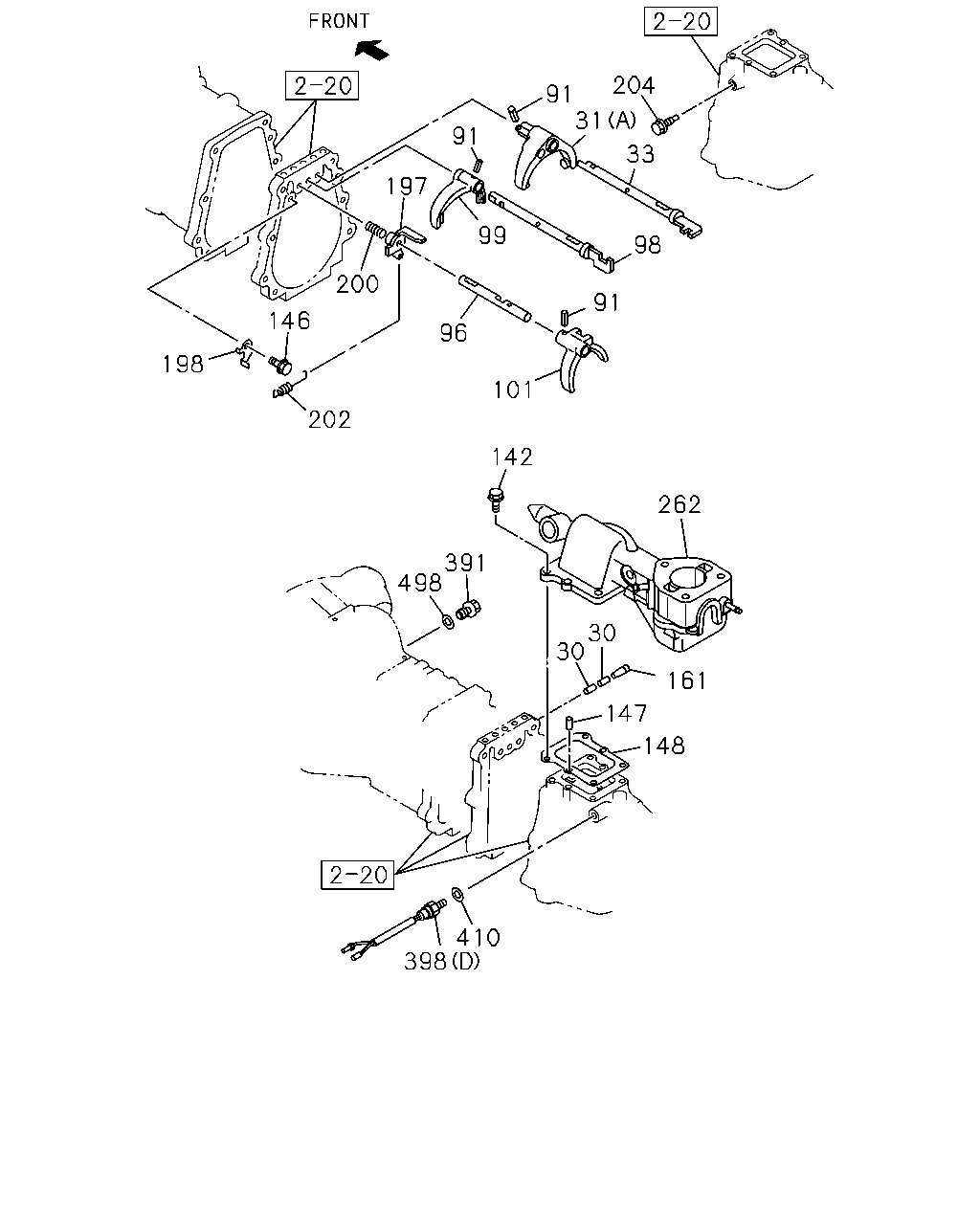

204 91 31 91 33 197 99 98 200 91 146 96 198 101 202 142 262 391 498 30 30 161 147 148 410 398

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
30	04.307 PIN; INTER LK 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) OD=5.5 L=10	5-33534-002-1	02	1	0810-1007	●	●	●	●
30	04.307 PIN; INTER LK 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) OD=5.5 L=10	5-33534-002-1	02	1	1008-	●	●	●	●
31	04.302 ARM; SHIFT,LOW & 2ND 4JA1-T ENG(LP0) (C)	8-97024-503-1	01	1	0810-0902	●
31	04.302 ARM; SHIFT,LOW & 2ND 4JA1-T ENG(LP0) (C)	8-97024-503-1	01	1	0903-	●
31	04.302 ARM; SHIFT,LOW & 2ND 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) (A)	8-94421-912-2	01	1	0810-1007		●	●	●
31	04.302 ARM; SHIFT,LOW & 2ND 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) (A)	8-94421-912-2	01	1	1008-		●	●	●
31	04.302 ARM; SHIFT,LOW & 2ND 4JJ1-TCX ENG(LS0) (B)	8-97362-435-0	01	1	0808-					●
33	04.309 ROD; SHIFT,LOW & 2ND 4JA1-T ENG(LP0)	8-97213-047-0	01	1	0810-	●
33	04.309 ROD; SHIFT,LOW & 2ND 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-97019-061-2	01	1	0810-1007		●	●	●
33	04.309 ROD; SHIFT,LOW & 2ND 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-97019-061-2	01	1	1008-		●	●	●
33	04.309 ROD; SHIFT,LOW & 2ND 4JJ1-TCX ENG(LS0)	8-97362-441-0	01	1	0808-					●
91	04.302 PIN; SPR,SHIFT ARM 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 04.303 D=4.2 L=25	8-94171-541-0	03	1	0810-1007	●	●	●	●
91	04.302 PIN; SPR,SHIFT ARM 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 04.303 D=4.2 L=25	8-94171-541-0	03	1	1008-	●	●	●	●
96	04.309 ROD; SHIFT,5TH 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-94440-079-1	01	1	0810-1007		●	●	●
96	04.309 ROD; SHIFT,5TH 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-94440-079-1	01	1	1008-		●	●	●
98	04.309 ROD; SHIFT,TOP & 3RD 4JA1-T ENG(LP0)	8-97213-045-0	01	1	0810-	●
98	04.309 ROD; SHIFT,TOP & 3RD 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-97019-060-3	01	1	0810-1007		●	●	●
98	04.309 ROD; SHIFT,TOP & 3RD 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-97019-060-3	01	1	1008-		●	●	●
99	04.302 ARM; SHIFT,4TH & 3RD 4JJ1-TCX ENG(LS0) 04.303	8-97362-439-2	01	1	0808-					●
99	04.302 ARM; SHIFT,4TH & 3RD 4JA1-T ENG(LP0)	8-94435-153-1	01	1	0810-	●
99	04.302 ARM; SHIFT,4TH & 3RD 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-94421-911-2	01	1	0810-1007		●	●	●
99	04.302 ARM; SHIFT,4TH & 3RD 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-94421-911-2	01	1	1008-		●	●	●
101	04.302 ARM; SHIFT,REV & 5TH 4JA1-T ENG(LP0)	8-94455-851-3	01	1	0810-	●
101	04.302 ARM; SHIFT,REV & 5TH 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-94448-755-2	01	1	0810-1007		●	●	●
101	04.302 ARM; SHIFT,REV & 5TH 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-94448-755-2	01	1	1008-		●	●	●
142	04.012 BOLT; QUAD BOX 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 04.356 M8X22 FLANGE	8-97365-376-0	04	1	0810-1007	●	●	●	●
142	04.012 BOLT; QUAD BOX 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 04.356 M8X22 FLANGE	8-97365-376-0	04	1	1008-	●	●	●	●
142	04.012 BOLT; QUAD BOX 4JJ1-TCX ENG(LS0) 01.060 M8X35 FLANGE	0-28650-835-0	04	1	0808-					●
146	04.032 BOLT; REV INHIBITOR 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 04.338 M8X20 FLANGE	0-28050-820-0	01	1	0810-1007		●	●	●
146	04.032 BOLT; REV INHIBITOR 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 04.338 M8X20 FLANGE	0-28050-820-0	01	1	1008-		●	●	●
147	04.020 PIN; KNOCK 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 04.510 OD=6 L=12	9-08150-612-0	02	1	0810-1007		●	●	●
147	04.020 PIN; KNOCK 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 04.510 OD=6 L=12	9-08150-612-0	02	1	1008-		●	●	●
148	04.015 GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4JA1-T ENG(LP0)	8-97184-922-0	01	1	0810-	●
148	04.015 GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-97083-599-0	01	1	0810-1007		●	●	●
148	04.015 GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-97083-599-0	01	1	1008-		●	●	●
161	04.307 PLUG; INTER LK HOLE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-94239-543-1	01	1	0810-1007	●	●	●	●
161	04.307 PLUG; INTER LK HOLE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-94239-543-1	01	1	1008-	●	●	●	●
197	04.309 INHIBITOR; REV SHIFT 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-94448-753-0	01	1	0810-1007		●	●	●
197	04.309 INHIBITOR; REV SHIFT 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-94448-753-0	01	1	1008-		●	●	●
198	04.309 BRACKET; REV INHIBITOR 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-94448-199-0	01	1	0810-1007		●	●	●
198	04.309 BRACKET; REV INHIBITOR 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-94448-199-0	01	1	1008-		●	●	●
200	04.309 SPRING; REV INHIBITOR,COMP 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-94448-807-0	01	1	0810-1007		●	●	●
200	04.309 SPRING; REV INHIBITOR,COMP 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-94448-807-0	01	1	1008-		●	●	●
202	04.309 SPRING; REV INHIBITOR,EXT 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-97017-500-0	01	1	0810-1007		●	●	●
202	04.309 SPRING; REV INHIBITOR,EXT 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-97017-500-0	01	1	1008-		●	●	●
204	04.309 STOPPER; REV INHIBITOR 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-98035-673-0	01	1	0810-1007		●	●	●
204	04.309 STOPPER; REV INHIBITOR 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-98035-673-0	01	1	1008-		●	●	●
262	04.105 BOX ASM; SHIFT CONT 4JA1-T ENG(LP0)	8-98017-735-0	01	1	0810-1204	●
262	04.105 BOX ASM; SHIFT CONT 4JA1-T ENG(LP0)	8-98203-266-0	01	1	1205-	●
262	04.105 BOX ASM; SHIFT CONT C24SE ENG(LG1)	8-98017-739-0	01	1	0810-1204			●	●
262	04.105 BOX ASM; SHIFT CONT C24SE ENG(LG1)	8-98203-265-0	01	1	1205-			●	●
262	04.105 BOX ASM; SHIFT CONT 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0)	8-98017-729-0	01	1	0810-1007		●	●
262	04.105 BOX ASM; SHIFT CONT 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-98017-729-0	01	1	1008-1204		●	●
262	04.105 BOX ASM; SHIFT CONT 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-98203-264-0	01	1	1205-		●	●
391	04.104 PLUG; SW HOLE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) M14X11	8-98035-674-0	01	1	0810-1003		●	●	●
391	04.104 PLUG; SW HOLE 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0) M14X11	8-98035-674-0	01	1	1004-1007		●	●
391	04.104 PLUG; SW HOLE 4X2(TFB***) C24SE ENG(LG1),4JA1-T ENG(LP0) M14X11	8-98035-674-0	01	1	1004-1007		●	●
391	04.104 PLUG; SW HOLE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) M14X11	8-98035-674-0	01	1	1008-1008		●	●
391	04.104 PLUG; SW HOLE 4X2(TFB***) C24SE ENG(LG1),4JA1-T ENG(LP0) M14X11	8-98035-674-0	01	1	1008-1008			●
391	04.104 PLUG; SW HOLE 4X2(TFB***) C24SE ENG(LG1),4JA1-T ENG(LP0) M14X11	8-98035-674-0	01	1	1009-		●	●	●
398	02.698 SWITCH; REV LAMP 4JA1-T ENG(LP0) (C)	8-98042-851-0	01	1	0810-	●
398	02.698 SWITCH; REV LAMP 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) (D)	8-98035-681-0	01	1	0810-1007		●	●	●
398	02.698 SWITCH; REV LAMP 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) (D)	8-98035-681-0	01	1	1008-1405		●	●	●
398	02.698 SWITCH; REV LAMP 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) (D)	8-98181-802-0	01	1	1406-		●	●	●
398	02.698 SWITCH; REV LAMP 4JJ1-TCX ENG(LS0) (B)	8-98037-159-0	01	1	0808-1405					●
398	02.698 SWITCH; REV LAMP 4JJ1-TCX ENG(LS0) (B)	8-98181-801-0	01	1	1406-					●
398	02.698 SWITCH; REV LAMP 4JJ1-TCX ENG(LS0) (A)	8-98037-160-0	01	1	0808-1405					●
398	02.698 SWITCH; REV LAMP 4JJ1-TCX ENG(LS0) (A)	8-98180-973-0	01	1	1406-					●
410	04.054 GASKET; REV SW ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	0810-1007		●	●	●
410	04.054 GASKET; REV SW ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	1008-		●	●	●
498	04.075 GASKET; SWITCH,1ST & 2ND 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0) 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	0810-1007		●	●
498	04.075 GASKET; SWITCH,1ST & 2ND 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	1008-1008		●	●

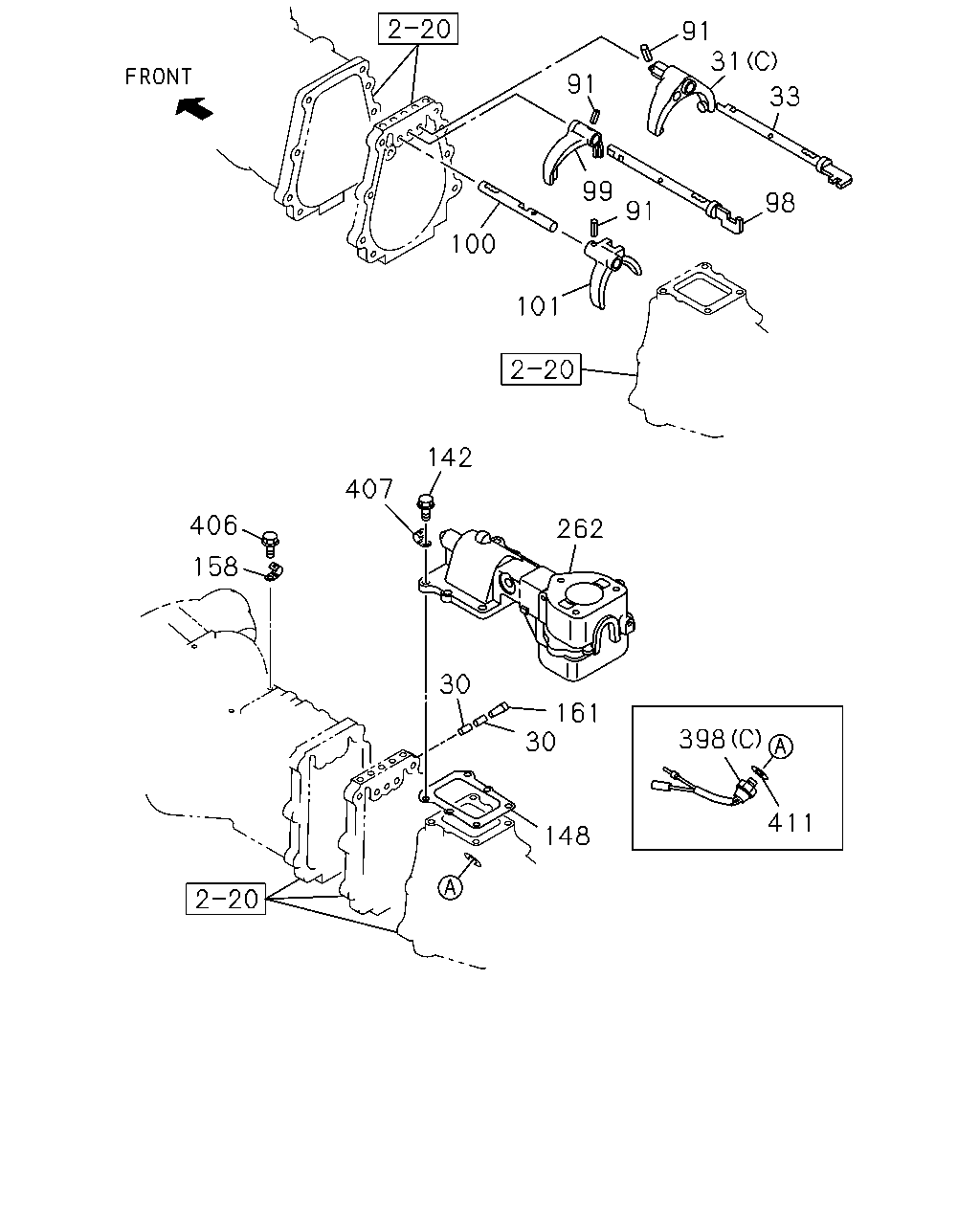

91 31 91 33 99 98 91 100 101 142 407 406 262 158 30 161 30 398 411 148

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
30	04.307 PIN; INTER LK 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) OD=5.5 L=10	5-33534-002-1	02	1	0810-1007	●	●	●	●
30	04.307 PIN; INTER LK 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) OD=5.5 L=10	5-33534-002-1	02	1	1008-	●	●	●	●
31	04.302 ARM; SHIFT,LOW & 2ND 4JA1-T ENG(LP0) (C)	8-97024-503-1	01	1	0810-0902	●
31	04.302 ARM; SHIFT,LOW & 2ND 4JA1-T ENG(LP0) (C)	8-97024-503-1	01	1	0903-	●
31	04.302 ARM; SHIFT,LOW & 2ND 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) (A)	8-94421-912-2	01	1	0810-1007		●	●	●
31	04.302 ARM; SHIFT,LOW & 2ND 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) (A)	8-94421-912-2	01	1	1008-		●	●	●
31	04.302 ARM; SHIFT,LOW & 2ND 4JJ1-TCX ENG(LS0) (B)	8-97362-435-0	01	1	0808-					●
33	04.309 ROD; SHIFT,LOW & 2ND 4JA1-T ENG(LP0)	8-97213-047-0	01	1	0810-	●
33	04.309 ROD; SHIFT,LOW & 2ND 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-97019-061-2	01	1	0810-1007		●	●	●
33	04.309 ROD; SHIFT,LOW & 2ND 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-97019-061-2	01	1	1008-		●	●	●
33	04.309 ROD; SHIFT,LOW & 2ND 4JJ1-TCX ENG(LS0)	8-97362-441-0	01	1	0808-					●
91	04.302 PIN; SPR,SHIFT ARM 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 04.303 D=4.2 L=25	8-94171-541-0	03	1	0810-1007	●	●	●	●
91	04.302 PIN; SPR,SHIFT ARM 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 04.303 D=4.2 L=25	8-94171-541-0	03	1	1008-	●	●	●	●
98	04.309 ROD; SHIFT,TOP & 3RD 4JA1-T ENG(LP0)	8-97213-045-0	01	1	0810-	●
98	04.309 ROD; SHIFT,TOP & 3RD 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-97019-060-3	01	1	0810-1007		●	●	●
98	04.309 ROD; SHIFT,TOP & 3RD 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-97019-060-3	01	1	1008-		●	●	●
99	04.302 ARM; SHIFT,4TH & 3RD 4JJ1-TCX ENG(LS0) 04.303	8-97362-439-2	01	1	0808-					●
99	04.302 ARM; SHIFT,4TH & 3RD 4JA1-T ENG(LP0)	8-94435-153-1	01	1	0810-	●
99	04.302 ARM; SHIFT,4TH & 3RD 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-94421-911-2	01	1	0810-1007		●	●	●
99	04.302 ARM; SHIFT,4TH & 3RD 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-94421-911-2	01	1	1008-		●	●	●
100	04.309 ROD; SHIFT,REV & 5TH 4JA1-T ENG(LP0)	8-97115-185-0	01	1	0810-0902	●
100	04.309 ROD; SHIFT,REV & 5TH 4JA1-T ENG(LP0)	8-97232-885-0	01	1	0903-	●
101	04.302 ARM; SHIFT,REV & 5TH 4JA1-T ENG(LP0)	8-94455-851-3	01	1	0810-	●
101	04.302 ARM; SHIFT,REV & 5TH 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-94448-755-2	01	1	0810-1007		●	●	●
101	04.302 ARM; SHIFT,REV & 5TH 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-94448-755-2	01	1	1008-		●	●	●
142	04.012 BOLT; QUAD BOX 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 04.356 M8X22 FLANGE	8-97365-376-0	04	1	0810-1007	●	●	●	●
142	04.012 BOLT; QUAD BOX 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 04.356 M8X22 FLANGE	8-97365-376-0	04	1	1008-	●	●	●	●
142	04.012 BOLT; QUAD BOX 4JJ1-TCX ENG(LS0) 01.060 M8X35 FLANGE	0-28650-835-0	04	1	0808-					●
148	04.015 GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4JA1-T ENG(LP0)	8-97184-922-0	01	1	0810-	●
148	04.015 GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-97083-599-0	01	1	0810-1007		●	●	●
148	04.015 GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-97083-599-0	01	1	1008-		●	●	●
158	04.105 CLIP; HARNESS 4JA1-T ENG(LP0) 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	02	1	0810-	●
161	04.307 PLUG; INTER LK HOLE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-94239-543-1	01	1	0810-1007	●	●	●	●
161	04.307 PLUG; INTER LK HOLE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-94239-543-1	01	1	1008-	●	●	●	●
262	04.105 BOX ASM; SHIFT CONT 4JA1-T ENG(LP0)	8-98017-735-0	01	1	0810-1204	●
262	04.105 BOX ASM; SHIFT CONT 4JA1-T ENG(LP0)	8-98203-266-0	01	1	1205-	●
262	04.105 BOX ASM; SHIFT CONT C24SE ENG(LG1)	8-98017-739-0	01	1	0810-1204			●	●
262	04.105 BOX ASM; SHIFT CONT C24SE ENG(LG1)	8-98203-265-0	01	1	1205-			●	●
262	04.105 BOX ASM; SHIFT CONT 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0)	8-98017-729-0	01	1	0810-1007		●	●
262	04.105 BOX ASM; SHIFT CONT 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-98017-729-0	01	1	1008-1204		●	●
262	04.105 BOX ASM; SHIFT CONT 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-98203-264-0	01	1	1205-		●	●
398	02.698 SWITCH; REV LAMP 4JA1-T ENG(LP0) (C)	8-98042-851-0	01	1	0810-	●
398	02.698 SWITCH; REV LAMP 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) (D)	8-98035-681-0	01	1	0810-1007		●	●	●
398	02.698 SWITCH; REV LAMP 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) (D)	8-98035-681-0	01	1	1008-1405		●	●	●
398	02.698 SWITCH; REV LAMP 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) (D)	8-98181-802-0	01	1	1406-		●	●	●
398	02.698 SWITCH; REV LAMP 4JJ1-TCX ENG(LS0) (B)	8-98037-159-0	01	1	0808-1405					●
398	02.698 SWITCH; REV LAMP 4JJ1-TCX ENG(LS0) (B)	8-98181-801-0	01	1	1406-					●
398	02.698 SWITCH; REV LAMP 4JJ1-TCX ENG(LS0) (A)	8-98037-160-0	01	1	0808-1405					●
398	02.698 SWITCH; REV LAMP 4JJ1-TCX ENG(LS0) (A)	8-98180-973-0	01	1	1406-					●
406	02.559 BOLT; HARNESS CLIP 4JA1-T ENG(LP0) 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0810-	●
407	02.698 CLIP; SWITCH HARNESS 4JA1-T ENG(LP0) 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0810-	●
411	02.698 GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T). 4JA1-T ENG(LP0) 04.075 ID=14.2	8-94462-114-0	01	1	0810-	●

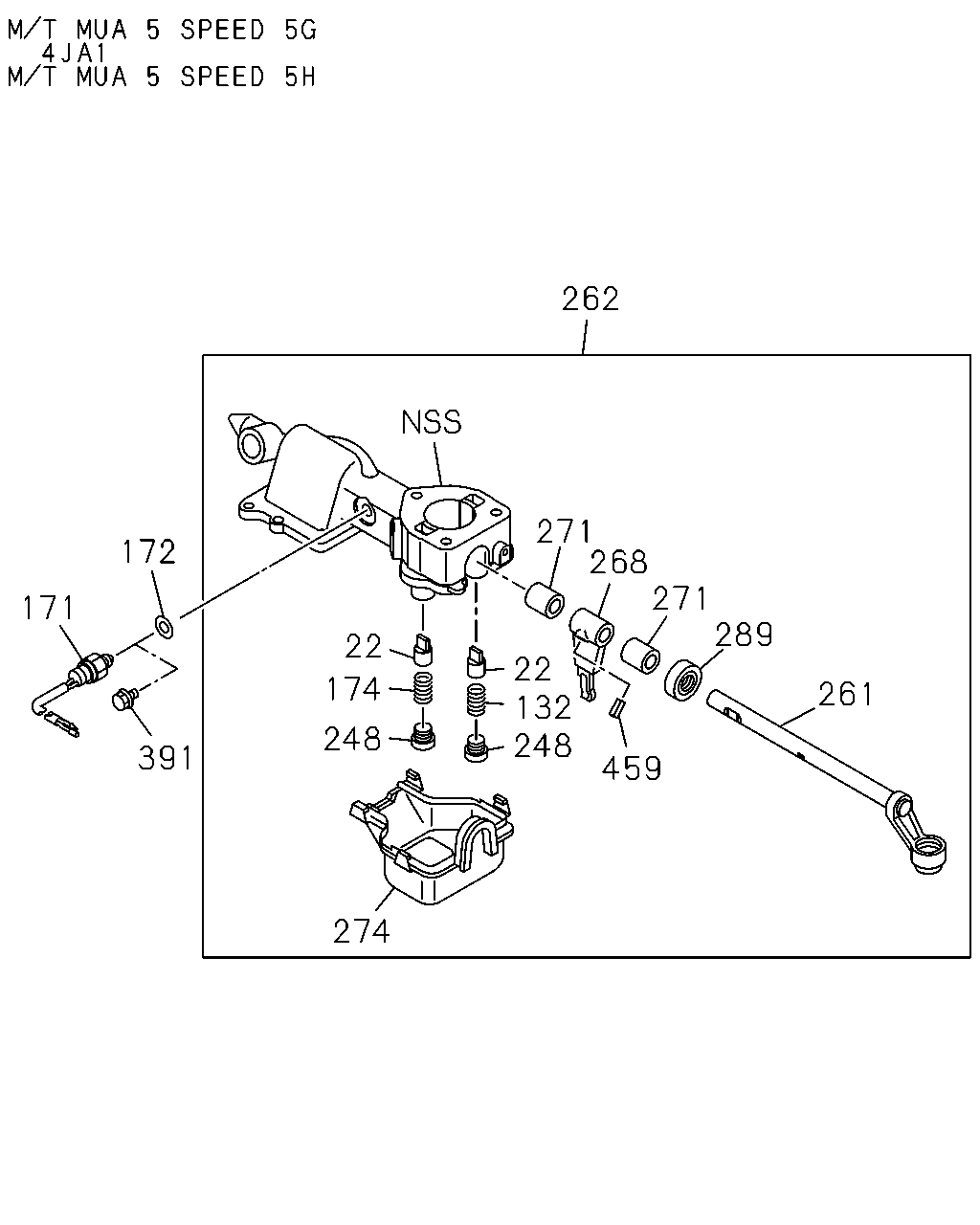

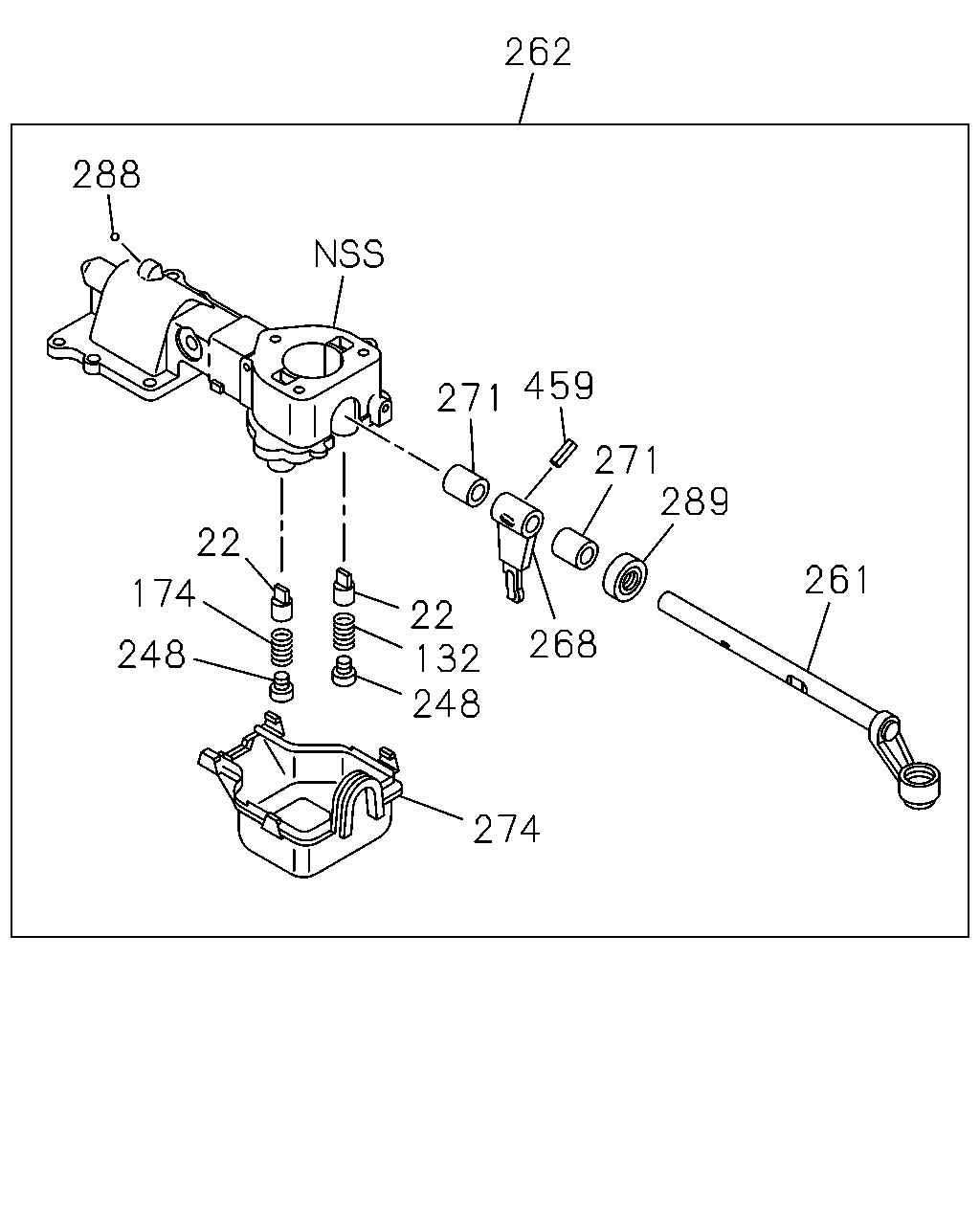

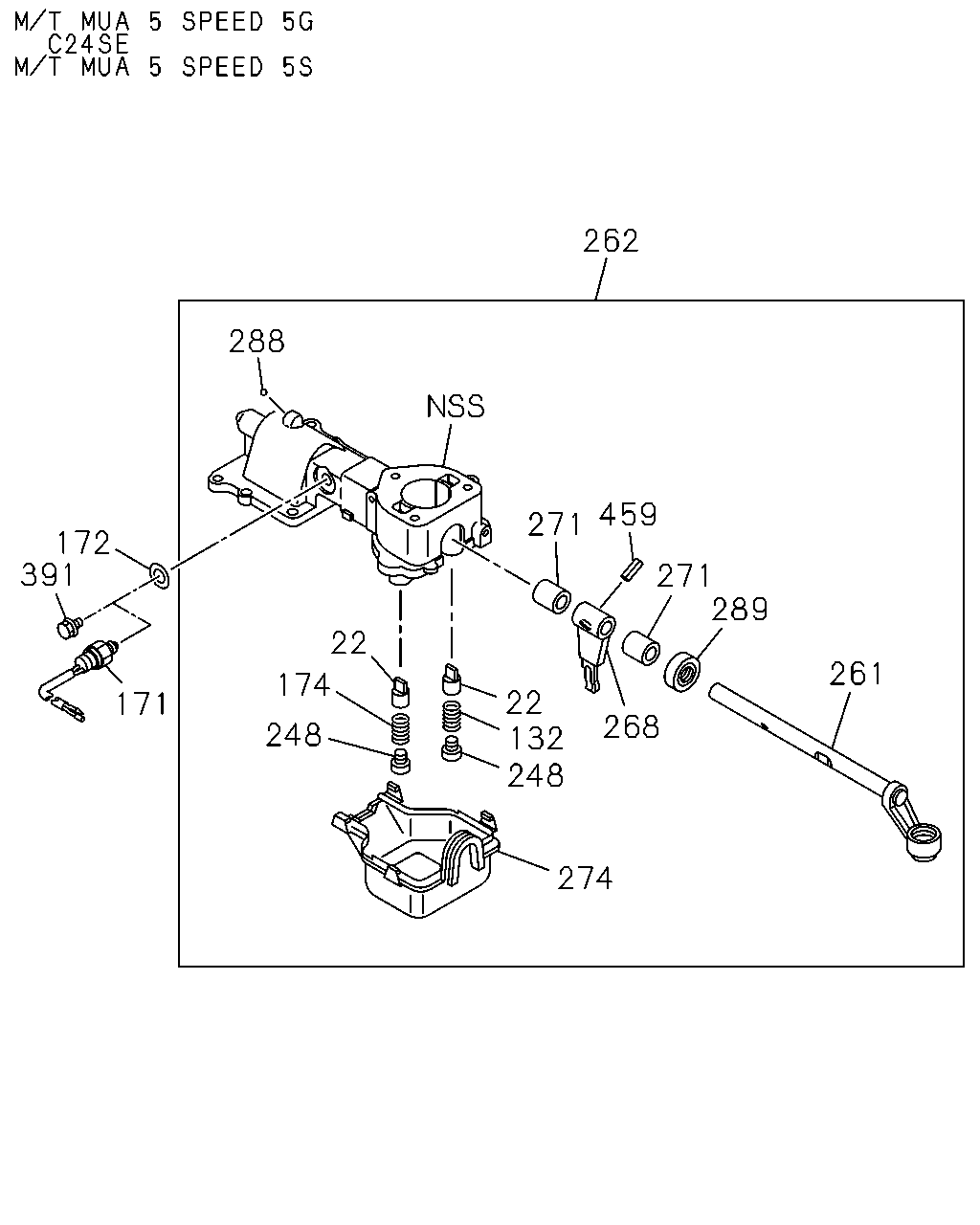

262 271 268 271 289 172 171 22 22 132 248 174 261 248 391 459 274

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
22	04.307 CAP; RETURN SPR,SHIFT BLOCK 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-97181-326-0	02	1	0810-1007	●	●	●	●
22	04.307 CAP; RETURN SPR,SHIFT BLOCK 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-97181-326-0	02	1	1008-	●	●	●	●
132	04.027 SPRING; SELECT STOP 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-97181-395-0	01	1	0810-1007	●	●	●	●
132	04.027 SPRING; SELECT STOP 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-97181-395-0	01	1	1008-	●	●	●	●
171	04.054 SWITCH; NEUTRAL 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)	8-98035-680-0	01	1	0810-1007		●	●	●
171	04.054 SWITCH; NEUTRAL 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0)	8-98035-680-0	01	1	1008-		●	●	●
171	04.054 SWITCH; NEUTRAL 4JJ1-TCX ENG(LS0) 04.075	8-97358-606-0	01	1	0808-1405					●
171	04.054 SWITCH; NEUTRAL 4JJ1-TCX ENG(LS0)	8-98180-974-0	01	1	1406-					●
172	04.054 GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). 04.075 ID=14.2	8-94462-114-0	01	1	0810-		●	●	●
174	04.307 SPRING; REV 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-97181-394-0	01	1	0810-1007	●	●	●	●
174	04.307 SPRING; REV 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-97181-394-0	01	1	1008-	●	●	●	●
248	04.105 RETAINER; CONT BOX 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 04.307	8-97181-325-0	02	1	0810-1007	●	●	●	●
248	04.105 RETAINER; CONT BOX 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 04.307	8-97181-325-0	02	1	1008-1211	●	●	●	●
248	04.105 RETAINER; CONT BOX 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-98210-983-0	02	1	1212-	●	●	●	●
261	04.309 ROD; GEAR CONT 4JA1-T ENG(LP0)	8-97257-825-0	01	1	0810-	●
261	04.309 ROD; GEAR CONT C24SE ENG(LG1)	8-97257-909-0	01	1	0810-			●	●
261	04.309 ROD; GEAR CONT 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0)	8-97257-911-0	01	1	0810-1007		●	●
261	04.309 ROD; GEAR CONT 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-97257-911-0	01	1	1008-		●	●
261	04.309 ROD; GEAR CONT 4JJ1-TCX ENG(LS0)	8-97362-444-0	01	1	0808-					●
262	04.105 BOX ASM; SHIFT CONT 4JA1-T ENG(LP0)	8-98017-735-0	01	1	0810-1204	●
262	04.105 BOX ASM; SHIFT CONT 4JA1-T ENG(LP0)	8-98203-266-0	01	1	1205-	●
262	04.105 BOX ASM; SHIFT CONT C24SE ENG(LG1)	8-98017-739-0	01	1	0810-1204			●	●
262	04.105 BOX ASM; SHIFT CONT C24SE ENG(LG1)	8-98203-265-0	01	1	1205-			●	●
262	04.105 BOX ASM; SHIFT CONT 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0)	8-98017-729-0	01	1	0810-1007		●	●
262	04.105 BOX ASM; SHIFT CONT 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-98017-729-0	01	1	1008-1204		●	●
262	04.105 BOX ASM; SHIFT CONT 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-98203-264-0	01	1	1205-		●	●
268	04.302 LEVER; CONT,INTERNAL 4JA1-T ENG(LP0)	8-97184-894-0	01	1	0810-	●
268	04.302 LEVER; CONT,INTERNAL 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-97184-895-0	01	1	0810-1007		●	●	●
268	04.302 LEVER; CONT,INTERNAL 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-97184-895-0	01	1	1008-		●	●	●
271	04.105 BUSHING; QUAD BOX 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) ID=14 L=12	8-98017-908-0	02	1	0810-1007	●	●	●	●
271	04.105 BUSHING; QUAD BOX 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) ID=14 L=12	8-98017-908-0	02	1	1008-	●	●	●	●
274	04.105 COVER; SHAFT,QUAD BOX 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-97181-324-1	01	1	0810-1007	●	●	●	●
274	04.105 COVER; SHAFT,QUAD BOX 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-97181-324-1	01	1	1008-	●	●	●	●
289	04.107 SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-98017-744-0	01	1	0810-1007	●	●	●	●
289	04.107 SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-98017-744-0	01	1	1008-	●	●	●	●
391	04.104 PLUG; SW HOLE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) M14X11	8-98035-674-0	01	1	0810-1003		●	●	●
391	04.104 PLUG; SW HOLE 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0) M14X11	8-98035-674-0	01	1	1004-1007		●	●
391	04.104 PLUG; SW HOLE 4X2(TFB***) C24SE ENG(LG1),4JA1-T ENG(LP0) M14X11	8-98035-674-0	01	1	1004-1007		●	●
391	04.104 PLUG; SW HOLE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) M14X11	8-98035-674-0	01	1	1008-1008		●	●
391	04.104 PLUG; SW HOLE 4X2(TFB***) C24SE ENG(LG1),4JA1-T ENG(LP0) M14X11	8-98035-674-0	01	1	1008-1008			●
391	04.104 PLUG; SW HOLE 4X2(TFB***) C24SE ENG(LG1),4JA1-T ENG(LP0) M14X11	8-98035-674-0	01	1	1009-		●	●	●
459	04.302 PIN; SPR,ROD TO ARM 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) OD=5	8-97184-905-0	01	1	0810-1007	●	●	●	●
459	04.302 PIN; SPR,ROD TO ARM 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) OD=5	8-97184-905-0	01	1	1008-	●	●	●	●

262 288 459 271 271 289 22 261 174 22 132 248 268 248 274

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
22	04.307 CAP; RETURN SPR,SHIFT BLOCK 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-97181-326-0	02	1	0810-1007	●	●	●	●
22	04.307 CAP; RETURN SPR,SHIFT BLOCK 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-97181-326-0	02	1	1008-	●	●	●	●
132	04.027 SPRING; SELECT STOP 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-97181-395-0	01	1	0810-1007	●	●	●	●
132	04.027 SPRING; SELECT STOP 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-97181-395-0	01	1	1008-	●	●	●	●
174	04.307 SPRING; REV 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-97181-394-0	01	1	0810-1007	●	●	●	●
174	04.307 SPRING; REV 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-97181-394-0	01	1	1008-	●	●	●	●
248	04.105 RETAINER; CONT BOX 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 04.307	8-97181-325-0	02	1	0810-1007	●	●	●	●
248	04.105 RETAINER; CONT BOX 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 04.307	8-97181-325-0	02	1	1008-1211	●	●	●	●
248	04.105 RETAINER; CONT BOX 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-98210-983-0	02	1	1212-	●	●	●	●
261	04.309 ROD; GEAR CONT 4JA1-T ENG(LP0)	8-97257-825-0	01	1	0810-	●
261	04.309 ROD; GEAR CONT C24SE ENG(LG1)	8-97257-909-0	01	1	0810-			●	●
261	04.309 ROD; GEAR CONT 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0)	8-97257-911-0	01	1	0810-1007		●	●
261	04.309 ROD; GEAR CONT 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-97257-911-0	01	1	1008-		●	●
261	04.309 ROD; GEAR CONT 4JJ1-TCX ENG(LS0)	8-97362-444-0	01	1	0808-					●
262	04.105 BOX ASM; SHIFT CONT 4JA1-T ENG(LP0)	8-98017-735-0	01	1	0810-1204	●
262	04.105 BOX ASM; SHIFT CONT 4JA1-T ENG(LP0)	8-98203-266-0	01	1	1205-	●
262	04.105 BOX ASM; SHIFT CONT C24SE ENG(LG1)	8-98017-739-0	01	1	0810-1204			●	●
262	04.105 BOX ASM; SHIFT CONT C24SE ENG(LG1)	8-98203-265-0	01	1	1205-			●	●
262	04.105 BOX ASM; SHIFT CONT 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0)	8-98017-729-0	01	1	0810-1007		●	●
262	04.105 BOX ASM; SHIFT CONT 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-98017-729-0	01	1	1008-1204		●	●
262	04.105 BOX ASM; SHIFT CONT 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-98203-264-0	01	1	1205-		●	●
268	04.302 LEVER; CONT,INTERNAL 4JA1-T ENG(LP0)	8-97184-894-0	01	1	0810-	●
268	04.302 LEVER; CONT,INTERNAL 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-97184-895-0	01	1	0810-1007		●	●	●
268	04.302 LEVER; CONT,INTERNAL 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-97184-895-0	01	1	1008-		●	●	●
271	04.105 BUSHING; QUAD BOX 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) ID=14 L=12	8-98017-908-0	02	1	0810-1007	●	●	●	●
271	04.105 BUSHING; QUAD BOX 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) ID=14 L=12	8-98017-908-0	02	1	1008-	●	●	●	●
274	04.105 COVER; SHAFT,QUAD BOX 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-97181-324-1	01	1	0810-1007	●	●	●	●
274	04.105 COVER; SHAFT,QUAD BOX 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-97181-324-1	01	1	1008-	●	●	●	●
288	04.307 PLUG; AIR BREATHER 4JA1-T ENG(LP0)	9-00097-517-0	01	1	0810-1003	●
288	04.307 PLUG; AIR BREATHER C24SE ENG(LG1)	9-00097-517-0	01	1	0810-1003			●	●
288	04.307 PLUG; AIR BREATHER 4JA1-T ENG(LP0)	9-00097-517-0	01	1	1004-1007	●
288	04.307 PLUG; AIR BREATHER C24SE ENG(LG1)	9-00097-517-0	01	1	1004-1007			●
288	04.307 PLUG; AIR BREATHER C24SE ENG(LG1),4JA1-T ENG(LP0)	9-00097-517-0	01	1	1008-	●		●	●
289	04.107 SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-98017-744-0	01	1	0810-1007	●	●	●	●
289	04.107 SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-98017-744-0	01	1	1008-	●	●	●	●
459	04.302 PIN; SPR,ROD TO ARM 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) OD=5	8-97184-905-0	01	1	0810-1007	●	●	●	●
459	04.302 PIN; SPR,ROD TO ARM 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) OD=5	8-97184-905-0	01	1	1008-	●	●	●	●

262 288 459 271 172 391 271 289 22 261 174 22 132 248 171 268 248 274

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
22	04.307 CAP; RETURN SPR,SHIFT BLOCK 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-97181-326-0	02	1	0810-1007	●	●	●	●
22	04.307 CAP; RETURN SPR,SHIFT BLOCK 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-97181-326-0	02	1	1008-	●	●	●	●
132	04.027 SPRING; SELECT STOP 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-97181-395-0	01	1	0810-1007	●	●	●	●
132	04.027 SPRING; SELECT STOP 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-97181-395-0	01	1	1008-	●	●	●	●
171	04.054 SWITCH; NEUTRAL 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)	8-98035-680-0	01	1	0810-1007		●	●	●
171	04.054 SWITCH; NEUTRAL 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0)	8-98035-680-0	01	1	1008-		●	●	●
171	04.054 SWITCH; NEUTRAL 4JJ1-TCX ENG(LS0) 04.075	8-97358-606-0	01	1	0808-1405					●
171	04.054 SWITCH; NEUTRAL 4JJ1-TCX ENG(LS0)	8-98180-974-0	01	1	1406-					●
172	04.054 GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). 04.075 ID=14.2	8-94462-114-0	01	1	0810-		●	●	●
174	04.307 SPRING; REV 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-97181-394-0	01	1	0810-1007	●	●	●	●
174	04.307 SPRING; REV 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-97181-394-0	01	1	1008-	●	●	●	●
248	04.105 RETAINER; CONT BOX 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 04.307	8-97181-325-0	02	1	0810-1007	●	●	●	●
248	04.105 RETAINER; CONT BOX 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 04.307	8-97181-325-0	02	1	1008-1211	●	●	●	●
248	04.105 RETAINER; CONT BOX 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-98210-983-0	02	1	1212-	●	●	●	●
261	04.309 ROD; GEAR CONT 4JA1-T ENG(LP0)	8-97257-825-0	01	1	0810-	●
261	04.309 ROD; GEAR CONT C24SE ENG(LG1)	8-97257-909-0	01	1	0810-			●	●
261	04.309 ROD; GEAR CONT 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0)	8-97257-911-0	01	1	0810-1007		●	●
261	04.309 ROD; GEAR CONT 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-97257-911-0	01	1	1008-		●	●
261	04.309 ROD; GEAR CONT 4JJ1-TCX ENG(LS0)	8-97362-444-0	01	1	0808-					●
262	04.105 BOX ASM; SHIFT CONT 4JA1-T ENG(LP0)	8-98017-735-0	01	1	0810-1204	●
262	04.105 BOX ASM; SHIFT CONT 4JA1-T ENG(LP0)	8-98203-266-0	01	1	1205-	●
262	04.105 BOX ASM; SHIFT CONT C24SE ENG(LG1)	8-98017-739-0	01	1	0810-1204			●	●
262	04.105 BOX ASM; SHIFT CONT C24SE ENG(LG1)	8-98203-265-0	01	1	1205-			●	●
262	04.105 BOX ASM; SHIFT CONT 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0)	8-98017-729-0	01	1	0810-1007		●	●
262	04.105 BOX ASM; SHIFT CONT 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-98017-729-0	01	1	1008-1204		●	●
262	04.105 BOX ASM; SHIFT CONT 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-98203-264-0	01	1	1205-		●	●
268	04.302 LEVER; CONT,INTERNAL 4JA1-T ENG(LP0)	8-97184-894-0	01	1	0810-	●
268	04.302 LEVER; CONT,INTERNAL 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-97184-895-0	01	1	0810-1007		●	●	●
268	04.302 LEVER; CONT,INTERNAL 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-97184-895-0	01	1	1008-		●	●	●
271	04.105 BUSHING; QUAD BOX 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) ID=14 L=12	8-98017-908-0	02	1	0810-1007	●	●	●	●
271	04.105 BUSHING; QUAD BOX 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) ID=14 L=12	8-98017-908-0	02	1	1008-	●	●	●	●
274	04.105 COVER; SHAFT,QUAD BOX 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-97181-324-1	01	1	0810-1007	●	●	●	●
274	04.105 COVER; SHAFT,QUAD BOX 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-97181-324-1	01	1	1008-	●	●	●	●
288	04.307 PLUG; AIR BREATHER 4JA1-T ENG(LP0)	9-00097-517-0	01	1	0810-1003	●
288	04.307 PLUG; AIR BREATHER C24SE ENG(LG1)	9-00097-517-0	01	1	0810-1003			●	●
288	04.307 PLUG; AIR BREATHER 4JA1-T ENG(LP0)	9-00097-517-0	01	1	1004-1007	●
288	04.307 PLUG; AIR BREATHER C24SE ENG(LG1)	9-00097-517-0	01	1	1004-1007			●
288	04.307 PLUG; AIR BREATHER C24SE ENG(LG1),4JA1-T ENG(LP0)	9-00097-517-0	01	1	1008-	●		●	●
289	04.107 SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-98017-744-0	01	1	0810-1007	●	●	●	●
289	04.107 SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-98017-744-0	01	1	1008-	●	●	●	●
391	04.104 PLUG; SW HOLE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) M14X11	8-98035-674-0	01	1	0810-1003		●	●	●
391	04.104 PLUG; SW HOLE 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0) M14X11	8-98035-674-0	01	1	1004-1007		●	●
391	04.104 PLUG; SW HOLE 4X2(TFB***) C24SE ENG(LG1),4JA1-T ENG(LP0) M14X11	8-98035-674-0	01	1	1004-1007		●	●
391	04.104 PLUG; SW HOLE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) M14X11	8-98035-674-0	01	1	1008-1008		●	●
391	04.104 PLUG; SW HOLE 4X2(TFB***) C24SE ENG(LG1),4JA1-T ENG(LP0) M14X11	8-98035-674-0	01	1	1008-1008			●
391	04.104 PLUG; SW HOLE 4X2(TFB***) C24SE ENG(LG1),4JA1-T ENG(LP0) M14X11	8-98035-674-0	01	1	1009-		●	●	●
459	04.302 PIN; SPR,ROD TO ARM 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) OD=5	8-97184-905-0	01	1	0810-1007	●	●	●	●
459	04.302 PIN; SPR,ROD TO ARM 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) OD=5	8-97184-905-0	01	1	1008-	●	●	●	●

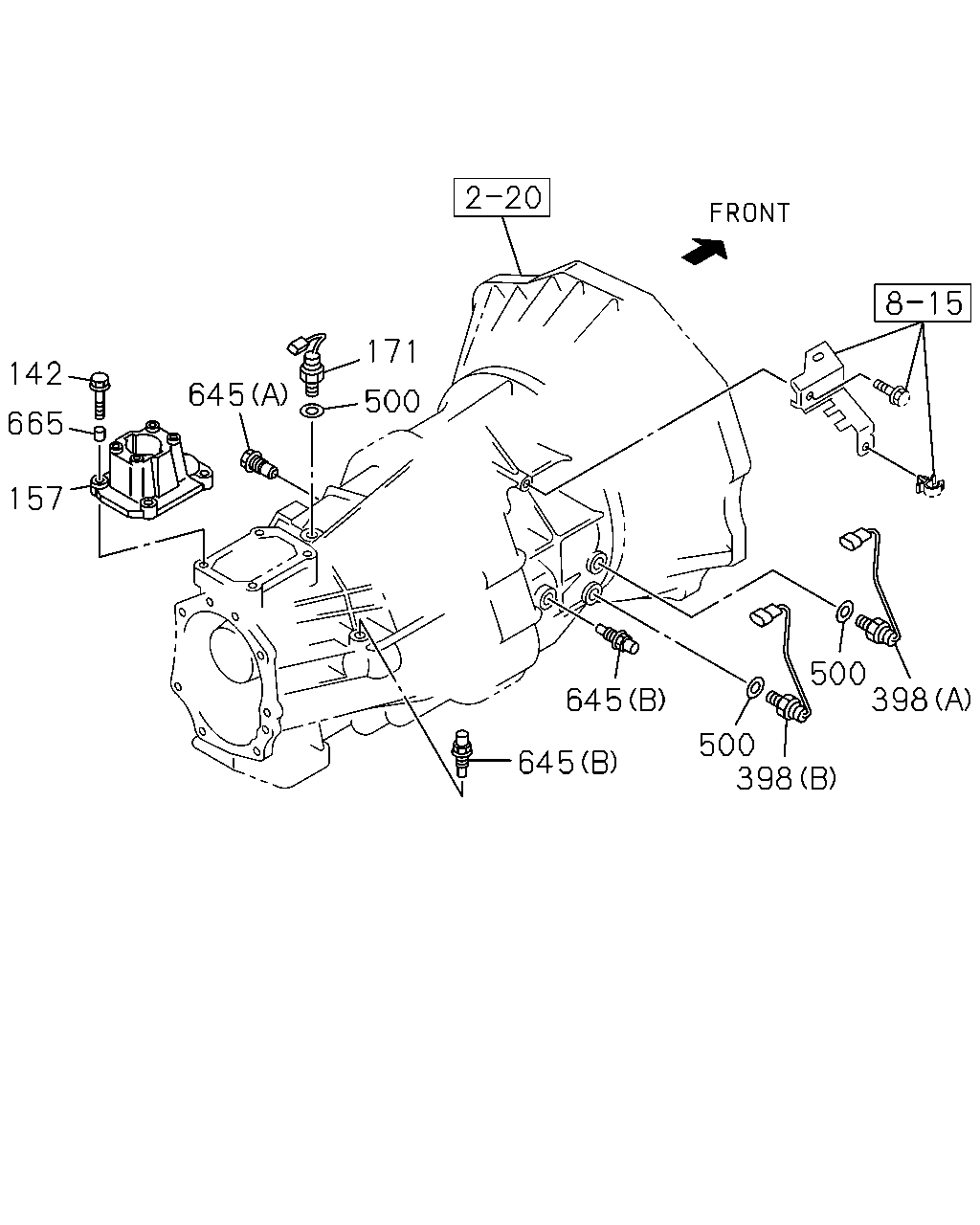

171 142 645 500 665 157 500 398 645 500 398 645

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
142	04.012 BOLT; QUAD BOX 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 04.356 M8X22 FLANGE	8-97365-376-0	04	1	0810-1007	●	●	●	●
142	04.012 BOLT; QUAD BOX 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 04.356 M8X22 FLANGE	8-97365-376-0	04	1	1008-	●	●	●	●
142	04.012 BOLT; QUAD BOX 4JJ1-TCX ENG(LS0) 01.060 M8X35 FLANGE	0-28650-835-0	04	1	0808-					●
157	04.105 BOX; QUAD,TRANS 4JJ1-TCX ENG(LS0)	8-97362-383-0	01	1	0808-					●
171	04.054 SWITCH; NEUTRAL 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0)	8-98035-680-0	01	1	0810-1007		●	●	●
171	04.054 SWITCH; NEUTRAL 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0)	8-98035-680-0	01	1	1008-		●	●	●
171	04.054 SWITCH; NEUTRAL 4JJ1-TCX ENG(LS0) 04.075	8-97358-606-0	01	1	0808-1405					●
171	04.054 SWITCH; NEUTRAL 4JJ1-TCX ENG(LS0)	8-98180-974-0	01	1	1406-					●
398	02.698 SWITCH; REV LAMP 4JA1-T ENG(LP0) (C)	8-98042-851-0	01	1	0810-	●
398	02.698 SWITCH; REV LAMP 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) (D)	8-98035-681-0	01	1	0810-1007		●	●	●
398	02.698 SWITCH; REV LAMP 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) (D)	8-98035-681-0	01	1	1008-1405		●	●	●
398	02.698 SWITCH; REV LAMP 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) (D)	8-98181-802-0	01	1	1406-		●	●	●
398	02.698 SWITCH; REV LAMP 4JJ1-TCX ENG(LS0) (B)	8-98037-159-0	01	1	0808-1405					●
398	02.698 SWITCH; REV LAMP 4JJ1-TCX ENG(LS0) (B)	8-98181-801-0	01	1	1406-					●
398	02.698 SWITCH; REV LAMP 4JJ1-TCX ENG(LS0) (A)	8-98037-160-0	01	1	0808-1405					●
398	02.698 SWITCH; REV LAMP 4JJ1-TCX ENG(LS0) (A)	8-98180-973-0	01	1	1406-					●
500	04.075 GASKET; SW ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCX ENG(LS0) 08.955 ID=14.2 OD=20.0	9-09571-414-0	03	1	0808-					●
645	04.311 DETENT ASM 4JJ1-TCX ENG(LS0) (A)	8-97362-469-2	01	1	0808-					●
645	04.311 DETENT ASM 4JJ1-TCX ENG(LS0) 04.307 (B)	8-98019-536-0	02	1	0808-					●
665	00.206 DOWEL 4JJ1-TCX ENG(LS0) OD=11 L=8	9-11229-058-1	02	1	0808-					●

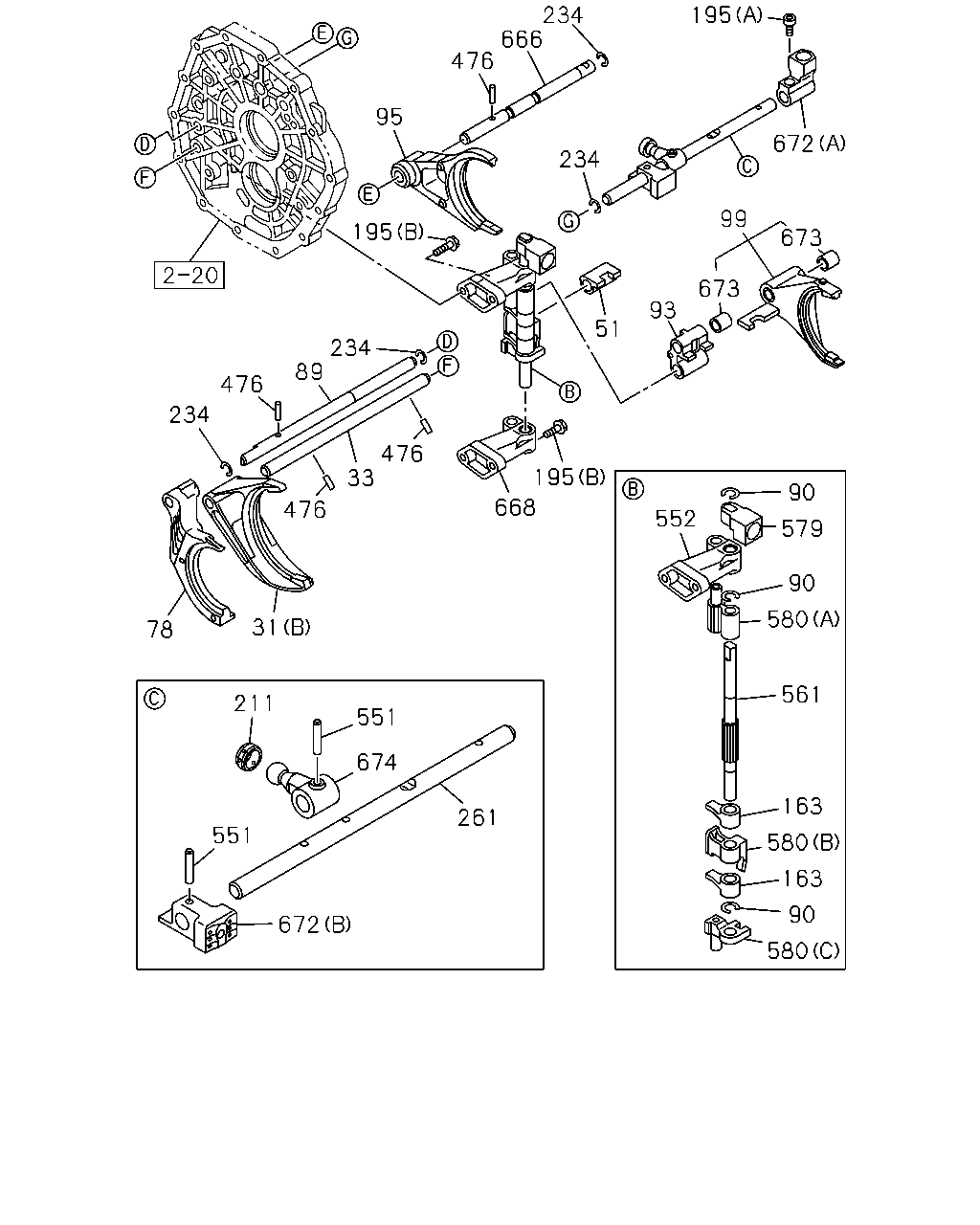

234 666 476 195 95 672 234 99 195 673 673 93 51 234 89 476 234 476 33 195 90 668 476 552 579 90 580 31 78 561 211 551 674 163 261 551 580 163 90 672 580

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
31	04.302 ARM; SHIFT,LOW & 2ND 4JA1-T ENG(LP0) (C)	8-97024-503-1	01	1	0810-0902	●
31	04.302 ARM; SHIFT,LOW & 2ND 4JA1-T ENG(LP0) (C)	8-97024-503-1	01	1	0903-	●
31	04.302 ARM; SHIFT,LOW & 2ND 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) (A)	8-94421-912-2	01	1	0810-1007		●	●	●
31	04.302 ARM; SHIFT,LOW & 2ND 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) (A)	8-94421-912-2	01	1	1008-		●	●	●
31	04.302 ARM; SHIFT,LOW & 2ND 4JJ1-TCX ENG(LS0) (B)	8-97362-435-0	01	1	0808-					●
33	04.309 ROD; SHIFT,LOW & 2ND 4JA1-T ENG(LP0)	8-97213-047-0	01	1	0810-	●
33	04.309 ROD; SHIFT,LOW & 2ND 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-97019-061-2	01	1	0810-1007		●	●	●
33	04.309 ROD; SHIFT,LOW & 2ND 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-97019-061-2	01	1	1008-		●	●	●
33	04.309 ROD; SHIFT,LOW & 2ND 4JJ1-TCX ENG(LS0)	8-97362-441-0	01	1	0808-					●
51	04.303 BLOCK; SHIFT,1ST & 2ND 4JJ1-TCX ENG(LS0) 04.302	8-97362-445-2	01	1	0808-1102					●
51	04.303 BLOCK; SHIFT,1ST & 2ND 4JJ1-TCX ENG(LS0) 04.302	8-98186-703-0	01	1	1103-					●
78	04.302 ARM; SHIFT,REV 4JJ1-TCX ENG(LS0)	8-97362-434-1	01	1	0808-					●
89	04.309 ROD; SHIFT,REV 4JJ1-TCX ENG(LS0)	8-97362-440-1	01	1	0808-					●
90	04.307 RING; SNAP,SHIFT ROD 4JJ1-TCX ENG(LS0) ID=12	8-94460-357-0	03	1	0808-					●
93	04.303 BLOCK; SHIFT,REV & 5TH 4JJ1-TCX ENG(LS0) 04.302	8-98004-541-1	01	1	0808-					●
95	04.302 ARM; SHIFT,5TH 4JJ1-TCX ENG(LS0)	8-97362-436-1	01	1	0808-					●
99	04.302 ARM; SHIFT,4TH & 3RD 4JJ1-TCX ENG(LS0) 04.303	8-97362-439-2	01	1	0808-					●
99	04.302 ARM; SHIFT,4TH & 3RD 4JA1-T ENG(LP0)	8-94435-153-1	01	1	0810-	●
99	04.302 ARM; SHIFT,4TH & 3RD 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-94421-911-2	01	1	0810-1007		●	●	●
99	04.302 ARM; SHIFT,4TH & 3RD 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-94421-911-2	01	1	1008-		●	●	●
163	04.302 LEVER; SELECT,INTERNAL 4JJ1-TCX ENG(LS0)	8-98052-461-0	02	1	0808-					●
195	04.105 BOLT 4JJ1-TCX ENG(LS0) (A) M8X8.5 TAPER	8-97250-975-0	01	1	0808-					●
195	04.105 BOLT 4JJ1-TCX ENG(LS0) (B) M8X30 FLANGE	8-98034-764-0	04	1	0808-					●
211	04.307 SEAT; BALL 4JJ1-TCX ENG(LS0)	8-98073-812-0	01	1	0808-					●
234	04.311 RING; SNAP 4JJ1-TCX ENG(LS0) 04.307 ID=12	8-94460-357-0	04	1	0808-					●
261	04.309 ROD; GEAR CONT 4JA1-T ENG(LP0)	8-97257-825-0	01	1	0810-	●
261	04.309 ROD; GEAR CONT C24SE ENG(LG1)	8-97257-909-0	01	1	0810-			●	●
261	04.309 ROD; GEAR CONT 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0)	8-97257-911-0	01	1	0810-1007		●	●
261	04.309 ROD; GEAR CONT 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-97257-911-0	01	1	1008-		●	●
261	04.309 ROD; GEAR CONT 4JJ1-TCX ENG(LS0)	8-97362-444-0	01	1	0808-					●
476	04.311 PIN; SHIFT ROD 4JJ1-TCX ENG(LS0) 04.303 D=4.2 L=25	8-94171-541-0	04	1	0808-					●
551	04.303 PIN; SPRING 4JJ1-TCX ENG(LS0) D=4.2 L=25	8-94171-541-0	02	1	0808-					●
552	04.105 BRACKET 4JJ1-TCX ENG(LS0)	8-97362-465-1	01	1	0808-					●
561	04.309 ROD; SHIFT 4JJ1-TCX ENG(LS0)	8-98052-463-0	01	1	0808-					●
579	04.303 BLOCK; SHIFT,ROD GUIDE 4JJ1-TCX ENG(LS0)	8-97362-447-2	01	1	0808-					●
580	04.303 BLOCK; INTERLOCK 4JJ1-TCX ENG(LS0) (A)	8-97362-461-1	01	1	0808-					●
580	04.303 BLOCK; INTERLOCK 4JJ1-TCX ENG(LS0) (C)	8-97362-463-1	01	1	0808-1102					●
580	04.303 BLOCK; INTERLOCK 4JJ1-TCX ENG(LS0) (C)	8-98186-700-0	01	1	1103-					●
580	04.303 BLOCK; INTERLOCK 4JJ1-TCX ENG(LS0) (B)	8-98052-462-0	01	1	0808-					●
666	04.309 ROD; GEAR SHIFT,3RD,4TH & 4TH 4JJ1-TCX ENG(LS0)	8-97362-442-2	01	1	0808-					●
668	04.309 BRACKET; SHIFT ROD 4JJ1-TCX ENG(LS0) 04.105	8-97362-465-1	01	1	0808-					●
672	04.303 BLOCK; SHIFT,T/M CONTROL 4JJ1-TCX ENG(LS0) (A)	8-97362-467-0	01	1	0808-					●
672	04.303 BLOCK; SHIFT,T/M CONTROL 4JJ1-TCX ENG(LS0) (B)	8-98083-873-0	01	1	0808-					●
673	04.309 BEARING; SHIFT ARM 4JJ1-TCX ENG(LS0) 00.683	8-97362-853-0	02	1	1008-					●
673	04.309 BEARING; SHIFT ARM 4JJ1-TCX ENG(LS0) 00.683	8-97362-853-0	02	1	0808-1007					●
674	04.302 LEVER; CONT 4JJ1-TCX ENG(LS0)	8-97362-466-0	01	1	0808-					●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
