◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51194 - TFR/TFS-RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-26B - MANUAL TRANSMISSION GEAR ▶
2-26B — MANUAL TRANSMISSION GEAR (#76994) — 16 parça

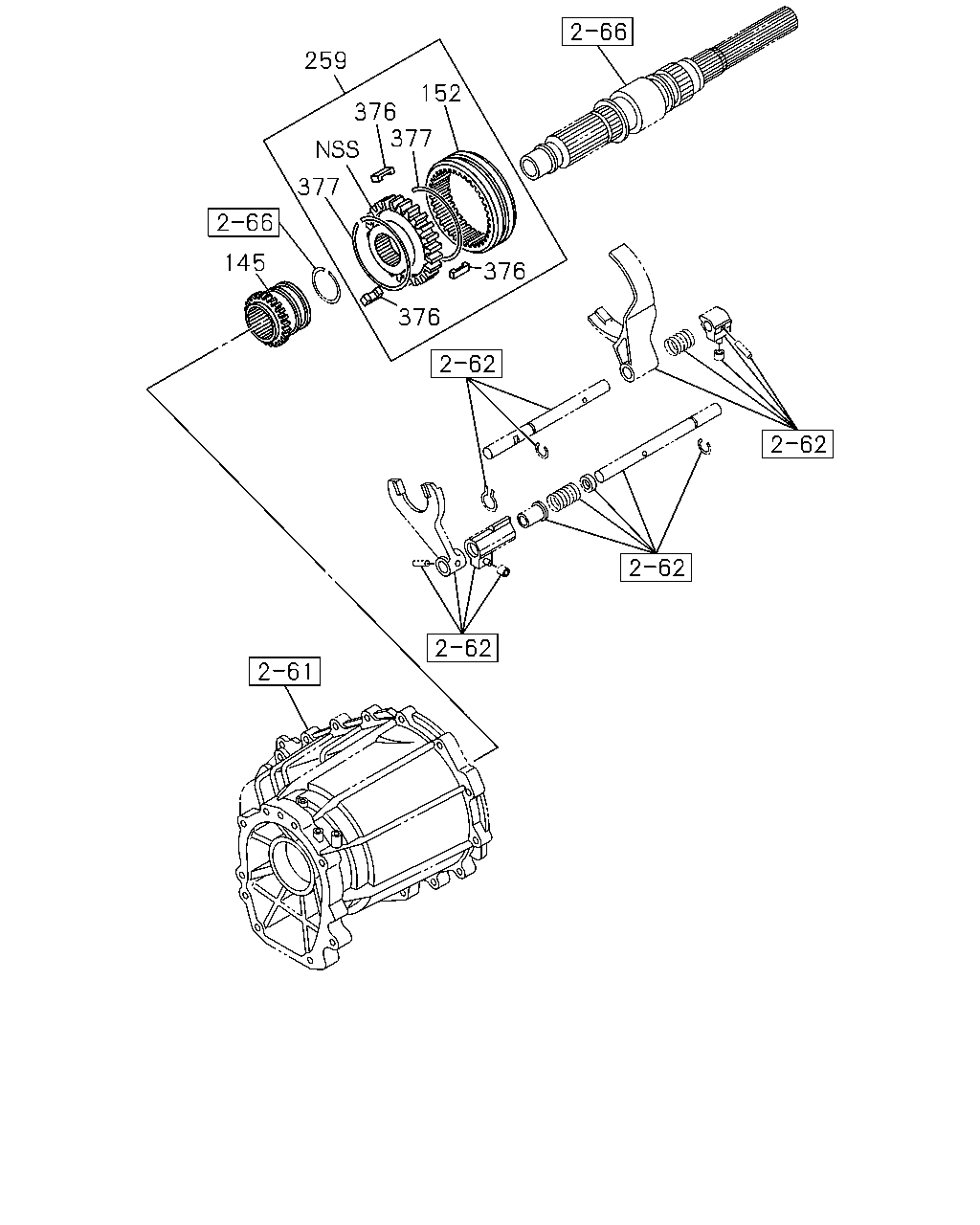

çizim 109782
259 152 376 377 377 145 376 376
BalonParca AdiParca NoAdetTipApplied Date A B
145 04.530 SLEEVE; HIGH-LOW SHIFT,TRANSFER
4X4(TFS***) 		8-97358-245-0 01 1 0808-0809 ●
145 04.530 SLEEVE; HIGH-LOW SHIFT,TRANSFER
4X4(TFS***) 		8-97358-245-0 01 1 0810-1007 ● ●
145 04.530 SLEEVE; HIGH-LOW SHIFT,TRANSFER
4X4(TFS***) 		8-97358-245-0 01 1 1008-1109 ● ●
145 04.530 SLEEVE; HIGH-LOW SHIFT,TRANSFER
4X4(TFS***) 		8-98063-369-1 01 1 1110- ● ●
152 04.535 SLEEVE; 4X2-4X4 SHIFT,TRANSFER
4X4(TFS***) 		8-94363-060-0 01 1 0808-0809 ●
152 04.535 SLEEVE; 4X2-4X4 SHIFT,TRANSFER
4X4(TFS***) 		8-94363-060-0 01 1 0810-1007 ● ●
152 04.535 SLEEVE; 4X2-4X4 SHIFT,TRANSFER
4X4(TFS***) 		8-94363-060-0 01 1 1008- ● ●
259 04.538 SYNCHRONIZER; 4X2-4X4,TRANSFER
4X4(TFS***) 		8-97234-225-0 01 1 0808-0809 ●
259 04.538 SYNCHRONIZER; 4X2-4X4,TRANSFER
4X4(TFS***) 		8-97234-225-0 01 1 0810-1007 ● ●
259 04.538 SYNCHRONIZER; 4X2-4X4,TRANSFER
4X4(TFS***) 		8-97234-225-0 01 1 1008- ● ●
376 04.384 INSERT; 4X2-4X4 SYN,TRANSFER
4X4(TFS***) 		8-97238-590-0 03 1 0808-0809 ●
376 04.384 INSERT; 4X2-4X4 SYN,TRANSFER
4X4(TFS***) 		8-97238-590-0 03 1 0810-1007 ● ●
376 04.384 INSERT; 4X2-4X4 SYN,TRANSFER
4X4(TFS***) 		8-97238-590-0 03 1 1008- ● ●
377 04.384 SPRING; INSERT,4X2-4X4 SYN,TRANS
4X4(TFS***) 		8-94448-045-0 02 1 0808-0809 ●
377 04.384 SPRING; INSERT,4X2-4X4 SYN,TRANS
4X4(TFS***) 		8-94448-045-0 02 1 0810-1007 ● ●
377 04.384 SPRING; INSERT,4X2-4X4 SYN,TRANS
4X4(TFS***) 		8-94448-045-0 02 1 1008- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
