2-20B — MANUAL TRANSMISSION ASM AND CASE (#76990) — 26 parça

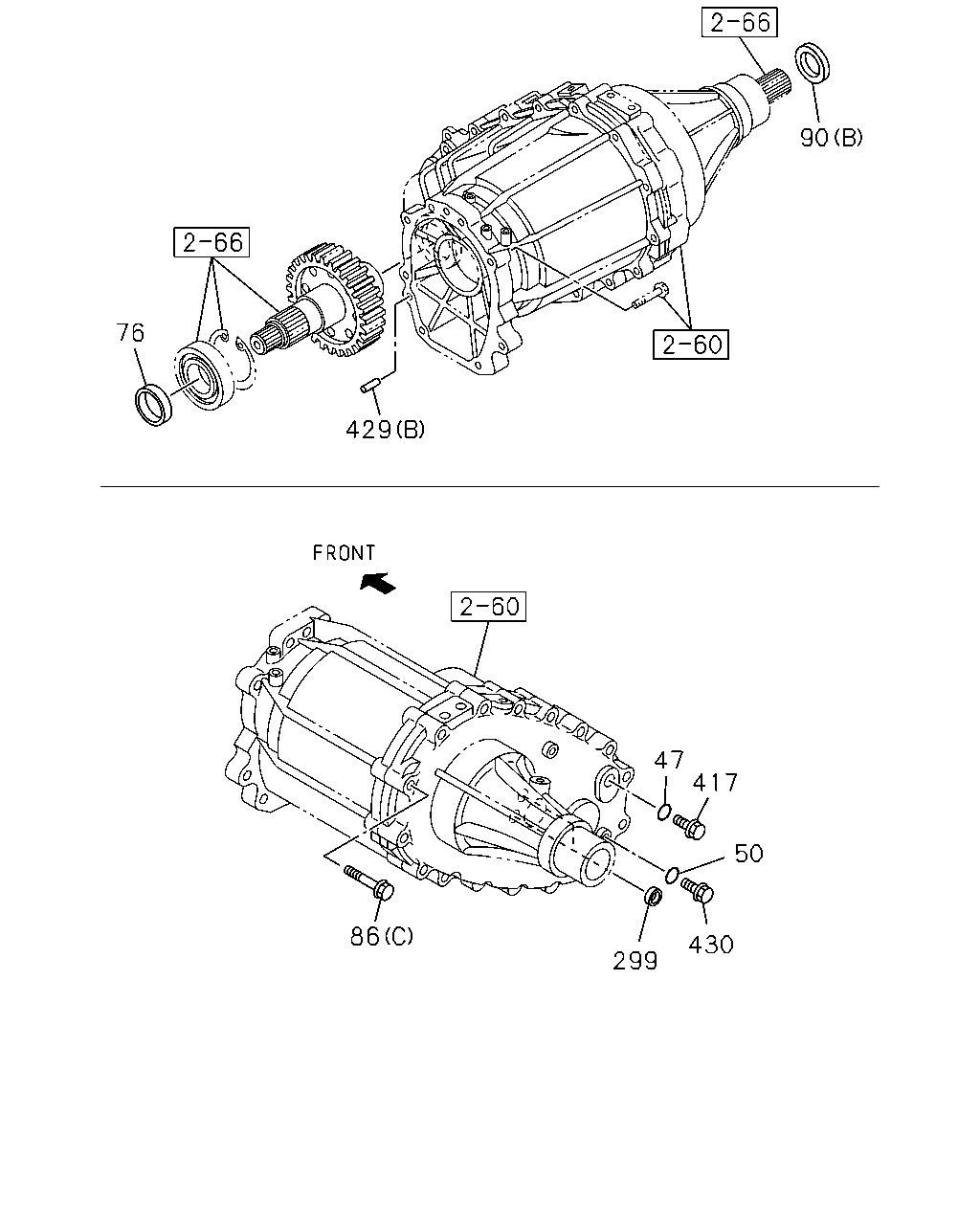

çizim 106906
90 76 429 47 417 50 86 430 299
BalonParca AdiParca NoAdetTipApplied Date A B
47 04.510 GASKET; FILLER PLUG,TRANSFER CAS
ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 04.105 ID=17 		8-97115-712-0 01 1 0808-0809 ●
47 04.510 GASKET; FILLER PLUG,TRANSFER CAS
ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 04.105 ID=17 		8-97115-712-0 01 1 0810-1007 ● ●
47 04.510 GASKET; FILLER PLUG,TRANSFER CAS
ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 04.105 ID=17 		8-97115-712-0 01 1 1008- ● ●
50 04.105 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=17 		8-97115-712-0 01 1 0808-0809 ●
50 04.105 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=17 		8-97115-712-0 01 1 0810-1007 ● ●
50 04.105 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=17 		8-97115-712-0 01 1 1008- ● ●
76 04.510 SEAL; OIL,TRANSFER CASE
ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) NOK 		8-97238-999-0 01 1 0808-0809 ●
76 04.510 SEAL; OIL,TRANSFER CASE
ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) NOK 		8-97238-999-0 01 1 0810-1007 ● ●
76 04.510 SEAL; OIL,TRANSFER CASE
ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) NOK 		8-97238-999-0 01 1 1008- ● ●
86 04.317 BOLT; RR COVER
4X4(TFS***) 09.173 (C) M8X45 FLANGE 		0-28050-845-0 16 1 0808-0809 ●
86 04.317 BOLT; RR COVER
4X4(TFS***) 09.173 (C) M8X45 FLANGE 		0-28050-845-0 16 1 0810-1007 ● ●
86 04.317 BOLT; RR COVER
4X4(TFS***) 09.173 (C) M8X45 FLANGE 		0-28050-845-0 16 1 1008- ● ●
90 04.318 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (B) NOK 		8-97046-705-3 01 1 0808-0809 ●
90 04.318 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (B) NOK 		8-97046-705-3 01 1 0810-1007 ● ●
90 04.318 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (B) NOK 		8-97046-705-3 01 1 1008- ● ●
299 04.317 PLUG; SHIFTER ROD
4X4(TFS***) 04.105 OD=14 		8-97358-601-0 02 1 0808-0809 ●
299 04.317 PLUG; SHIFTER ROD
4X4(TFS***) 04.105 OD=14 		8-97358-601-0 02 1 0810-1007 ● ●
299 04.317 PLUG; SHIFTER ROD
4X4(TFS***) 04.105 OD=14 		8-97358-601-0 02 1 1008- ● ●
417 04.105 PLUG; OIL FILLER,TRANS
4X4(TFS***) 		8-97365-373-0 01 1 0808-0809 ●
417 04.105 PLUG; OIL FILLER,TRANS
4X4(TFS***) 		8-97365-373-0 01 1 0810-1007 ● ●
417 04.105 PLUG; OIL FILLER,TRANS
4X4(TFS***) 		8-97365-373-0 01 1 1008- ● ●
429 04.105 PIN; STRAIGHT
4X4(TFS***) 04.510 (B) OD=10 L=20 		8-97135-423-0 02 1 0808-0809 ●
429 04.105 PIN; STRAIGHT
4X4(TFS***) 04.510 (B) OD=10 L=20 		8-97135-423-0 02 1 0810- ● ●
430 04.105 PLUG; OIL DRAIN
4X4(TFS***) 		8-97365-374-0 01 1 0808-0809 ●
430 04.105 PLUG; OIL DRAIN
4X4(TFS***) 		8-97365-374-0 01 1 0810-1007 ● ●
430 04.105 PLUG; OIL DRAIN
4X4(TFS***) 		8-97365-374-0 01 1 1008- ● ●
