3-80 — BRAKE PIPING; TRAILER (#7699) — 142 parça

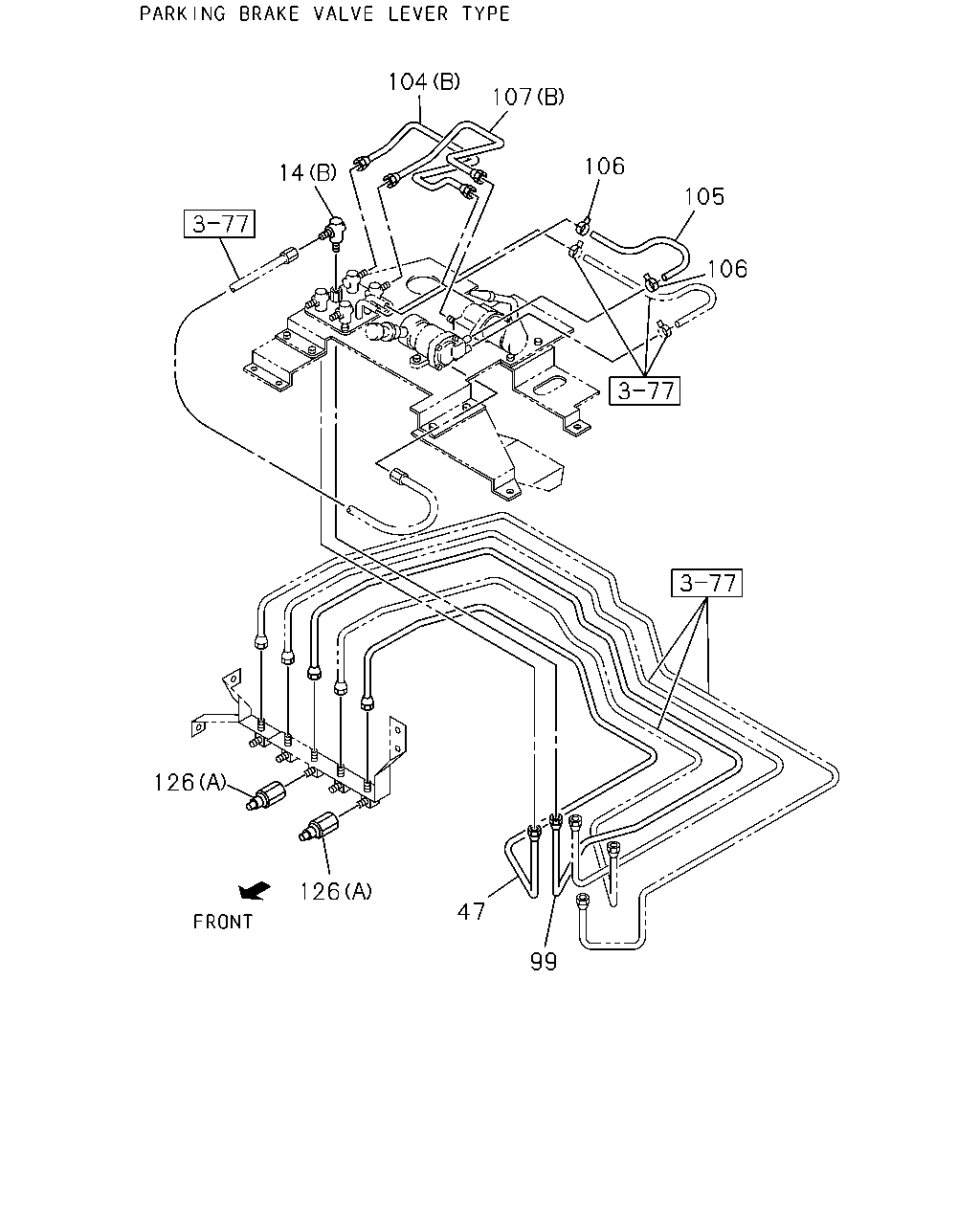

çizim 7141
106 106 105 104 107 16 47 99 126 126
BalonParca AdiParca NoAdetTipApplied Date A B
16 UNION; AIR PIPE 1-09654-258-1 01 1 0004- ●
47 PIPE; AIR,UNION TO UNION
L=1901 SERVICED BY L=1950 		1-47426-393-0 01 1 9902- ●
47 PIPE; AIR,UNION TO UNION
L=1936 		1-49121-473-0 01 1 0004- ●
99 PIPE; AIR,JOINT TO JOINT
PARKING BRAKE VALVE LEVER TYPE<W48> 		1-49116-183-1 01 1 9902- ●
99 PIPE; AIR,JOINT TO JOINT
L=1551 		1-49121-054-0 01 1 0004- ●
104 PIPE; AIR,JOINT TO PARKING BRK VLV
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A) 		1-49114-643-1 01 1 9905- ●
104 PIPE; AIR,JOINT TO PARKING BRK VLV
TRAILER BRAKE CONTROL<J91> PARKING BRAKE VALVE LEVER TYPE<W48> (B) 		1-49116-329-0 01 1 9905- ●
104 PIPE; AIR,JOINT TO PARKING BRK VLV 1-49114-295-0 01 1 0004- ●
105 PIPE; VINYL,EXH,PARKING BRK VLV
PARKING BRAKE VALVE LEVER TYPE<W48> L=400 SERVICED BY L=10000 		9-09914-701-0 01 1 9902-0003 ●
105 PIPE; VINYL,EXH,PARKING BRK VLV
PARKING BRAKE VALVE LEVER TYPE<W48> L=400 SERVICED BY L=10000 		9-09914-701-0 01 1 0004- ●
105 PIPE; VINYL,EXH,PARKING BRK VLV
L=400 SERVICED BY L=10000 		9-09914-701-0 01 1 0004- ●
105 PIPE; VINYL,EXH,PARKING BRK VLV
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> L=650 SERVICED BY L=10000 		9-09914-701-0 01 1 9905- ●
106 CLIP; PIPE
ID=14 		8-94238-572-0 02 1 9902-0003 ●
106 CLIP; PIPE
ID=14 		8-94238-572-0 02 1 0004- ● ●
107 PIPE; AIR,JOINT TO PARKING BRK VLV
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A) 		1-49114-661-1 01 1 9905- ●
107 PIPE; AIR,JOINT TO PARKING BRK VLV
TRAILER BRAKE CONTROL<J91> PARKING BRAKE VALVE LEVER TYPE<W48> (B) 		1-49116-328-1 01 1 9905- ●
107 PIPE; AIR,JOINT TO PARKING BRK VLV 1-49114-296-0 01 1 0004- ●
126 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 9902-0007 ●
126 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09660-874-0 02 1 0008- ●
126 CONNECTOR; NYLON TUBE
(A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 9902-0007 ●
126 CONNECTOR; NYLON TUBE
(A) DIN12 & M16 STRAIGHT 		1-09660-876-0 02 1 0008- ●
126 CONNECTOR; NYLON TUBE
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 9902-0003 ●
126 CONNECTOR; NYLON TUBE
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0004- ● ●
126 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09661-094-0 01 1 9912-0007 ●
126 CONNECTOR; NYLON TUBE
(A) DIN12 & M16 STRAIGHT 		1-09661-096-0 01 1 9912-0007 ●

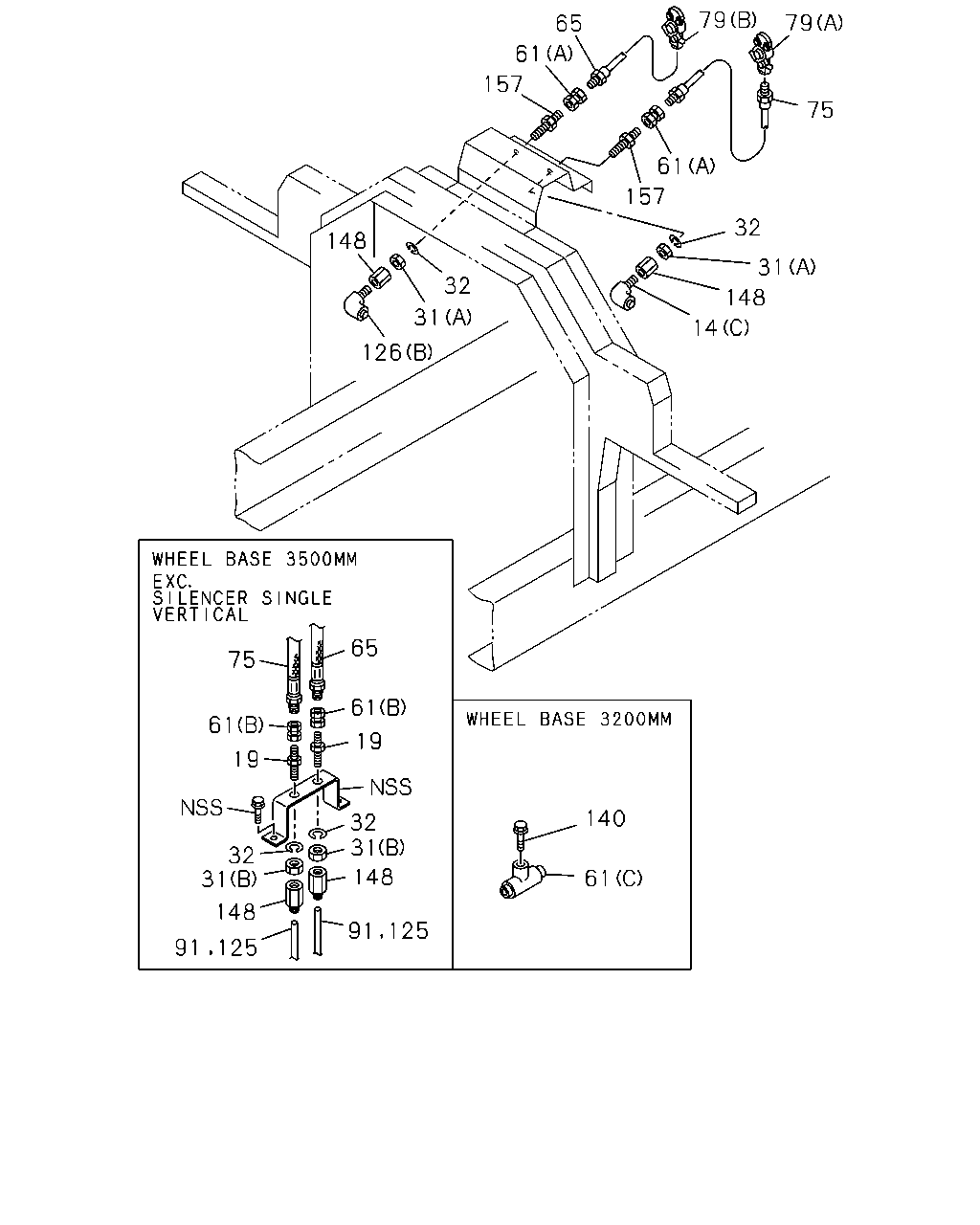

çizim 10932
79 79 65 61 157 75 61 157 32 148 31 32 148 31 14 126 65 75 61 61 19 19 140 32 31 32 31 148 61 148 91 125 91 125
BalonParca AdiParca NoAdetTipApplied Date A B
14 CONNECTOR; AIR PIPE
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 9902-0003 ●
14 CONNECTOR; AIR PIPE
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0004- ● ●
14 CONNECTOR; AIR PIPE
PARKING BRAKE VALVE LEVER TYPE<W48> (B) 		1-09650-325-1 01 1 9902- ●
14 CONNECTOR; AIR PIPE
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A) M16 & PT1/4 ELBOW 		1-09650-434-0 01 1 9905- ●
19 UNION; AIR PIPE
WHEEL BASE 3500MM(35W) EXC. SILENCER SINGLE VERTICAL<N28> M12 2WAY 		1-09654-059-2 01 1 9902-9907 ●
19 UNION; AIR PIPE
WHEEL BASE 3500MM(35W) EXC. ANTILOCK BRAKE SYSTEM(BFA),SILENCER SINGLE VERTICAL<N28> M12 2WAY 		1-09654-059-2 01 1 9908- ●
31 NUT; UNION
(A) M16 		9-99111-416-0 02 1 9902-0003 ●
31 NUT; UNION
(A) M16 		9-99111-416-0 02 1 0004- ● ●
31 NUT; UNION
WHEEL BASE 3500MM(35W) EXC. SILENCER SINGLE VERTICAL<N28> (B) M12 FLANGE 		0-91150-212-0 01 1 9902-9907 ●
31 NUT; UNION
WHEEL BASE 3500MM(35W) EXC. ANTILOCK BRAKE SYSTEM(BFA),SILENCER SINGLE VERTICAL<N28> (B) M12 FLANGE 		0-91150-212-0 01 1 9908- ●
32 WASHER; LK,UNION
ID=16.2 		9-09150-516-0 02 1 9902-0003 ●
32 WASHER; LK,UNION
ID=16.2 		9-09150-516-0 02 1 0004- ● ●
61 UNION; NYLON TUBE
(A) 		1-09650-222-1 02 1 9902-0003 ●
61 UNION; NYLON TUBE
(A) 		1-09650-222-1 02 1 0004- ● ●
61 UNION; NYLON TUBE
WHEEL BASE 3200MM(32W) (C) 		1-09661-133-0 01 1 9905-0003 ●
61 UNION; NYLON TUBE
WHEEL BASE 3200MM(32W) (C) 		1-09661-133-0 01 1 0004- ● ●
61 UNION; NYLON TUBE
WHEEL BASE 3500MM(35W) EXC. SILENCER SINGLE VERTICAL<N28> (B) DIN8 & M12 STRAIGHT 		1-09661-093-0 02 1 9902-9907 ●
61 UNION; NYLON TUBE
WHEEL BASE 3500MM(35W) EXC. ANTILOCK BRAKE SYSTEM(BFA),SILENCER SINGLE VERTICAL<N28> (B) DIN8 & M12 STRAIGHT 		1-09661-093-0 02 1 9908-0005 ●
61 UNION; NYLON TUBE
WHEEL BASE 3500MM(35W) EXC. ANTILOCK BRAKE SYSTEM(BFA),SILENCER SINGLE VERTICAL<N28> (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 02 1 0006- ●
65 HOSE; AIR 1-49212-518-0 01 1 9902-0003 ●
65 HOSE; AIR 1-49212-518-0 01 1 0004- ● ●
75 HOSE; FLEX,TRAILER EMERGENCY 1-49212-518-0 01 1 9902-0003 ●
75 HOSE; FLEX,TRAILER EMERGENCY 1-49212-518-0 01 1 0004- ● ●
79 COUPLING; AIR,TRAILER
(A) 		1-47478-210-0 01 1 9902-0003 ●
79 COUPLING; AIR,TRAILER
(A) 		1-47478-210-0 01 1 0004- ● ●
79 COUPLING; AIR,TRAILER
(B) 		1-47478-211-0 01 1 9902-0003 ●
79 COUPLING; AIR,TRAILER
(B) 		1-47478-211-0 01 1 0004- ● ●
91 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 9902-0003 ●
91 TUBE; NYLON
WHEEL BASE 3500MM(35W) SERVICED BY L=4000 OD=12 		1-87410-070-0 AR 1 9902-0003 ●
91 TUBE; NYLON
WHEEL BASE 3500MM(35W) SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9902-0003 ●
91 TUBE; NYLON
WHEEL BASE 3500MM(35W) SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 9902-0003 ●
91 TUBE; NYLON
WHEEL BASE 3500MM(35W) SERVICED BY L=4000 OD=12 		1-87410-070-0 AR 1 0004- ●
91 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87410-070-0 AR 1 0004- ●
91 TUBE; NYLON
WHEEL BASE 3500MM(35W) SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0004- ●
91 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0004- ●
91 TUBE; NYLON
WHEEL BASE 3500MM(35W) SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 0004- ●
91 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 0004- ●
91 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0004- ● ●
125 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87410-091-0 AR 1 9902-0003 ●
125 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87410-100-0 AR 1 9902-0003 ●
125 TUBE; CORRUGATE
WHEEL BASE 3500MM(35W) SERVICED BY L=2000 ID=10 		1-87410-088-0 AR 1 9902-0003 ●
125 TUBE; CORRUGATE
WHEEL BASE 3500MM(35W) SERVICED BY L=2000 ID=19 		1-87410-094-0 AR 1 9902- ●
125 TUBE; CORRUGATE
WHEEL BASE 3500MM(35W) SERVICED BY L=2000 ID=22 		1-87410-096-0 AR 1 9902-0003 ●
125 TUBE; CORRUGATE
WHEEL BASE 3500MM(35W) SERVICED BY L=2000 ID=10 		1-87410-088-0 AR 1 0004- ●
125 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 AR 1 0004- ●
125 TUBE; CORRUGATE
WHEEL BASE 3500MM(35W) SERVICED BY L=2000 ID=22 		1-87410-096-0 AR 1 0004- ●
125 TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 		1-87410-096-0 AR 1 0004- ●
125 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87410-091-0 AR 1 0004- ● ●
125 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87410-100-0 AR 1 0004- ● ●
126 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 9902-0007 ●
126 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09660-874-0 02 1 0008- ●
126 CONNECTOR; NYLON TUBE
(A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 9902-0007 ●
126 CONNECTOR; NYLON TUBE
(A) DIN12 & M16 STRAIGHT 		1-09660-876-0 02 1 0008- ●
126 CONNECTOR; NYLON TUBE
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 9902-0003 ●
126 CONNECTOR; NYLON TUBE
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0004- ● ●
126 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09661-094-0 01 1 9912-0007 ●
126 CONNECTOR; NYLON TUBE
(A) DIN12 & M16 STRAIGHT 		1-09661-096-0 01 1 9912-0007 ●
140 BOLT; UNION
WHEEL BASE 3200MM(32W) M8X25 FLANGE 		0-28680-825-0 01 1 9905-0003 ●
140 BOLT; UNION
WHEEL BASE 3200MM(32W) M8X25 FLANGE 		0-28680-825-0 01 1 0004- ● ●
148 ADAPTER; NYLON TUBE
M16 & RC3/8 STRAIGHT 		1-09660-882-0 02 1 9902-0003 ●
148 ADAPTER; NYLON TUBE
M16 & RC3/8 STRAIGHT 		1-09660-882-0 02 1 0004- ● ●
157 ADAPTER 1-09660-078-0 02 1 9902-0003 ●
157 ADAPTER 1-09660-078-0 02 1 0004- ● ●

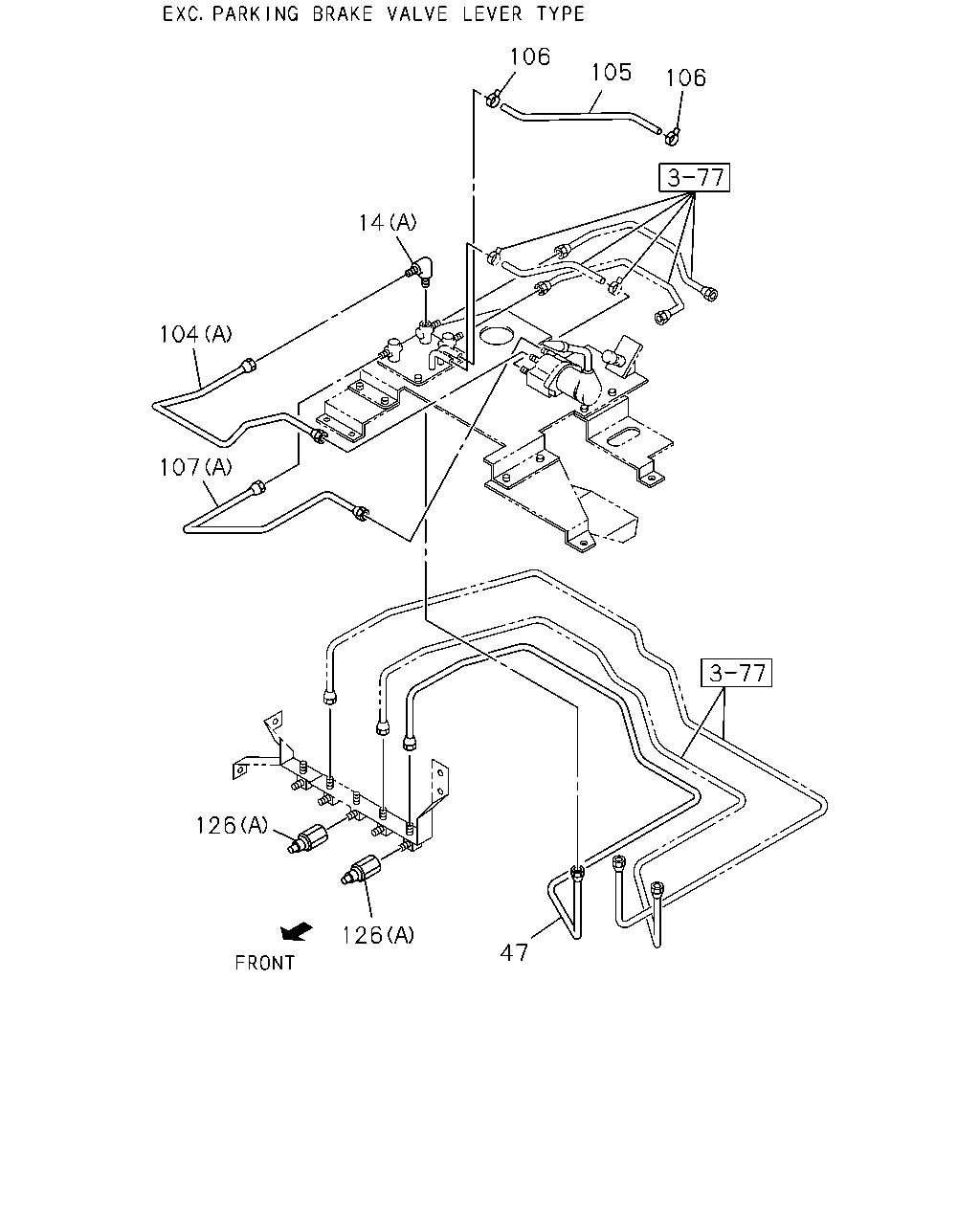

çizim 44559
104 107 106 14 105 106 126 126 47 99
BalonParca AdiParca NoAdetTipApplied Date A B
14 CONNECTOR; AIR PIPE
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 9902-0003 ●
14 CONNECTOR; AIR PIPE
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0004- ● ●
14 CONNECTOR; AIR PIPE
PARKING BRAKE VALVE LEVER TYPE<W48> (B) 		1-09650-325-1 01 1 9902- ●
14 CONNECTOR; AIR PIPE
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A) M16 & PT1/4 ELBOW 		1-09650-434-0 01 1 9905- ●
47 PIPE; AIR,UNION TO UNION
L=1901 SERVICED BY L=1950 		1-47426-393-0 01 1 9902- ●
47 PIPE; AIR,UNION TO UNION
L=1936 		1-49121-473-0 01 1 0004- ●
99 PIPE; AIR,JOINT TO JOINT
PARKING BRAKE VALVE LEVER TYPE<W48> 		1-49116-183-1 01 1 9902- ●
99 PIPE; AIR,JOINT TO JOINT
L=1551 		1-49121-054-0 01 1 0004- ●
104 PIPE; AIR,JOINT TO PARKING BRK VLV
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A) 		1-49114-643-1 01 1 9905- ●
104 PIPE; AIR,JOINT TO PARKING BRK VLV
TRAILER BRAKE CONTROL<J91> PARKING BRAKE VALVE LEVER TYPE<W48> (B) 		1-49116-329-0 01 1 9905- ●
104 PIPE; AIR,JOINT TO PARKING BRK VLV 1-49114-295-0 01 1 0004- ●
105 PIPE; VINYL,EXH,PARKING BRK VLV
PARKING BRAKE VALVE LEVER TYPE<W48> L=400 SERVICED BY L=10000 		9-09914-701-0 01 1 9902-0003 ●
105 PIPE; VINYL,EXH,PARKING BRK VLV
PARKING BRAKE VALVE LEVER TYPE<W48> L=400 SERVICED BY L=10000 		9-09914-701-0 01 1 0004- ●
105 PIPE; VINYL,EXH,PARKING BRK VLV
L=400 SERVICED BY L=10000 		9-09914-701-0 01 1 0004- ●
105 PIPE; VINYL,EXH,PARKING BRK VLV
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> L=650 SERVICED BY L=10000 		9-09914-701-0 01 1 9905- ●
106 CLIP; PIPE
ID=14 		8-94238-572-0 02 1 9902-0003 ●
106 CLIP; PIPE
ID=14 		8-94238-572-0 02 1 0004- ● ●
107 PIPE; AIR,JOINT TO PARKING BRK VLV
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A) 		1-49114-661-1 01 1 9905- ●
107 PIPE; AIR,JOINT TO PARKING BRK VLV
TRAILER BRAKE CONTROL<J91> PARKING BRAKE VALVE LEVER TYPE<W48> (B) 		1-49116-328-1 01 1 9905- ●
107 PIPE; AIR,JOINT TO PARKING BRK VLV 1-49114-296-0 01 1 0004- ●
126 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 9902-0007 ●
126 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09660-874-0 02 1 0008- ●
126 CONNECTOR; NYLON TUBE
(A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 9902-0007 ●
126 CONNECTOR; NYLON TUBE
(A) DIN12 & M16 STRAIGHT 		1-09660-876-0 02 1 0008- ●
126 CONNECTOR; NYLON TUBE
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 9902-0003 ●
126 CONNECTOR; NYLON TUBE
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0004- ● ●
126 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09661-094-0 01 1 9912-0007 ●
126 CONNECTOR; NYLON TUBE
(A) DIN12 & M16 STRAIGHT 		1-09661-096-0 01 1 9912-0007 ●
çizim 45225
106 105 106 14 104 107 126 126 47
BalonParca AdiParca NoAdetTipApplied Date A B
14 CONNECTOR; AIR PIPE
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 9902-0003 ●
14 CONNECTOR; AIR PIPE
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0004- ● ●
14 CONNECTOR; AIR PIPE
PARKING BRAKE VALVE LEVER TYPE<W48> (B) 		1-09650-325-1 01 1 9902- ●
14 CONNECTOR; AIR PIPE
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A) M16 & PT1/4 ELBOW 		1-09650-434-0 01 1 9905- ●
47 PIPE; AIR,UNION TO UNION
L=1901 SERVICED BY L=1950 		1-47426-393-0 01 1 9902- ●
47 PIPE; AIR,UNION TO UNION
L=1936 		1-49121-473-0 01 1 0004- ●
104 PIPE; AIR,JOINT TO PARKING BRK VLV
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A) 		1-49114-643-1 01 1 9905- ●
104 PIPE; AIR,JOINT TO PARKING BRK VLV
TRAILER BRAKE CONTROL<J91> PARKING BRAKE VALVE LEVER TYPE<W48> (B) 		1-49116-329-0 01 1 9905- ●
104 PIPE; AIR,JOINT TO PARKING BRK VLV 1-49114-295-0 01 1 0004- ●
105 PIPE; VINYL,EXH,PARKING BRK VLV
PARKING BRAKE VALVE LEVER TYPE<W48> L=400 SERVICED BY L=10000 		9-09914-701-0 01 1 9902-0003 ●
105 PIPE; VINYL,EXH,PARKING BRK VLV
PARKING BRAKE VALVE LEVER TYPE<W48> L=400 SERVICED BY L=10000 		9-09914-701-0 01 1 0004- ●
105 PIPE; VINYL,EXH,PARKING BRK VLV
L=400 SERVICED BY L=10000 		9-09914-701-0 01 1 0004- ●
105 PIPE; VINYL,EXH,PARKING BRK VLV
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> L=650 SERVICED BY L=10000 		9-09914-701-0 01 1 9905- ●
106 CLIP; PIPE
ID=14 		8-94238-572-0 02 1 9902-0003 ●
106 CLIP; PIPE
ID=14 		8-94238-572-0 02 1 0004- ● ●
107 PIPE; AIR,JOINT TO PARKING BRK VLV
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A) 		1-49114-661-1 01 1 9905- ●
107 PIPE; AIR,JOINT TO PARKING BRK VLV
TRAILER BRAKE CONTROL<J91> PARKING BRAKE VALVE LEVER TYPE<W48> (B) 		1-49116-328-1 01 1 9905- ●
107 PIPE; AIR,JOINT TO PARKING BRK VLV 1-49114-296-0 01 1 0004- ●
126 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 9902-0007 ●
126 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09660-874-0 02 1 0008- ●
126 CONNECTOR; NYLON TUBE
(A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 9902-0007 ●
126 CONNECTOR; NYLON TUBE
(A) DIN12 & M16 STRAIGHT 		1-09660-876-0 02 1 0008- ●
126 CONNECTOR; NYLON TUBE
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 9902-0003 ●
126 CONNECTOR; NYLON TUBE
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0004- ● ●
126 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09661-094-0 01 1 9912-0007 ●
126 CONNECTOR; NYLON TUBE
(A) DIN12 & M16 STRAIGHT 		1-09661-096-0 01 1 9912-0007 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
