Sayfa 2-20A - Isuzu EPC

2-20A — MANUAL TRANSMISSION ASM AND CASE (#76989) — 838 parça

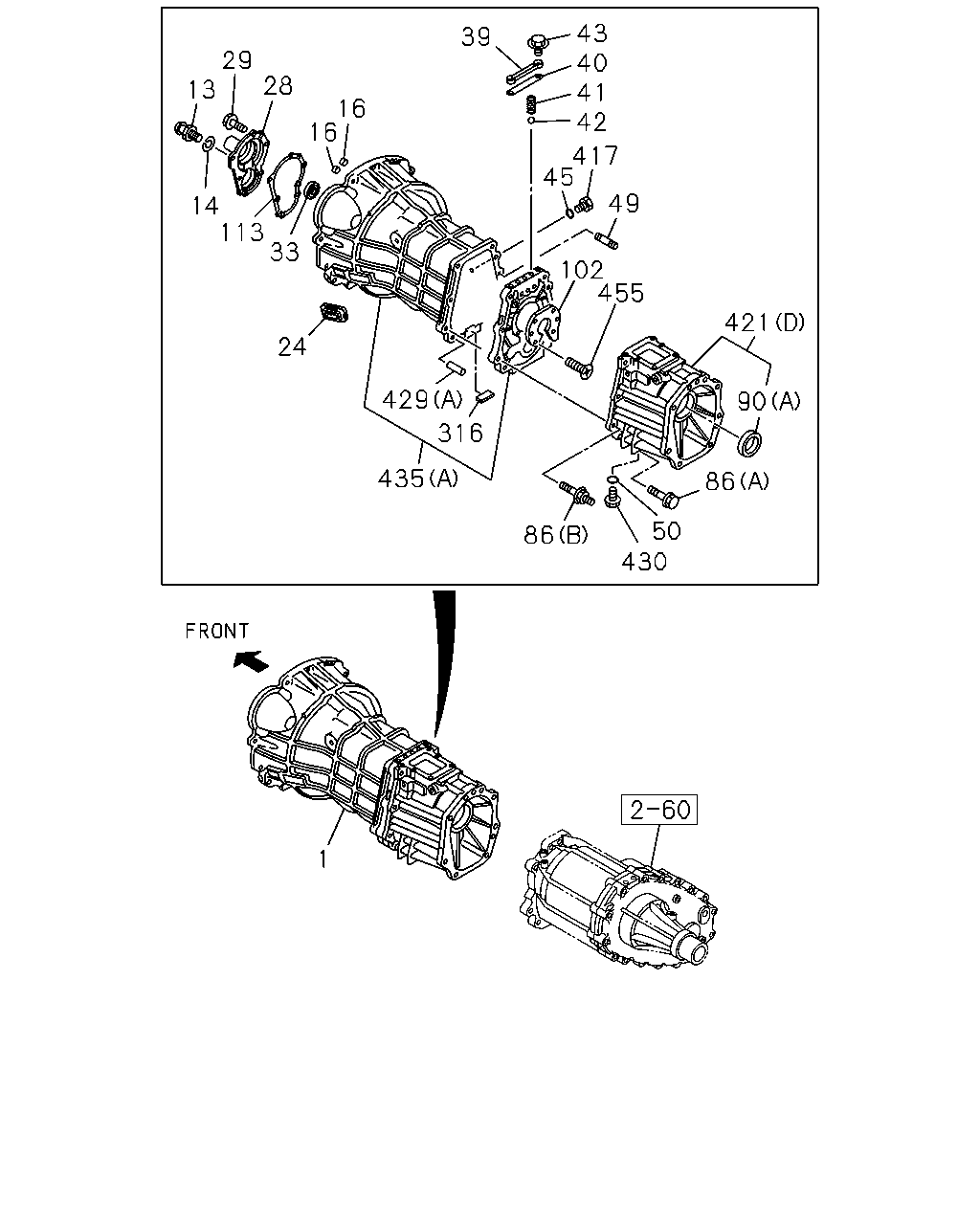

28 29 33 113 114 43 39 40 41 13 16 42 417 45 114 16 435 86 421 90 24 414 42 50 86 430 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	04.003 TRANSMISSION ASM; MANUAL	8-98150-142-0	01	1	1008-	●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JA1-T ENG(LP0)	8-98150-141-0	01	1	1008-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JA1-T ENG(LP0)	8-98132-777-0	01	1	1001-1003		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***)	8-98132-797-0	01	1	0810-1004			●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***)	8-98150-161-0	01	1	1005-			●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JA1-T ENG(LP0)	8-98132-792-0	01	1	0810-1004		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JA1-T ENG(LP0)	8-98150-156-0	01	1	1005-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) C24SE ENG(LG1)	8-98132-795-0	01	1	0810-1004		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) C24SE ENG(LG1)	8-98150-159-0	01	1	1005-		●
1	04.003 TRANSMISSION ASM; MANUAL 4JA1-T ENG(LP0)	8-98132-751-0	01	1	0810-0902				●
1	04.003 TRANSMISSION ASM; MANUAL 4JA1-T ENG(LP0)	8-98132-752-0	01	1	0903-1004				●
1	04.003 TRANSMISSION ASM; MANUAL 4JA1-T ENG(LP0)	8-98150-117-0	01	1	1005-				●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 LONG(TFB**F) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C GOODYEAR TIRE(QFT), FRT&RR 195R15C(QZO)	8-98132-782-0	01	1	0810-1004			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C GOODYEAR TIRE(QFT)	8-98132-782-0	01	1	0810-1004			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC)	8-98132-782-0	01	1	0810-1004			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 LONG(TFB**F) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C GOODYEAR TIRE(QFT), FRT&RR 195R15C(QZO)	8-98150-146-0	01	1	1005-1101			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C GOODYEAR TIRE(QFT)	8-98150-146-0	01	1	1005-1101			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC)	8-98150-146-0	01	1	1005-1101			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 LONG(TFB**F) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C DUNLOP TIRE(CWP), FRT&RR 215/70R15C GOODYEAR TIRE(QFT),FRT& RR 195R15C(QZO)	8-98150-146-0	01	1	1102-1201			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C DUNLOP TIRE(CWP), FRT&RR 215/70R15C GOODYEAR TIRE(QFT)	8-98150-146-0	01	1	1102-1201			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC)	8-98150-146-0	01	1	1102-1201			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 LONG(TFB**F) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C DUNLOP TIRE(CWP), FRT&RR 215/70R15C GOODYEAR TIRE(QFT),FRT& RR 195R15C(QZO)	8-98150-146-0	01	1	1202-			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C DUNLOP TIRE(CWP), FRT&RR 215/70R15C GOODYEAR TIRE(QFT)	8-98150-146-0	01	1	1202-			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC)	8-98150-146-0	01	1	1202-			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 CREW CAB(TFBW) 4JK1-TCS ENG(LKZ) FINAL GEAR RATIO 43/11(GW1) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16ALS(QCQ) MALAYSIA EQUIPMENT(B10)	8-98150-146-0	01	1	1202-			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 LONG(TFB**F) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC)	8-98132-781-0	01	1	0810-1004			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 EXTEND CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16 ALS(QCQ)	8-98132-781-0	01	1	0810-1004			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 CREW CAB(TFBW) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16ALS(QCQ)	8-98132-781-0	01	1	0810-1004			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 REGULAR CAB LONG(TFB*SF) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 195R14C(CNU)	8-98132-781-0	01	1	0810-1004			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 CREW CAB(TFBW) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16ALS(QCQ)	8-98132-781-0	01	1	0810-1004			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 REGULAR CAB LONG(TFB*SF) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16 ALS(QCQ)	8-98132-781-0	01	1	0810-1004			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 LONG(TFB**F) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC)	8-98150-145-0	01	1	1005-			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 EXTEND CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16 ALS(QCQ)	8-98150-145-0	01	1	1005-			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 CREW CAB(TFBW) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16ALS(QCQ)	8-98150-145-0	01	1	1005-			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 REGULAR CAB LONG(TFB*SF) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 195R14C(CNU)	8-98150-145-0	01	1	1005-			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 CREW CAB(TFBW) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16ALS(QCQ)	8-98150-145-0	01	1	1005-			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 REGULAR CAB LONG(TFB*SF) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16 ALS(QCQ)	8-98150-145-0	01	1	1005-			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) C24SE ENG(LG1)	8-98132-779-0	01	1	0810-1004		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) C24SE ENG(LG1)	8-98150-143-0	01	1	1005-		●
1	04.003 TRANSMISSION ASM; MANUAL	8-98132-778-0	01	1	0810-1003	●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JJ1-TCX ENG(LS0)	8-98089-767-0	01	1	0808-					●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JJ1-TCX ENG(LS0)	8-98090-195-0	01	1	0808-					●
13	04.302 SUPPORT; SHIFT FORK 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) L=47.5	8-97072-827-0	01	1	0810-1007	●	●	●	●
13	04.302 SUPPORT; SHIFT FORK 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) L=47.5	8-97072-827-0	01	1	1008-	●	●	●	●
13	04.302 SUPPORT; SHIFT FORK 4JJ1-TCX ENG(LS0)	8-98004-443-1	01	1	0808-					●
16	04.105 PLUG; SHIFT ROD 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) OD=14	8-97358-601-0	02	1	0810-1007	●	●	●	●
16	04.105 PLUG; SHIFT ROD 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) OD=14	8-97358-601-0	02	1	1008-	●	●	●	●
24	00.797 COVER; CHECK HOLE,DUST 4JA1-T ENG(LP0) 06.868	8-94156-700-0	01	1	0903-				●
24	00.797 COVER; CHECK HOLE,DUST 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 06.868	8-94156-700-0	01	1	0810-0902	●	●	●	●
24	00.797 COVER; CHECK HOLE,DUST 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 06.868	8-94156-700-0	01	1	0903-1007	●	●	●
24	00.797 COVER; CHECK HOLE,DUST 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 06.868	8-94156-700-0	01	1	1008-	●	●	●
28	04.356 COVER; FRT,TRANS CASE 4JA1-T ENG(LP0)	8-97116-796-0	01	1	0810-				●
28	04.356 COVER; FRT,TRANS CASE C24SE ENG(LG1)	8-97108-066-1	01	1	0810-	●	●
28	04.356 COVER; FRT,TRANS CASE 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0)	8-97104-676-0	01	1	0810-1007		●	●
28	04.356 COVER; FRT,TRANS CASE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-97104-676-0	01	1	1008-		●	●
28	04.356 COVER; FRT,TRANS CASE 4JJ1-TCX ENG(LS0)	8-97362-409-0	01	1	0808-					●
29	04.356 BOLT; FRT COVER 4JJ1-TCX ENG(LS0) 01.531 M8X20 FLANGE	0-28650-820-0	03	1	1008-					●
29	04.356 BOLT; FRT COVER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) M8X22 FLANGE	8-97365-376-0	06	1	0810-1007	●	●	●	●
29	04.356 BOLT; FRT COVER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) M8X22 FLANGE	8-97365-376-0	06	1	1008-	●	●	●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCX ENG(LS0) NOK	8-97947-839-0	01	1	1209-					●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JA1-T ENG(LP0) 04.354 NOK	8-94326-441-0	01	1	0810-1208				●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JA1-T ENG(LP0) NOK	8-97947-838-0	01	1	1209-				●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) TKK	8-97046-698-0	01	1	0810-1007	●	●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) TKK	8-97046-698-0	01	1	1008-	●	●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCX ENG(LS0) NOK	8-97046-699-3	01	1	0808-0809					●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) NOK	8-97046-699-3	01	1	0810-1007	●	●	●		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) NOK	8-97046-699-3	01	1	1008-1208	●	●	●		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) NOK	8-97046-699-3	01	1	1209-	●	●	●
39	04.311 PLATE; DETENT SPR 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-98035-571-0	01	1	0810-1007	●	●	●	●
39	04.311 PLATE; DETENT SPR 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-98035-571-0	01	1	1008-	●	●	●	●
40	04.311 GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T). 4JA1-T ENG(LP0)	8-94473-947-0	01	1	0810-				●
40	04.311 GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-97083-600-1	01	1	0810-1007	●	●	●
40	04.311 GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-97083-600-1	01	1	1008-	●	●	●
41	04.311 SPRING; DETENT BALL 4JA1-T ENG(LP0) L=25.6	8-94435-336-0	03	1	0810-				●
41	04.311 SPRING; DETENT BALL 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) L=26.8	8-94320-193-0	03	1	0810-1007	●	●	●
41	04.311 SPRING; DETENT BALL 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) L=26.8	8-94320-193-0	03	1	1008-	●	●	●
42	04.311 BALL; DETENT,GEAR SHIFT 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-94435-335-0	03	1	0810-1007	●	●	●	●
42	04.311 BALL; DETENT,GEAR SHIFT 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-94435-335-0	03	1	1008-	●	●	●	●
43	04.311 BOLT; PLATE TO PLATE 4JA1-T ENG(LP0) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0810-				●
43	04.311 BOLT; PLATE TO PLATE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 04.356 M8X22 FLANGE	8-97365-376-0	02	1	0810-1007	●	●	●
43	04.311 BOLT; PLATE TO PLATE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 04.356 M8X22 FLANGE	8-97365-376-0	02	1	1008-	●	●	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) ID=17	8-97115-712-0	01	1	0810-1007	●	●	●	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1008-	●	●	●	●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JJ1-TCX ENG(LS0) ID=17	8-97115-712-0	01	1	0808-0809					●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) ID=17	8-97115-712-0	01	1	0810-1007	●	●	●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) ID=17	8-97115-712-0	01	1	0810-1007		●	●		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) ID=17	8-97115-712-0	01	1	1008-	●	●	●	●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) ID=17	8-97115-712-0	01	1	1008-		●	●		●
86	04.317 BOLT; RR COVER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) (B) M10X18 M10X55 L=86.8	8-97305-468-0	05	1	0810-1007	●	●	●	●
86	04.317 BOLT; RR COVER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) (B) M10X18 M10X55 L=86.8	8-97305-468-0	05	1	1008-	●	●	●	●
86	04.317 BOLT; RR COVER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) (A) M10X55 FLANGE	8-98035-672-0	03	1	0810-1007	●	●	●	●
86	04.317 BOLT; RR COVER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) (A) M10X55 FLANGE	8-98035-672-0	03	1	1008-	●	●	●	●
86	04.317 BOLT; RR COVER 4JJ1-TCX ENG(LS0) 00.386 (D) M8X50 FLANGE	0-28050-850-0	02	1	0808-					●
86	04.317 BOLT; RR COVER 4JJ1-TCX ENG(LS0) 01.060 (E) M8X35 FLANGE	0-28650-835-0	03	1	0808-					●
86	04.317 BOLT; RR COVER 4X4(TFS***) 4JJ1-TCX ENG(LS0) 09.173 (C) M8X45 FLANGE	0-28050-845-0	16	1	0808-0809					●
86	04.317 BOLT; RR COVER 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 09.173 (C) M8X45 FLANGE	0-28050-845-0	16	1	0810-1007		●	●		●
86	04.317 BOLT; RR COVER 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 09.173 (C) M8X45 FLANGE	0-28050-845-0	16	1	1008-		●	●		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97947-840-0	01	1	1209-				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) (B) NOK	8-97947-840-0	01	1	1209-					●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 04.510 (A) TKK	8-97046-700-0	01	1	0810-1007		●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 04.510 (A) TKK	8-97046-700-0	01	1	1008-		●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 04.510 (A) NOK	8-97046-701-2	01	1	0810-1007		●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 04.510 (A) NOK	8-97046-701-2	01	1	1008-		●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCX ENG(LS0) (B) NOK	8-97046-705-3	01	1	0808-0809					●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (B) NOK	8-97046-705-3	01	1	0810-1007	●	●	●	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (B) NOK	8-97046-705-3	01	1	1008-	●	●	●	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JJ1-TCX ENG(LS0) (C) JTEKT	8-98004-531-0	01	1	0808-					●
113	04.358 GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). 4JA1-T ENG(LP0)	8-97113-190-0	01	1	0810-				●
113	04.358 GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-97083-589-0	01	1	0810-1007	●	●	●
113	04.358 GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-97083-589-0	01	1	1008-	●	●	●
114	04.105 RING; SNAP,BALL BRG 4JA1-T ENG(LP0) 04.422 (A) ID=49.6	5-09589-004-0	01	1	0810-				●
114	04.105 RING; SNAP,BALL BRG 4JA1-T ENG(LP0) 04.412 (B) ID=71.7	5-09589-005-0	01	1	0810-				●
114	04.105 RING; SNAP,BALL BRG 4JJ1-TCX ENG(LS0) (C) OD=77	8-98024-221-0	01	1	0808-					●
114	04.105 RING; SNAP,BALL BRG 4JJ1-TCX ENG(LS0) (D) OD=60.2	9-09180-156-0	01	1	0808-					●
414	04.317 COVER; DUST,RR COVER 4X2(TFB***) 4JJ1-TCX ENG(LS0)	8-98027-802-0	01	1	0808-0809					●
414	04.317 COVER; DUST,RR COVER 4X2(TFB***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-98027-802-0	01	1	0810-1007	●	●	●	●	●
414	04.317 COVER; DUST,RR COVER 4X2(TFB***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-98027-802-0	01	1	1008-	●	●	●	●	●
417	04.105 PLUG; OIL FILLER,TRANS 4JJ1-TCX ENG(LS0)	8-97365-373-0	01	1	0808-0809					●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) 4JJ1-TCX ENG(LS0)	8-97365-373-0	01	1	0808-0809					●
417	04.105 PLUG; OIL FILLER,TRANS 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97365-373-0	01	1	0810-1007	●	●	●	●	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97365-373-0	01	1	0810-1007		●	●		●
417	04.105 PLUG; OIL FILLER,TRANS 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97365-373-0	01	1	1008-	●	●	●	●	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97365-373-0	01	1	1008-		●	●		●
421	04.317 COVER; RR,TRANS 4JA1-T ENG(LP0) (A)	8-98014-389-0	01	1	0810-1105				●
421	04.317 COVER; RR,TRANS 4JA1-T ENG(LP0) (A)	8-98193-595-0	01	1	1106-				●
421	04.317 COVER; RR,TRANS 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) (D)	8-97301-224-2	01	1	0810-1007		●	●
421	04.317 COVER; RR,TRANS 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) (D)	8-97301-224-2	01	1	1008-		●	●
421	04.317 COVER; RR,TRANS 4X2(TFB***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) (C)	8-98014-386-0	01	1	0810-1007	●	●	●
421	04.317 COVER; RR,TRANS 4X2(TFB***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) (C)	8-98014-386-0	01	1	1008-1202	●	●	●
421	04.317 COVER; RR,TRANS 4X2(TFB***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) (C)	8-98191-921-0	01	1	1203-	●	●	●
421	04.317 COVER; RR,TRANS 4X2(TFB***) 4JJ1-TCX ENG(LS0) (G)	8-97382-905-2	01	1	0808-					●
421	04.317 COVER; RR,TRANS 4X2(TFB***) 4JJ1-TCX ENG(LS0) (B)	8-98035-906-0	01	1	0808-					●
421	04.317 COVER; RR,TRANS 4X4(TFS***) 4JJ1-TCX ENG(LS0) (E)	8-97362-423-1	01	1	0808-					●
421	04.317 COVER; RR,TRANS 4X4(TFS***) 4JJ1-TCX ENG(LS0) (F)	8-98048-277-0	01	1	0808-					●
430	04.105 PLUG; OIL DRAIN 4JJ1-TCX ENG(LS0)	8-97365-374-0	01	1	0808-0809					●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) 4JJ1-TCX ENG(LS0)	8-97365-374-0	01	1	0808-0809					●
430	04.105 PLUG; OIL DRAIN 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97365-374-0	01	1	0810-1007	●	●	●	●	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97365-374-0	01	1	0810-1007		●	●		●
430	04.105 PLUG; OIL DRAIN 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97365-374-0	01	1	1008-	●	●	●	●	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97365-374-0	01	1	1008-		●	●		●
435	04.103 CASE; TRANS 4JA1-T ENG(LP0) (A)	8-97330-878-0	01	1	0810-				●
435	04.103 CASE; TRANS C24SE ENG(LG1) (A)	8-98047-238-0	01	1	0810-	●	●
435	04.103 CASE; TRANS 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0) (A)	8-98047-232-0	01	1	0810-1004		●	●
435	04.103 CASE; TRANS 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0) (A)	8-98162-753-0	01	1	1005-1007		●	●
435	04.103 CASE; TRANS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) (A)	8-98162-753-0	01	1	1008-		●	●
435	04.103 CASE; TRANS 4JJ1-TCX ENG(LS0) (B)	8-98035-882-2	01	1	0808-					●

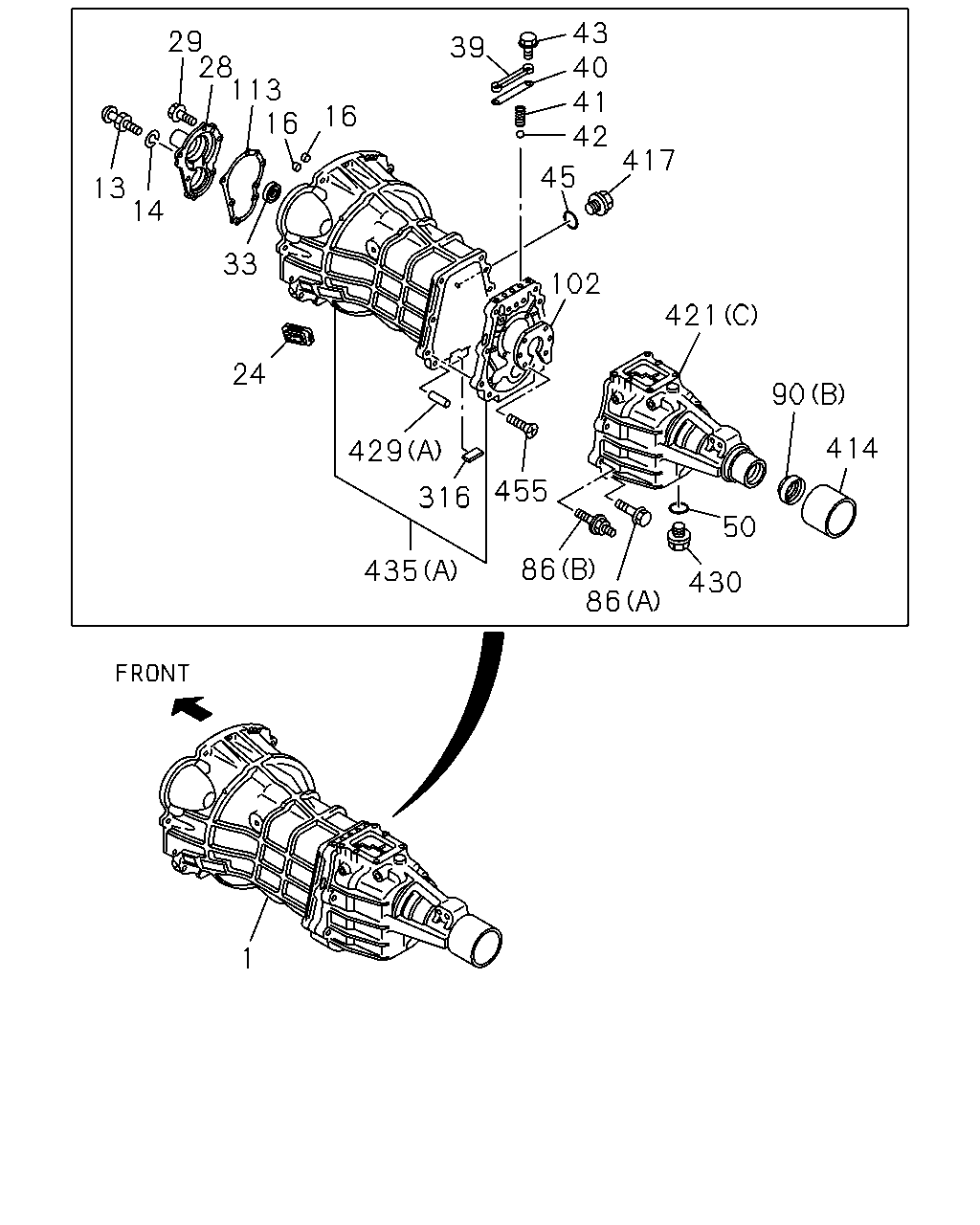

43 40 41 42 39 29 13 28 16 16 417 45 49 14 113 33 102 455 421 24 429 90 316 435 86 50 430 86 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	04.003 TRANSMISSION ASM; MANUAL	8-98150-142-0	01	1	1008-	●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JA1-T ENG(LP0)	8-98150-141-0	01	1	1008-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JA1-T ENG(LP0)	8-98132-777-0	01	1	1001-1003		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***)	8-98132-797-0	01	1	0810-1004			●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***)	8-98150-161-0	01	1	1005-			●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JA1-T ENG(LP0)	8-98132-792-0	01	1	0810-1004		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JA1-T ENG(LP0)	8-98150-156-0	01	1	1005-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) C24SE ENG(LG1)	8-98132-795-0	01	1	0810-1004		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) C24SE ENG(LG1)	8-98150-159-0	01	1	1005-		●
1	04.003 TRANSMISSION ASM; MANUAL 4JA1-T ENG(LP0)	8-98132-751-0	01	1	0810-0902				●
1	04.003 TRANSMISSION ASM; MANUAL 4JA1-T ENG(LP0)	8-98132-752-0	01	1	0903-1004				●
1	04.003 TRANSMISSION ASM; MANUAL 4JA1-T ENG(LP0)	8-98150-117-0	01	1	1005-				●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 LONG(TFB**F) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C GOODYEAR TIRE(QFT), FRT&RR 195R15C(QZO)	8-98132-782-0	01	1	0810-1004			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C GOODYEAR TIRE(QFT)	8-98132-782-0	01	1	0810-1004			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC)	8-98132-782-0	01	1	0810-1004			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 LONG(TFB**F) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C GOODYEAR TIRE(QFT), FRT&RR 195R15C(QZO)	8-98150-146-0	01	1	1005-1101			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C GOODYEAR TIRE(QFT)	8-98150-146-0	01	1	1005-1101			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC)	8-98150-146-0	01	1	1005-1101			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 LONG(TFB**F) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C DUNLOP TIRE(CWP), FRT&RR 215/70R15C GOODYEAR TIRE(QFT),FRT& RR 195R15C(QZO)	8-98150-146-0	01	1	1102-1201			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C DUNLOP TIRE(CWP), FRT&RR 215/70R15C GOODYEAR TIRE(QFT)	8-98150-146-0	01	1	1102-1201			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC)	8-98150-146-0	01	1	1102-1201			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 LONG(TFB**F) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C DUNLOP TIRE(CWP), FRT&RR 215/70R15C GOODYEAR TIRE(QFT),FRT& RR 195R15C(QZO)	8-98150-146-0	01	1	1202-			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C DUNLOP TIRE(CWP), FRT&RR 215/70R15C GOODYEAR TIRE(QFT)	8-98150-146-0	01	1	1202-			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC)	8-98150-146-0	01	1	1202-			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 CREW CAB(TFBW) 4JK1-TCS ENG(LKZ) FINAL GEAR RATIO 43/11(GW1) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16ALS(QCQ) MALAYSIA EQUIPMENT(B10)	8-98150-146-0	01	1	1202-			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 LONG(TFB**F) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC)	8-98132-781-0	01	1	0810-1004			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 EXTEND CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16 ALS(QCQ)	8-98132-781-0	01	1	0810-1004			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 CREW CAB(TFBW) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16ALS(QCQ)	8-98132-781-0	01	1	0810-1004			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 REGULAR CAB LONG(TFB*SF) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 195R14C(CNU)	8-98132-781-0	01	1	0810-1004			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 CREW CAB(TFBW) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16ALS(QCQ)	8-98132-781-0	01	1	0810-1004			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 REGULAR CAB LONG(TFB*SF) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16 ALS(QCQ)	8-98132-781-0	01	1	0810-1004			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 LONG(TFB**F) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC)	8-98150-145-0	01	1	1005-			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 EXTEND CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16 ALS(QCQ)	8-98150-145-0	01	1	1005-			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 CREW CAB(TFBW) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16ALS(QCQ)	8-98150-145-0	01	1	1005-			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 REGULAR CAB LONG(TFB*SF) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 195R14C(CNU)	8-98150-145-0	01	1	1005-			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 CREW CAB(TFBW) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16ALS(QCQ)	8-98150-145-0	01	1	1005-			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 REGULAR CAB LONG(TFB*SF) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16 ALS(QCQ)	8-98150-145-0	01	1	1005-			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) C24SE ENG(LG1)	8-98132-779-0	01	1	0810-1004		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) C24SE ENG(LG1)	8-98150-143-0	01	1	1005-		●
1	04.003 TRANSMISSION ASM; MANUAL	8-98132-778-0	01	1	0810-1003	●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JJ1-TCX ENG(LS0)	8-98089-767-0	01	1	0808-					●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JJ1-TCX ENG(LS0)	8-98090-195-0	01	1	0808-					●
13	04.302 SUPPORT; SHIFT FORK 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) L=47.5	8-97072-827-0	01	1	0810-1007	●	●	●	●
13	04.302 SUPPORT; SHIFT FORK 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) L=47.5	8-97072-827-0	01	1	1008-	●	●	●	●
13	04.302 SUPPORT; SHIFT FORK 4JJ1-TCX ENG(LS0)	8-98004-443-1	01	1	0808-					●
14	04.302 WASHER; LK,SUPPORT 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 03.634 ID=12.2	0-91510-512-0	01	1	0810-1007	●	●	●
14	04.302 WASHER; LK,SUPPORT 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 03.634 ID=12.2	0-91510-512-0	01	1	1008-	●	●	●
16	04.105 PLUG; SHIFT ROD 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) OD=14	8-97358-601-0	02	1	0810-1007	●	●	●	●
16	04.105 PLUG; SHIFT ROD 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) OD=14	8-97358-601-0	02	1	1008-	●	●	●	●
24	00.797 COVER; CHECK HOLE,DUST 4JA1-T ENG(LP0) 06.868	8-94156-700-0	01	1	0903-				●
24	00.797 COVER; CHECK HOLE,DUST 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 06.868	8-94156-700-0	01	1	0810-0902	●	●	●	●
24	00.797 COVER; CHECK HOLE,DUST 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 06.868	8-94156-700-0	01	1	0903-1007	●	●	●
24	00.797 COVER; CHECK HOLE,DUST 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 06.868	8-94156-700-0	01	1	1008-	●	●	●
28	04.356 COVER; FRT,TRANS CASE 4JA1-T ENG(LP0)	8-97116-796-0	01	1	0810-				●
28	04.356 COVER; FRT,TRANS CASE C24SE ENG(LG1)	8-97108-066-1	01	1	0810-	●	●
28	04.356 COVER; FRT,TRANS CASE 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0)	8-97104-676-0	01	1	0810-1007		●	●
28	04.356 COVER; FRT,TRANS CASE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-97104-676-0	01	1	1008-		●	●
28	04.356 COVER; FRT,TRANS CASE 4JJ1-TCX ENG(LS0)	8-97362-409-0	01	1	0808-					●
29	04.356 BOLT; FRT COVER 4JJ1-TCX ENG(LS0) 01.531 M8X20 FLANGE	0-28650-820-0	03	1	1008-					●
29	04.356 BOLT; FRT COVER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) M8X22 FLANGE	8-97365-376-0	06	1	0810-1007	●	●	●	●
29	04.356 BOLT; FRT COVER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) M8X22 FLANGE	8-97365-376-0	06	1	1008-	●	●	●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCX ENG(LS0) NOK	8-97947-839-0	01	1	1209-					●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JA1-T ENG(LP0) 04.354 NOK	8-94326-441-0	01	1	0810-1208				●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JA1-T ENG(LP0) NOK	8-97947-838-0	01	1	1209-				●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) TKK	8-97046-698-0	01	1	0810-1007	●	●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) TKK	8-97046-698-0	01	1	1008-	●	●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCX ENG(LS0) NOK	8-97046-699-3	01	1	0808-0809					●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) NOK	8-97046-699-3	01	1	0810-1007	●	●	●		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) NOK	8-97046-699-3	01	1	1008-1208	●	●	●		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) NOK	8-97046-699-3	01	1	1209-	●	●	●
39	04.311 PLATE; DETENT SPR 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-98035-571-0	01	1	0810-1007	●	●	●	●
39	04.311 PLATE; DETENT SPR 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-98035-571-0	01	1	1008-	●	●	●	●
40	04.311 GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T). 4JA1-T ENG(LP0)	8-94473-947-0	01	1	0810-				●
40	04.311 GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-97083-600-1	01	1	0810-1007	●	●	●
40	04.311 GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-97083-600-1	01	1	1008-	●	●	●
41	04.311 SPRING; DETENT BALL 4JA1-T ENG(LP0) L=25.6	8-94435-336-0	03	1	0810-				●
41	04.311 SPRING; DETENT BALL 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) L=26.8	8-94320-193-0	03	1	0810-1007	●	●	●
41	04.311 SPRING; DETENT BALL 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) L=26.8	8-94320-193-0	03	1	1008-	●	●	●
42	04.311 BALL; DETENT,GEAR SHIFT 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-94435-335-0	03	1	0810-1007	●	●	●	●
42	04.311 BALL; DETENT,GEAR SHIFT 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-94435-335-0	03	1	1008-	●	●	●	●
43	04.311 BOLT; PLATE TO PLATE 4JA1-T ENG(LP0) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0810-				●
43	04.311 BOLT; PLATE TO PLATE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 04.356 M8X22 FLANGE	8-97365-376-0	02	1	0810-1007	●	●	●
43	04.311 BOLT; PLATE TO PLATE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 04.356 M8X22 FLANGE	8-97365-376-0	02	1	1008-	●	●	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) ID=17	8-97115-712-0	01	1	0810-1007	●	●	●	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1008-	●	●	●	●	●
49	04.510 STUD; TRANSFER CASE 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) M10X27 L=43.5	8-98035-677-0	01	1	0810-1007		●	●
49	04.510 STUD; TRANSFER CASE 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) M10X27 L=43.5	8-98035-677-0	01	1	1008-		●	●
49	04.510 STUD; TRANSFER CASE 4X4(TFS***) 4JJ1-TCX ENG(LS0) M10X30 L=45	8-98035-675-0	01	1	0808-					●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JJ1-TCX ENG(LS0) ID=17	8-97115-712-0	01	1	0808-0809					●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) ID=17	8-97115-712-0	01	1	0810-1007	●	●	●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) ID=17	8-97115-712-0	01	1	0810-1007		●	●		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) ID=17	8-97115-712-0	01	1	1008-	●	●	●	●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) ID=17	8-97115-712-0	01	1	1008-		●	●		●
86	04.317 BOLT; RR COVER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) (B) M10X18 M10X55 L=86.8	8-97305-468-0	05	1	0810-1007	●	●	●	●
86	04.317 BOLT; RR COVER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) (B) M10X18 M10X55 L=86.8	8-97305-468-0	05	1	1008-	●	●	●	●
86	04.317 BOLT; RR COVER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) (A) M10X55 FLANGE	8-98035-672-0	03	1	0810-1007	●	●	●	●
86	04.317 BOLT; RR COVER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) (A) M10X55 FLANGE	8-98035-672-0	03	1	1008-	●	●	●	●
86	04.317 BOLT; RR COVER 4JJ1-TCX ENG(LS0) 00.386 (D) M8X50 FLANGE	0-28050-850-0	02	1	0808-					●
86	04.317 BOLT; RR COVER 4JJ1-TCX ENG(LS0) 01.060 (E) M8X35 FLANGE	0-28650-835-0	03	1	0808-					●
86	04.317 BOLT; RR COVER 4X4(TFS***) 4JJ1-TCX ENG(LS0) 09.173 (C) M8X45 FLANGE	0-28050-845-0	16	1	0808-0809					●
86	04.317 BOLT; RR COVER 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 09.173 (C) M8X45 FLANGE	0-28050-845-0	16	1	0810-1007		●	●		●
86	04.317 BOLT; RR COVER 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 09.173 (C) M8X45 FLANGE	0-28050-845-0	16	1	1008-		●	●		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97947-840-0	01	1	1209-				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) (B) NOK	8-97947-840-0	01	1	1209-					●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 04.510 (A) TKK	8-97046-700-0	01	1	0810-1007		●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 04.510 (A) TKK	8-97046-700-0	01	1	1008-		●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 04.510 (A) NOK	8-97046-701-2	01	1	0810-1007		●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 04.510 (A) NOK	8-97046-701-2	01	1	1008-		●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCX ENG(LS0) (B) NOK	8-97046-705-3	01	1	0808-0809					●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (B) NOK	8-97046-705-3	01	1	0810-1007	●	●	●	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (B) NOK	8-97046-705-3	01	1	1008-	●	●	●	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JJ1-TCX ENG(LS0) (C) JTEKT	8-98004-531-0	01	1	0808-					●
102	04.412 RETAINER; BRG UPR,MAINSHAFT 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-97138-673-0	01	1	0810-1007	●	●	●
102	04.412 RETAINER; BRG UPR,MAINSHAFT 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-97138-673-0	01	1	1008-	●	●	●
113	04.358 GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). 4JA1-T ENG(LP0)	8-97113-190-0	01	1	0810-				●
113	04.358 GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-97083-589-0	01	1	0810-1007	●	●	●
113	04.358 GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-97083-589-0	01	1	1008-	●	●	●
316	04.105 MAGNET; TRANS CASE 4JJ1-TCX ENG(LS0)	8-94249-524-2	01	1	0808-0809					●
316	04.105 MAGNET; TRANS CASE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-94249-524-2	01	1	0810-1007	●	●	●		●
316	04.105 MAGNET; TRANS CASE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-94249-524-2	01	1	1008-	●	●	●		●
417	04.105 PLUG; OIL FILLER,TRANS 4JJ1-TCX ENG(LS0)	8-97365-373-0	01	1	0808-0809					●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) 4JJ1-TCX ENG(LS0)	8-97365-373-0	01	1	0808-0809					●
417	04.105 PLUG; OIL FILLER,TRANS 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97365-373-0	01	1	0810-1007	●	●	●	●	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97365-373-0	01	1	0810-1007		●	●		●
417	04.105 PLUG; OIL FILLER,TRANS 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97365-373-0	01	1	1008-	●	●	●	●	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97365-373-0	01	1	1008-		●	●		●
421	04.317 COVER; RR,TRANS 4JA1-T ENG(LP0) (A)	8-98014-389-0	01	1	0810-1105				●
421	04.317 COVER; RR,TRANS 4JA1-T ENG(LP0) (A)	8-98193-595-0	01	1	1106-				●
421	04.317 COVER; RR,TRANS 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) (D)	8-97301-224-2	01	1	0810-1007		●	●
421	04.317 COVER; RR,TRANS 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) (D)	8-97301-224-2	01	1	1008-		●	●
421	04.317 COVER; RR,TRANS 4X2(TFB***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) (C)	8-98014-386-0	01	1	0810-1007	●	●	●
421	04.317 COVER; RR,TRANS 4X2(TFB***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) (C)	8-98014-386-0	01	1	1008-1202	●	●	●
421	04.317 COVER; RR,TRANS 4X2(TFB***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) (C)	8-98191-921-0	01	1	1203-	●	●	●
421	04.317 COVER; RR,TRANS 4X2(TFB***) 4JJ1-TCX ENG(LS0) (G)	8-97382-905-2	01	1	0808-					●
421	04.317 COVER; RR,TRANS 4X2(TFB***) 4JJ1-TCX ENG(LS0) (B)	8-98035-906-0	01	1	0808-					●
421	04.317 COVER; RR,TRANS 4X4(TFS***) 4JJ1-TCX ENG(LS0) (E)	8-97362-423-1	01	1	0808-					●
421	04.317 COVER; RR,TRANS 4X4(TFS***) 4JJ1-TCX ENG(LS0) (F)	8-98048-277-0	01	1	0808-					●
429	04.105 PIN; STRAIGHT 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) (A) OD=10 L=40	5-09740-018-1	02	1	0810-1007	●	●	●	●
429	04.105 PIN; STRAIGHT 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) (A) OD=10 L=40	5-09740-018-1	02	1	1008-	●	●	●	●
429	04.105 PIN; STRAIGHT 4X4(TFS***) 04.510 (B) OD=10 L=20	8-97135-423-0	02	1	0808-0809					●
429	04.105 PIN; STRAIGHT 4X4(TFS***) 04.510 (B) OD=10 L=20	8-97135-423-0	02	1	0810-	●	●	●		●
430	04.105 PLUG; OIL DRAIN 4JJ1-TCX ENG(LS0)	8-97365-374-0	01	1	0808-0809					●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) 4JJ1-TCX ENG(LS0)	8-97365-374-0	01	1	0808-0809					●
430	04.105 PLUG; OIL DRAIN 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97365-374-0	01	1	0810-1007	●	●	●	●	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97365-374-0	01	1	0810-1007		●	●		●
430	04.105 PLUG; OIL DRAIN 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97365-374-0	01	1	1008-	●	●	●	●	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97365-374-0	01	1	1008-		●	●		●
435	04.103 CASE; TRANS 4JA1-T ENG(LP0) (A)	8-97330-878-0	01	1	0810-				●
435	04.103 CASE; TRANS C24SE ENG(LG1) (A)	8-98047-238-0	01	1	0810-	●	●
435	04.103 CASE; TRANS 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0) (A)	8-98047-232-0	01	1	0810-1004		●	●
435	04.103 CASE; TRANS 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0) (A)	8-98162-753-0	01	1	1005-1007		●	●
435	04.103 CASE; TRANS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) (A)	8-98162-753-0	01	1	1008-		●	●
435	04.103 CASE; TRANS 4JJ1-TCX ENG(LS0) (B)	8-98035-882-2	01	1	0808-					●
455	04.008 SCREW; BRG RET 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) M8X22	8-98035-654-0	04	1	0810-1007	●	●	●
455	04.008 SCREW; BRG RET 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) M8X22	8-98035-654-0	04	1	1008-	●	●	●

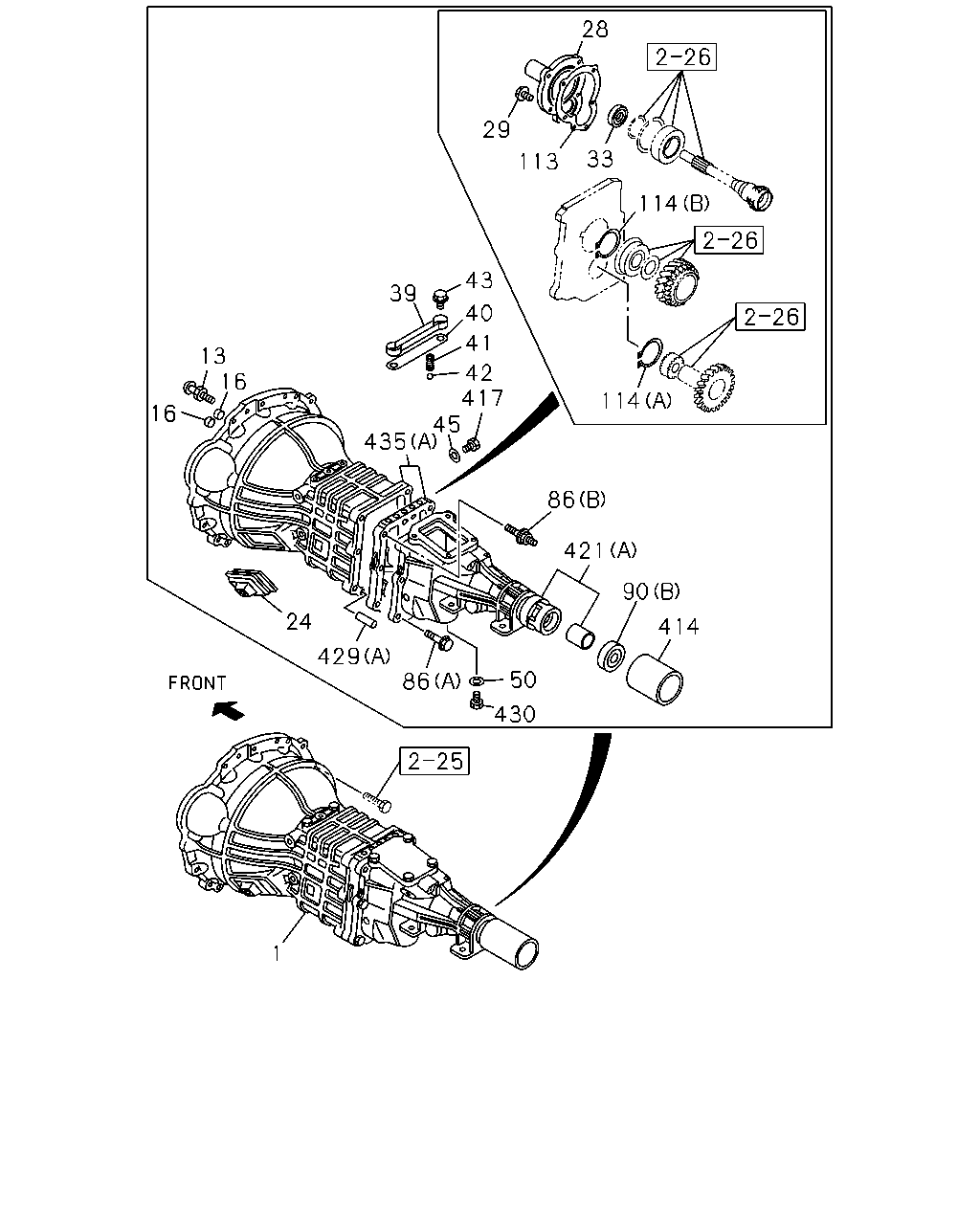

43 40 41 42 29 28 113 16 39 16 417 45 13 14 33 102 421 24 90 414 429 455 316 50 86 86 435 430 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	04.003 TRANSMISSION ASM; MANUAL	8-98150-142-0	01	1	1008-	●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JA1-T ENG(LP0)	8-98150-141-0	01	1	1008-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JA1-T ENG(LP0)	8-98132-777-0	01	1	1001-1003		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***)	8-98132-797-0	01	1	0810-1004			●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***)	8-98150-161-0	01	1	1005-			●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JA1-T ENG(LP0)	8-98132-792-0	01	1	0810-1004		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JA1-T ENG(LP0)	8-98150-156-0	01	1	1005-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) C24SE ENG(LG1)	8-98132-795-0	01	1	0810-1004		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) C24SE ENG(LG1)	8-98150-159-0	01	1	1005-		●
1	04.003 TRANSMISSION ASM; MANUAL 4JA1-T ENG(LP0)	8-98132-751-0	01	1	0810-0902				●
1	04.003 TRANSMISSION ASM; MANUAL 4JA1-T ENG(LP0)	8-98132-752-0	01	1	0903-1004				●
1	04.003 TRANSMISSION ASM; MANUAL 4JA1-T ENG(LP0)	8-98150-117-0	01	1	1005-				●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 LONG(TFB**F) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C GOODYEAR TIRE(QFT), FRT&RR 195R15C(QZO)	8-98132-782-0	01	1	0810-1004			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C GOODYEAR TIRE(QFT)	8-98132-782-0	01	1	0810-1004			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC)	8-98132-782-0	01	1	0810-1004			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 LONG(TFB**F) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C GOODYEAR TIRE(QFT), FRT&RR 195R15C(QZO)	8-98150-146-0	01	1	1005-1101			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C GOODYEAR TIRE(QFT)	8-98150-146-0	01	1	1005-1101			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC)	8-98150-146-0	01	1	1005-1101			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 LONG(TFB**F) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C DUNLOP TIRE(CWP), FRT&RR 215/70R15C GOODYEAR TIRE(QFT),FRT& RR 195R15C(QZO)	8-98150-146-0	01	1	1102-1201			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C DUNLOP TIRE(CWP), FRT&RR 215/70R15C GOODYEAR TIRE(QFT)	8-98150-146-0	01	1	1102-1201			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC)	8-98150-146-0	01	1	1102-1201			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 LONG(TFB**F) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C DUNLOP TIRE(CWP), FRT&RR 215/70R15C GOODYEAR TIRE(QFT),FRT& RR 195R15C(QZO)	8-98150-146-0	01	1	1202-			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C DUNLOP TIRE(CWP), FRT&RR 215/70R15C GOODYEAR TIRE(QFT)	8-98150-146-0	01	1	1202-			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC)	8-98150-146-0	01	1	1202-			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 CREW CAB(TFBW) 4JK1-TCS ENG(LKZ) FINAL GEAR RATIO 43/11(GW1) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16ALS(QCQ) MALAYSIA EQUIPMENT(B10)	8-98150-146-0	01	1	1202-			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 LONG(TFB**F) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC)	8-98132-781-0	01	1	0810-1004			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 EXTEND CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16 ALS(QCQ)	8-98132-781-0	01	1	0810-1004			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 CREW CAB(TFBW) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16ALS(QCQ)	8-98132-781-0	01	1	0810-1004			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 REGULAR CAB LONG(TFB*SF) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 195R14C(CNU)	8-98132-781-0	01	1	0810-1004			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 CREW CAB(TFBW) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16ALS(QCQ)	8-98132-781-0	01	1	0810-1004			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 REGULAR CAB LONG(TFB*SF) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16 ALS(QCQ)	8-98132-781-0	01	1	0810-1004			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 LONG(TFB**F) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC)	8-98150-145-0	01	1	1005-			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 EXTEND CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16 ALS(QCQ)	8-98150-145-0	01	1	1005-			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 CREW CAB(TFBW) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16ALS(QCQ)	8-98150-145-0	01	1	1005-			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 REGULAR CAB LONG(TFB*SF) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 195R14C(CNU)	8-98150-145-0	01	1	1005-			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 CREW CAB(TFBW) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16ALS(QCQ)	8-98150-145-0	01	1	1005-			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 REGULAR CAB LONG(TFB*SF) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16 ALS(QCQ)	8-98150-145-0	01	1	1005-			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) C24SE ENG(LG1)	8-98132-779-0	01	1	0810-1004		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) C24SE ENG(LG1)	8-98150-143-0	01	1	1005-		●
1	04.003 TRANSMISSION ASM; MANUAL	8-98132-778-0	01	1	0810-1003	●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JJ1-TCX ENG(LS0)	8-98089-767-0	01	1	0808-					●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JJ1-TCX ENG(LS0)	8-98090-195-0	01	1	0808-					●
13	04.302 SUPPORT; SHIFT FORK 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) L=47.5	8-97072-827-0	01	1	0810-1007	●	●	●	●
13	04.302 SUPPORT; SHIFT FORK 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) L=47.5	8-97072-827-0	01	1	1008-	●	●	●	●
13	04.302 SUPPORT; SHIFT FORK 4JJ1-TCX ENG(LS0)	8-98004-443-1	01	1	0808-					●
14	04.302 WASHER; LK,SUPPORT 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 03.634 ID=12.2	0-91510-512-0	01	1	0810-1007	●	●	●
14	04.302 WASHER; LK,SUPPORT 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 03.634 ID=12.2	0-91510-512-0	01	1	1008-	●	●	●
16	04.105 PLUG; SHIFT ROD 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) OD=14	8-97358-601-0	02	1	0810-1007	●	●	●	●
16	04.105 PLUG; SHIFT ROD 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) OD=14	8-97358-601-0	02	1	1008-	●	●	●	●
24	00.797 COVER; CHECK HOLE,DUST 4JA1-T ENG(LP0) 06.868	8-94156-700-0	01	1	0903-				●
24	00.797 COVER; CHECK HOLE,DUST 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 06.868	8-94156-700-0	01	1	0810-0902	●	●	●	●
24	00.797 COVER; CHECK HOLE,DUST 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 06.868	8-94156-700-0	01	1	0903-1007	●	●	●
24	00.797 COVER; CHECK HOLE,DUST 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 06.868	8-94156-700-0	01	1	1008-	●	●	●
28	04.356 COVER; FRT,TRANS CASE 4JA1-T ENG(LP0)	8-97116-796-0	01	1	0810-				●
28	04.356 COVER; FRT,TRANS CASE C24SE ENG(LG1)	8-97108-066-1	01	1	0810-	●	●
28	04.356 COVER; FRT,TRANS CASE 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0)	8-97104-676-0	01	1	0810-1007		●	●
28	04.356 COVER; FRT,TRANS CASE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-97104-676-0	01	1	1008-		●	●
28	04.356 COVER; FRT,TRANS CASE 4JJ1-TCX ENG(LS0)	8-97362-409-0	01	1	0808-					●
29	04.356 BOLT; FRT COVER 4JJ1-TCX ENG(LS0) 01.531 M8X20 FLANGE	0-28650-820-0	03	1	1008-					●
29	04.356 BOLT; FRT COVER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) M8X22 FLANGE	8-97365-376-0	06	1	0810-1007	●	●	●	●
29	04.356 BOLT; FRT COVER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) M8X22 FLANGE	8-97365-376-0	06	1	1008-	●	●	●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCX ENG(LS0) NOK	8-97947-839-0	01	1	1209-					●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JA1-T ENG(LP0) 04.354 NOK	8-94326-441-0	01	1	0810-1208				●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JA1-T ENG(LP0) NOK	8-97947-838-0	01	1	1209-				●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) TKK	8-97046-698-0	01	1	0810-1007	●	●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) TKK	8-97046-698-0	01	1	1008-	●	●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCX ENG(LS0) NOK	8-97046-699-3	01	1	0808-0809					●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) NOK	8-97046-699-3	01	1	0810-1007	●	●	●		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) NOK	8-97046-699-3	01	1	1008-1208	●	●	●		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) NOK	8-97046-699-3	01	1	1209-	●	●	●
39	04.311 PLATE; DETENT SPR 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-98035-571-0	01	1	0810-1007	●	●	●	●
39	04.311 PLATE; DETENT SPR 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-98035-571-0	01	1	1008-	●	●	●	●
40	04.311 GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T). 4JA1-T ENG(LP0)	8-94473-947-0	01	1	0810-				●
40	04.311 GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-97083-600-1	01	1	0810-1007	●	●	●
40	04.311 GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-97083-600-1	01	1	1008-	●	●	●
41	04.311 SPRING; DETENT BALL 4JA1-T ENG(LP0) L=25.6	8-94435-336-0	03	1	0810-				●
41	04.311 SPRING; DETENT BALL 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) L=26.8	8-94320-193-0	03	1	0810-1007	●	●	●
41	04.311 SPRING; DETENT BALL 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) L=26.8	8-94320-193-0	03	1	1008-	●	●	●
42	04.311 BALL; DETENT,GEAR SHIFT 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-94435-335-0	03	1	0810-1007	●	●	●	●
42	04.311 BALL; DETENT,GEAR SHIFT 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-94435-335-0	03	1	1008-	●	●	●	●
43	04.311 BOLT; PLATE TO PLATE 4JA1-T ENG(LP0) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0810-				●
43	04.311 BOLT; PLATE TO PLATE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 04.356 M8X22 FLANGE	8-97365-376-0	02	1	0810-1007	●	●	●
43	04.311 BOLT; PLATE TO PLATE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 04.356 M8X22 FLANGE	8-97365-376-0	02	1	1008-	●	●	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) ID=17	8-97115-712-0	01	1	0810-1007	●	●	●	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1008-	●	●	●	●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JJ1-TCX ENG(LS0) ID=17	8-97115-712-0	01	1	0808-0809					●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) ID=17	8-97115-712-0	01	1	0810-1007	●	●	●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) ID=17	8-97115-712-0	01	1	0810-1007		●	●		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) ID=17	8-97115-712-0	01	1	1008-	●	●	●	●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) ID=17	8-97115-712-0	01	1	1008-		●	●		●
86	04.317 BOLT; RR COVER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) (B) M10X18 M10X55 L=86.8	8-97305-468-0	05	1	0810-1007	●	●	●	●
86	04.317 BOLT; RR COVER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) (B) M10X18 M10X55 L=86.8	8-97305-468-0	05	1	1008-	●	●	●	●
86	04.317 BOLT; RR COVER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) (A) M10X55 FLANGE	8-98035-672-0	03	1	0810-1007	●	●	●	●
86	04.317 BOLT; RR COVER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) (A) M10X55 FLANGE	8-98035-672-0	03	1	1008-	●	●	●	●
86	04.317 BOLT; RR COVER 4JJ1-TCX ENG(LS0) 00.386 (D) M8X50 FLANGE	0-28050-850-0	02	1	0808-					●
86	04.317 BOLT; RR COVER 4JJ1-TCX ENG(LS0) 01.060 (E) M8X35 FLANGE	0-28650-835-0	03	1	0808-					●
86	04.317 BOLT; RR COVER 4X4(TFS***) 4JJ1-TCX ENG(LS0) 09.173 (C) M8X45 FLANGE	0-28050-845-0	16	1	0808-0809					●
86	04.317 BOLT; RR COVER 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 09.173 (C) M8X45 FLANGE	0-28050-845-0	16	1	0810-1007		●	●		●
86	04.317 BOLT; RR COVER 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 09.173 (C) M8X45 FLANGE	0-28050-845-0	16	1	1008-		●	●		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97947-840-0	01	1	1209-				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) (B) NOK	8-97947-840-0	01	1	1209-					●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 04.510 (A) TKK	8-97046-700-0	01	1	0810-1007		●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 04.510 (A) TKK	8-97046-700-0	01	1	1008-		●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 04.510 (A) NOK	8-97046-701-2	01	1	0810-1007		●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 04.510 (A) NOK	8-97046-701-2	01	1	1008-		●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCX ENG(LS0) (B) NOK	8-97046-705-3	01	1	0808-0809					●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (B) NOK	8-97046-705-3	01	1	0810-1007	●	●	●	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (B) NOK	8-97046-705-3	01	1	1008-	●	●	●	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JJ1-TCX ENG(LS0) (C) JTEKT	8-98004-531-0	01	1	0808-					●
102	04.412 RETAINER; BRG UPR,MAINSHAFT 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-97138-673-0	01	1	0810-1007	●	●	●
102	04.412 RETAINER; BRG UPR,MAINSHAFT 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-97138-673-0	01	1	1008-	●	●	●
113	04.358 GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). 4JA1-T ENG(LP0)	8-97113-190-0	01	1	0810-				●
113	04.358 GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-97083-589-0	01	1	0810-1007	●	●	●
113	04.358 GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-97083-589-0	01	1	1008-	●	●	●
316	04.105 MAGNET; TRANS CASE 4JJ1-TCX ENG(LS0)	8-94249-524-2	01	1	0808-0809					●
316	04.105 MAGNET; TRANS CASE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-94249-524-2	01	1	0810-1007	●	●	●		●
316	04.105 MAGNET; TRANS CASE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-94249-524-2	01	1	1008-	●	●	●		●
414	04.317 COVER; DUST,RR COVER 4X2(TFB***) 4JJ1-TCX ENG(LS0)	8-98027-802-0	01	1	0808-0809					●
414	04.317 COVER; DUST,RR COVER 4X2(TFB***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-98027-802-0	01	1	0810-1007	●	●	●	●	●
414	04.317 COVER; DUST,RR COVER 4X2(TFB***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-98027-802-0	01	1	1008-	●	●	●	●	●
417	04.105 PLUG; OIL FILLER,TRANS 4JJ1-TCX ENG(LS0)	8-97365-373-0	01	1	0808-0809					●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) 4JJ1-TCX ENG(LS0)	8-97365-373-0	01	1	0808-0809					●
417	04.105 PLUG; OIL FILLER,TRANS 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97365-373-0	01	1	0810-1007	●	●	●	●	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97365-373-0	01	1	0810-1007		●	●		●
417	04.105 PLUG; OIL FILLER,TRANS 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97365-373-0	01	1	1008-	●	●	●	●	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97365-373-0	01	1	1008-		●	●		●
421	04.317 COVER; RR,TRANS 4JA1-T ENG(LP0) (A)	8-98014-389-0	01	1	0810-1105				●
421	04.317 COVER; RR,TRANS 4JA1-T ENG(LP0) (A)	8-98193-595-0	01	1	1106-				●
421	04.317 COVER; RR,TRANS 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) (D)	8-97301-224-2	01	1	0810-1007		●	●
421	04.317 COVER; RR,TRANS 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) (D)	8-97301-224-2	01	1	1008-		●	●
421	04.317 COVER; RR,TRANS 4X2(TFB***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) (C)	8-98014-386-0	01	1	0810-1007	●	●	●
421	04.317 COVER; RR,TRANS 4X2(TFB***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) (C)	8-98014-386-0	01	1	1008-1202	●	●	●
421	04.317 COVER; RR,TRANS 4X2(TFB***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) (C)	8-98191-921-0	01	1	1203-	●	●	●
421	04.317 COVER; RR,TRANS 4X2(TFB***) 4JJ1-TCX ENG(LS0) (G)	8-97382-905-2	01	1	0808-					●
421	04.317 COVER; RR,TRANS 4X2(TFB***) 4JJ1-TCX ENG(LS0) (B)	8-98035-906-0	01	1	0808-					●
421	04.317 COVER; RR,TRANS 4X4(TFS***) 4JJ1-TCX ENG(LS0) (E)	8-97362-423-1	01	1	0808-					●
421	04.317 COVER; RR,TRANS 4X4(TFS***) 4JJ1-TCX ENG(LS0) (F)	8-98048-277-0	01	1	0808-					●
429	04.105 PIN; STRAIGHT 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) (A) OD=10 L=40	5-09740-018-1	02	1	0810-1007	●	●	●	●
429	04.105 PIN; STRAIGHT 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) (A) OD=10 L=40	5-09740-018-1	02	1	1008-	●	●	●	●
429	04.105 PIN; STRAIGHT 4X4(TFS***) 04.510 (B) OD=10 L=20	8-97135-423-0	02	1	0808-0809					●
429	04.105 PIN; STRAIGHT 4X4(TFS***) 04.510 (B) OD=10 L=20	8-97135-423-0	02	1	0810-	●	●	●		●
430	04.105 PLUG; OIL DRAIN 4JJ1-TCX ENG(LS0)	8-97365-374-0	01	1	0808-0809					●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) 4JJ1-TCX ENG(LS0)	8-97365-374-0	01	1	0808-0809					●
430	04.105 PLUG; OIL DRAIN 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97365-374-0	01	1	0810-1007	●	●	●	●	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97365-374-0	01	1	0810-1007		●	●		●
430	04.105 PLUG; OIL DRAIN 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97365-374-0	01	1	1008-	●	●	●	●	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97365-374-0	01	1	1008-		●	●		●
435	04.103 CASE; TRANS 4JA1-T ENG(LP0) (A)	8-97330-878-0	01	1	0810-				●
435	04.103 CASE; TRANS C24SE ENG(LG1) (A)	8-98047-238-0	01	1	0810-	●	●
435	04.103 CASE; TRANS 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0) (A)	8-98047-232-0	01	1	0810-1004		●	●
435	04.103 CASE; TRANS 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0) (A)	8-98162-753-0	01	1	1005-1007		●	●
435	04.103 CASE; TRANS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) (A)	8-98162-753-0	01	1	1008-		●	●
435	04.103 CASE; TRANS 4JJ1-TCX ENG(LS0) (B)	8-98035-882-2	01	1	0808-					●
455	04.008 SCREW; BRG RET 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) M8X22	8-98035-654-0	04	1	0810-1007	●	●	●
455	04.008 SCREW; BRG RET 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) M8X22	8-98035-654-0	04	1	1008-	●	●	●

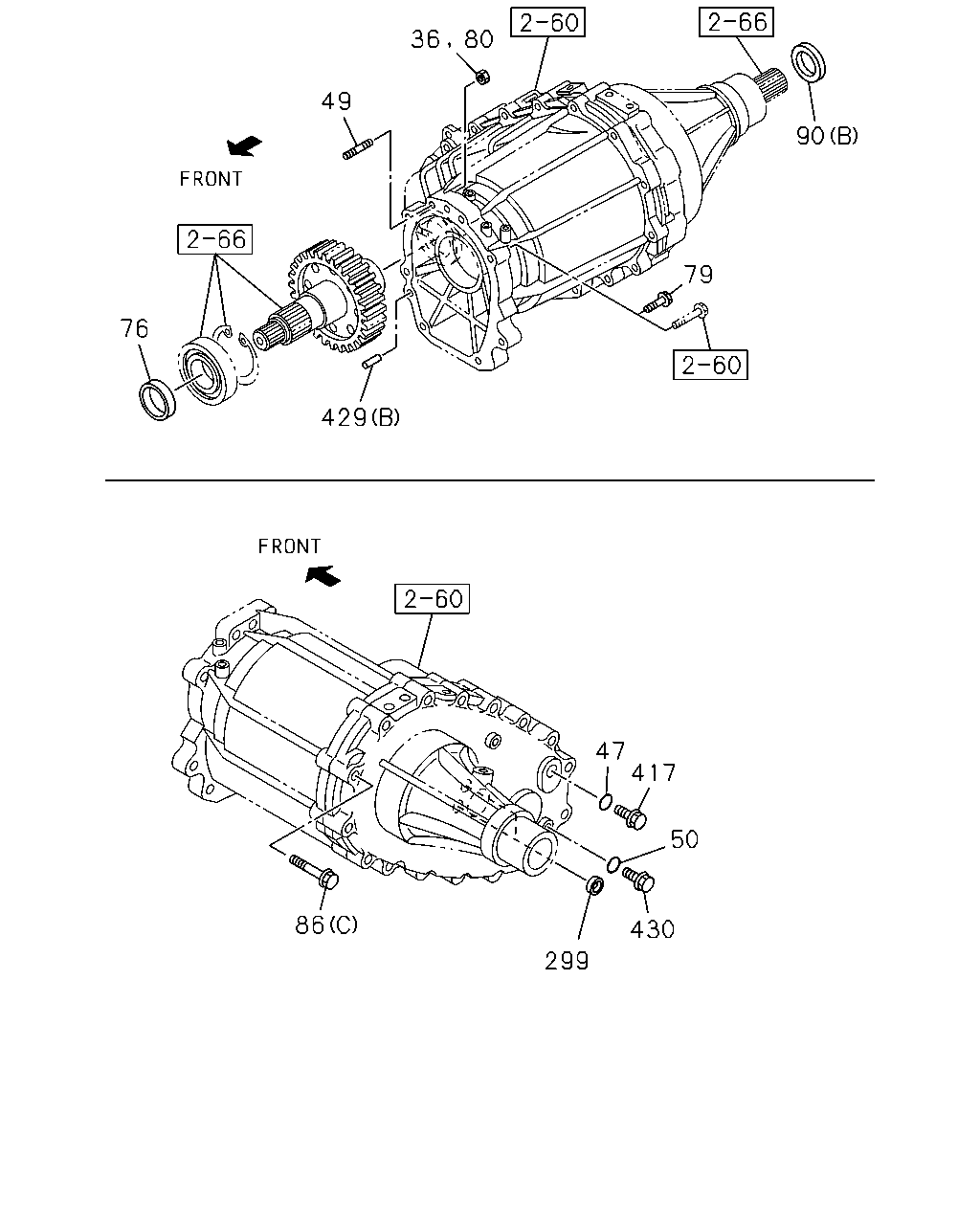

36 80 49 90 79 76 429 47 417 50 86 430 299

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
36	00.683 BEARING; NEEDLE,CLU HSG 4X4(TFS***) 4JJ1-TCX ENG(LS0) IDENTIFICATION LABEL FOR KD<6UT> 03.162 M10 FLANGE	0-91180-110-0	01	1	0808-0809					●
36	00.683 BEARING; NEEDLE,CLU HSG 4X4(TFS***) 03.162 M10 FLANGE	0-91180-110-0	01	1	0810-1007		●	●
36	00.683 BEARING; NEEDLE,CLU HSG 4X4(TFS***) 4JJ1-TCX ENG(LS0) IDENTIFICATION LABEL FOR KD<6UT> 03.162 M10 FLANGE	0-91180-110-0	01	1	0810-1007					●
47	04.510 GASKET; FILLER PLUG,TRANSFER CAS ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JJ1-TCX ENG(LS0) 04.105 ID=17	8-97115-712-0	01	1	0808-0809					●
47	04.510 GASKET; FILLER PLUG,TRANSFER CAS ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 04.105 ID=17	8-97115-712-0	01	1	0810-1007		●	●		●
47	04.510 GASKET; FILLER PLUG,TRANSFER CAS ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 04.105 ID=17	8-97115-712-0	01	1	1008-		●	●		●
49	04.510 STUD; TRANSFER CASE 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) M10X27 L=43.5	8-98035-677-0	01	1	0810-1007		●	●
49	04.510 STUD; TRANSFER CASE 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) M10X27 L=43.5	8-98035-677-0	01	1	1008-		●	●
49	04.510 STUD; TRANSFER CASE 4X4(TFS***) 4JJ1-TCX ENG(LS0) M10X30 L=45	8-98035-675-0	01	1	0808-					●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JJ1-TCX ENG(LS0) ID=17	8-97115-712-0	01	1	0808-0809					●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) ID=17	8-97115-712-0	01	1	0810-1007	●	●	●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) ID=17	8-97115-712-0	01	1	0810-1007		●	●		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) ID=17	8-97115-712-0	01	1	1008-	●	●	●	●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) ID=17	8-97115-712-0	01	1	1008-		●	●		●
76	04.510 SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JJ1-TCX ENG(LS0) NOK	8-97238-999-0	01	1	0808-0809					●
76	04.510 SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) NOK	8-97238-999-0	01	1	0810-1007		●	●		●
76	04.510 SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) NOK	8-97238-999-0	01	1	1008-		●	●		●
79	04.510 BOLT; TRANSFER CASE 4X4(TFS***) M10X35 FLANGE	0-28051-035-0	06	1	0808-1007					●
79	04.510 BOLT; TRANSFER CASE 4X4(TFS***) M10X35 FLANGE	0-28051-035-0	06	1	1008-		●	●		●
80	04.510 NUT; TRANSFER CASE 4X4(TFS***) 03.162 M10 FLANGE	0-91180-110-0	01	1	0808-1007					●
80	04.510 NUT; TRANSFER CASE 4X4(TFS***) 03.162 M10 FLANGE	0-91180-110-0	01	1	1008-		●	●		●
86	04.317 BOLT; RR COVER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) (B) M10X18 M10X55 L=86.8	8-97305-468-0	05	1	0810-1007	●	●	●	●
86	04.317 BOLT; RR COVER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) (B) M10X18 M10X55 L=86.8	8-97305-468-0	05	1	1008-	●	●	●	●
86	04.317 BOLT; RR COVER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) (A) M10X55 FLANGE	8-98035-672-0	03	1	0810-1007	●	●	●	●
86	04.317 BOLT; RR COVER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) (A) M10X55 FLANGE	8-98035-672-0	03	1	1008-	●	●	●	●
86	04.317 BOLT; RR COVER 4JJ1-TCX ENG(LS0) 00.386 (D) M8X50 FLANGE	0-28050-850-0	02	1	0808-					●
86	04.317 BOLT; RR COVER 4JJ1-TCX ENG(LS0) 01.060 (E) M8X35 FLANGE	0-28650-835-0	03	1	0808-					●
86	04.317 BOLT; RR COVER 4X4(TFS***) 4JJ1-TCX ENG(LS0) 09.173 (C) M8X45 FLANGE	0-28050-845-0	16	1	0808-0809					●
86	04.317 BOLT; RR COVER 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 09.173 (C) M8X45 FLANGE	0-28050-845-0	16	1	0810-1007		●	●		●
86	04.317 BOLT; RR COVER 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 09.173 (C) M8X45 FLANGE	0-28050-845-0	16	1	1008-		●	●		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97947-840-0	01	1	1209-				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) (B) NOK	8-97947-840-0	01	1	1209-					●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 04.510 (A) TKK	8-97046-700-0	01	1	0810-1007		●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 04.510 (A) TKK	8-97046-700-0	01	1	1008-		●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 04.510 (A) NOK	8-97046-701-2	01	1	0810-1007		●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 04.510 (A) NOK	8-97046-701-2	01	1	1008-		●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCX ENG(LS0) (B) NOK	8-97046-705-3	01	1	0808-0809					●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (B) NOK	8-97046-705-3	01	1	0810-1007	●	●	●	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (B) NOK	8-97046-705-3	01	1	1008-	●	●	●	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JJ1-TCX ENG(LS0) (C) JTEKT	8-98004-531-0	01	1	0808-					●
299	04.317 PLUG; SHIFTER ROD 4X4(TFS***) 4JJ1-TCX ENG(LS0) 04.105 OD=14	8-97358-601-0	02	1	0808-0809					●
299	04.317 PLUG; SHIFTER ROD 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 04.105 OD=14	8-97358-601-0	02	1	0810-1007		●	●		●
299	04.317 PLUG; SHIFTER ROD 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 04.105 OD=14	8-97358-601-0	02	1	1008-		●	●		●
417	04.105 PLUG; OIL FILLER,TRANS 4JJ1-TCX ENG(LS0)	8-97365-373-0	01	1	0808-0809					●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) 4JJ1-TCX ENG(LS0)	8-97365-373-0	01	1	0808-0809					●
417	04.105 PLUG; OIL FILLER,TRANS 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97365-373-0	01	1	0810-1007	●	●	●	●	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97365-373-0	01	1	0810-1007		●	●		●
417	04.105 PLUG; OIL FILLER,TRANS 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97365-373-0	01	1	1008-	●	●	●	●	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97365-373-0	01	1	1008-		●	●		●
429	04.105 PIN; STRAIGHT 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) (A) OD=10 L=40	5-09740-018-1	02	1	0810-1007	●	●	●	●
429	04.105 PIN; STRAIGHT 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) (A) OD=10 L=40	5-09740-018-1	02	1	1008-	●	●	●	●
429	04.105 PIN; STRAIGHT 4X4(TFS***) 04.510 (B) OD=10 L=20	8-97135-423-0	02	1	0808-0809					●
429	04.105 PIN; STRAIGHT 4X4(TFS***) 04.510 (B) OD=10 L=20	8-97135-423-0	02	1	0810-	●	●	●		●
430	04.105 PLUG; OIL DRAIN 4JJ1-TCX ENG(LS0)	8-97365-374-0	01	1	0808-0809					●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) 4JJ1-TCX ENG(LS0)	8-97365-374-0	01	1	0808-0809					●
430	04.105 PLUG; OIL DRAIN 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97365-374-0	01	1	0810-1007	●	●	●	●	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97365-374-0	01	1	0810-1007		●	●		●
430	04.105 PLUG; OIL DRAIN 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97365-374-0	01	1	1008-	●	●	●	●	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97365-374-0	01	1	1008-		●	●		●

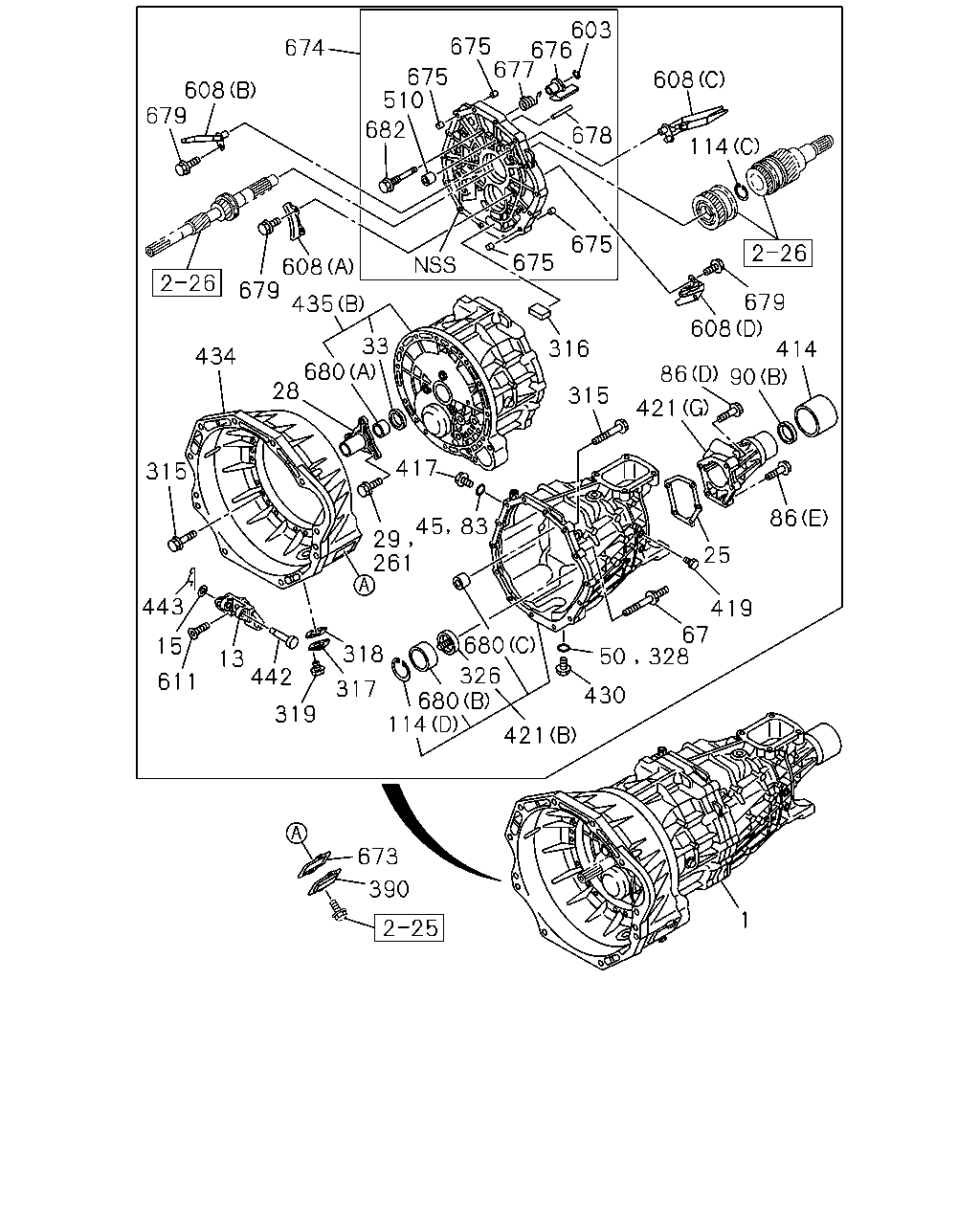

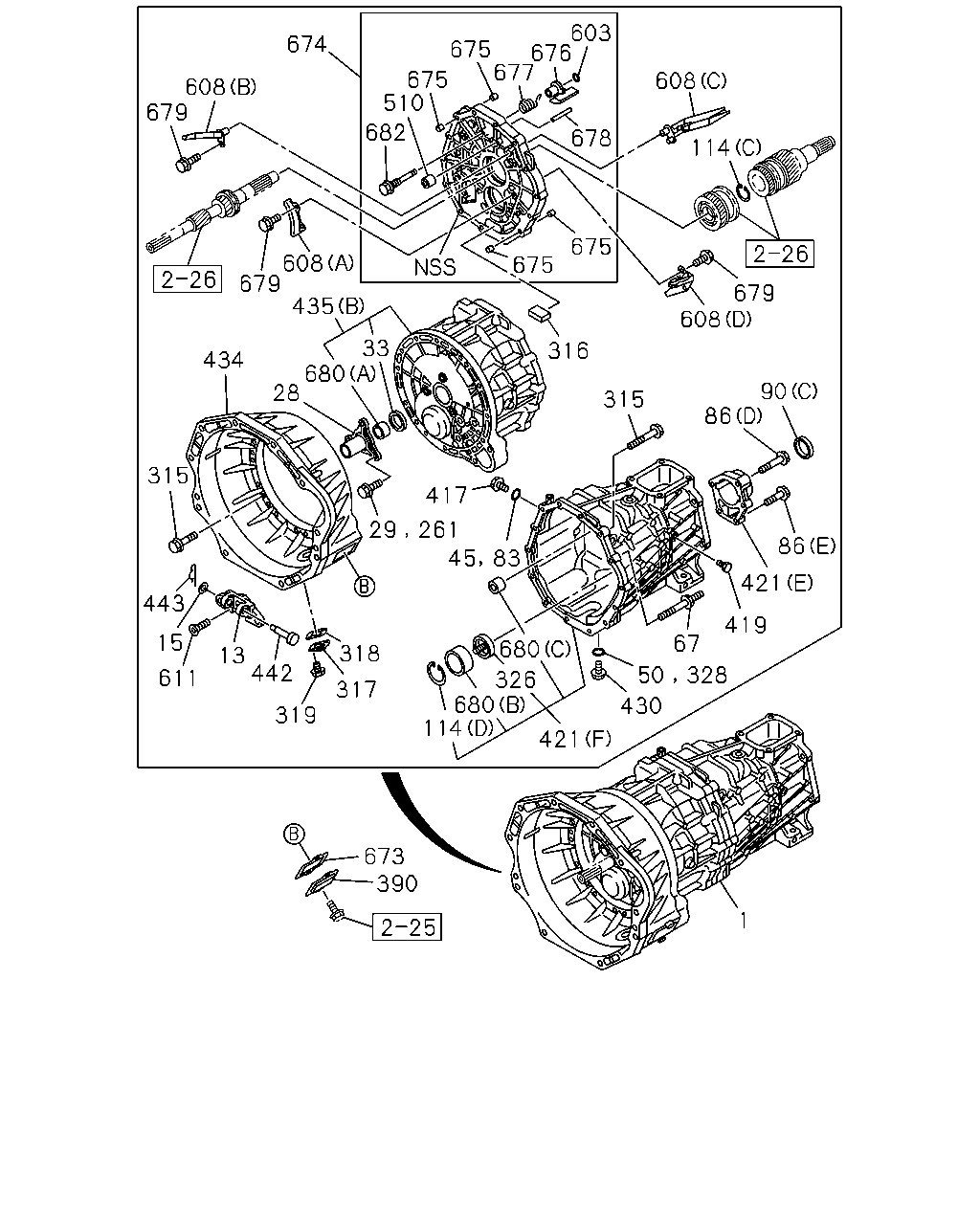

674 608 679 679 608 435 33 434 680 28 315 443 15 611 13 442 319 317 318 261 29 45 83 680 326 680 114 421 673 390 430 50 328 67 419 25 86 414 90 421 86 608 679 315 316 114 608 675 675 678 603 676 677 675 675 510 682 417 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	04.003 TRANSMISSION ASM; MANUAL	8-98150-142-0	01	1	1008-	●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JA1-T ENG(LP0)	8-98150-141-0	01	1	1008-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JA1-T ENG(LP0)	8-98132-777-0	01	1	1001-1003		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***)	8-98132-797-0	01	1	0810-1004			●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***)	8-98150-161-0	01	1	1005-			●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JA1-T ENG(LP0)	8-98132-792-0	01	1	0810-1004		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JA1-T ENG(LP0)	8-98150-156-0	01	1	1005-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) C24SE ENG(LG1)	8-98132-795-0	01	1	0810-1004		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) C24SE ENG(LG1)	8-98150-159-0	01	1	1005-		●
1	04.003 TRANSMISSION ASM; MANUAL 4JA1-T ENG(LP0)	8-98132-751-0	01	1	0810-0902				●
1	04.003 TRANSMISSION ASM; MANUAL 4JA1-T ENG(LP0)	8-98132-752-0	01	1	0903-1004				●
1	04.003 TRANSMISSION ASM; MANUAL 4JA1-T ENG(LP0)	8-98150-117-0	01	1	1005-				●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 LONG(TFB**F) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C GOODYEAR TIRE(QFT), FRT&RR 195R15C(QZO)	8-98132-782-0	01	1	0810-1004			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C GOODYEAR TIRE(QFT)	8-98132-782-0	01	1	0810-1004			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC)	8-98132-782-0	01	1	0810-1004			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 LONG(TFB**F) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C GOODYEAR TIRE(QFT), FRT&RR 195R15C(QZO)	8-98150-146-0	01	1	1005-1101			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C GOODYEAR TIRE(QFT)	8-98150-146-0	01	1	1005-1101			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC)	8-98150-146-0	01	1	1005-1101			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 LONG(TFB**F) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C DUNLOP TIRE(CWP), FRT&RR 215/70R15C GOODYEAR TIRE(QFT),FRT& RR 195R15C(QZO)	8-98150-146-0	01	1	1102-1201			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C DUNLOP TIRE(CWP), FRT&RR 215/70R15C GOODYEAR TIRE(QFT)	8-98150-146-0	01	1	1102-1201			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC)	8-98150-146-0	01	1	1102-1201			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 LONG(TFB**F) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C DUNLOP TIRE(CWP), FRT&RR 215/70R15C GOODYEAR TIRE(QFT),FRT& RR 195R15C(QZO)	8-98150-146-0	01	1	1202-			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C DUNLOP TIRE(CWP), FRT&RR 215/70R15C GOODYEAR TIRE(QFT)	8-98150-146-0	01	1	1202-			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC)	8-98150-146-0	01	1	1202-			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 CREW CAB(TFBW) 4JK1-TCS ENG(LKZ) FINAL GEAR RATIO 43/11(GW1) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16ALS(QCQ) MALAYSIA EQUIPMENT(B10)	8-98150-146-0	01	1	1202-			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 LONG(TFB**F) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC)	8-98132-781-0	01	1	0810-1004			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 EXTEND CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16 ALS(QCQ)	8-98132-781-0	01	1	0810-1004			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 CREW CAB(TFBW) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16ALS(QCQ)	8-98132-781-0	01	1	0810-1004			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 REGULAR CAB LONG(TFB*SF) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 195R14C(CNU)	8-98132-781-0	01	1	0810-1004			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 CREW CAB(TFBW) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16ALS(QCQ)	8-98132-781-0	01	1	0810-1004			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 REGULAR CAB LONG(TFB*SF) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16 ALS(QCQ)	8-98132-781-0	01	1	0810-1004			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 LONG(TFB**F) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC)	8-98150-145-0	01	1	1005-			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 EXTEND CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16 ALS(QCQ)	8-98150-145-0	01	1	1005-			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 CREW CAB(TFBW) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16ALS(QCQ)	8-98150-145-0	01	1	1005-			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 REGULAR CAB LONG(TFB*SF) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 195R14C(CNU)	8-98150-145-0	01	1	1005-			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 CREW CAB(TFBW) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16ALS(QCQ)	8-98150-145-0	01	1	1005-			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 REGULAR CAB LONG(TFB*SF) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16 ALS(QCQ)	8-98150-145-0	01	1	1005-			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) C24SE ENG(LG1)	8-98132-779-0	01	1	0810-1004		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) C24SE ENG(LG1)	8-98150-143-0	01	1	1005-		●
1	04.003 TRANSMISSION ASM; MANUAL	8-98132-778-0	01	1	0810-1003	●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JJ1-TCX ENG(LS0)	8-98089-767-0	01	1	0808-					●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JJ1-TCX ENG(LS0)	8-98090-195-0	01	1	0808-					●
13	04.302 SUPPORT; SHIFT FORK 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) L=47.5	8-97072-827-0	01	1	0810-1007	●	●	●	●
13	04.302 SUPPORT; SHIFT FORK 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) L=47.5	8-97072-827-0	01	1	1008-	●	●	●	●
13	04.302 SUPPORT; SHIFT FORK 4JJ1-TCX ENG(LS0)	8-98004-443-1	01	1	0808-					●
15	04.302 WASHER; PL 4JJ1-TCX ENG(LS0) 04.595 ID=8.4 OD=22	0-91610-708-0	01	1	0808-					●
25	00.686 GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) 4JJ1-TCX ENG(LS0)	8-98004-774-0	01	1	0808-					●
28	04.356 COVER; FRT,TRANS CASE 4JA1-T ENG(LP0)	8-97116-796-0	01	1	0810-				●
28	04.356 COVER; FRT,TRANS CASE C24SE ENG(LG1)	8-97108-066-1	01	1	0810-	●	●
28	04.356 COVER; FRT,TRANS CASE 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0)	8-97104-676-0	01	1	0810-1007		●	●
28	04.356 COVER; FRT,TRANS CASE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-97104-676-0	01	1	1008-		●	●
28	04.356 COVER; FRT,TRANS CASE 4JJ1-TCX ENG(LS0)	8-97362-409-0	01	1	0808-					●
29	04.356 BOLT; FRT COVER 4JJ1-TCX ENG(LS0) 01.531 M8X20 FLANGE	0-28650-820-0	03	1	1008-					●
29	04.356 BOLT; FRT COVER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) M8X22 FLANGE	8-97365-376-0	06	1	0810-1007	●	●	●	●
29	04.356 BOLT; FRT COVER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) M8X22 FLANGE	8-97365-376-0	06	1	1008-	●	●	●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCX ENG(LS0) NOK	8-97947-839-0	01	1	1209-					●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JA1-T ENG(LP0) 04.354 NOK	8-94326-441-0	01	1	0810-1208				●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JA1-T ENG(LP0) NOK	8-97947-838-0	01	1	1209-				●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) TKK	8-97046-698-0	01	1	0810-1007	●	●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) TKK	8-97046-698-0	01	1	1008-	●	●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCX ENG(LS0) NOK	8-97046-699-3	01	1	0808-0809					●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) NOK	8-97046-699-3	01	1	0810-1007	●	●	●		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) NOK	8-97046-699-3	01	1	1008-1208	●	●	●		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) NOK	8-97046-699-3	01	1	1209-	●	●	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) ID=17	8-97115-712-0	01	1	0810-1007	●	●	●	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1008-	●	●	●	●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JJ1-TCX ENG(LS0) ID=17	8-97115-712-0	01	1	0808-0809					●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) ID=17	8-97115-712-0	01	1	0810-1007	●	●	●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) ID=17	8-97115-712-0	01	1	0810-1007		●	●		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) ID=17	8-97115-712-0	01	1	1008-	●	●	●	●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) ID=17	8-97115-712-0	01	1	1008-		●	●		●
67	04.105 STUD; CASE TRANS 4JJ1-TCX ENG(LS0)	8-98004-519-0	02	1	0808-					●
83	04.105 GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCX ENG(LS0) ID=17	8-97115-712-0	01	1	0808-1007					●
86	04.317 BOLT; RR COVER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) (B) M10X18 M10X55 L=86.8	8-97305-468-0	05	1	0810-1007	●	●	●	●
86	04.317 BOLT; RR COVER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) (B) M10X18 M10X55 L=86.8	8-97305-468-0	05	1	1008-	●	●	●	●
86	04.317 BOLT; RR COVER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) (A) M10X55 FLANGE	8-98035-672-0	03	1	0810-1007	●	●	●	●
86	04.317 BOLT; RR COVER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) (A) M10X55 FLANGE	8-98035-672-0	03	1	1008-	●	●	●	●
86	04.317 BOLT; RR COVER 4JJ1-TCX ENG(LS0) 00.386 (D) M8X50 FLANGE	0-28050-850-0	02	1	0808-					●
86	04.317 BOLT; RR COVER 4JJ1-TCX ENG(LS0) 01.060 (E) M8X35 FLANGE	0-28650-835-0	03	1	0808-					●
86	04.317 BOLT; RR COVER 4X4(TFS***) 4JJ1-TCX ENG(LS0) 09.173 (C) M8X45 FLANGE	0-28050-845-0	16	1	0808-0809					●
86	04.317 BOLT; RR COVER 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 09.173 (C) M8X45 FLANGE	0-28050-845-0	16	1	0810-1007		●	●		●
86	04.317 BOLT; RR COVER 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 09.173 (C) M8X45 FLANGE	0-28050-845-0	16	1	1008-		●	●		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97947-840-0	01	1	1209-				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) (B) NOK	8-97947-840-0	01	1	1209-					●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 04.510 (A) TKK	8-97046-700-0	01	1	0810-1007		●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 04.510 (A) TKK	8-97046-700-0	01	1	1008-		●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 04.510 (A) NOK	8-97046-701-2	01	1	0810-1007		●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 04.510 (A) NOK	8-97046-701-2	01	1	1008-		●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCX ENG(LS0) (B) NOK	8-97046-705-3	01	1	0808-0809					●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (B) NOK	8-97046-705-3	01	1	0810-1007	●	●	●	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (B) NOK	8-97046-705-3	01	1	1008-	●	●	●	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JJ1-TCX ENG(LS0) (C) JTEKT	8-98004-531-0	01	1	0808-					●
114	04.105 RING; SNAP,BALL BRG 4JA1-T ENG(LP0) 04.422 (A) ID=49.6	5-09589-004-0	01	1	0810-				●
114	04.105 RING; SNAP,BALL BRG 4JA1-T ENG(LP0) 04.412 (B) ID=71.7	5-09589-005-0	01	1	0810-				●
114	04.105 RING; SNAP,BALL BRG 4JJ1-TCX ENG(LS0) (C) OD=77	8-98024-221-0	01	1	0808-					●
114	04.105 RING; SNAP,BALL BRG 4JJ1-TCX ENG(LS0) (D) OD=60.2	9-09180-156-0	01	1	0808-					●
261	04.109 BOLT; COVER 4JJ1-TCX ENG(LS0) 01.531 M8X20 FLANGE	0-28650-820-0	03	1	0808-1007					●
315	04.104 BOLT; CASE 4JJ1-TCX ENG(LS0) 04.686 M8X60 FLANGE	0-28050-860-0	12	1	0808-					●
315	04.104 BOLT; CASE 4JJ1-TCX ENG(LS0) 00.685 M8X40 FLANGE	0-28650-840-0	12	1	0808-					●
316	04.105 MAGNET; TRANS CASE 4JJ1-TCX ENG(LS0)	8-94249-524-2	01	1	0808-0809					●
316	04.105 MAGNET; TRANS CASE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-94249-524-2	01	1	0810-1007	●	●	●		●
316	04.105 MAGNET; TRANS CASE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-94249-524-2	01	1	1008-	●	●	●		●
317	04.109 COVER; CASE 4JJ1-TCX ENG(LS0)	8-97034-422-1	01	1	0808-					●
318	04.109 GASKET; COVER 4JJ1-TCX ENG(LS0)	8-97035-567-0	01	1	0808-					●
319	04.109 BOLT; COVER 4JJ1-TCX ENG(LS0) 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0808-					●
326	04.020 NOZZLE; OIL,OUTLET 4JJ1-TCX ENG(LS0)	8-98023-517-0	01	1	0808-					●
328	04.105 GASKET; PLUG 4JJ1-TCX ENG(LS0) ID=17	8-97115-712-0	01	1	0808-1007					●
390	00.797 COVER; DUST,CLU SHIFT 4JJ1-TCX ENG(LS0)	8-98007-103-0	01	1	0808-					●
414	04.317 COVER; DUST,RR COVER 4X2(TFB***) 4JJ1-TCX ENG(LS0)	8-98027-802-0	01	1	0808-0809					●
414	04.317 COVER; DUST,RR COVER 4X2(TFB***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-98027-802-0	01	1	0810-1007	●	●	●	●	●
414	04.317 COVER; DUST,RR COVER 4X2(TFB***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-98027-802-0	01	1	1008-	●	●	●	●	●
417	04.105 PLUG; OIL FILLER,TRANS 4JJ1-TCX ENG(LS0)	8-97365-373-0	01	1	0808-0809					●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) 4JJ1-TCX ENG(LS0)	8-97365-373-0	01	1	0808-0809					●
417	04.105 PLUG; OIL FILLER,TRANS 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97365-373-0	01	1	0810-1007	●	●	●	●	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97365-373-0	01	1	0810-1007		●	●		●
417	04.105 PLUG; OIL FILLER,TRANS 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97365-373-0	01	1	1008-	●	●	●	●	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97365-373-0	01	1	1008-		●	●		●
419	04.317 PLUG; RR COVER 4JJ1-TCX ENG(LS0) M12X9	8-98047-054-0	01	1	0808-					●
421	04.317 COVER; RR,TRANS 4JA1-T ENG(LP0) (A)	8-98014-389-0	01	1	0810-1105				●
421	04.317 COVER; RR,TRANS 4JA1-T ENG(LP0) (A)	8-98193-595-0	01	1	1106-				●
421	04.317 COVER; RR,TRANS 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) (D)	8-97301-224-2	01	1	0810-1007		●	●
421	04.317 COVER; RR,TRANS 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) (D)	8-97301-224-2	01	1	1008-		●	●
421	04.317 COVER; RR,TRANS 4X2(TFB***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) (C)	8-98014-386-0	01	1	0810-1007	●	●	●
421	04.317 COVER; RR,TRANS 4X2(TFB***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) (C)	8-98014-386-0	01	1	1008-1202	●	●	●
421	04.317 COVER; RR,TRANS 4X2(TFB***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) (C)	8-98191-921-0	01	1	1203-	●	●	●
421	04.317 COVER; RR,TRANS 4X2(TFB***) 4JJ1-TCX ENG(LS0) (G)	8-97382-905-2	01	1	0808-					●
421	04.317 COVER; RR,TRANS 4X2(TFB***) 4JJ1-TCX ENG(LS0) (B)	8-98035-906-0	01	1	0808-					●
421	04.317 COVER; RR,TRANS 4X4(TFS***) 4JJ1-TCX ENG(LS0) (E)	8-97362-423-1	01	1	0808-					●
421	04.317 COVER; RR,TRANS 4X4(TFS***) 4JJ1-TCX ENG(LS0) (F)	8-98048-277-0	01	1	0808-					●
430	04.105 PLUG; OIL DRAIN 4JJ1-TCX ENG(LS0)	8-97365-374-0	01	1	0808-0809					●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) 4JJ1-TCX ENG(LS0)	8-97365-374-0	01	1	0808-0809					●
430	04.105 PLUG; OIL DRAIN 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97365-374-0	01	1	0810-1007	●	●	●	●	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97365-374-0	01	1	0810-1007		●	●		●
430	04.105 PLUG; OIL DRAIN 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97365-374-0	01	1	1008-	●	●	●	●	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97365-374-0	01	1	1008-		●	●		●
434	00.683 HOUSING; CLU 4JJ1-TCX ENG(LS0)	8-97362-384-0	01	1	0808-					●
435	04.103 CASE; TRANS 4JA1-T ENG(LP0) (A)	8-97330-878-0	01	1	0810-				●
435	04.103 CASE; TRANS C24SE ENG(LG1) (A)	8-98047-238-0	01	1	0810-	●	●
435	04.103 CASE; TRANS 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0) (A)	8-98047-232-0	01	1	0810-1004		●	●
435	04.103 CASE; TRANS 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0) (A)	8-98162-753-0	01	1	1005-1007		●	●
435	04.103 CASE; TRANS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) (A)	8-98162-753-0	01	1	1008-		●	●
435	04.103 CASE; TRANS 4JJ1-TCX ENG(LS0) (B)	8-98035-882-2	01	1	0808-					●
442	04.302 PIN; SHIFT FORK 4JJ1-TCX ENG(LS0)	8-98024-123-0	01	1	0808-					●
443	04.302 PIN; SNAP,SHIFT FORK 4JJ1-TCX ENG(LS0) 04.662 L=27.7	1-09747-005-0	01	1	0808-					●
510	00.683 BEARING 4JJ1-TCX ENG(LS0)	8-97362-853-0	01	1	0808-					●
603	04.317 RING; SNAP 4JJ1-TCX ENG(LS0)	8-98039-270-0	01	1	0808-					●
608	04.317 GUTTER; OIL 4JJ1-TCX ENG(LS0) (A)	8-97362-391-0	01	1	0808-					●
608	04.317 GUTTER; OIL 4JJ1-TCX ENG(LS0) (B)	8-97362-564-1	01	1	0808-					●
608	04.317 GUTTER; OIL 4JJ1-TCX ENG(LS0) (C)	8-97362-565-1	01	1	0808-0902					●
608	04.317 GUTTER; OIL 4JJ1-TCX ENG(LS0) (C)	8-98142-574-0	01	1	0903-					●
608	04.317 GUTTER; OIL 4JJ1-TCX ENG(LS0) (D)	8-98004-505-0	01	1	0808-					●
611	04.104 SCREW 4JJ1-TCX ENG(LS0) M10X27 TORQUES	8-97365-354-0	03	1	0808-					●
673	04.318 SEAL; COVER 4JJ1-TCX ENG(LS0)	8-98007-102-0	01	1	0808-					●
674	00.886 PLATE; INTERMEDIATE 4JJ1-TCX ENG(LS0)	8-98042-863-0	01	1	0808-					●
675	00.206 DOWEL 4JJ1-TCX ENG(LS0) OD=11 L=8	9-11229-058-1	04	1	0808-					●
676	04.439 INHIBITOR 4JJ1-TCX ENG(LS0)	8-98037-604-1	01	1	0808-					●
677	00.683 SPRING; INHIBITOR 4JJ1-TCX ENG(LS0)	8-97362-852-0	01	1	0808-					●
678	04.317 PIN 4JJ1-TCX ENG(LS0)	9-08160-436-0	01	1	0808-					●
679	04.104 BOLT; GUTTER 4JJ1-TCX ENG(LS0) 03.162 M6X12 FLANGE	0-28050-612-0	04	1	0808-					●
680	00.683 BEARING 4JJ1-TCX ENG(LS0) (A)	8-97362-720-1	01	1	0808-					●
680	00.683 BEARING 4JJ1-TCX ENG(LS0) (C)	8-97362-853-0	01	1	0808-					●
680	00.683 BEARING 4JJ1-TCX ENG(LS0) (B)	8-98024-431-0	01	1	0808-					●
682	00.683 BOLT; INHIBITOR 4JJ1-TCX ENG(LS0) M10X50	8-98042-618-0	01	1	0808-					●

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
	17	04.105 STUD; STARTER SETTING C24SE ENG(LG1) 01.453 M6X12 L=21	0-41010-612-0	02	1	0810-	●	●

674 608 679 679 608 435 434 680 33 28 315 443 15 611 442 13 319 318 317 29 417 261 45 83 680 326 680 114 421 430 50 67 419 421 86 86 316 608 679 114 608 675 675 678 603 676 677 675 675 510 682 328 673 390 1 315 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	04.003 TRANSMISSION ASM; MANUAL	8-98150-142-0	01	1	1008-	●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JA1-T ENG(LP0)	8-98150-141-0	01	1	1008-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JA1-T ENG(LP0)	8-98132-777-0	01	1	1001-1003		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***)	8-98132-797-0	01	1	0810-1004			●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***)	8-98150-161-0	01	1	1005-			●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JA1-T ENG(LP0)	8-98132-792-0	01	1	0810-1004		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JA1-T ENG(LP0)	8-98150-156-0	01	1	1005-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) C24SE ENG(LG1)	8-98132-795-0	01	1	0810-1004		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) C24SE ENG(LG1)	8-98150-159-0	01	1	1005-		●
1	04.003 TRANSMISSION ASM; MANUAL 4JA1-T ENG(LP0)	8-98132-751-0	01	1	0810-0902				●
1	04.003 TRANSMISSION ASM; MANUAL 4JA1-T ENG(LP0)	8-98132-752-0	01	1	0903-1004				●
1	04.003 TRANSMISSION ASM; MANUAL 4JA1-T ENG(LP0)	8-98150-117-0	01	1	1005-				●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 LONG(TFB**F) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C GOODYEAR TIRE(QFT), FRT&RR 195R15C(QZO)	8-98132-782-0	01	1	0810-1004			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C GOODYEAR TIRE(QFT)	8-98132-782-0	01	1	0810-1004			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC)	8-98132-782-0	01	1	0810-1004			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 LONG(TFB**F) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C GOODYEAR TIRE(QFT), FRT&RR 195R15C(QZO)	8-98150-146-0	01	1	1005-1101			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C GOODYEAR TIRE(QFT)	8-98150-146-0	01	1	1005-1101			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC)	8-98150-146-0	01	1	1005-1101			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 LONG(TFB**F) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C DUNLOP TIRE(CWP), FRT&RR 215/70R15C GOODYEAR TIRE(QFT),FRT& RR 195R15C(QZO)	8-98150-146-0	01	1	1102-1201			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C DUNLOP TIRE(CWP), FRT&RR 215/70R15C GOODYEAR TIRE(QFT)	8-98150-146-0	01	1	1102-1201			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC)	8-98150-146-0	01	1	1102-1201			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 LONG(TFB**F) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C DUNLOP TIRE(CWP), FRT&RR 215/70R15C GOODYEAR TIRE(QFT),FRT& RR 195R15C(QZO)	8-98150-146-0	01	1	1202-			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C DUNLOP TIRE(CWP), FRT&RR 215/70R15C GOODYEAR TIRE(QFT)	8-98150-146-0	01	1	1202-			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 REGULAR CAB LONG(TFB5SF) 4X2 CREW CAB LONG(TFB5WF) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC)	8-98150-146-0	01	1	1202-			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 CREW CAB(TFBW) 4JK1-TCS ENG(LKZ) FINAL GEAR RATIO 43/11(GW1) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16ALS(QCQ) MALAYSIA EQUIPMENT(B10)	8-98150-146-0	01	1	1202-			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 LONG(TFB**F) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC)	8-98132-781-0	01	1	0810-1004			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 EXTEND CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16 ALS(QCQ)	8-98132-781-0	01	1	0810-1004			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 CREW CAB(TFBW) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16ALS(QCQ)	8-98132-781-0	01	1	0810-1004			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 REGULAR CAB LONG(TFB*SF) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 195R14C(CNU)	8-98132-781-0	01	1	0810-1004			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 CREW CAB(TFBW) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16ALS(QCQ)	8-98132-781-0	01	1	0810-1004			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 REGULAR CAB LONG(TFB*SF) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16 ALS(QCQ)	8-98132-781-0	01	1	0810-1004			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 LONG(TFB**F) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC)	8-98150-145-0	01	1	1005-			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 EXTEND CAB LONG(TFB5CF) 4X2 REGULAR CAB LONG(TFB5SF) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16 ALS(QCQ)	8-98150-145-0	01	1	1005-			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 CREW CAB(TFBW) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16ALS(QCQ)	8-98150-145-0	01	1	1005-			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 REGULAR CAB LONG(TFB*SF) 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 41/11(GT4) FRT&RR 195R14C(CNU)	8-98150-145-0	01	1	1005-			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 CREW CAB(TFBW) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16(BZD),FRT&RR 245/70R16ALS(QCQ)	8-98150-145-0	01	1	1005-			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2 REGULAR CAB LONG(TFB*SF) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/10(GT5) FRT&RR 245/70R16 ALS(QCQ)	8-98150-145-0	01	1	1005-			●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) C24SE ENG(LG1)	8-98132-779-0	01	1	0810-1004		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) C24SE ENG(LG1)	8-98150-143-0	01	1	1005-		●
1	04.003 TRANSMISSION ASM; MANUAL	8-98132-778-0	01	1	0810-1003	●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JJ1-TCX ENG(LS0)	8-98089-767-0	01	1	0808-					●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***) 4JJ1-TCX ENG(LS0)	8-98090-195-0	01	1	0808-					●
13	04.302 SUPPORT; SHIFT FORK 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) L=47.5	8-97072-827-0	01	1	0810-1007	●	●	●	●
13	04.302 SUPPORT; SHIFT FORK 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) L=47.5	8-97072-827-0	01	1	1008-	●	●	●	●
13	04.302 SUPPORT; SHIFT FORK 4JJ1-TCX ENG(LS0)	8-98004-443-1	01	1	0808-					●
15	04.302 WASHER; PL 4JJ1-TCX ENG(LS0) 04.595 ID=8.4 OD=22	0-91610-708-0	01	1	0808-					●
28	04.356 COVER; FRT,TRANS CASE 4JA1-T ENG(LP0)	8-97116-796-0	01	1	0810-				●
28	04.356 COVER; FRT,TRANS CASE C24SE ENG(LG1)	8-97108-066-1	01	1	0810-	●	●
28	04.356 COVER; FRT,TRANS CASE 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0)	8-97104-676-0	01	1	0810-1007		●	●
28	04.356 COVER; FRT,TRANS CASE 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0)	8-97104-676-0	01	1	1008-		●	●
28	04.356 COVER; FRT,TRANS CASE 4JJ1-TCX ENG(LS0)	8-97362-409-0	01	1	0808-					●
29	04.356 BOLT; FRT COVER 4JJ1-TCX ENG(LS0) 01.531 M8X20 FLANGE	0-28650-820-0	03	1	1008-					●
29	04.356 BOLT; FRT COVER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) M8X22 FLANGE	8-97365-376-0	06	1	0810-1007	●	●	●	●
29	04.356 BOLT; FRT COVER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) M8X22 FLANGE	8-97365-376-0	06	1	1008-	●	●	●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCX ENG(LS0) NOK	8-97947-839-0	01	1	1209-					●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JA1-T ENG(LP0) 04.354 NOK	8-94326-441-0	01	1	0810-1208				●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JA1-T ENG(LP0) NOK	8-97947-838-0	01	1	1209-				●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) TKK	8-97046-698-0	01	1	0810-1007	●	●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) TKK	8-97046-698-0	01	1	1008-	●	●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCX ENG(LS0) NOK	8-97046-699-3	01	1	0808-0809					●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) NOK	8-97046-699-3	01	1	0810-1007	●	●	●		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) NOK	8-97046-699-3	01	1	1008-1208	●	●	●		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) NOK	8-97046-699-3	01	1	1209-	●	●	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) ID=17	8-97115-712-0	01	1	0810-1007	●	●	●	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1008-	●	●	●	●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JJ1-TCX ENG(LS0) ID=17	8-97115-712-0	01	1	0808-0809					●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) ID=17	8-97115-712-0	01	1	0810-1007	●	●	●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) ID=17	8-97115-712-0	01	1	0810-1007		●	●		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) ID=17	8-97115-712-0	01	1	1008-	●	●	●	●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) ID=17	8-97115-712-0	01	1	1008-		●	●		●
67	04.105 STUD; CASE TRANS 4JJ1-TCX ENG(LS0)	8-98004-519-0	02	1	0808-					●
83	04.105 GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCX ENG(LS0) ID=17	8-97115-712-0	01	1	0808-1007					●
86	04.317 BOLT; RR COVER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) (B) M10X18 M10X55 L=86.8	8-97305-468-0	05	1	0810-1007	●	●	●	●
86	04.317 BOLT; RR COVER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) (B) M10X18 M10X55 L=86.8	8-97305-468-0	05	1	1008-	●	●	●	●
86	04.317 BOLT; RR COVER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) (A) M10X55 FLANGE	8-98035-672-0	03	1	0810-1007	●	●	●	●
86	04.317 BOLT; RR COVER 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) (A) M10X55 FLANGE	8-98035-672-0	03	1	1008-	●	●	●	●
86	04.317 BOLT; RR COVER 4JJ1-TCX ENG(LS0) 00.386 (D) M8X50 FLANGE	0-28050-850-0	02	1	0808-					●
86	04.317 BOLT; RR COVER 4JJ1-TCX ENG(LS0) 01.060 (E) M8X35 FLANGE	0-28650-835-0	03	1	0808-					●
86	04.317 BOLT; RR COVER 4X4(TFS***) 4JJ1-TCX ENG(LS0) 09.173 (C) M8X45 FLANGE	0-28050-845-0	16	1	0808-0809					●
86	04.317 BOLT; RR COVER 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 09.173 (C) M8X45 FLANGE	0-28050-845-0	16	1	0810-1007		●	●		●
86	04.317 BOLT; RR COVER 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 09.173 (C) M8X45 FLANGE	0-28050-845-0	16	1	1008-		●	●		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97947-840-0	01	1	1209-				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) (B) NOK	8-97947-840-0	01	1	1209-					●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 04.510 (A) TKK	8-97046-700-0	01	1	0810-1007		●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 04.510 (A) TKK	8-97046-700-0	01	1	1008-		●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 04.510 (A) NOK	8-97046-701-2	01	1	0810-1007		●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) 04.510 (A) NOK	8-97046-701-2	01	1	1008-		●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCX ENG(LS0) (B) NOK	8-97046-705-3	01	1	0808-0809					●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (B) NOK	8-97046-705-3	01	1	0810-1007	●	●	●	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (B) NOK	8-97046-705-3	01	1	1008-	●	●	●	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 4JJ1-TCX ENG(LS0) (C) JTEKT	8-98004-531-0	01	1	0808-					●
114	04.105 RING; SNAP,BALL BRG 4JA1-T ENG(LP0) 04.422 (A) ID=49.6	5-09589-004-0	01	1	0810-				●
114	04.105 RING; SNAP,BALL BRG 4JA1-T ENG(LP0) 04.412 (B) ID=71.7	5-09589-005-0	01	1	0810-				●
114	04.105 RING; SNAP,BALL BRG 4JJ1-TCX ENG(LS0) (C) OD=77	8-98024-221-0	01	1	0808-					●
114	04.105 RING; SNAP,BALL BRG 4JJ1-TCX ENG(LS0) (D) OD=60.2	9-09180-156-0	01	1	0808-					●
261	04.109 BOLT; COVER 4JJ1-TCX ENG(LS0) 01.531 M8X20 FLANGE	0-28650-820-0	03	1	0808-1007					●
315	04.104 BOLT; CASE 4JJ1-TCX ENG(LS0) 04.686 M8X60 FLANGE	0-28050-860-0	12	1	0808-					●
315	04.104 BOLT; CASE 4JJ1-TCX ENG(LS0) 00.685 M8X40 FLANGE	0-28650-840-0	12	1	0808-					●
316	04.105 MAGNET; TRANS CASE 4JJ1-TCX ENG(LS0)	8-94249-524-2	01	1	0808-0809					●
316	04.105 MAGNET; TRANS CASE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-94249-524-2	01	1	0810-1007	●	●	●		●
316	04.105 MAGNET; TRANS CASE 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-94249-524-2	01	1	1008-	●	●	●		●
317	04.109 COVER; CASE 4JJ1-TCX ENG(LS0)	8-97034-422-1	01	1	0808-					●
318	04.109 GASKET; COVER 4JJ1-TCX ENG(LS0)	8-97035-567-0	01	1	0808-					●
319	04.109 BOLT; COVER 4JJ1-TCX ENG(LS0) 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0808-					●
326	04.020 NOZZLE; OIL,OUTLET 4JJ1-TCX ENG(LS0)	8-98023-517-0	01	1	0808-					●
328	04.105 GASKET; PLUG 4JJ1-TCX ENG(LS0) ID=17	8-97115-712-0	01	1	0808-1007					●
390	00.797 COVER; DUST,CLU SHIFT 4JJ1-TCX ENG(LS0)	8-98007-103-0	01	1	0808-					●
417	04.105 PLUG; OIL FILLER,TRANS 4JJ1-TCX ENG(LS0)	8-97365-373-0	01	1	0808-0809					●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) 4JJ1-TCX ENG(LS0)	8-97365-373-0	01	1	0808-0809					●
417	04.105 PLUG; OIL FILLER,TRANS 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97365-373-0	01	1	0810-1007	●	●	●	●	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97365-373-0	01	1	0810-1007		●	●		●
417	04.105 PLUG; OIL FILLER,TRANS 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97365-373-0	01	1	1008-	●	●	●	●	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97365-373-0	01	1	1008-		●	●		●
419	04.317 PLUG; RR COVER 4JJ1-TCX ENG(LS0) M12X9	8-98047-054-0	01	1	0808-					●
421	04.317 COVER; RR,TRANS 4JA1-T ENG(LP0) (A)	8-98014-389-0	01	1	0810-1105				●
421	04.317 COVER; RR,TRANS 4JA1-T ENG(LP0) (A)	8-98193-595-0	01	1	1106-				●
421	04.317 COVER; RR,TRANS 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) (D)	8-97301-224-2	01	1	0810-1007		●	●
421	04.317 COVER; RR,TRANS 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) (D)	8-97301-224-2	01	1	1008-		●	●
421	04.317 COVER; RR,TRANS 4X2(TFB***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) (C)	8-98014-386-0	01	1	0810-1007	●	●	●
421	04.317 COVER; RR,TRANS 4X2(TFB***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) (C)	8-98014-386-0	01	1	1008-1202	●	●	●
421	04.317 COVER; RR,TRANS 4X2(TFB***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) (C)	8-98191-921-0	01	1	1203-	●	●	●
421	04.317 COVER; RR,TRANS 4X2(TFB***) 4JJ1-TCX ENG(LS0) (G)	8-97382-905-2	01	1	0808-					●
421	04.317 COVER; RR,TRANS 4X2(TFB***) 4JJ1-TCX ENG(LS0) (B)	8-98035-906-0	01	1	0808-					●
421	04.317 COVER; RR,TRANS 4X4(TFS***) 4JJ1-TCX ENG(LS0) (E)	8-97362-423-1	01	1	0808-					●
421	04.317 COVER; RR,TRANS 4X4(TFS***) 4JJ1-TCX ENG(LS0) (F)	8-98048-277-0	01	1	0808-					●
430	04.105 PLUG; OIL DRAIN 4JJ1-TCX ENG(LS0)	8-97365-374-0	01	1	0808-0809					●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) 4JJ1-TCX ENG(LS0)	8-97365-374-0	01	1	0808-0809					●
430	04.105 PLUG; OIL DRAIN 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97365-374-0	01	1	0810-1007	●	●	●	●	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97365-374-0	01	1	0810-1007		●	●		●
430	04.105 PLUG; OIL DRAIN 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97365-374-0	01	1	1008-	●	●	●	●	●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***) 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97365-374-0	01	1	1008-		●	●		●
434	00.683 HOUSING; CLU 4JJ1-TCX ENG(LS0)	8-97362-384-0	01	1	0808-					●
435	04.103 CASE; TRANS 4JA1-T ENG(LP0) (A)	8-97330-878-0	01	1	0810-				●
435	04.103 CASE; TRANS C24SE ENG(LG1) (A)	8-98047-238-0	01	1	0810-	●	●
435	04.103 CASE; TRANS 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0) (A)	8-98047-232-0	01	1	0810-1004		●	●
435	04.103 CASE; TRANS 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0), 4JK1-TCX ENG(LR0) (A)	8-98162-753-0	01	1	1005-1007		●	●
435	04.103 CASE; TRANS 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0) (A)	8-98162-753-0	01	1	1008-		●	●
435	04.103 CASE; TRANS 4JJ1-TCX ENG(LS0) (B)	8-98035-882-2	01	1	0808-					●
442	04.302 PIN; SHIFT FORK 4JJ1-TCX ENG(LS0)	8-98024-123-0	01	1	0808-					●
443	04.302 PIN; SNAP,SHIFT FORK 4JJ1-TCX ENG(LS0) 04.662 L=27.7	1-09747-005-0	01	1	0808-					●
510	00.683 BEARING 4JJ1-TCX ENG(LS0)	8-97362-853-0	01	1	0808-					●
603	04.317 RING; SNAP 4JJ1-TCX ENG(LS0)	8-98039-270-0	01	1	0808-					●
608	04.317 GUTTER; OIL 4JJ1-TCX ENG(LS0) (A)	8-97362-391-0	01	1	0808-					●
608	04.317 GUTTER; OIL 4JJ1-TCX ENG(LS0) (B)	8-97362-564-1	01	1	0808-					●
608	04.317 GUTTER; OIL 4JJ1-TCX ENG(LS0) (C)	8-97362-565-1	01	1	0808-0902					●
608	04.317 GUTTER; OIL 4JJ1-TCX ENG(LS0) (C)	8-98142-574-0	01	1	0903-					●
608	04.317 GUTTER; OIL 4JJ1-TCX ENG(LS0) (D)	8-98004-505-0	01	1	0808-					●
611	04.104 SCREW 4JJ1-TCX ENG(LS0) M10X27 TORQUES	8-97365-354-0	03	1	0808-					●
673	04.318 SEAL; COVER 4JJ1-TCX ENG(LS0)	8-98007-102-0	01	1	0808-					●
674	00.886 PLATE; INTERMEDIATE 4JJ1-TCX ENG(LS0)	8-98042-863-0	01	1	0808-					●
675	00.206 DOWEL 4JJ1-TCX ENG(LS0) OD=11 L=8	9-11229-058-1	04	1	0808-					●
676	04.439 INHIBITOR 4JJ1-TCX ENG(LS0)	8-98037-604-1	01	1	0808-					●
677	00.683 SPRING; INHIBITOR 4JJ1-TCX ENG(LS0)	8-97362-852-0	01	1	0808-					●
678	04.317 PIN 4JJ1-TCX ENG(LS0)	9-08160-436-0	01	1	0808-					●
679	04.104 BOLT; GUTTER 4JJ1-TCX ENG(LS0) 03.162 M6X12 FLANGE	0-28050-612-0	04	1	0808-					●
680	00.683 BEARING 4JJ1-TCX ENG(LS0) (A)	8-97362-720-1	01	1	0808-					●
680	00.683 BEARING 4JJ1-TCX ENG(LS0) (C)	8-97362-853-0	01	1	0808-					●
680	00.683 BEARING 4JJ1-TCX ENG(LS0) (B)	8-98024-431-0	01	1	0808-					●
682	00.683 BOLT; INHIBITOR 4JJ1-TCX ENG(LS0) M10X50	8-98042-618-0	01	1	0808-					●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
