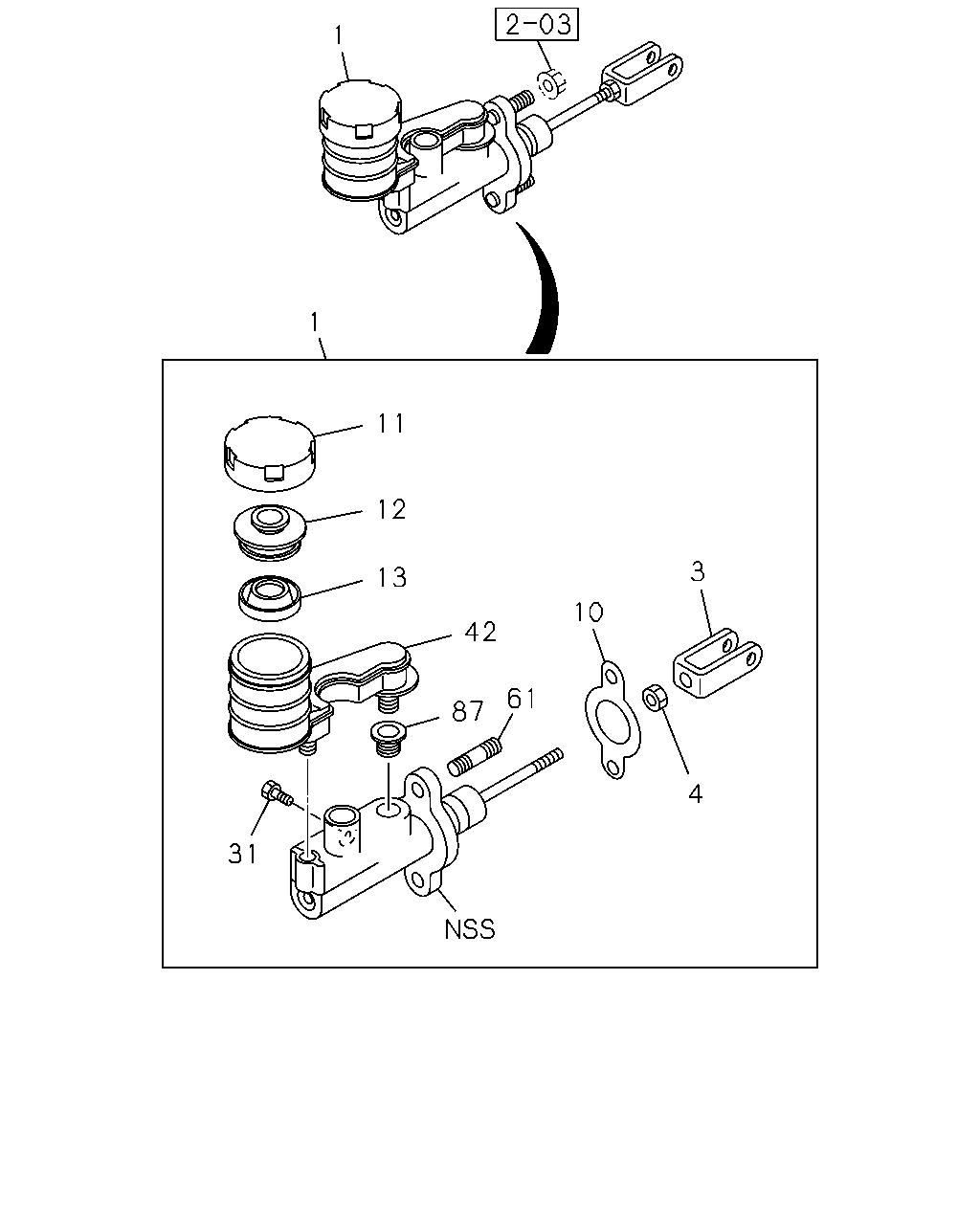

2-08A — CLUTCH MASTER CYLINDER (#76987) — 82 parça

1 1 11 12 3 13 10 42 61 87 4 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	00.775 CYLINDER ASM; CLUTCH MASTER 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0)	8-97945-438-0	01	1	0810-1003	●	●	●	●
1	00.775 CYLINDER ASM; CLUTCH MASTER 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0)	8-97945-438-0	01	1	1004-1007	●	●	●
1	00.775 CYLINDER ASM; CLUTCH MASTER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0)	8-97945-438-0	01	1	1008-	●	●	●
1	00.775 CYLINDER ASM; CLUTCH MASTER C24SE ENG(LG1)	8-97945-437-0	01	1	0810-1003			●
1	00.775 CYLINDER ASM; CLUTCH MASTER C24SE ENG(LG1)	8-97945-437-0	01	1	1004-			●	●
1	00.775 CYLINDER ASM; CLUTCH MASTER 4JJ1-TCX ENG(LS0)	8-97944-509-1	01	1	0808-0809					●
1	00.775 CYLINDER ASM; CLUTCH MASTER 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97944-509-1	01	1	0810-		●			●
3	00.777 JOINT; JAW,CLU M/CYL 4JJ1-TCX ENG(LS0)	8-97945-449-0	01	1	0808-0809					●
3	00.777 JOINT; JAW,CLU M/CYL 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97945-449-0	01	1	0810-1007	●	●	●	●	●
3	00.777 JOINT; JAW,CLU M/CYL 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97945-449-0	01	1	1008-	●	●	●	●	●
4	00.777 NUT; JAW JOINT 4JJ1-TCX ENG(LS0) M8	0-91111-508-0	01	1	0808-0809					●
4	00.777 NUT; JAW JOINT 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) M8	0-91111-508-0	01	1	0810-1007	●	●	●	●	●
4	00.777 NUT; JAW JOINT 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) M8	0-91111-508-0	01	1	1008-	●	●	●	●	●
10	00.777 GASKET; CLU M/CYL 4JJ1-TCX ENG(LS0)	8-97184-654-0	01	1	0808-0809					●
10	00.777 GASKET; CLU M/CYL 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97184-654-0	01	1	0810-1007	●	●	●	●	●
10	00.777 GASKET; CLU M/CYL 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97184-654-0	01	1	1008-	●	●	●	●	●
11	00.777 CAP; OUTER,CLU M/CYL 4JJ1-TCX ENG(LS0)	8-97942-836-0	01	1	0808-0809					●
11	00.777 CAP; OUTER,CLU M/CYL 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97942-836-0	01	1	0810-1007	●	●	●	●	●
11	00.777 CAP; OUTER,CLU M/CYL 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97942-836-0	01	1	1008-	●	●	●	●	●
12	00.775 CAP; INNER,OIL TANK,CLU M/CYL 4JJ1-TCX ENG(LS0)	8-94412-206-0	01	1	0808-0809					●
12	00.775 CAP; INNER,OIL TANK,CLU M/CYL 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-94412-206-0	01	1	0810-1007	●	●	●	●	●
12	00.775 CAP; INNER,OIL TANK,CLU M/CYL 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-94412-206-0	01	1	1008-	●	●	●	●	●
13	00.777 GASKET; OIL TANK 4JJ1-TCX ENG(LS0)	8-94412-205-0	01	1	0808-0809					●
13	00.777 GASKET; OIL TANK 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-94412-205-0	01	1	0810-1007	●	●	●	●	●
13	00.777 GASKET; OIL TANK 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-94412-205-0	01	1	1008-	●	●	●	●	●
31	00.777 BOLT; JOINT,CLU M/CYL 4JJ1-TCX ENG(LS0)	8-97945-452-0	01	1	0808-0809					●
31	00.777 BOLT; JOINT,CLU M/CYL 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97945-452-0	01	1	0810-1007	●	●	●	●	●
31	00.777 BOLT; JOINT,CLU M/CYL 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97945-452-0	01	1	1008-	●	●	●	●	●
42	00.777 TANK; OIL,CLU 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0)	8-97942-835-0	01	1	0810-1003	●	●	●	●
42	00.777 TANK; OIL,CLU 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0)	8-97942-835-0	01	1	1004-1007	●	●	●
42	00.777 TANK; OIL,CLU 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0)	8-97942-835-0	01	1	1008-	●	●	●
42	00.777 TANK; OIL,CLU C24SE ENG(LG1)	8-97943-409-0	01	1	0810-1003			●
42	00.777 TANK; OIL,CLU C24SE ENG(LG1)	8-97943-409-0	01	1	1004-			●	●
42	00.777 TANK; OIL,CLU 4JJ1-TCX ENG(LS0)	8-97945-451-0	01	1	0808-0809					●
42	00.777 TANK; OIL,CLU 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97945-451-0	01	1	0810-		●			●
61	00.777 BOLT; STUD 4JJ1-TCX ENG(LS0)	8-97945-450-0	02	1	0808-0809					●
61	00.777 BOLT; STUD 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97945-450-0	02	1	0810-1007	●	●	●	●	●
61	00.777 BOLT; STUD 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97945-450-0	02	1	1008-	●	●	●	●	●
87	00.777 GROMMET; CLU M/CYL 4JJ1-TCX ENG(LS0)	8-97942-834-0	01	1	0808-0809					●
87	00.777 GROMMET; CLU M/CYL 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97942-834-0	01	1	0810-1007	●	●	●	●	●
87	00.777 GROMMET; CLU M/CYL 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97942-834-0	01	1	1008-	●	●	●	●	●

1 1 11 12 13 42 3 10 61 87 4 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	00.775 CYLINDER ASM; CLUTCH MASTER 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0)	8-97945-438-0	01	1	0810-1003	●	●	●	●
1	00.775 CYLINDER ASM; CLUTCH MASTER 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0)	8-97945-438-0	01	1	1004-1007	●	●	●
1	00.775 CYLINDER ASM; CLUTCH MASTER 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0)	8-97945-438-0	01	1	1008-	●	●	●
1	00.775 CYLINDER ASM; CLUTCH MASTER C24SE ENG(LG1)	8-97945-437-0	01	1	0810-1003			●
1	00.775 CYLINDER ASM; CLUTCH MASTER C24SE ENG(LG1)	8-97945-437-0	01	1	1004-			●	●
1	00.775 CYLINDER ASM; CLUTCH MASTER 4JJ1-TCX ENG(LS0)	8-97944-509-1	01	1	0808-0809					●
1	00.775 CYLINDER ASM; CLUTCH MASTER 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97944-509-1	01	1	0810-		●			●
3	00.777 JOINT; JAW,CLU M/CYL 4JJ1-TCX ENG(LS0)	8-97945-449-0	01	1	0808-0809					●
3	00.777 JOINT; JAW,CLU M/CYL 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97945-449-0	01	1	0810-1007	●	●	●	●	●
3	00.777 JOINT; JAW,CLU M/CYL 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97945-449-0	01	1	1008-	●	●	●	●	●
4	00.777 NUT; JAW JOINT 4JJ1-TCX ENG(LS0) M8	0-91111-508-0	01	1	0808-0809					●
4	00.777 NUT; JAW JOINT 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) M8	0-91111-508-0	01	1	0810-1007	●	●	●	●	●
4	00.777 NUT; JAW JOINT 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) M8	0-91111-508-0	01	1	1008-	●	●	●	●	●
10	00.777 GASKET; CLU M/CYL 4JJ1-TCX ENG(LS0)	8-97184-654-0	01	1	0808-0809					●
10	00.777 GASKET; CLU M/CYL 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97184-654-0	01	1	0810-1007	●	●	●	●	●
10	00.777 GASKET; CLU M/CYL 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97184-654-0	01	1	1008-	●	●	●	●	●
11	00.777 CAP; OUTER,CLU M/CYL 4JJ1-TCX ENG(LS0)	8-97942-836-0	01	1	0808-0809					●
11	00.777 CAP; OUTER,CLU M/CYL 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97942-836-0	01	1	0810-1007	●	●	●	●	●
11	00.777 CAP; OUTER,CLU M/CYL 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97942-836-0	01	1	1008-	●	●	●	●	●
12	00.775 CAP; INNER,OIL TANK,CLU M/CYL 4JJ1-TCX ENG(LS0)	8-94412-206-0	01	1	0808-0809					●
12	00.775 CAP; INNER,OIL TANK,CLU M/CYL 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-94412-206-0	01	1	0810-1007	●	●	●	●	●
12	00.775 CAP; INNER,OIL TANK,CLU M/CYL 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-94412-206-0	01	1	1008-	●	●	●	●	●
13	00.777 GASKET; OIL TANK 4JJ1-TCX ENG(LS0)	8-94412-205-0	01	1	0808-0809					●
13	00.777 GASKET; OIL TANK 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-94412-205-0	01	1	0810-1007	●	●	●	●	●
13	00.777 GASKET; OIL TANK 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-94412-205-0	01	1	1008-	●	●	●	●	●
31	00.777 BOLT; JOINT,CLU M/CYL 4JJ1-TCX ENG(LS0)	8-97945-452-0	01	1	0808-0809					●
31	00.777 BOLT; JOINT,CLU M/CYL 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97945-452-0	01	1	0810-1007	●	●	●	●	●
31	00.777 BOLT; JOINT,CLU M/CYL 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97945-452-0	01	1	1008-	●	●	●	●	●
42	00.777 TANK; OIL,CLU 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0)	8-97942-835-0	01	1	0810-1003	●	●	●	●
42	00.777 TANK; OIL,CLU 4JJ1-TCS ENG(LFB),4JA1-T ENG(LP0)	8-97942-835-0	01	1	1004-1007	●	●	●
42	00.777 TANK; OIL,CLU 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0)	8-97942-835-0	01	1	1008-	●	●	●
42	00.777 TANK; OIL,CLU C24SE ENG(LG1)	8-97943-409-0	01	1	0810-1003			●
42	00.777 TANK; OIL,CLU C24SE ENG(LG1)	8-97943-409-0	01	1	1004-			●	●
42	00.777 TANK; OIL,CLU 4JJ1-TCX ENG(LS0)	8-97945-451-0	01	1	0808-0809					●
42	00.777 TANK; OIL,CLU 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97945-451-0	01	1	0810-		●			●
61	00.777 BOLT; STUD 4JJ1-TCX ENG(LS0)	8-97945-450-0	02	1	0808-0809					●
61	00.777 BOLT; STUD 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97945-450-0	02	1	0810-1007	●	●	●	●	●
61	00.777 BOLT; STUD 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97945-450-0	02	1	1008-	●	●	●	●	●
87	00.777 GROMMET; CLU M/CYL 4JJ1-TCX ENG(LS0)	8-97942-834-0	01	1	0808-0809					●
87	00.777 GROMMET; CLU M/CYL 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97942-834-0	01	1	0810-1007	●	●	●	●	●
87	00.777 GROMMET; CLU M/CYL 4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97942-834-0	01	1	1008-	●	●	●	●	●
