2-06A — CLUTCH SLAVE CYLINDER (#76986) — 93 parça

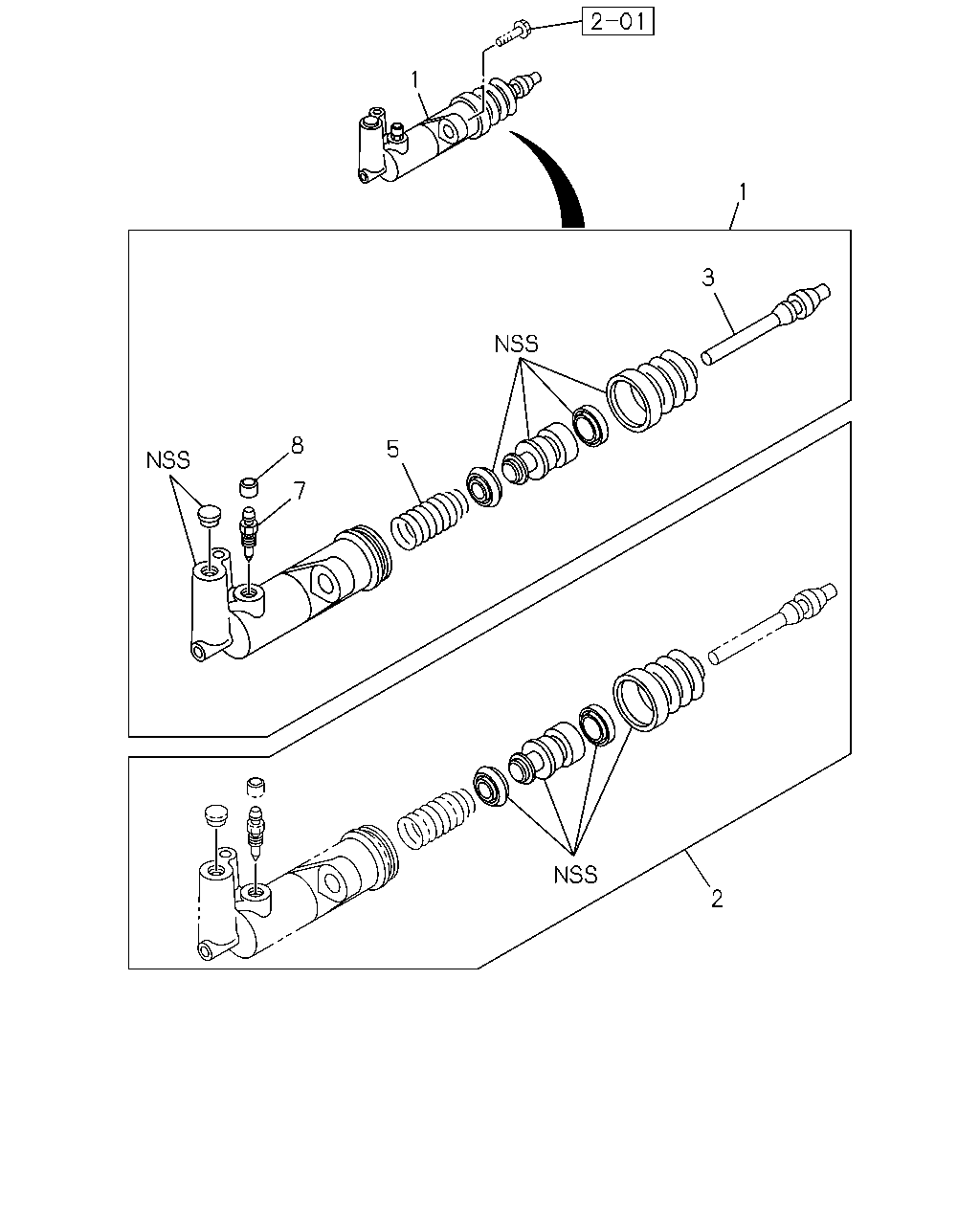

çizim 102545
1 1 3 8 5 7 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 00.780 CYLINDER; SLAVE,CLU
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) 		8-97945-177-0 01 1 0810-1003 ● ●
1 00.780 CYLINDER; SLAVE,CLU
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) 		8-97945-177-0 01 1 1004-1007 ● ●
1 00.780 CYLINDER; SLAVE,CLU
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 		8-97945-177-0 01 1 1008- ● ●
1 00.780 CYLINDER; SLAVE,CLU
4JA1-T ENG(LP0) 		8-97942-296-0 01 1 0810- ● ●
1 00.780 CYLINDER; SLAVE,CLU
C24SE ENG(LG1) 		8-97942-322-0 01 1 0810- ● ●
1 00.780 CYLINDER; SLAVE,CLU
4JJ1-TCX ENG(LS0) 		8-97944-513-3 01 1 0808-1108 ●
1 00.780 CYLINDER; SLAVE,CLU
4JJ1-TCX ENG(LS0) 		8-97947-765-0 01 1 1109- ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) 		5-87832-048-0 01 1 0810-1003 ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) 		5-87832-048-0 01 1 1004-1007 ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 		5-87832-048-0 01 1 1008- ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0) 		5-87832-049-0 01 1 0810- ● ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
4JJ1-TCX ENG(LS0) 		5-87832-067-0 01 1 0808-1102 ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
4JJ1-TCX ENG(LS0) 		5-87832-264-0 01 1 1103- ●
3 00.780 ROD; PUSH,SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) 		8-97945-722-0 01 1 0810-1003 ● ●
3 00.780 ROD; PUSH,SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) 		8-97945-722-0 01 1 1004-1007 ● ●
3 00.780 ROD; PUSH,SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 		8-97945-722-0 01 1 1008- ● ●
3 00.780 ROD; PUSH,SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0) 		8-97942-803-0 01 1 0810- ● ● ●
3 00.780 ROD; PUSH,SLAVE CYL
4JJ1-TCX ENG(LS0) 		8-97945-721-0 01 1 0808-1108 ●
3 00.780 ROD; PUSH,SLAVE CYL
4JJ1-TCX ENG(LS0) 		8-97947-769-0 01 1 1109- ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) 		8-97942-801-0 01 1 0810-1003 ● ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) 		8-97942-801-0 01 1 1004-1007 ● ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 		8-97942-801-0 01 1 1008- ● ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0) 		8-97942-802-0 01 1 0810- ● ● ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
4JJ1-TCX ENG(LS0) 		8-97028-736-0 01 1 0808- ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0) M8X16.5 		8-94115-113-0 01 1 0810- ● ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M8X10 		8-98020-477-0 01 1 0808-0809 ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) M8X10 		8-98020-477-0 01 1 0810-1007 ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) M8X10 		8-98020-477-0 01 1 1008- ● ●
8 00.780 CAP; BLEEDER,SLAVE CYL
OD=10 		8-97940-638-0 01 1 0808-0809 ●
8 00.780 CAP; BLEEDER,SLAVE CYL
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) OD=10 		8-97940-638-0 01 1 0810-1007 ● ● ● ● ●
8 00.780 CAP; BLEEDER,SLAVE CYL
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) OD=10 		8-97940-638-0 01 1 1008- ● ● ● ● ●

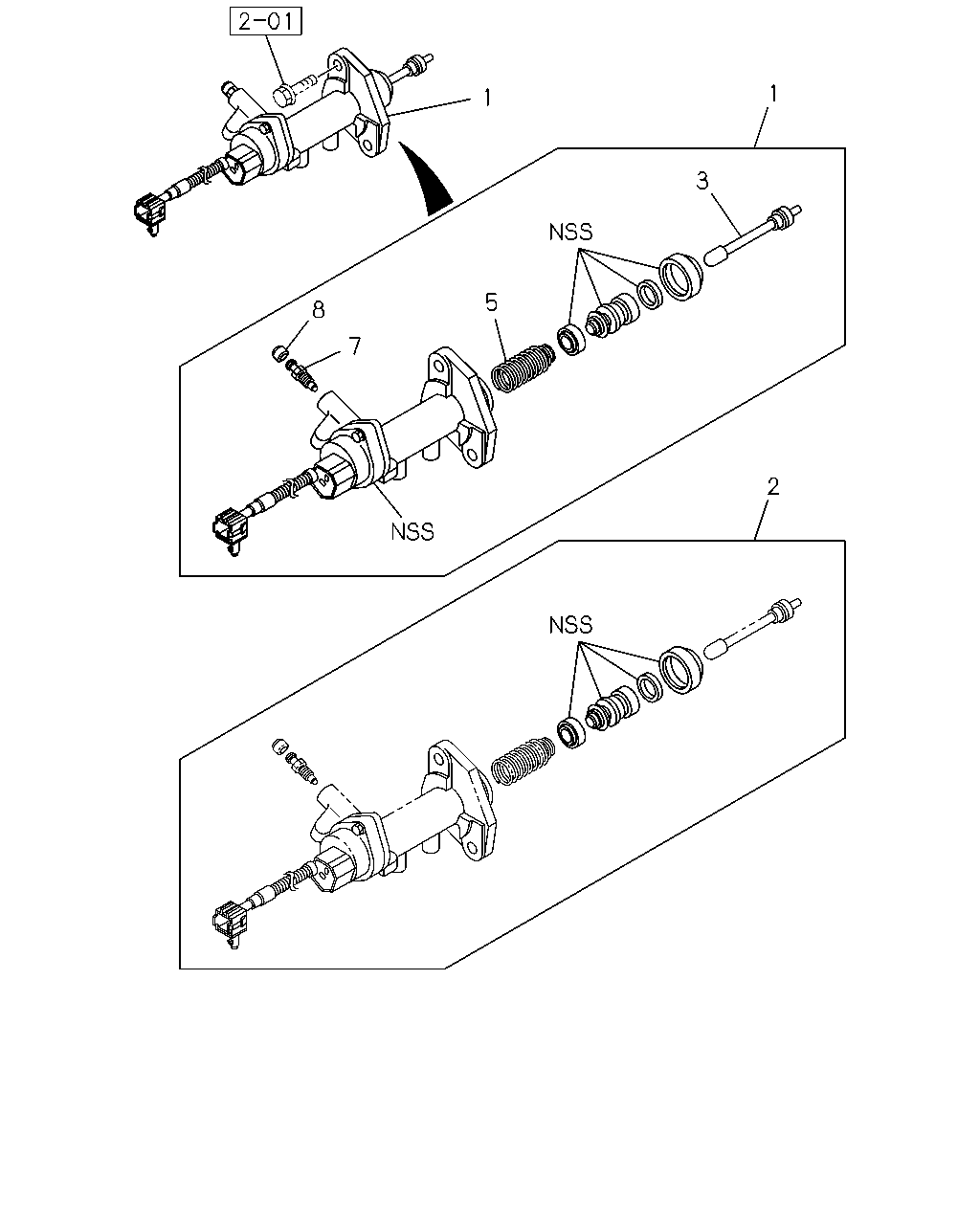

çizim 103038
2 1 1 3 5 8 7 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 00.780 CYLINDER; SLAVE,CLU
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) 		8-97945-177-0 01 1 0810-1003 ● ●
1 00.780 CYLINDER; SLAVE,CLU
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) 		8-97945-177-0 01 1 1004-1007 ● ●
1 00.780 CYLINDER; SLAVE,CLU
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 		8-97945-177-0 01 1 1008- ● ●
1 00.780 CYLINDER; SLAVE,CLU
4JA1-T ENG(LP0) 		8-97942-296-0 01 1 0810- ● ●
1 00.780 CYLINDER; SLAVE,CLU
C24SE ENG(LG1) 		8-97942-322-0 01 1 0810- ● ●
1 00.780 CYLINDER; SLAVE,CLU
4JJ1-TCX ENG(LS0) 		8-97944-513-3 01 1 0808-1108 ●
1 00.780 CYLINDER; SLAVE,CLU
4JJ1-TCX ENG(LS0) 		8-97947-765-0 01 1 1109- ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) 		5-87832-048-0 01 1 0810-1003 ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) 		5-87832-048-0 01 1 1004-1007 ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 		5-87832-048-0 01 1 1008- ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0) 		5-87832-049-0 01 1 0810- ● ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
4JJ1-TCX ENG(LS0) 		5-87832-067-0 01 1 0808-1102 ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
4JJ1-TCX ENG(LS0) 		5-87832-264-0 01 1 1103- ●
3 00.780 ROD; PUSH,SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) 		8-97945-722-0 01 1 0810-1003 ● ●
3 00.780 ROD; PUSH,SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) 		8-97945-722-0 01 1 1004-1007 ● ●
3 00.780 ROD; PUSH,SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 		8-97945-722-0 01 1 1008- ● ●
3 00.780 ROD; PUSH,SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0) 		8-97942-803-0 01 1 0810- ● ● ●
3 00.780 ROD; PUSH,SLAVE CYL
4JJ1-TCX ENG(LS0) 		8-97945-721-0 01 1 0808-1108 ●
3 00.780 ROD; PUSH,SLAVE CYL
4JJ1-TCX ENG(LS0) 		8-97947-769-0 01 1 1109- ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) 		8-97942-801-0 01 1 0810-1003 ● ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) 		8-97942-801-0 01 1 1004-1007 ● ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 		8-97942-801-0 01 1 1008- ● ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0) 		8-97942-802-0 01 1 0810- ● ● ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
4JJ1-TCX ENG(LS0) 		8-97028-736-0 01 1 0808- ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0) M8X16.5 		8-94115-113-0 01 1 0810- ● ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M8X10 		8-98020-477-0 01 1 0808-0809 ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) M8X10 		8-98020-477-0 01 1 0810-1007 ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) M8X10 		8-98020-477-0 01 1 1008- ● ●
8 00.780 CAP; BLEEDER,SLAVE CYL
OD=10 		8-97940-638-0 01 1 0808-0809 ●
8 00.780 CAP; BLEEDER,SLAVE CYL
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) OD=10 		8-97940-638-0 01 1 0810-1007 ● ● ● ● ●
8 00.780 CAP; BLEEDER,SLAVE CYL
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) OD=10 		8-97940-638-0 01 1 1008- ● ● ● ● ●

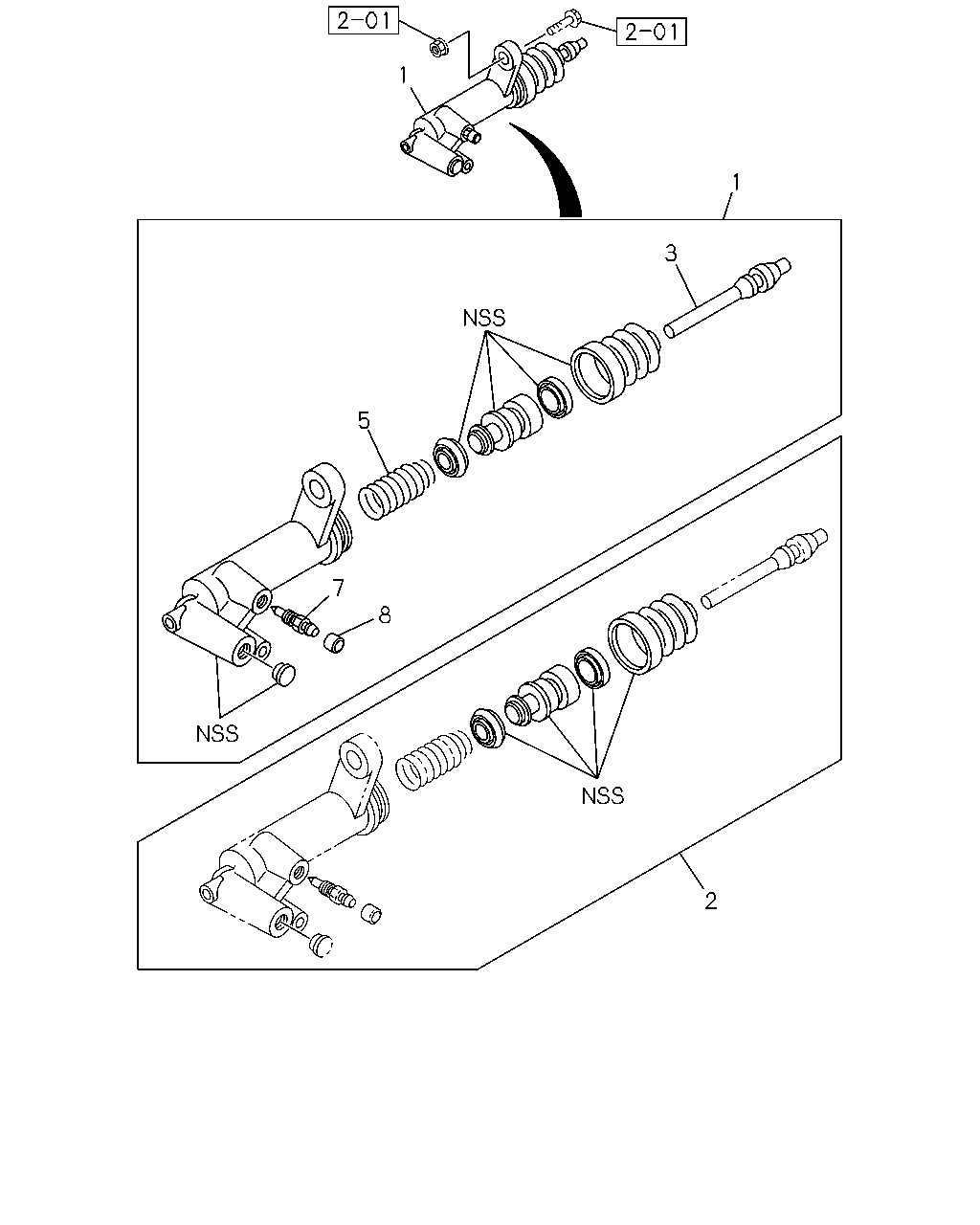

çizim 186145
1 1 3 5 7 8 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 00.780 CYLINDER; SLAVE,CLU
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) 		8-97945-177-0 01 1 0810-1003 ● ●
1 00.780 CYLINDER; SLAVE,CLU
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) 		8-97945-177-0 01 1 1004-1007 ● ●
1 00.780 CYLINDER; SLAVE,CLU
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 		8-97945-177-0 01 1 1008- ● ●
1 00.780 CYLINDER; SLAVE,CLU
4JA1-T ENG(LP0) 		8-97942-296-0 01 1 0810- ● ●
1 00.780 CYLINDER; SLAVE,CLU
C24SE ENG(LG1) 		8-97942-322-0 01 1 0810- ● ●
1 00.780 CYLINDER; SLAVE,CLU
4JJ1-TCX ENG(LS0) 		8-97944-513-3 01 1 0808-1108 ●
1 00.780 CYLINDER; SLAVE,CLU
4JJ1-TCX ENG(LS0) 		8-97947-765-0 01 1 1109- ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) 		5-87832-048-0 01 1 0810-1003 ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) 		5-87832-048-0 01 1 1004-1007 ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 		5-87832-048-0 01 1 1008- ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0) 		5-87832-049-0 01 1 0810- ● ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
4JJ1-TCX ENG(LS0) 		5-87832-067-0 01 1 0808-1102 ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
4JJ1-TCX ENG(LS0) 		5-87832-264-0 01 1 1103- ●
3 00.780 ROD; PUSH,SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) 		8-97945-722-0 01 1 0810-1003 ● ●
3 00.780 ROD; PUSH,SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) 		8-97945-722-0 01 1 1004-1007 ● ●
3 00.780 ROD; PUSH,SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 		8-97945-722-0 01 1 1008- ● ●
3 00.780 ROD; PUSH,SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0) 		8-97942-803-0 01 1 0810- ● ● ●
3 00.780 ROD; PUSH,SLAVE CYL
4JJ1-TCX ENG(LS0) 		8-97945-721-0 01 1 0808-1108 ●
3 00.780 ROD; PUSH,SLAVE CYL
4JJ1-TCX ENG(LS0) 		8-97947-769-0 01 1 1109- ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) 		8-97942-801-0 01 1 0810-1003 ● ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) 		8-97942-801-0 01 1 1004-1007 ● ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0) 		8-97942-801-0 01 1 1008- ● ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0) 		8-97942-802-0 01 1 0810- ● ● ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
4JJ1-TCX ENG(LS0) 		8-97028-736-0 01 1 0808- ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
C24SE ENG(LG1),4JA1-T ENG(LP0) M8X16.5 		8-94115-113-0 01 1 0810- ● ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M8X10 		8-98020-477-0 01 1 0808-0809 ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) M8X10 		8-98020-477-0 01 1 0810-1007 ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) M8X10 		8-98020-477-0 01 1 1008- ● ●
8 00.780 CAP; BLEEDER,SLAVE CYL
OD=10 		8-97940-638-0 01 1 0808-0809 ●
8 00.780 CAP; BLEEDER,SLAVE CYL
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) OD=10 		8-97940-638-0 01 1 0810-1007 ● ● ● ● ●
8 00.780 CAP; BLEEDER,SLAVE CYL
4JJ1-TCS ENG(LFB),C24SE ENG(LG1), 4JK1-TCS ENG(LKZ),4JA1-T ENG(LP0),4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) OD=10 		8-97940-638-0 01 1 1008- ● ● ● ● ●
